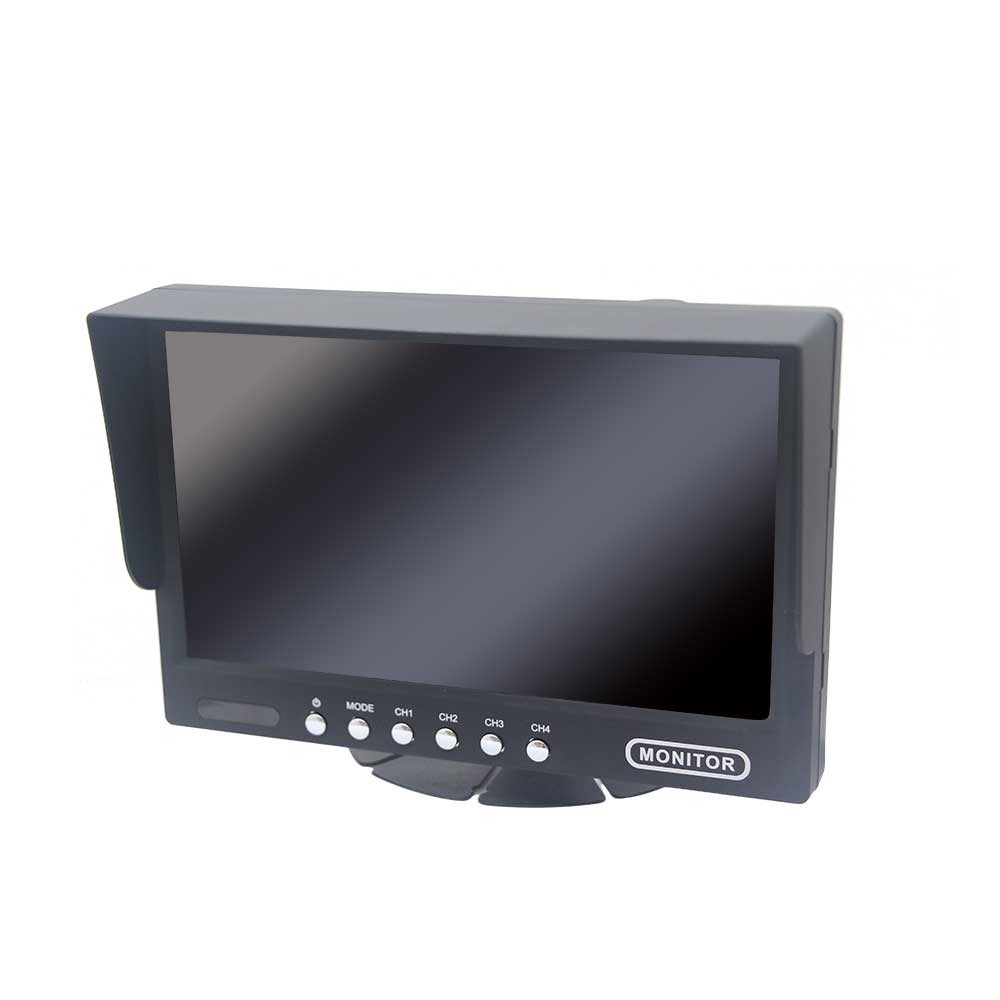

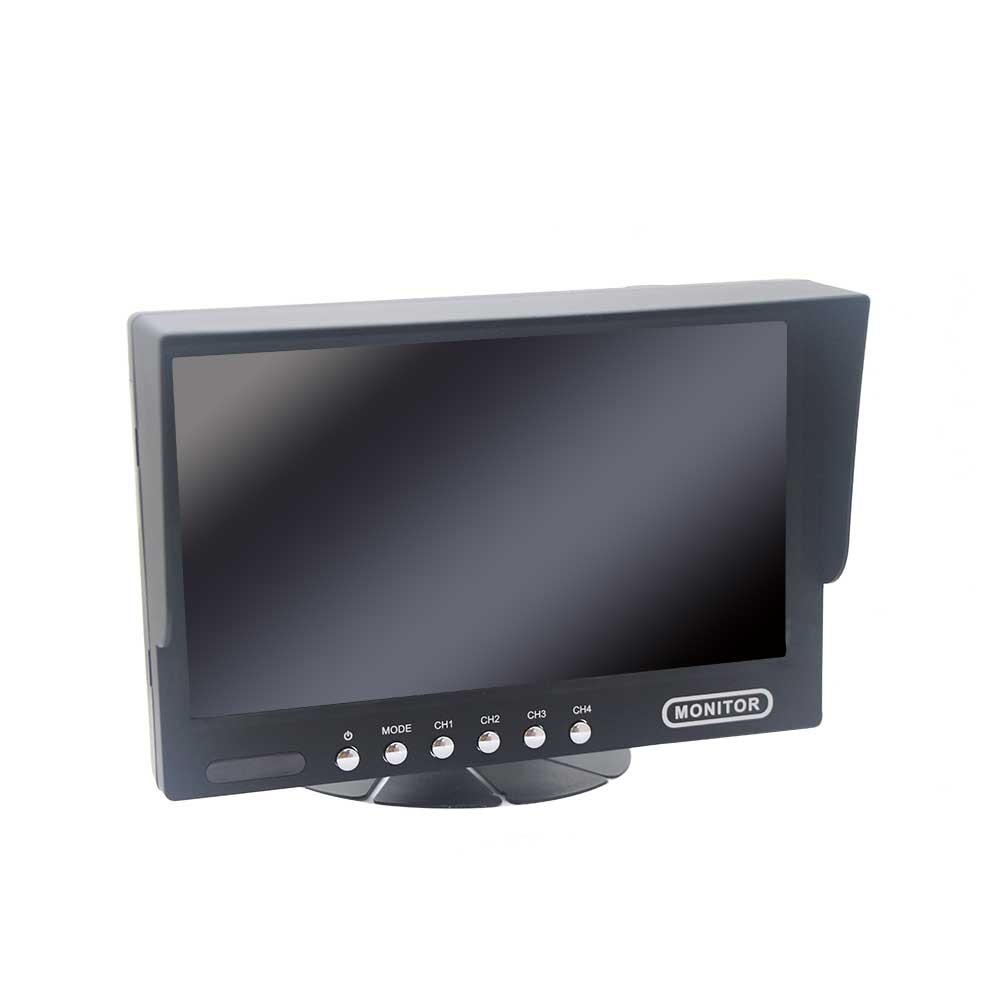

7 Inch HD Quad View Monitor for Commercial Vehicle

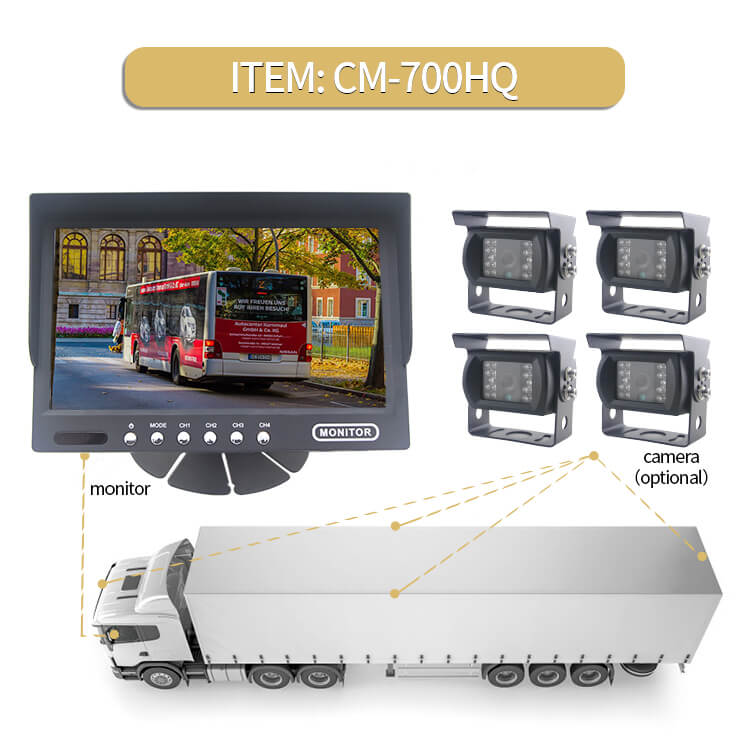

Aotop 7 Inch HD quad view monitor support 4CH AHD video signal input, connect 4CH camera for all-around real-time monitoring of the vehicles, helping drivers to keep track of the situation around the vehicles. Built-in 256GB memory card, DVR recording function provides critical video evidence in the event of an accident, improving fleet safety operational efficiency. If you are looking for reliable car monitor manufacturers & suppliers in China, please contact us at sales@aotop.com!

PRODUCT FEATURES

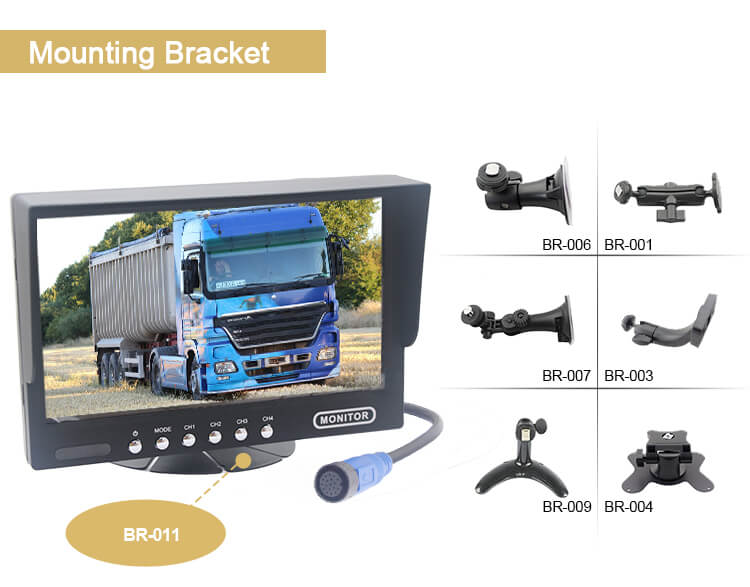

  • Sunshade cover & fan bracket

  • 1024*RGB*600 HD resolution (IPS LCD screen)

  • 4CH x cameras video signal input

  • Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS

  • 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

  • 1CH audio signal input (high quality speaker)

  • Full display & dual/triples/quad split view mode

  • Built-in 256GB memory card (4CH DVR HD loop recorder)

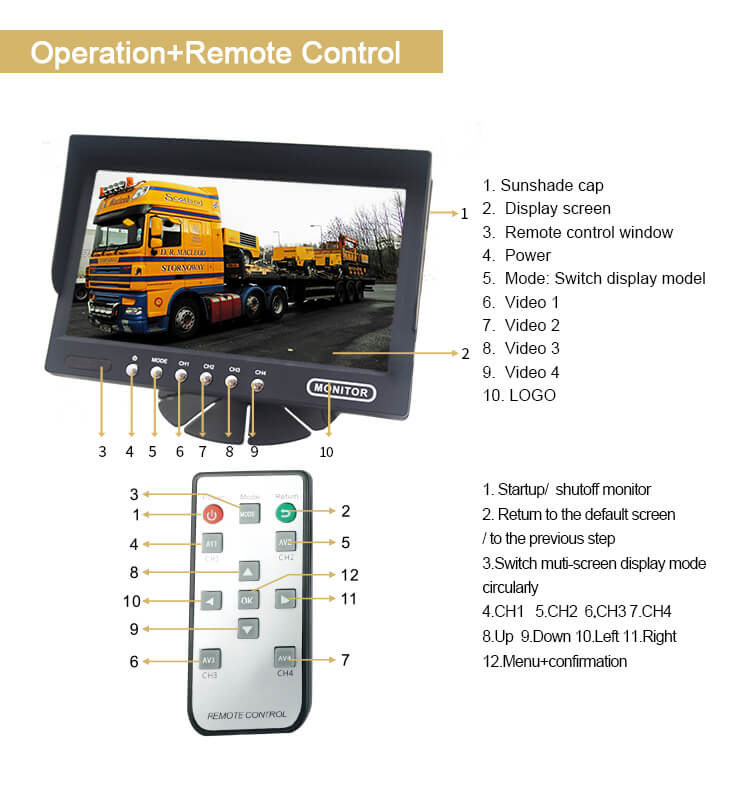

  • Full-function remote control

  • Multi-language settings

  • Horizontal mirror image switching

  • DC 12-24V wide voltage

  • AUTO adaption PAL / NTSC TV system


7 Inch HD Quad View Monitor for Commercial Vehicle (CM-700HQ):

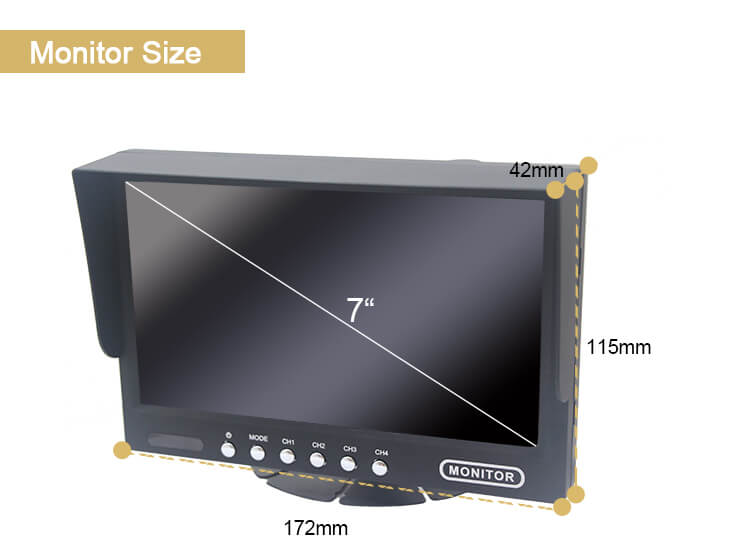

Screen Type & Size7 Inch IPS LCD Screen
Aspect Ratio16:9
Resolution1024*R.G.B*600
Brightness500cd/㎡
Contrast500:1
Viewing AngleUp-85°, Down-85°, Left , Right-85°
Video Input

Support 4CH AHD 1080P/720P/960P/CVBS

Mixed Video Signal Inpu

Audio Input1CH Camera Audio Input (Available Speaker)
OSD Menu

Image Setting, Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Recording Settings, Parking Guide Line On/Off, Reset

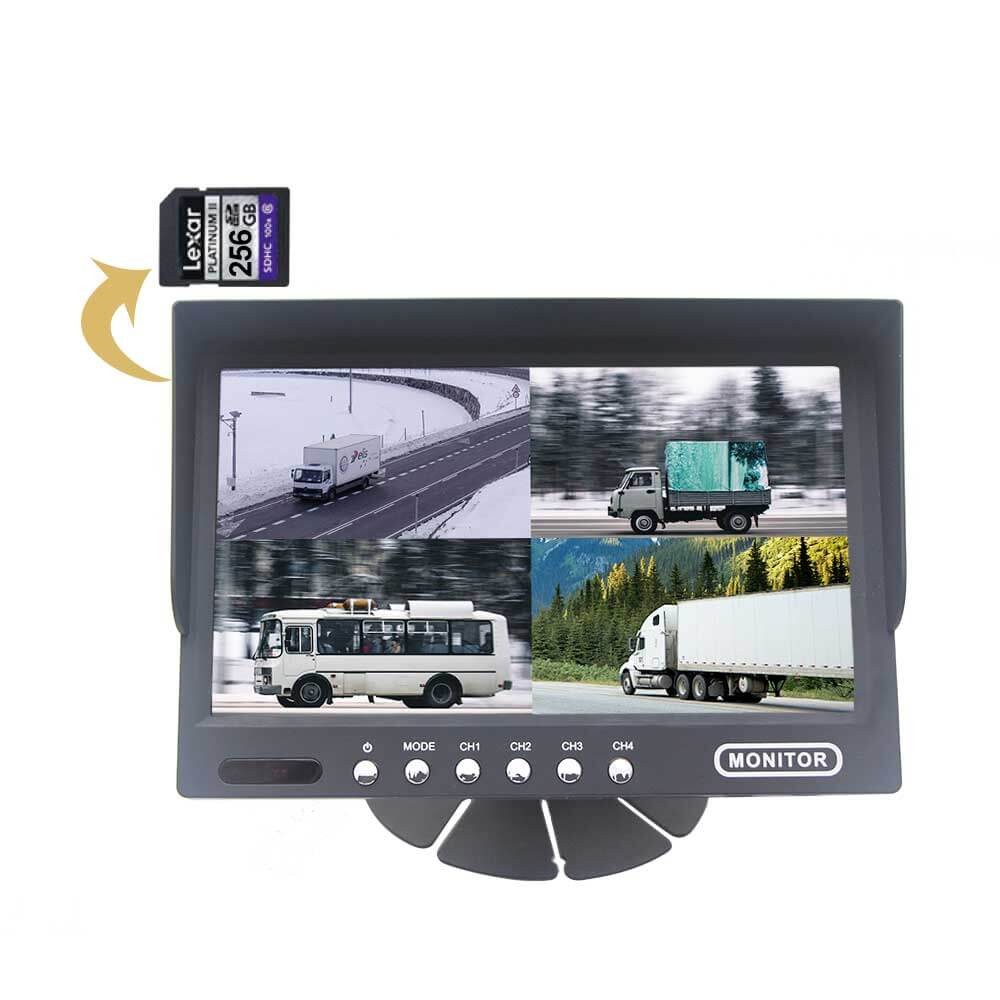

DVR FunctionBuilt-in 256GB Memory Card

4CH Camera Image HD Recording

Recording Replay

Support Single Image Real Time Replay

(No Audio When Playback)

Parking Guide LineEach Channel Is Controlled Separately, Off As Default
Mirror / Normal ImageEach Channel Is Controlled Separately, Mirror As Default

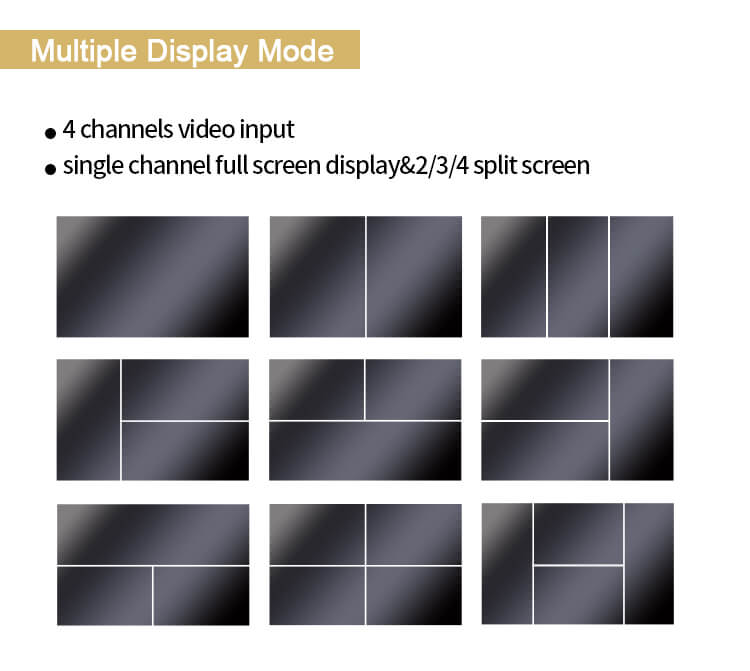

Split View ModeSingle/Double/Triple/Quad View Image Display
Trigger4CH Trigger Lines
SystemAUTO Adaptation PAL / NTSC
Power SupplyDC 12-24V
Currents12V/1.1A
Operating Power13.2W
Boot TimeAbout 2~3 sec.

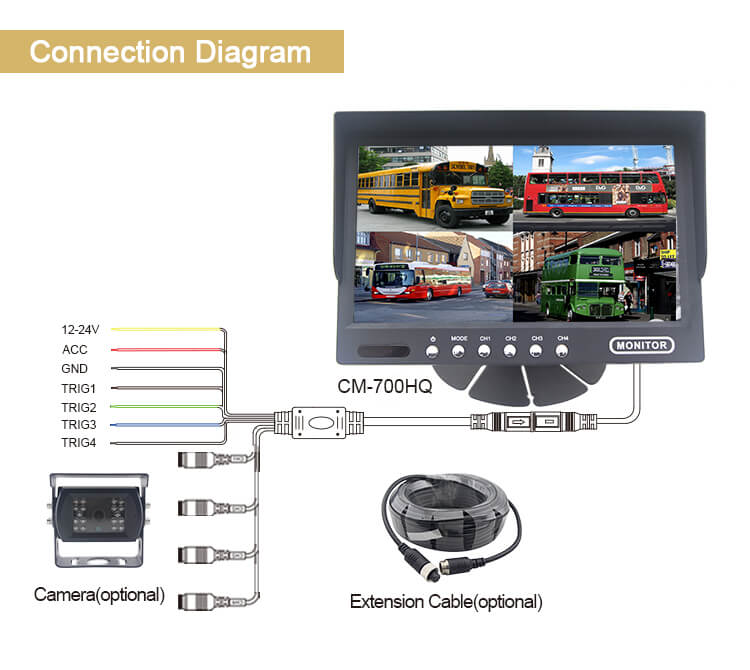

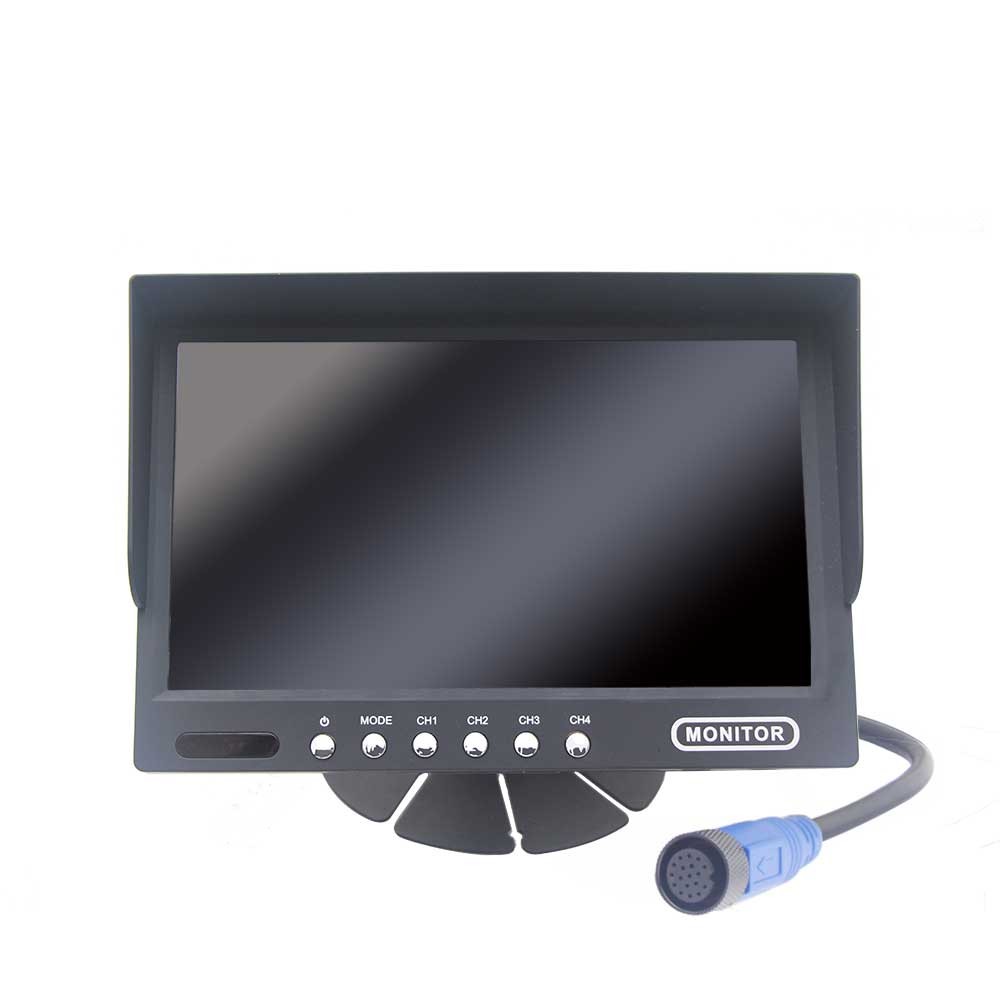

Connection Plug (Connector)Waterproof Aviation Female Connector
Vibration Rating4G
Operating Temperature-20°c~+70°c(RH0%-RH90%)
Storage Temperature-30°c~+80°c(RH0%-RH90%)

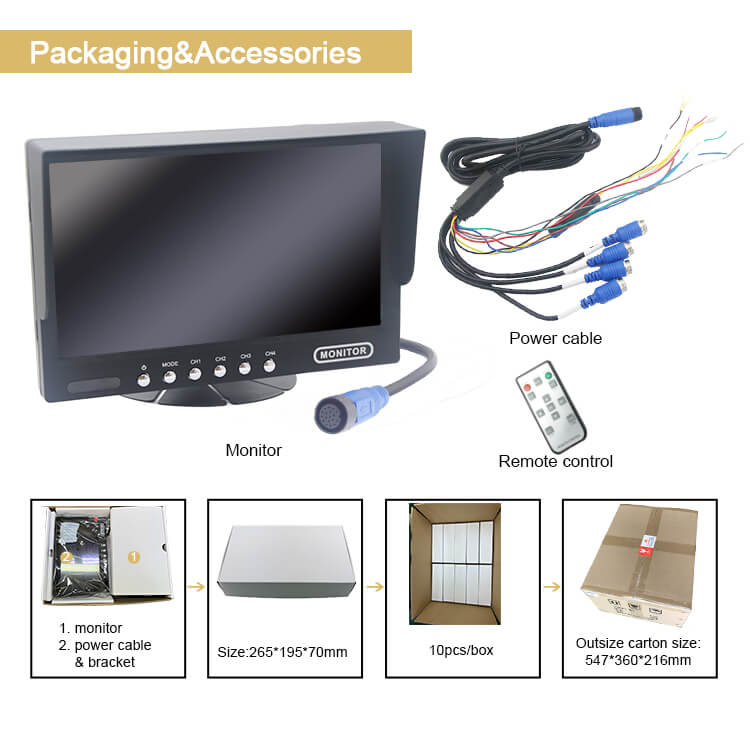

OEM&ODM CustomizationBracket/LOGO Plate & Label/Graphic Carton
Warranty2 Years
CertificationE-Mark、E24、CE、FCC、UKCA
