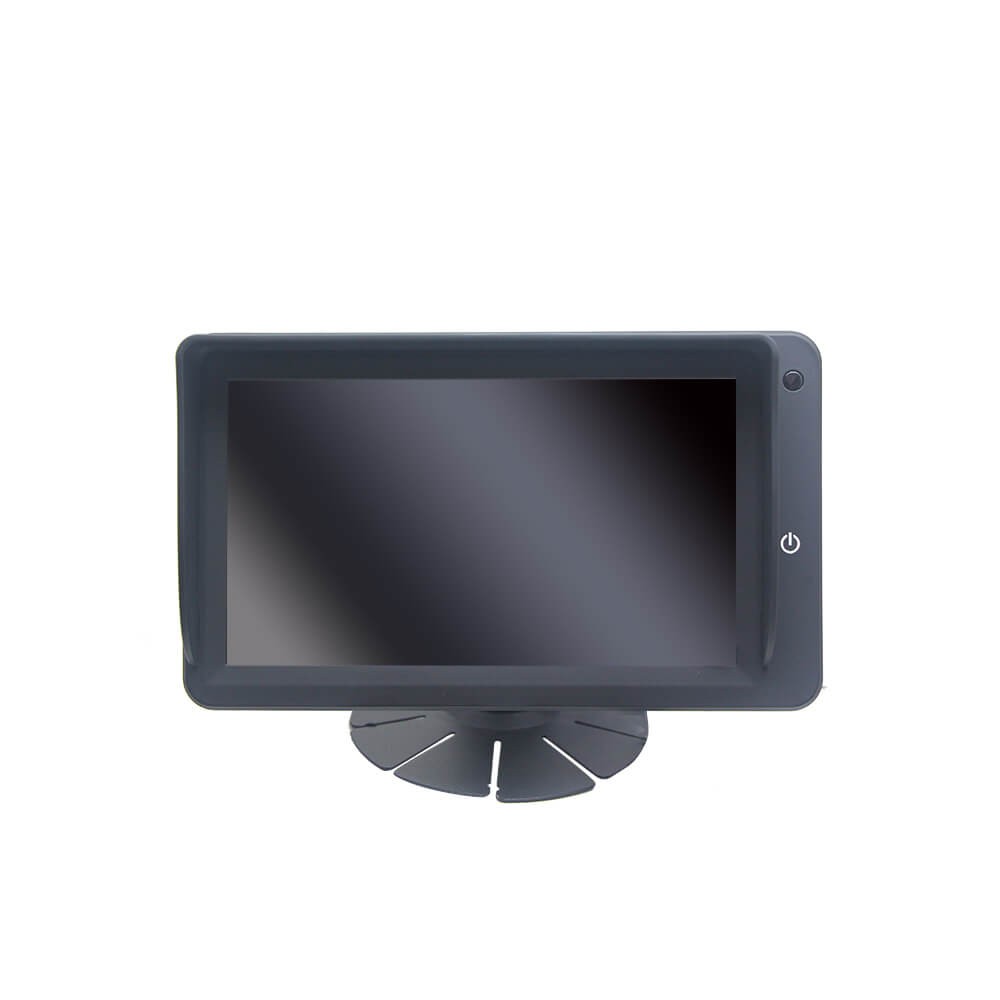

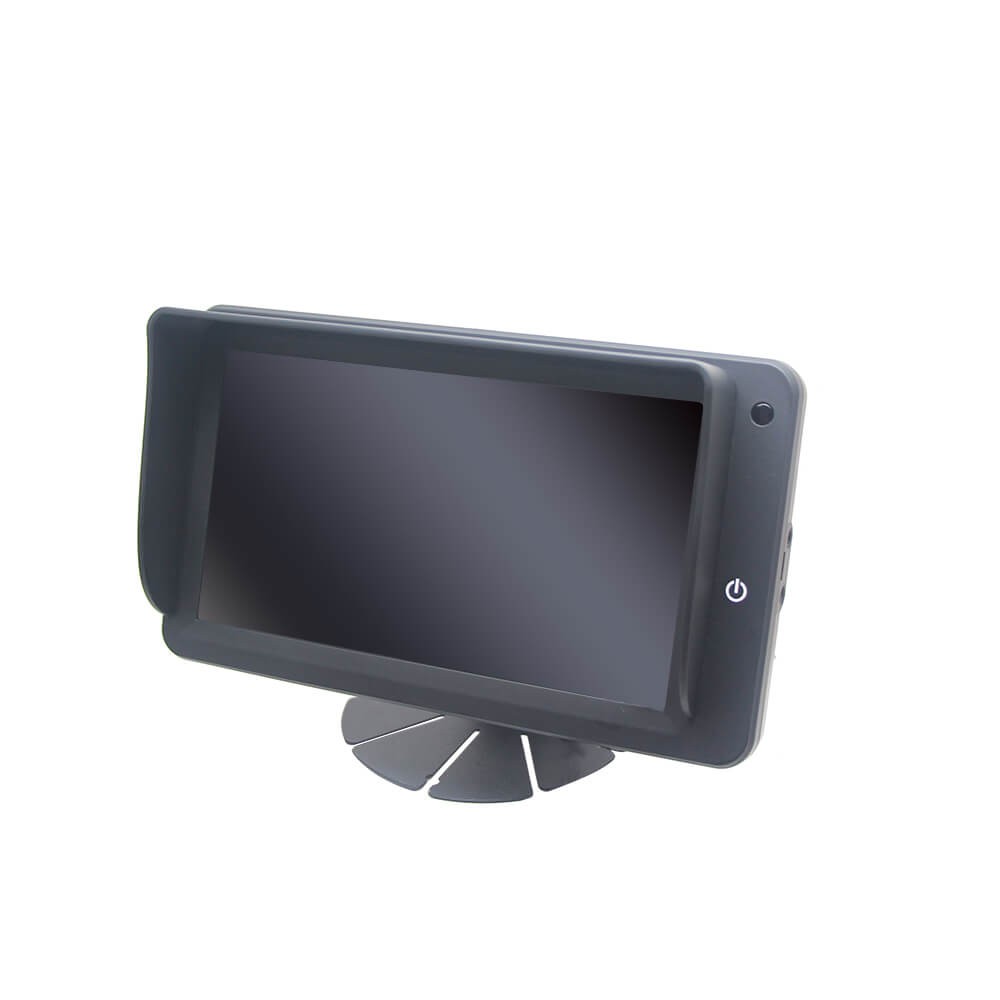

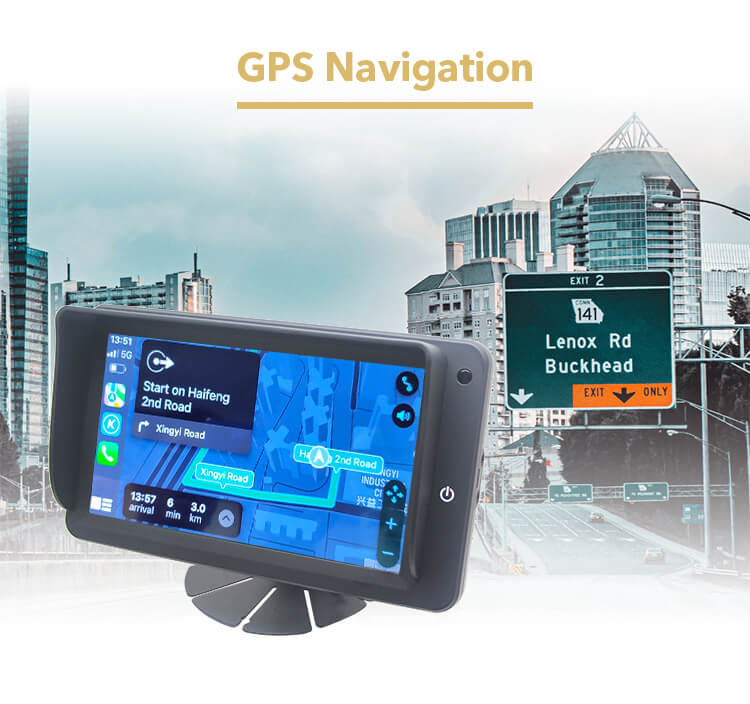

Features 7 inch IPS LCD digital screen, full screen touch. Supports 4CH AHD video signal input, connects with 4 vehicle cameras, quad split view effectively cover the blind spot around the vehicle reduce accidents, provide an efficient monitoring solution for large vehicles. Support wireless CarPlay & Android Auto mobile phone interconnection, you can complete navigation, telephone and music functions on the monitor. If you are looking for reliable CarPlay monitor manufacturers in china, please contact us at sales@aotop.com.
PRODUCT FEATURES

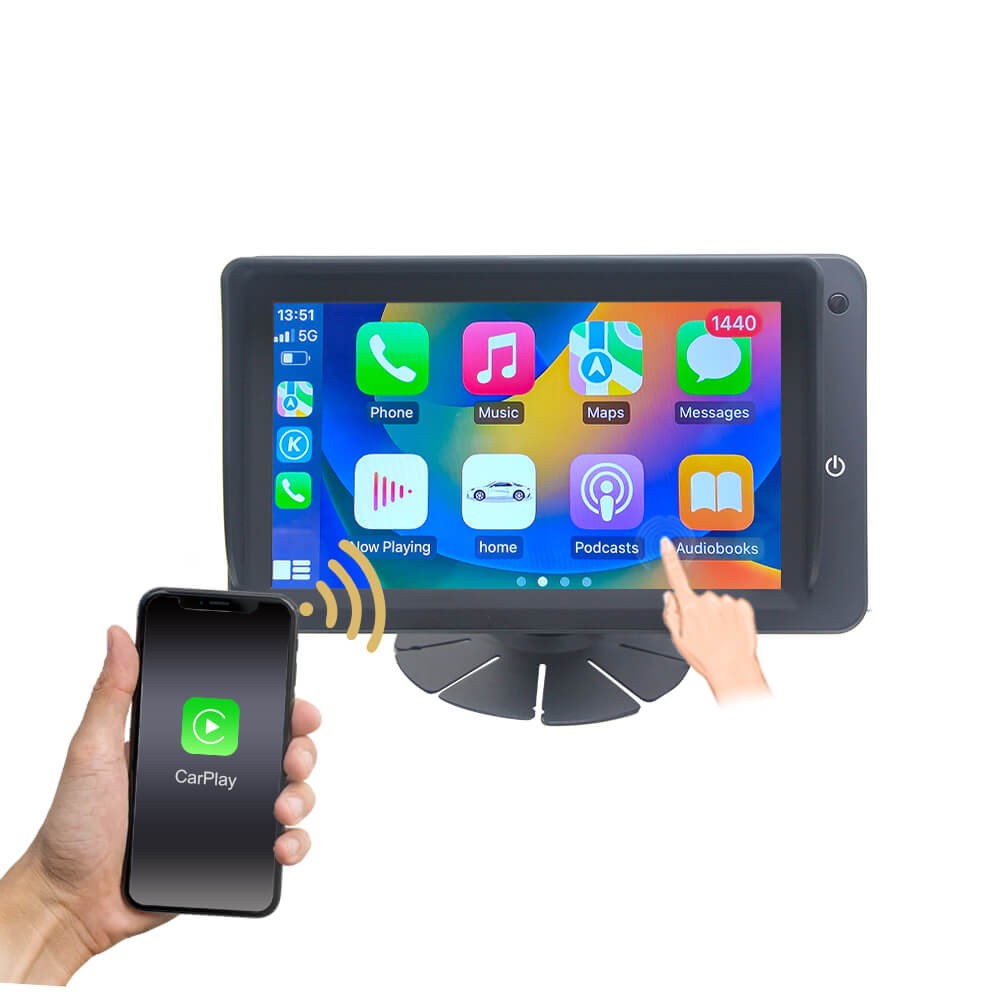

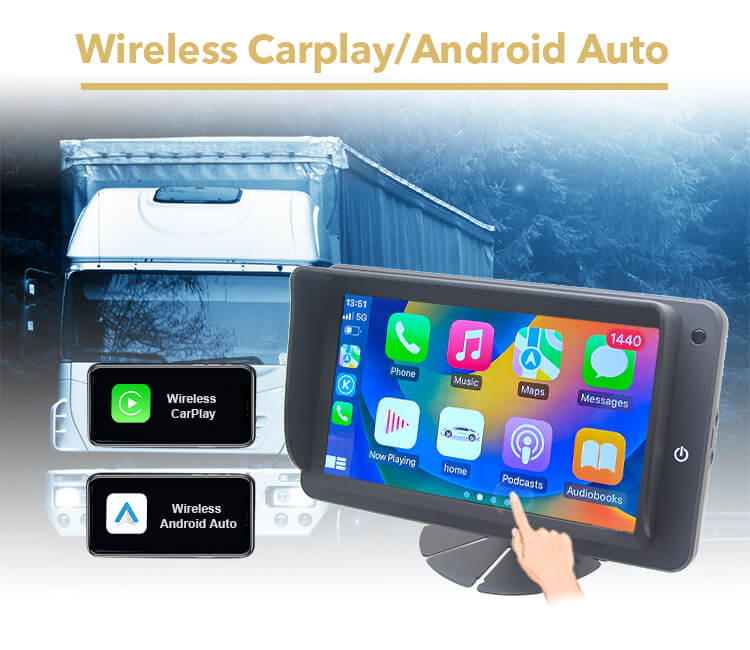

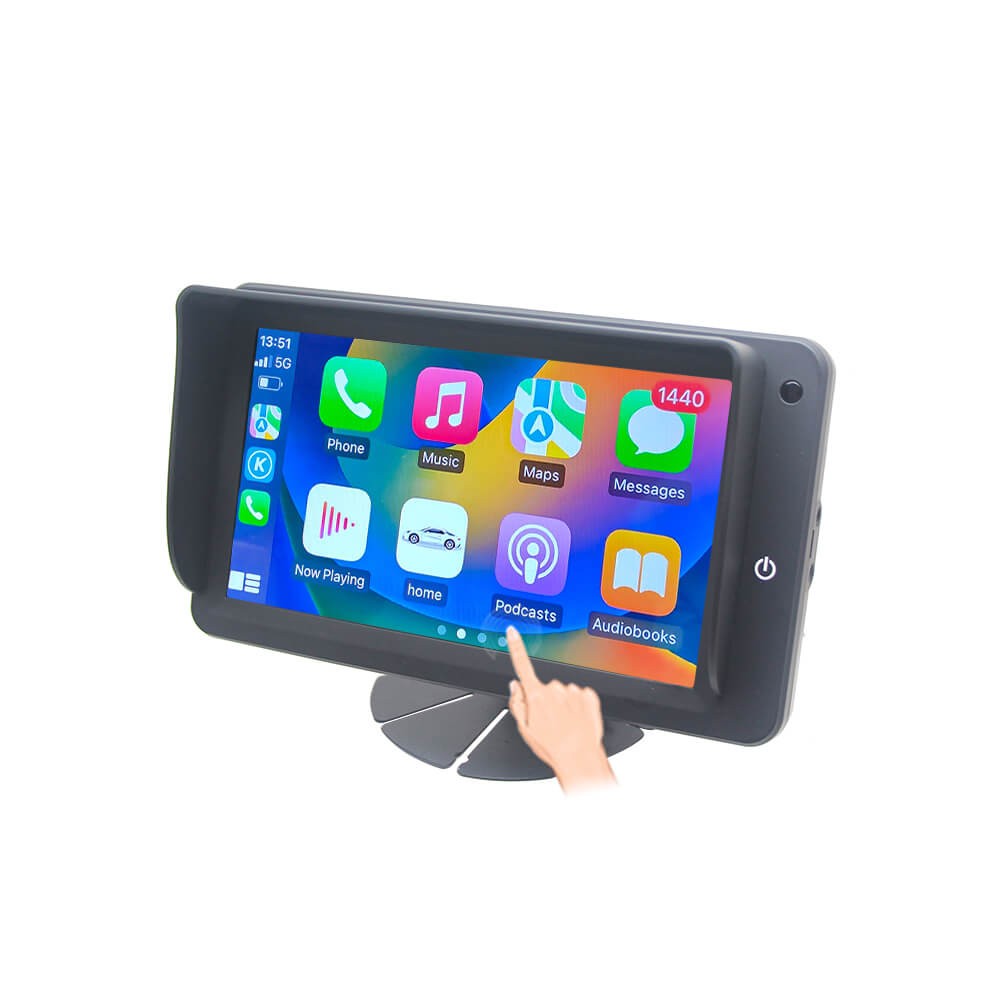

Wireless CarPlay & Android Automotive connection
FM radio; Phone bluetooth & WI-FI wireless connection;
1024*RGB*600 IPS LCD digital screen (full touch)

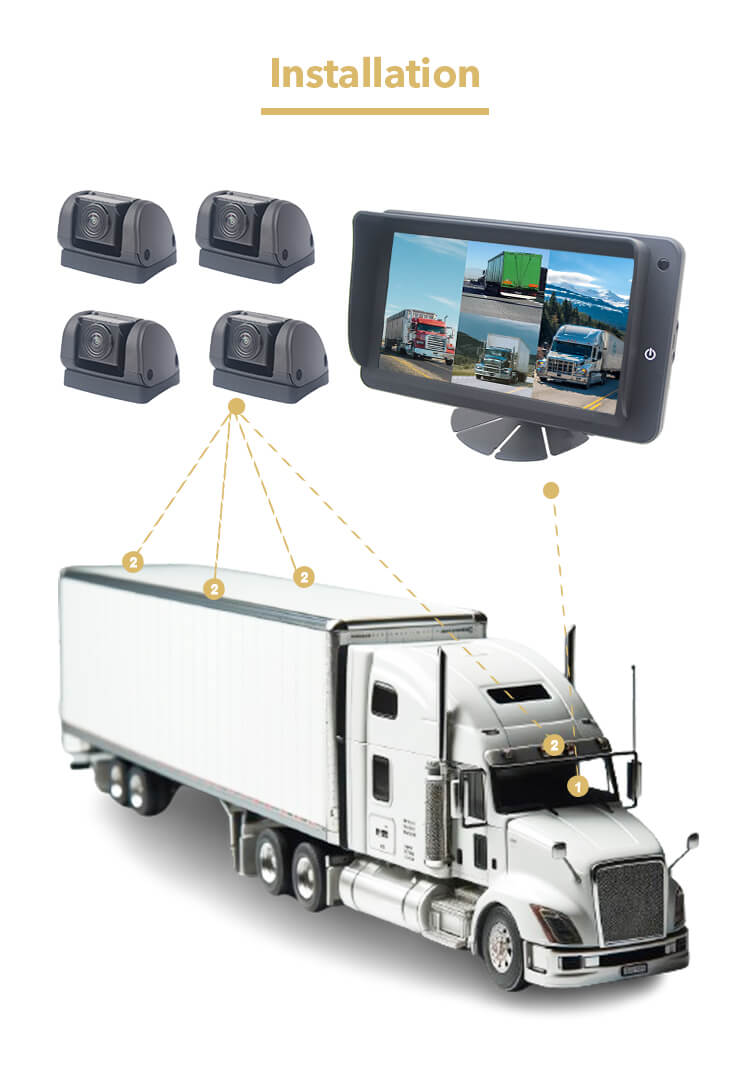

4CH x cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / PAL / NTSC

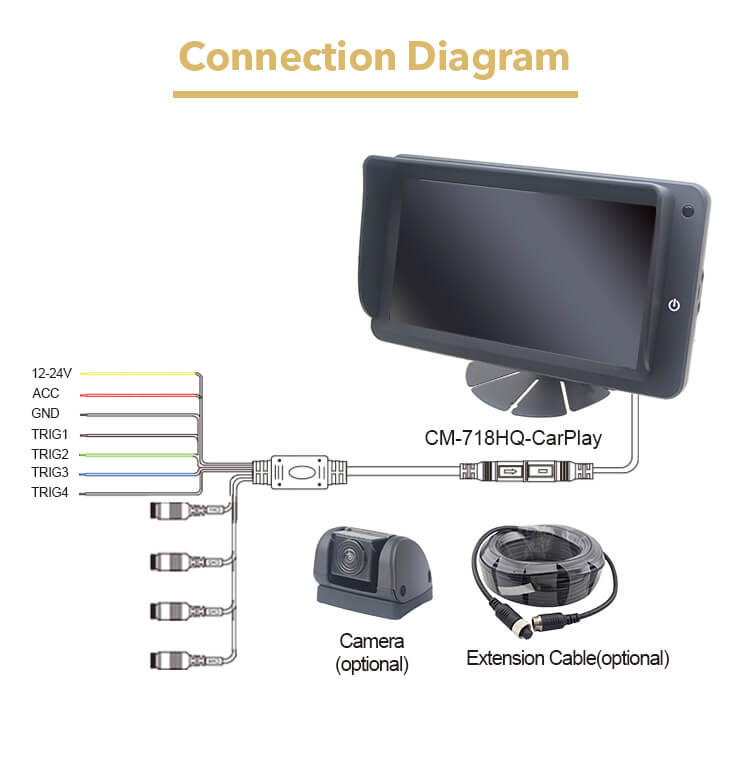

4 trigger lines input, trigger line definition, image signal trigger delay & priority can be adjusted freely;
Full display & dual/triples、quad split view mode
Max. 256GB memory card (4CH DVR HD loop recorder)
Multi-language settings
Horizontal mirror image switching
DC 12-24V wide voltage
| Screen ratio | 16:9 |
| Screen resolution | 1024*R.G.B*600 BOE |
| Backlight | LED, brightness 400 cd/m2 |
| Contrast | 500:1 |
| Viewing angle | UP—85°, DOWN—85°, LEFT—85°, RIGHT—85° |

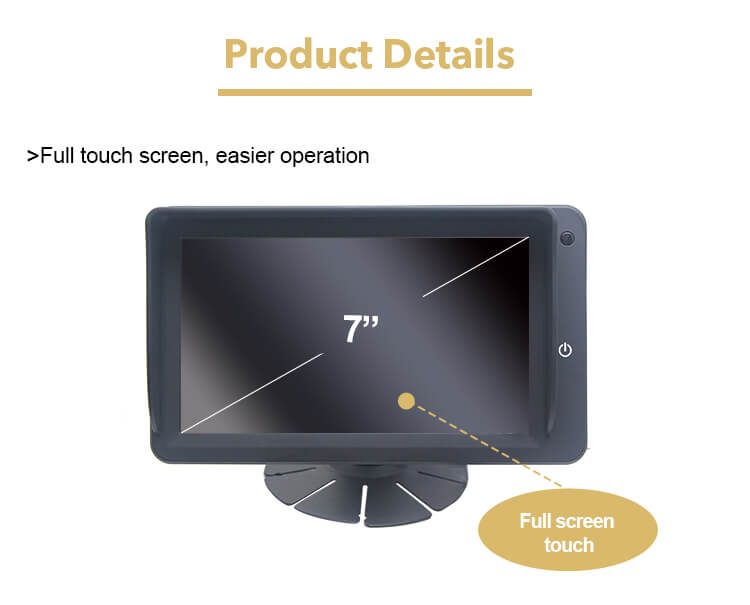

| Operating method | Full touch screen |
| OSD control | DVR, carplay, FM emission, settings, Bluetooth, brightness, volume |
| Signal input | 4CH AHD 720PAL / 720NTSC / 1080PAL / 1080NTSC |
| Recording | Support SD card recording |
| SD card | Support 32G-256G, Class 10 and above |
| Video compression format | H.264 |
| Recording resolution | 720P |

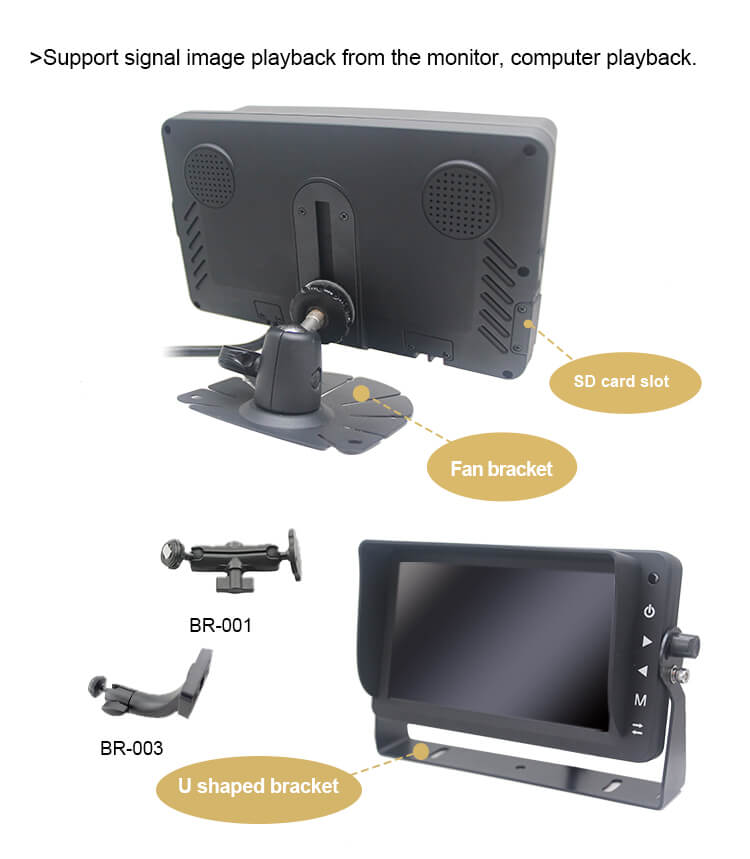

| Reccording playback | Signal image playback from the monitor, computer playback |
| File format | TS |
| File size | 720P (1 minute) ≈ 31MB 1 minute, 3 minutes or 5 minutes optional |
| System language | English, Japanese, Korean, Russian, German, French, Thai, Czech, Portuguese, Polish, Dutch, Turkis |

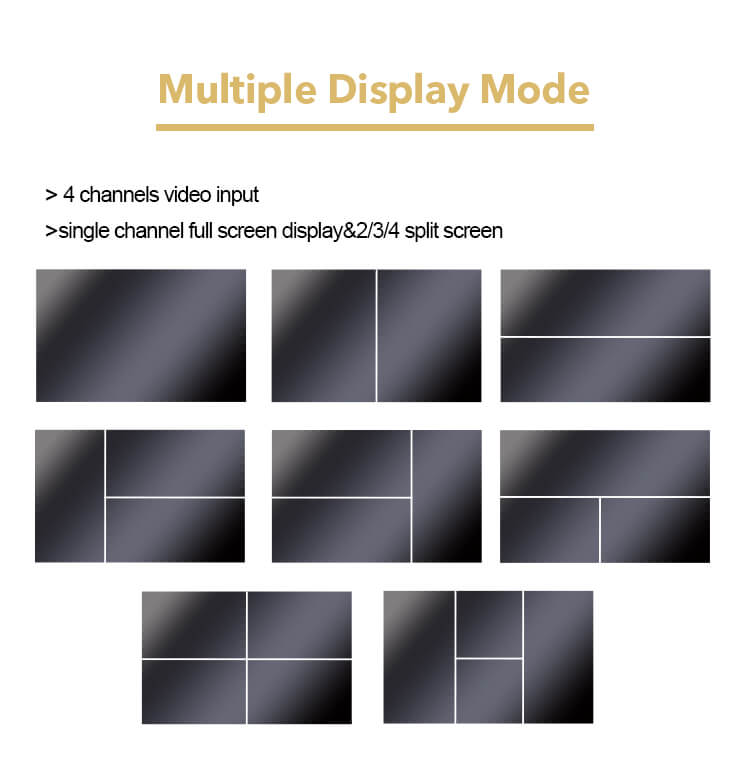

| Image display | Support quad image display,1/2/3/4 images display adjustable |
| Parking line | Support customzied size and position for parking line |
| Mobile interconnection | Supports IOS 12 and above systems, but not iPhone 6 and below. Support Android Auto Overseas Edition |
| Channel image setting | Support flip and mirror setting for each channel |
| Shockproof | 4G |
| Audio | Built in high sensitivity MIC, supporting high fidelity speakers for calls and carplay sound playing |
| Working temperature | -20℃~+70 ºC |
| Storage temperature | -30℃~+80 ºC |
| Working humidity | 85%RH |
| Power supply | 12-24V |
| Power | DC12V≈5W not including LCD, camera |
| Current consumption | DC12V≈400MA , without cameras |
| Booting time | 4s |
