Full touch screen 7 inch CarPlay monitor supports 4 HD camera video signal inputs, allowing you to connect 4 car cameras at the same time for full monitoring of your vehicle's surroundings, reduce scrapes and other accidents. No need for external DVR, loop recording with built-in 256GB memory card. Supports wireless CarPlay mobile phone connectivity to play music, map navigation and answer calls on the monitor. If you are looking for reliable CarPlay monitor manufacturers in china, please contact us at sales@aotop.com.
PRODUCT FEATURES

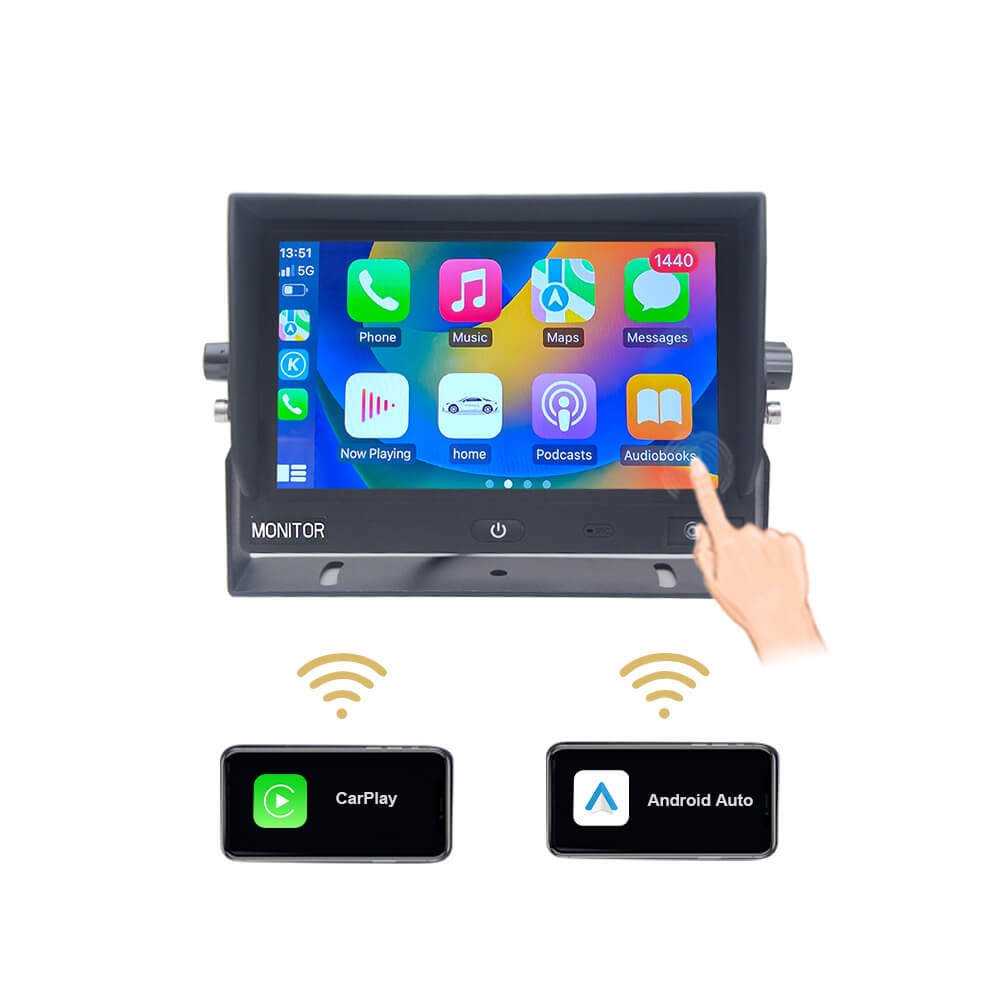

Wireless CarPlay & Android Automotive connection; Bluetooth connection;

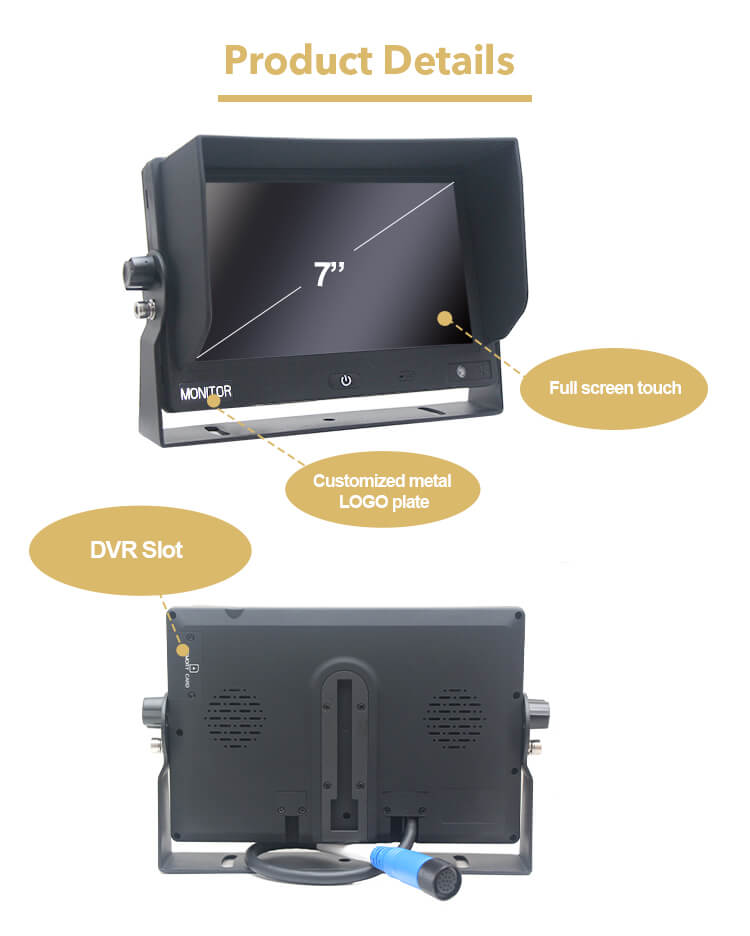

1024*RGB*600 IPS LCD screen (full touch)
4CH x cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / PAL / NTSC

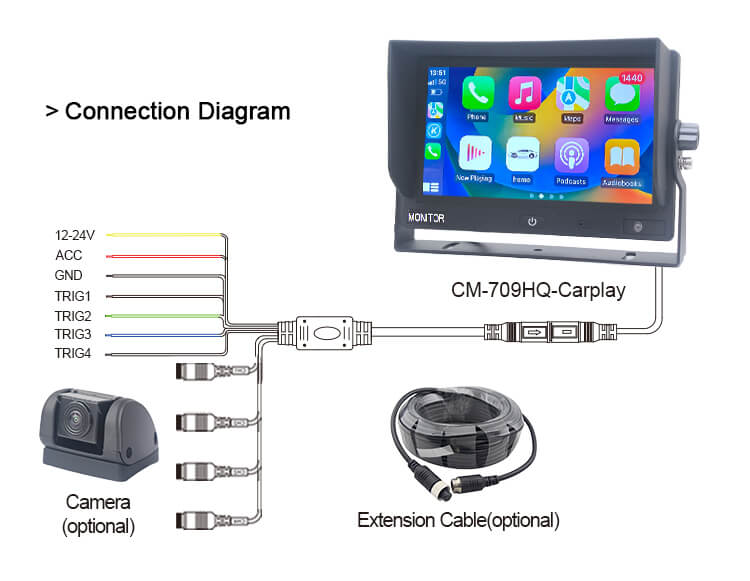

4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;
Full display & dual/triples/quad split view mode

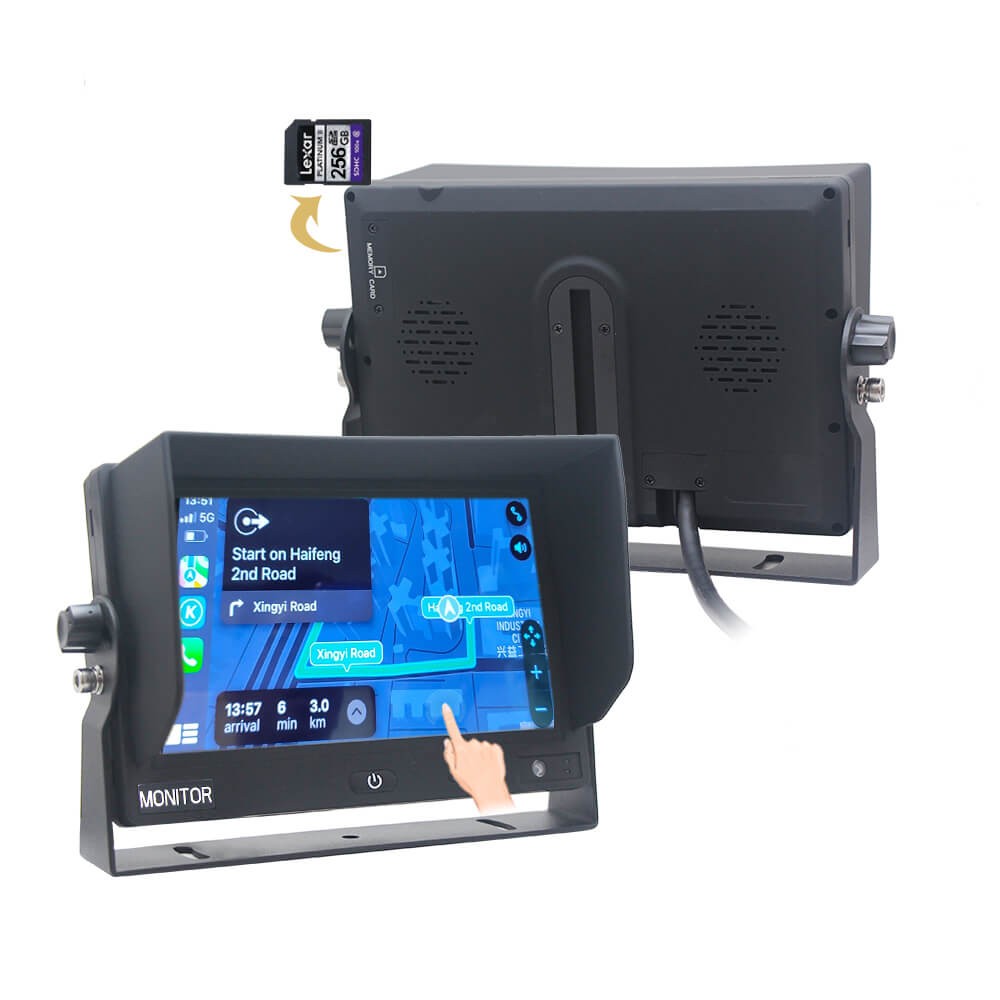

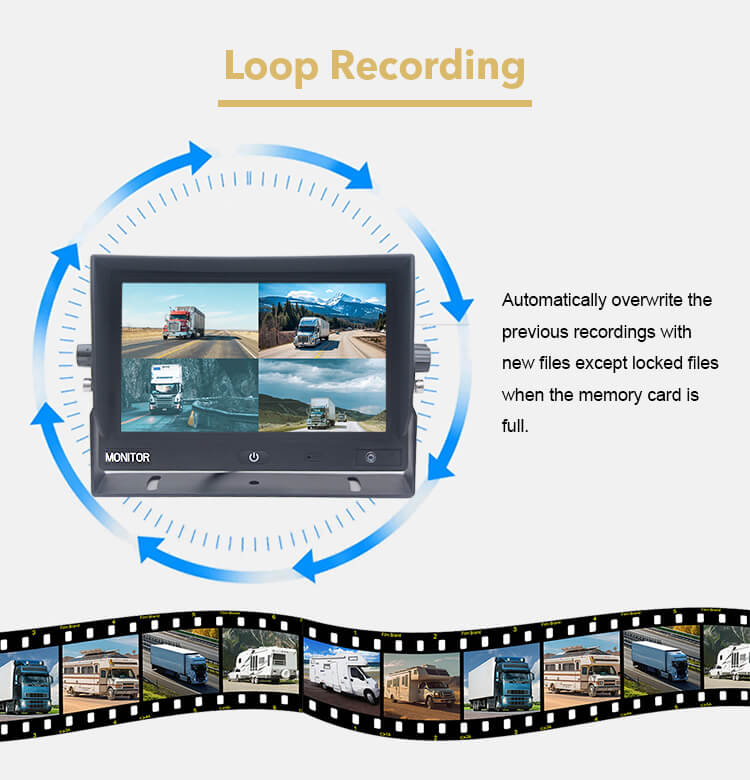

Max. 256GB memory card (4CH DVR HD loop recorder)
Multi-language settings
Horizontal mirror image switching
| Screen ratio | 16:9 |
| Screen resolution | 1024*R.G.B*600 BOE |
| Backlight | LED, brightness 400 cd/m2 |
| Contrast | 500:1 |
| Viewing angle | UP—85°, DOWN—85°, LEFT—85°, RIGHT—85° |
| Operating method | Full touch screen |
| OSD control | DVR, carplay, FM emission, settings, Bluetooth, brightness, volume |
| Signal input | 4CH AHD 720P/720N/1080P/1080N |
| Recording | Support SD card recording |
| SD card | Support 32G-256G, Class 10 and above |
| Video compression format | H.264 |
| Recording resolution | 720P\1080P |
| Reccording playback | Signal image playback from the monitor, computer playback |
| File format | TS |
| File size | 720P (1 minute) ≈ 31MB 1080P(1 minute) ≈ 50MB 1 minute, 3 minutes or 5 minutes optiona |
| System language | English, Japanese, Korean, Russian, German, French, Thai, Czech, Portuguese, Polish, Dutch, Turkish |
| Image display | Support quad image display,1/2/3/4 images display adjustable |
| Parking line | Support customzied size and position for parking line |
| Mobile interconnection | Supports IOS 12 and above systems, but not iPhone 6 and below. Support Android Auto Overseas Edition |
| Channel image setting | Support flip and mirror setting for each channel |
| Shockproof | 4G |
| Audio | Built in high sensitivity MIC, supporting high fidelity speakers for calls and carplay sound playing |
| Working temperature | -20℃~+70 ºC |
| Storage temperature | -30℃~+80 ºC |
| Working humidity | 85%RH |
| Power supply | 9-36V |
| Power | DC12V≈5W not including LCD, camera |
| Current consumption | DC12V≈400MA , without cameras |
| Booting time | 4s |
| Speaker | 8Ω2W*1 |
