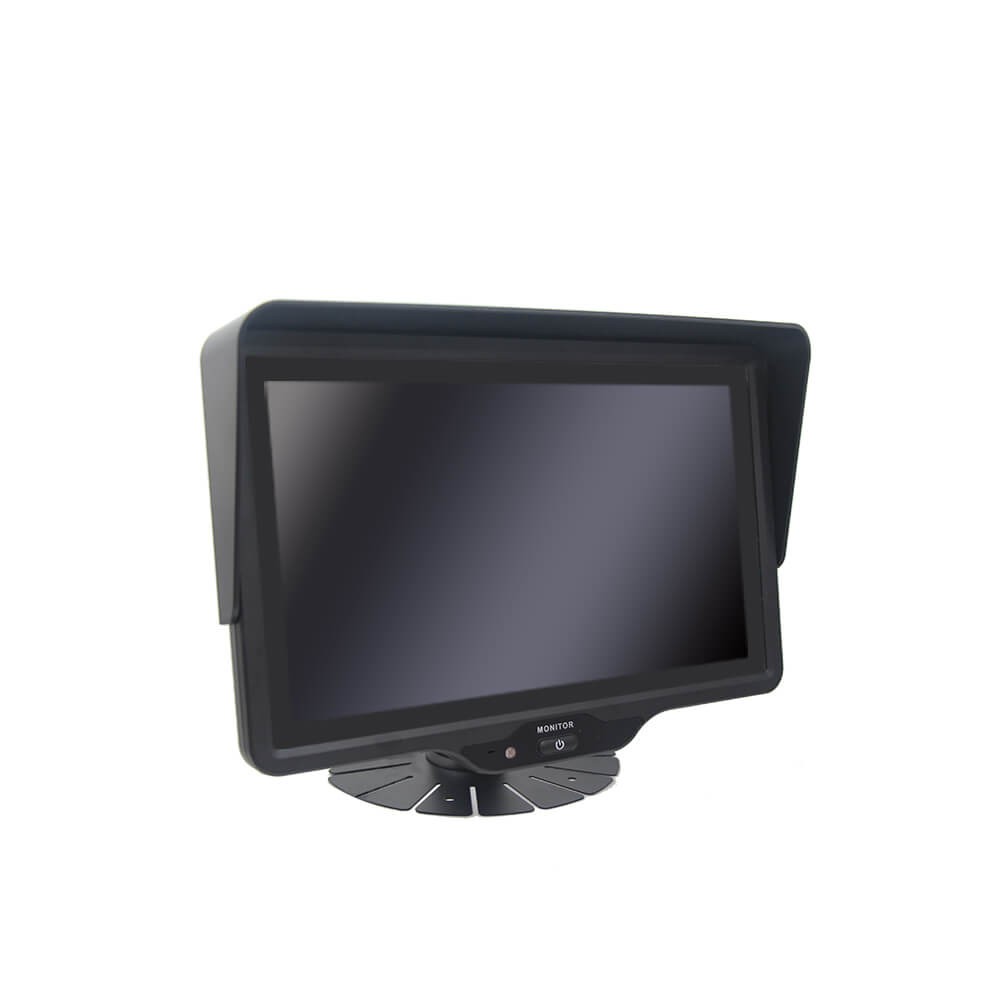

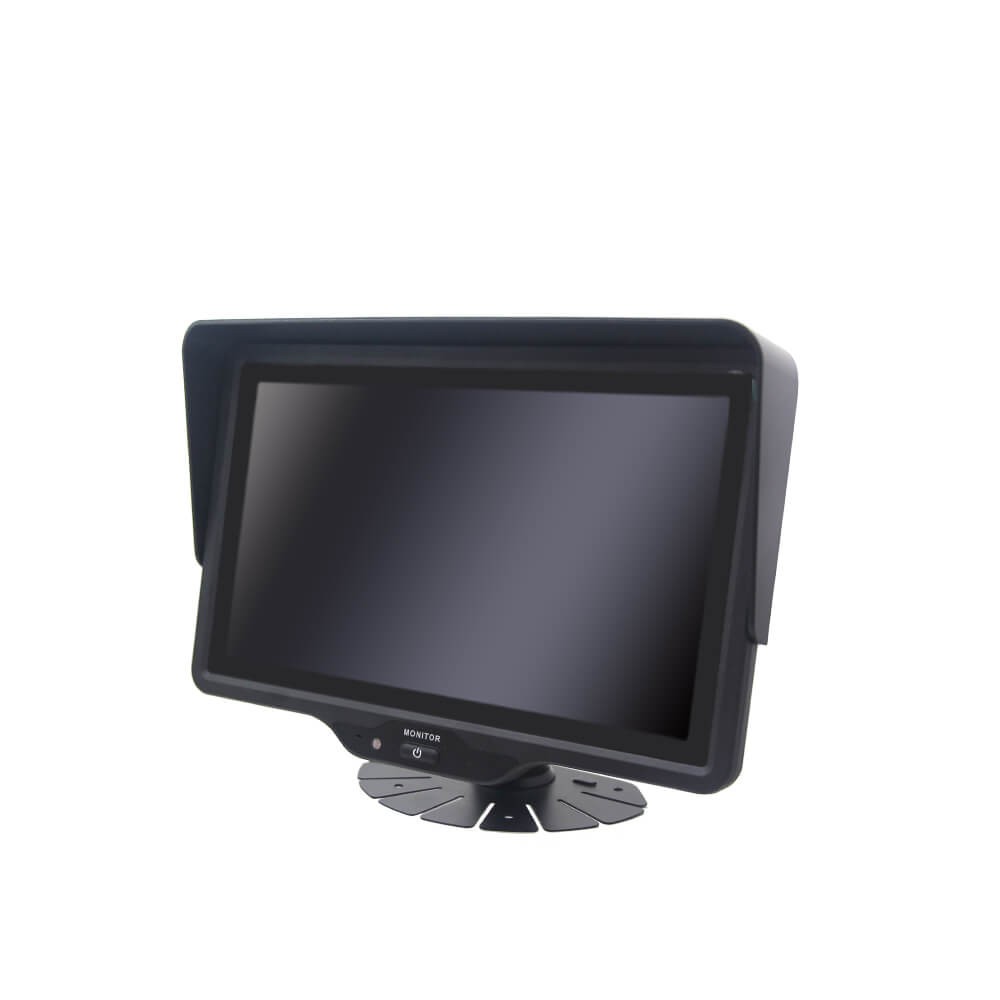

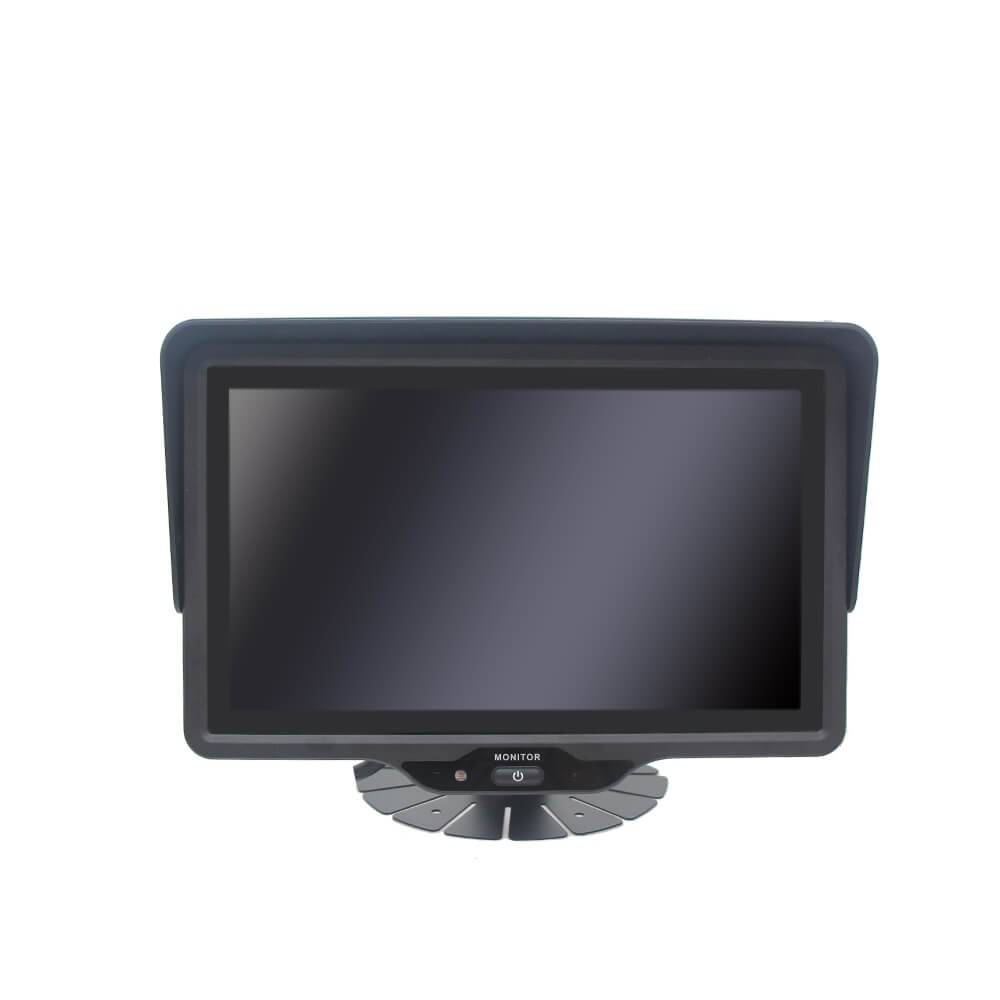

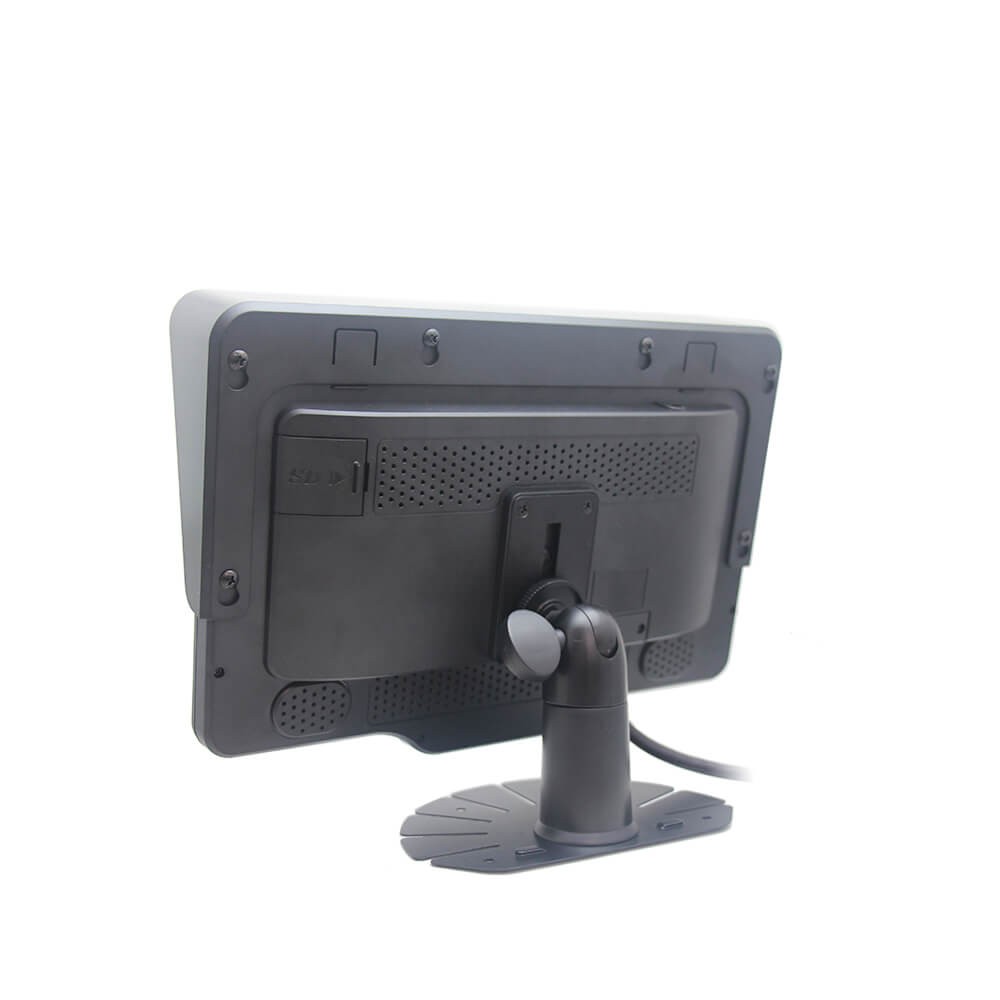

10.1" CarPlay Monitor with DVR function

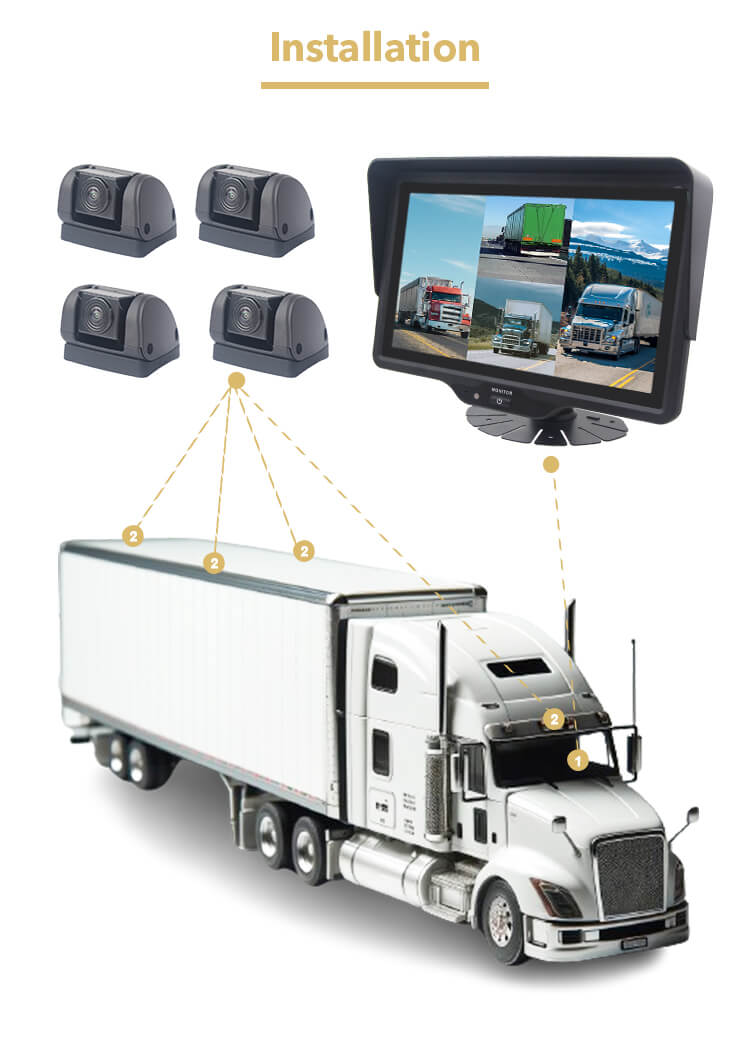

Monitor feature 10.1 inch IPS LCD digital screen, supporting full-screen touch control. Supports 4-way HD video signal input, connects with 4 vehicle cameras, and realises 360° panoramic monitoring through quad split view. Effectively cover the blind spots around the vehicle, providing efficient monitoring solutions for large vehicles. Supports wireless CarPlay & Android Auto mobile phone connectivity, providing more convenience for driving. If you are looking for reliable CarPlay monitor manufacturers in china, please contact us at sales@aotop.com.

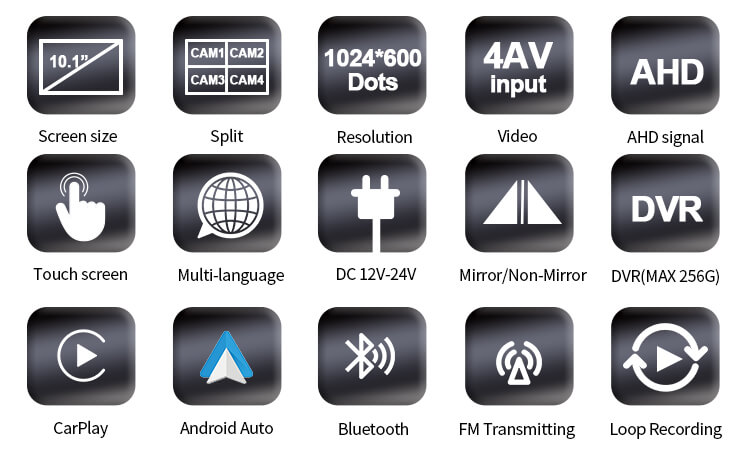

PRODUCT FEATURES

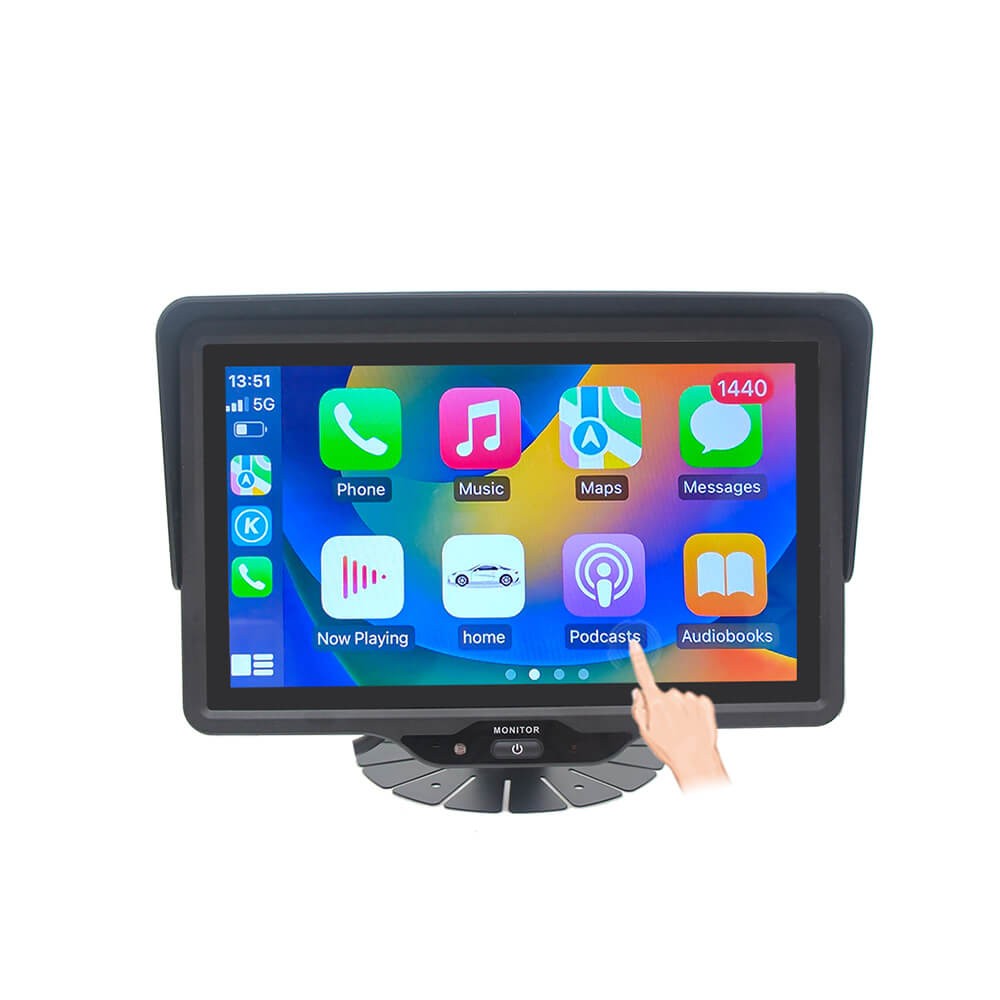

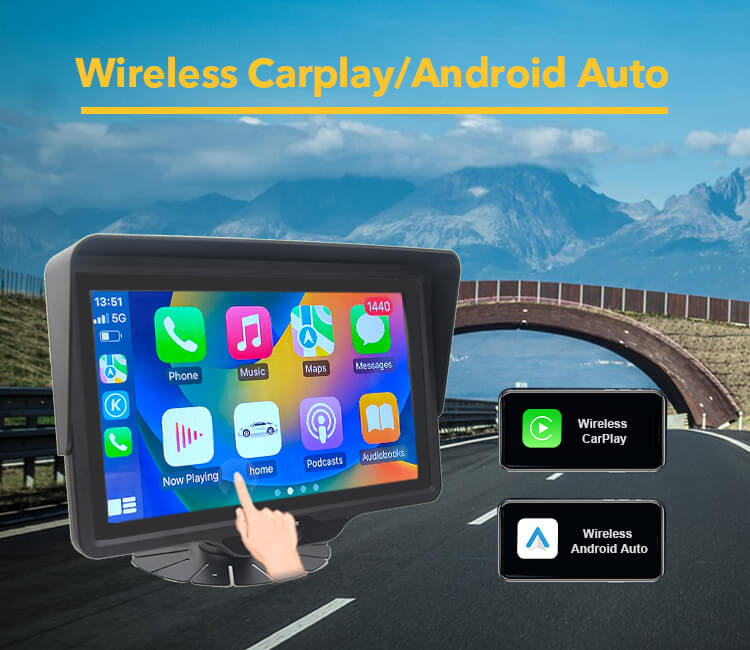

  • Wireless CarPlay & Android Automotive connection; FM radio;

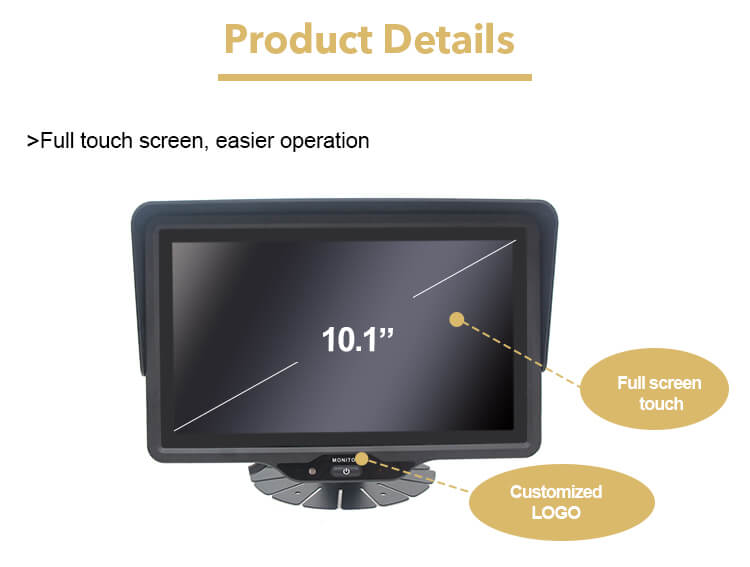

  • 1024*RGB*600 IPS LCD screen (full touch screen)

  • 4CH x cameras video signal input

  • Multiple video formats available to cameras: 720P / 1080P / AHD / PAL / NTSC

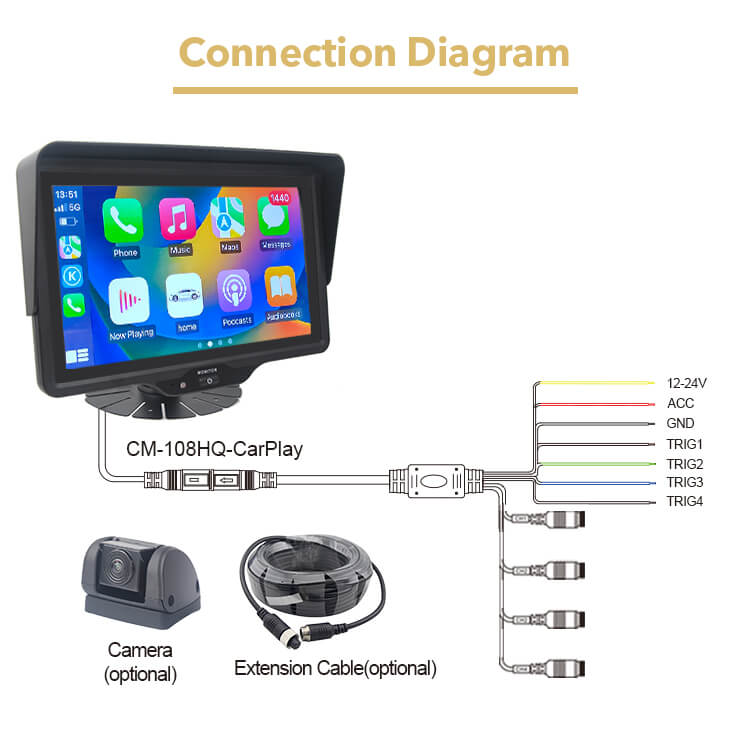

  • 4 trigger lines input, trigger line definition, image siganl trigger delay & priority can be adjusted freely;

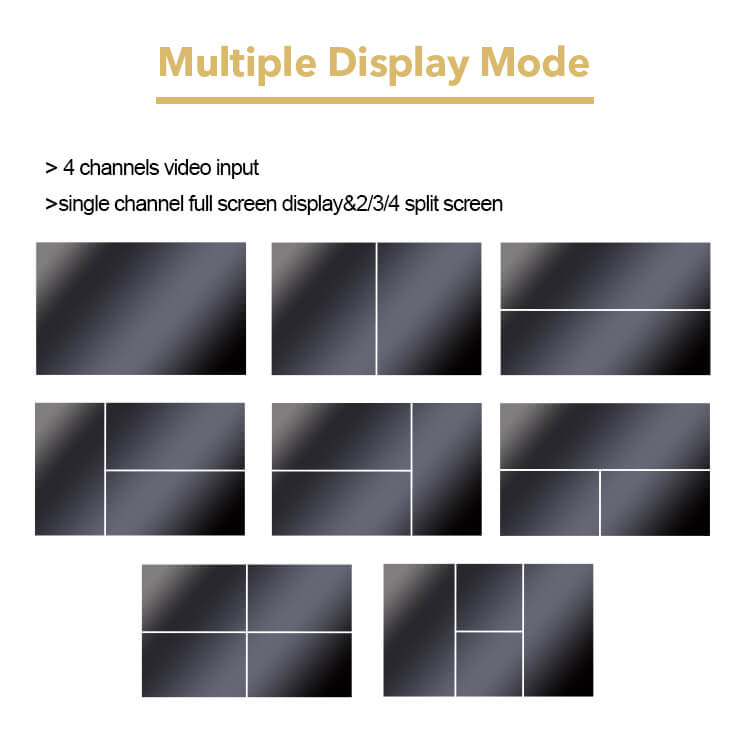

  • Full display & dual/triples/quad split view mode

  • Max. 256GB memory card (4CH DVR HD loop recorder)

  • Multi-language settings

  • Horizontal mirror image switching

  • DC 12-24V wide voltage


10.1 Inch CarPlay Monitor with DVR Function (CM-108HQ-CarPlay):

Screen Ratio16:9
Screen Resolution1024*R.G.B*600 BOE
BacklightLED, Brightness 500 Cd/M2
Contrast800:1
Viewing AngleUP—85°, DOWN—85°, LEFT—85°, RIGHT—85°
Operating MethodFull Touch Screen
OSD ControlDVR, Carplay, FM Emission, Settings, Bluetooth, Brightness, Volume
Signal Input720P/1080P Input
RecordingSupport SD Card Recording
SD CardSupport 32G-256G, Class 10 And Above
Video Compression FormatH.264
Recording Resolution720P

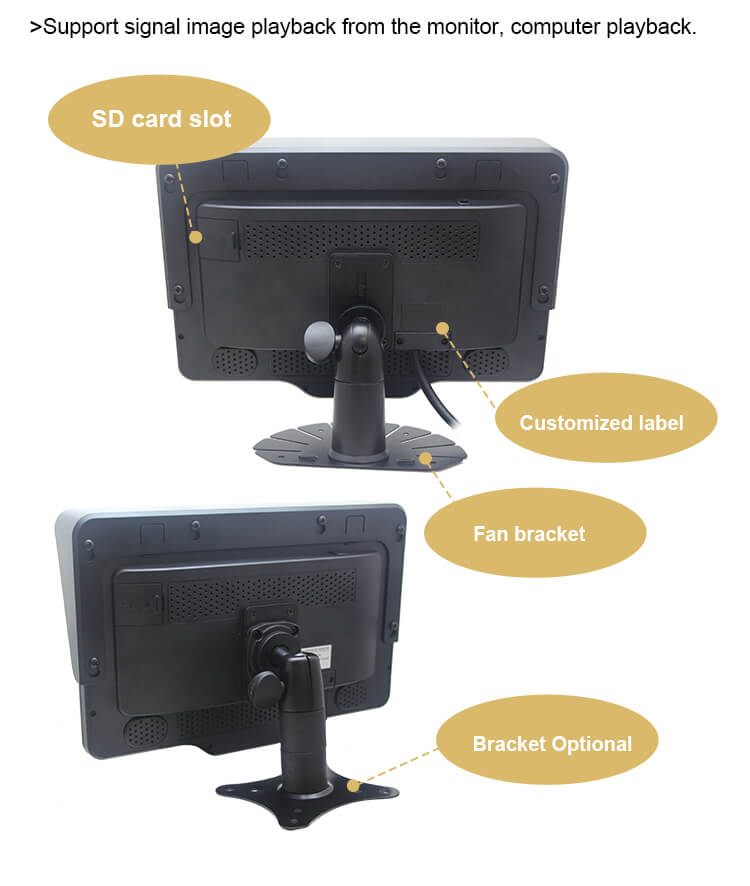

Reccording PlaybackSignal Image Playback From The Monitor, Computer Playback
File FormatTS
File Size

Size720P (1 Minute) ≈ 31MB
1 Minute, 3 Minutes Or 5 Minutes Optional

System Language

English, Japanese, Korean, Russian, German, French, Spanish

Image DisplaySupport Quad Image Display,1/2/3/4 Images Display Adjustable
Parking LineSupport Customzied Size And Position For Parking Line
Mobile Interconnection

Supports IOS 12 And Above Systems, But Not IPhone 6 And Below.
Support Android Auto Overseas Edition

Channel Image SettingSupport Flip And Mirror Setting For Each Channel
Shockproof4G
Audio

Built In High Sensitivity MIC, Supporting High

Fidelity Speakers For Calls And Carplay Sound Playing

Working Temperature-20℃~+70 ºC
Storage Temperature-30℃~+80 ºC
Working Humidity85%RH
Power Supply12-24V
Current ConsumptionDC12V≈300MA , Without Cameras
Booting Time4s
