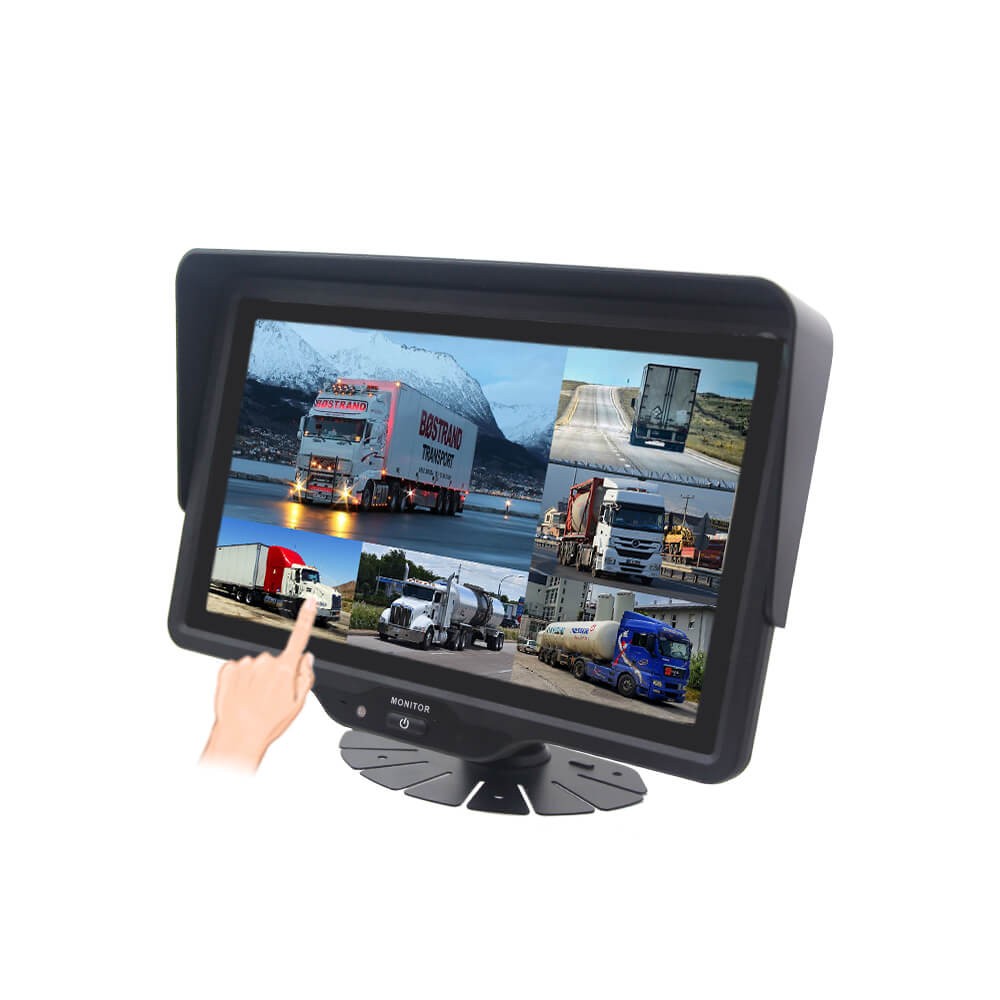

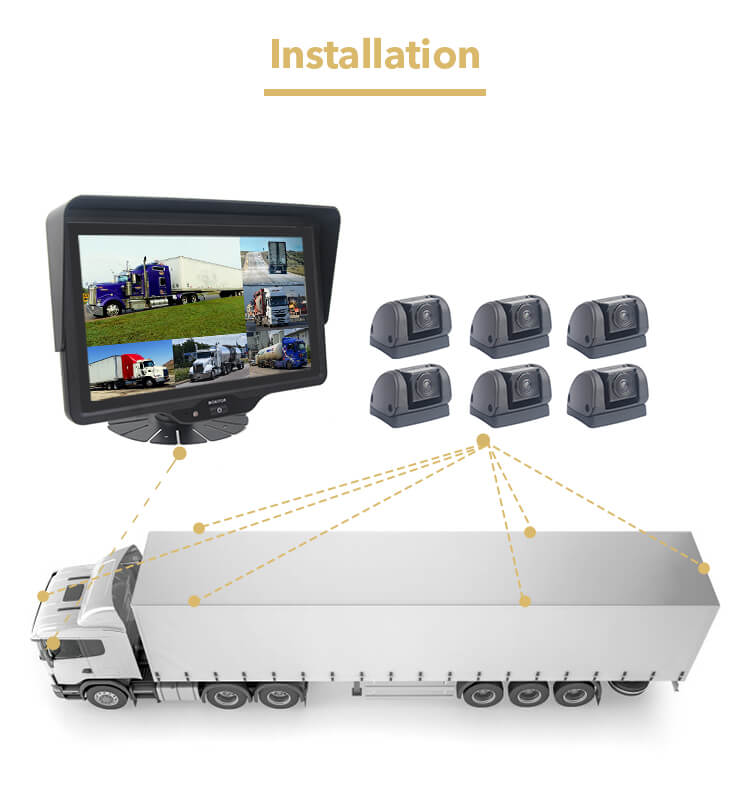

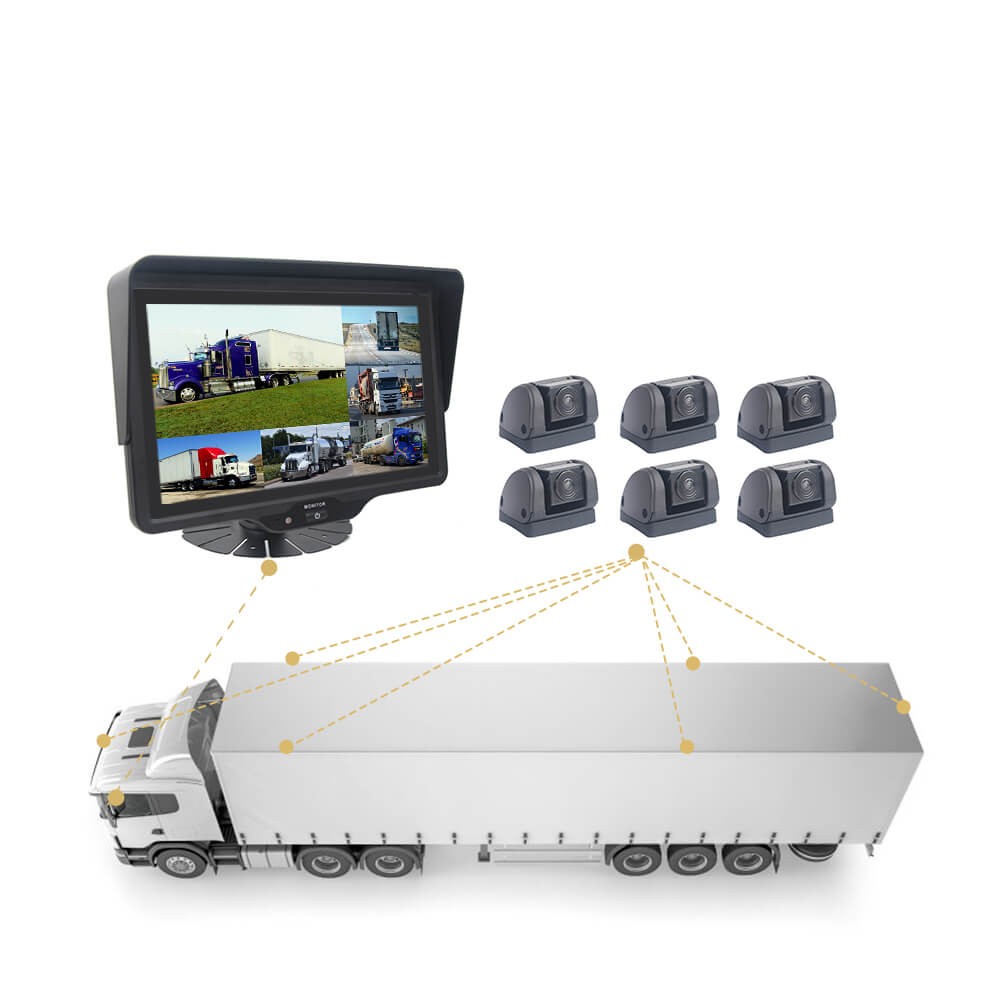

CM-108HQ6 rear view monitor supports 6CH 1080P 720P AHD video signal inputs and can be connected to up to 6 in-vehicle cameras to provide a comprehensive view of the vehicles surroundings, effectively reducing the occurrence of scratches and other accidents. It also supports horizontal mirror image switching, multi-language settings, and car recording functions, making it ideal for enhancing fleet safety. If you are looking for high quality car monitor china supplies, please contact us at sales@aotop.com.
PRODUCT FEATURES
1024*RGB*600 IPS LCD screen (full touch screen)
6CH x cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS
6 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

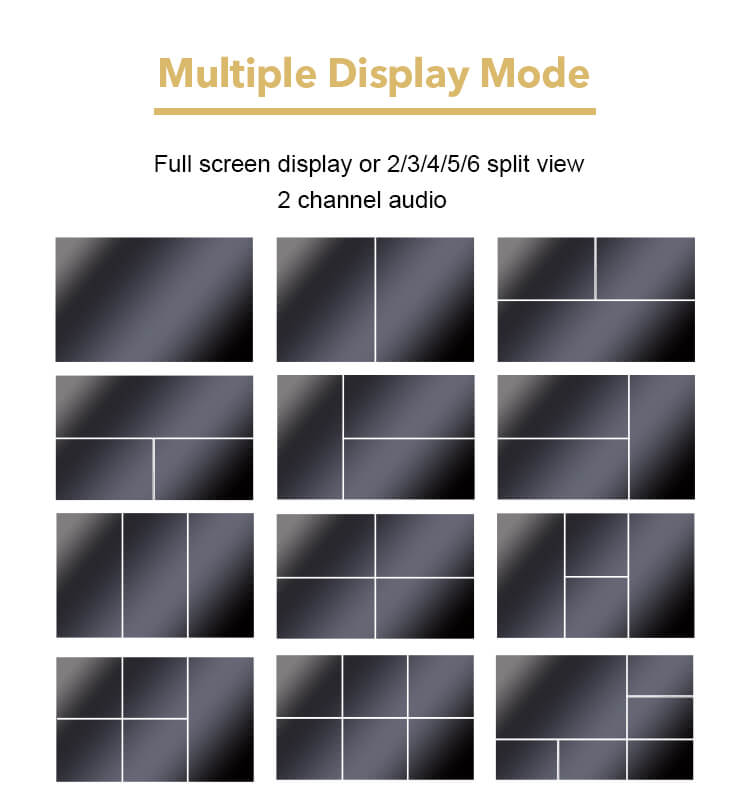

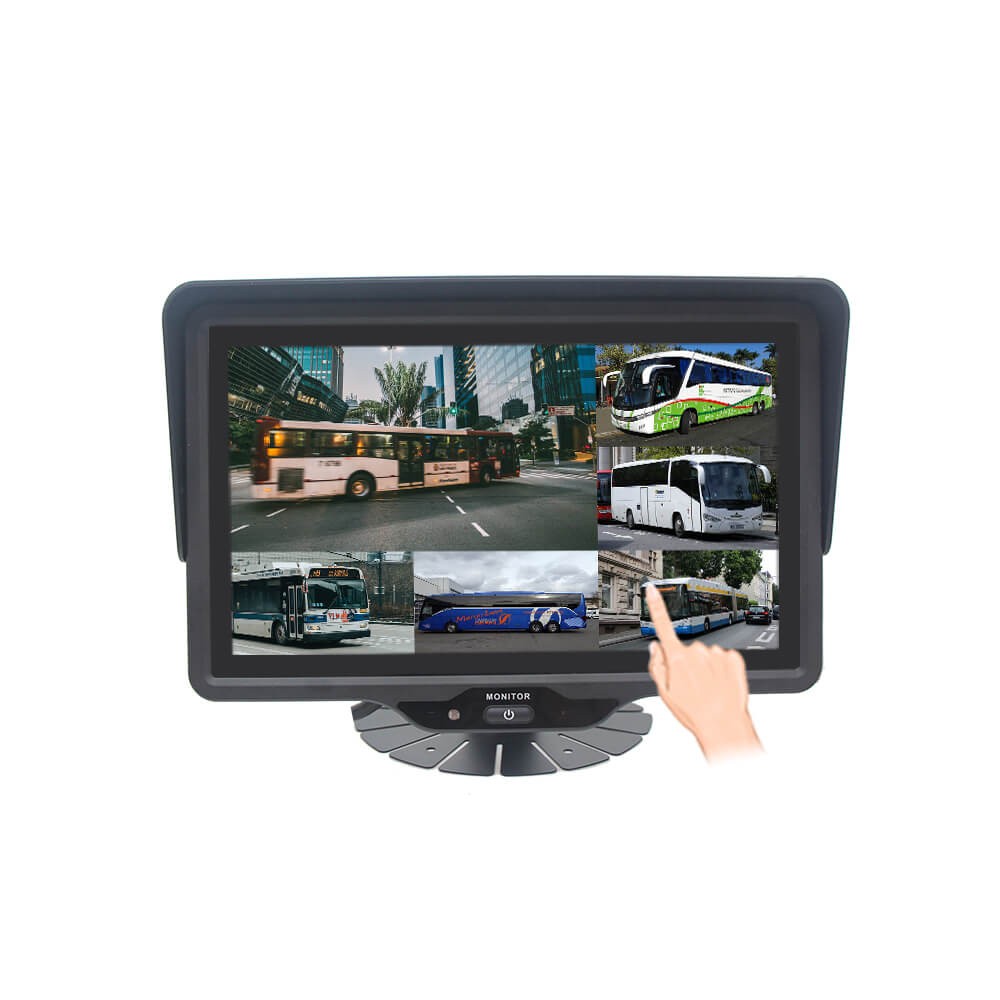

Full display & 2/3/4/5/6 split view mode
1CH audio signal input (high quality speaker)

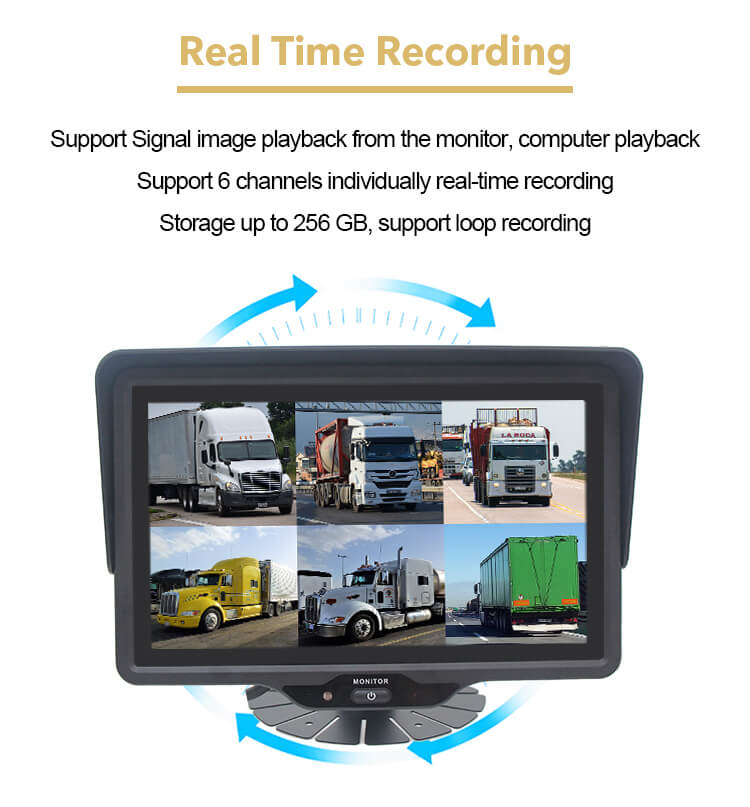

Max. 256GB memory card (6CH DVR HD loop recorder)
Multi-language settings
Horizontal mirror image switching
DC 12-24V wide voltage
AUTO adaptation PAL / NTSC system

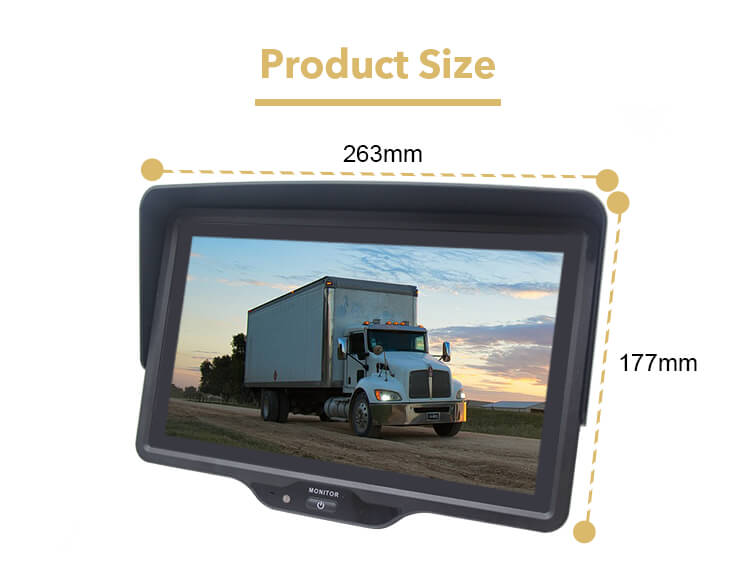

10.1 Inch 6CH AHD Car Rear View Monitor (CM-108HQ6):
Screen | 10.1 Inch HD Color IPS SCreen |
Screen Ratio | 16:9 |
Back Light Luminance | LED, Luminance 500 Cd/M2 |
Resolution | 1024xRGBx600 |
Contrast | 800:1 |
Compatible System | PAL & NTSC(Automatically) |
View Angle | UP—85°, DOWN—85°, LEFT—85°, RIGHT—85° |

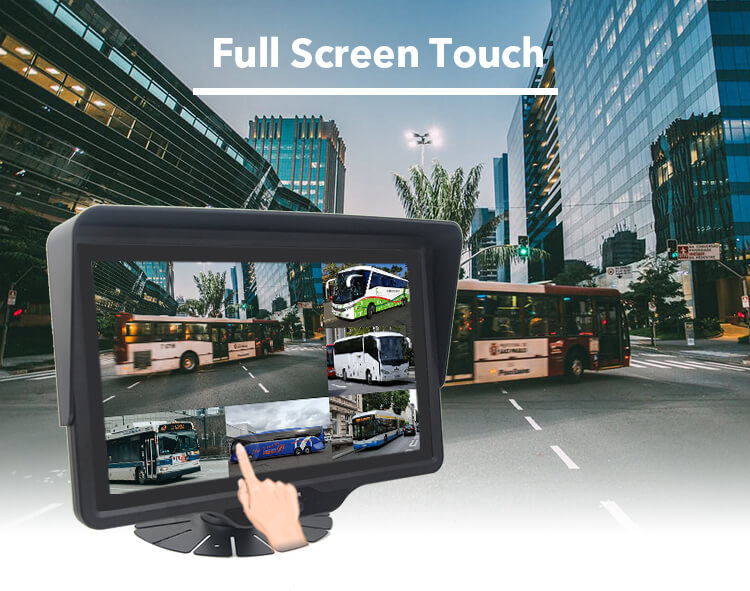

Operating Method | Full Touch Screen |

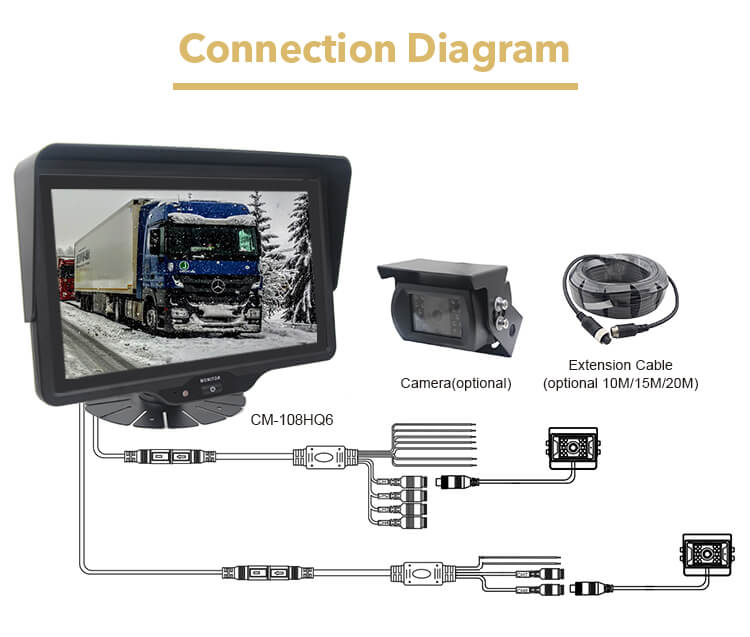

Video Input | Support 6CH 1080P/720P/CVBS Mixed Video Signal Input |
Audio Input | 2CH Audio Input |
OSD Menu | Image Setting,Volume Setting, Image Turnover, Blue/Black Screen (No Signal), Language Setting, ACC Delay Setting,Parking Guide Line On/Off, Reset |
Language | French, German, Portuguese, Spanish, Italian, Turkish, Korean, Arabic, Russian |

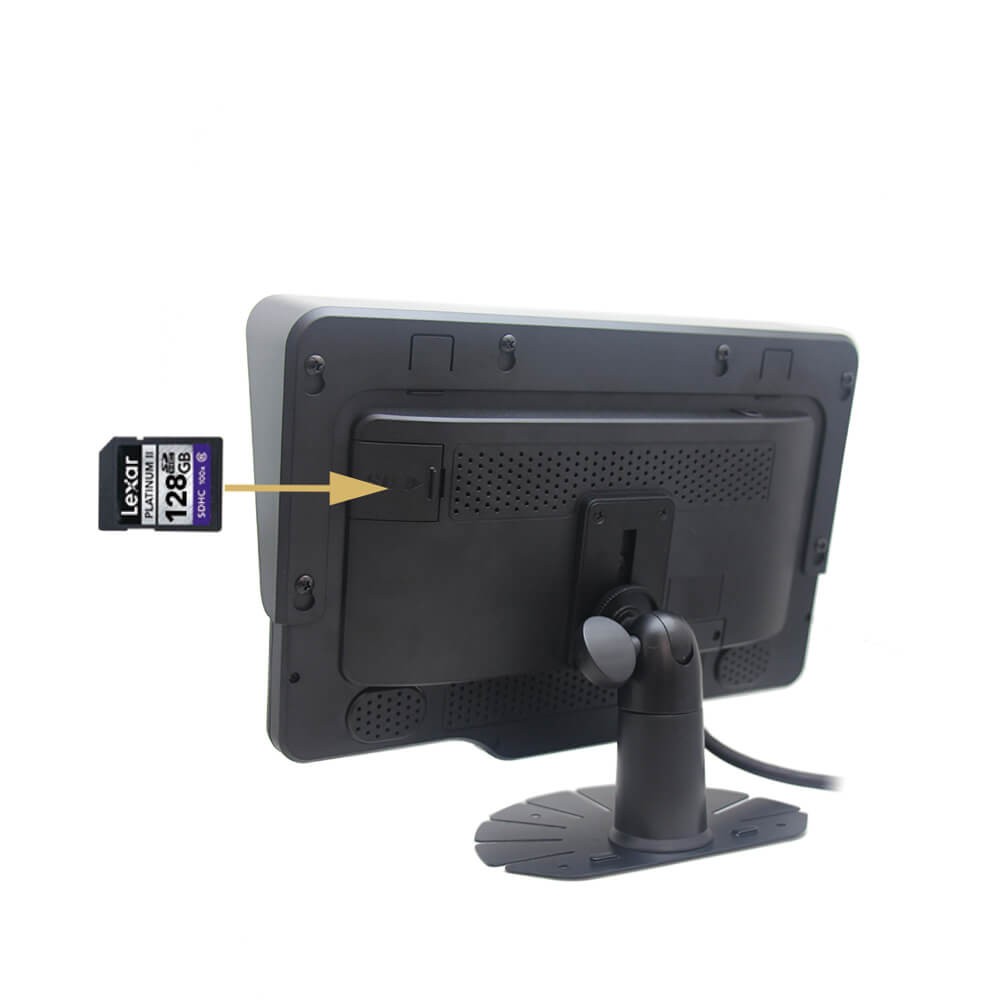

Recording | Support SD Card Recording |
SD Card | Support 32G-256G, Class 10 And Above Video Compression |
Format | H.264 |
Recording Resolution | 720P |
Reccording Playback | Signal Image Playback From The Monitor, Computer Playback |
File Format | AVI |
Image Display | Multiple Images Display Switchable,1/2/3/4/5/6 Images Display Adjustable |
Trigger | 6CH Trigger Control |
Power Supply | DC12-24V |
Current Consumption | DC12V≈500MA , Without Cameras |
Boot Time | About 2 Sec. |
Storage Temperature | -30℃〜+80℃ |
Working Temperature | -20℃〜+70℃ |
Working Humidity | 85%RH |
Speaker | Built-In |
Shockproof Level | 4G |
