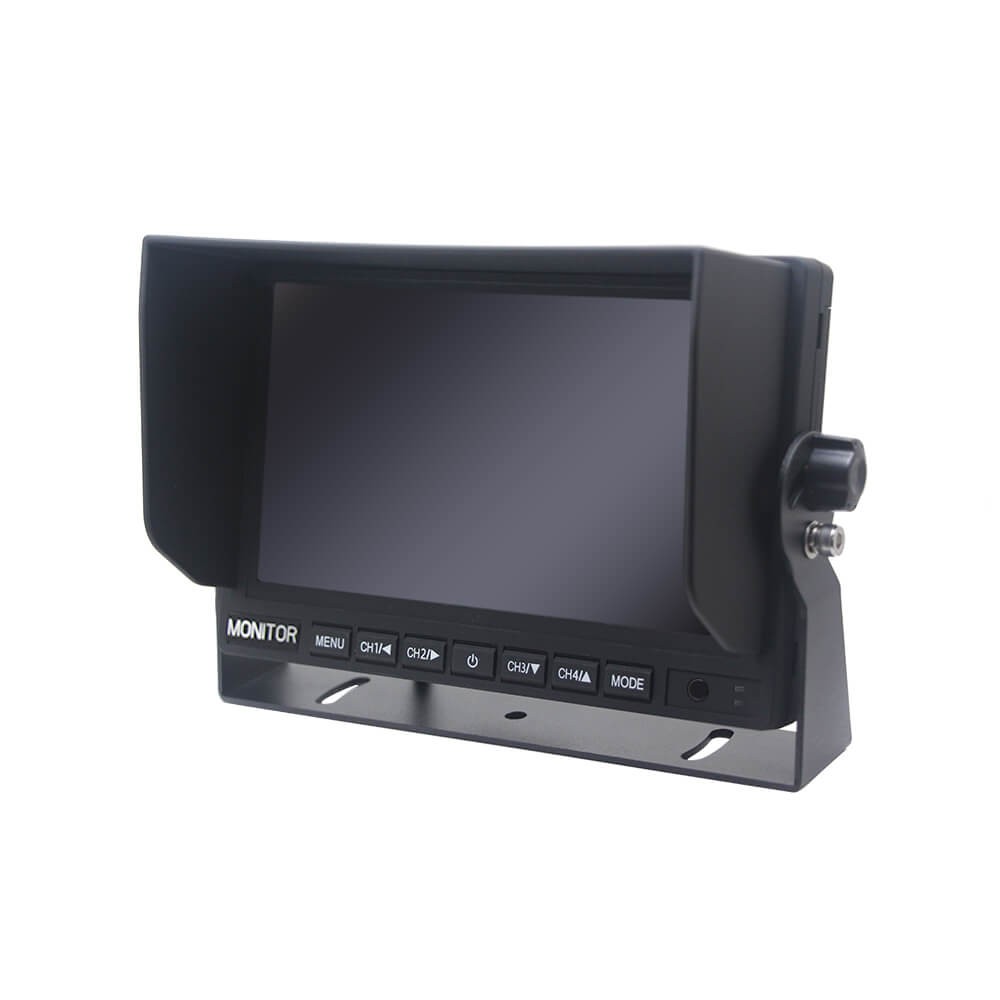

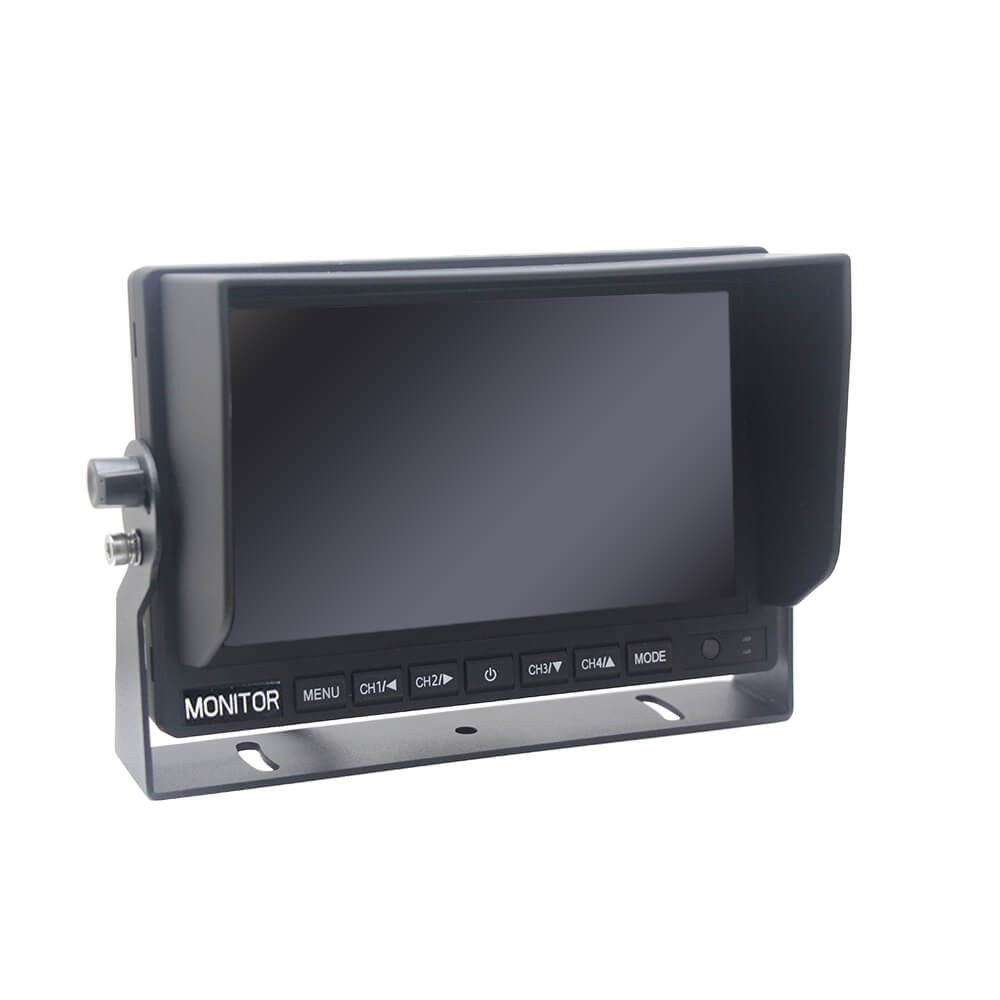

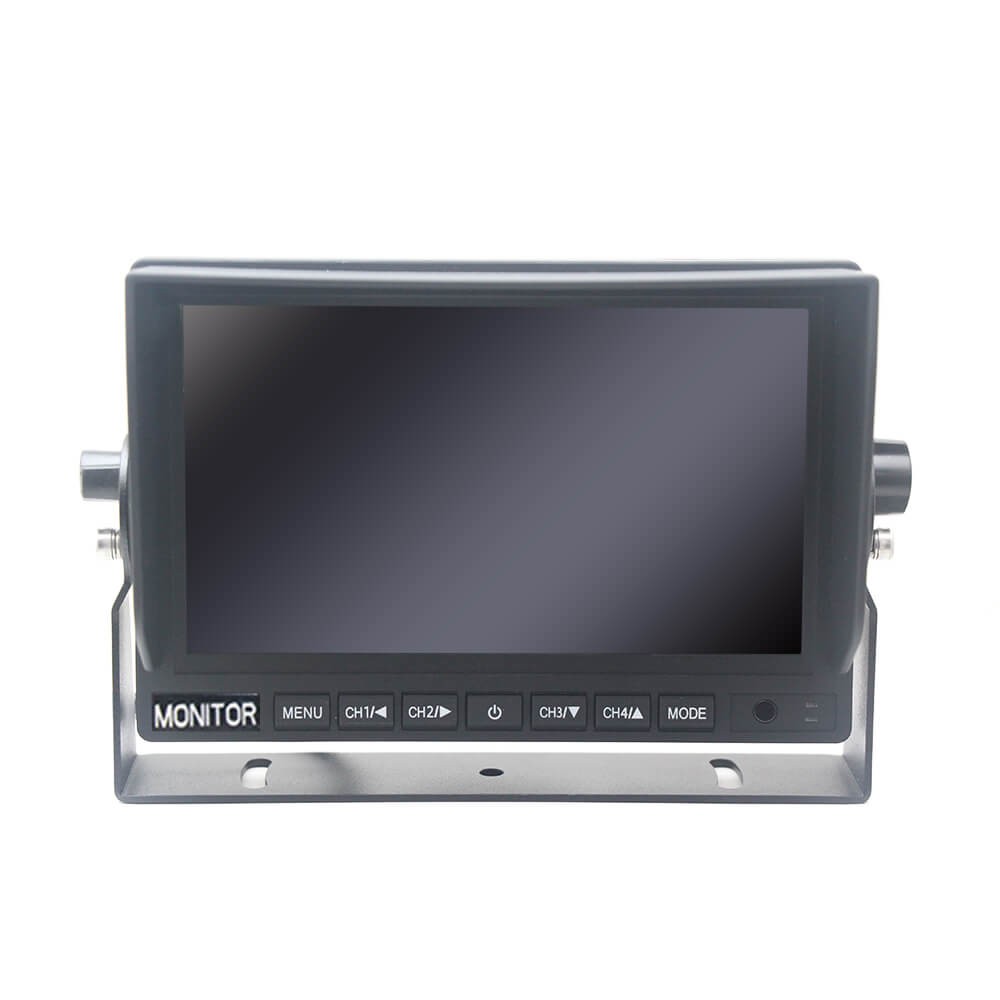

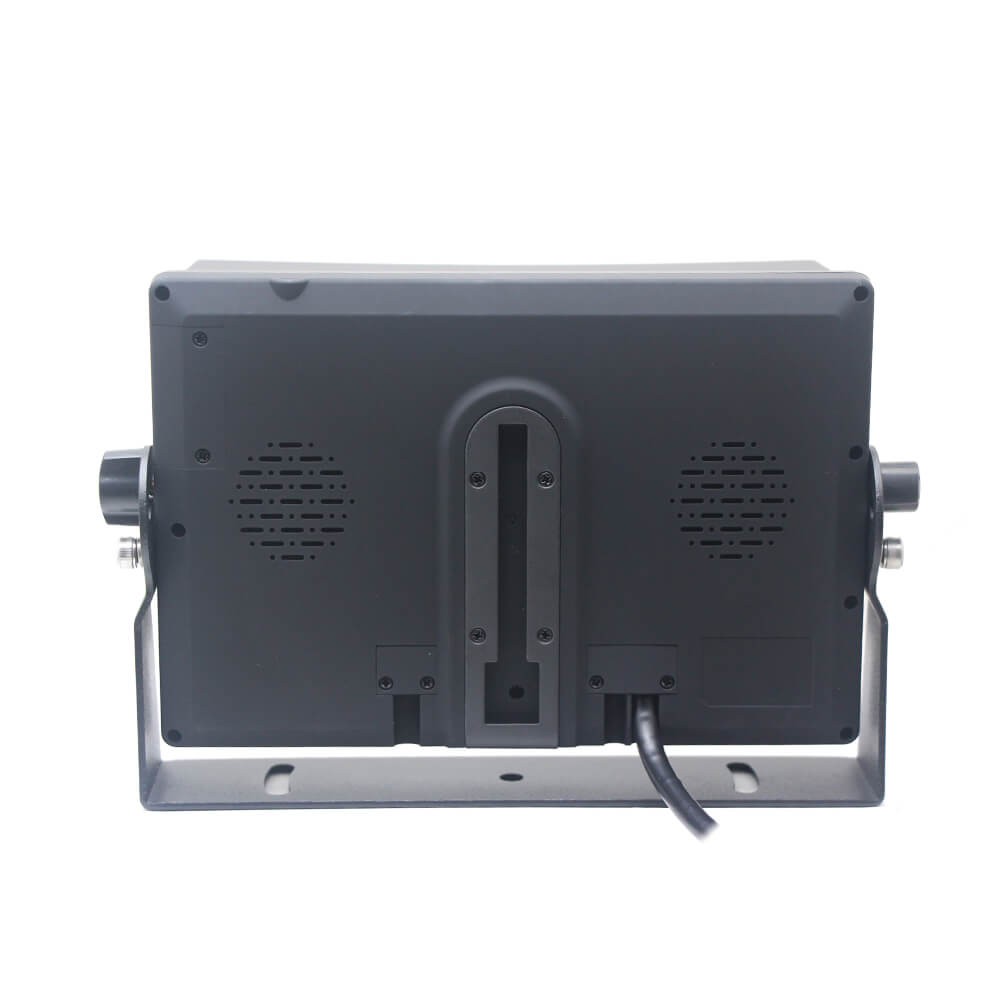

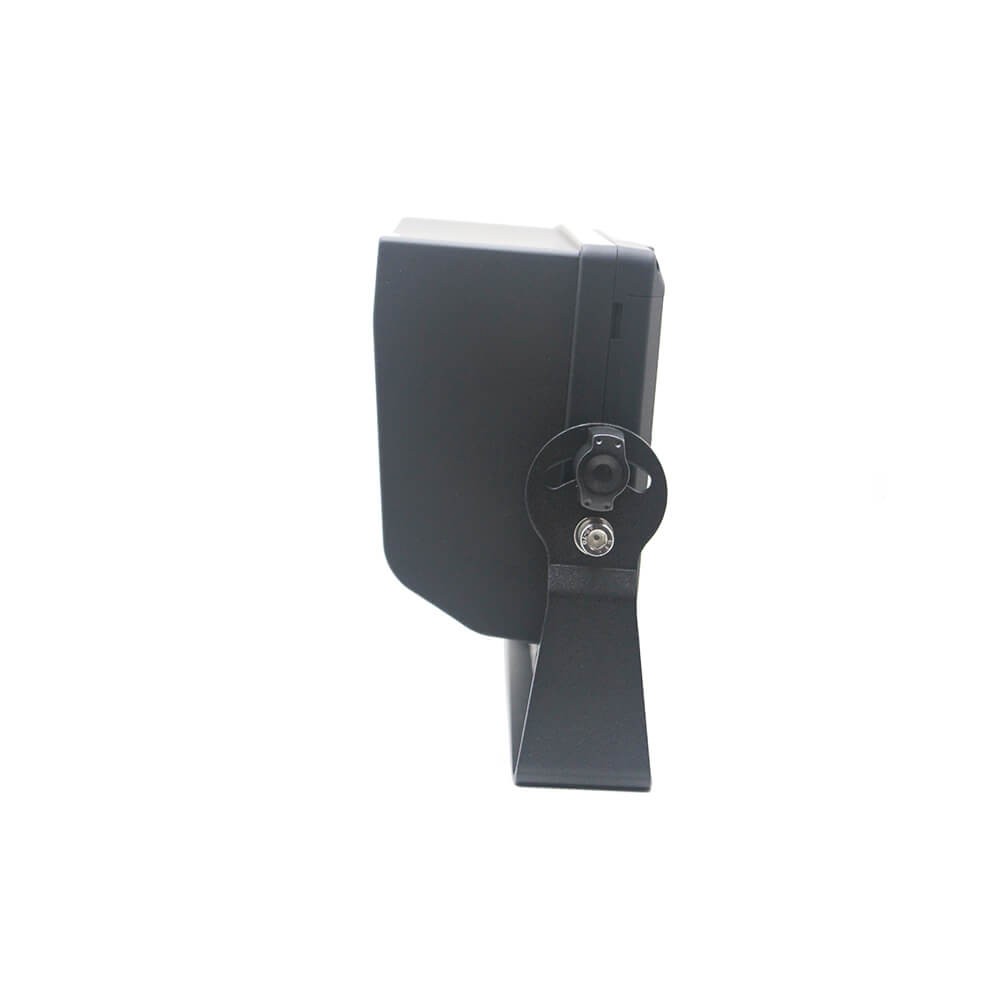

7 Inch HD Quad View Recording LCD IPS Car Monitor

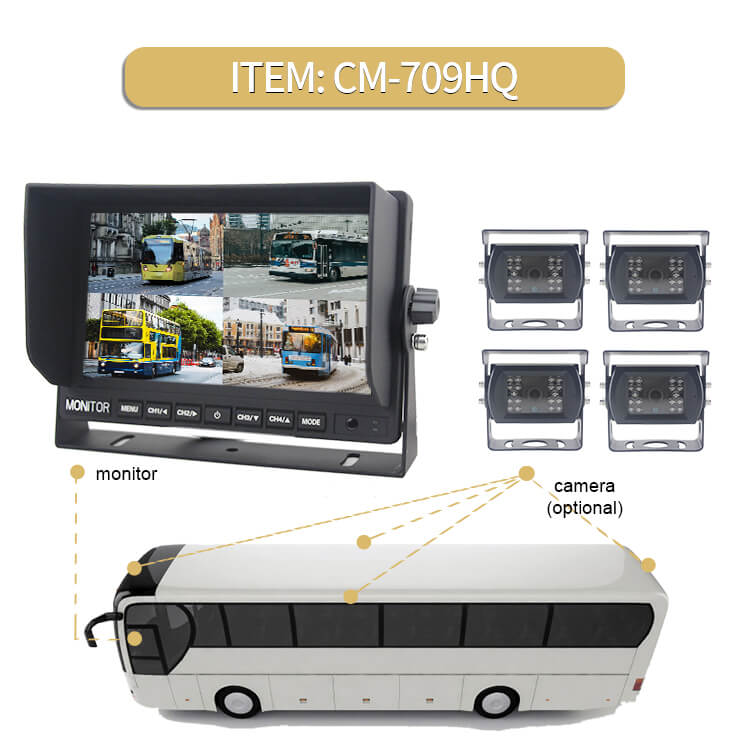

7 inch quad view recording monitor provides an all-round vision monitoring solution for large vehicles. supports 4CH HD 1080p cameras input which allows the driver to see directly the environment around the vehicle while driving, helping drivers to drive safely and effectively avoid collisions and other accidents. If you are looking for reliable car monitor manufacturers & suppliers in China, please contact us at sales@aotop.com!

PRODUCT FEATURES


  • 1024*RGB*600 HD resolution (IPS LCD screen)

  • 4CH x cameras video signal input

  • Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS

  • 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

  • 1CH audio signal input (high quality speaker)

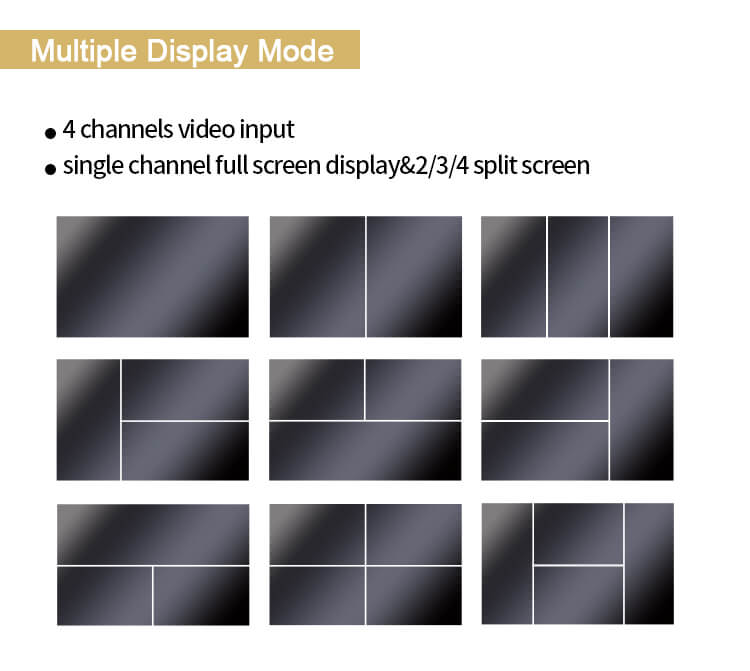

  • Full display & 2/3/4 split view mode

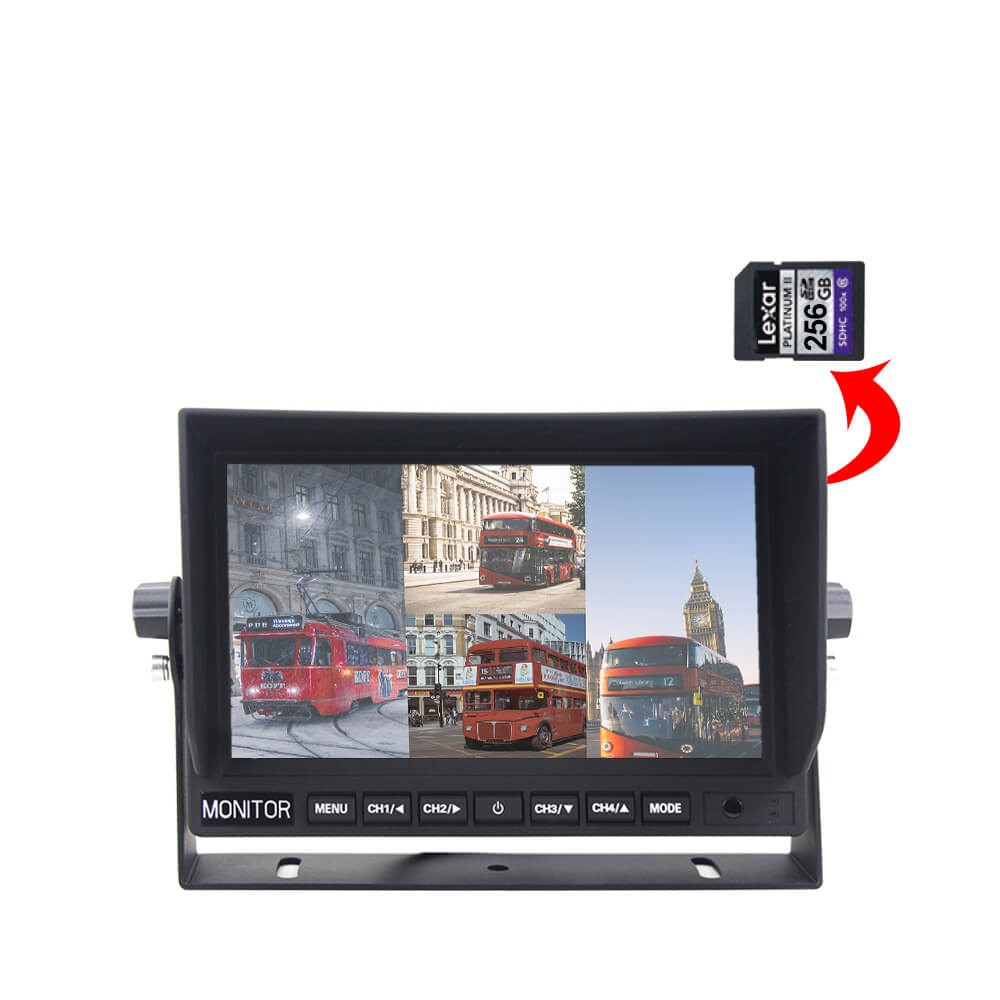

  • Built-in 256GB memory card (DVR recorder)

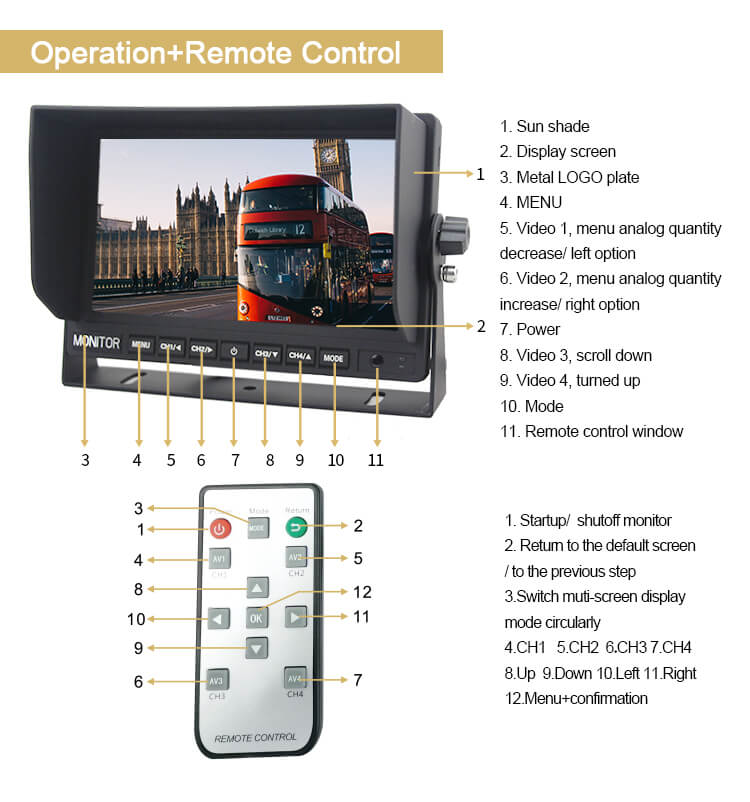

  • Full-function remote control

  • Multi-language settings

  • Horizontal mirror image switching

  • DC 12-24V wide voltage

  • AUTO adaption PAL / NTSC system


7 Inch HD Quad View Recording LCD IPS Car Monitor (CM-709HQ):

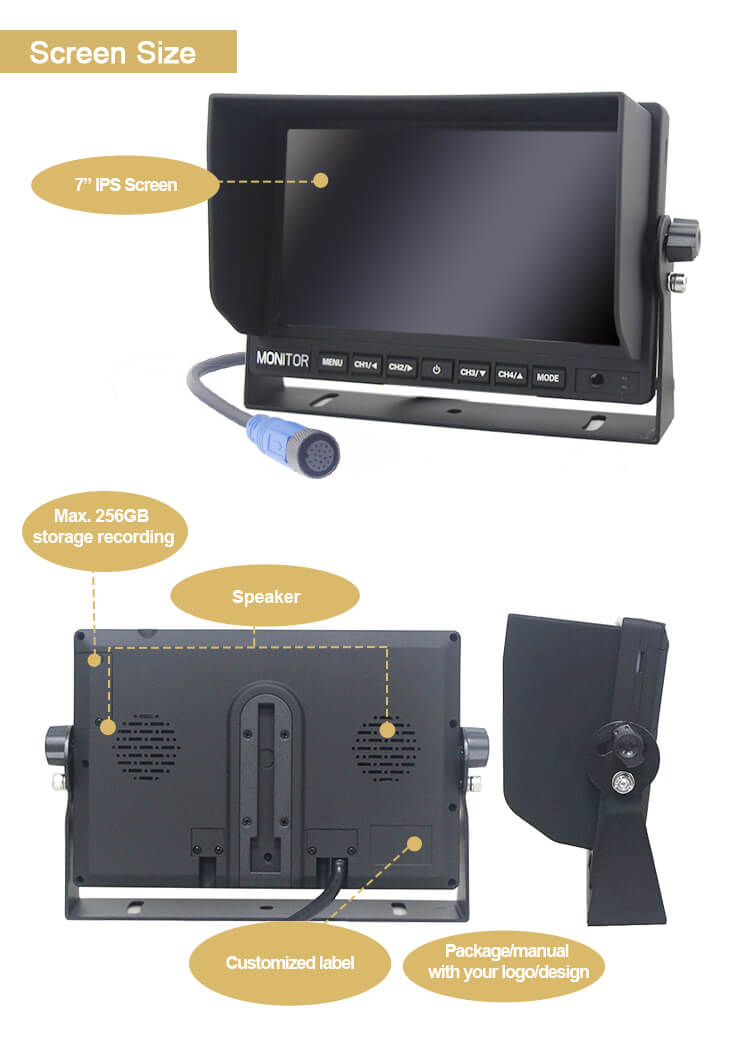

Screen Type/Size7 Inch IPS LCD Screen
Aspect Ratio16:9
Resolution1024*R.G.B*600
Brightness650cd/㎡
Contrast800:1
Viewing AngleUp-85°, Down-85°, Left/Right-85°
Video Input

Support 4CH AHD 1080P/720P/960P/CVBS

Mixed Video Signal Inpu

Audio Input1CH Camera Audio Input (Available Speaker)
OSD Menu

Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Recording Settings, Parking Guide Line On/Off, Reset

DVR Function

Built-in 256GB Memory Card

4CH Camera Image HD Recording

Recording Replay

Support Single Image Real Time Replay

(No Audio When Playback

Response Time20~40Ms
Parking Guide LineEach Channel Is Controlled Separately, Off As Default
Mirror / Normal ImageEach Channel Is Controlled Separately, Mirror As Default
Split View ModeSingle/Double/Triple/Quad View Image Display
Trigger4CH Trigger Lines
SystemAUTO Adaptation PAL / NTSC
Power SupplyDC 12-24V
Currents12V/1.1A
Operating Power13.2W
Boot TimeAbout 2~3 sec.
Connection Plug (Connector)Waterproof Aviation Female Connector
Vibration Rating4G
Operating Temperature-20°c~+70°c(RH0%-RH90%)
Storage Temperature-30°c~+80°c(RH0%-RH90%)

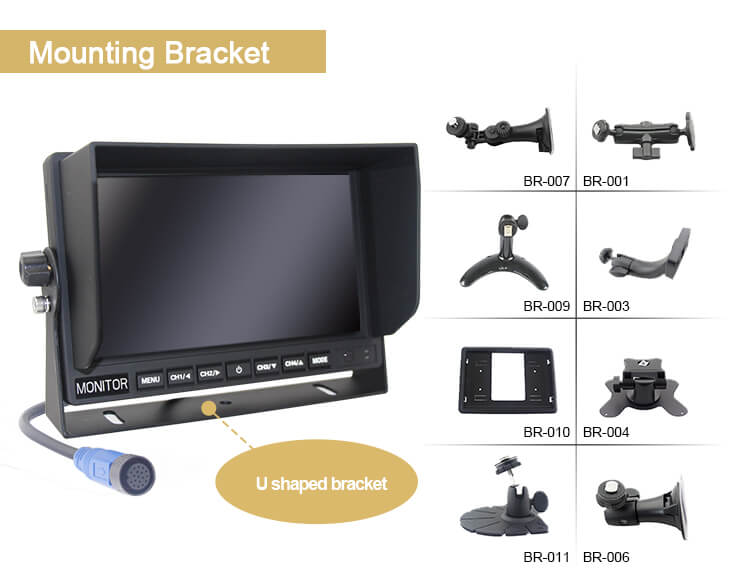

OEM&ODM CustomizationBracket/LOGO Plate & Label/Graphic Carton
Warranty2 Years
CertificationE-Mark、E24、CE、FCC、UKCA
