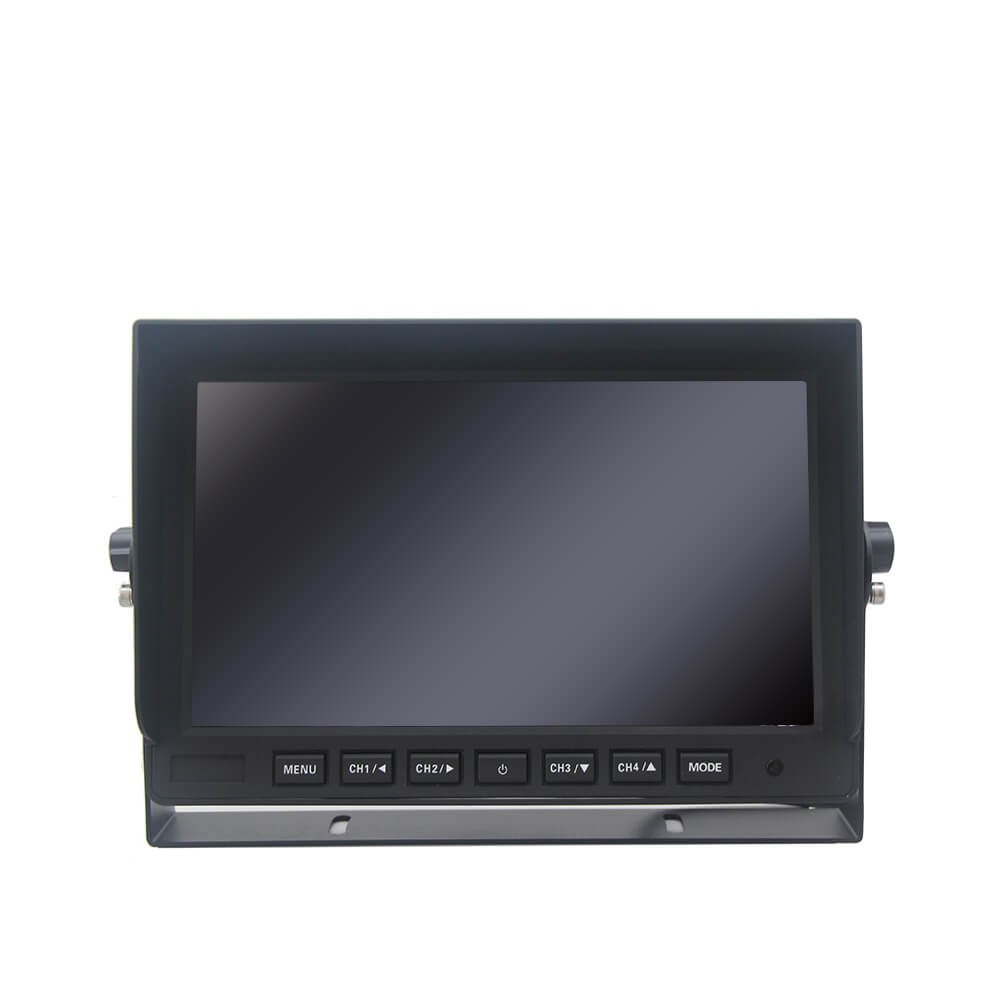

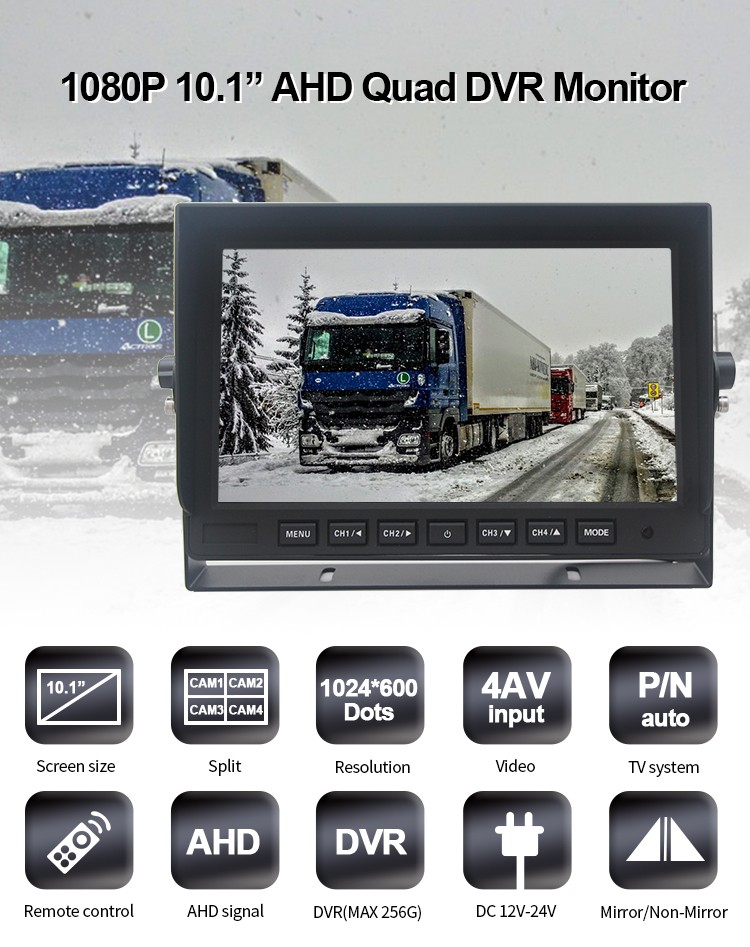

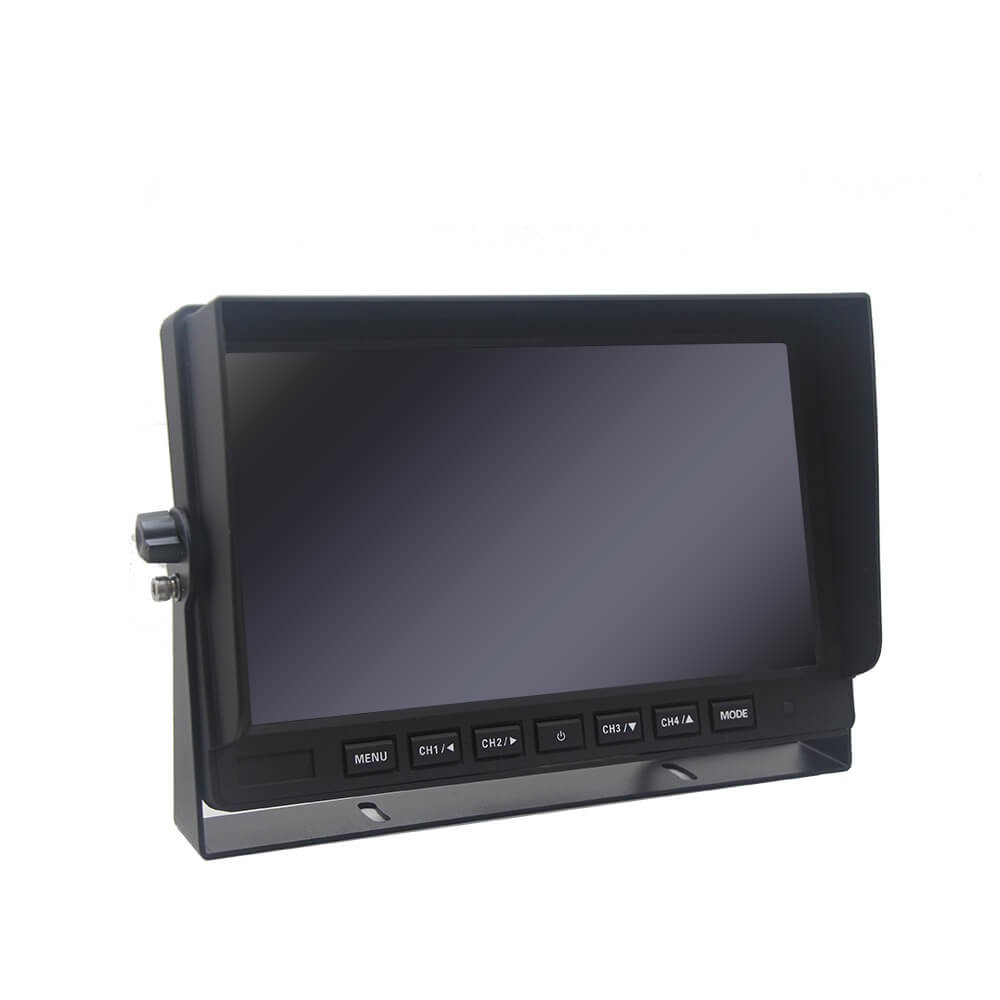

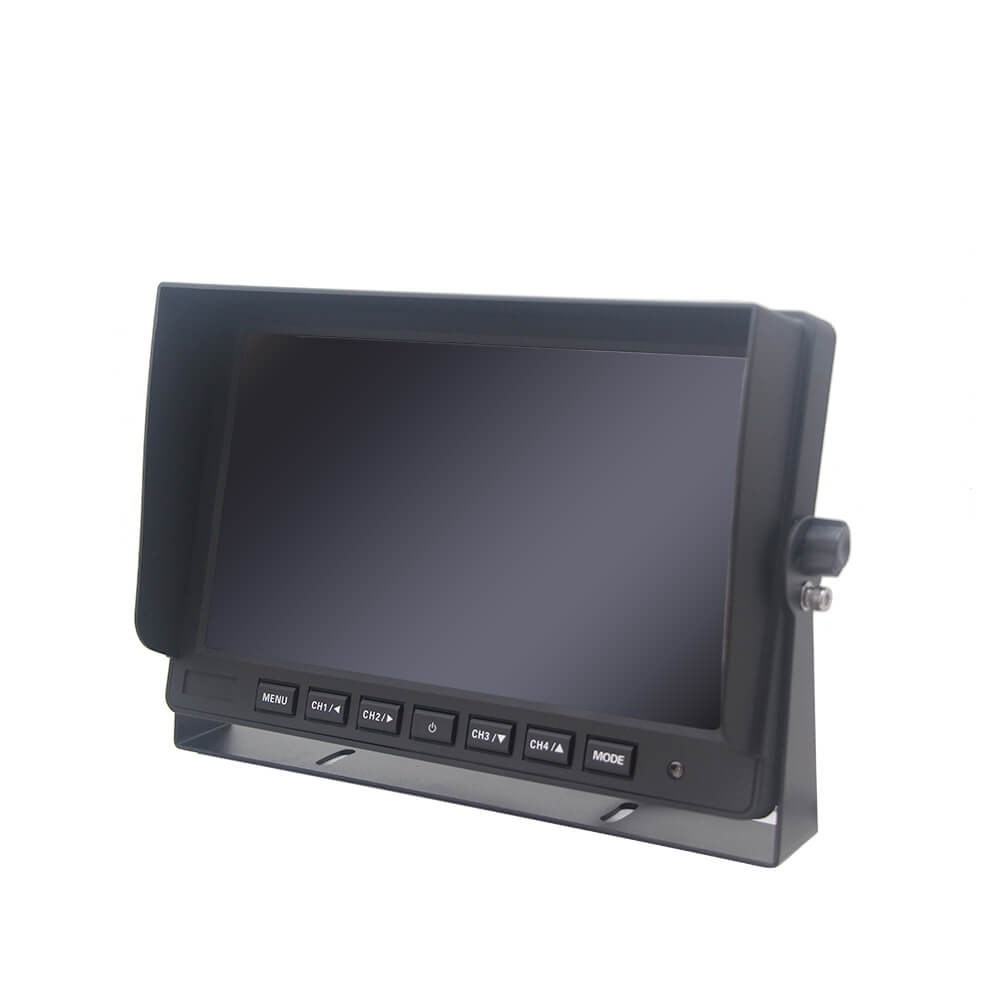

10.1 inch 4CH 1080P DVR quad view car monitor, which supports 4 HD camera inputs, the driver can directly see the environment around the vehicle while driving. This reduces the possibility of scratches and other accidents. The HD monitor enables HD real-time monitoring and supports 4CH video signal DVR car recording, which promotes efficient fleet management. If you are looking for reliable 10.1 inch car monitor manufacturers & suppliers in China, please contact us at sales@aotop.com!
PRODUCT FEATURES
1024*RGB*600 resolution (IPS LCD screen)
4CH x cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS

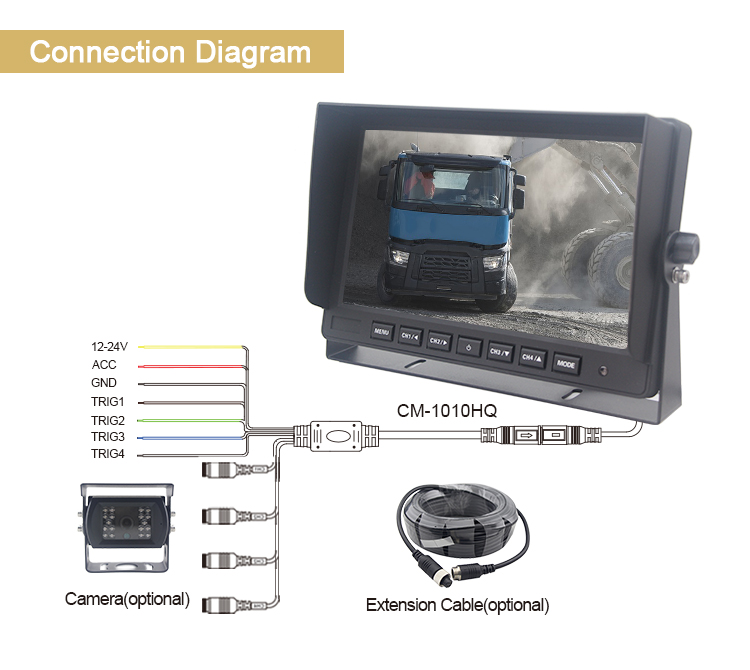

4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

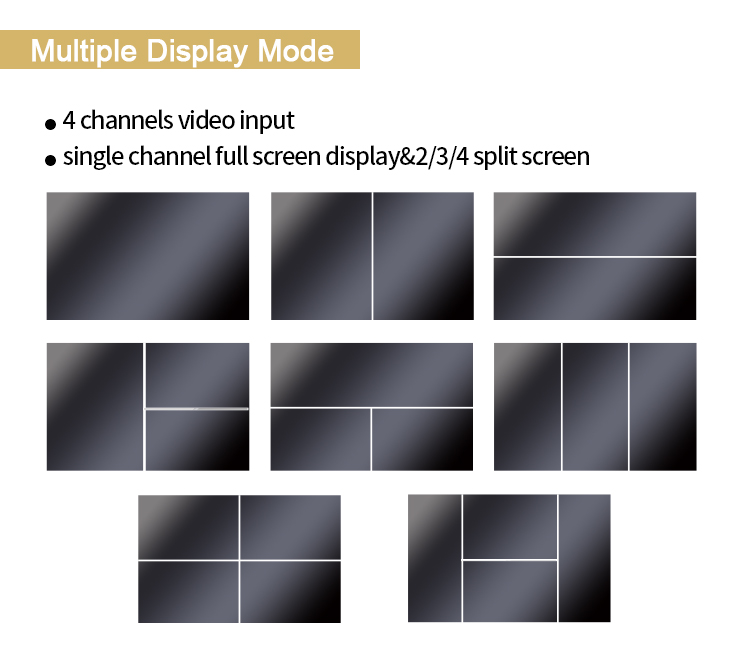

Full display & dual/triples/quad split view mode
1CH audio signal input (high quality speaker)

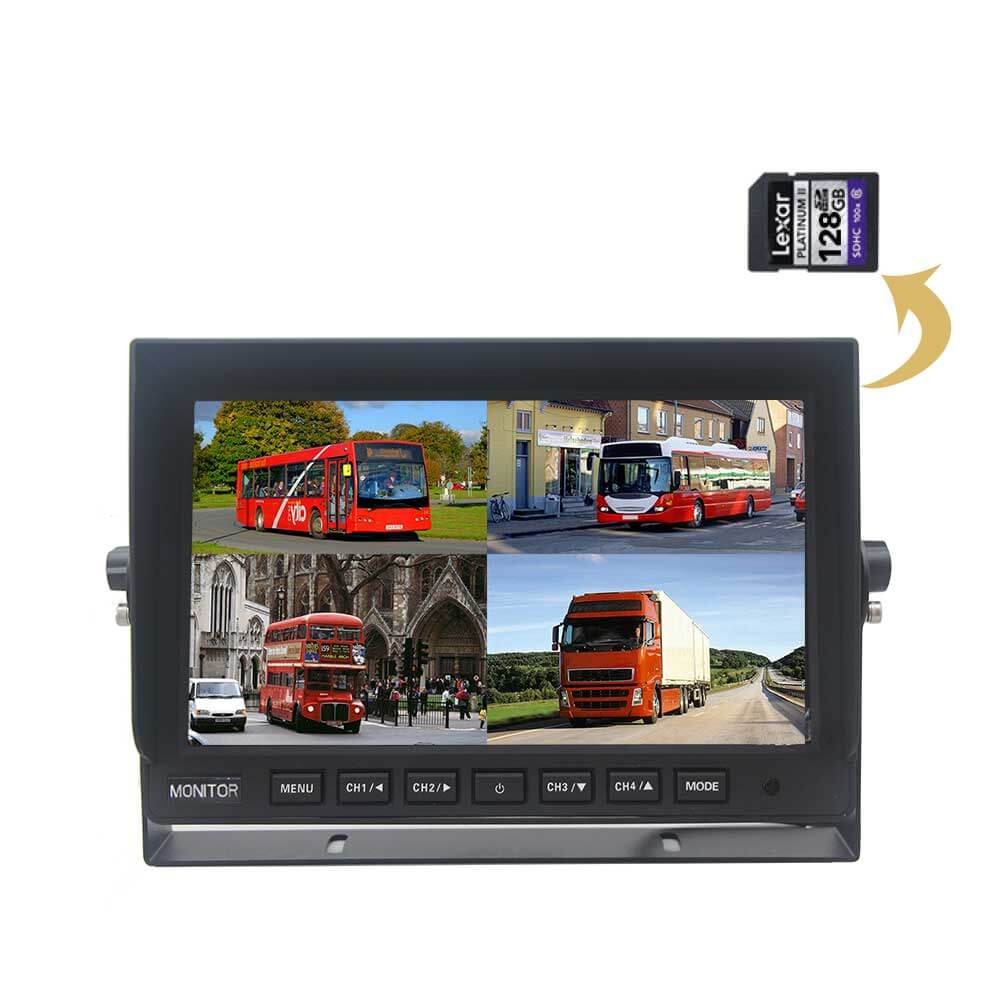

Max. 256GB memory card (4CH DVR HD loop recorder)
Full-function remote control
Multi-language settings
Horizontal mirror image switching
DC 12-24V wide voltage
AUTO adaptation PAL / NTSC system

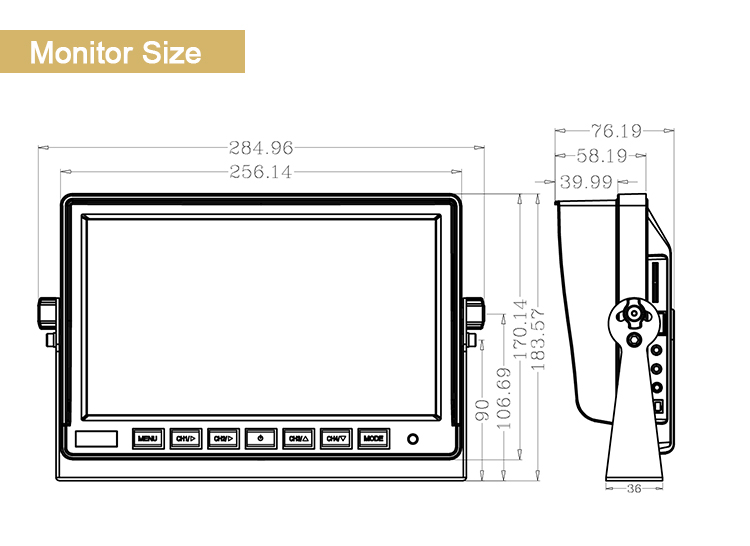

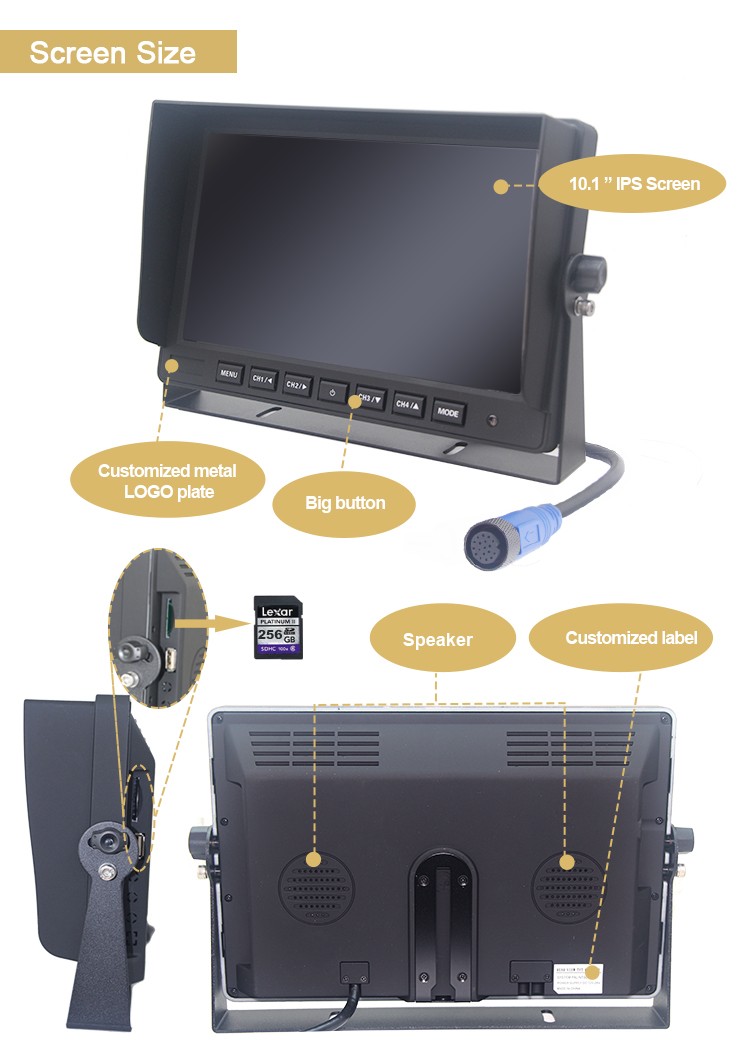

| Screen Size | 10.1 Inch HD Color IPS Screen |
| Screen Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Luminance | 400cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up-85°, Down-85°, Left-85°, Right-85° |
| Video Input | Support 4CH 1080P/720P/960P/CVBS |
| Audio Input | 1CH Audio Input For CH1 (No Audio When Playback) |
| OSD Menu | Image Setting, Image Turnover, Blue/Black Screen (No Signal), Language Setting, Recording Settings, Parking Guide Line On/Off, Reset |
| DVR | Built-In |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Reversing Delay | Each Channel Is Controlled Separately, 3S As Default |
| Storage Memory | Card SD Card（C10）, 256G(Max. C10) |
| Compressed Format | H.264 |
| Recording Resolution | 1080P |
| Recording File Output | AVI |
| Recording Replay | Support Single Image Real Time Replay |
| Language | English / Chinese |
| Image Display | Single/Double/Triple/Quad Image Display |
| Trigger | 4CH |
| Speaker | 1CH |
| System | PAL/NTSC (Automatically) |
| Power Supply | DC 12-24V |
| Currents | 12V/1.1A |
| Operating Power | 13.2W |
| Boot Time | About 3 Sec. |
| Operating Temperature | -20~+70 ºC |
| Operating Humidity | 95%RH |
| Storage Temperature | -30~+80 ºC |
| Vibration Rating | 4G |
