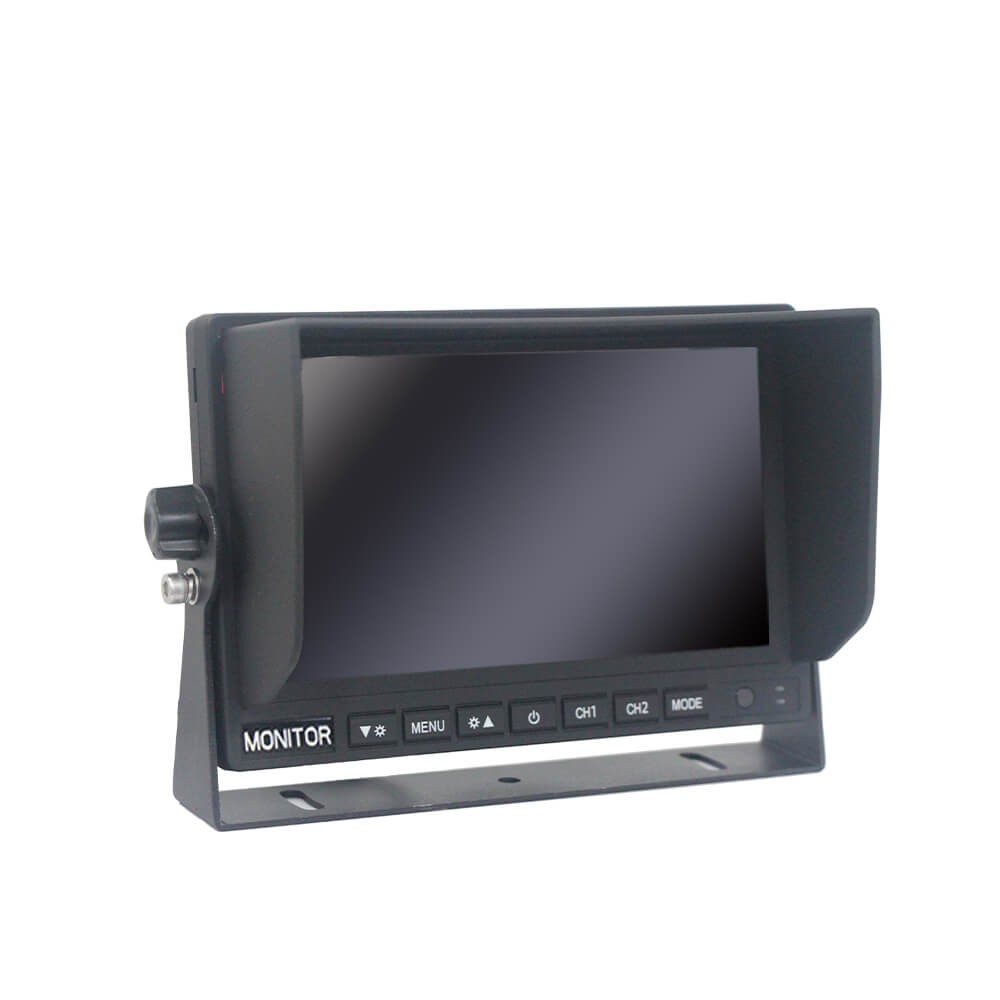

Dual view recording vehicle monitor features 7 inch LCD IPS 1024*600 colour digital screen, supports 2CH AHD video signal input, can connect two car camera. No need for external DVR device built-in 128GB memory card support 2CH video signal car recording. Support horizontal mirror switching and multi-language settings, PAL / NTSC TV system is the ideal solution for the safety of customers' vehicles around the world! If you are looking for reliable car monitor manufacturers & suppliers in China, please contact us at sales@aotop.com!
PRODUCT FEATURES

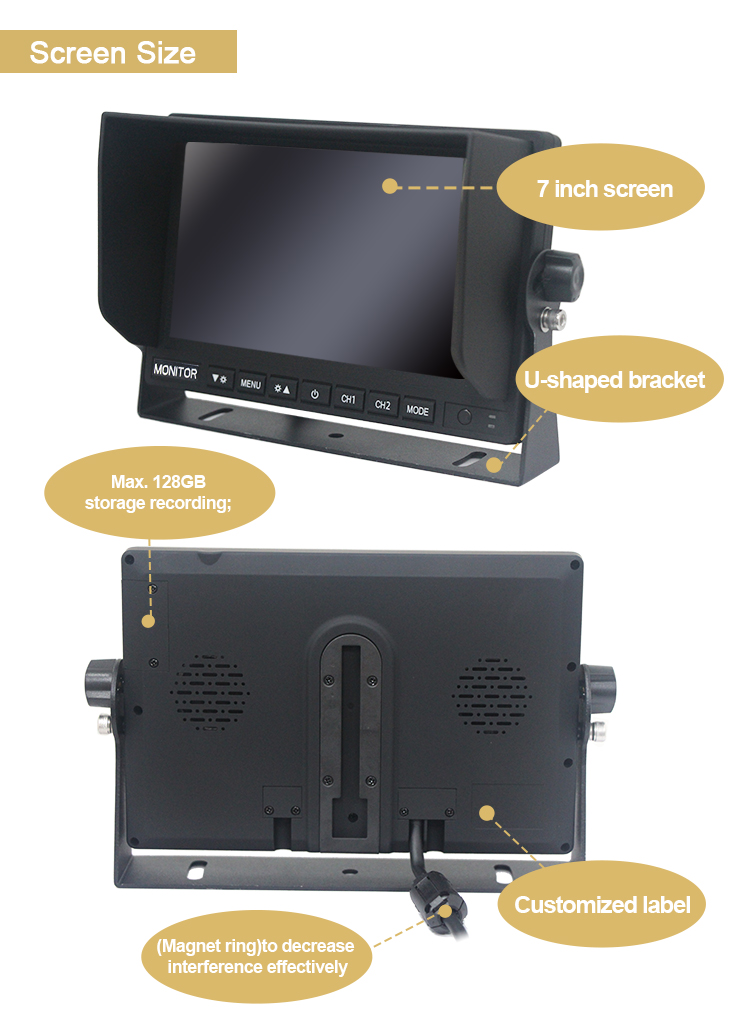

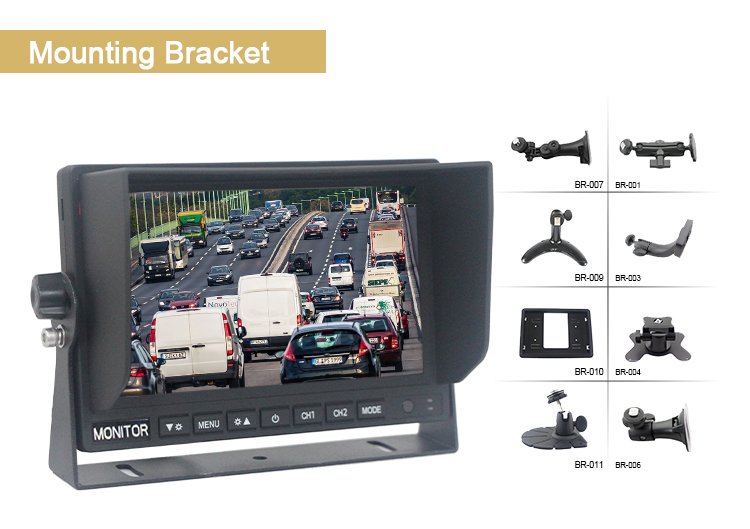

Sunshade bracket & U-bracket
1024*RGB*600 HD IPS LCD screen

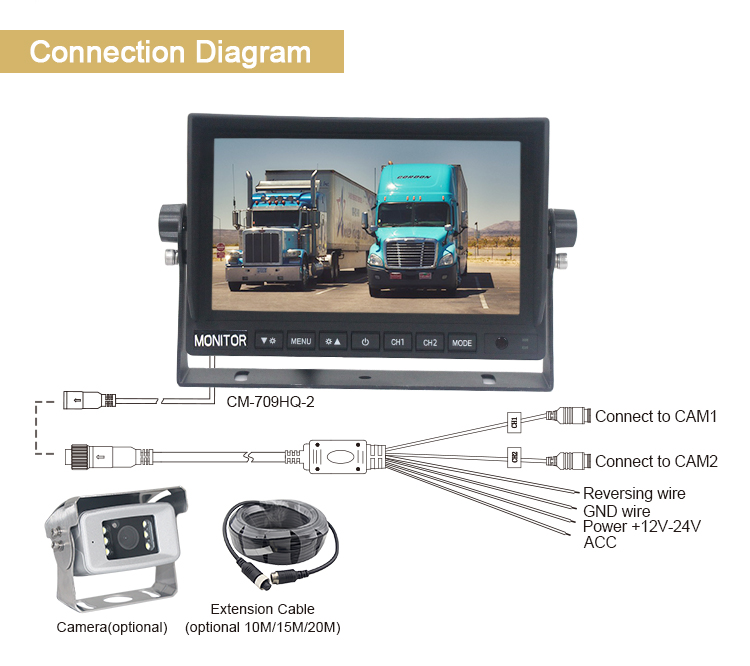

2CH x cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS
1CH audio signal input (high quality speaker)

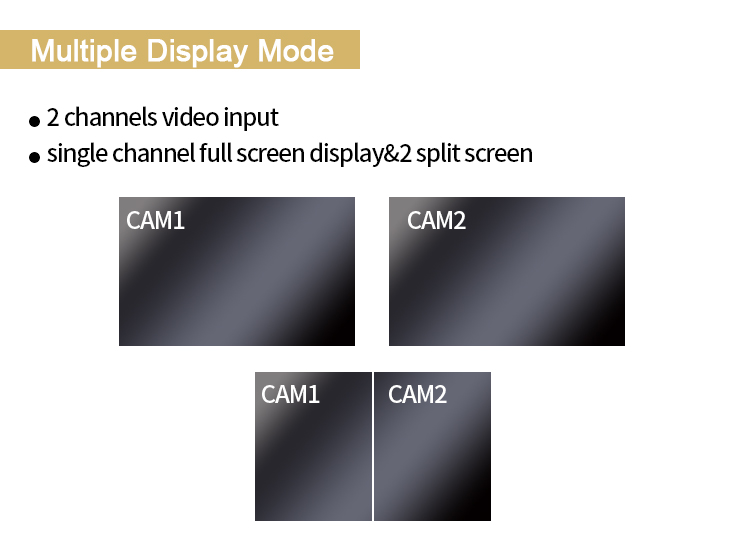

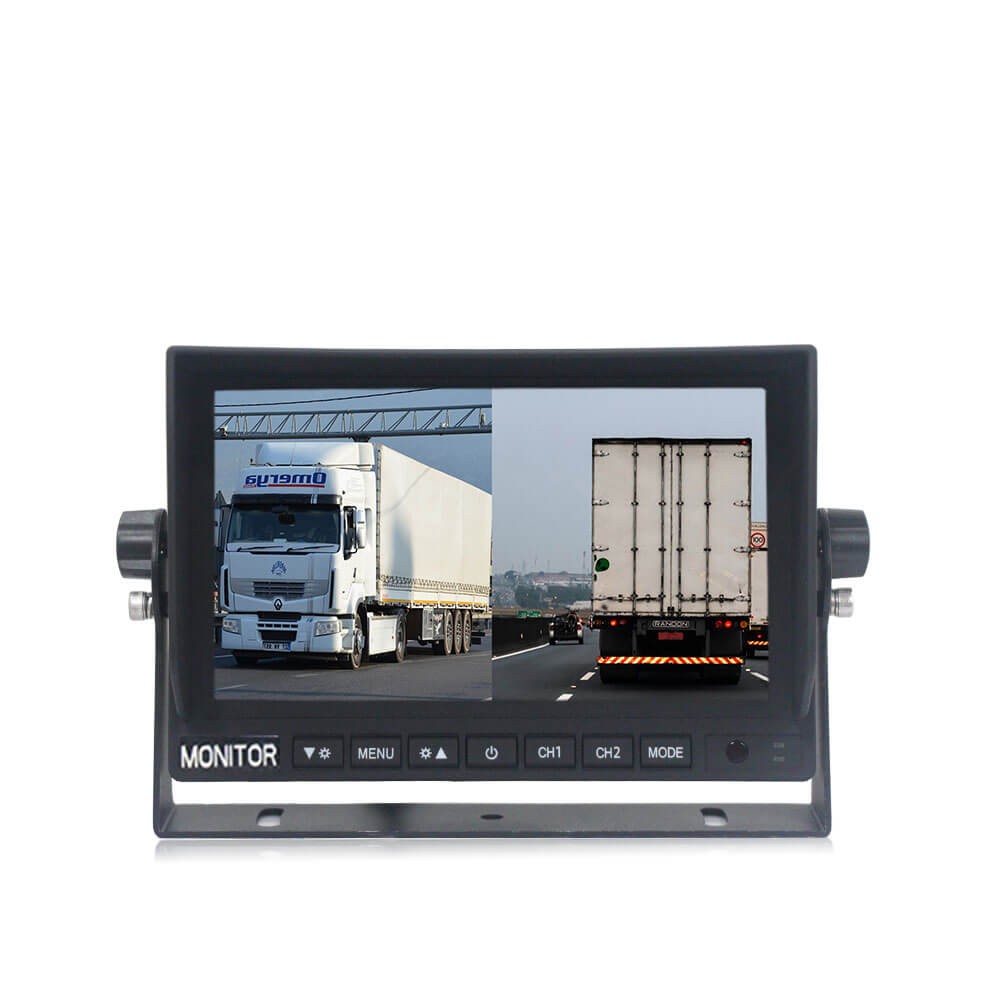

Full display & dual split view mode
Available Max. 128GB memory card (2CH DVR HD recorder)

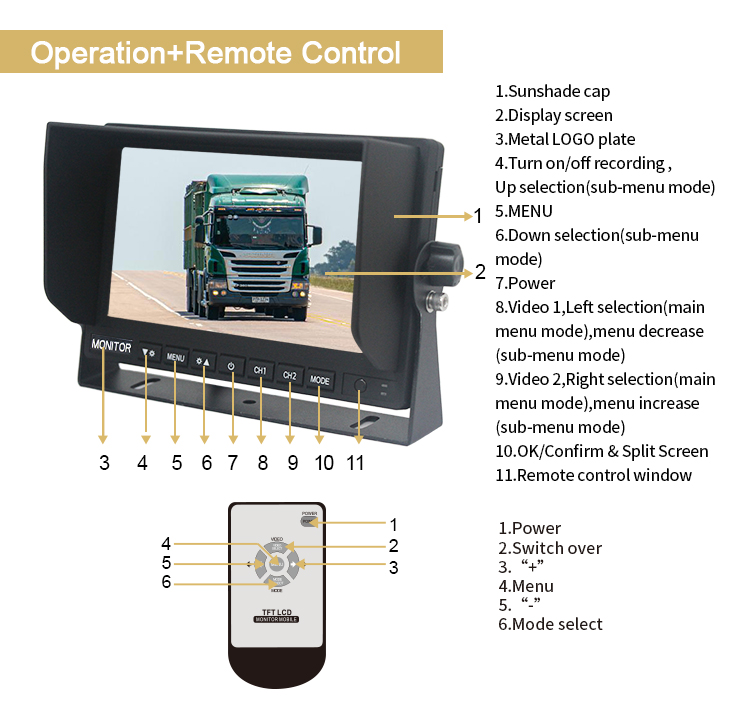

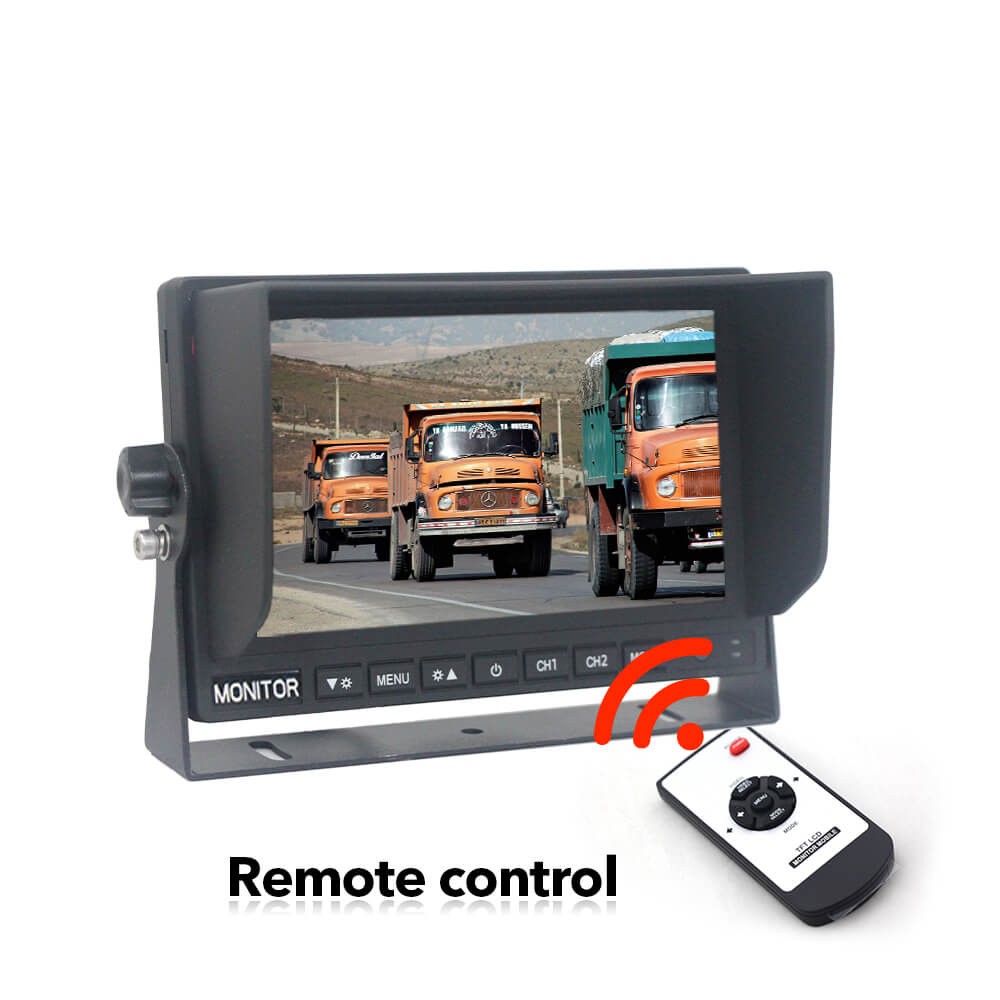

Full-function remote control
Multi-language settings
Horizontal mirror image switching
DC 12-24V wide voltage
AUTO adaption PAL / NTSC system

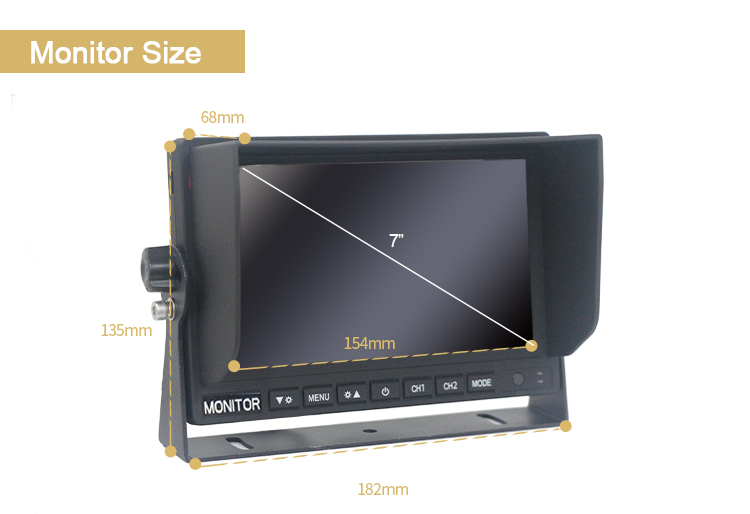

| Screen Size | 7 Inch HD color IPS screen |
| Screen ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Backlight | LED, 500 cd/m2 |
| Contrast | 500:1 |
| Viewing angle | Up—85°, Down—85°, Left—85°, Right—85° |
| Video input | Support 2CH 1080P/720P/960P/CVBS Mixed video signal input |
| OSD menu | Image setting, Image turnover, Blue/Black screen (No signal), Language setting, Parking guide line on/off, Reset |
| Parking guide line | Each channel is controlled separately, Off as default |
| Mirror / Normal image | Each channel is controlled separately, mirror as default |
| Reversing delay | Each channel is controlled separately, 3S as default |
| Compressed format | H.264 |
| Language | English / Chinese |
| Image display | Single/double image display |
| Trigger | 1CH |
| System | PAL/NTSC (Automatically) |
| Power supply | DC 12-24V |
| Currents | 12V/1.1A |
| Operating power | 13.2W |
| Boot time | About 2 sec. |
| Operating temperature | -20~+70 ºC |
| Operating humidity | 95%RH |
| Storage temperature | -30~+80 ºC |
| Vibration rating | 4G |
