HD wireless waterproof Transmitter and receiver kit

HD wireless waterproof Transmitter and receiver kit

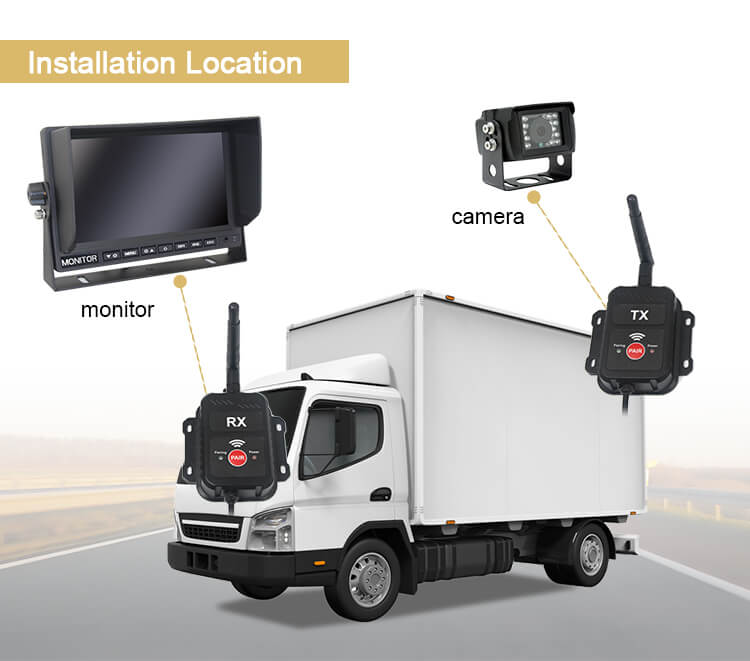

Aotop waterproof vehicle wireless transmission receiver box kit is used in wired vehicle rear view camera monitor system. With it, you can upgrade your existing wired vehicle monitoring system to wireless transmission, eliminating the need for wiring. For more information, please contact us at sales@aotop.com.

PRODUCT FEATURES

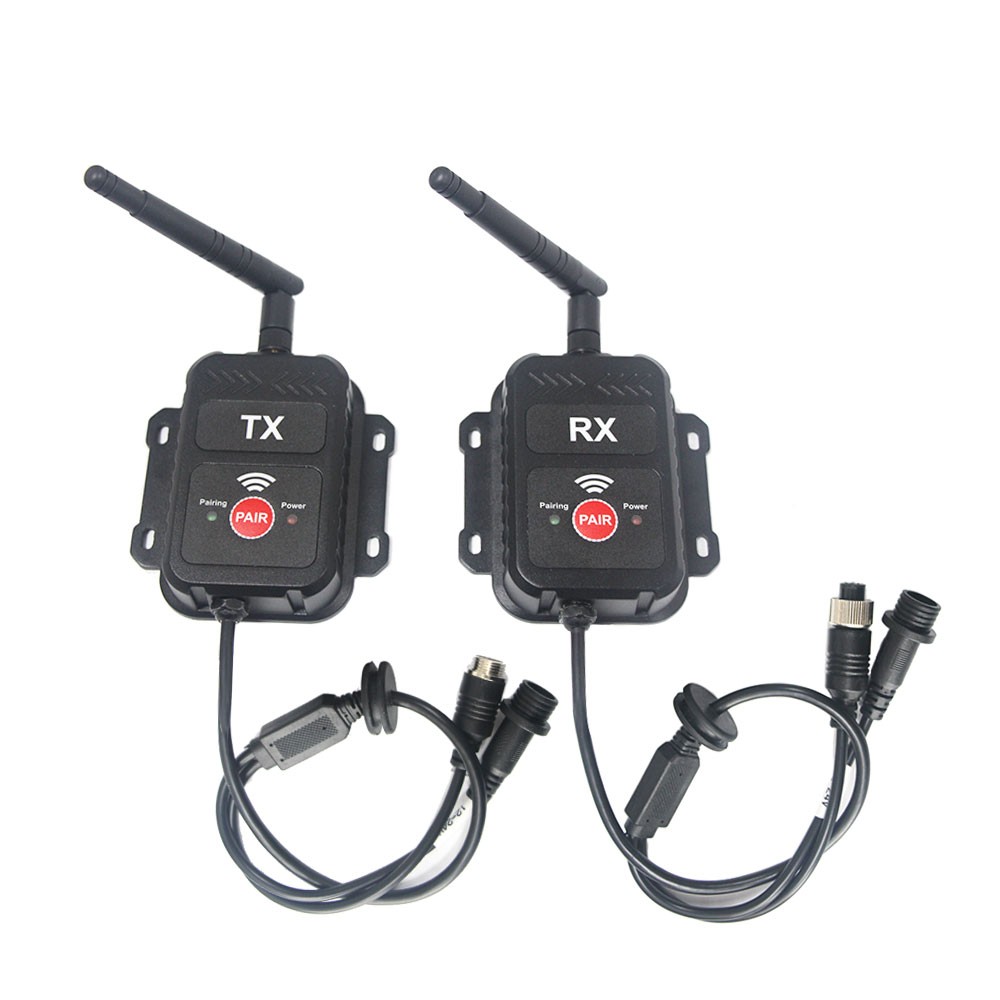

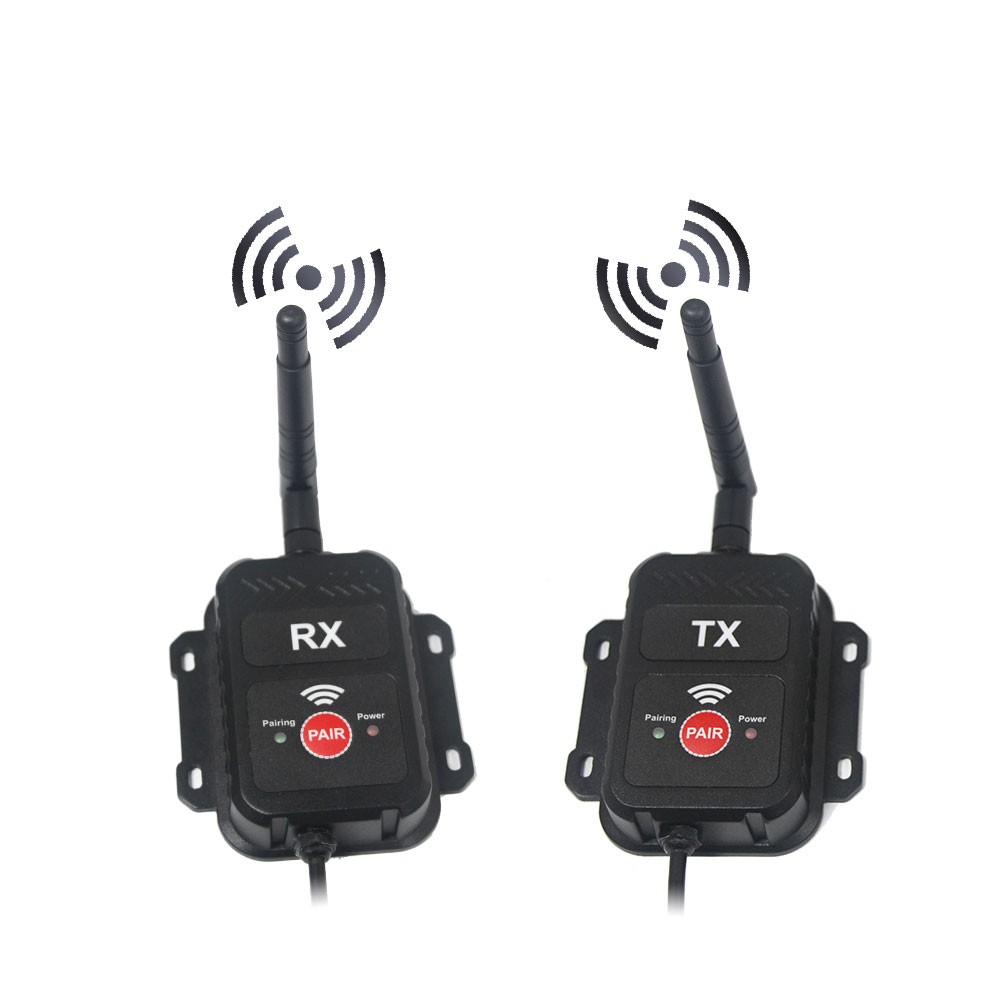

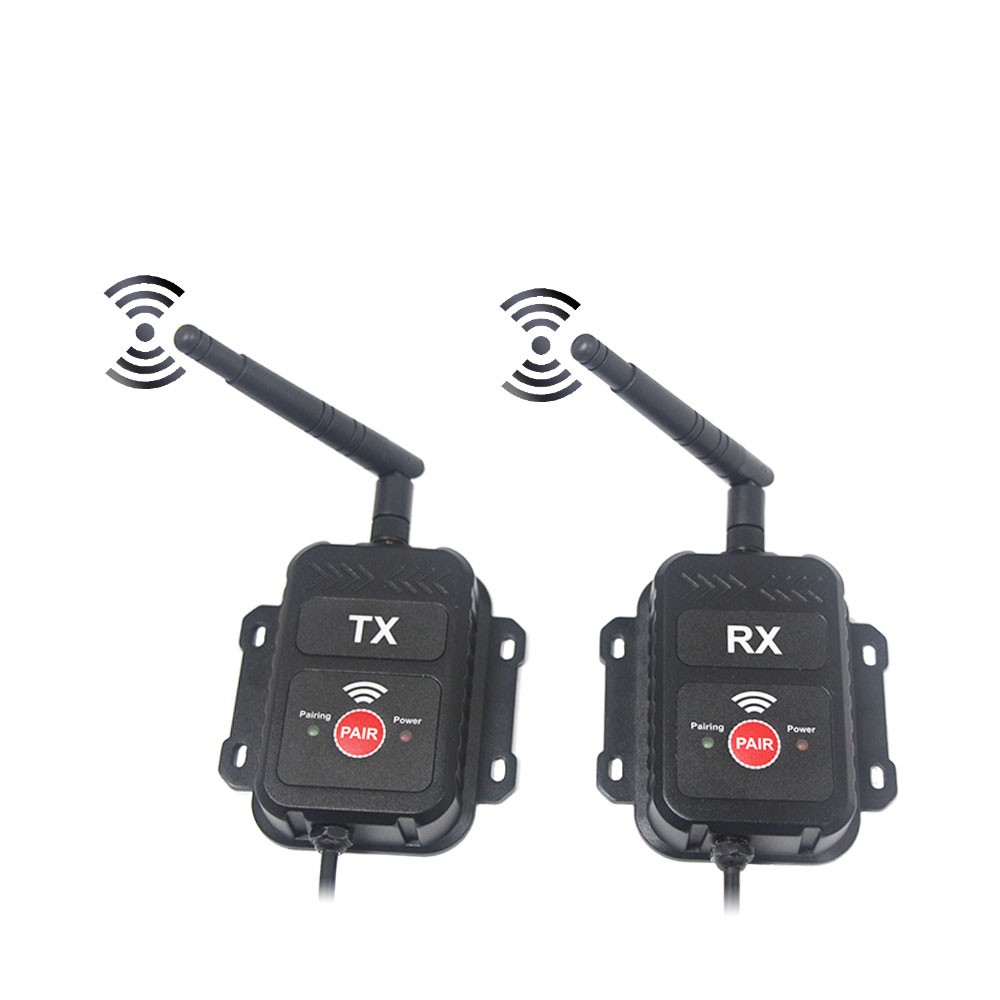

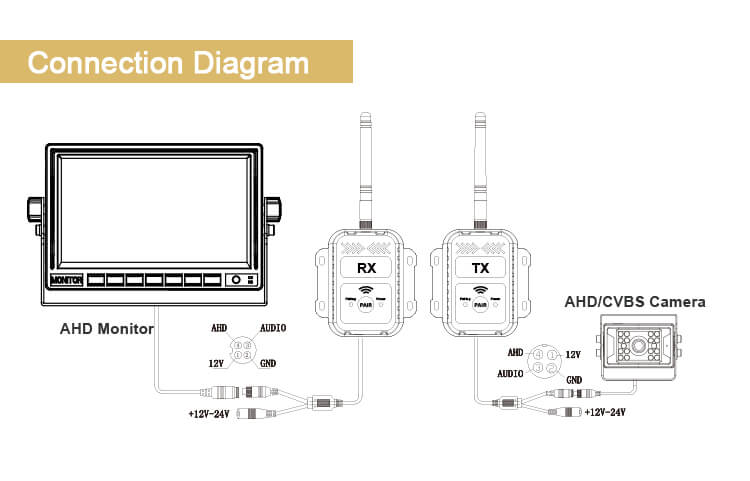

TXRX box wireless video signal transmission receiver converts a wired in-vehicle camera system to a
wireless connection. It consists of a transmitter (TX) and a receiver (RX).
(TX) transmitter receives video signals from the AHD / CVBS / TVI / CVI vehicle camera, 2.4Ghz wireless
transmits the signals to the Receiver, and the (RX) Receiver outputs these video signals to the monitor.

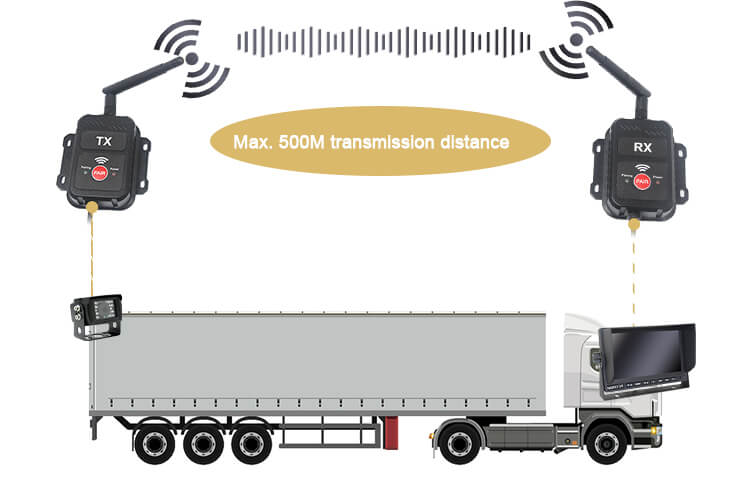

Transmission distance up to 500M.

TX (Transmitter)	RX (Receiver)
Power Supply: DC 12-24V	Power Supply: DC 12-24V
Transmitter Current: 200MA	Transmitter Current: 200MA
Tx Video Input: AHD/TVI/CVI/CVBS	Rx Video Output: 720P(AHD)
Operation Frequency: 2400-2483.5MHz	Operation Frequency: 2400-2483.5MHz
Transmission Distance: 500M	Transmission Distance: 500M
Boot Time: 2S	Boot Time: 2S
Transmission Power: 12Mbps	Transmission Power: 12Mbps
Pairing: Automatically	Pairing: Automatically
Without/With Audio: NO(Optional)	Without/With Audio: NO(Optional)
Waterproof: IP68	Waterproof: IP68
Time Of Delay: 90-120mS	Time Of Delay: 90-120mS
Operating Temperature: -20°C-70°C, RH95%MAX	Operating Temperature: -20°C-70°C, RH95%MAX
Storing Temperature: -30°C-85°C,RH95%MAX	Storing Temperature: -30°C-85°C, RH95%MAX

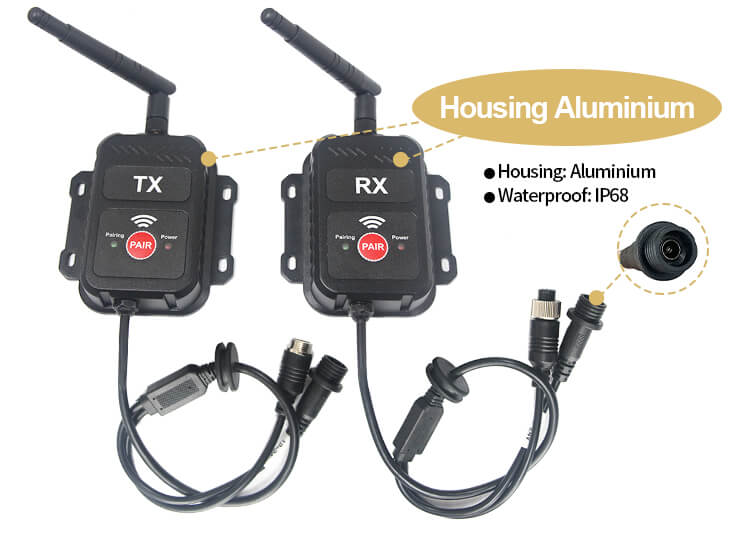

Housing: Aluminum Alloy	Housing: Aluminum Alloy

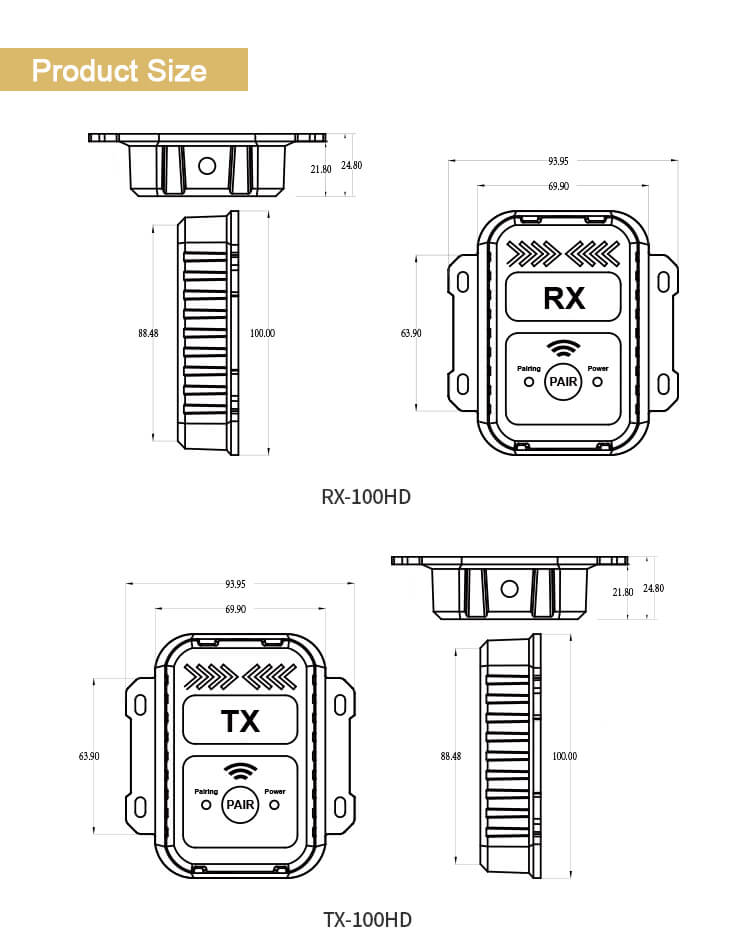

Size: 988625MM	Size: 988625MM
Red Light ON/OFF : Power ON/OFF	Red Light ON/OFF : Power ON/OFF
Red Light Flashes: Pairing	Red Light Flashes: Pairing
Green Light ON: Connect Successsfully	Green Light ON: Connect Successsfully
Green Light OFF: Signal Lost	Green Light Off: Signal Lost
