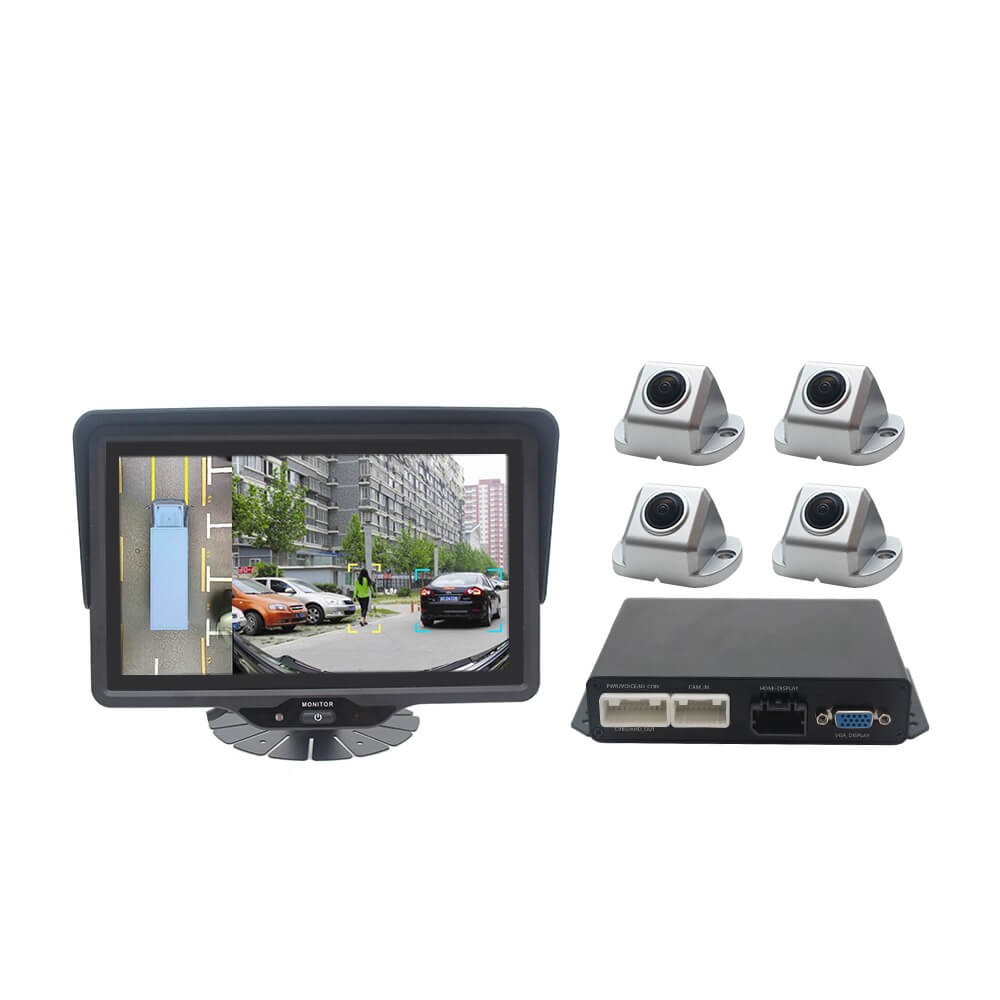

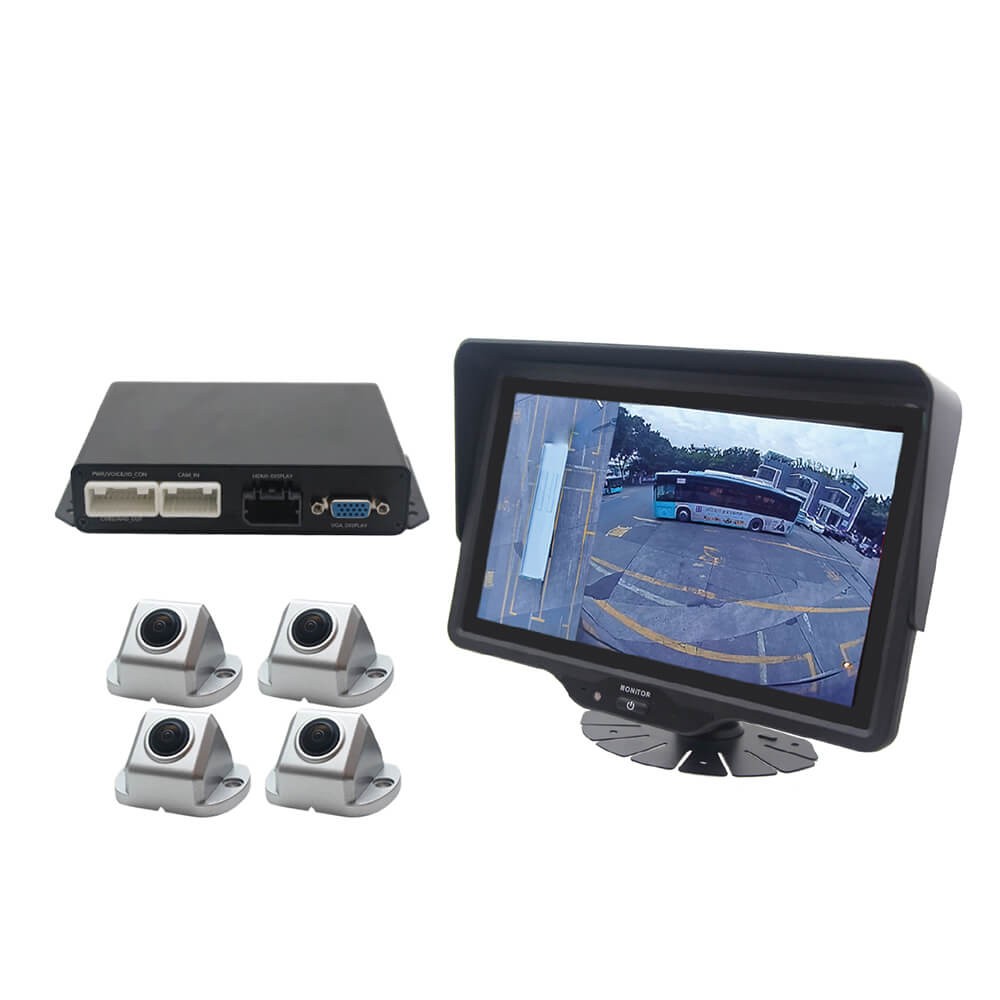

【4CH 360° Surround View System】4CH 1080P super wide angle 210° camera input, 360° surround view imaging system for a wide range of commercial vehicles and heavy-duty vehicles.

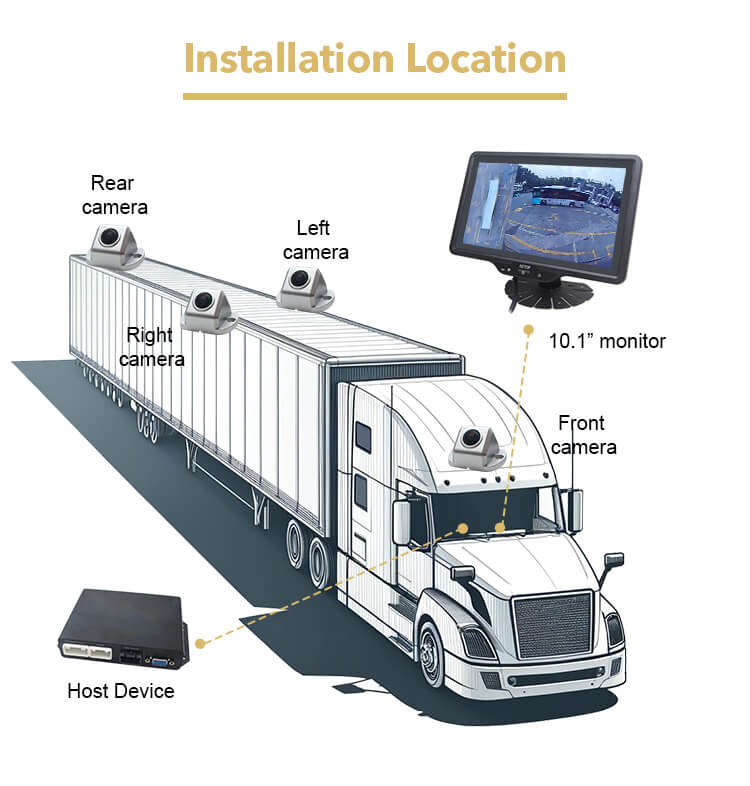

【360 Surround View Control Box Integrated 360° Surround View Algorithm enables true 360° bird’s eye view surveillance with a 4CH wide-angle camera, eliminating side, front, and back blind spots of large vehicles.
| Electrical Parameters | Power Consumption | About 7~8W |
| Power Protection | Low Power Protection Short Circuit & Overload Protection | |
| Operating Voltage | DC 10-33V | |

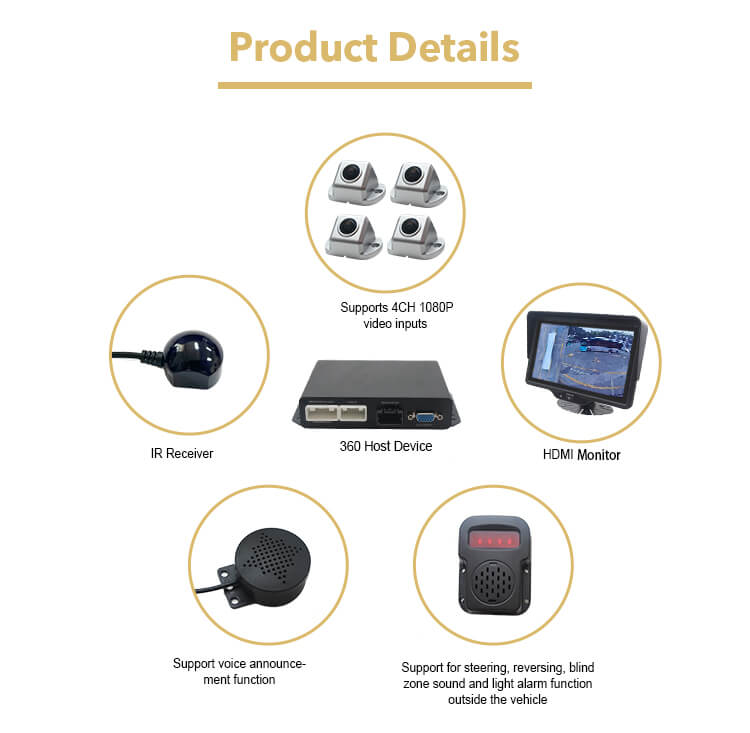

| 360° AI | Built-in AI intelligent algorithm | Supports Adjustable Restricted Area Recognition Supports Human & Vehicle Detection And Voice Broadcast Function Supports External Steering, Reversing, Blind Spot Sound And Light Alarm Function |

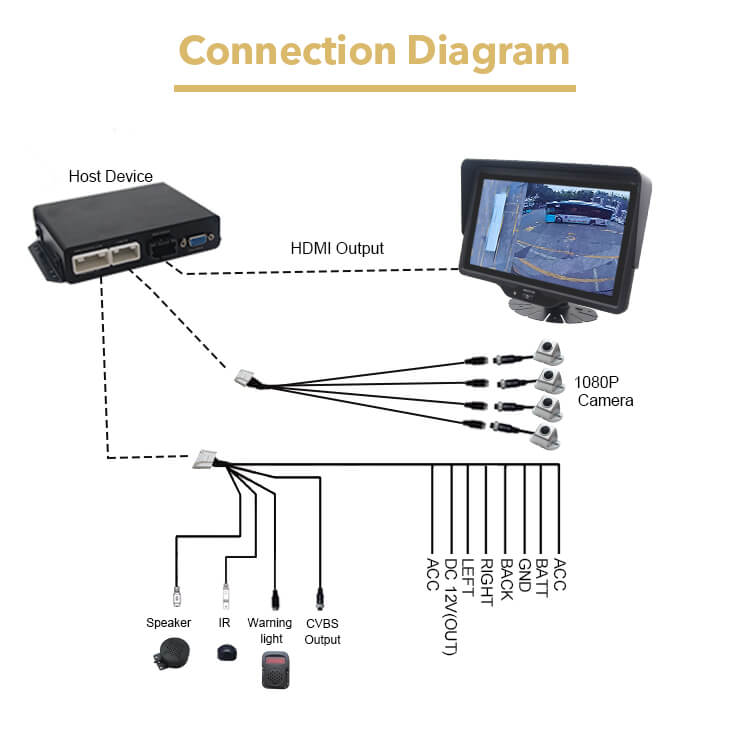

| Video Output Interface | AHD Video Output (Optional) | Supports 2CH AHD 25fps 720P / 1080P Output Standard 4P Aviation Connector (Female) |
| CVBS Video Output | Support, Standard 4P Aviation Connector (Female) | |
| VGA Video Output | Support, Standard DB15 Female Connector, Serial Communication Function | |
| HDMI Video Output | Support, In-Vehicle HDMI Interface, Serial Communication Function | |
| Video Input Interface | Video Input Interface | 4CH * 720P 1080P 25fps/30fps Camera Input Standard 4P Aviation Male Connector |

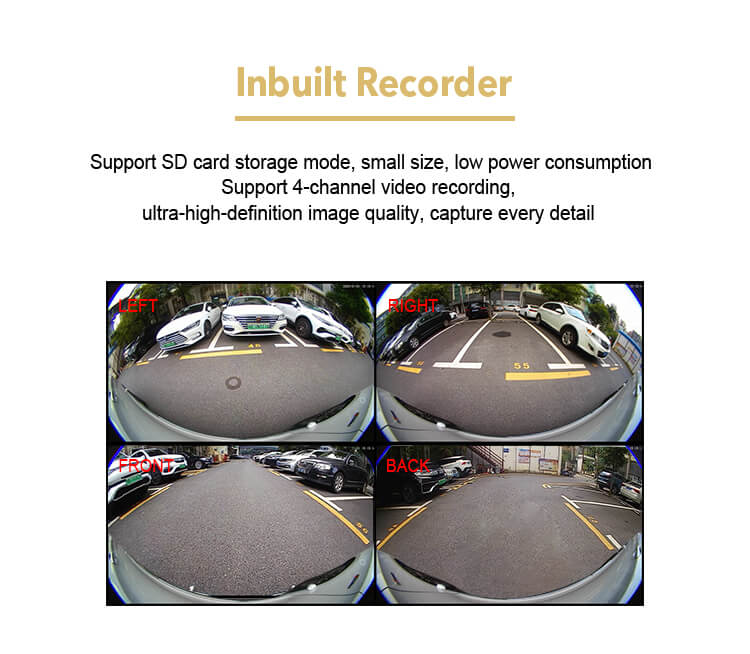

| DVR Function | MSATA_SSD（Optional） | 128GB-2TB |
| SD_CARD | 8-256G | |
| Recording Parameters | Video Format | H265 |
| Video Resolution | 1920*1080P | |
| File Capacity | 1.25GB/Hour | |
| Other | IP rating | IP51 |
| Operating Temperature | -20℃ ~+70℃ | |
| Storage Temperature | -40℃ ~+80℃ | |
| Vibration/Shock | Compliant with MIL-STD-810F | |

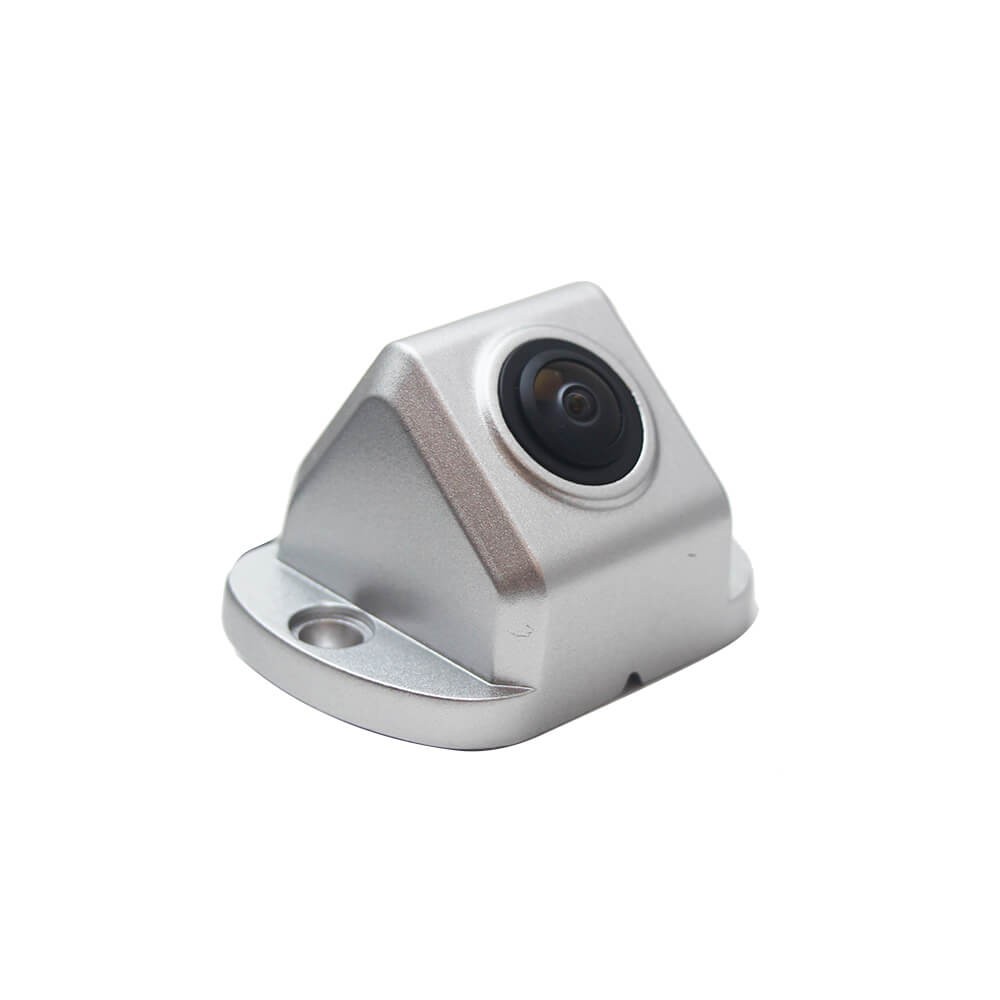

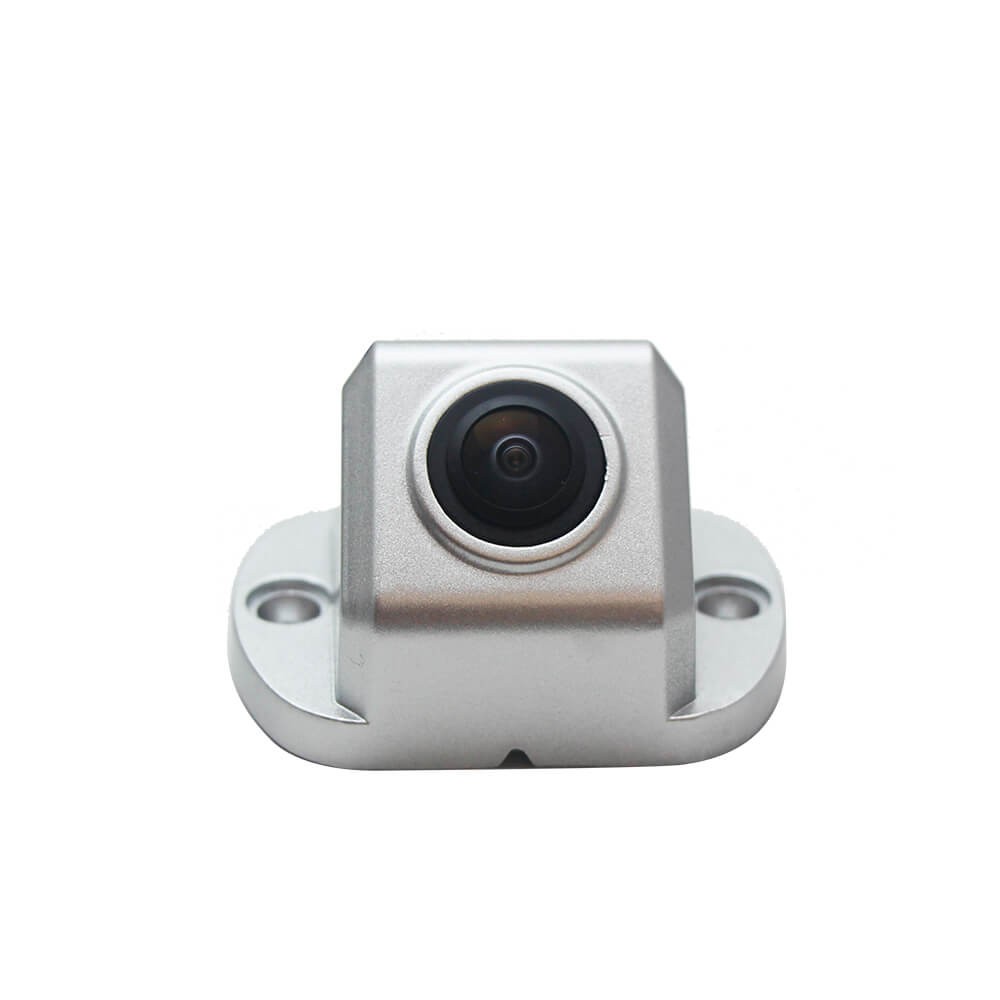

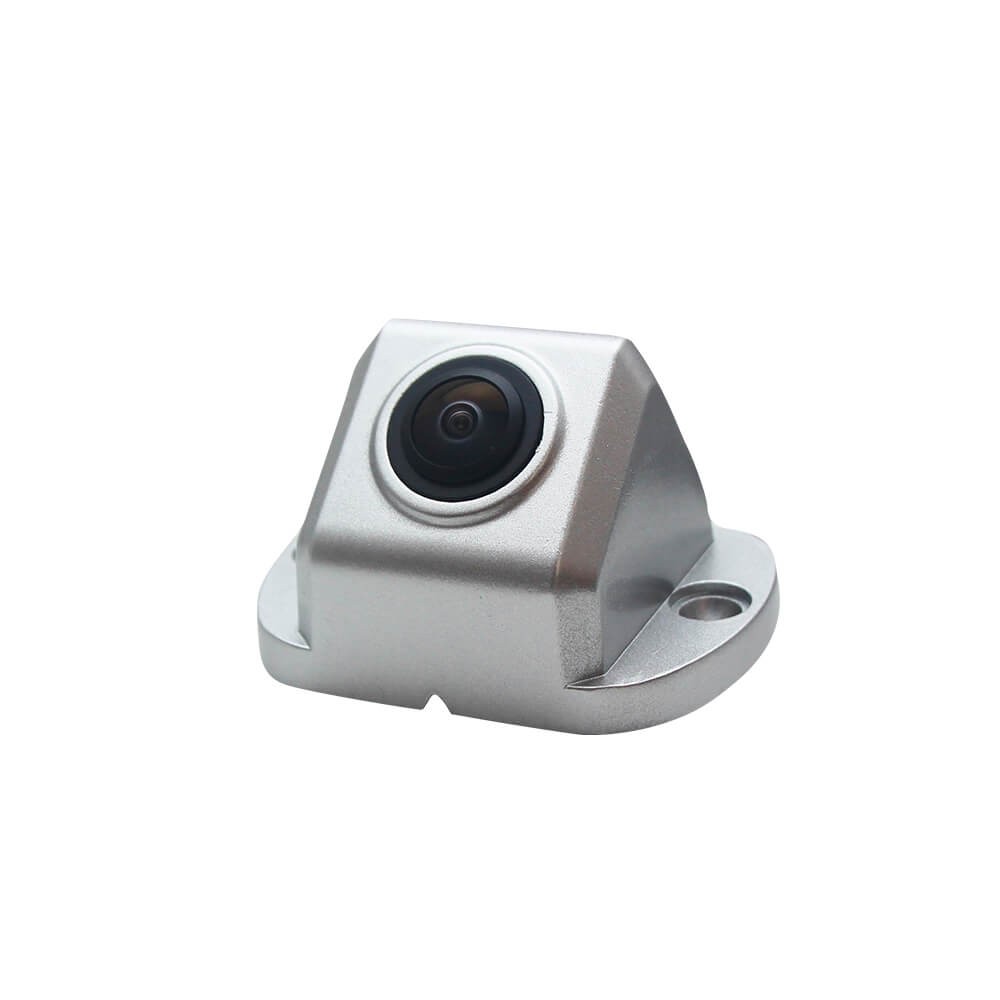

| Material | Aluminum Alloy |
| Voltage | DC8-16V |
| Power Consumption | 0.5-1W (per camera) |
| Resolution | AHD / 1920*1080P |
| Operating Temperature | -30℃ ~+70℃ |
| Storage Temperature | -40℃ ~+85℃ |
| Video Frame Rate | 25 FPS/sec |
| Waterproof Rating | IP68 |
| Night Vision | Yes, Built-in Light Sensor |
| Low Light Level | 0.01 Lux |
| Vibration/Shock Resistance | Complies with MIL-STD-810F, Method 516.5 |
| Horizontal Angle | 210° |
| Vertical Angle | 126° |
| Aperture | 1.6±5% |
| Focal Length | 1.5MM |
