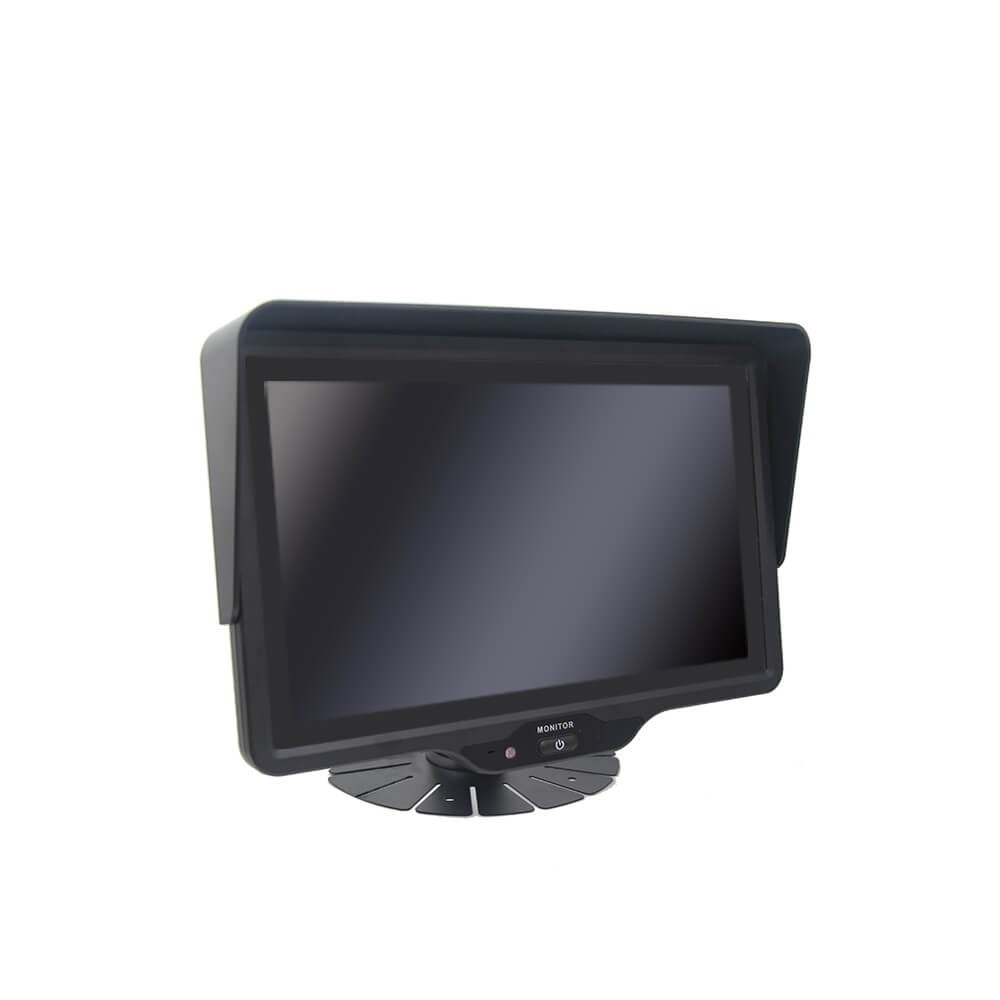

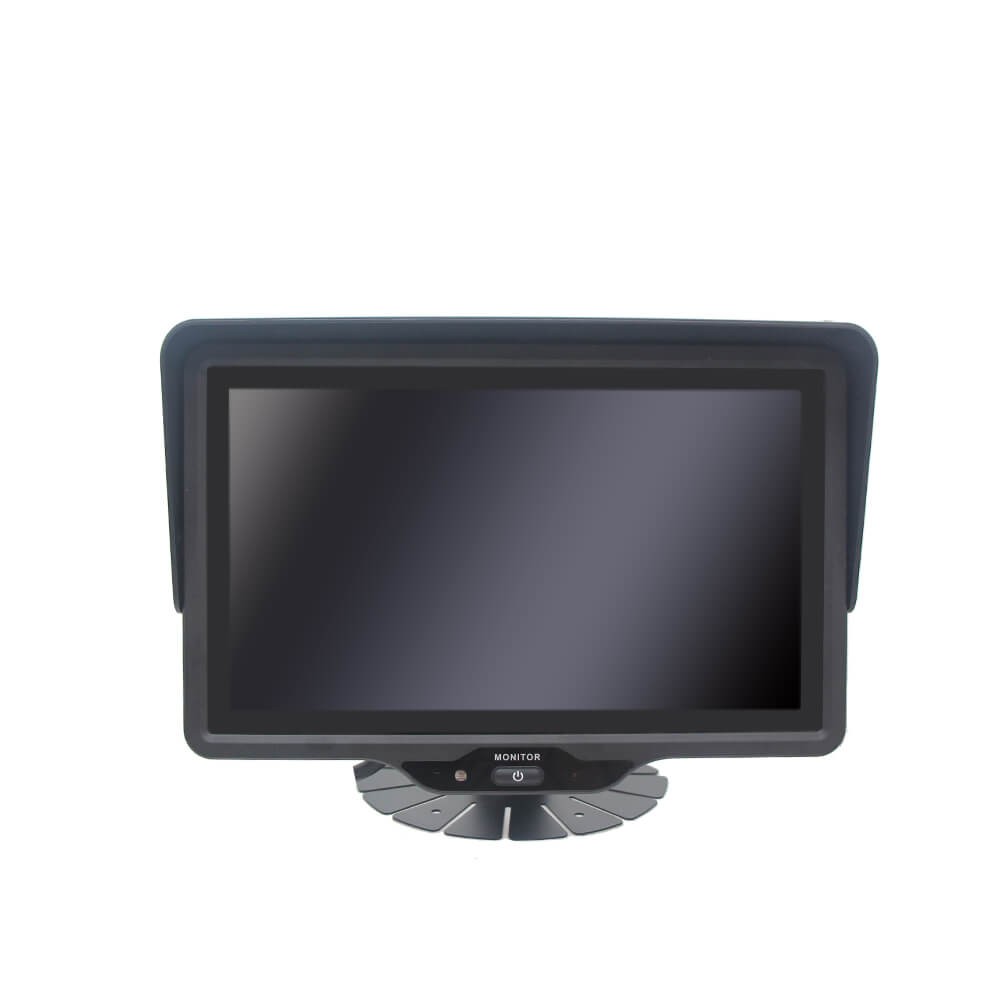

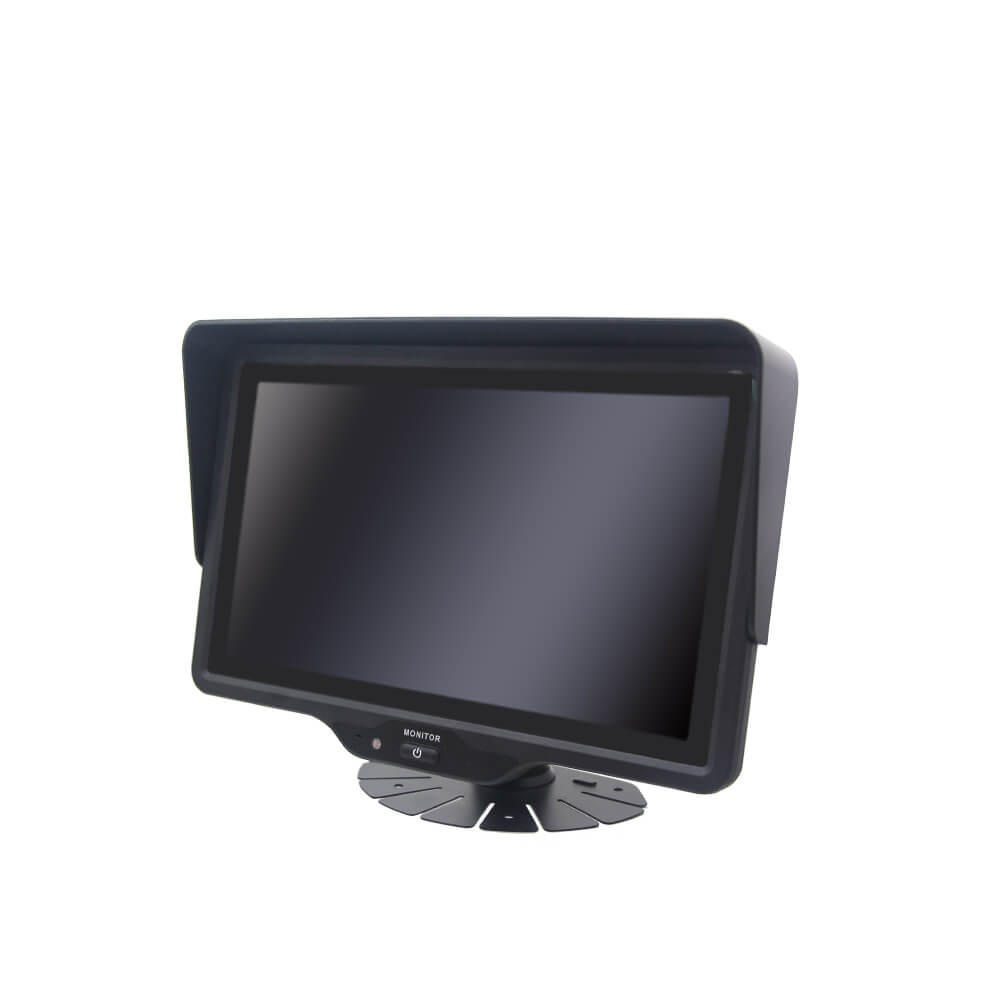

10.1 inch AI BSD vehicle monitor for pedestrian & vehicle detection and warning, 4CH built-in AI algorithm, detecting pedestrian and vehicles all around the vehicle to remind drivers of potential risks and avoid collision, improving driving safety! Built-in 256GB SD card suppoprt cyclic recording without external DVR. This helps improve fleet management efficiency. For more AI BSD monitor details, please contact us sales@aotop.com.
PRODUCT FEATURES
1024*RGB*600 resolution (full touch screen)

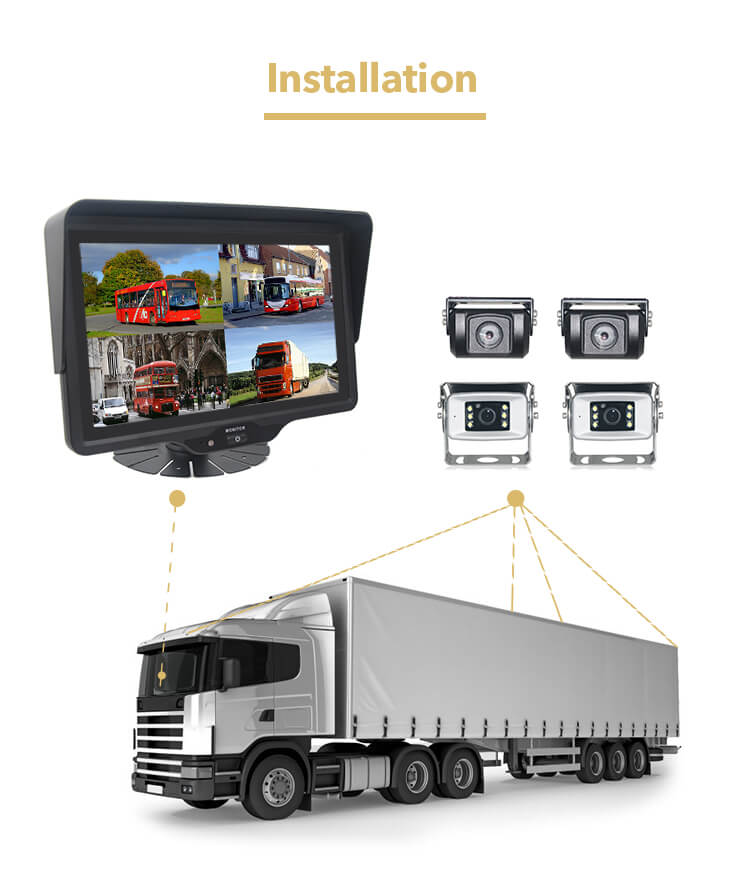

4CH x cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / PAL / NTSC

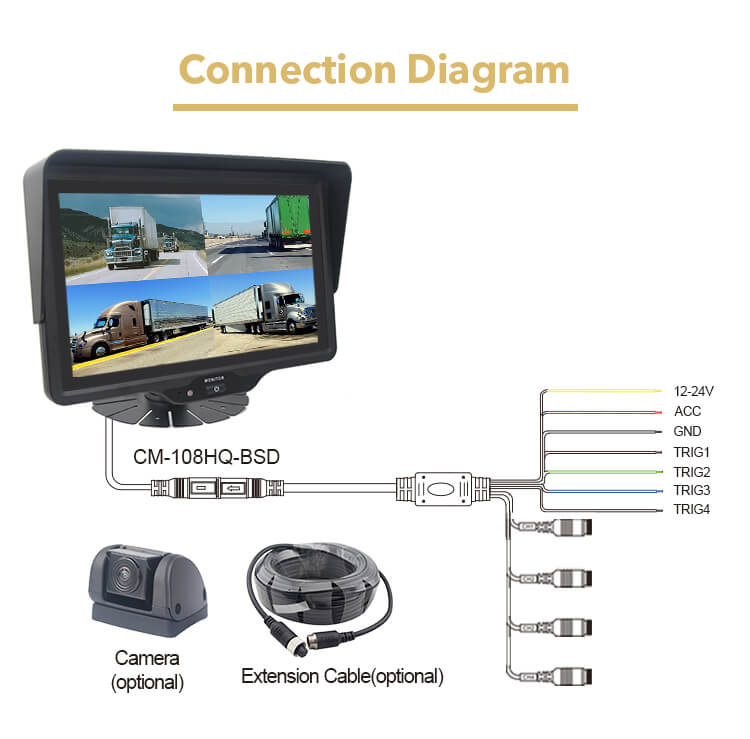

4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

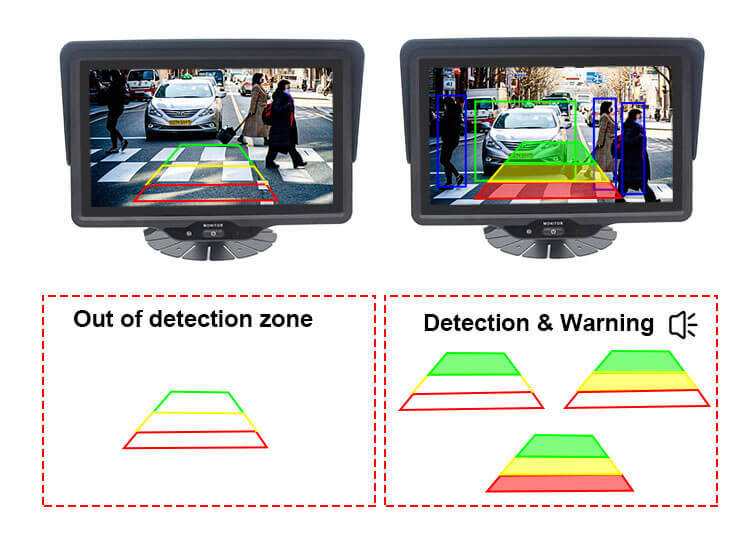

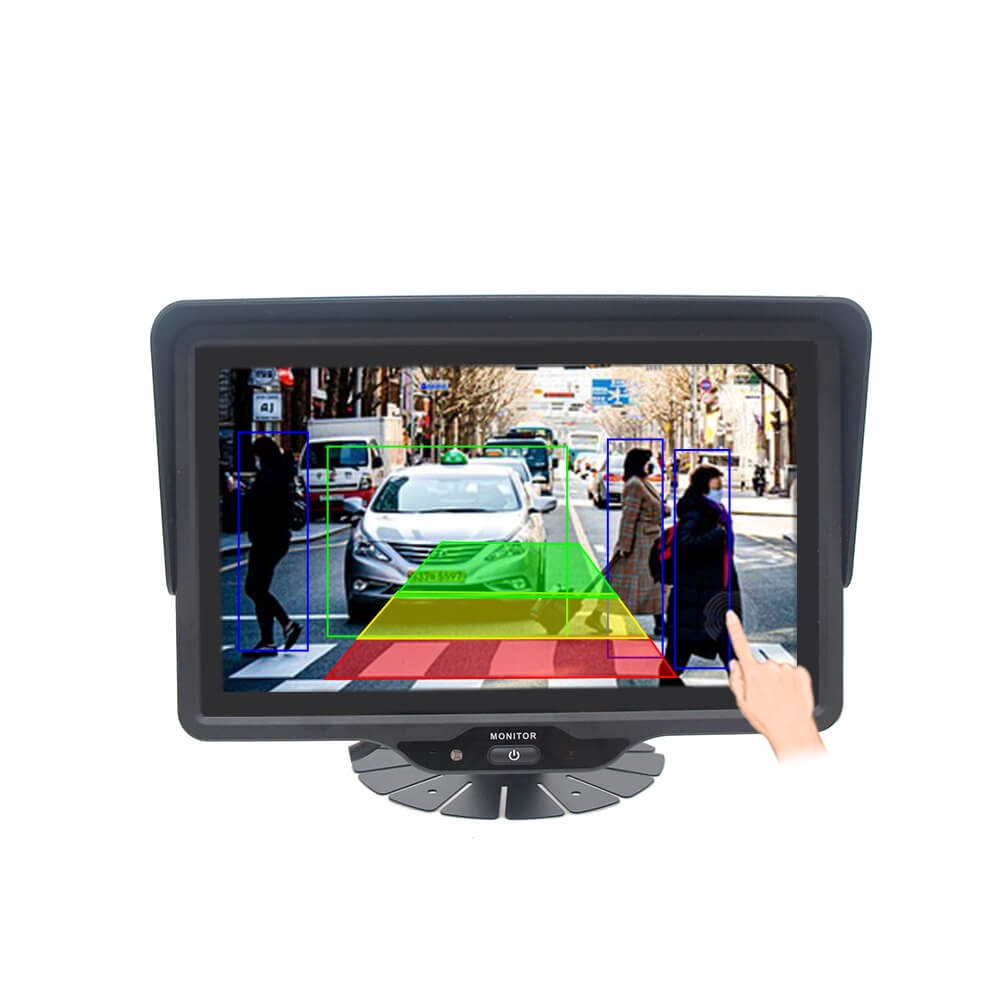

Built-in intelligent algorithm chip aupported 4CH image blind spot detection; pedestrian vehicle obstacle detection;
Available speaker BSD hazardous area approach audible warning
Full display & 2/3/4 split view mode

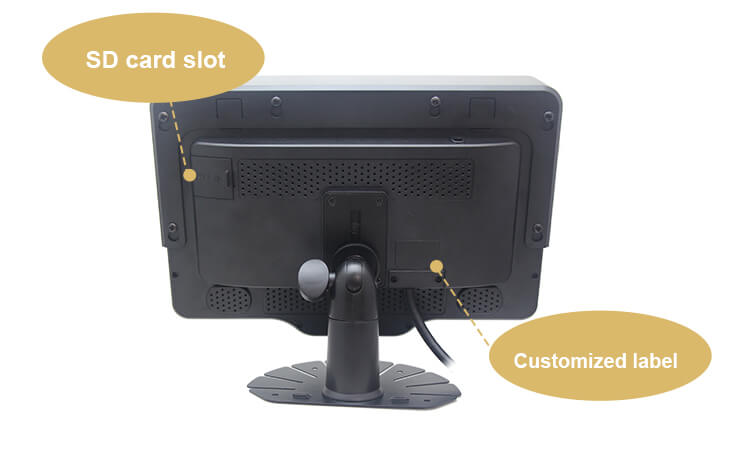

Max. 256GB memory card (4CH DVR recorder)
Multi-language settings
Horizontal mirror image switching
DC 12-24V wide voltage
| Screen Ratio | 16:9 |
| Resolution | 1024*R.G. B*600 BOE |
| Backlight | LED, Brightness 500 Cd/M2 |
| Contrast | 800:1 |
| Viewing Angle | Up—85°, Down—85°,Left—85°, Right—85° |

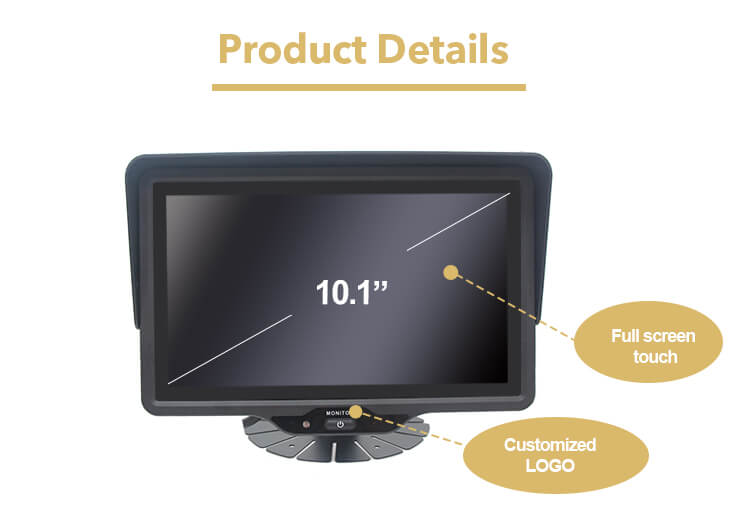

| Operation Method | Full Screen Touch |
| OSD Control | Time Setting, Display Setting, Smart Drive, View Files, System Setting |
| Signal Input | P/N, 720P/1080P |
| Recording | Support |
| SD Card Storage | Support 8-256G , High-Speed Card |
| Video Compression Format | H.264 Compression Mode |
| Video Playback | Single Channel Playback |
| File Format | TS |
| File Size | About 16.5M/Min |
| System Language | Chinese, English, Japanese, Korean |
| Display Image Switch | Double-Tap Touch Screen |
| Trigger | 4CH, With Guideline Function |

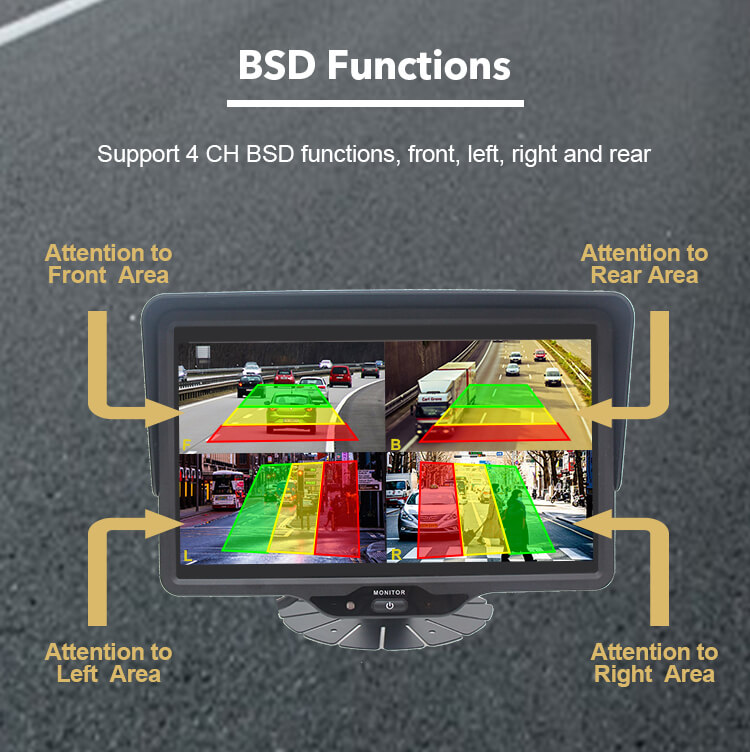

| Blind Spot Detection | Support 4 Channel Front、Left、Right、Back |
| Shockproof Level | 4G |
| Recording Audio | 4 Channels Recording (Not Including Audio From Camera) |
| Working Temperature | -20~+70 ºC |
| Working Humidity | 85%RH |
| Storage Temperature | -30~+80 ºC |
| Power Supply | 12-24V |
| Power Consumption | Normal Working Condition＜11.4W |
| Booting Time | 4S |
| Current Consumption | DC12V≈550MA , Without Cameras |
| Speaker | BSD Warning From The Monitor (Audio From The Camera Is Not Supported) |
