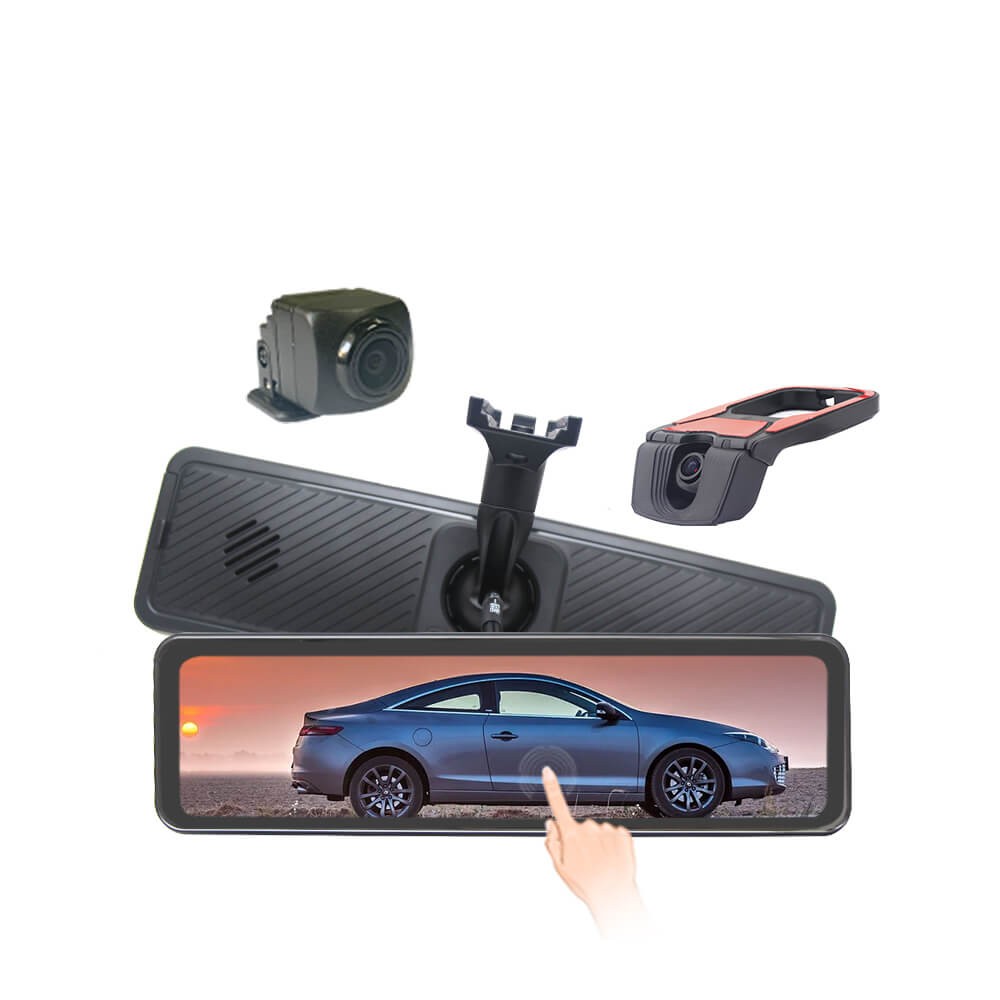

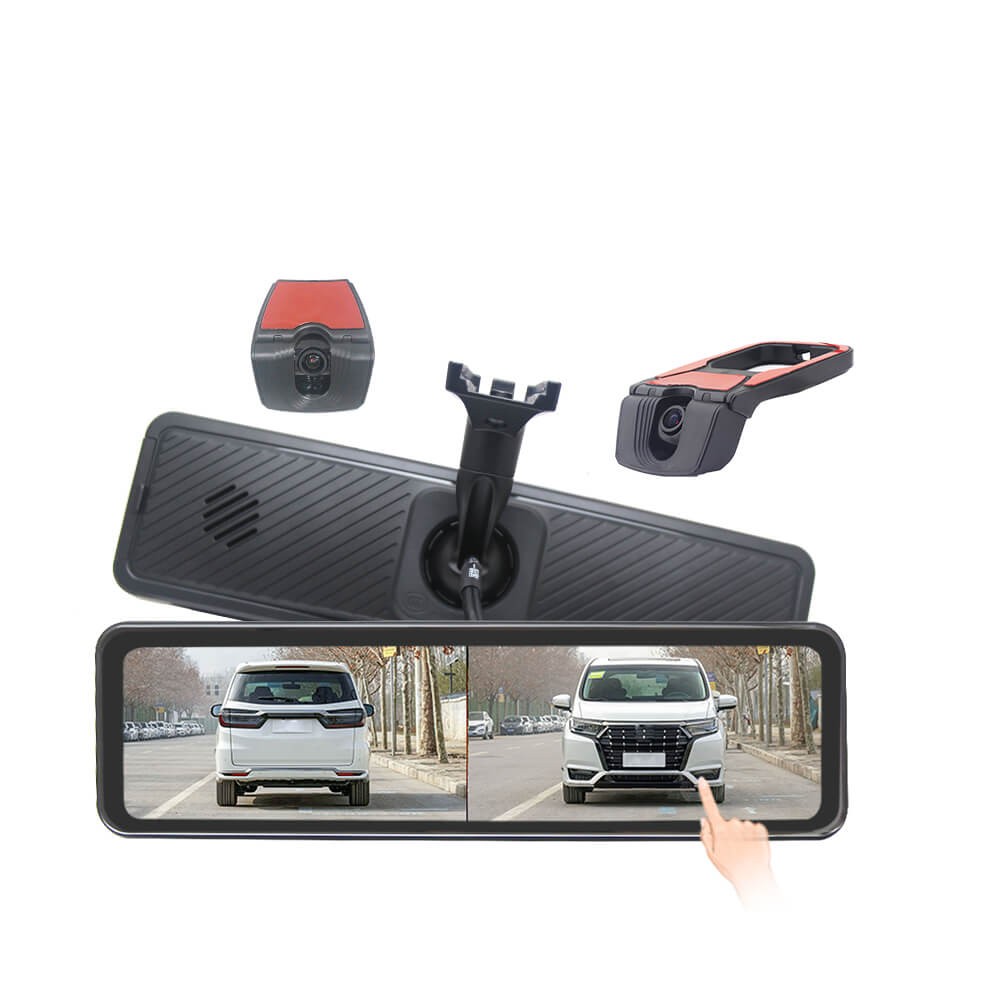

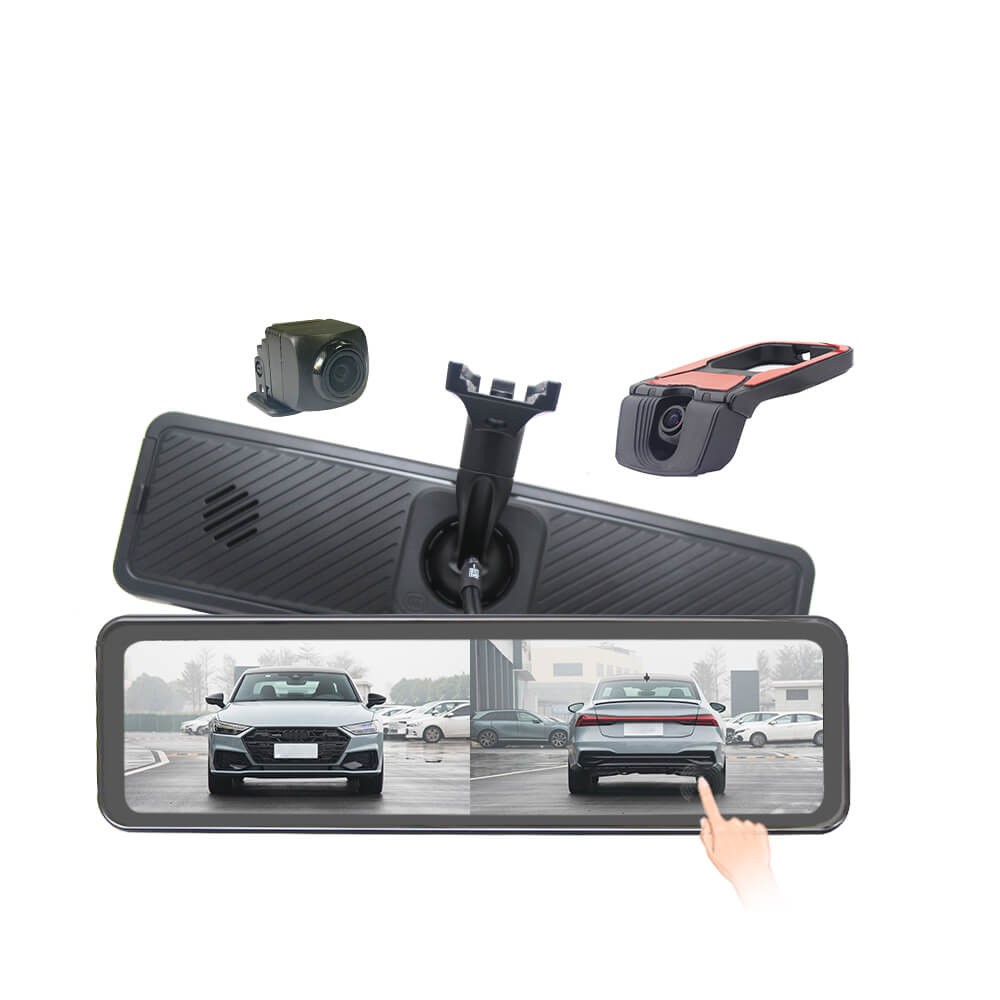

Aotop 10.88 inch HD rearview mirror monitor dual camera system integrates ADAS (Advanced Driver Assistance System) and BSD (Blind Spot Detection) functions and supports full-screen touch control. Mirror monitoe supports 2CH HD 1080P video signal input supports front and rear camera DVR car recording, dual split viewdisplay, HD night vision, GPS driving track recording, etc. It is an ideal choice to enhance vehicle safety. If you are looking for a high quality mirror monitor system, please contact us via email at sales@aotop.com!
MIRRPR SYSTEM FEATURES

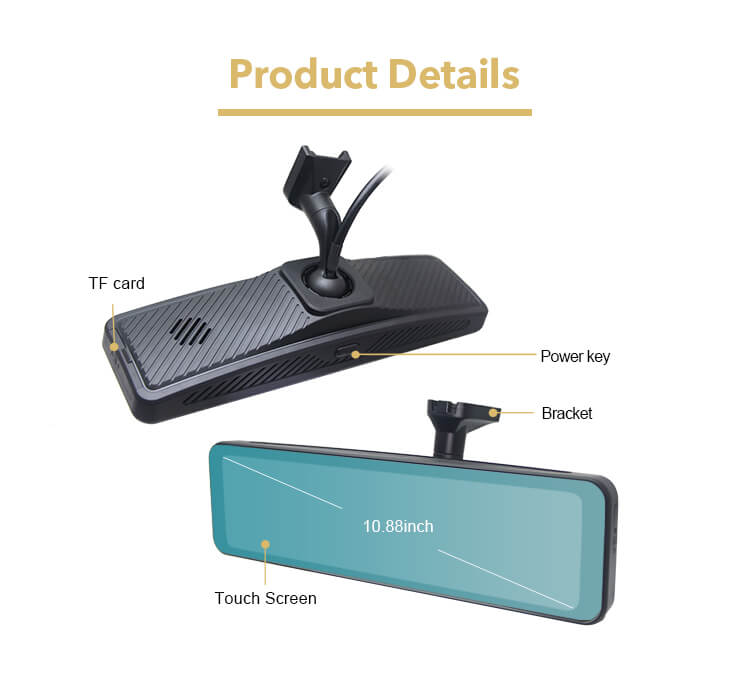

SCREEN: Touch Screen 10.88 inch Full Screen Display
RESOLUTION: 1920*480
BRIGHTNESS: High Brightness 800cd/m2
VIDEO INPUT: 2 Ways Signal, Front and back view
FRONT/REAR VIEW CAMERA: 1920*1080，27.5fps/60fps， HDR
POWER SUPPLY: 9~12V, from power supply box
STORAGE: Max 128GB TF Card
FEATURE: Smart ADAS System/BSD Blind Spot Monitoring Alert/Screen adjustment/Dual DVR recording
| RAM | 512M*2 |
| System | EOS |
| G-Sensor | 3-axis gravity sensing |
| MCU | Power management, communication & control with master serial port |
| Display | 10.88 inch IPS HD LCD screen, 1920*480 resolution, screen viewing angle vertical up and down and horizontal left and right are more than 170 ° |
| Screen Brightness | ≥1000nits |
| Touch Screen | Full mirror capacitive touch screen |
| Operating Voltage | Support 9~36V range, power box power supply |
| Maximum Working Current | ≤1.0A |
| Standby Current | ≤5mA |
| Maximum Operating Power Consumption | ≤10W |
| Camera Video Output Format | TVI |
| Camera Lens | Full Glass Lens |
| Front Camera | 1920*1080, 27.5fps, support HDR |
| Rear camera | 1920*1080, 60fps, support HDR |
| Video format | 1080P, TS |
| Picture Format | JPEG |
| Positioning | Built-in GPS positioning module |
| Speaker | 1 * speaker, 4Ω 2W |
| Microphone | 1 * electret microphone |
| Pushbuttons | 1 * key, power button |
| TF Card Holder | Support Micro SD card, maximum support 256 GB, support U1/C10 card speed |
| Mirror Case Material | PC+ABS, plastic injection moulding, flame retardant UL94 |
| Mirror Body Adjustment Torque | 1.2~1.7(N•m), single ball head, manual adjustment |
| Ball/Bracket Material | Alloy material one-piece die-casting moulding |
| Mirror surface | Plane mirror, mirror radius of curvature ∞, mirror reflectivity 41%~45 |
| Circuit Protection | Over-voltage and over-current protection, reverse voltage protection |
| Operating Temperature | -30℃~+70℃ |
| Storage Temperature | -40℃~+85℃ |
| Storage Humidity | 0%~90% |
Electronic rear view mirror uses advanced intelligent algorithms, real-time analyse images captured by the
front view camera to enable ADAS functions including pedestrian collision warning, safe distance ahead
reminding and lane departure warning.
And rear view video signal blind spot support pedestrian vehicle detection, anti-collision warning.

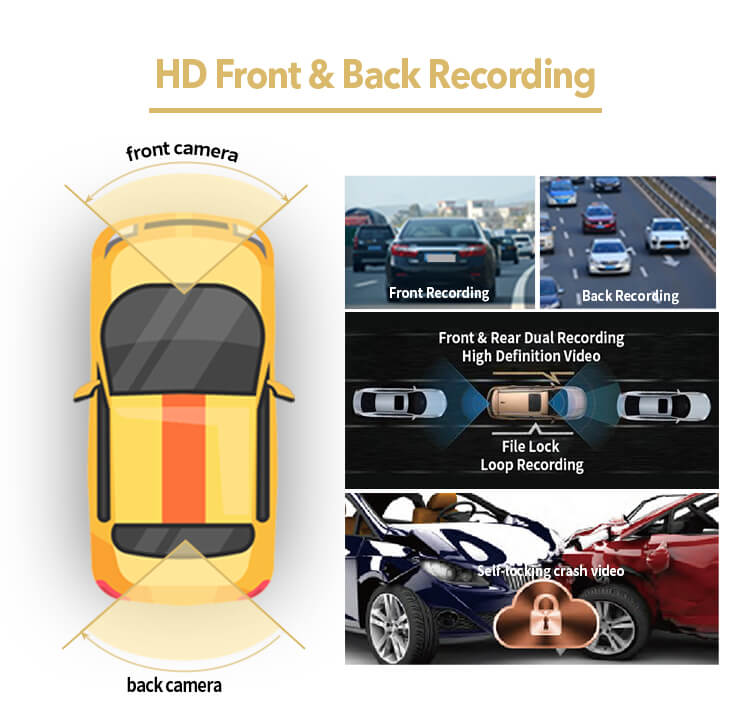

Front and rear dual-channel recording, front view 1080p/27.5fps, rear view 1080p/60fps.
G-sensor Automatically locks the relevant video file when a collision is detected.

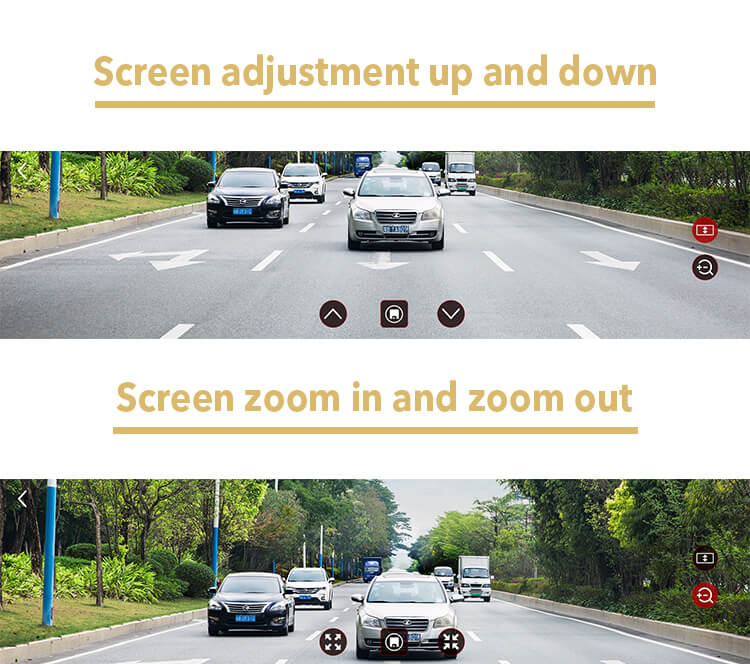

Rearview mirrors monitor full screen touch, support up and down, zoom in and out to adjust the display
angle of the travelling screen.
Front & rear cameras with HD night vision to provide clear images at night.

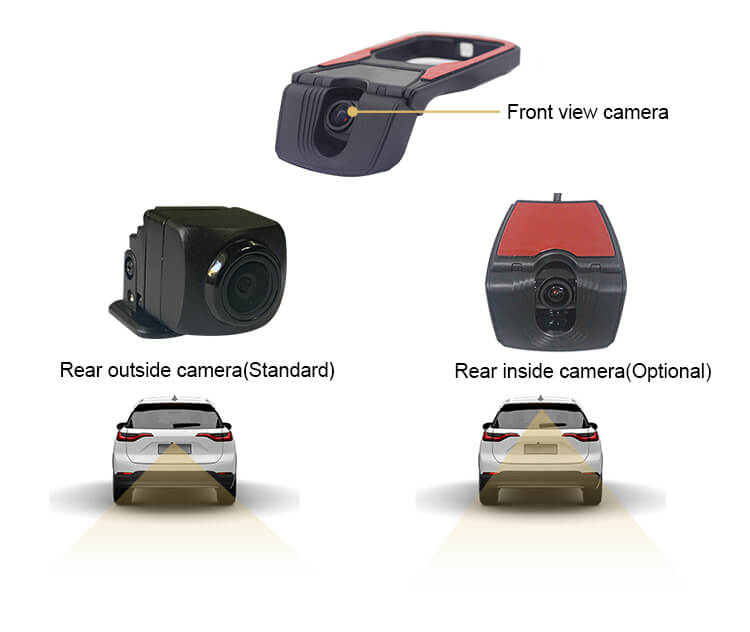

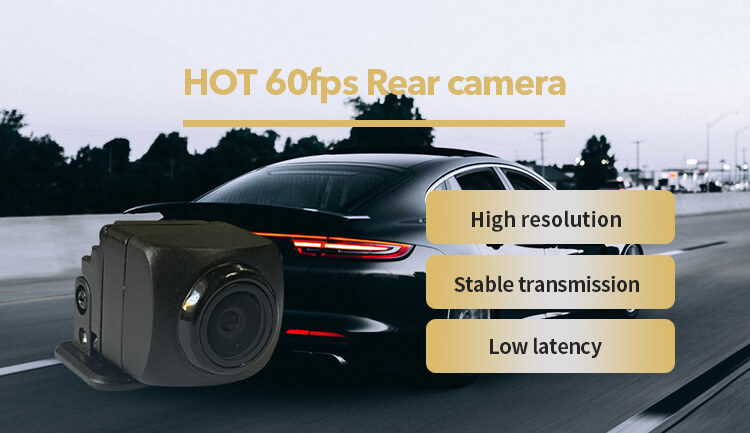

Backup camera provides 2 choices of internal and external specifications with the same performance, both of
which can present HD, stable and smooth 60fps images. The monitoring angle is different, users can choose
the suitable camera type according to the car model and rear view monitoring needs, in order to achieve the
ideal visual experience of reversing.

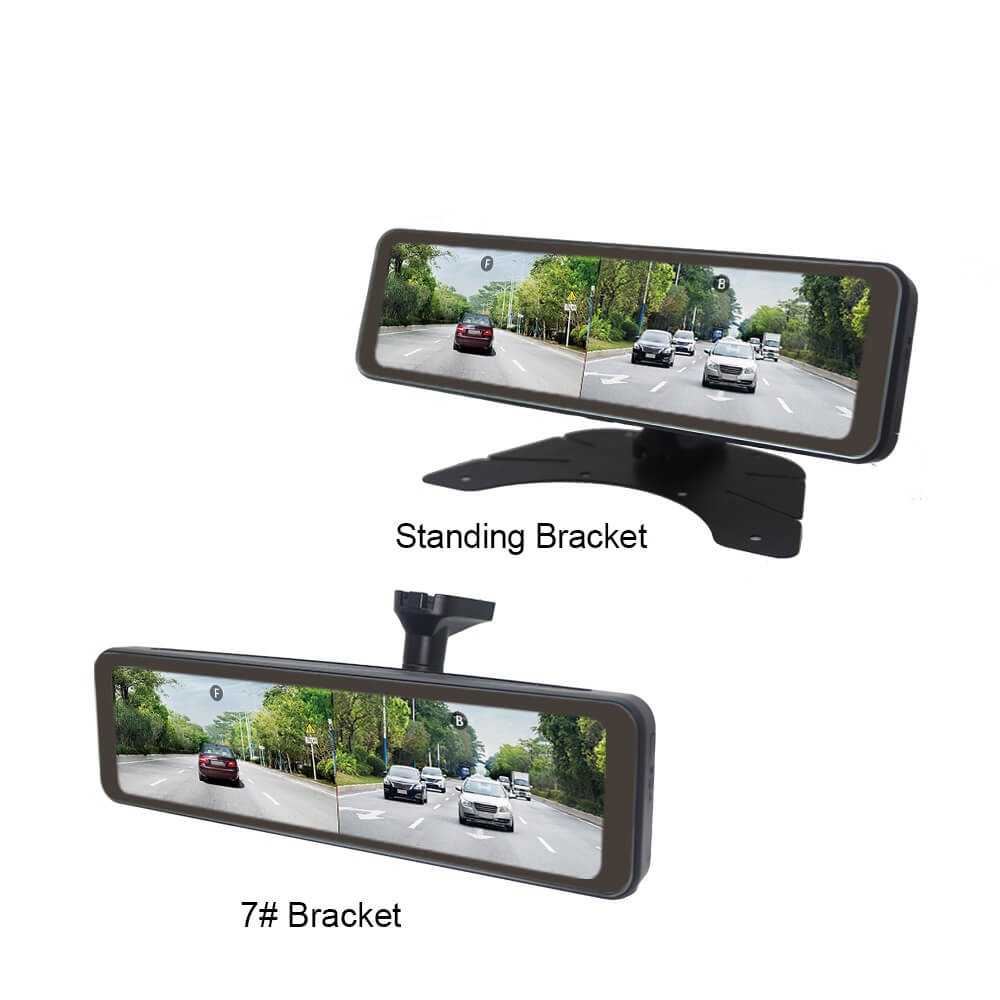

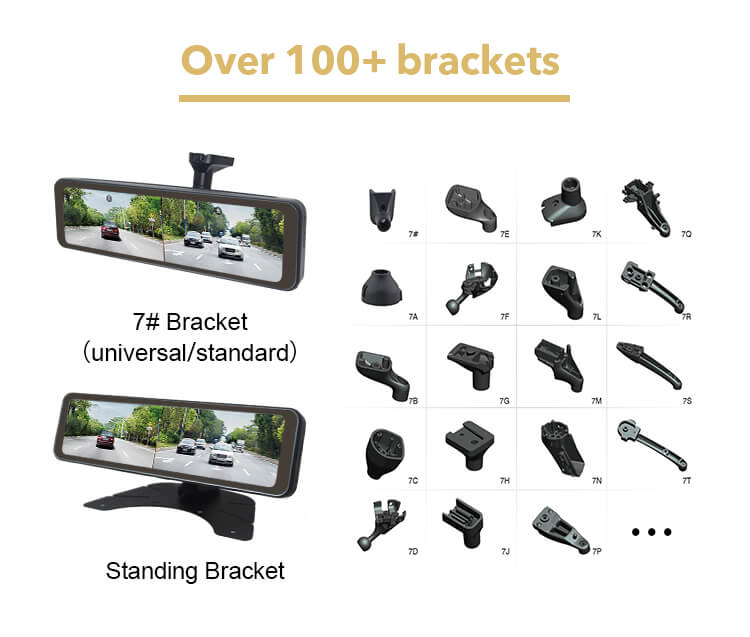

More than 100+ mounting brackets for mounting on different year brands of cars.
(Toyota, Honda, Ford, Chevrolet, Volkswagen, Nissan, BMW, Mercedes Benz, Audi, Subaru, Mazda, Jeep,
Volvo, Porsche, Tesla, Lexus, Jaguar, Land Rover)
