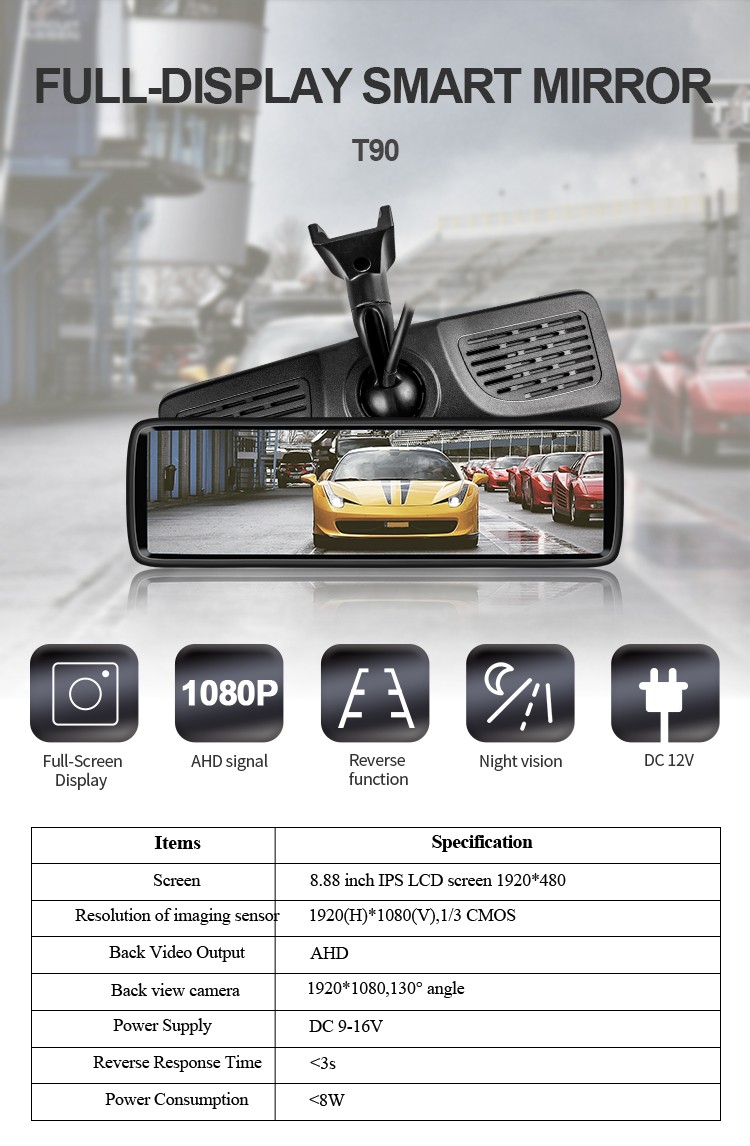

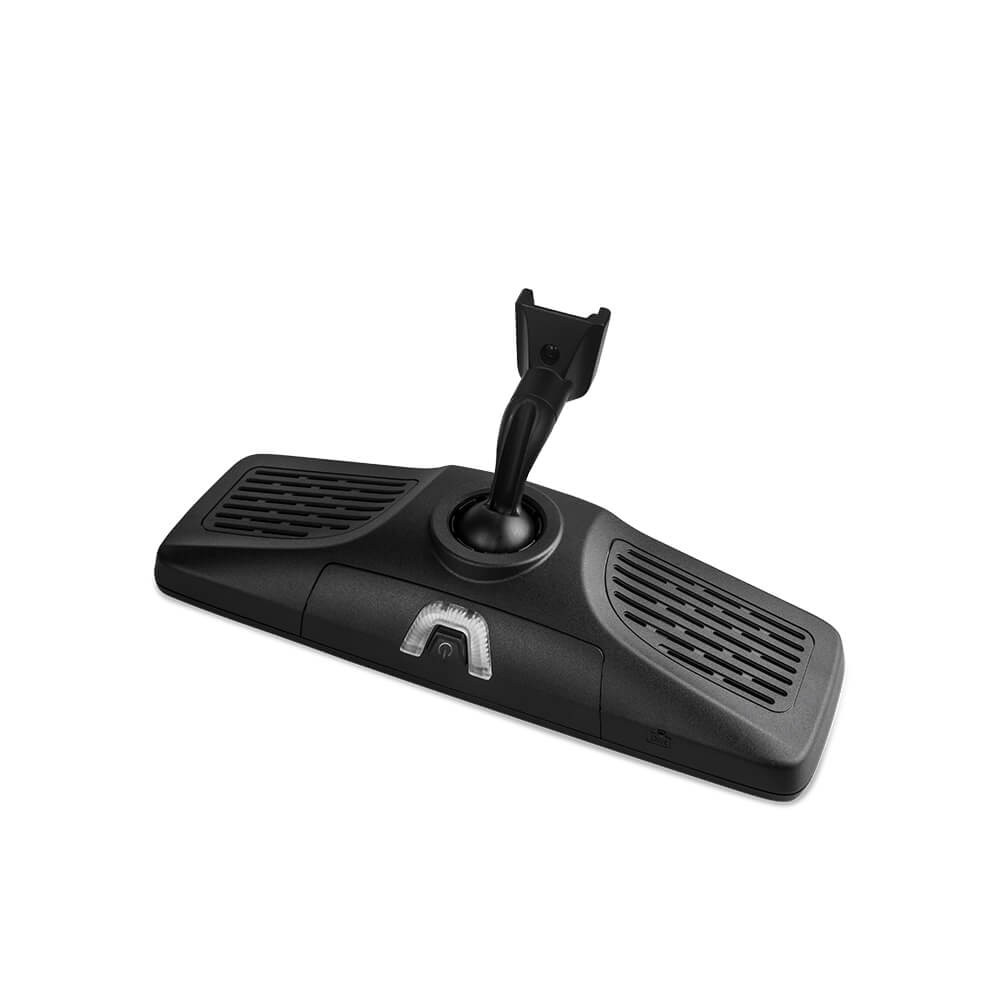

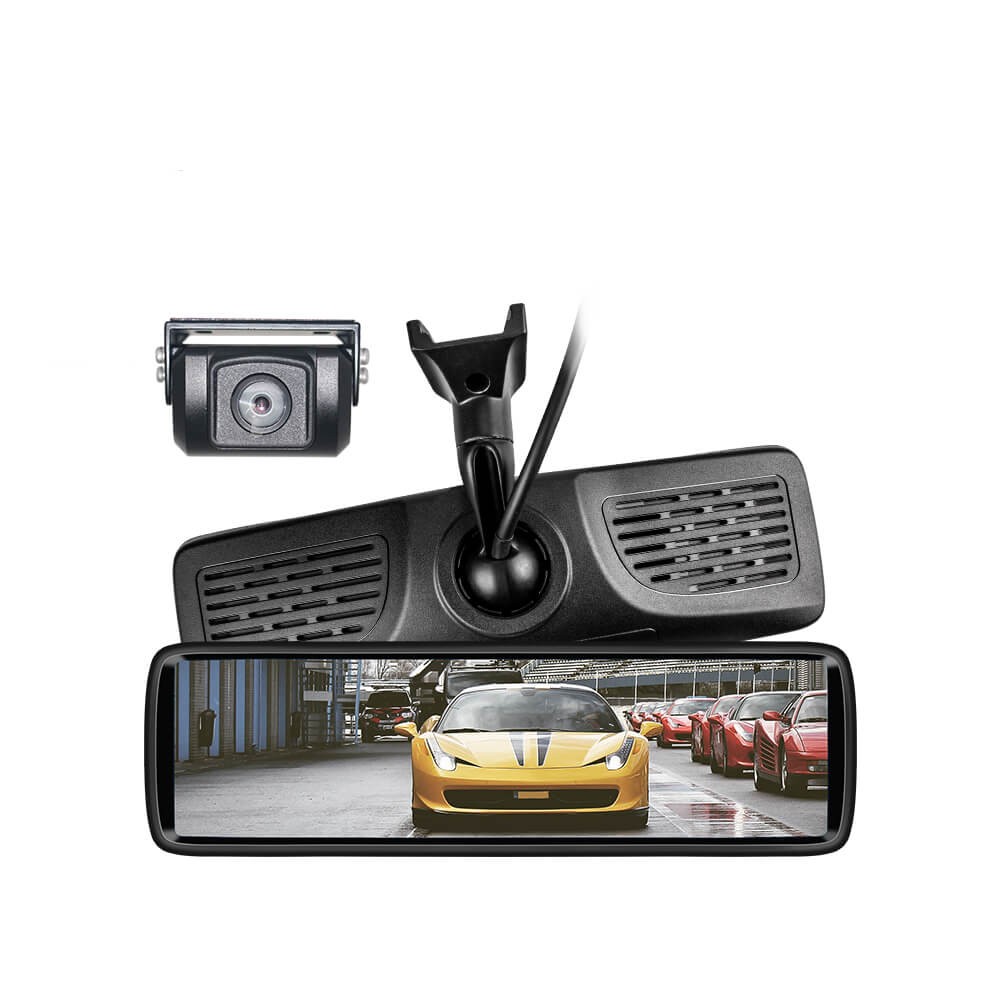

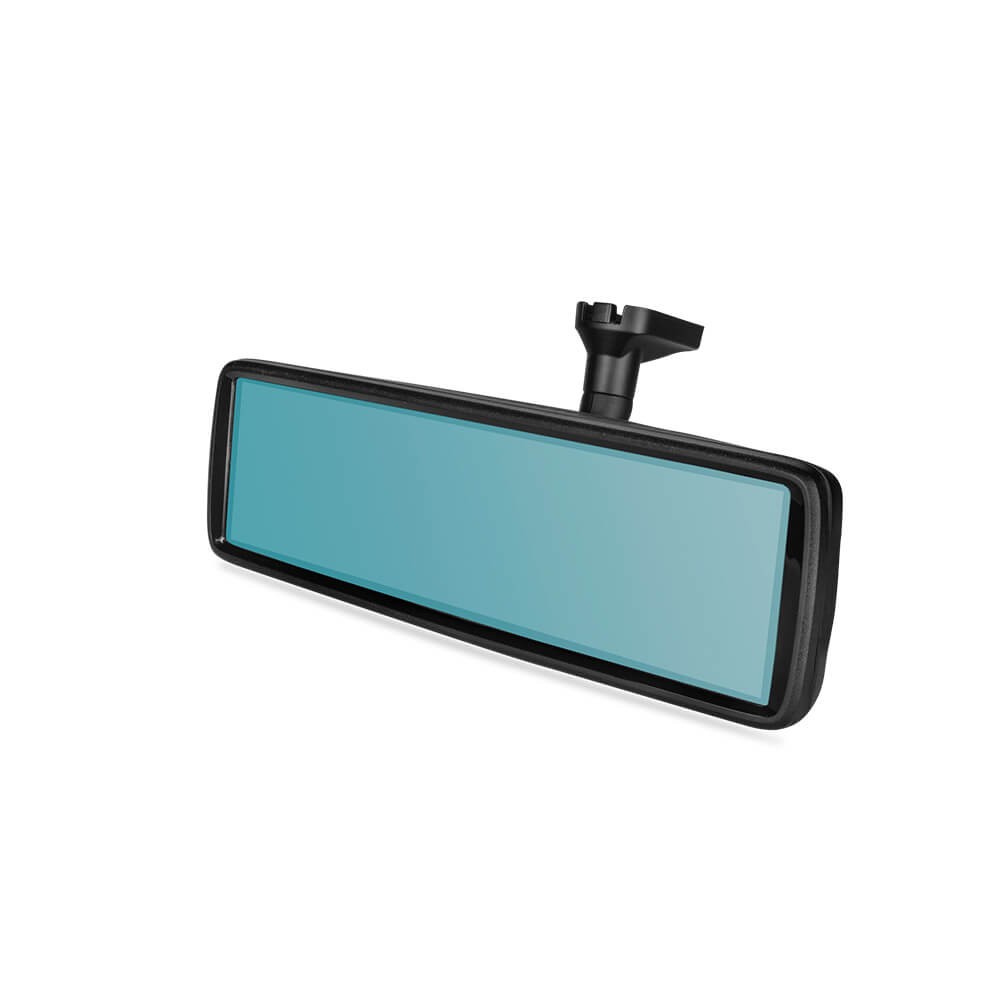

Aotop HD rearview mirror monitor camera system consists of 8.88 inch electronic rearview mirror monitor and backup camera. Mirror with IPS screen and the backup camera 1080P HD resolution, support IP69K waterproof, when reversing providing wide angle rear view image. When screen switched off, the electronic mirror can be used as a traditional reflector. For more detail, please contact sales@aotop.com.
MIRRPR SYSTEM FEATURES
Full Screen Display(Mirror)：
3 times of view range than traditional mirrors, no blind spot area.
Super penetration; anti-rain &anti-fog, dust and rain proof, no water drop stay.
Support WDR/HDR imaging technology，Enhance image quality, color correction, can display the back of vehicle clearly even with strong light or big exposure.
Support a synchronous transmission rear view image, no delay.
High Definition Night Vision(Camera):
Support HD color night vision, automatic exposure, eliminate flicker, low image noise, WDR, no image distortion.
View distance at night 1500~200 meters.
Can recognize 780~1500nm near-infrared light（Visible light for human being' s eyes is 380nm~780nm，the recognizable range for night vision module is wider than human's eyes）.
Make the night seem bright like in the day, soft picture, anti strong light and back light.
| Working temperature | -20℃~+70℃ |
| Storage Temperature | -40℃~+85℃ |
| Storage Humidity | 0%~90% |
| Product Certificate | National CCC |
| Mirror Housing material | PC+ABS，plastic injection, Anti-flaming UL94 |

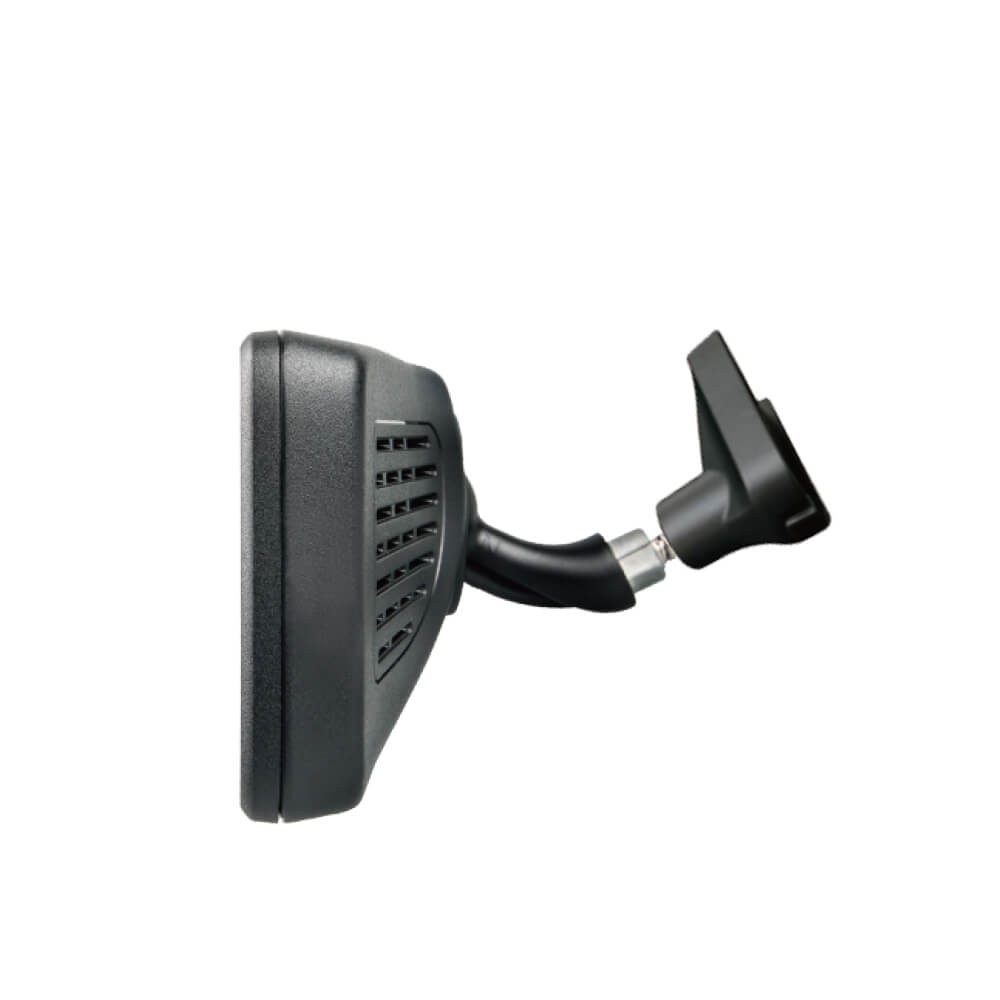

| Bracket material | alloy, pressure casting |
| Mirror Adjust Torque | 1.2~1.7(N·m)，Single ball, adjust manually |
| Mirror Material | Monox, titanium oxide coated mirror glass |
| Mirror Type | Flat mirror |
| Mirror radius of curvature | ∞ |
| Mirror reflectivity | 41%~45% |
| Mirror anti-glare | Ant-glare blue mirror |
| Keyboard | 1 piece of Mechanical keys |
| Power supply | Get power from car power supply (fuse box) |
| Working voltage | Support 9~16V |
| Max. working current | ＜1.0A |
| Stand by current | ＜5mA |
| Power consumption | ＜7W |
| Overvoltage/Overcurrent protection | Support |
| Reverse voltage protection | Support |
| Main Chip | CPU-Cortex A7 |

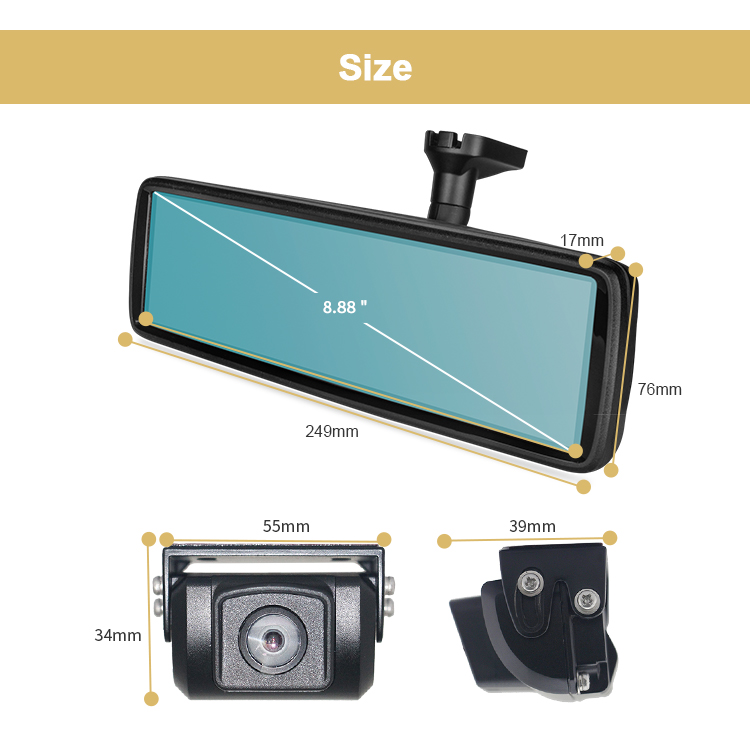

| Screen size | 8.88 Inch |
| Screen Resolution | 1920*480 |
| View angle | Up/down/left/right more than170° |
| Rear view camera | 1920*1080，6 glass lens, angle130° |
| Image sensor | 1/3 CMOS |
| Resolution | 1920（H）* 1080（V） |
| Image process system ISP | WDR/HDR，support image distortion correction |
| WDR | 2 frames long and short frames image compose |
| Rear view camera video output | AHD |
| Reversing response time | <3s |

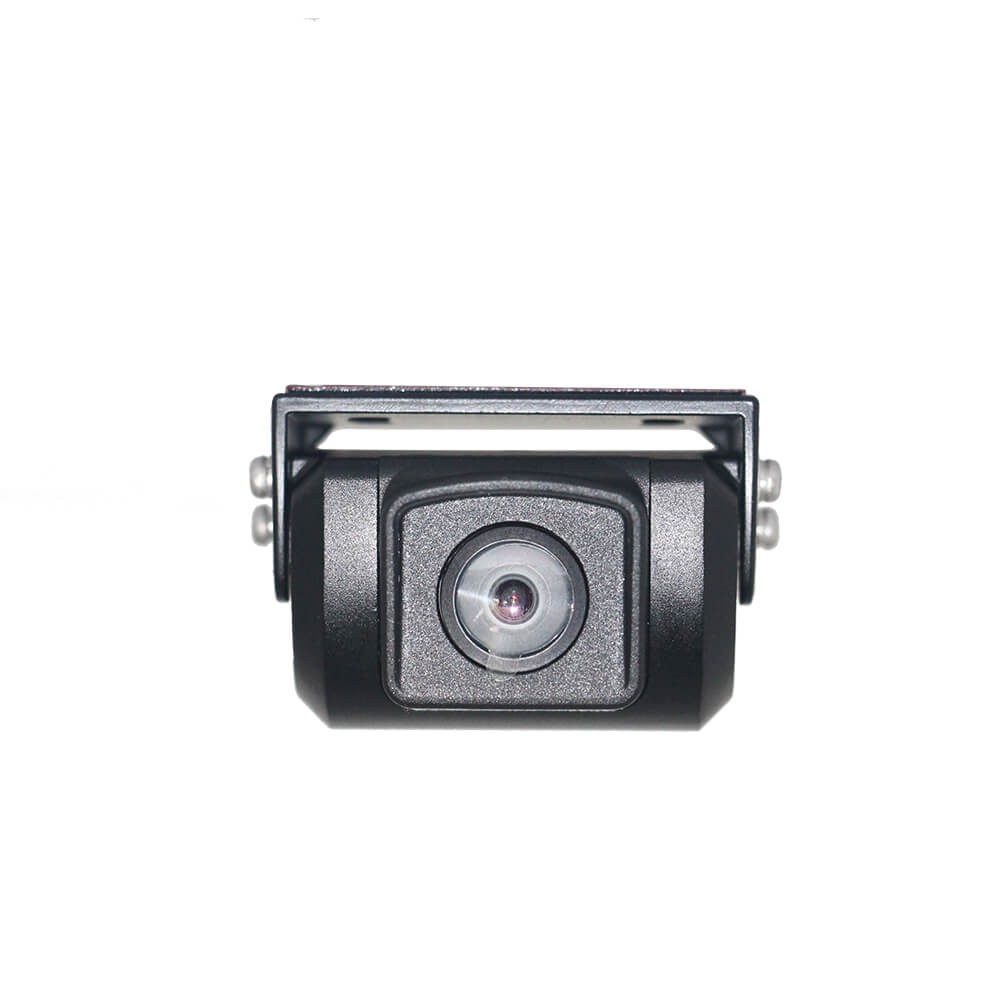

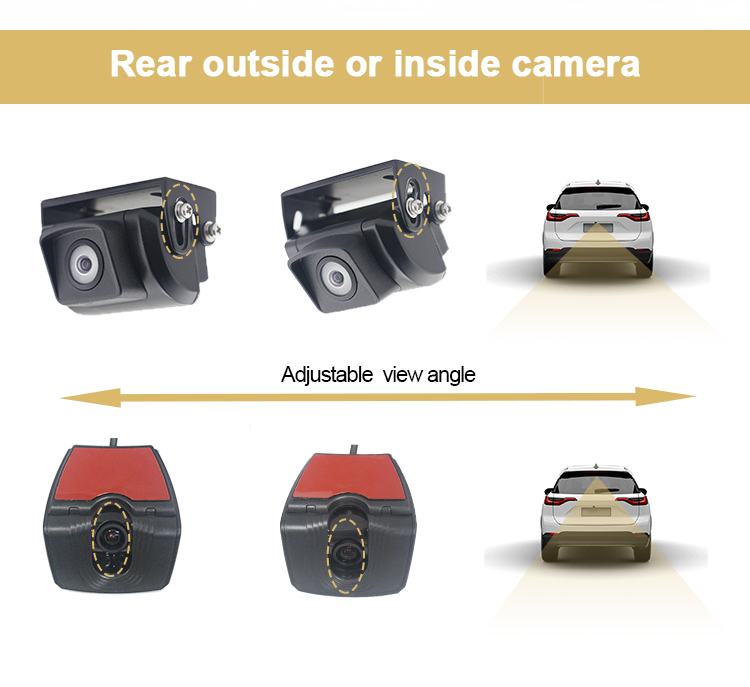

Backup camera is available in two specifications: interior and exterior models. Both offer identical performance but
differ in monitoring angles. Users can choose the appropriate model based on their vehicle type and specific needs
to achieve optimal rearview monitoring.
Backup camera with high definition night vision function, which will automatically switch to night vision mode when
the light dims, ensuring that even in dim environments, such as parking lots, it can provide a clear view and ensure
safety when reversing.

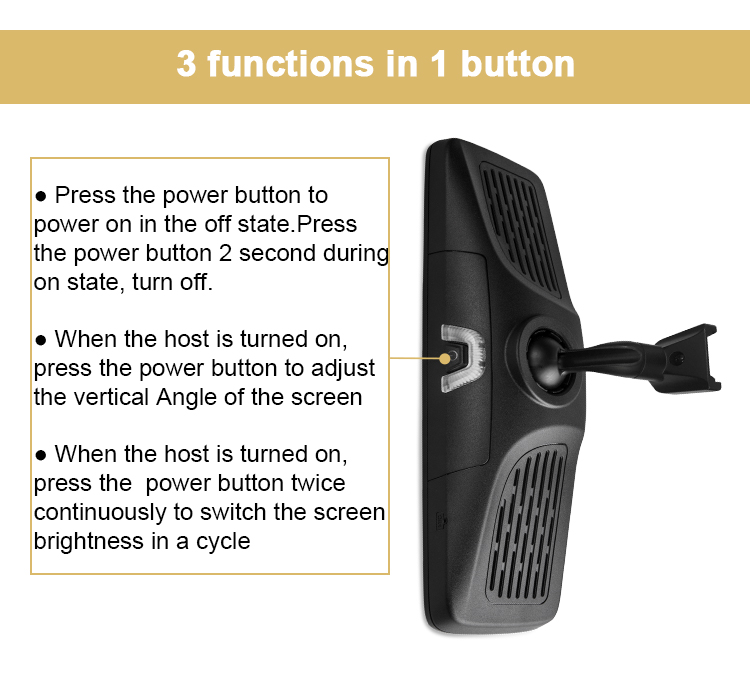

Button 3-in-1 Function At The Bottom Of The Rear View mirror:
Long press for 2 seconds to turn off the power.
Press the button to adjust the vertical angle of the screen under the power-on state.
Pressing the button 2 times in row under power-on state can switch the screen brightness.

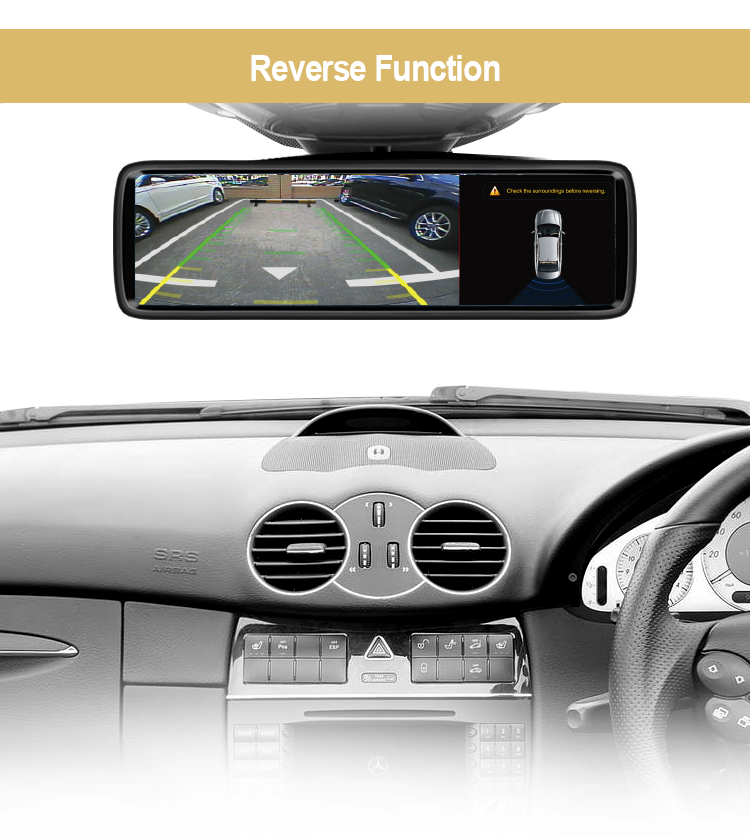

Quickly responds to camera footage when reversing, triggering the reversing guide line.

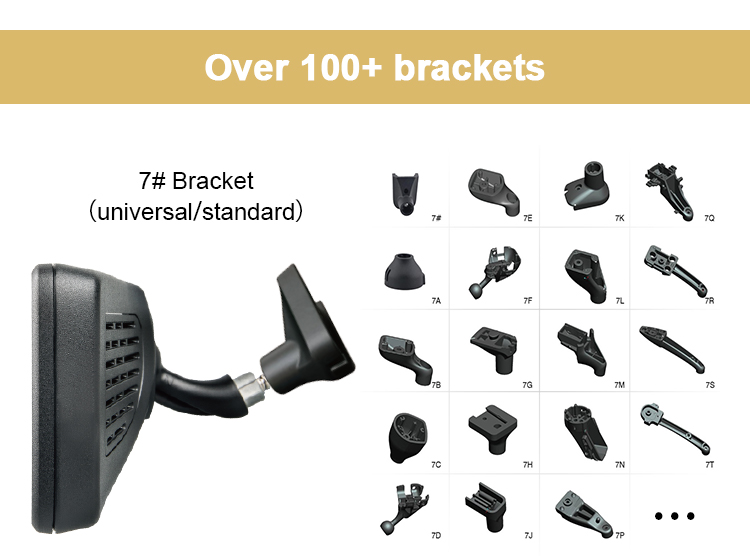

More than 100+ mounting brackets for mounting on different year brands of cars.
(Toyota, Honda, Ford, Chevrolet, Volkswagen, Nissan, BMW, Mercedes Benz, Audi, Subaru, Mazda, Jeep,
Volvo, Porsche, Tesla, Lexus, Jaguar, Land Rover)
