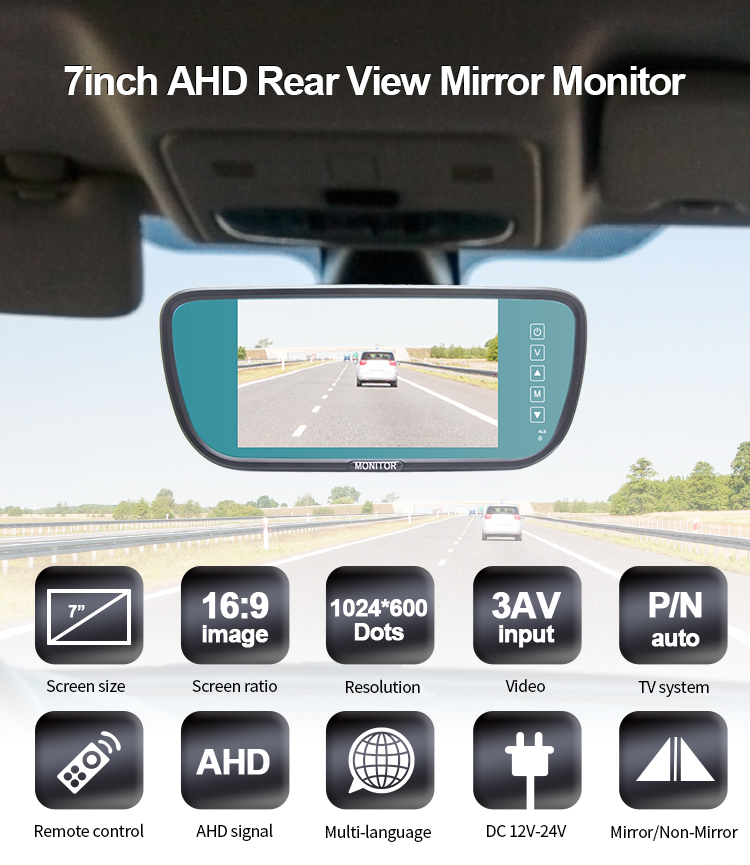

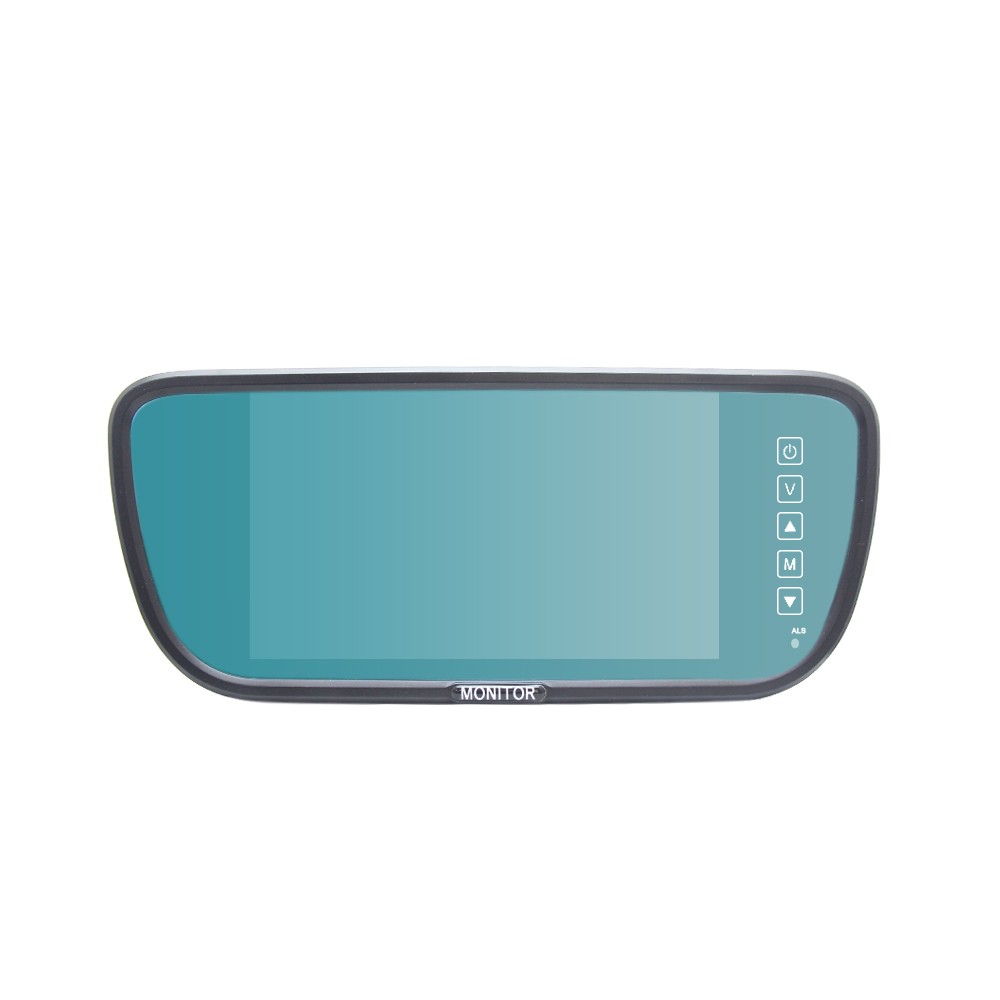

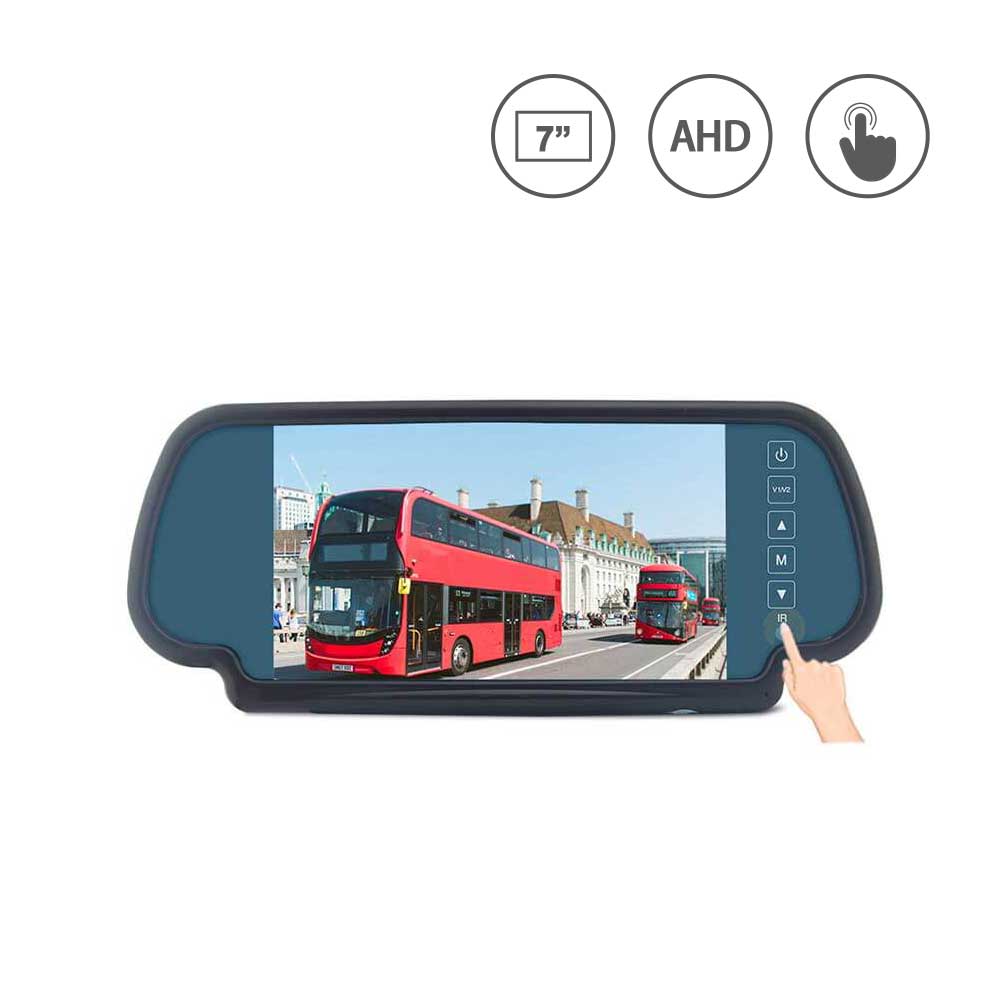

7 inch 3CH AHD rear view digital mirror monitor supports 3CH AHD video signal input, connects 3 high definition cameras, driver can view vehicle surround environment in anytime, reduces the risk of collision or scratches caused by blind spots. This mirror monitor design is use to replace original mirror, can meet the user’s image needs for high quality vehicle rear view monitoring. If you are considering purchasing a Mirror Monitor in bulk, please contact sales@aotop.com.

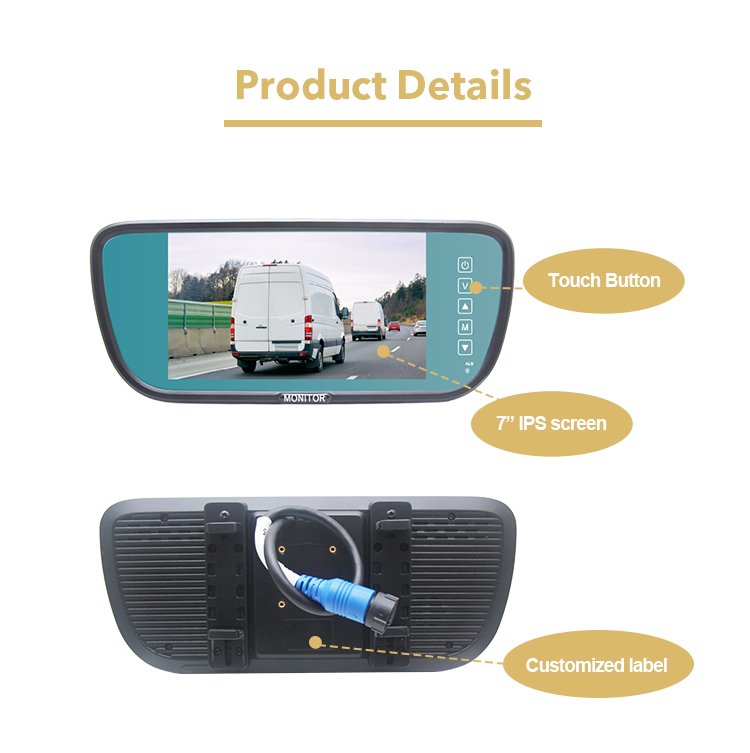

PRODUCT FEATURES
1024*RGB*600 Resolution (IPS LCD Screen)
800cd/㎡ High Brightness Screen

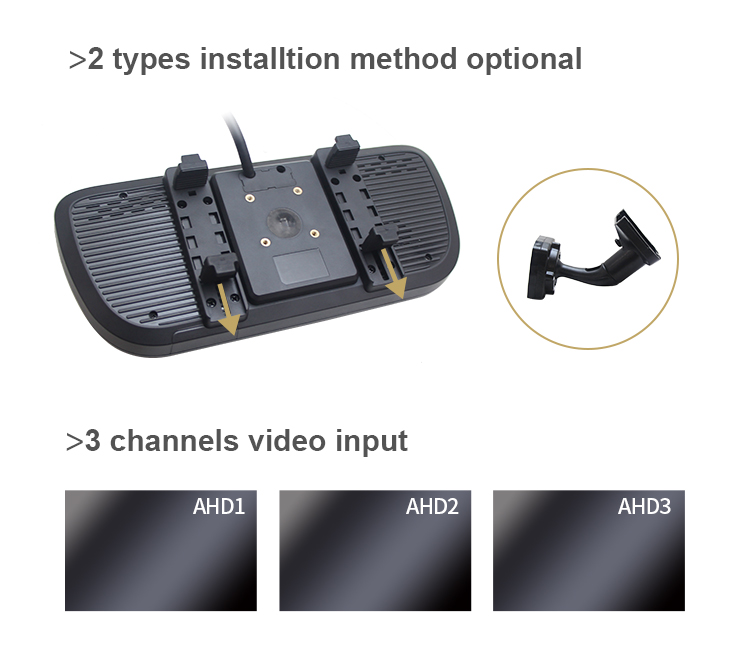

3CH x Cameras Video Signal Input
Multiple Video Formats Available To Cameras: 720P / 1080P / AHD / Compatibility CVBS / PAL / NTSC

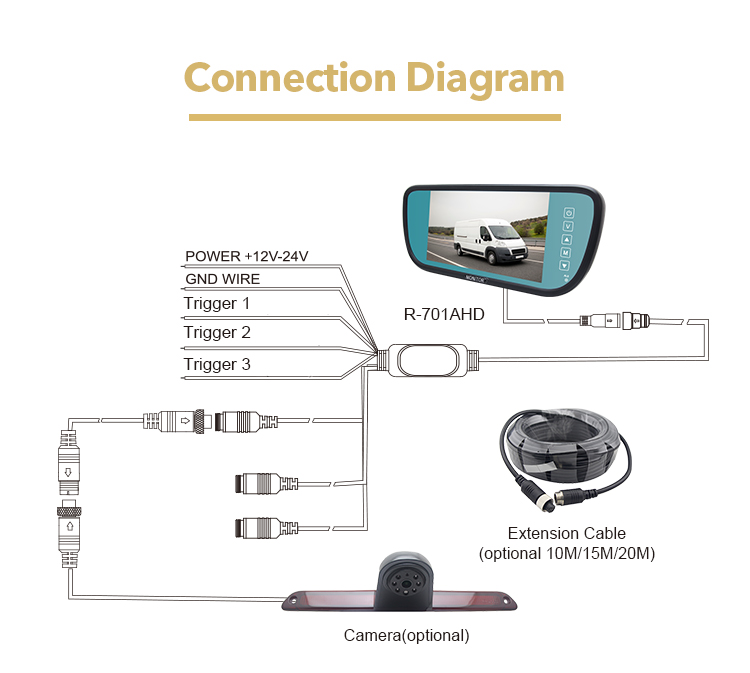

3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
1CH Audio Signal Input (High Quality Speaker)

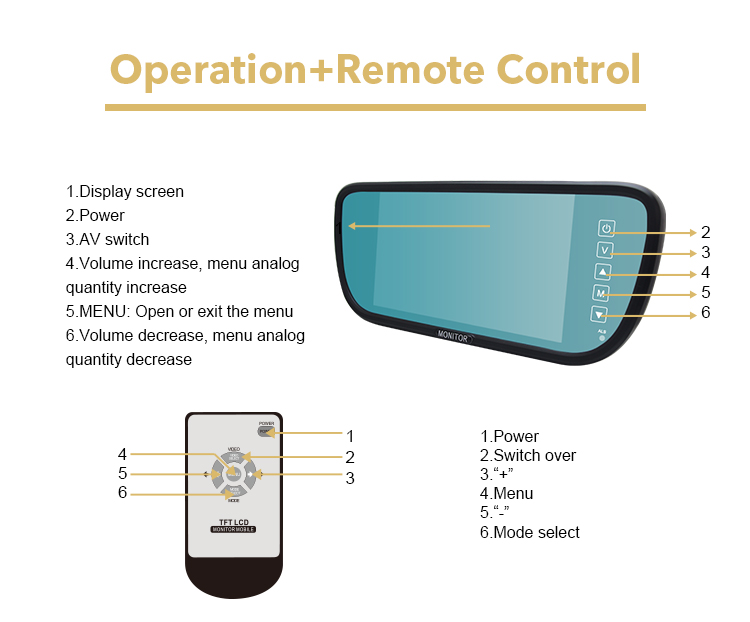

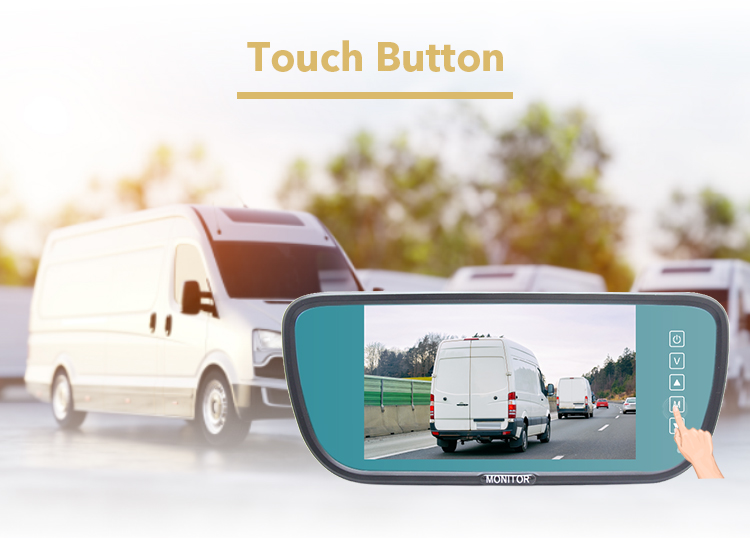

Touch Button Easy To Operation
Full-Function Remote Control
Multi-Language Settings
Horizontal Mirror Image Switching; Image Flip;
DC 12-24V Wide Voltage
AUTO Adaptation PAL / NTSC System
| Screen ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Backlight luminance | LED, Luminance 800 cd/㎡ |
| Contrast | 800:1 |
| Frame rate | 1080P@25fps,1080P@30fps |
| Viewing angle | IPS, Up/down/left/right more than170° |
| Working temperature | -20~+70 ºC |
| Working humidity | 85%RH |
| Storage temperature | -30~+85 ºC |
| Power supply | DC12-24V |
| Bootup time | 2S |
| Current consumption | TYPE: DC12V/550mA |
| OSD control | Image setting, general setting, System setting, Volume |

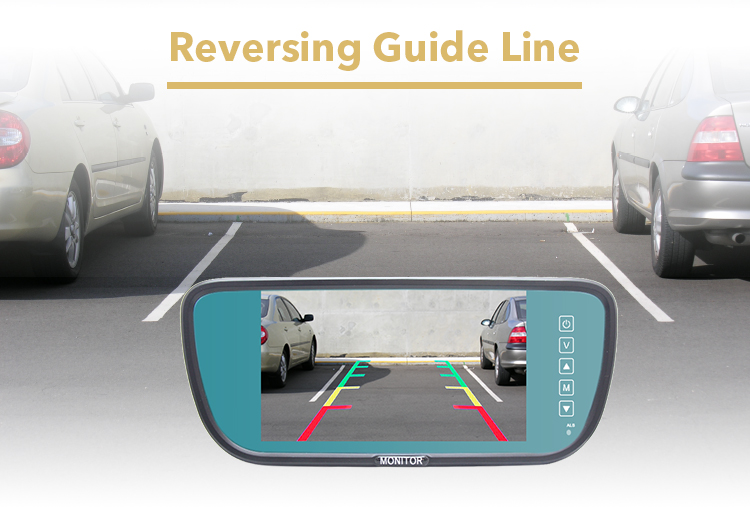

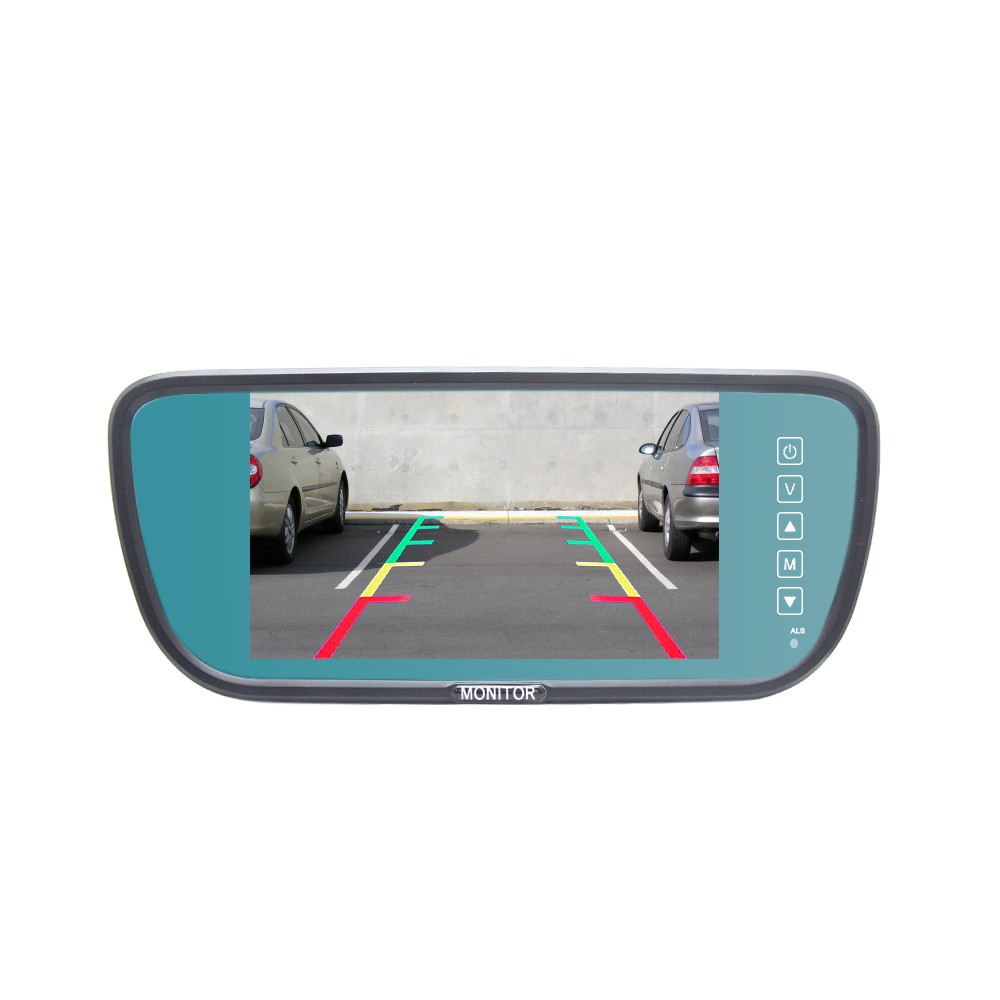

| Parking guide line | Each channel is controlled separately |
| Mirror/ Normal image | Each channel is controlled separately |
| Reversing delay | Each channel is controlled separately |
| Signal input/Image display | 3 channels 1080P/720P/ CVBS video input; 1channel audio input; Compatible with mixed input of CVBS and AHD; Compatible with mixed input of PAL and NTSC; |
| Trigger control | 3CH trigger control |
| Monitor display | 1CH single image display |
| System | PAL/NTSC automatically |
| Shockproof level | 4G |
