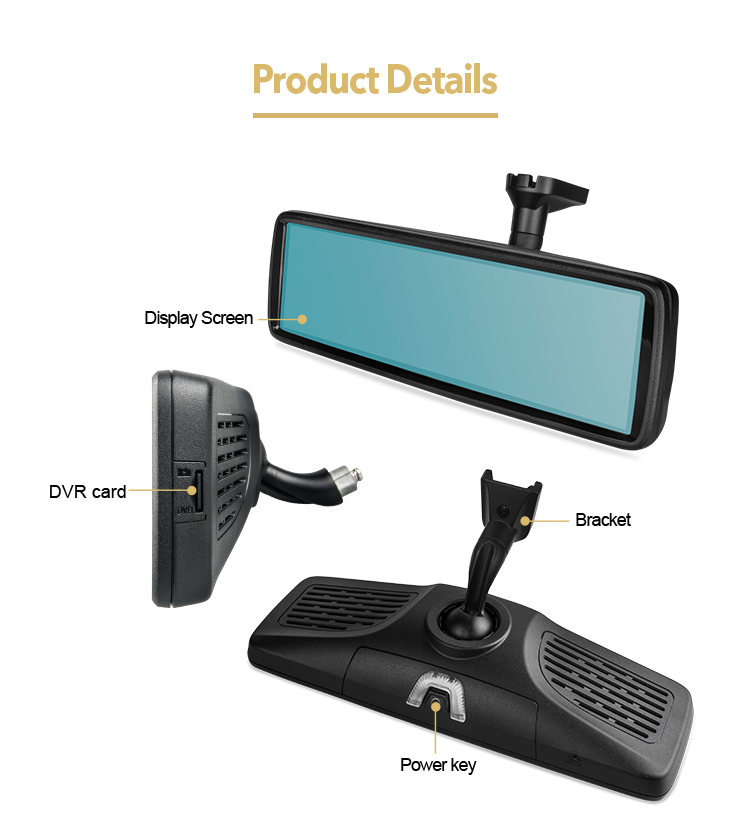

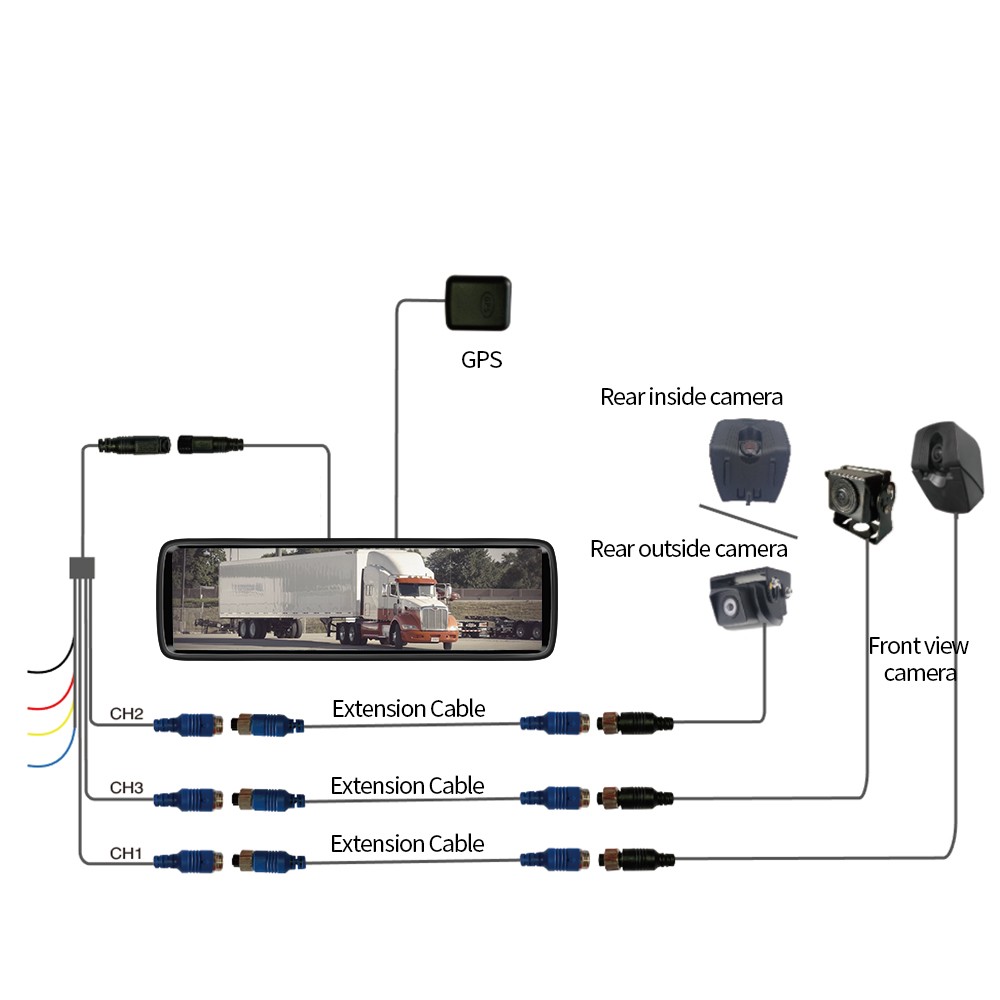

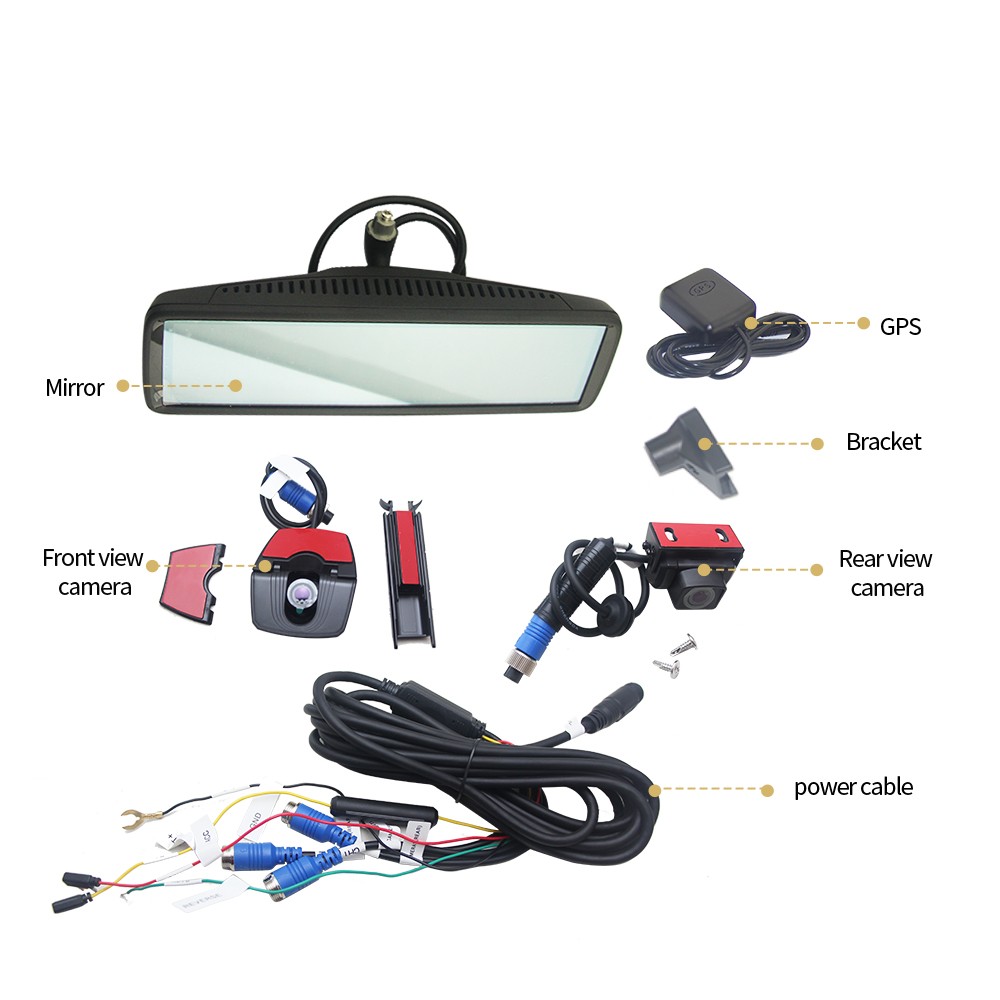

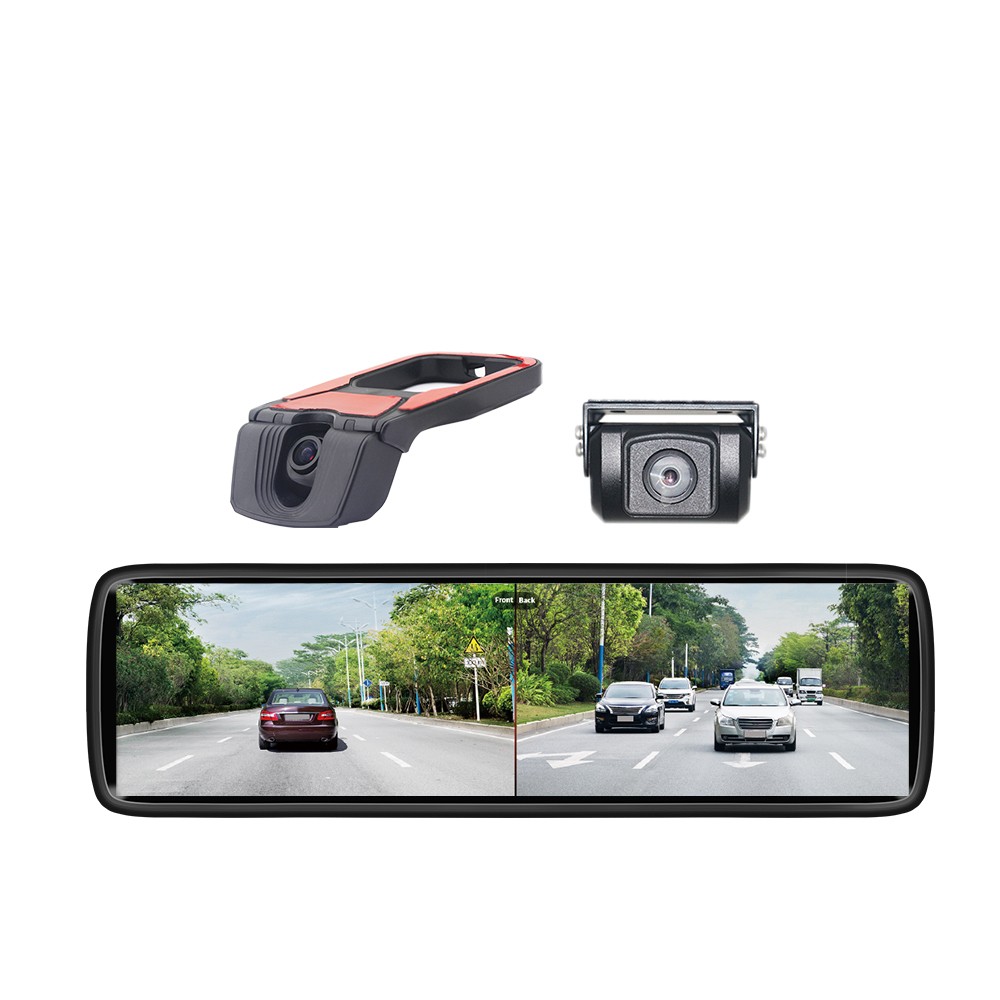

Aotop 24V rearview mirror camera system is suitable for all kinds of commercial & heavy duty vehicles. 8.88 Inch mirror monitor features HD IPS digital touch screen, supports 3-way 1080P AHD camera video signal input, back view can be connector 2CH backup camera (dual split display far view + near view). Built-in AI human-vehicle detection algorithm, support rear view blind spot pedestrian and vehicle real-time detection, anti-collision warning. With DVR function, support 3CH camera video signal HD real-time recording. When the rearview mirror is closed, it can be used as a normal rearview mirror!
MIRRPR SYSTEM FEATURES
Reversing Display:
(1)Support reversing guide line and height limit line position settings.
(2)In reversing, the rear view display directly switches to the lowest angle display.
(3)Reversing settings can choose to use rear view camera 1 or rear view camera 2.
(4)The reversing interface can choose to display the screen of reversing camera alone or two rear view screens at the same time.
(5)Rear view driving record interface has a [reverse screen] button, click once to switch the reverse display screen, click again to
restore the normal display.
(6)When there are two rear views, it supports one-click switch between single reverse video display and two rear views display at
the same time.
(Touch) Screen Display:
(1)Manually adjust the screen brightness, support sliding up and down to adjust the brightness on the left side of screen, sliding
up and down to adjust the sound on the right side of the screen.
(2)Support setting the daytime brightness time.

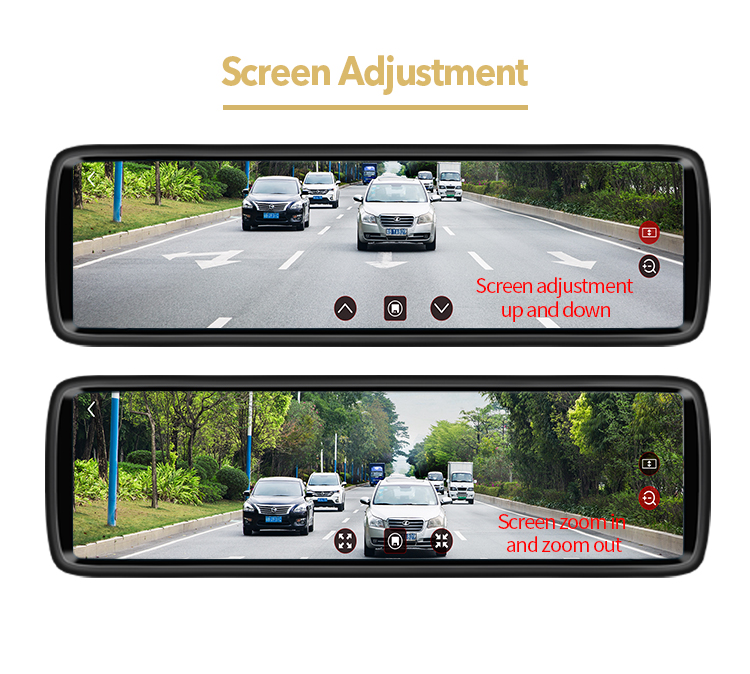

(3)Driving screen display angle adjustment and support up and down, zoom.
(4)Support front and rear dual-way display.

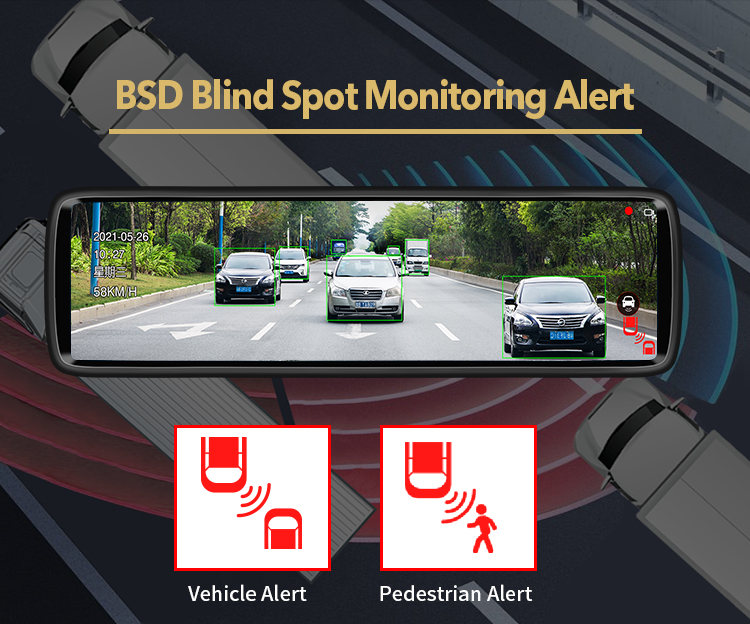

BSD:
(1)Rear side blind spot reminder function Blind Spot Detection.
①If there is a moving object in the left or right rear dead center, and it is triggered when driving at the set speed or above, the alert
symbol is displayed on the lower left or right side of the screen and the alert tone is emitted.
②If a moving object is identified in the rear blind spot and triggered when driving above the set speed, a reminder sign is displayed
on the lower side of the screen and a reminder tone is emitted.
(2)Reversing warning RCTA: vehicle & pedestrian warning when reversing identify rear obstacles.
RAM | 512M |
System | EOS |
G-Sensor | Triaxial |
Screen | 8.8 Inch IPS LCD, 1920*480, Up/down/left/right more than170° |
Brightness | ≥800nits |
Touch screen | Capacitive touch screen |
Working voltage | 9~36V, from power supply box |
Max. current | ≤2.0A |
Standby current | <10mA |
Camera video output | TVI /AHD |
Lens | Full glass |

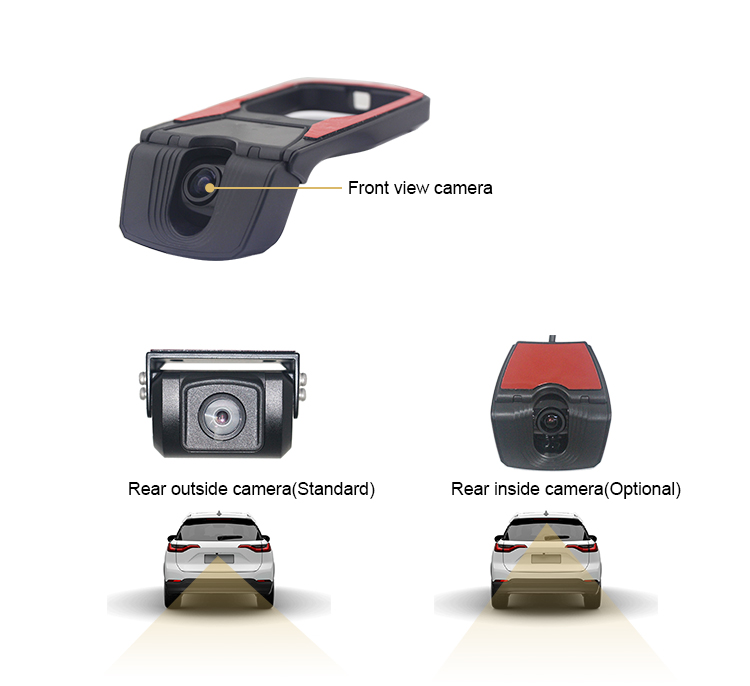

Front view camera | 1920*1080, 27.5fps, support HDR |
Rear view camera | 1920*1080,30fps, support HDR |
Video format | 1080P, TS |
Picture format | JPEG |
GPS | Exterior GPS module |
Speaker | 1 * speaker, 4Ω 2W |
Microphone | 1* electrets microphone |
Key | 1 * key, power key |
TF slot | Support Micro SD card, Max. 256 GB, U1/C10 |
Mirror housing material | PC+ABS, plastic injection, Anti-flaming UL94 |

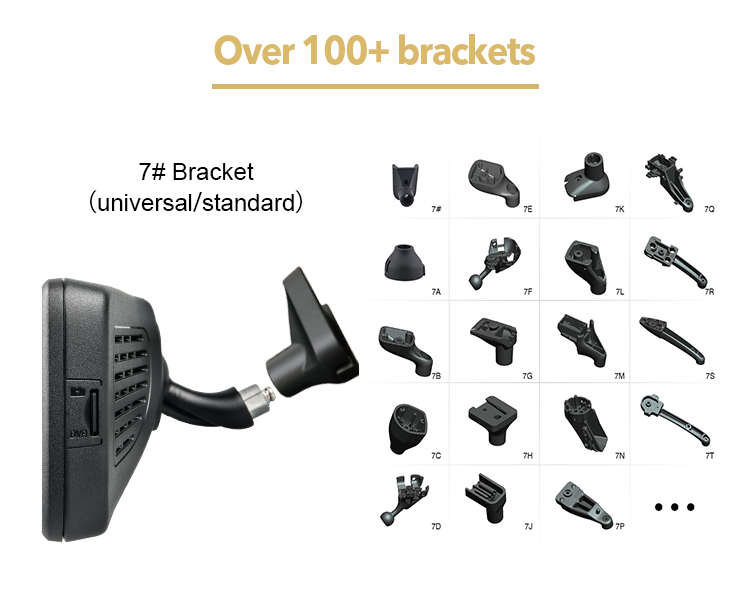

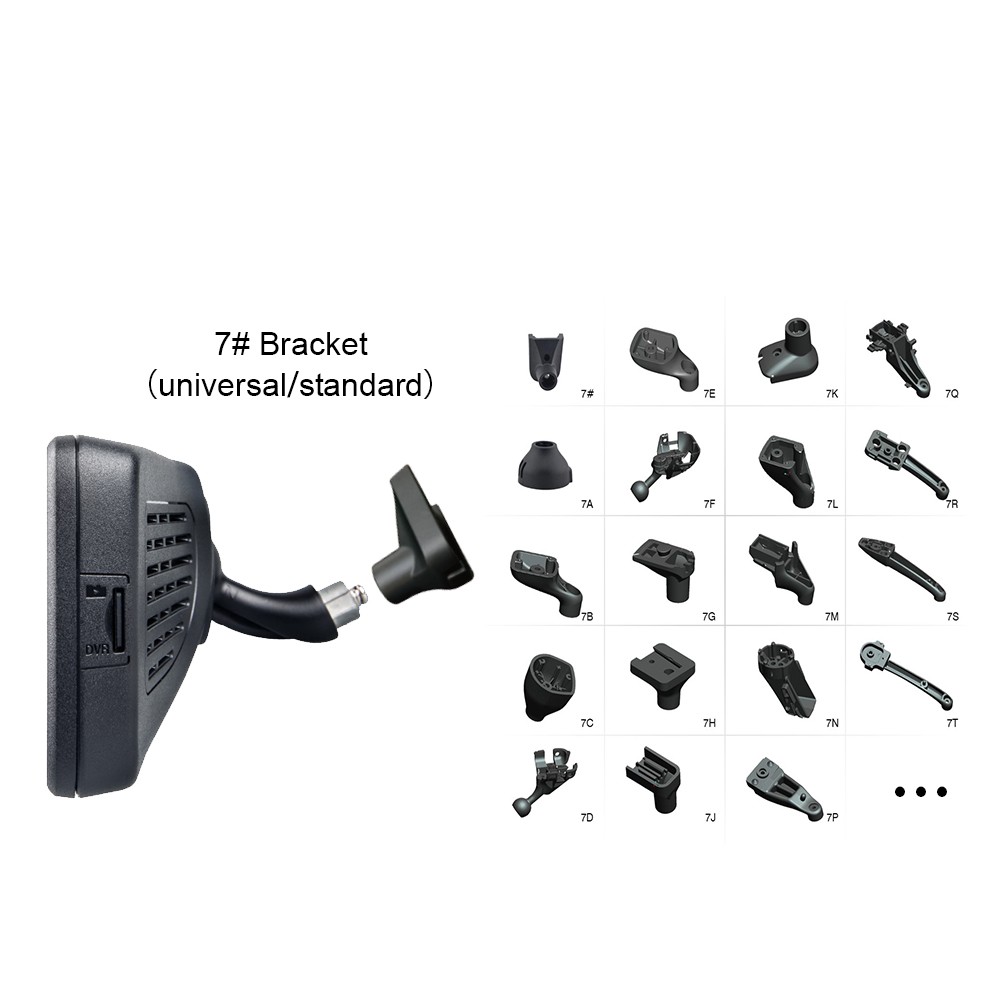

Mirror Adjust Torque | 1.2~1.7(N·m), Single ball, adjust manually |
Mirror | Flat mirror, radius of curvature ∞, Mirror reflectivity 41%~45% |
Circuit Protection | Overvoltage/Overcurrent protection, Reverse voltage protection |
Working Temp. | 30℃~+70℃ |
Storage Temp. | -40℃~+85℃ |
Storage Humidity | 0%~90% |
