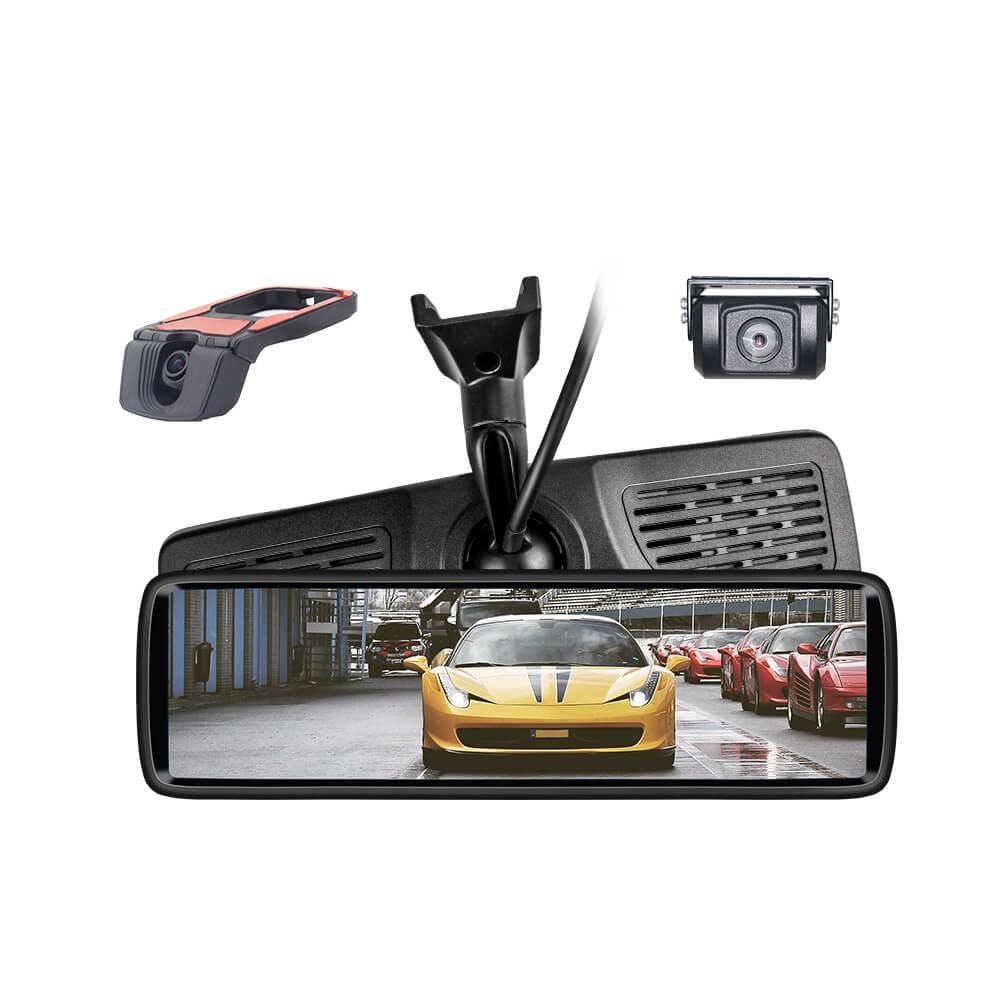

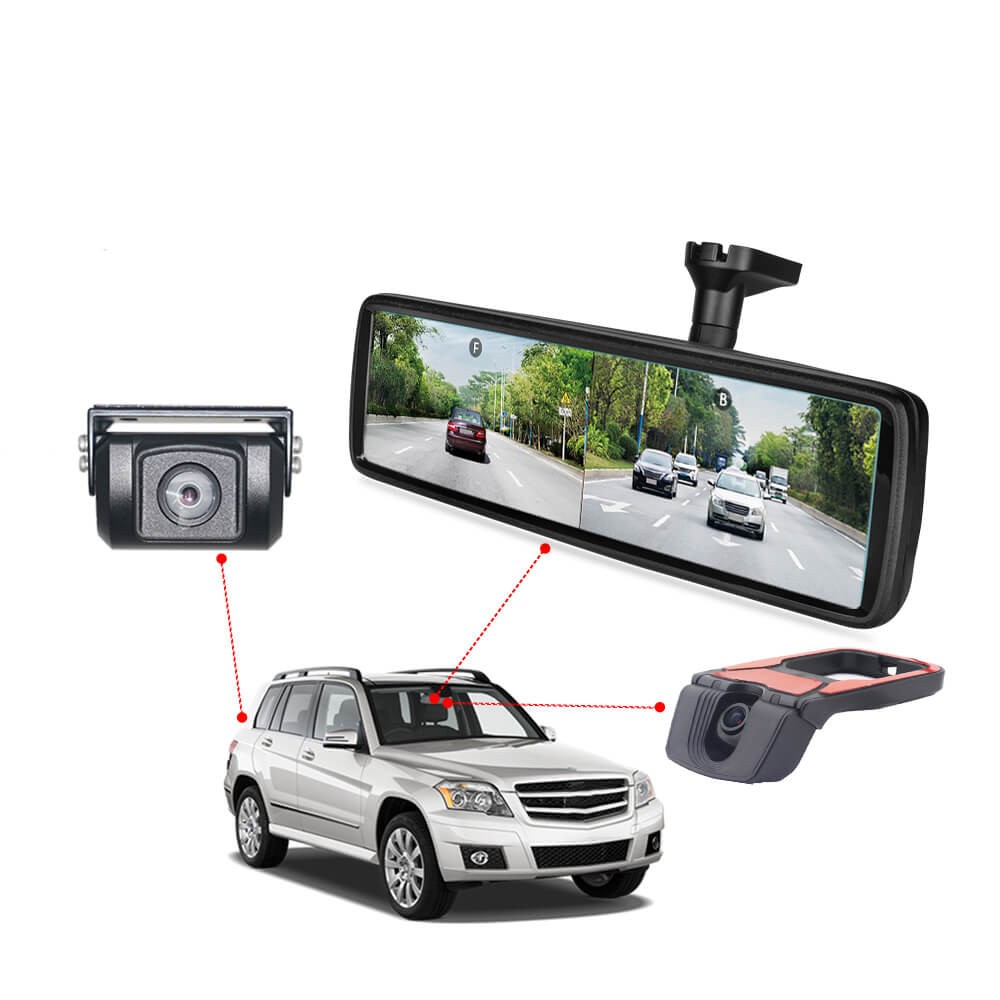

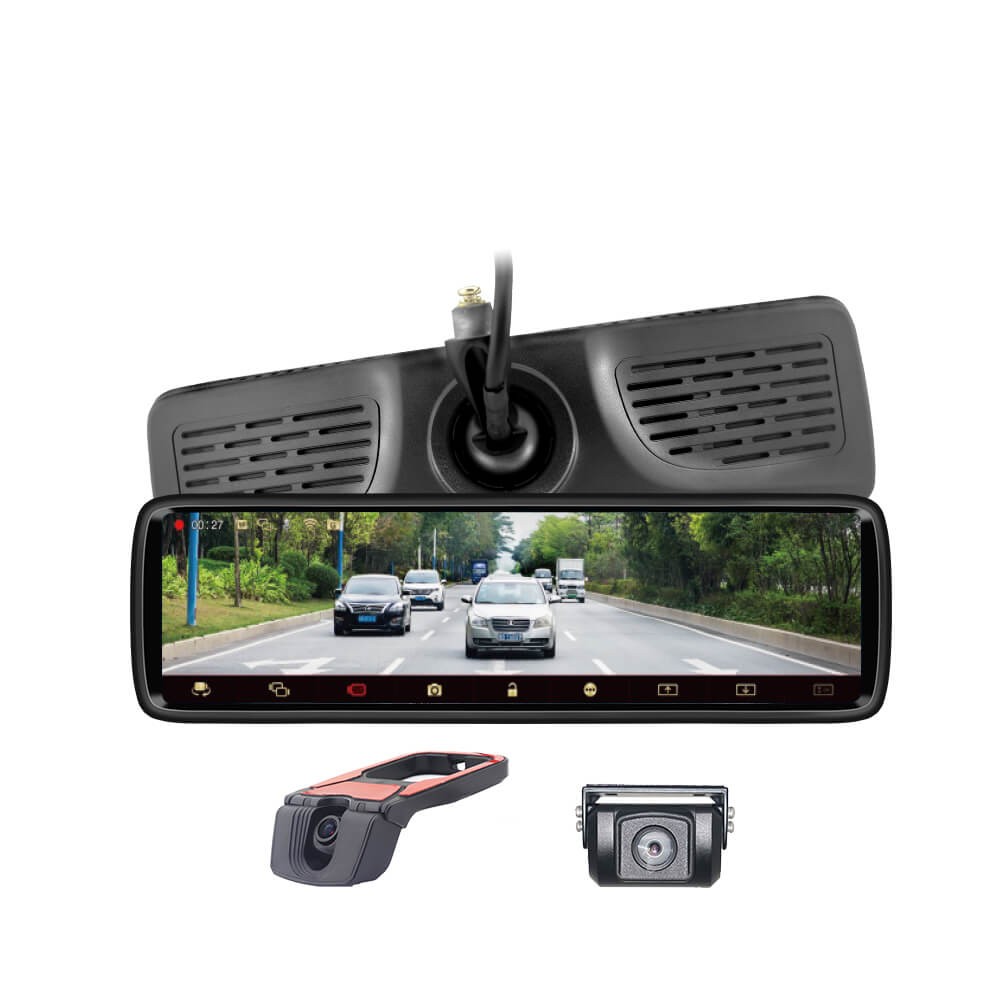

Aotop 8.88 inch electronic rearview mirror camera system consists of HD digital mirror monitor and 1080p front & rear cameras, front view driving record & rear view reversing image. The digital mirror supports full-screen touch operation and the cameras offer excellent night vision performance and wide-angle field of view. The mirror provides more than 100 kinds of mounting brackets, adapted to a variety of car models, to meet the needs of different users, is the ideal choice for drivers to improve driving safety.
MIRRPR SYSTEM FEATURES
SCREEN: Touch screen 8.88 inch full screen display
RESOLUTION: 1920*480
BRIGHTNESS: High brightness 800cd/m2
VIDEO INPUT: 2 ways signal, front and back view
FRONT/REAR VIEW CAMERA: 1920*1080, 27.5fps/30fps, HDR
POWER SUPPLY: 9~12V, from power supply box
STORAGE: Max 128GB TF card
FEATURE: Dual DVR recording / reverse function
| Working temperature | -20℃~+70℃ |
| Storage Temperature | -40℃~+85℃ |
| Storage Humidity | 0%~90% |
| Product Certificate | National CCC |
| Mirror Housing Material | PC+ABS, plastic injection, Anti-flaming UL94 |
| Bracket material | alloy, pressure casting |
| Mirror Adjust Torque | 1.2~1.7(N·m)，Single ball, adjust manually |
| Mirror Material | Monox, titanium oxide coated mirror glass |
| Mirror Type | Flat mirror |
| Mirror radius of curvature | ∞ |
| Mirror reflectivity | 41%~45% |
| Mirror anti-glare | Ant-glare blue mirror |

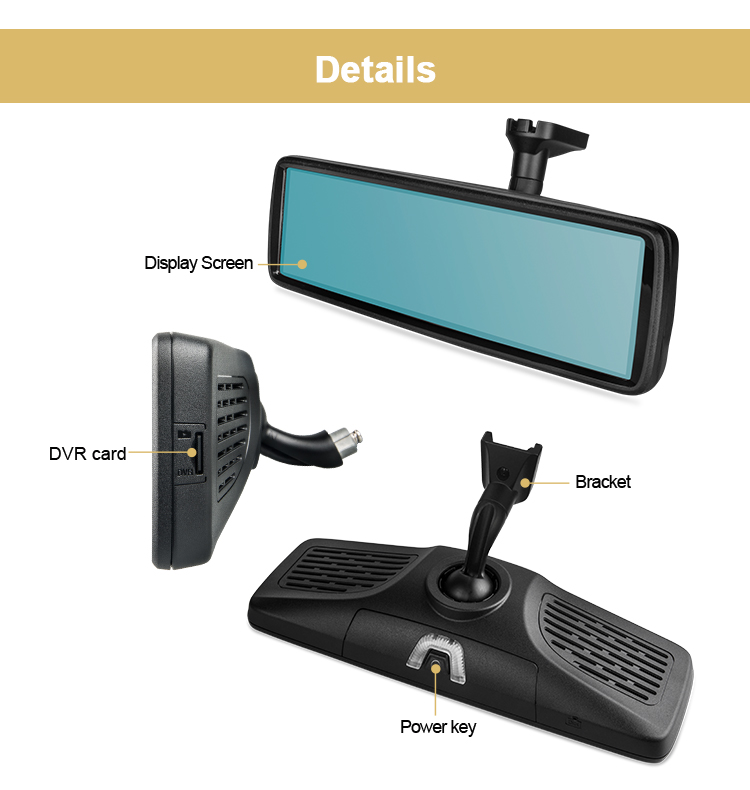

| Keyboard | 1 piece of Mechanical keys |
| TF card slot | 1 piece of TF card slot（DVR） |

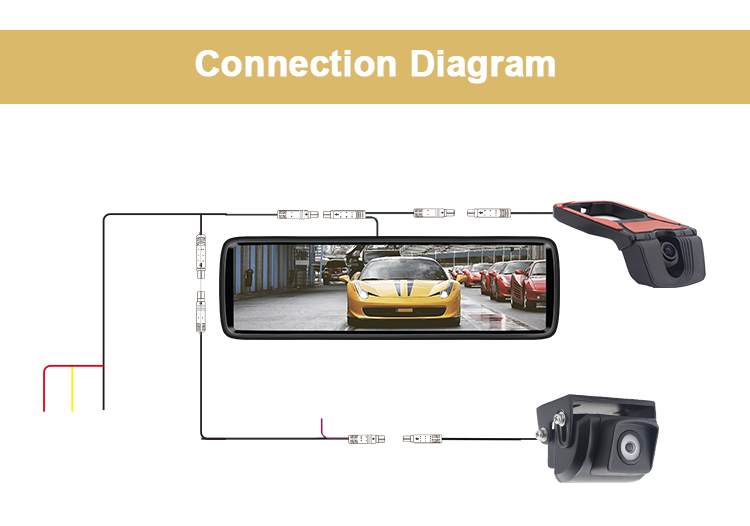

| Power supply | Get power from car power supply（fuse box） |
| Working voltage | ( B+：+12V，ACC：+12V，GND：Ground) |
| Max. working current | ＜1.0A |
| Stand by current | ＜5mA |
| Overvoltage/Overcurrent protection | Support |
| Reverse voltage protection | Support |
| Speaker | 1 piece of digital noise reduction silicon speaker |
| Main Chip | CPU-Cortex A7 |

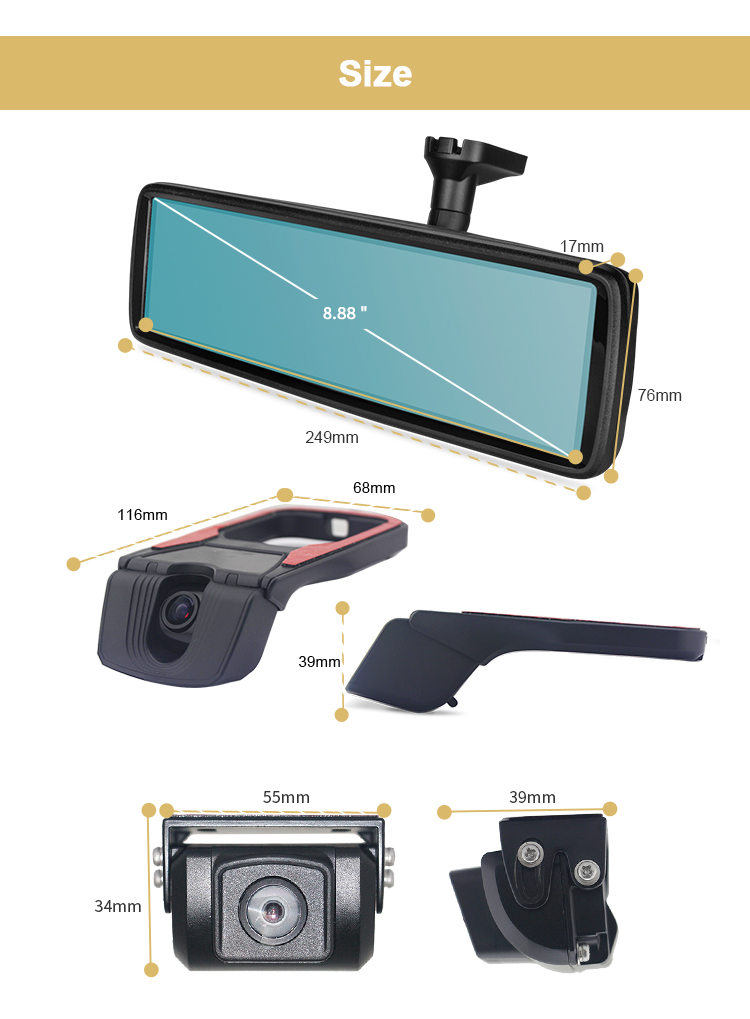

| Screen size | 8.88 Inch |
| Screen Resolution | 1920*480 |
| View angle | Up/down/left/right more than170° |
| Touch screen | Capacitive touch screen |
| WIFI | IEEE 802.11 |
| G-sensor | Triaxial G-sensor |

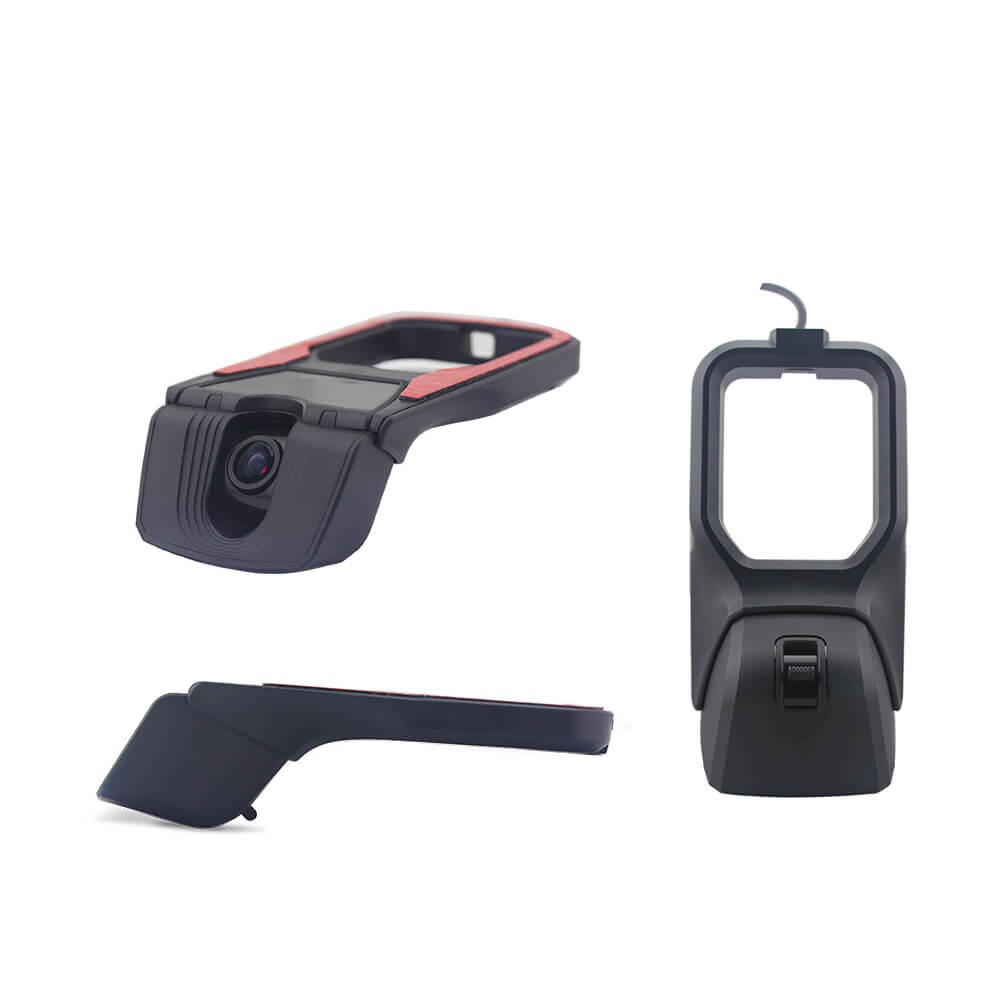

| Front View Camera | 1920*1080，6 glass lens，Angle110° |

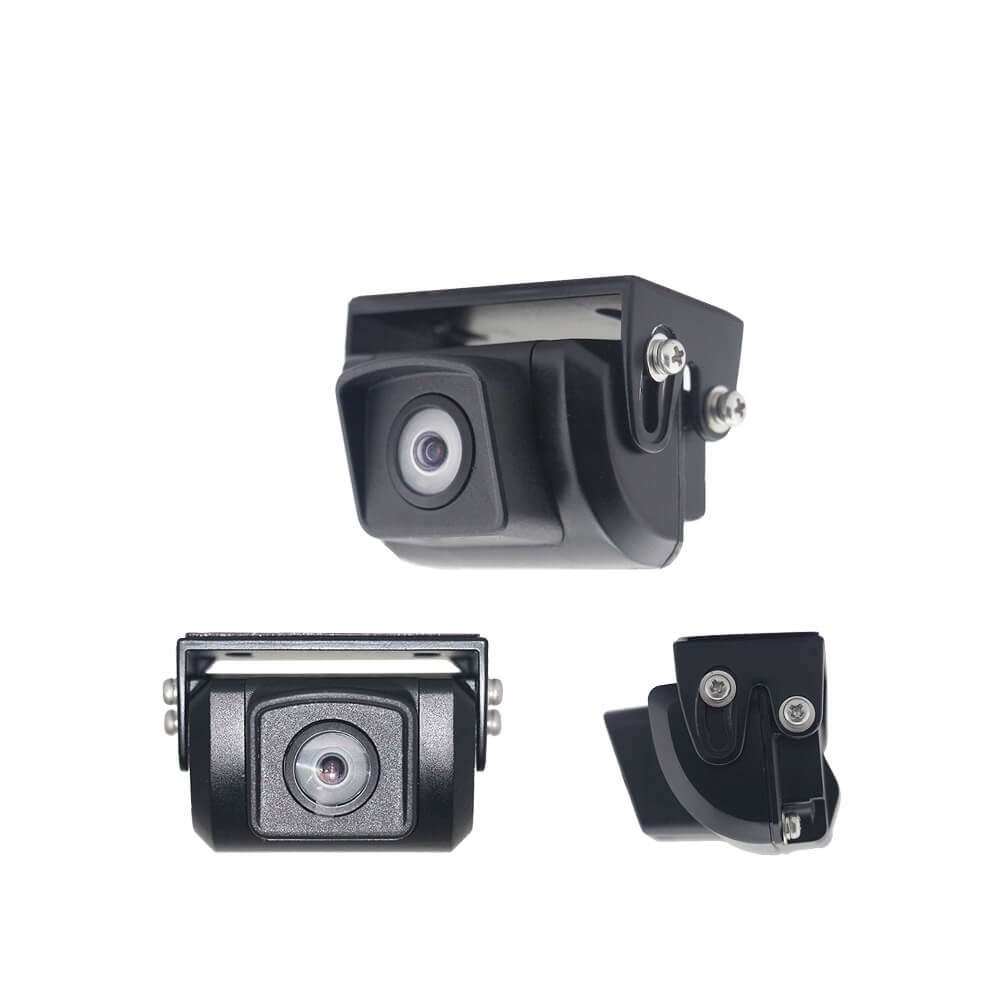

| Rear view camera | 1920*1080，6 glass lens, angle130° |
| Image sensor | 1/3 CMOS |
| Resolution | 1920（H）* 1080（V） |
| Image process system ISP | WDR/HDR，support image distortion correction |
| WDR | 2 frames long and short frames image compose |
| Rear view camera video output | AHD |
| DVR Video format | Front 1080P，Back 720P |
| DVR Photograph format | JPEG |
| Reversing response time | <3s |
The front and rear cameras support automatic night vision, can output high definition night vision images at night.

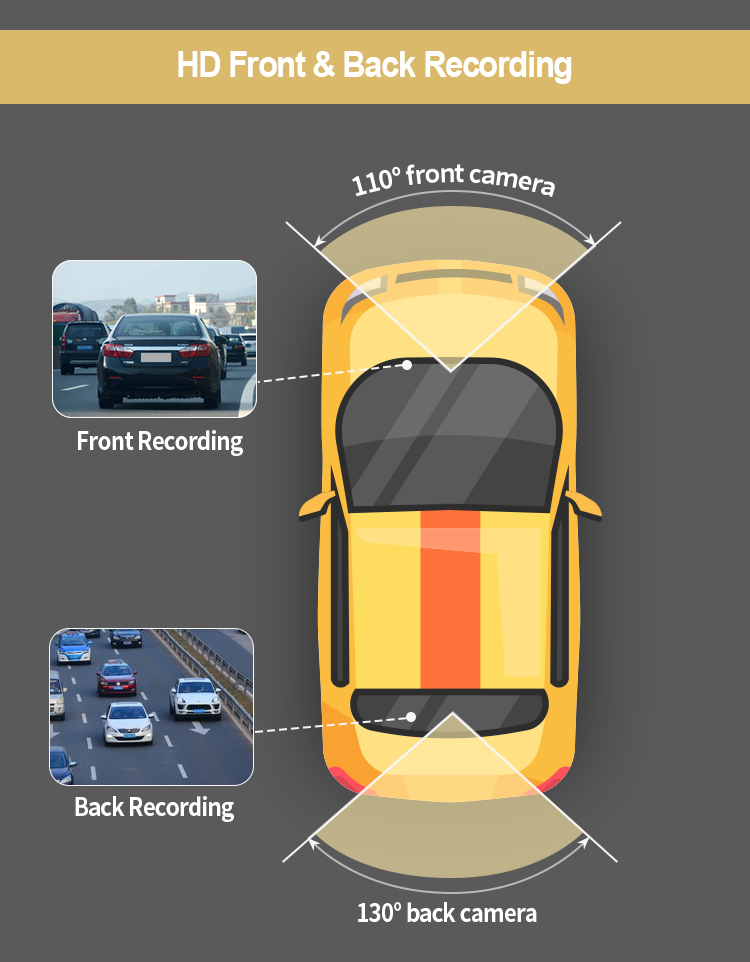

Front and rear dual-channel recording, front view 1080p/27.5fps, rear view 1080p/60fps.
G-sensor Automatically locks the relevant video file when a collision is detected.

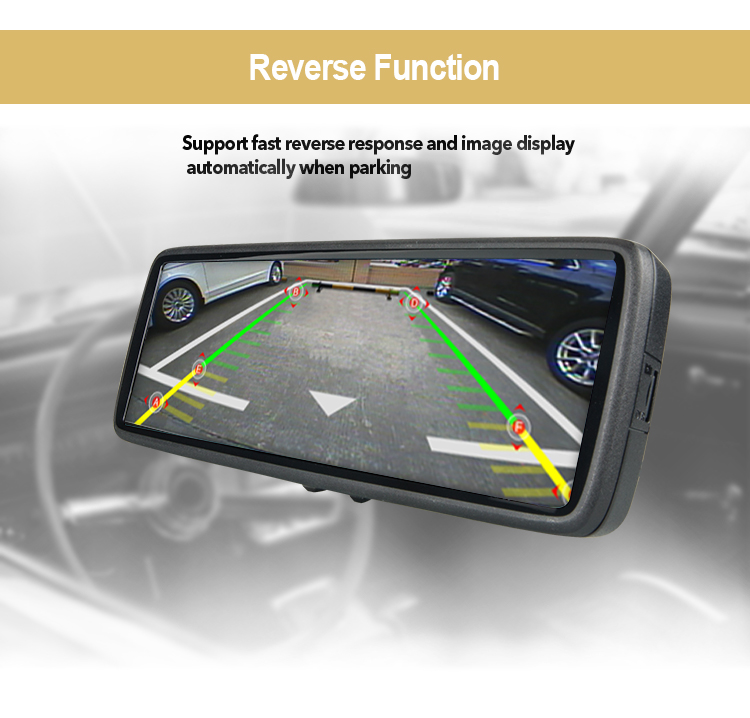

Automatically and quickly full screen response rear view image when reversing, triggers guide line.

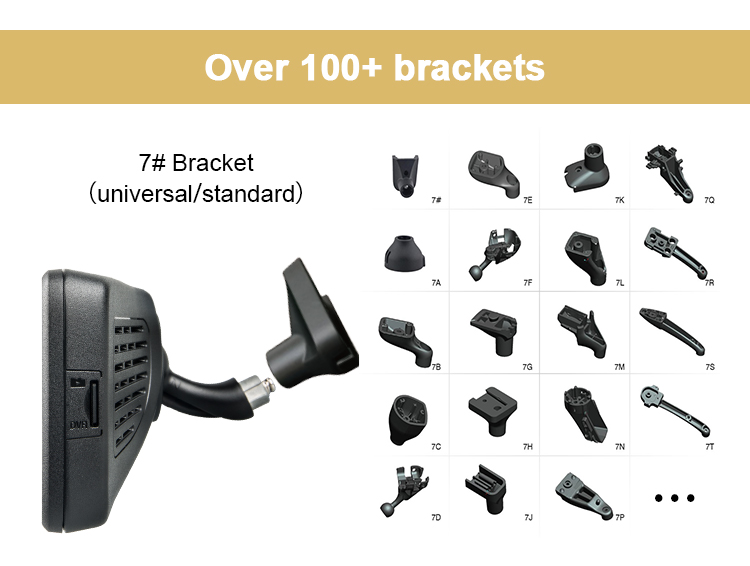

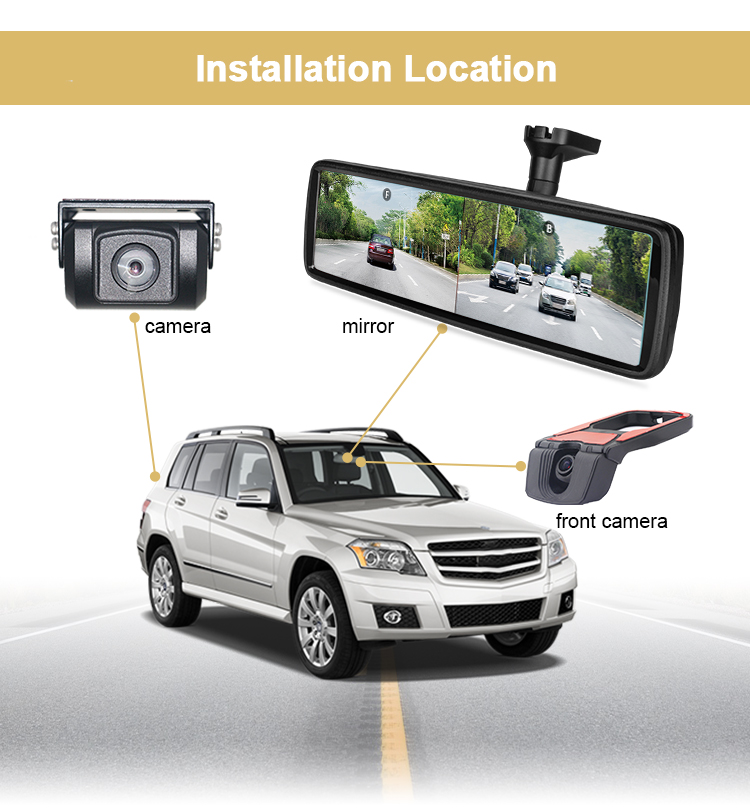

More than 100+ mounting brackets for mounting on different year brands of cars.
(Toyota, Honda, Ford, Chevrolet, Volkswagen, Nissan, BMW, Mercedes Benz, Audi, Subaru, Mazda, Jeep,
Volvo, Porsche, Tesla, Lexus, Jaguar, Land Rover)
