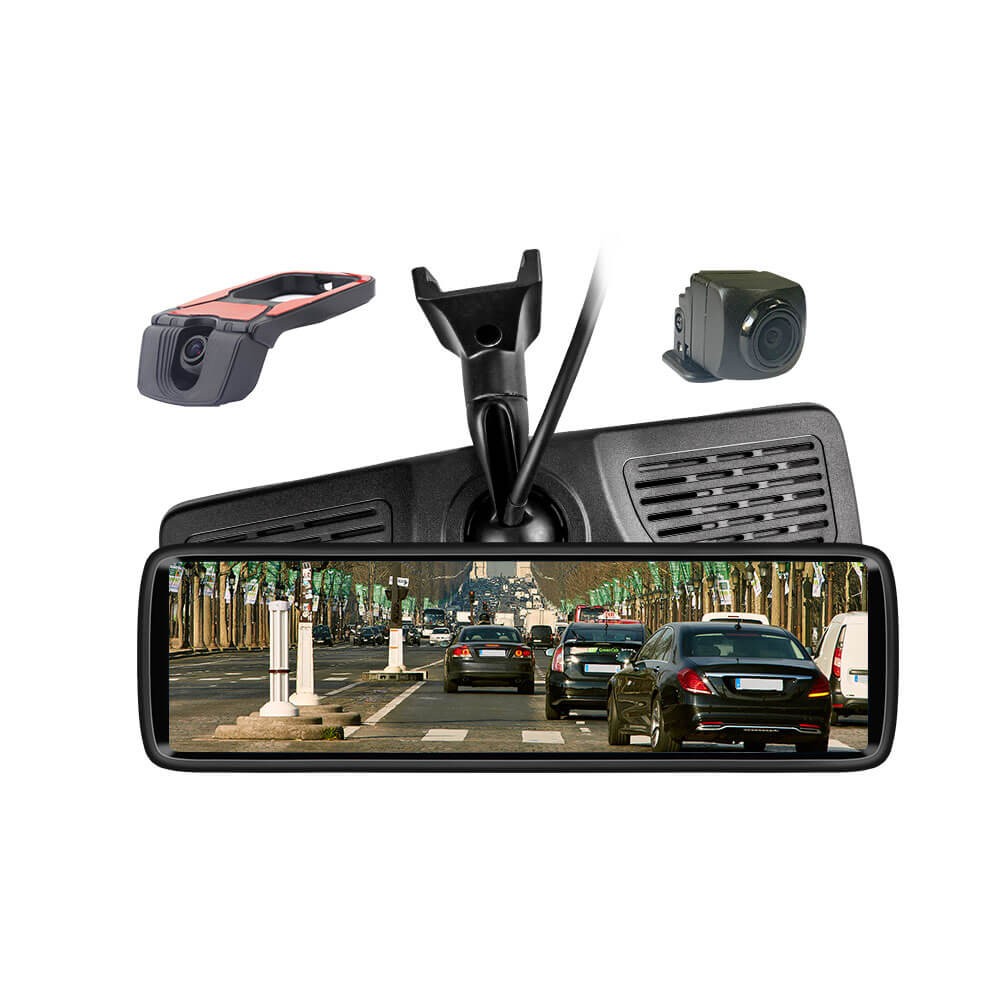

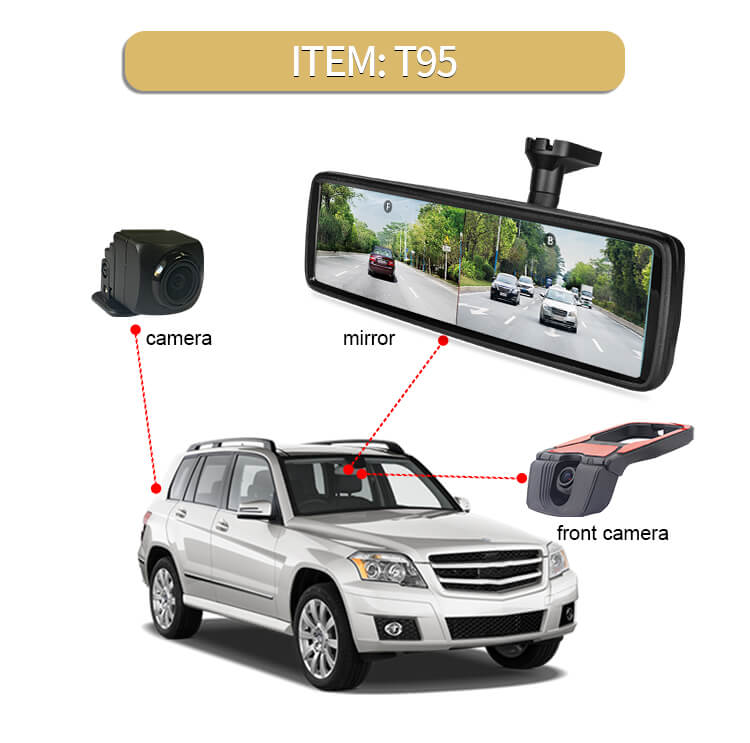

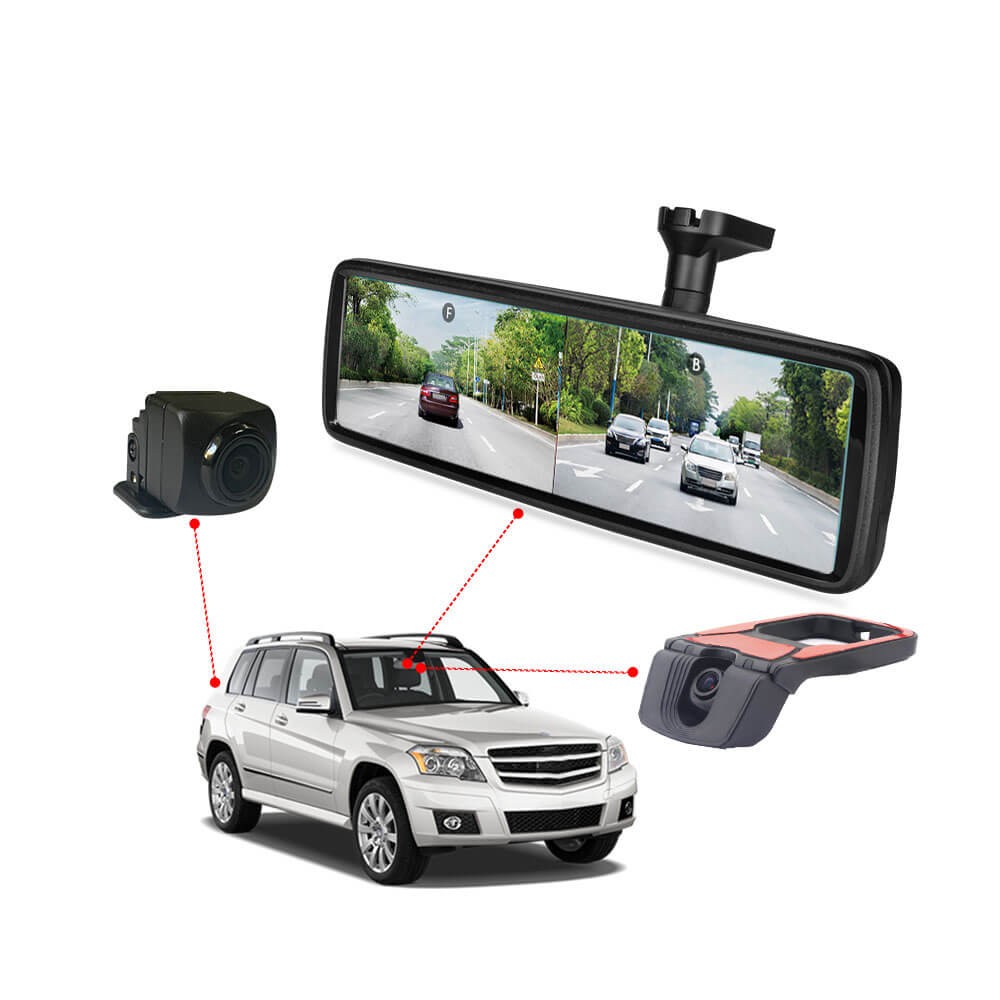

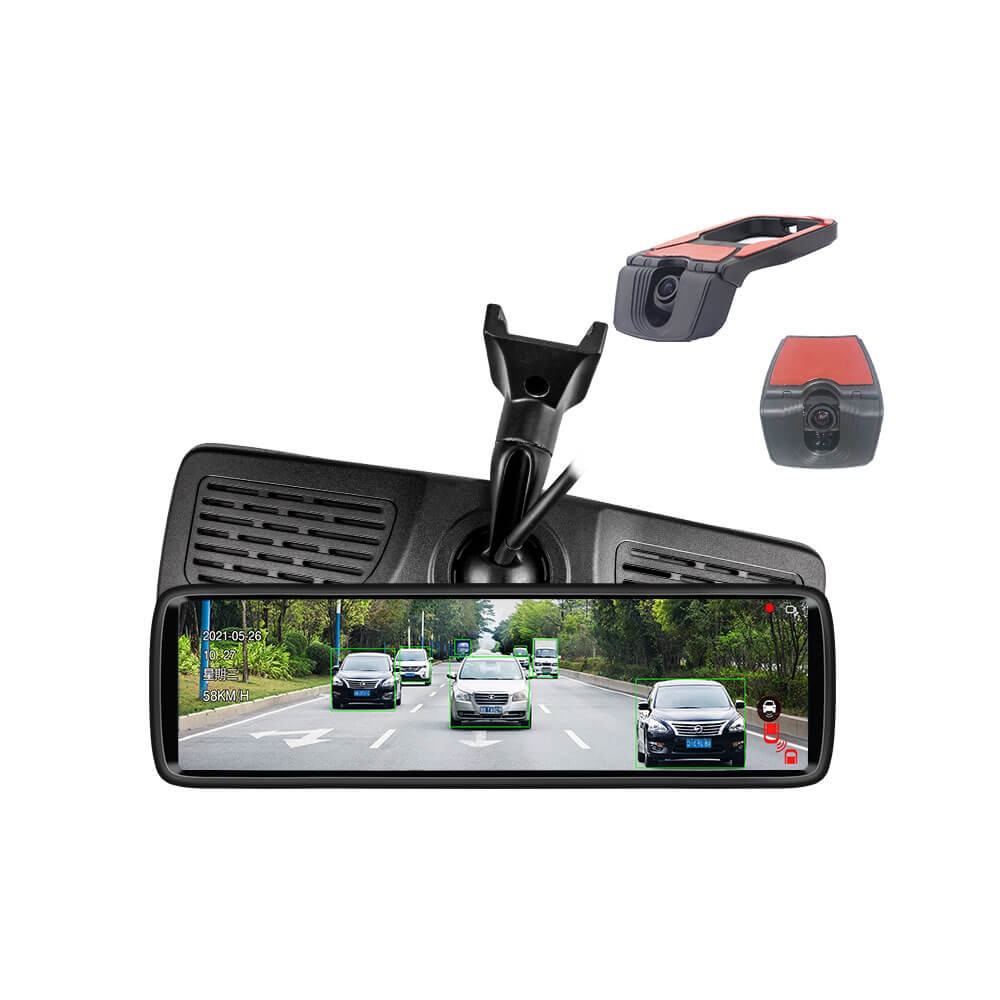

Aotop 8.88 inch IPS digital mirror monitor camera system integrates ADAS (Advanced Driver Assistance System) and BSD (Blind Spot Monitoring) functions to provide drivers with intelligent and safe driving support. It supports full-screen touch operation, dual split-screen display of front and rear images, and front and rear driving records. For more smart mirror system detail, please contact sales@aotop.com！
MIRRPR SYSTEM FEATURES
SCREEN: Touch screen 8.88 inch full screen display
RESOLUTION: 1920*480
BRIGHTNESS: High brightness 800cd/m2

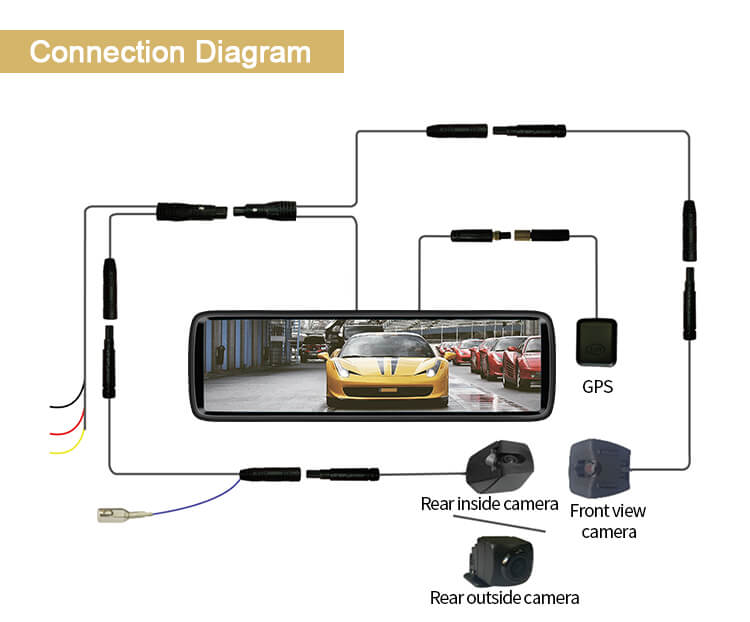

VIDEO INPUT: 2 ways 1080p video signal input, front and back view
FRONT/REAR VIEW CAMERA: 1920*1080, 27.5fps/60fps, HDR
POWER SUPPLY: 9~12V, from power supply box
STORAGE: Max 128GB TF card
FEATURE: Smart ADAS system / BSD blind spot monitoring alert / GPS track playback /
screen adjustment / dual DVR recording
| Main Chipset | Eeasy. Tech (SA226) |
| RAM | 512M |
| System | EOS |
| G-Sensor | Triaxial G-sensor |
| MCU | Power supply management, communication &control |
| Screen | 8.8 Inch 1920*480IPS LCD, Up/down/left/right more than 170 |
| Brightness | ≥800nits |
| Touch screen | Capacitive touch screen |
| Working Voltage | 9~36V, from power supply box |
| Max. current | ≤1.0A |
| Standby current | ≤5mA |
| Max.Power Consumption | ≤10W |
| Camera video output | TVI /AHD |
| Camera lens | Full glass |
| Front view camera | 1920*1080，27.5fps，HDR |
| Rear view camera | 1920*1080，60fps，HDR |
| Video format | 1080P, TS |
| Picture format | JPEG |
| GPS | Exterior GPS module, Beidou&GPS double module |
| Speaker | 1 * speaker，4Ω 2W |
| Microphone | 1 * electrets microphone |

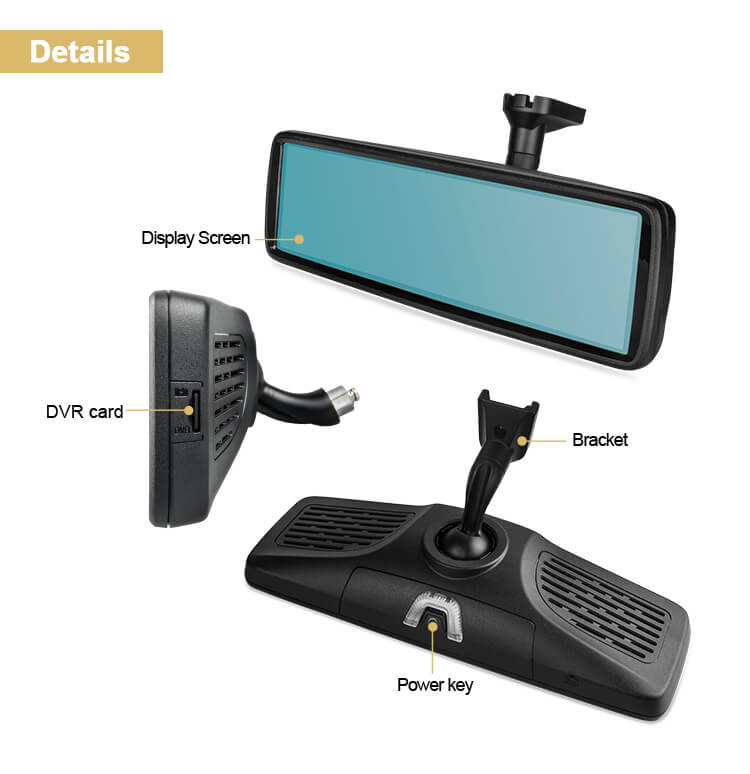

| Key | 1 * key，power key |
| TF slot | Support Micro SD card，Max. 256 GB，U1/C10 |
| Mirror housing material | PC+ABS，plastic injection, Anti-flaming UL94 |
| Mirror Adjust Torque | 1.2~1.7(N·m)，Single ball, adjust manually |
| Bracket material | alloy, all in on pressure casting |
| Mirror | Flat mirror, radius of curvature ∞， Mirror reflectivity 41%~45 |
| Circuit Protection | Overvoltage/Overcurrent protection, Reverse voltage protection |
| Working Temp. | -30℃~+70℃ |
| Storage Temp. | -40℃~+85℃ |
| Storage Humidity | 0%~90% |
Electronic rear view mirror uses advanced intelligent algorithms, real-time analyse images captured by the front view
camera, enable Smart ADAS functions including Pedestrian Collision Warning, Front Vehicle Departure Reminding,
Safe Distance Ahead Reminding and Lane Departure Warning !
And rear view blind spot support Pedestrian & Vehicle Detection, Anti-Collision Warning !

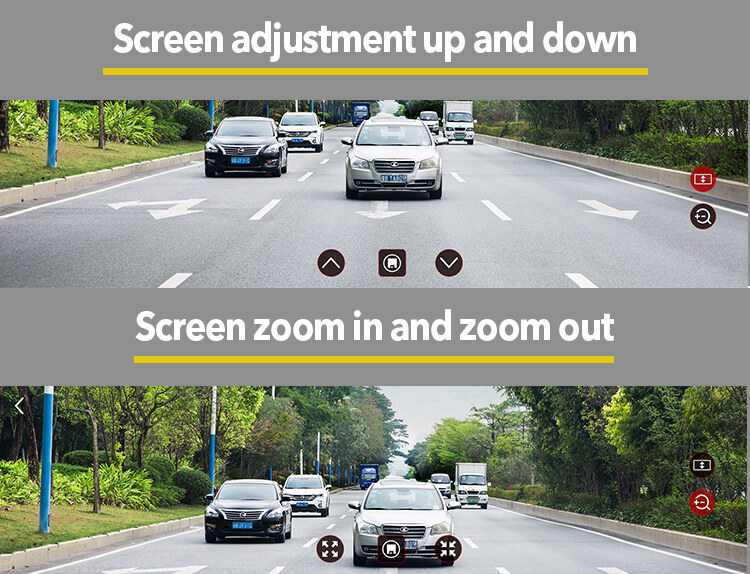

Rearview mirrors monitor full screen touch, support up and down, zoom in and out to adjust the display angle of
the travelling screen.

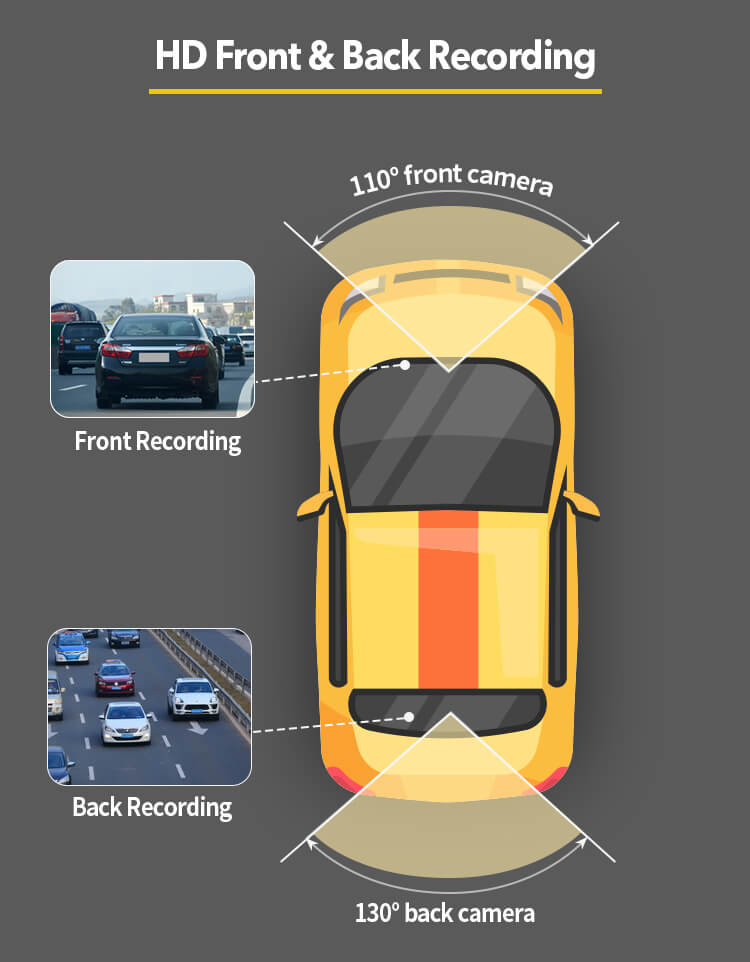

Front & back camera wide angle lens, front 27.5fps 110° & back 60fps 130° .
Mirror monitor built-in 128GB memory card, 2 channels camera video signal DVR car recording.
G-sensor Automatically locks the relevant video file when a collision is detected.

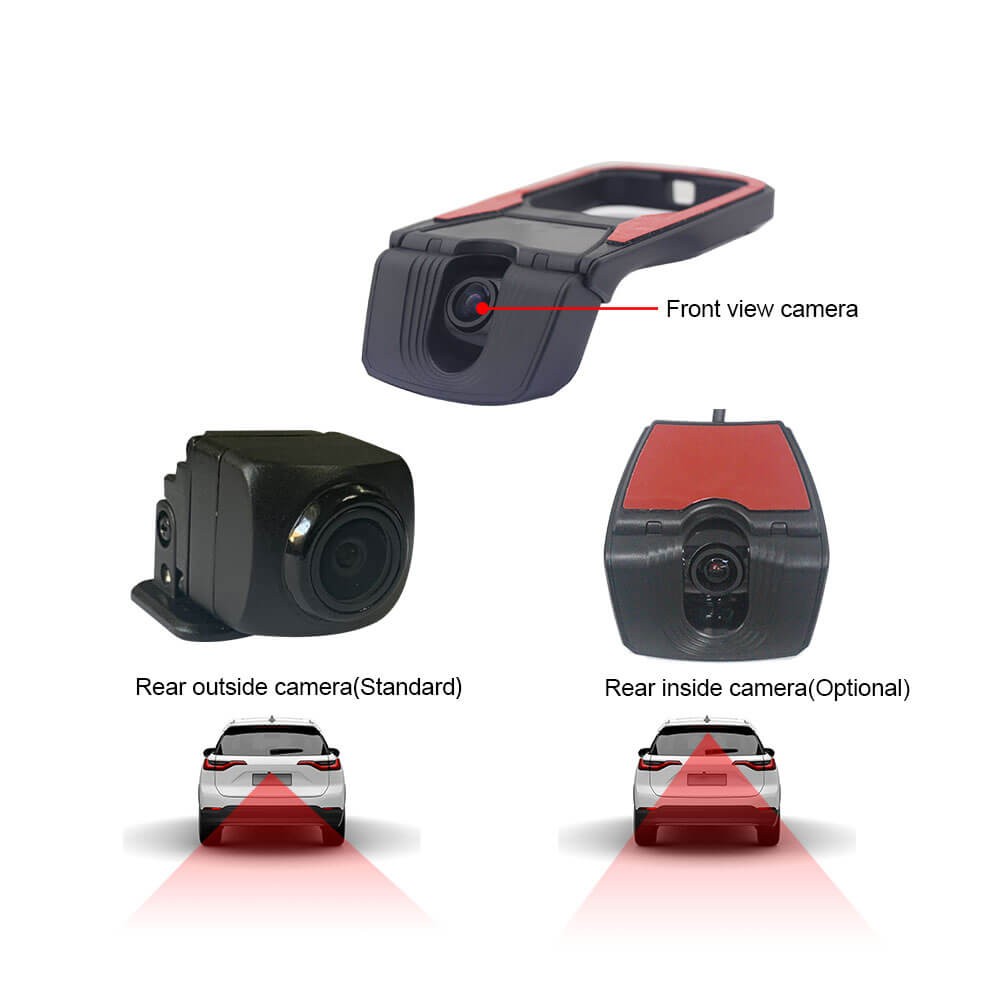

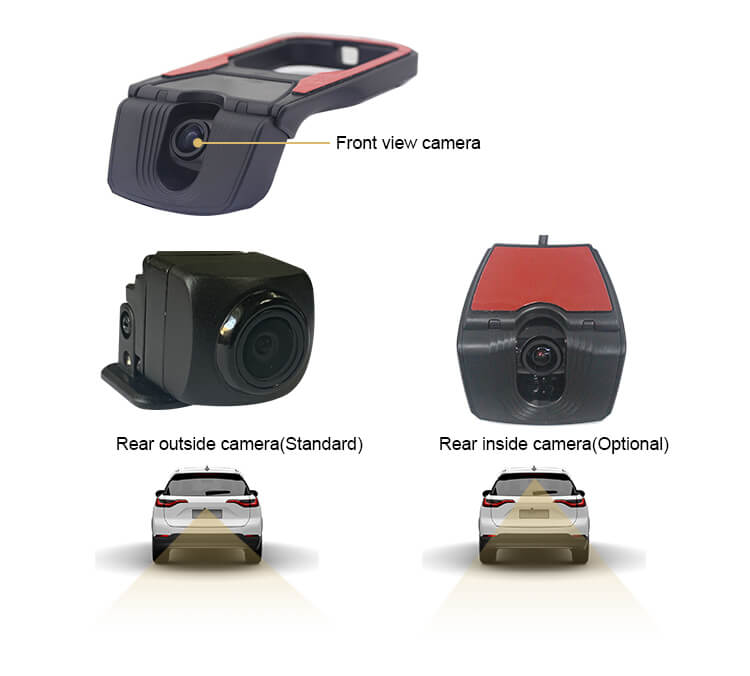

Backup camera provides 2 choices of internal and external specifications with the same performance, both of which
can present HD, stable and smooth 60fps images. The monitoring angle is different, users can choose the suitable
camera type according to the car model and rear view monitoring needs, in order to achieve the ideal visual experience
of reversing.

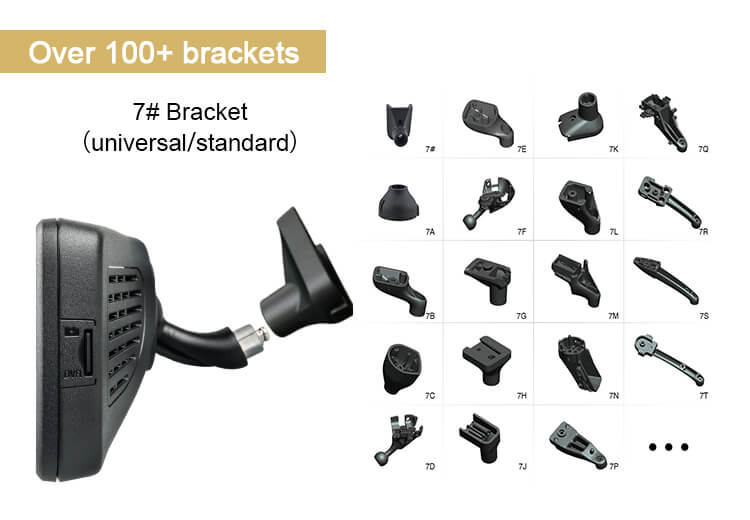

More than 100+ mounting brackets for mounting on different year brands of cars.
(Toyota, Honda, Ford, Chevrolet, Volkswagen, Nissan, BMW, Mercedes Benz, Audi, Subaru, Mazda, Jeep, Volvo,
Porsche, Tesla, Lexus, Jaguar, Land Rover)
