10.1 inch HD digital LCD colour car rear view monitor, support 2CH AHD camera video signal input, dual split view mode. Monitor has 1CH HDMI video input port. Support multi-language switching, it is the ideal choice for customers in different regions of the world to improve driving safety! If you are looking for high quality in-vehicle HDMI monitor for your fleet, please contact us at sales@aotop.com.
PRODUCT FEATURES
1024*RGB*600 resolution (IPS LCD screen)

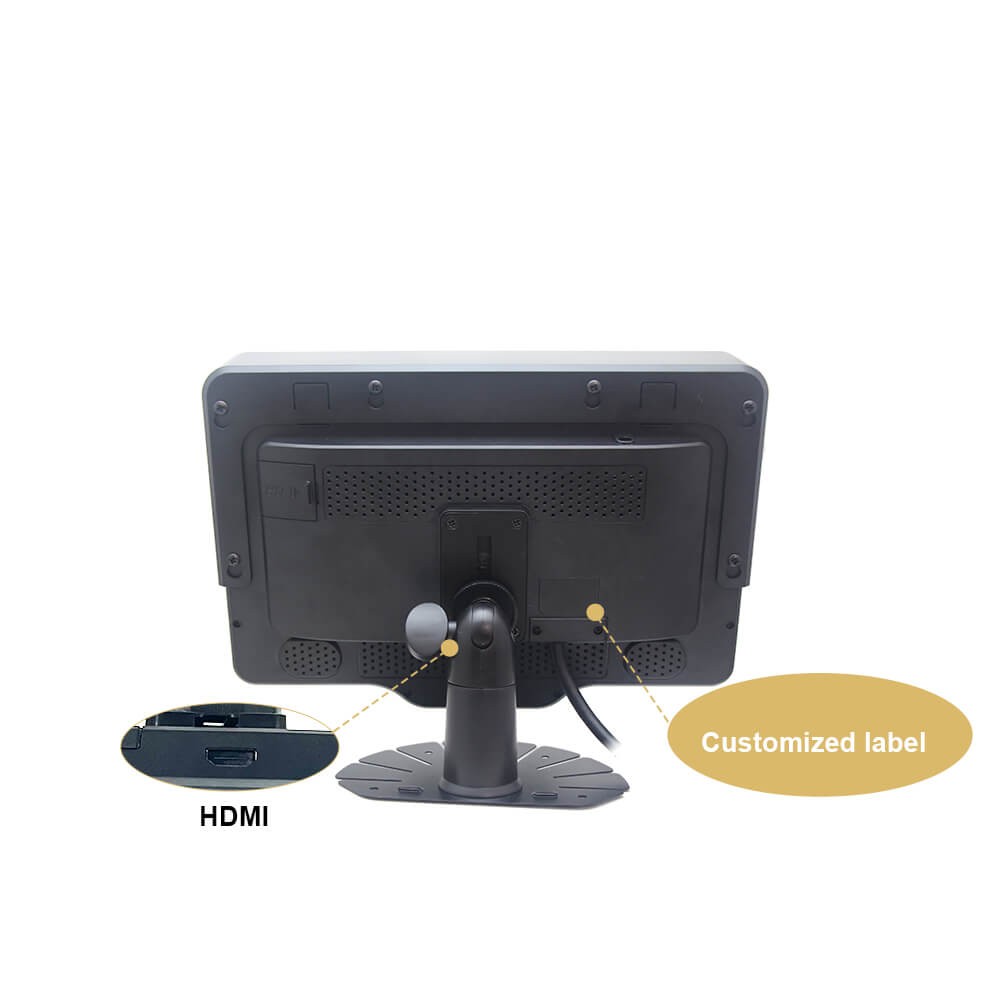

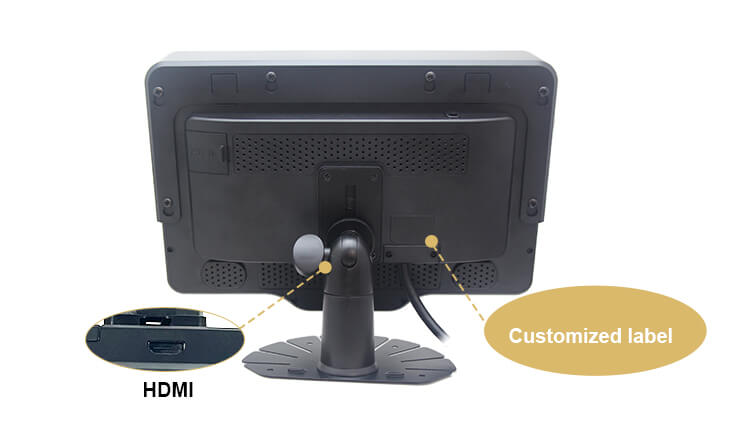

2CH x cameras video signal input; 1CH HDMI port;
Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS

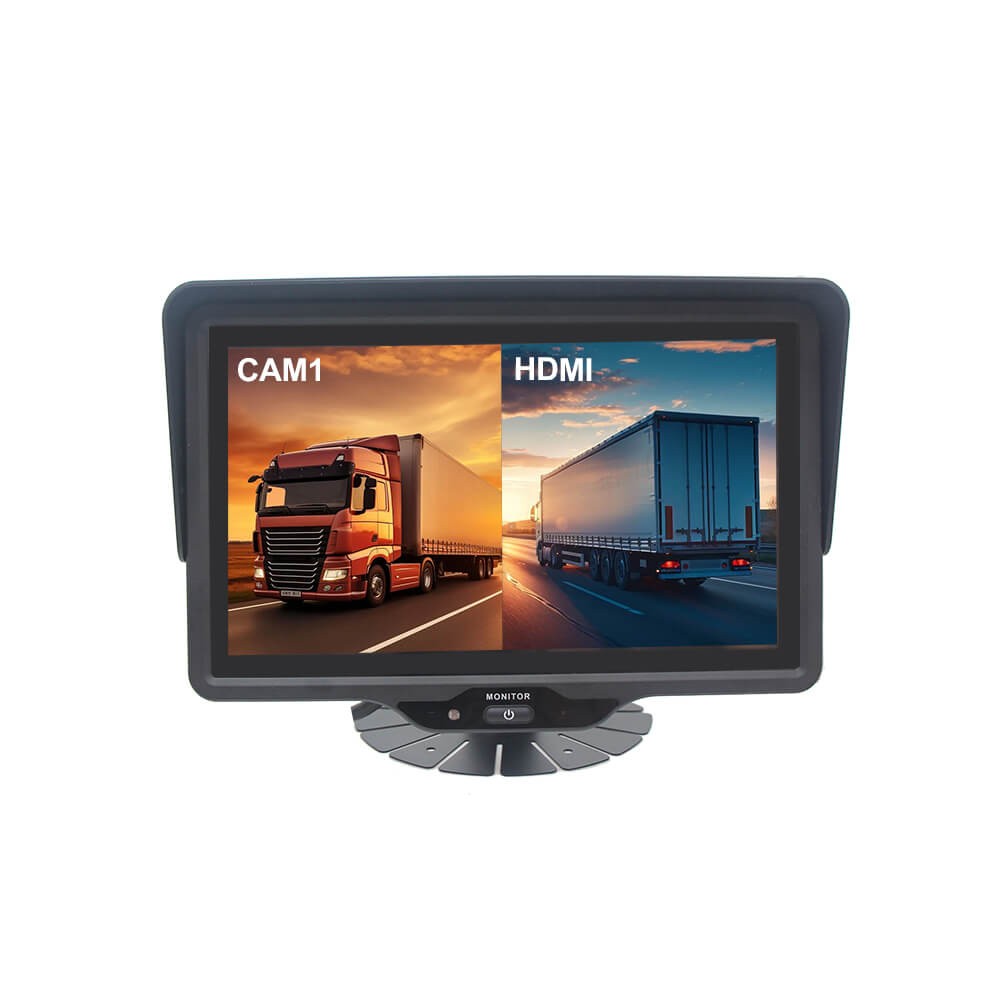

Full display (AHD1/ AHD2/ HDMI ) & dual split view mode (AHD1+HDMI/ AHD2+HDMI)
2CH audio signal input (high quality speaker)
Full-function remote control
Multi-language
r image switching
DC 12-24V wide voltage
AUTO adaptation PAL / NTSC
settings
Horizontal mirrosystem

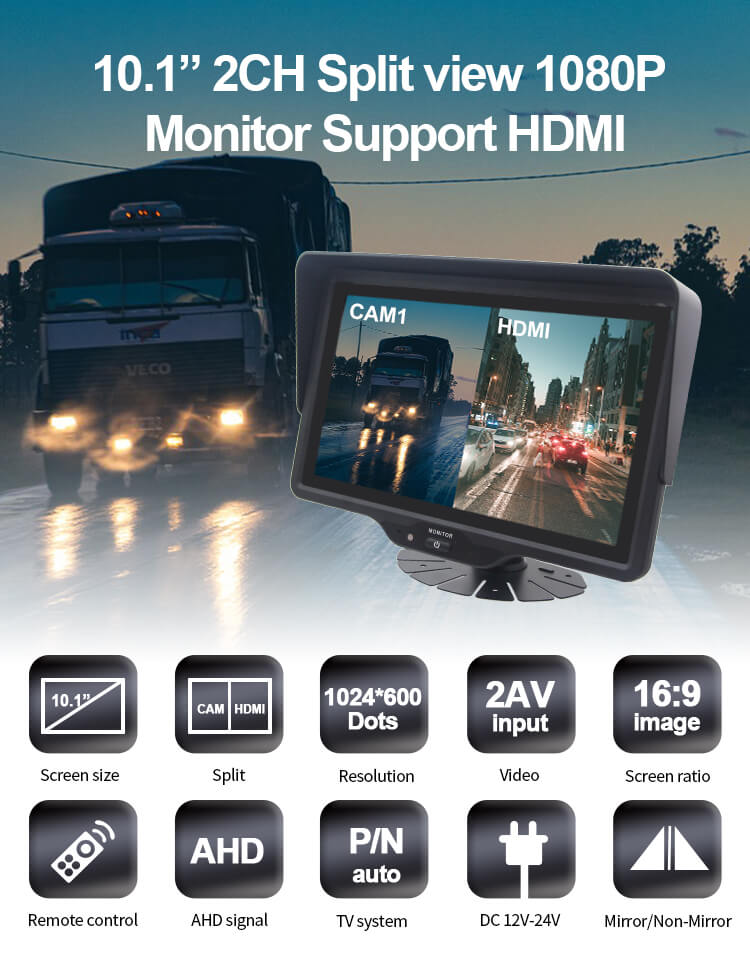

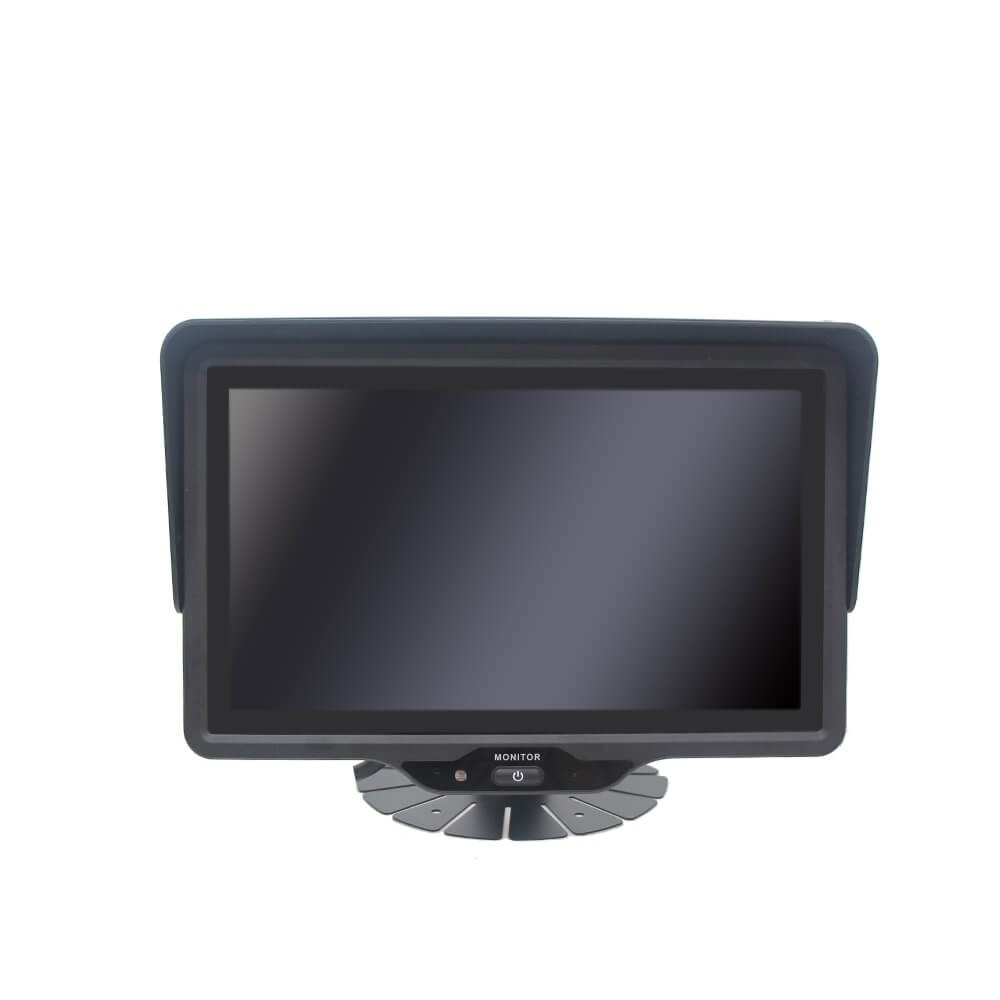

10.1 Inch 2CH 1080P Car Rear View Monitor with HDMI input (CM-108HQ2-HDMI):

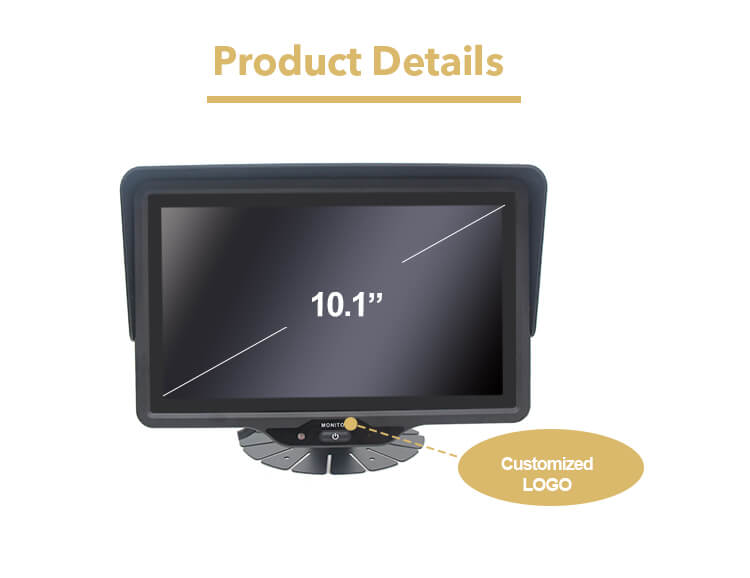

Screen | 10.1″ HD Color IPS LCD |
Screen Ratio | 16:9 |
Back Light Luminance | LED, Luminance 500 Cd/M2 |
Resolution | 1024xRGBx600 |
Contrast | 800 : 1 |
Compatible System | PAL & NTSC(Automatically) |
View Angle | UP—85°, DOWN—85°, LEFT—85°, RIGHT—85° |
Video Input | Support 2CH 1080P/720P/960P/CVBS Mixed Video Signal Input; Support 1CH HDMI Input; |
Audio Input | 2CH Audio Input |
OSD Menu | Image Setting, Image Turnover, Blue/Black Screen (No Signal), Language Setting, Parking Guide Line On/Off, Reset |
Image Display | Single Image Display (AHD1/ AHD2/ HDMI) Double Image Display (AHD1+HDMI/ AHD2+HDMI) |
Trigger | 1CH Trigger Control |
Power Supply | DC12-24V |
Current Consumption | DC12V≈400MA , Without Cameras |
Boot Time | About 3 Sec. |
Storage Temperature | -30℃〜+80℃ |
Working Temperature | -20℃〜+70℃ |
Working Humidity | 85%RH |
Speaker | Built-In |
Shockproof Level | 4G |
