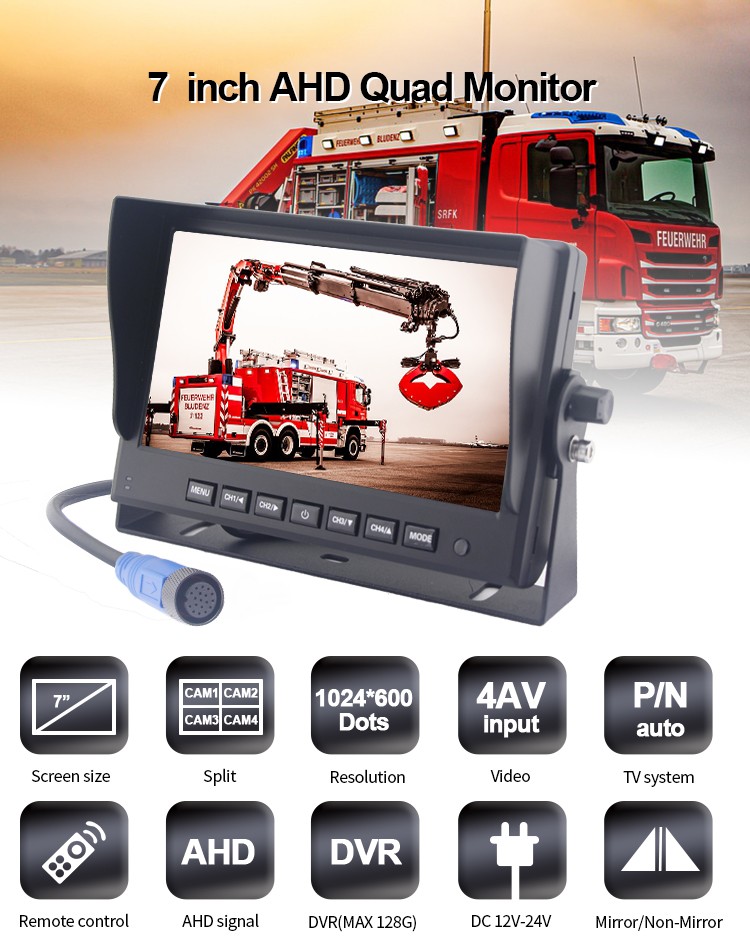

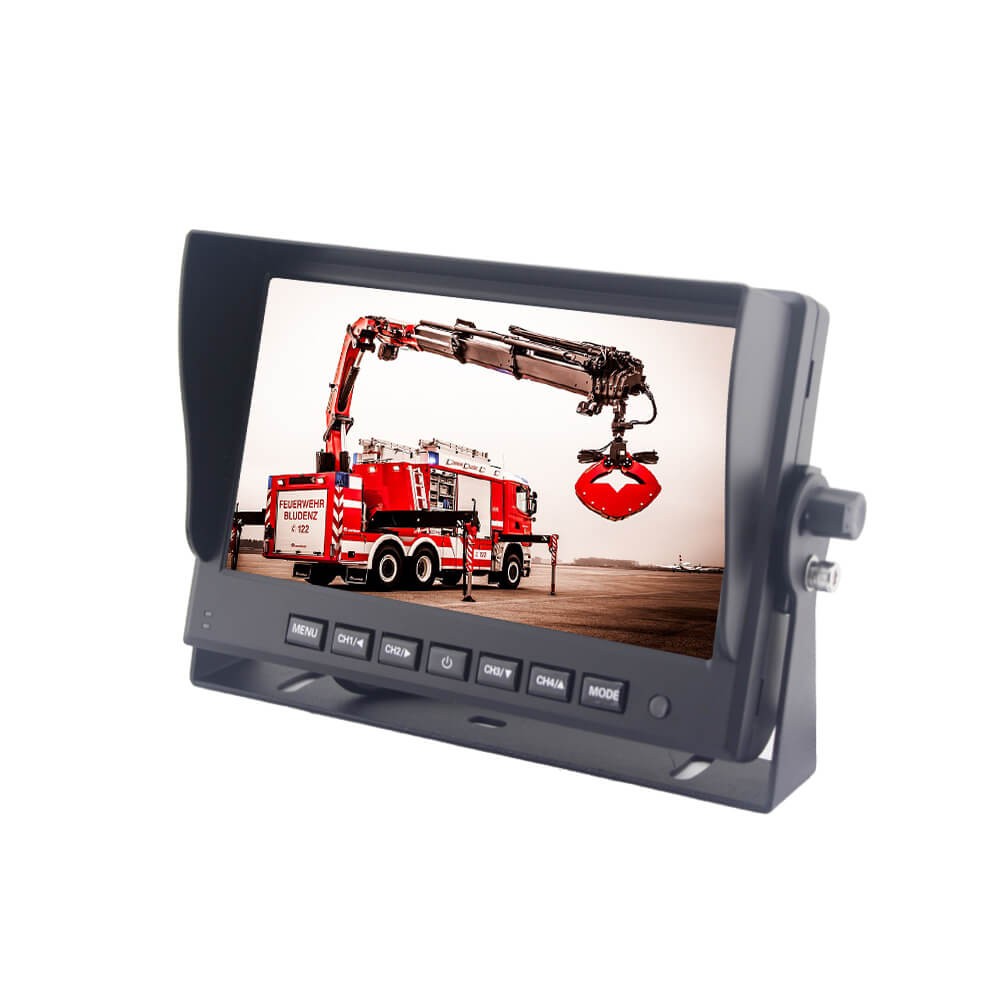

7 Inch Quad AHD Heavy Duty Monitors

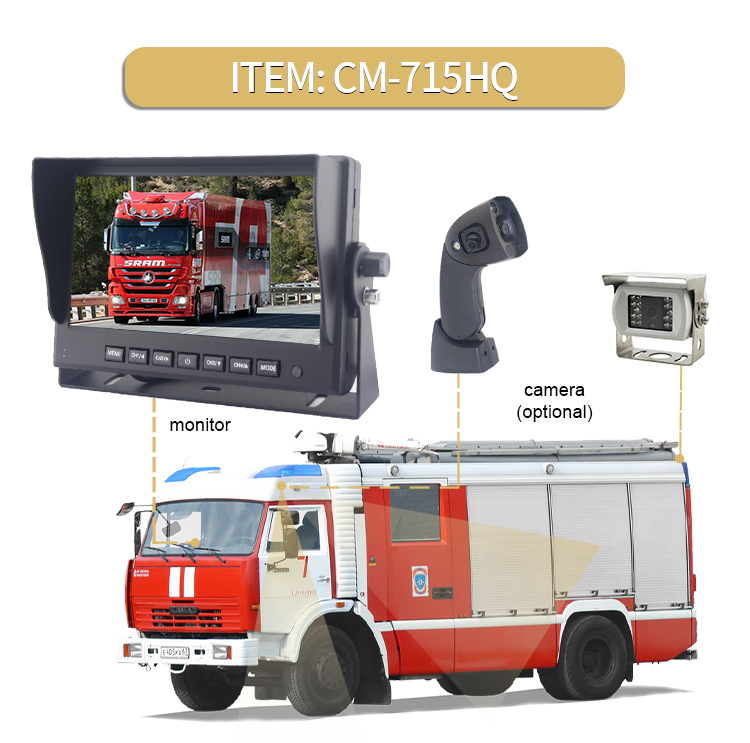

7 inch AHD vehicle monitor for heavy duty vehicles, supports 4CH HD camera video input, allowing drivers to view the surroundings in real-time. With clear visual monitoring, effectively prevents scratches and collisions caused by blind spots, improving driving safety. If you are looking for reliable car monitor manufacturers & suppliers in China, please contact us at sales@aotop.com!

PRODUCT FEATURES

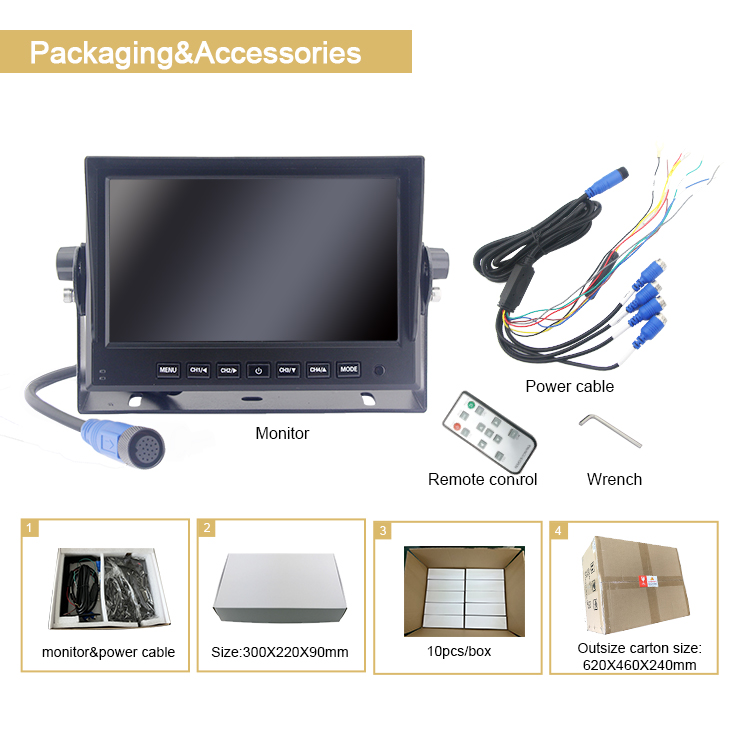

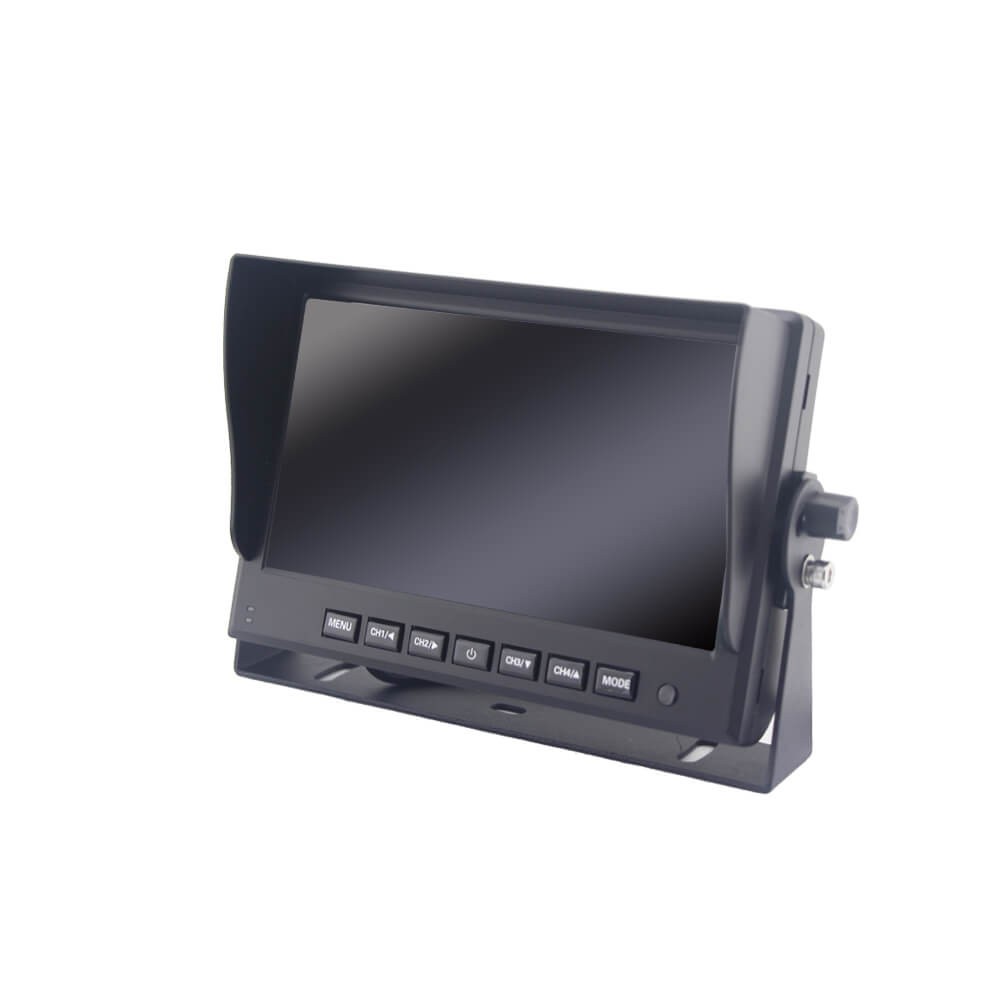

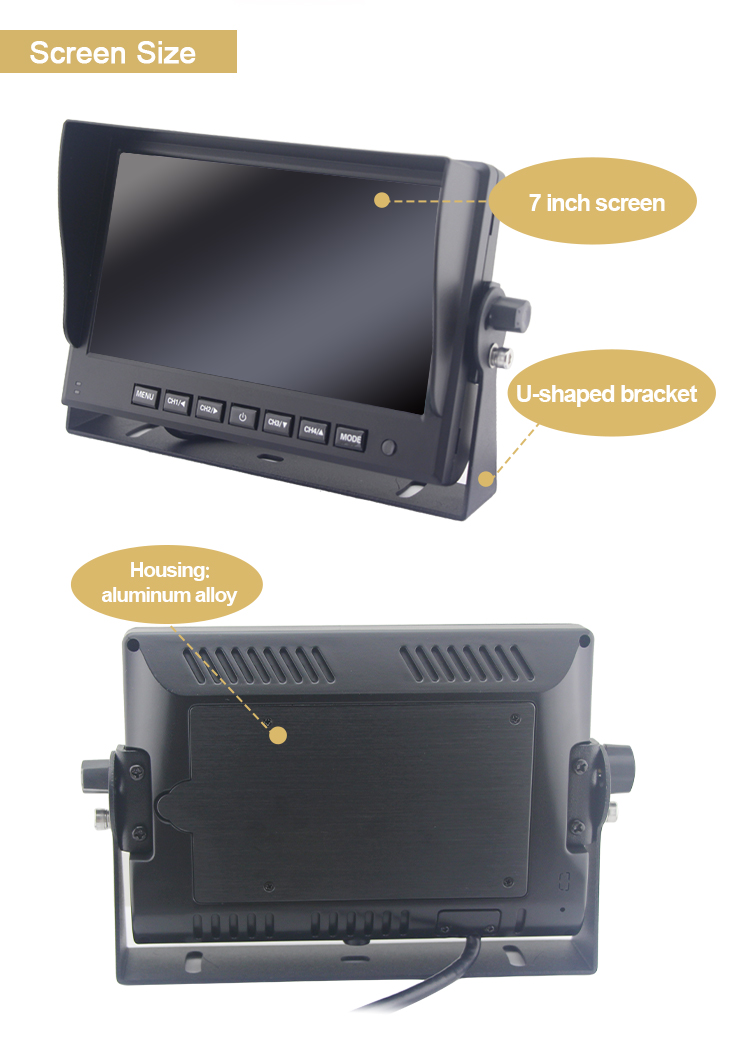

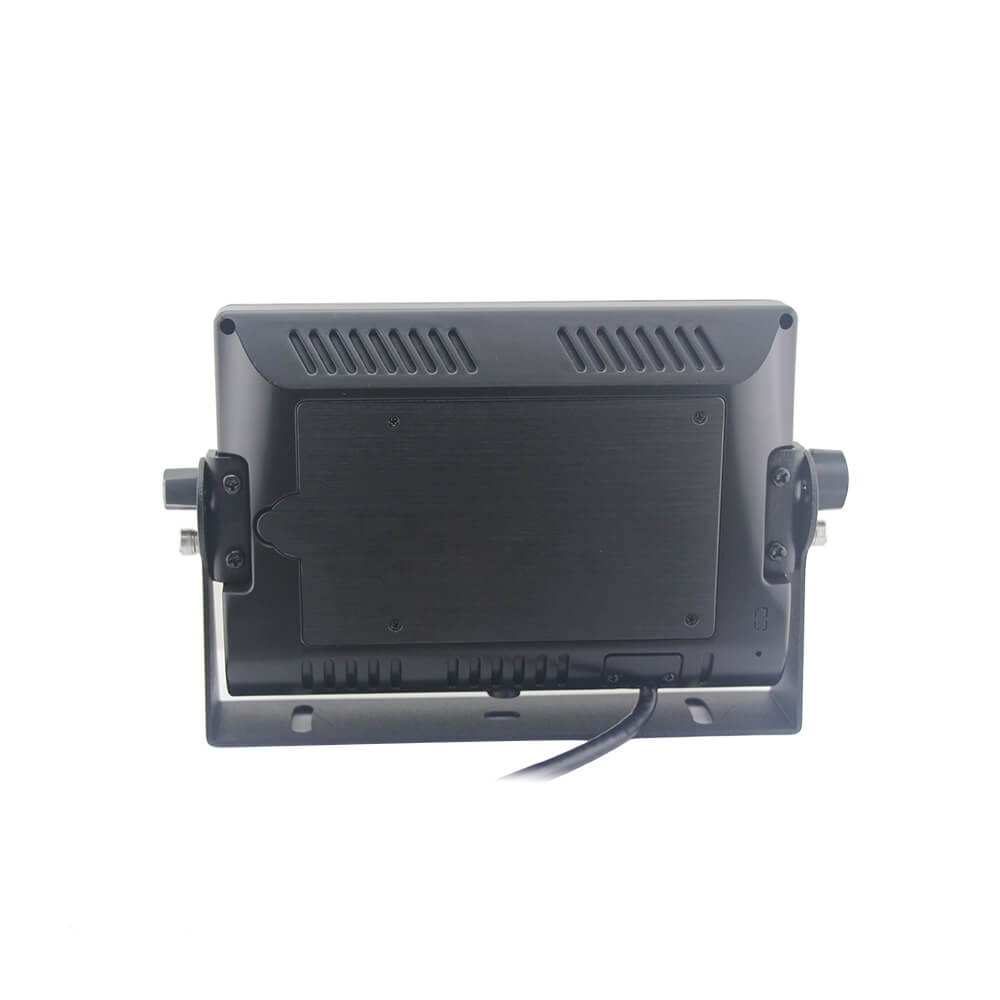

  • With sunshade cover & U-bracket & aluminium alloy housing

  • 1024*RGB*600 HD resolution (IPS LCD screen)

  • 4CH x cameras video signal input

  • Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS

  • 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

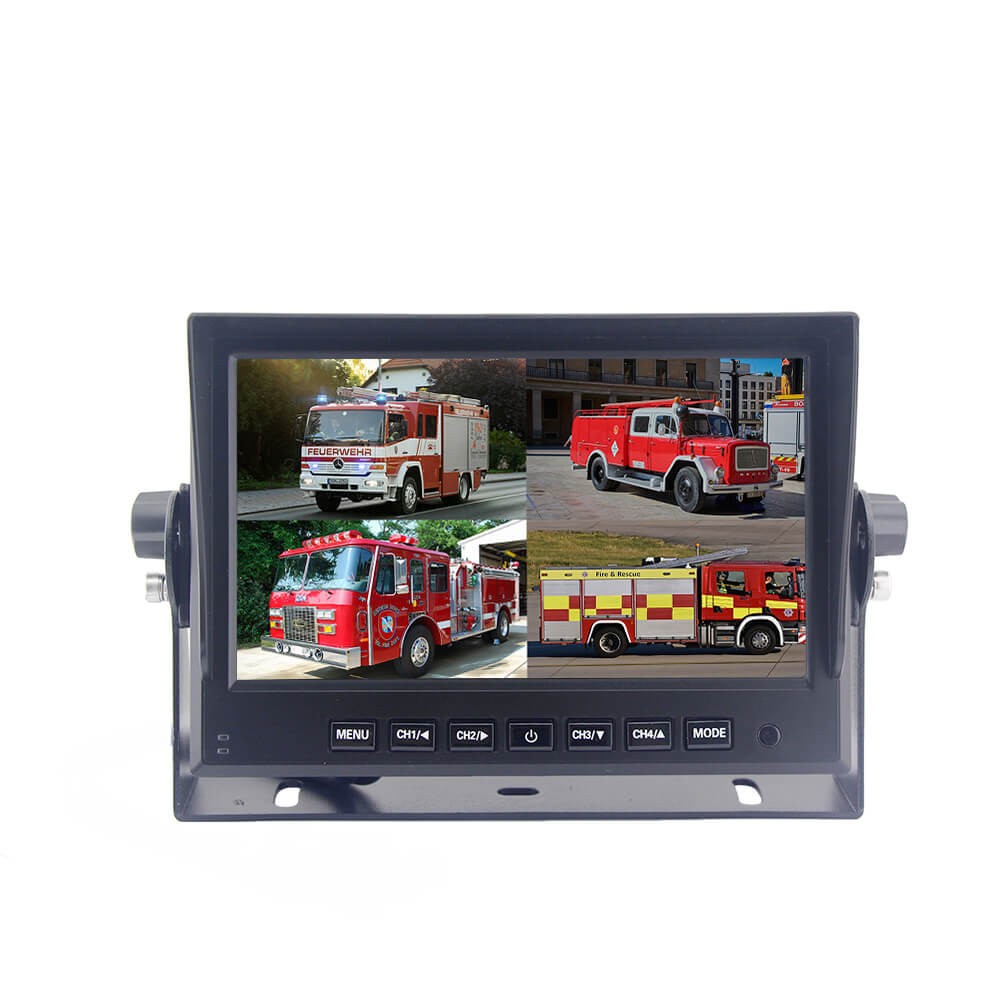

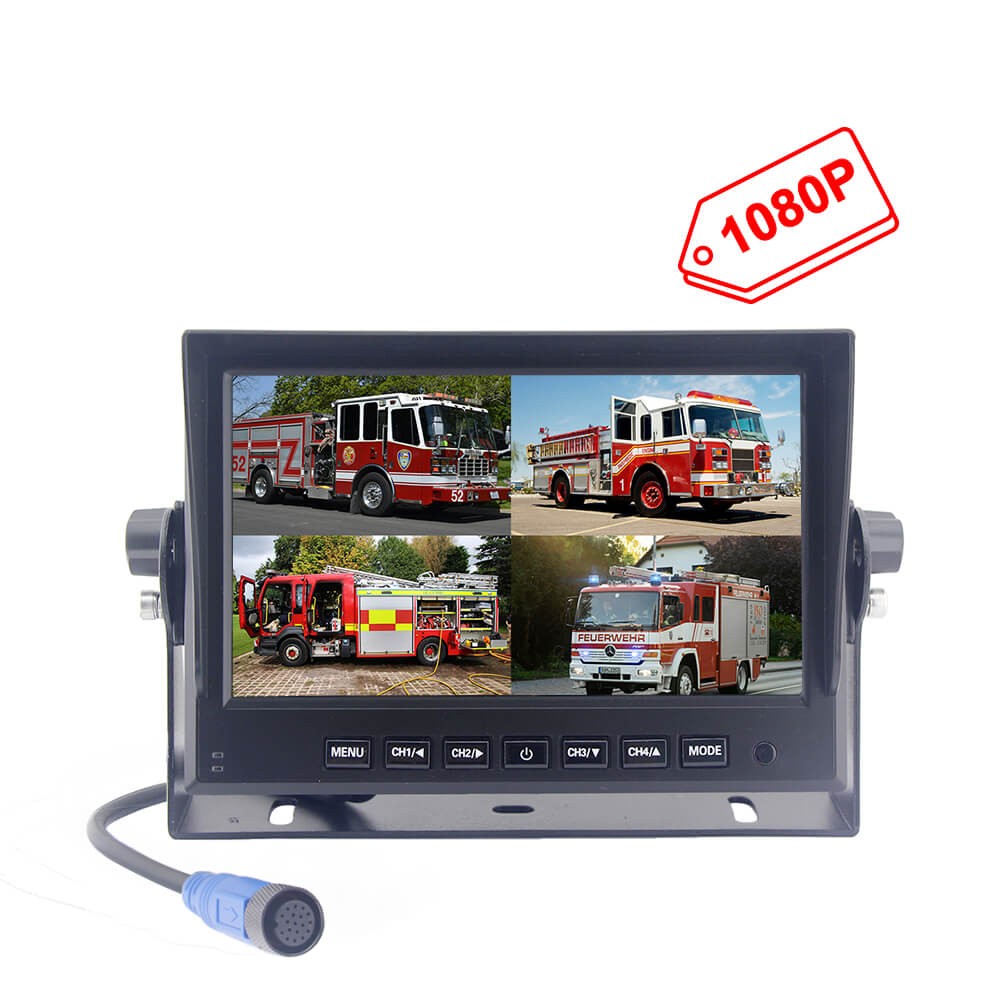

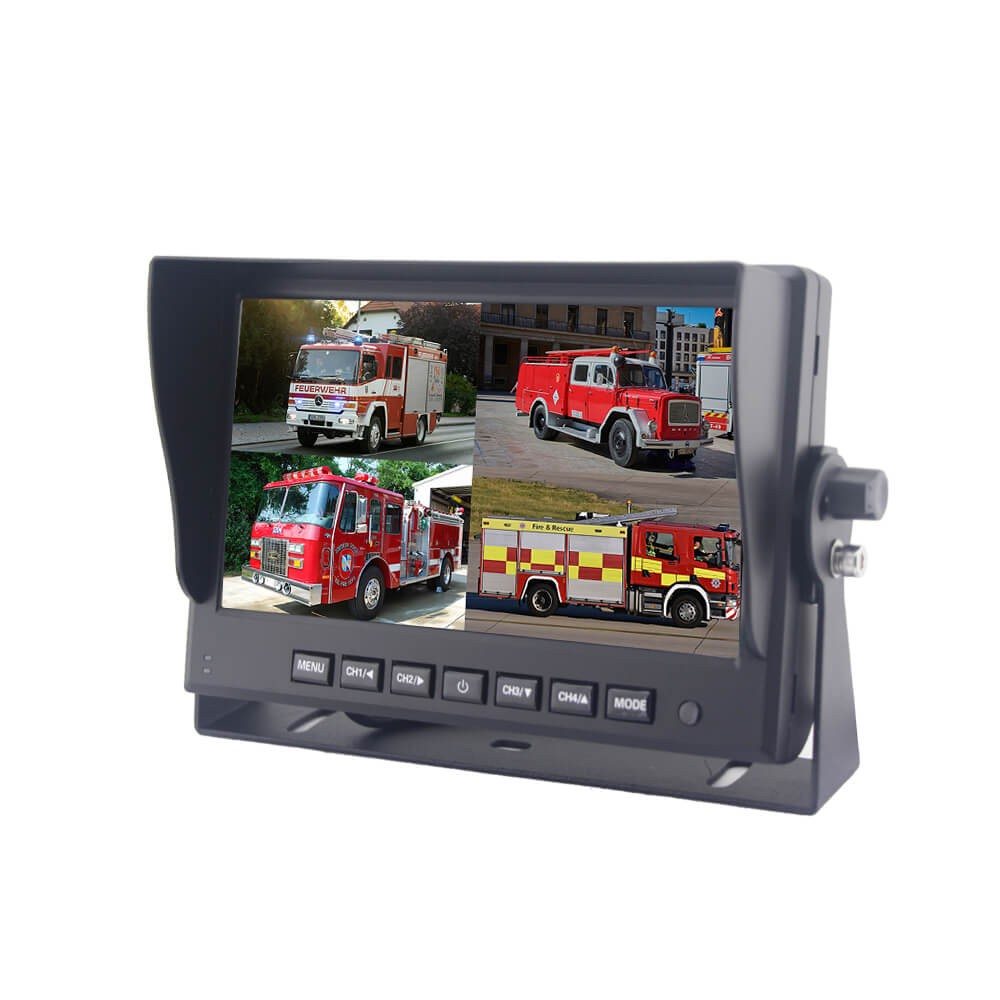

  • Full display & dual/triples/quad split view mode

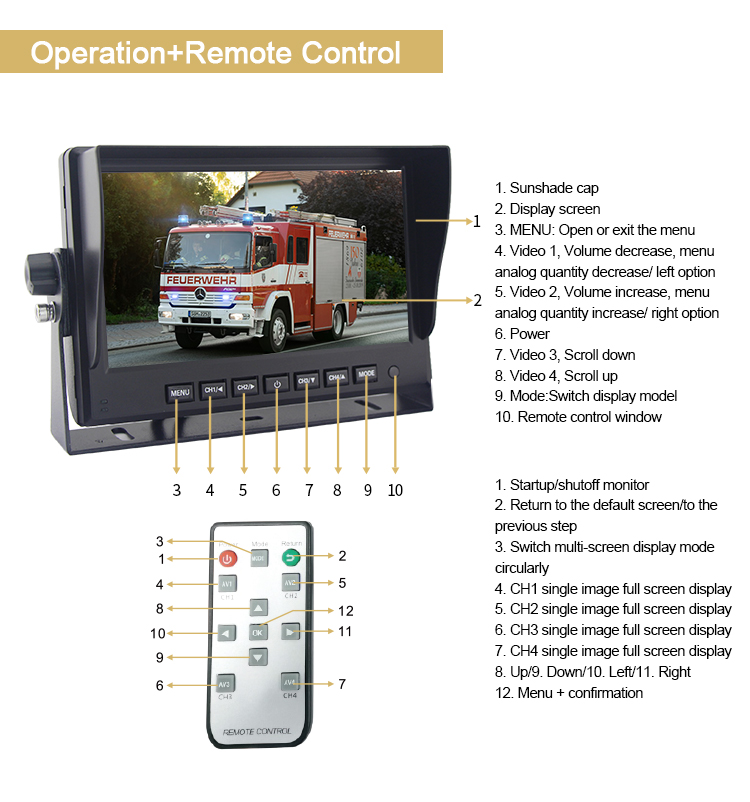

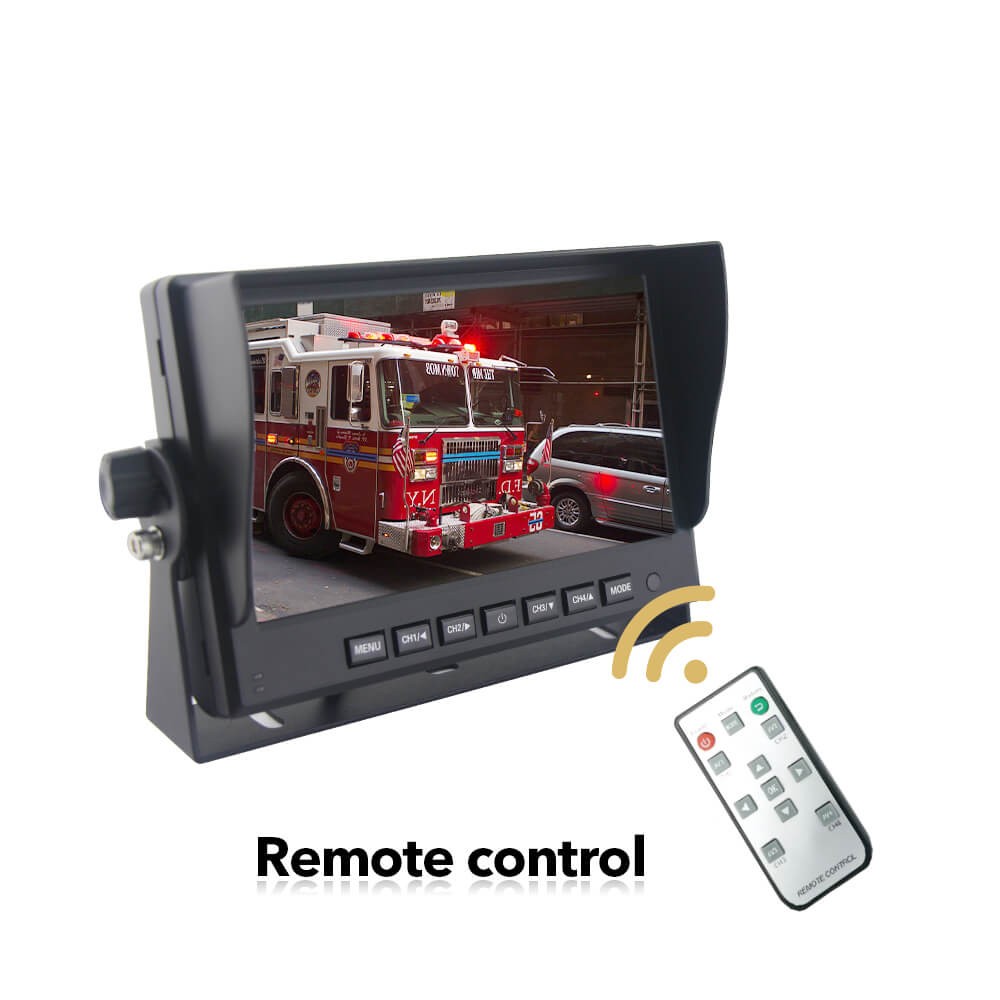

  • Full-function remote control

  • Multi-language settings

  • Horizontal mirror image switching

  • DC 12-24V wide voltage

  • AUTO adaption PAL / NTSC system


 7 Inch Quad AHD Heavy Duty Monitors (CM-715HQ):

Screen Type/Size7 Inch IPS LCD Screen
Aspect Ratio16:9
Resolution1024*R.G.B*600
Brightness500cd/㎡
Contrast500:1
Viewing AngleUp-85°, Down-85°, Left/Right-85°
Video Input

Support 4CH AHD 1080P/720P/960P/CVBS

Mixed Video Signal Inpu

OSD Menu

Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting,

Parking Guide Line On/Off, Reset

Response Time20~40Ms
Parking Guide LineEach Channel Is Controlled Separately, Off As Default
Mirror / Normal ImageEach Channel Is Controlled Separately, Mirror As Default

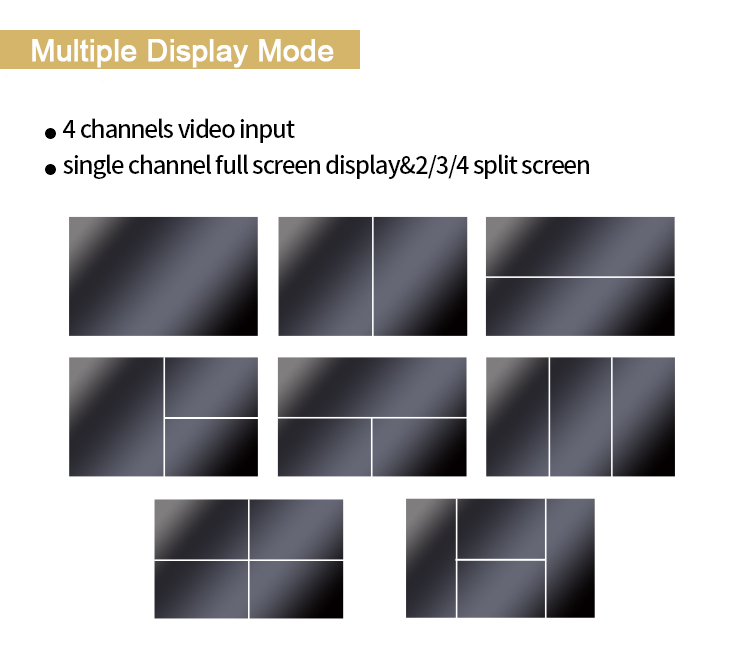

Split View ModeSingle/Double/Triple/Quad View Image Display

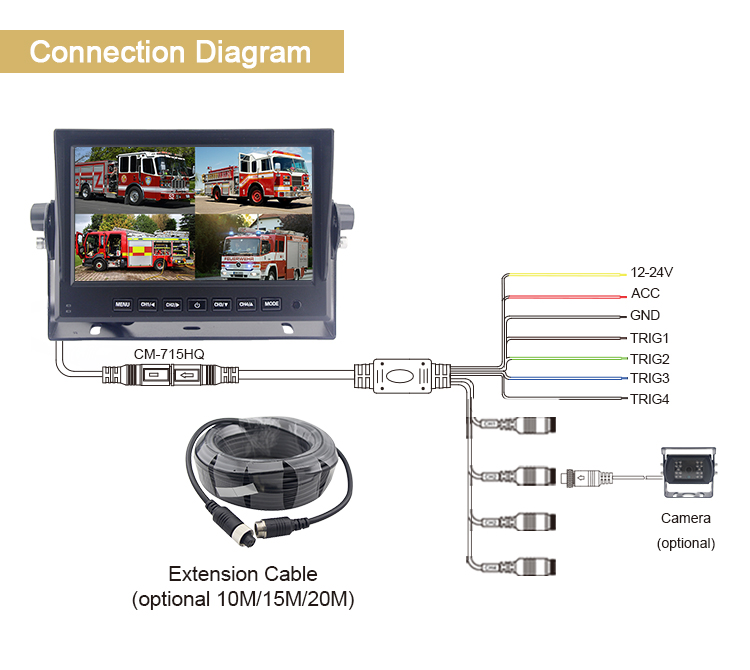

Trigger4CH Trigger Lines
SystemAUTO Adaptation PAL / NTSC
Power SupplyDC 12-24V
Currents12V/<1A
Operating Power<10W
Boot TimeAbout 2~3 sec.
Connection Plug (Connector)Waterproof Aviation Female Connector
Vibration Rating4G
Operating Temperature-20°c~+70°c(RH0%-RH90%)
Storage Temperature-30°c~+80°c(RH0%-RH90%)
OEM&ODM CustomizationBracket/LOGO Plate & Label/Graphic Carton
Warranty2 Years
CertificationE-Mark、E24、CE、FCC、UKCA
