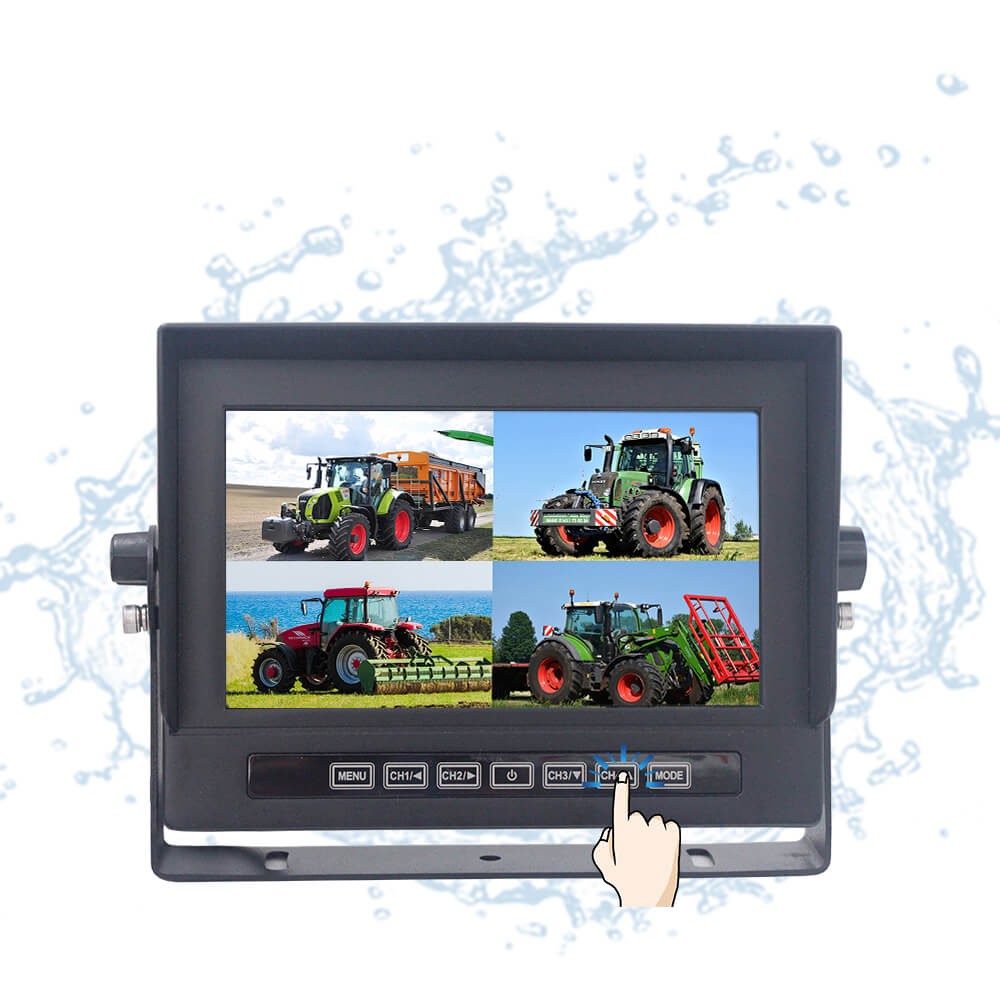

Aotop IP68 waterproof 7 inch vehicle monitor supports 4CH AHD video input, providing comprehensive real-time monitoring for large agricultural machinery. It helps drivers observe the surroundings, reduce blind spots, and prevent accidents. The monitor supports mirror image switching and multiple languages to meet the needs of global users. For more information on waterproof monitors, contact sales@aotop.com!
PRODUCT FEATURES

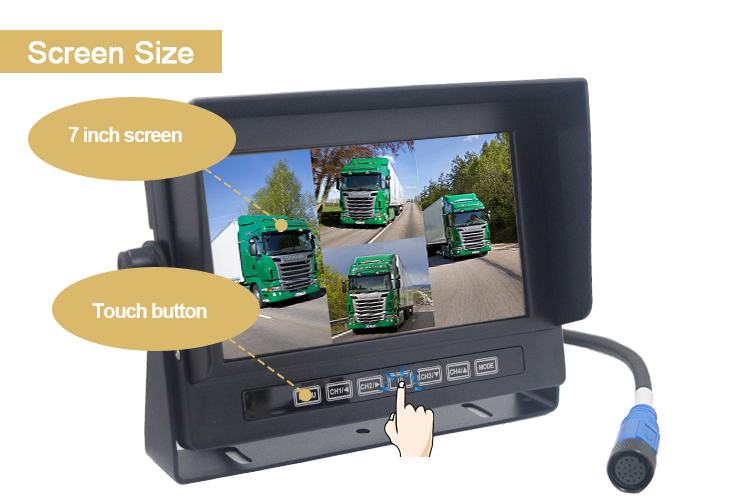

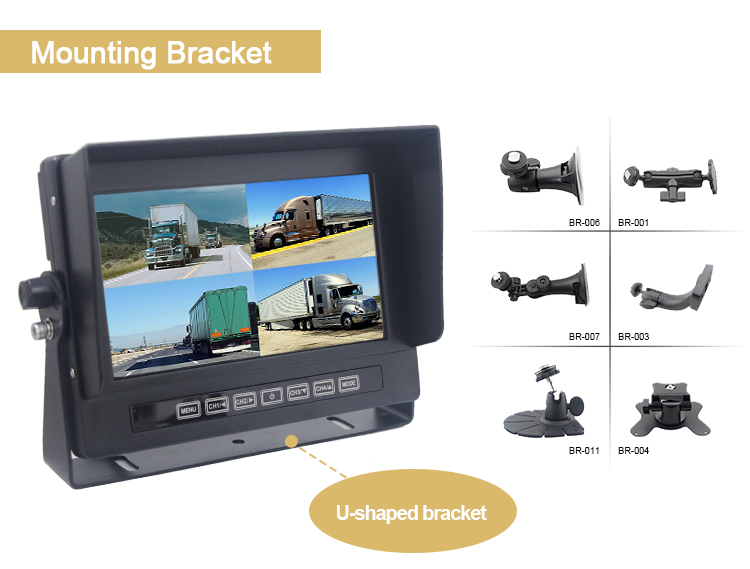

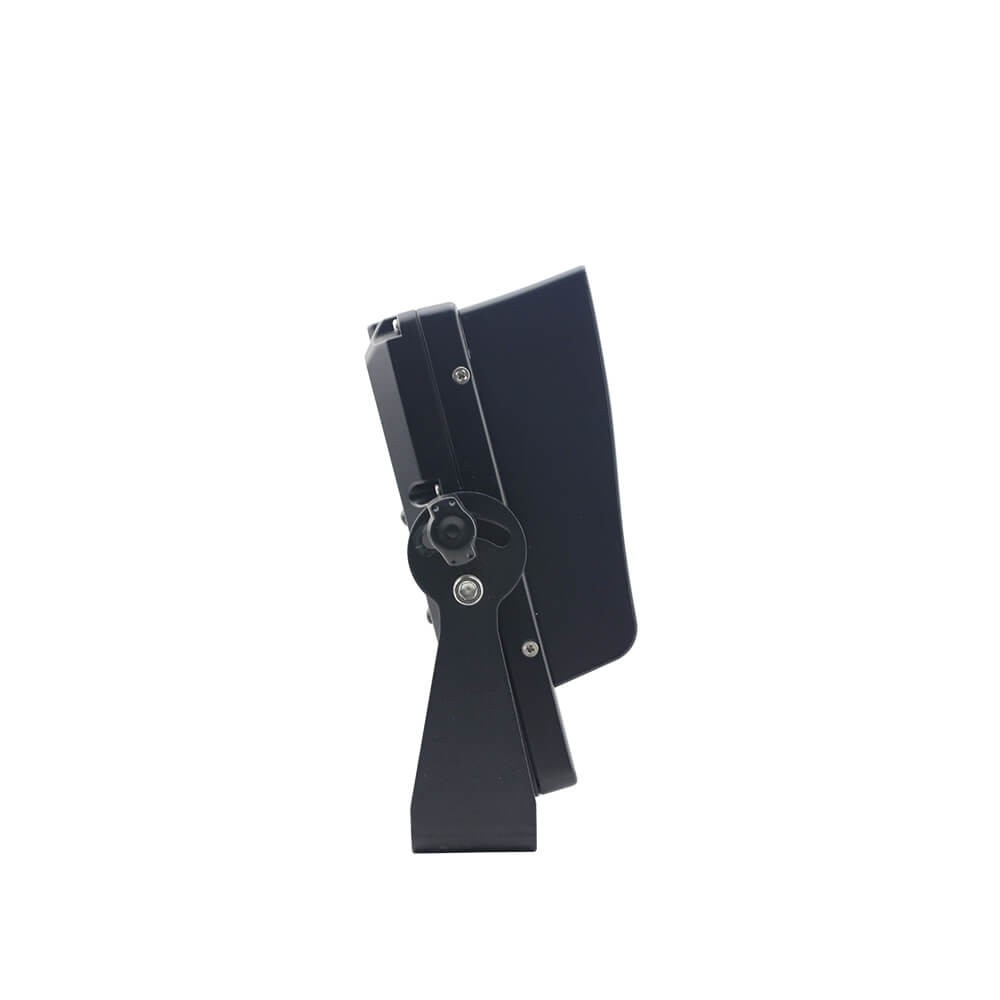

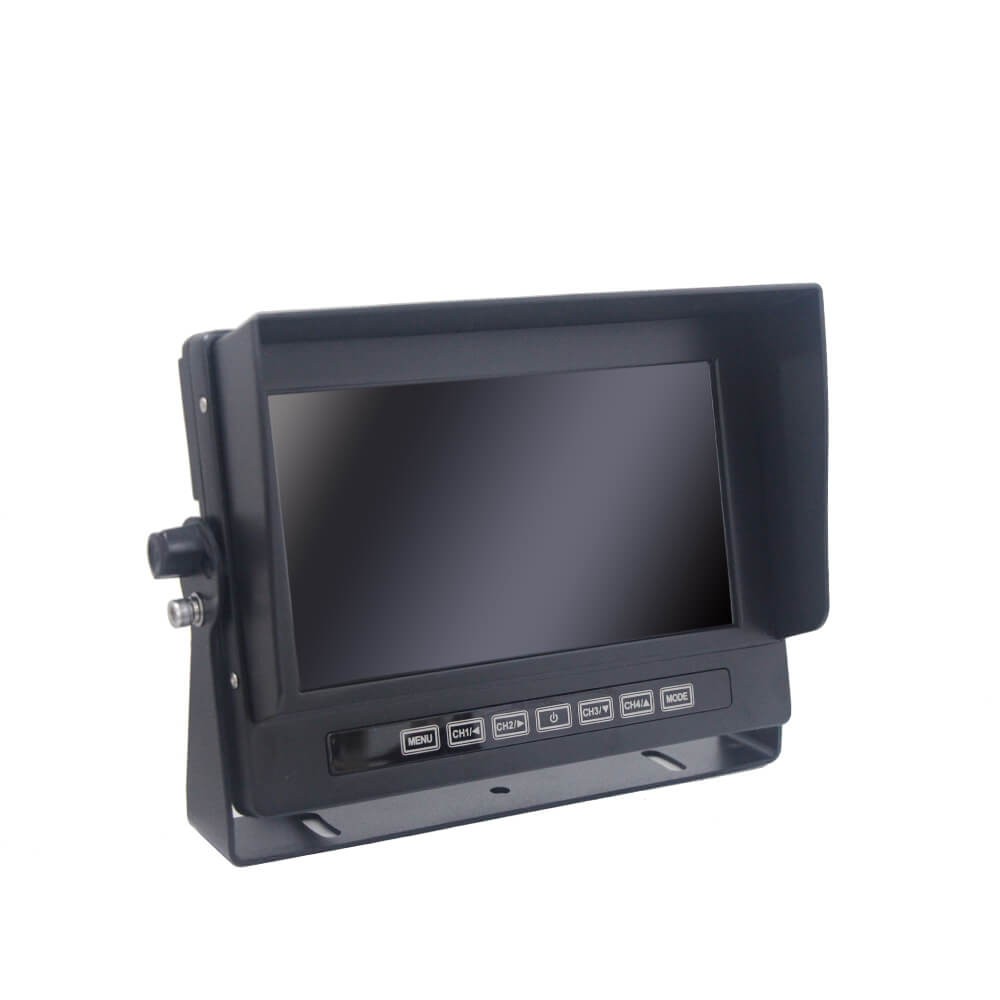

With sunshade cover & U-bracket & touch button

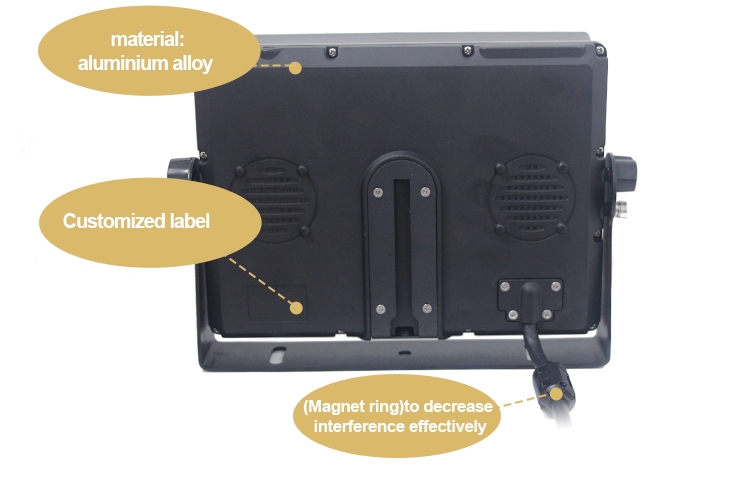

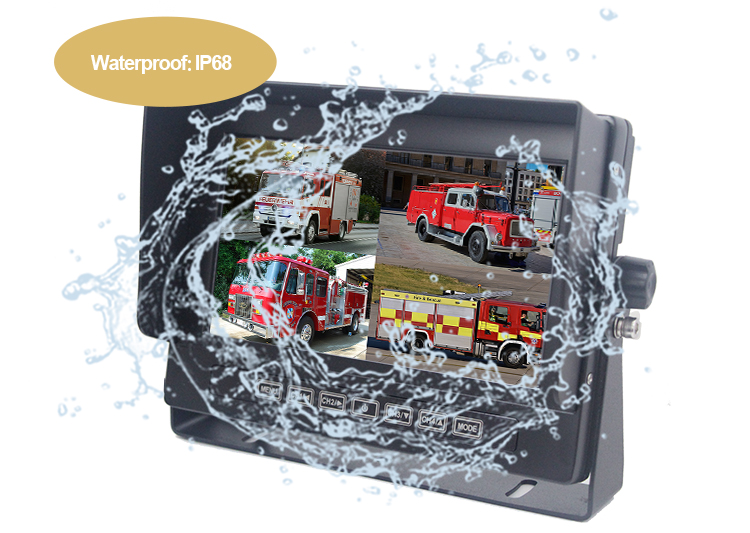

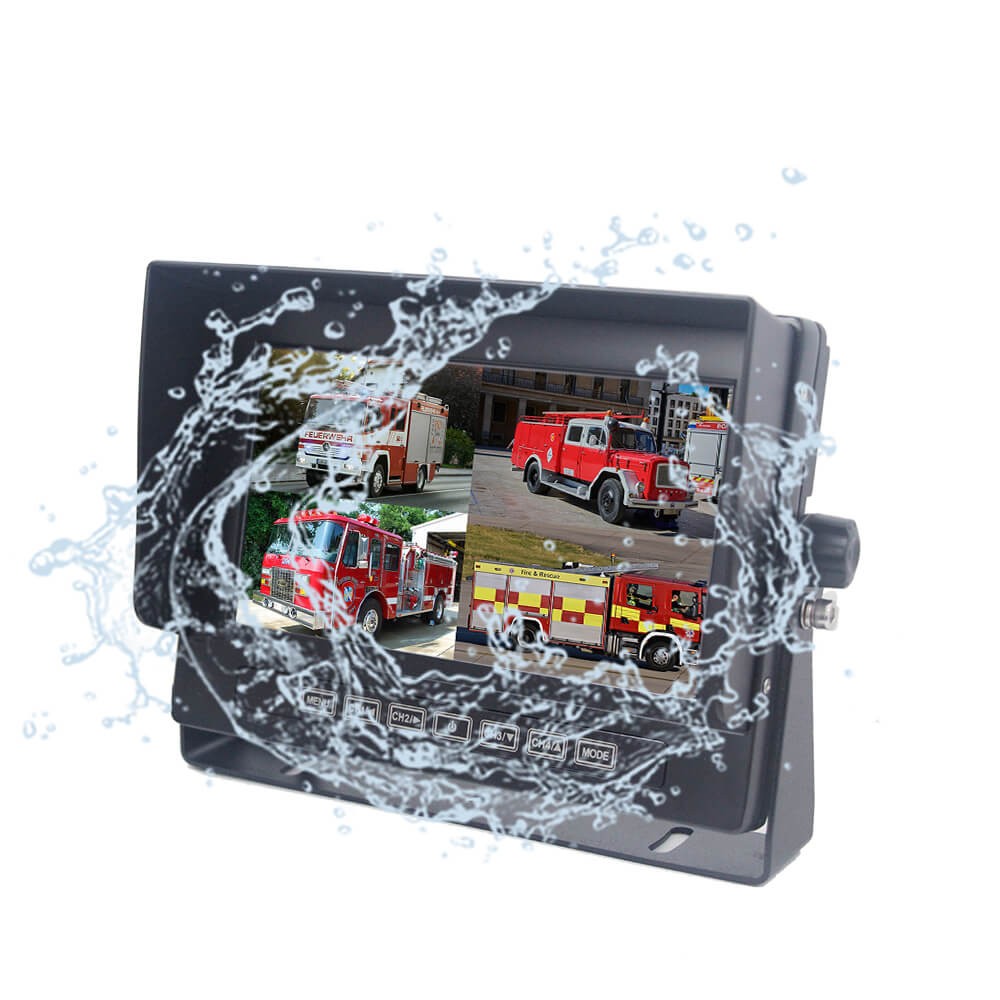

IP68 waterproof & dustproof, aluminium alloy material shell
1024*RGB*600 IPS LCD screen, 16:9 ratio
4CH x cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS
4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

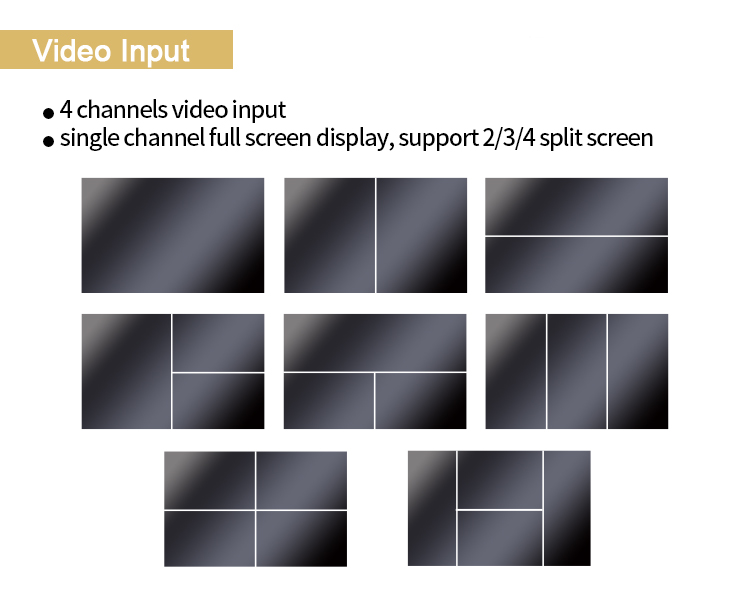

Full display & dual/triples/quad split view mode

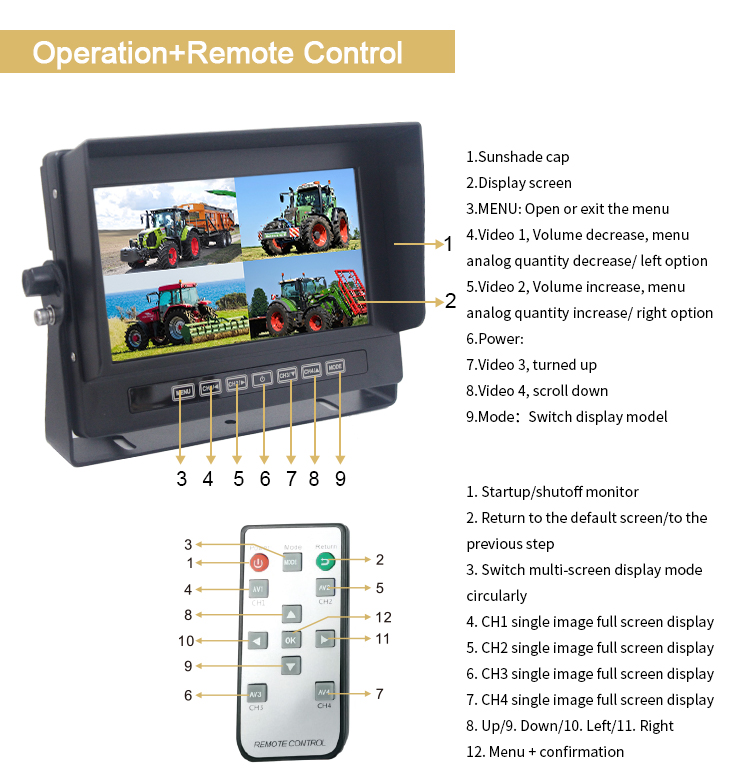

Full-function remote control
Multi-language settings
Horizontal mirror image switching
DC 12-24V wide voltage
AUTO adaption PAL / NTSC system
Waterproof Rating | IP68 |

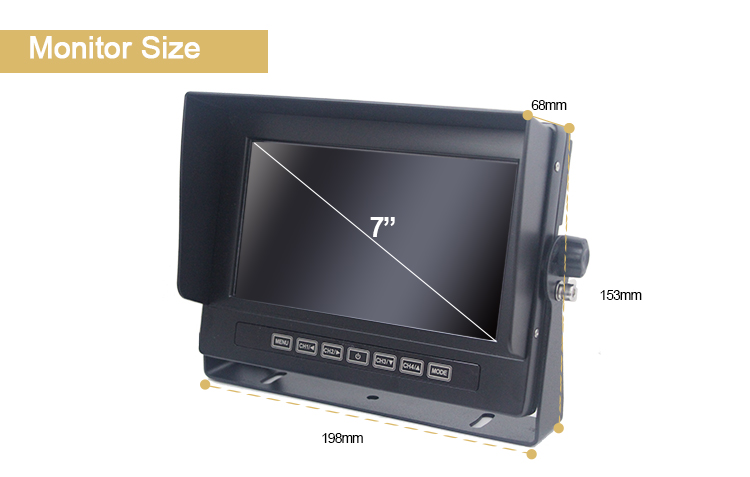

Screen Type & Size | 7 Inch IPS LCD Screen |
Aspect Ratio | 16:9 |
Resolution | 1024*R.G.B*600 |
Brightness | 500cd/㎡ |
Contrast | 500:1 |
Viewing Angle | Up-85°, Down-85°, Left/Right-85° |
Video Input | Support 4CH AHD 1080P/720P/960P/CVBS Mixed Video Signal Inpu |
OSD Menu | Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
Split View Mode | Single/Double/Triple/Quad View Image Display |

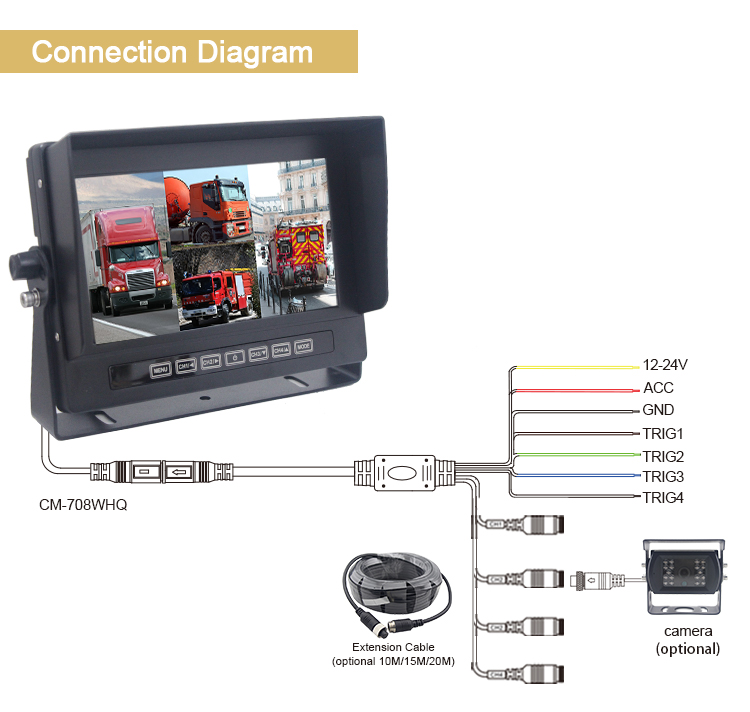

Trigger | 4CH Trigger Lines |
System | AUTO Adaptation PAL / NTSC |
Power Supply | DC 12-24V |
Currents | 12V/<1A |
Operating Power | <10W |
Boot Time | About 2~3 sec. |
Connection Plug (Connector) | Waterproof Aviation Female Connector |
Vibration Rating | 4G |
Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
Storage Temperature | -30°c~+80°c(RH0%-RH90%) |
OEM&ODM Customization | Bracket/Label/Graphic Carton |
Warranty | 2 Years |
Certification | E-Mark、E24、CE、FCC、UKCA |
