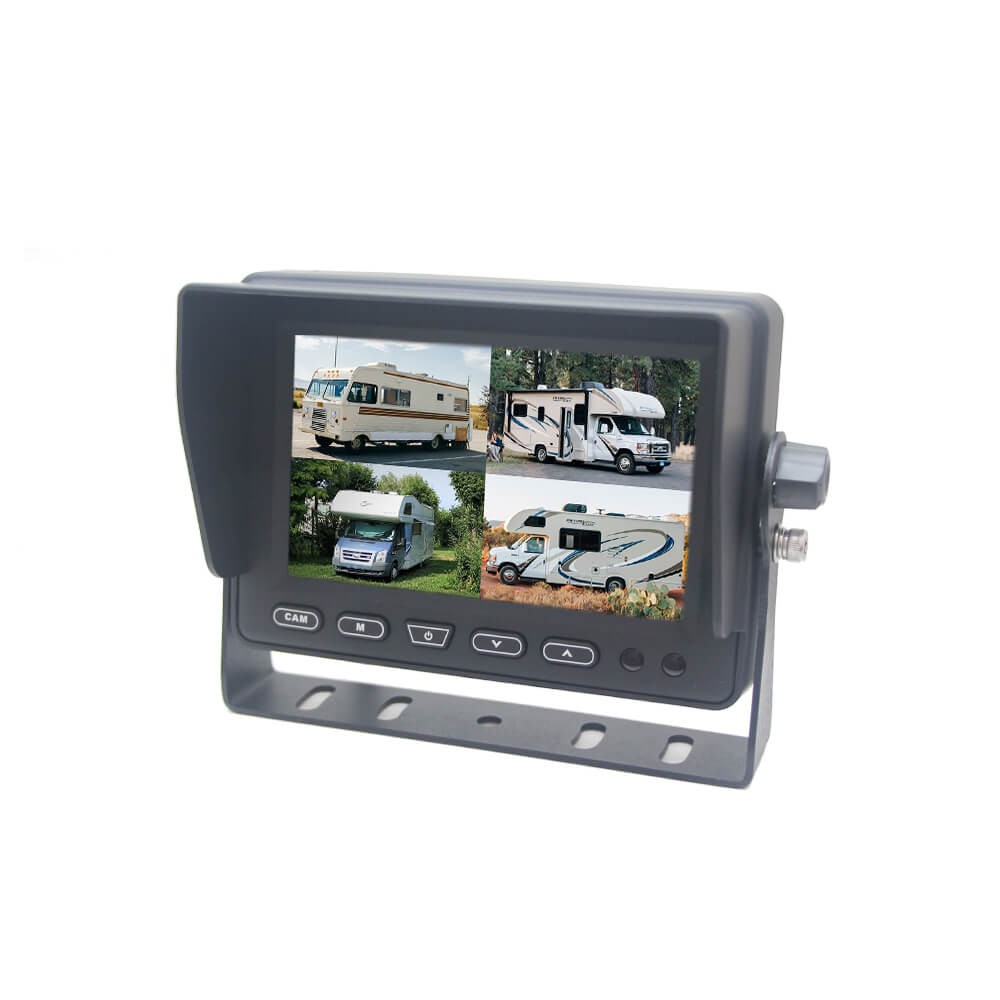

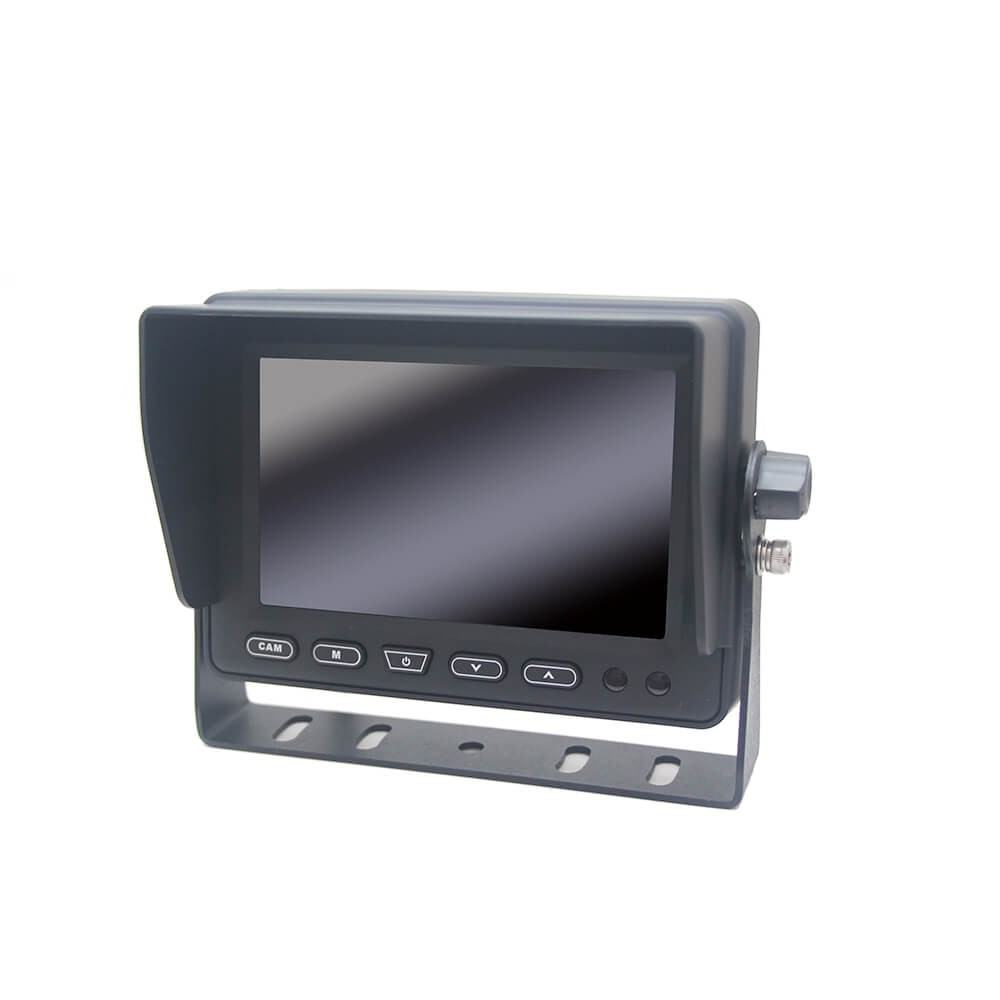

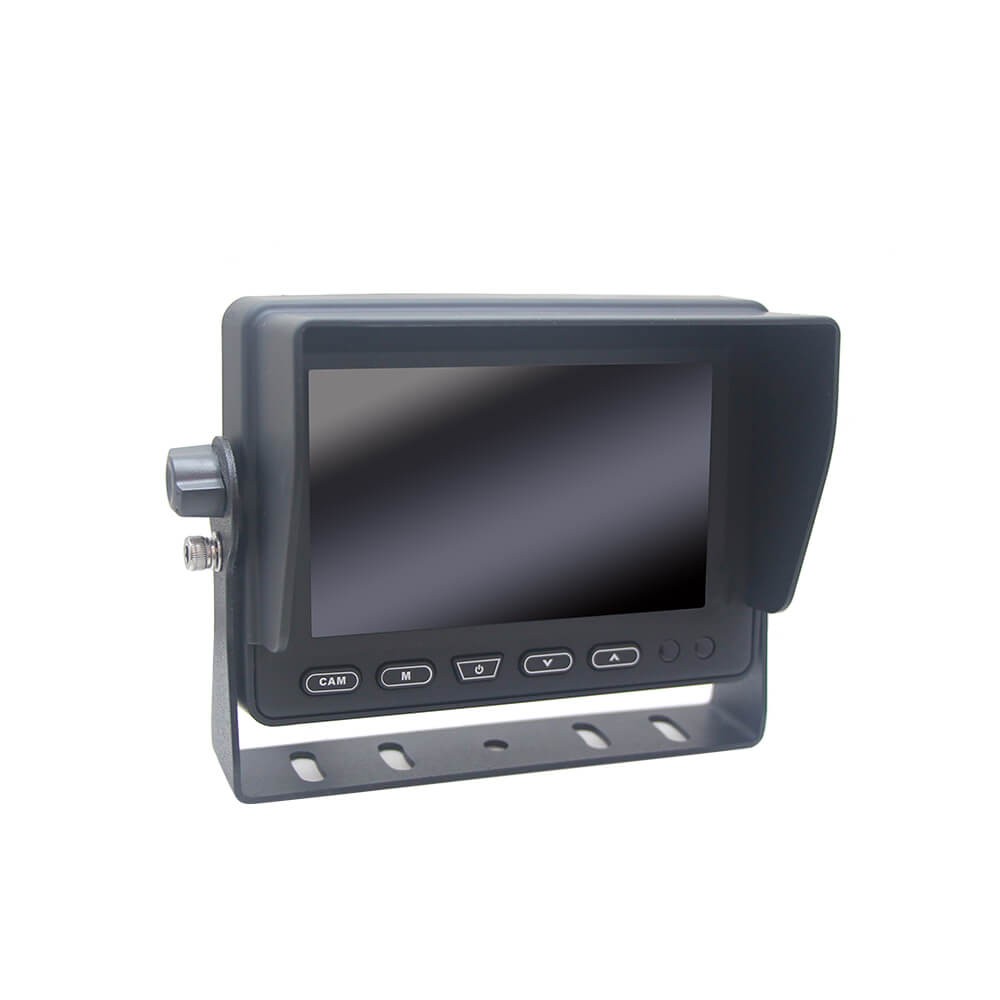

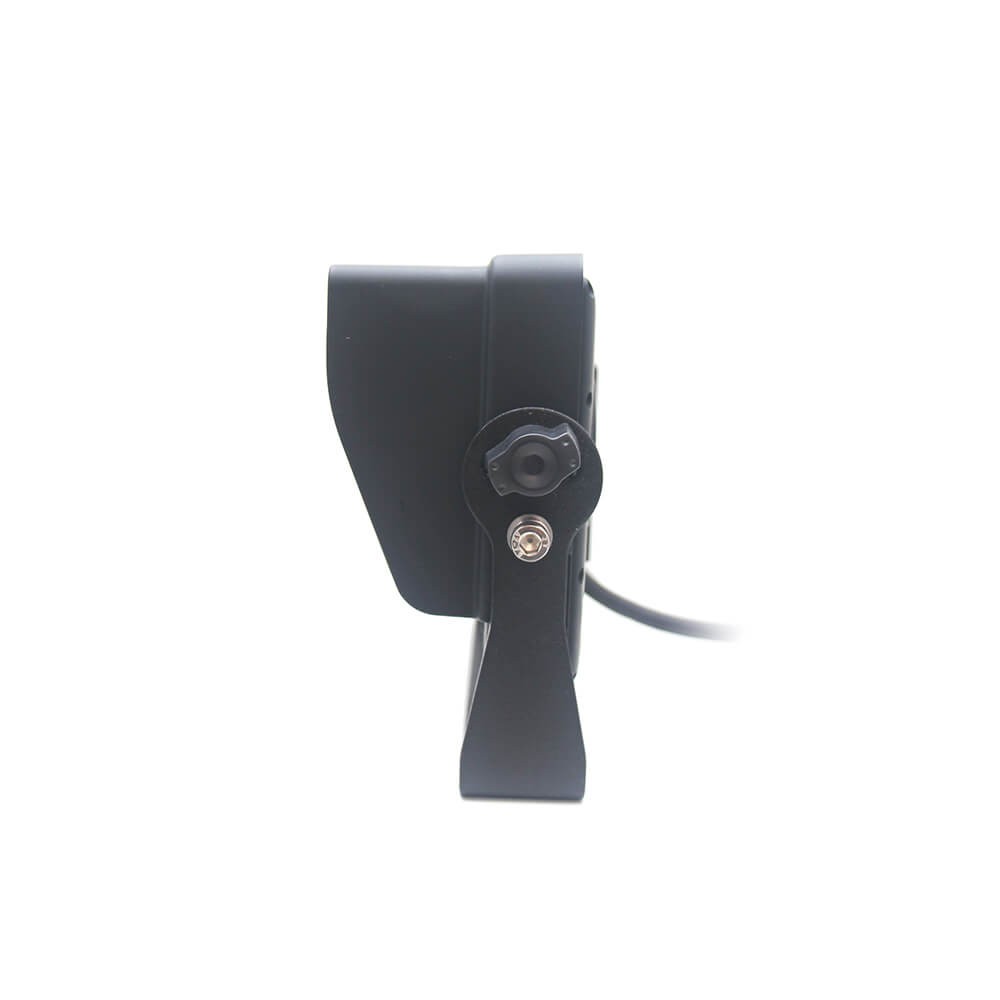

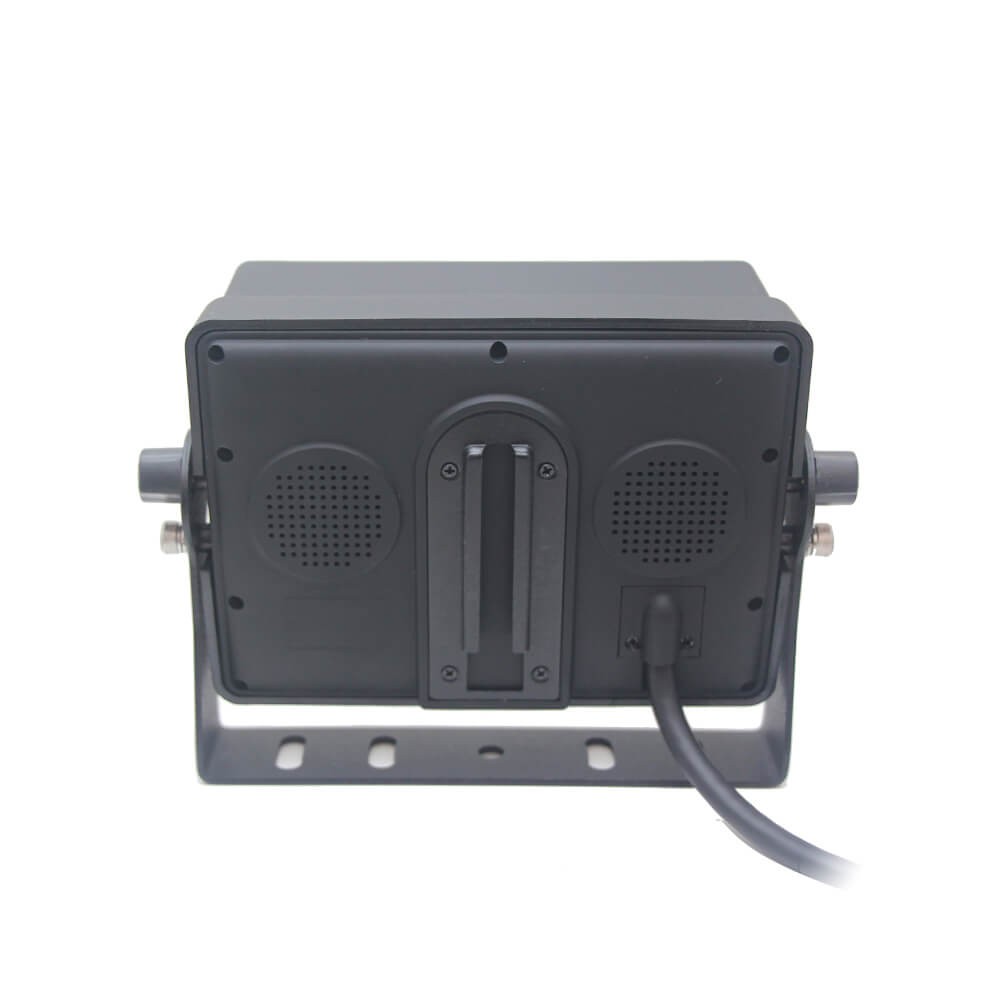

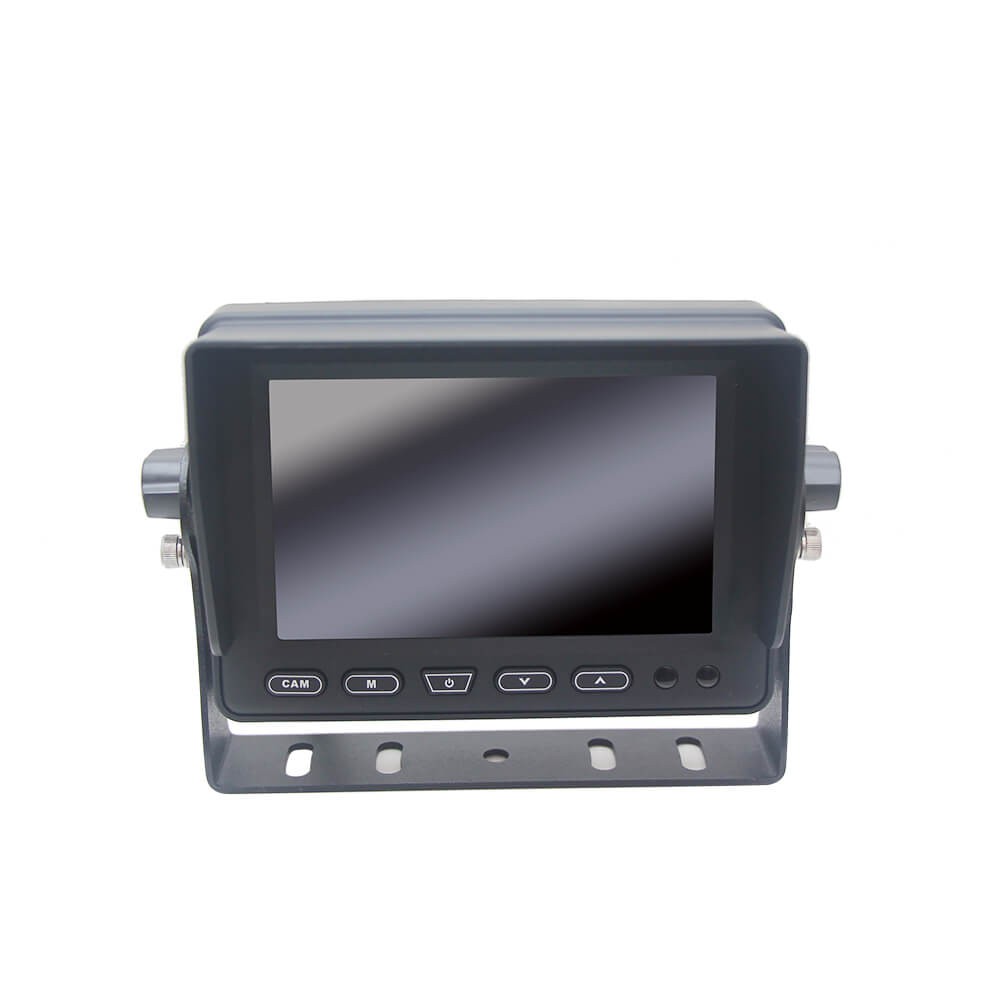

5 Inch AHD IPS LCD Quad View Vehicle Monitor

5 Inch AHD IPS LCD Quad View Vehicle Monitor

5 inch quad view vehicle monitor IPS LCD digital screen supports 4CH AHD camera video signal input. It helps drivers see their surroundings clearly and effectively reduces the risk of scratches and accidents. Multi-language setting, PAL / NTSC system, ideal for global customers to improve road safety！If you are looking for reliable 5 inch car monitor in China, please contact sales@aotop.com.

PRODUCT FEATURES

800*RGB*480 resolution (IPS LCD digital screen)
4CH x AHD cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS
4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;
1CH audio signal input (high quality speaker)

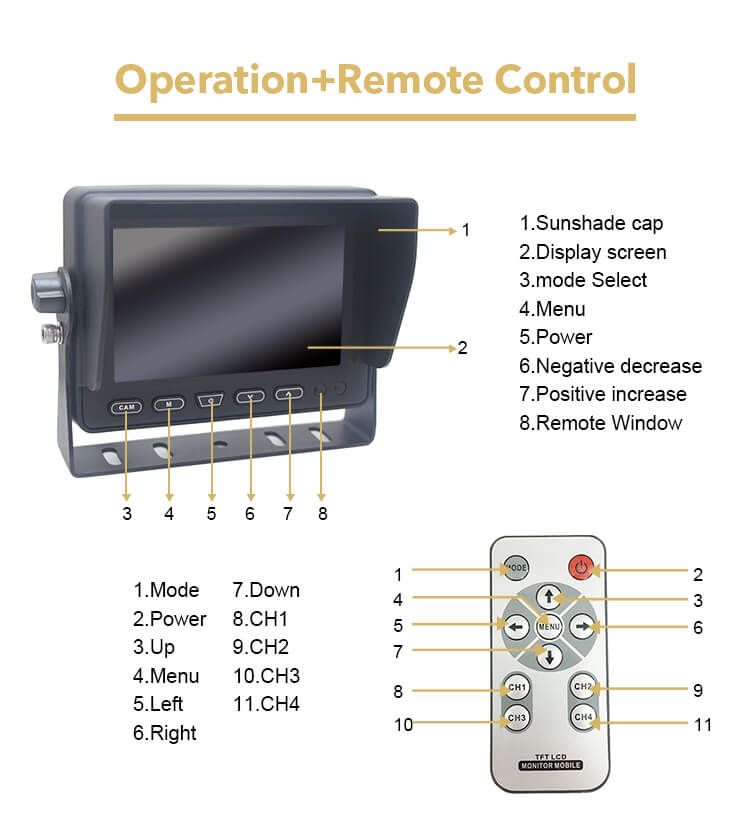

Full-function remote control
Multi-language settings
Horizontal mirror image switching; Image flip;
DC 12-24V wide voltage
AUTO adaptation PAL / NTSC system

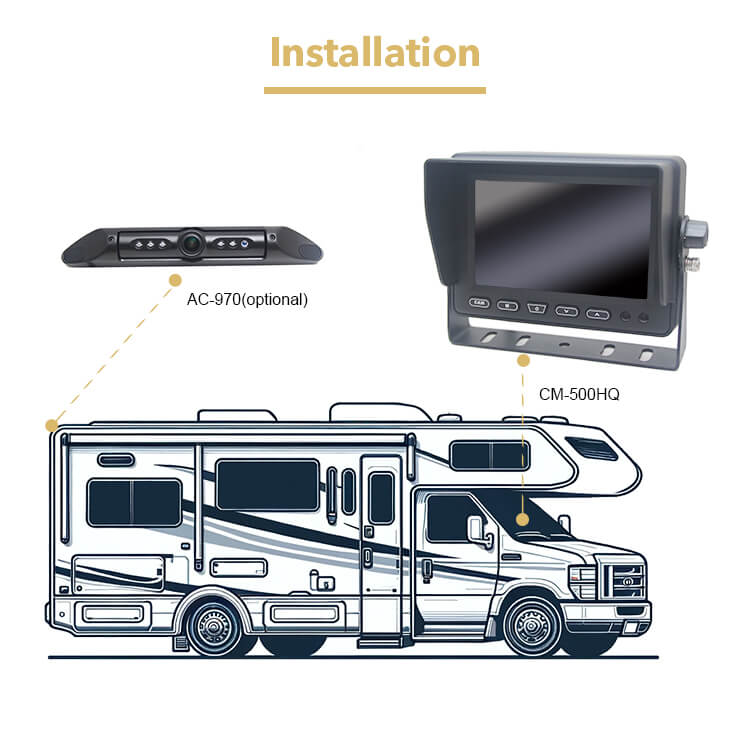

5 Inch AHD IPS LCD Quad View Vehicle Monitor (CM-500HQ):

Screen Type & Size	5 Inch IPS LCD Screen
Aspect Ratio	16:9
Resolution	800R.G.B480
Brightness	500cd/㎡
Contrast	500:1
Viewing Angle	Up-85°, Down-85°, Left/Right-85°
Video Input	Support 4CH AHD 1080P/720P/960P/CVBS Mixed Video Signal Input
Audio Input	1CH, Available High Quality Speaker
OSD Menu	Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting
Parking Guide Line	Each Channel Is Controlled Separately, Off As Default
Mirror / Normal Image	Each Channel Is Controlled Separately, Mirror As Default

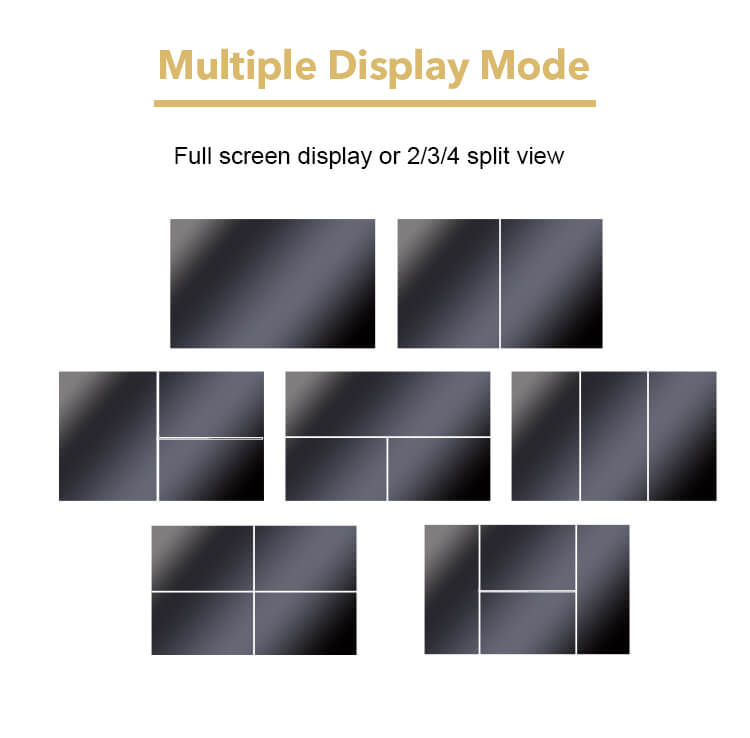

Split View Mode	Single/Double/Triple/Quad View Image Display

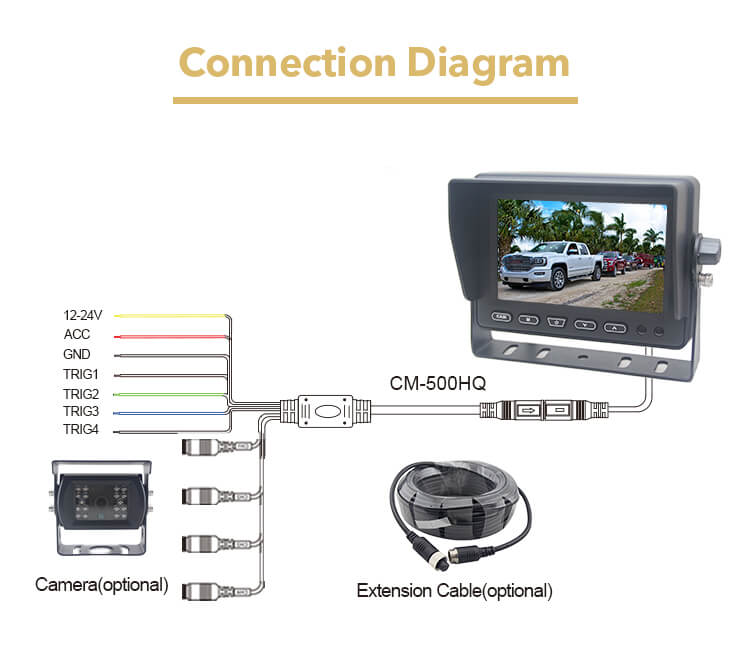

Trigger	4CH Trigger Lines
System	AUTO Adaptation PAL / NTSC
Power Supply	DC 12-24V
Currents	12V/<1A
Operating Power	<10W
Boot Time	About 2~3 sec.
Connection Plug (Connector)	Waterproof Aviation Female Connector
Operating Temperature	-20°c~+70°c(RH0%-RH90%)
Storage Temperature	-30°c~+80°c(RH0%-RH90%)
OEM&ODM Customization	Bracket/LOGO Plate & Label/Graphic Carton
Warranty	2 Years
Certification	E-Mark、E24、CE、FCC、UKCA
