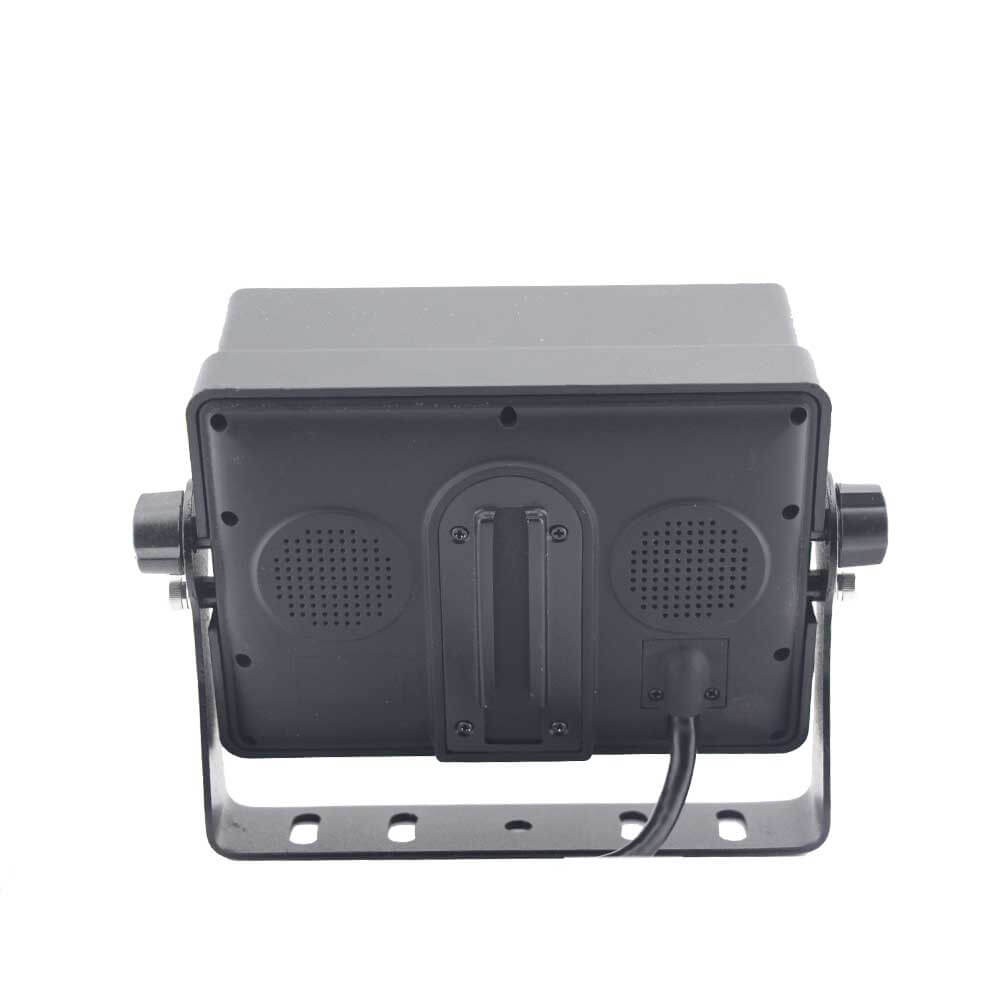

5 Inch AHD Rear View Car Monitor 3CH AV Input

5 Inch AHD Rear View Car Monitor 3CH AV Input

Aotop's 5 inch rear view car monitor features an IPS LCD digital screen, supports 3CH AV signal input, allowing connection to three vehicle cameras. It helps drivers see their surroundings clearly, reducing the risk of scratches and accidents. With multi-language settings and PAL/NTSC systems, it is an ideal choice for improving road safety! If you are looking for a high quality vehicle monitoring solution for your fleet, contact us at sales@aotop.com!

PRODUCT FEATURES

800*RGB*480 resolution (IPS LCD digital screen)
3CH x cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS
3 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

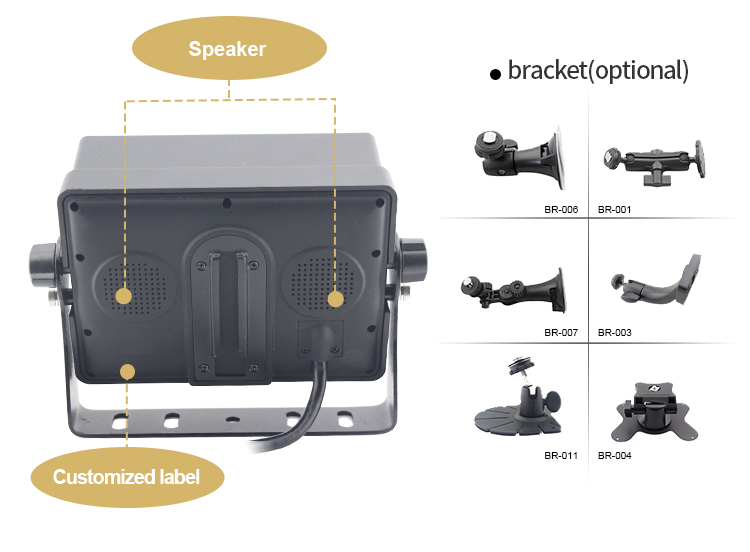

1CH audio signal input (high quality speaker)

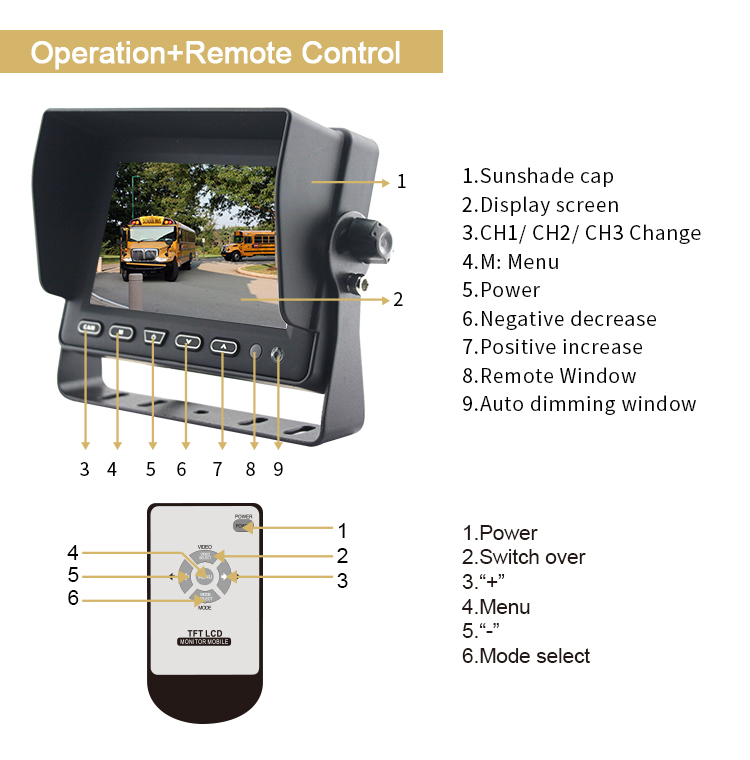

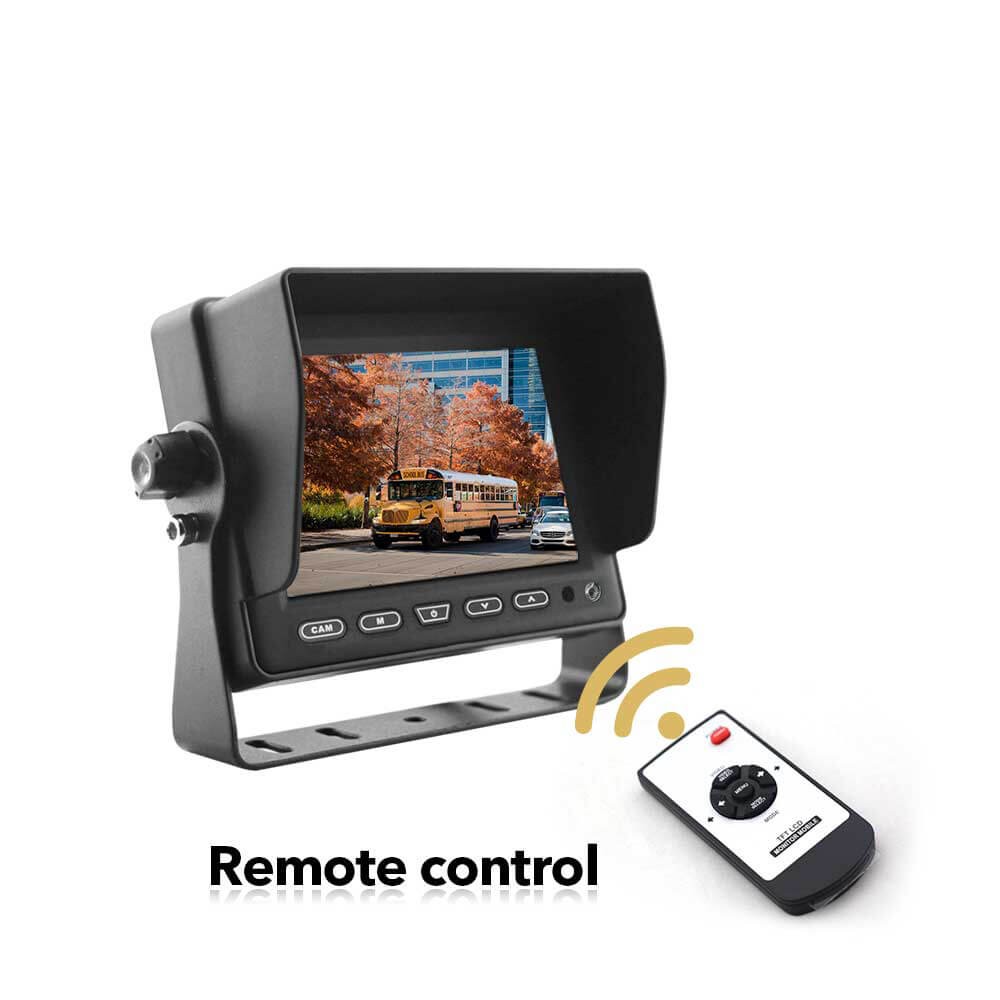

Full-function remote control
Multi-language settings
Horizontal mirror image switching; Image flip;
DC 12-24V wide voltage
AUTO adaptation PAL / NTSC system

Screen Type & Size	5 Inch LCD Digital Screen
Aspect Ratio	16:9
Resolution	800R.G.B480
Brightness	500cd/㎡
Contrast	500:1
Video Input	Support 3CH AHD 1080P/960P/720P/CVBS Mixed Video Signal Input
Audio Input	1CH Camera Audio Input (Available Speaker)
OSD Menu	Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting,Parking Guide Line On/Off, Reset
Parking Guide Line	Each Channel Is Controlled Separately, Off As Default
Mirror / Normal Image	Each Channel Is Controlled Separately, Mirror As Default

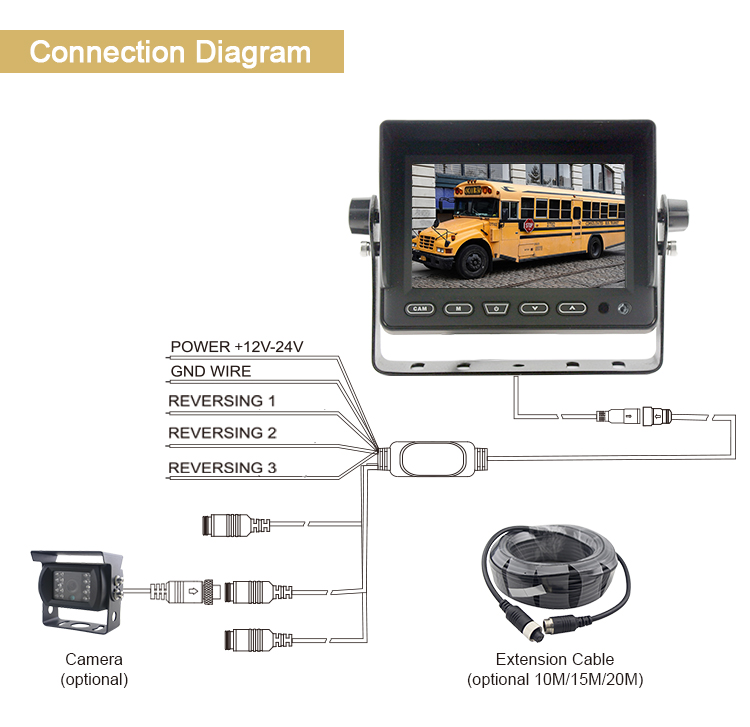

Trigger	3CH Trigger Lines
System	AUTO Adaptation PAL / NTSC
Power Supply	DC 12-24V
Currents	12V/<1A
Operating Power	<10W
Boot Time	About 2~3 sec.
Connection Plug (Connector)	Waterproof Aviation Female Connector
Vibration Rating	4G
Operating Temperature	-20°c~+70°c(RH0%-RH90%)
Storage Temperature	-30°c~+80°c(RH0%-RH90%)
OEM&ODM Customization	Bracket/LOGO Plate & Label/Graphic Carton
Warranty	2 Years
Certification	E-Mark、E24、CE、FCC、UKCA
