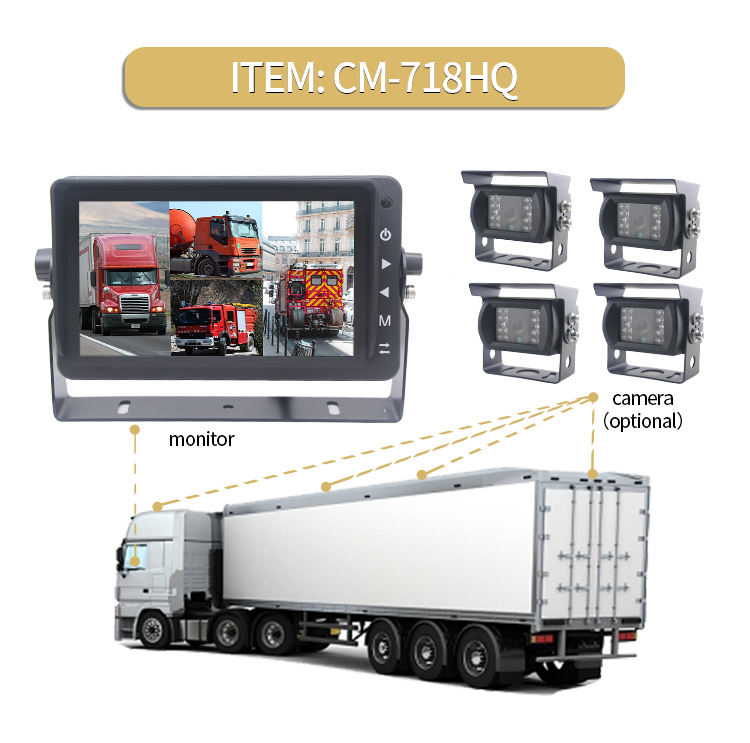

7 inch AHD quad rear view monitor supporting 4CH AHD camera video signal inputs, provides all-around 1080P HD video monitoring to help drivers see clearly around their vehicles, effectively preventing scratches and reducing traffic accident. It meets users’ need for high quality video monitoring with clear images and ease of use. For more detail please contact sales@aotop.com!
PRODUCT FEATURES

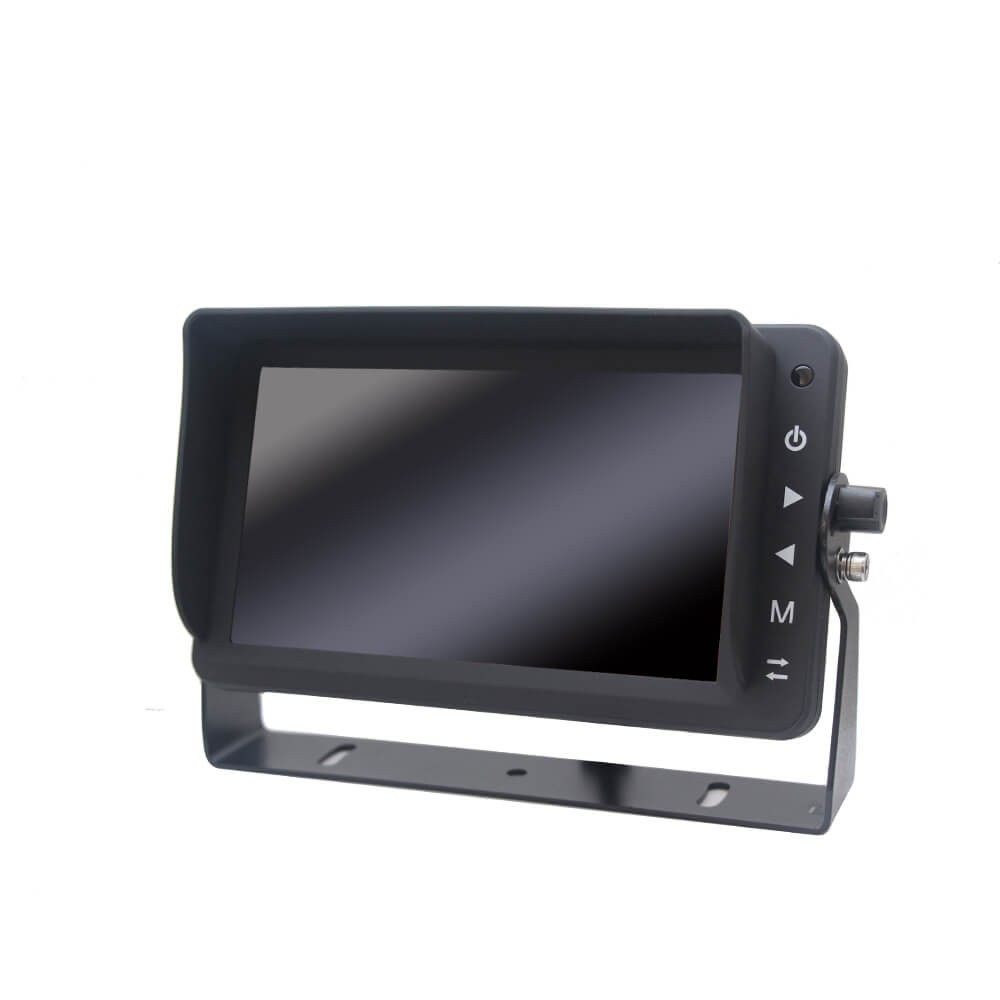

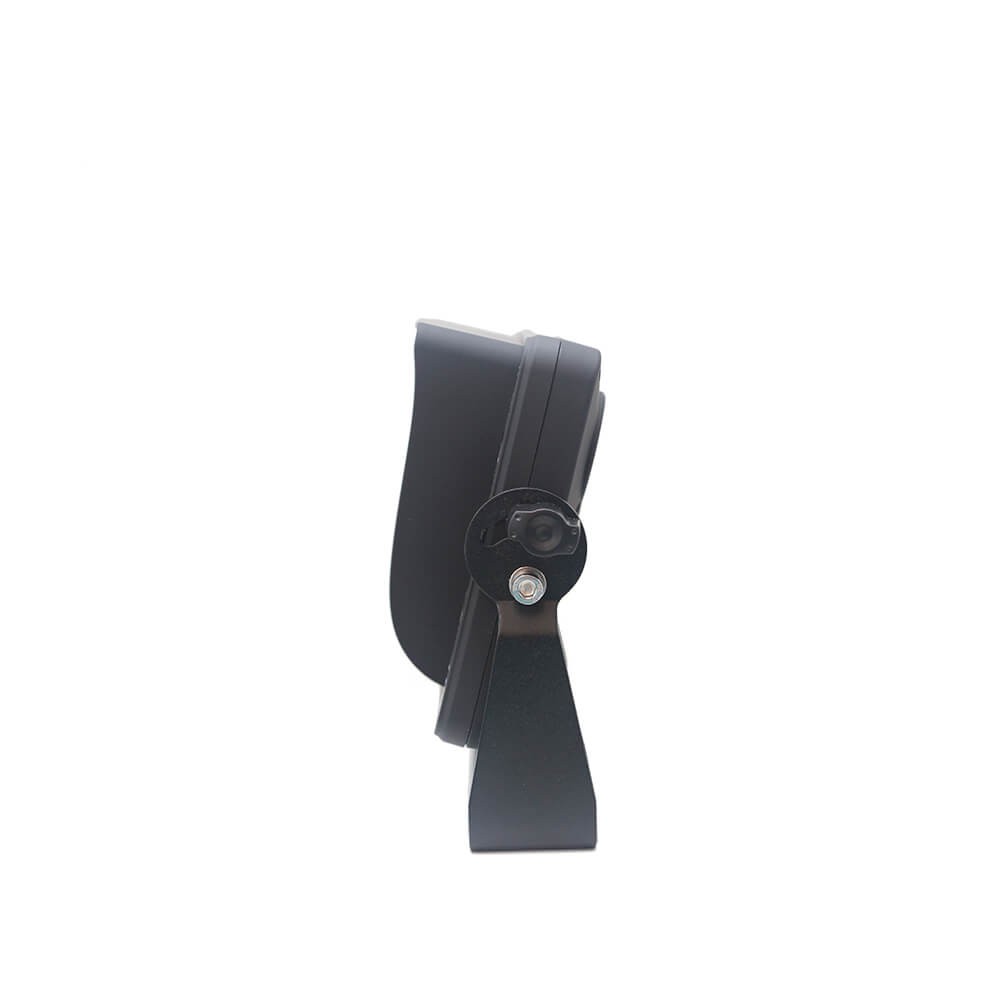

With sunshade cover & U-Bracket & touch button
1024*RGB*600 HD resolution (IPS LCD screen)
4CH x cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS
4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

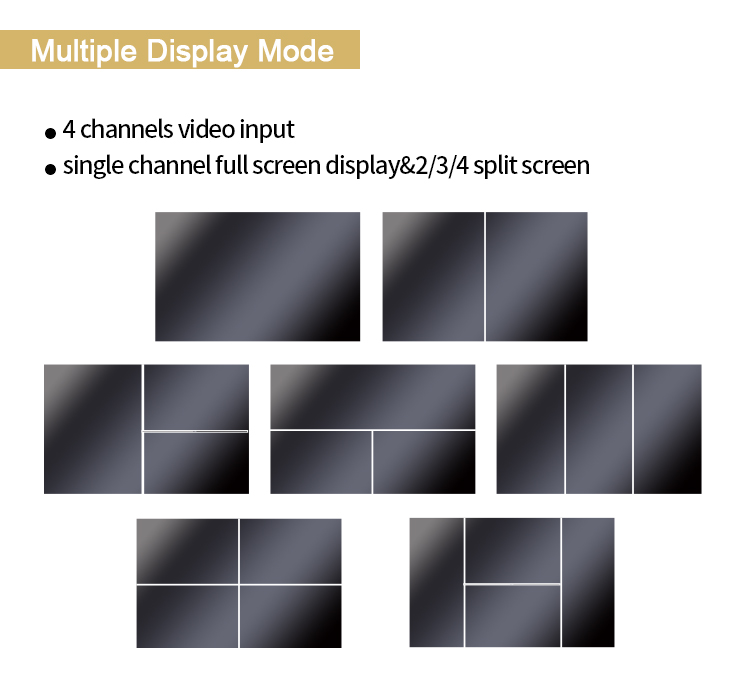

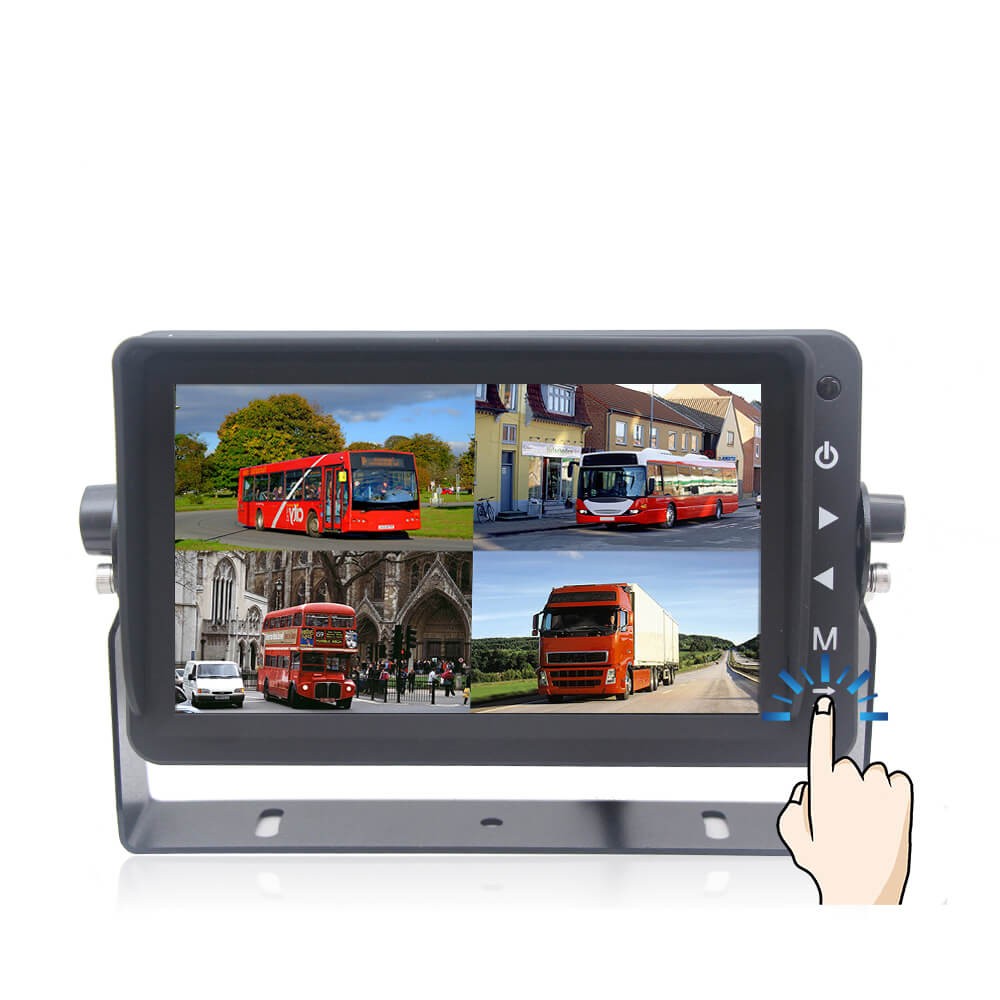

Full display & dual/triples/quad split view mode

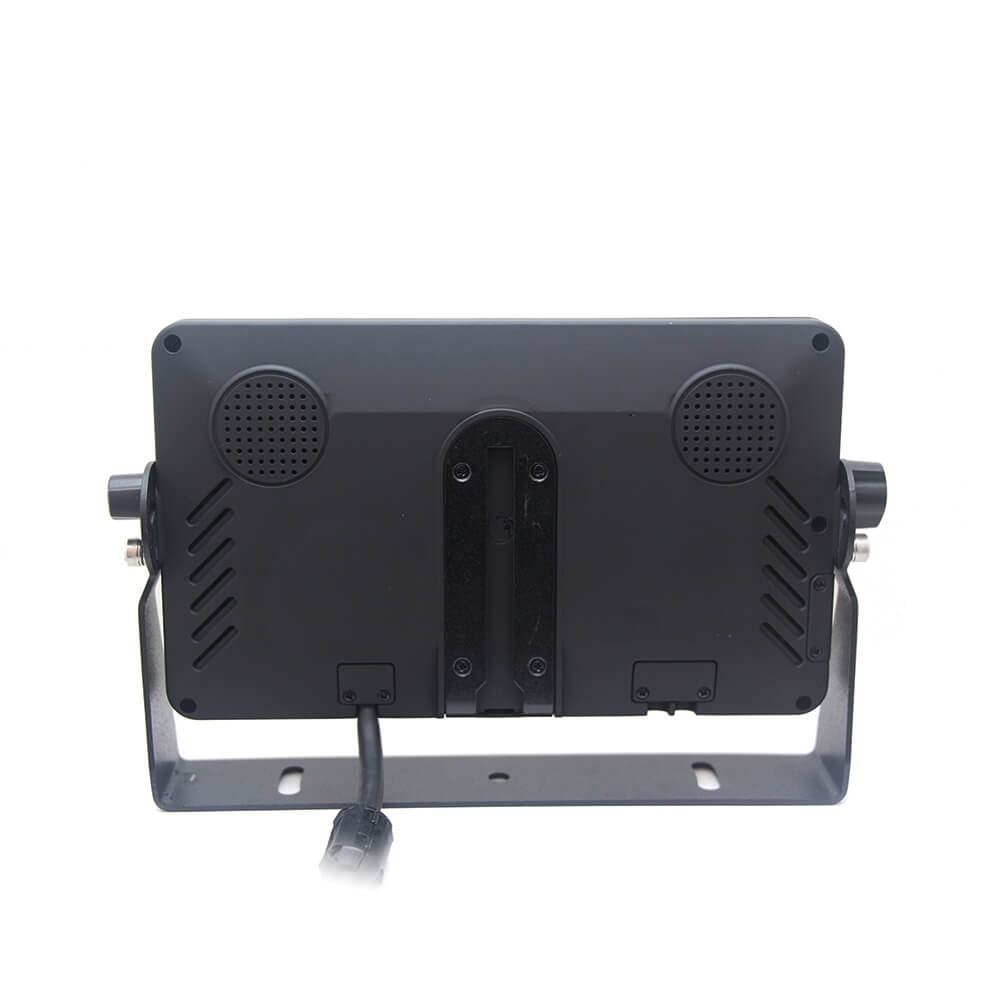

1CH audio signal input (high quality speaker)

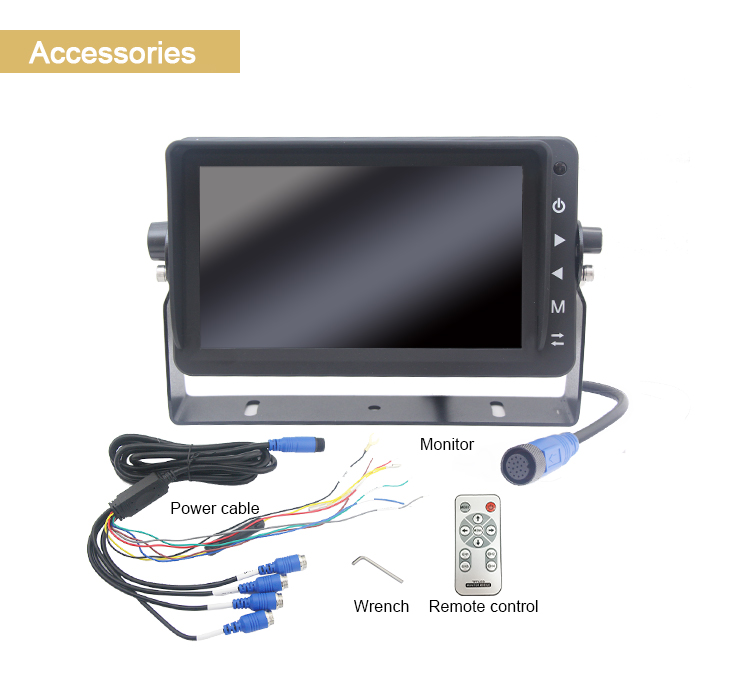

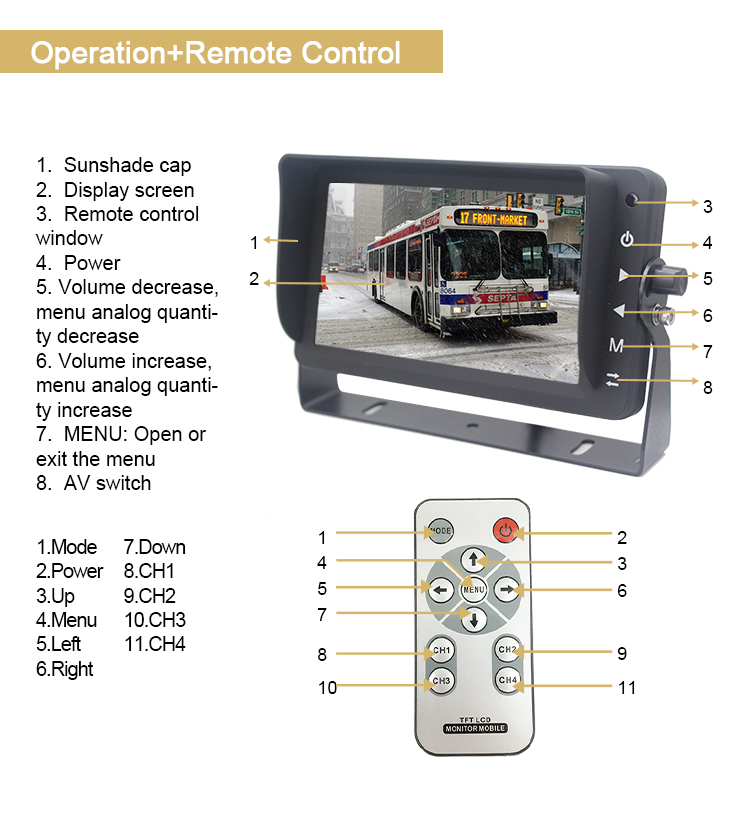

Full-function remote control
Multi-language settings
Horizontal mirror image switching
DC 12-24V wide voltage
AUTO adaption PAL / NTSC system

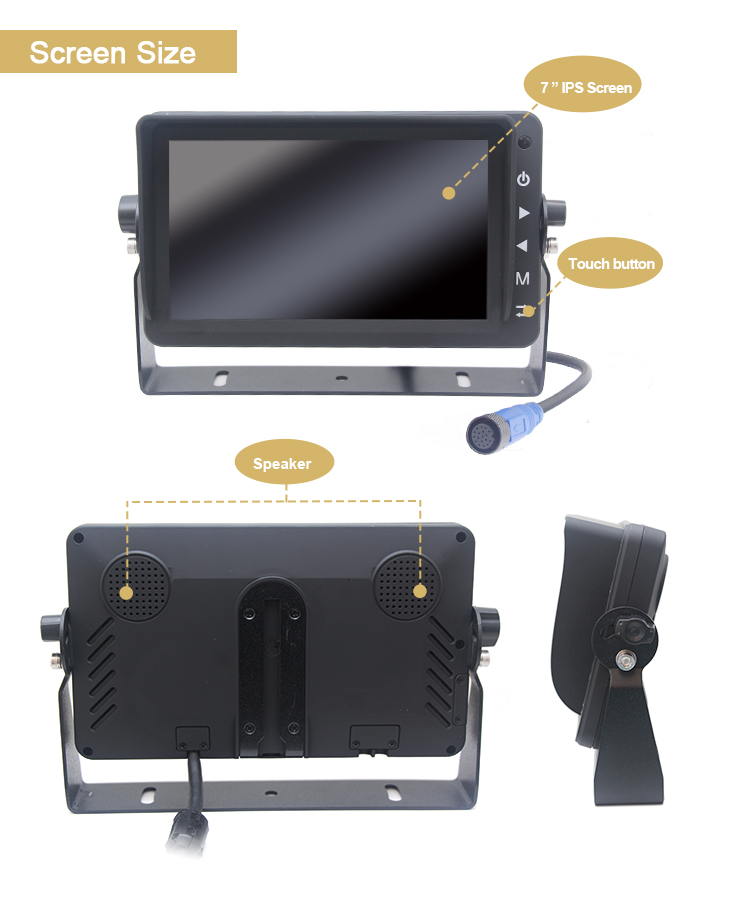

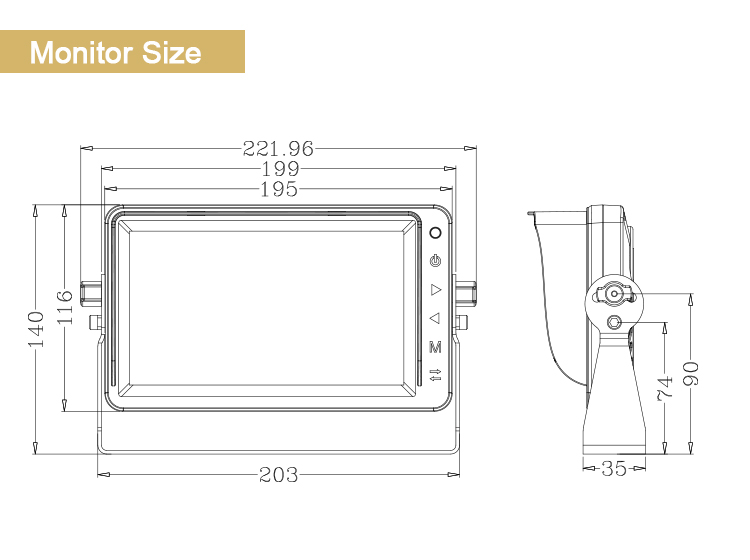

Screen Type & Size | 7 Inch IPS LCD Screen |
Aspect Ratio | 16:9 |
Resolution | 1024*R.G.B*600 |
Brightness | 500cd/㎡ |
Contrast | 500:1 |
Viewing Angle | Up-85°, Down-85°, Left , Right-85° |
Video Input | Support 4CH AHD 1080P/720P/960P/CVBS Mixed Video Signal Inpu |
Audio Input | 1CH, Available High Quality Speaker |
OSD Menu | Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
Response Time | 20~40Ms |
Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
Split View Mode | Single/Double/Triple/Quad View Image Display |

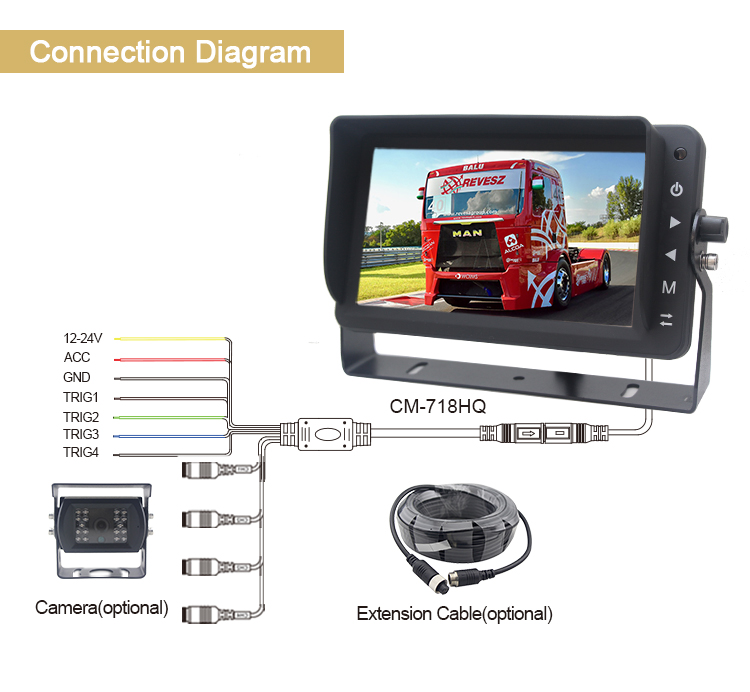

Trigger | 4CH Trigger Lines |
System | AUTO Adaptation PAL / NTSC |
Power Supply | DC 12-24V |
Currents | 12V/<1A |
Operating Power | <10W |
Boot Time | About 2~3 sec. |

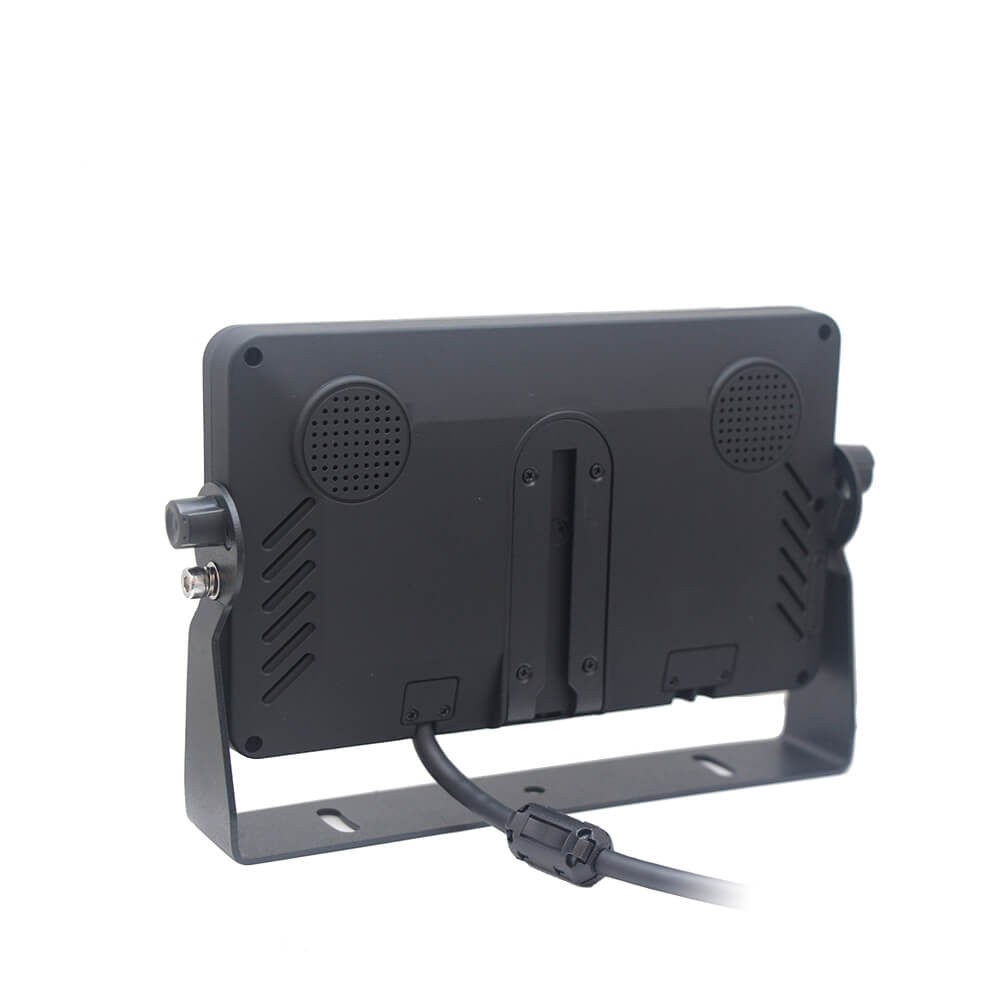

Connection Plug (Connector) | Waterproof Aviation Female Connector |
Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
Storage Temperature | -30°c~+80°c(RH0%-RH90%) |

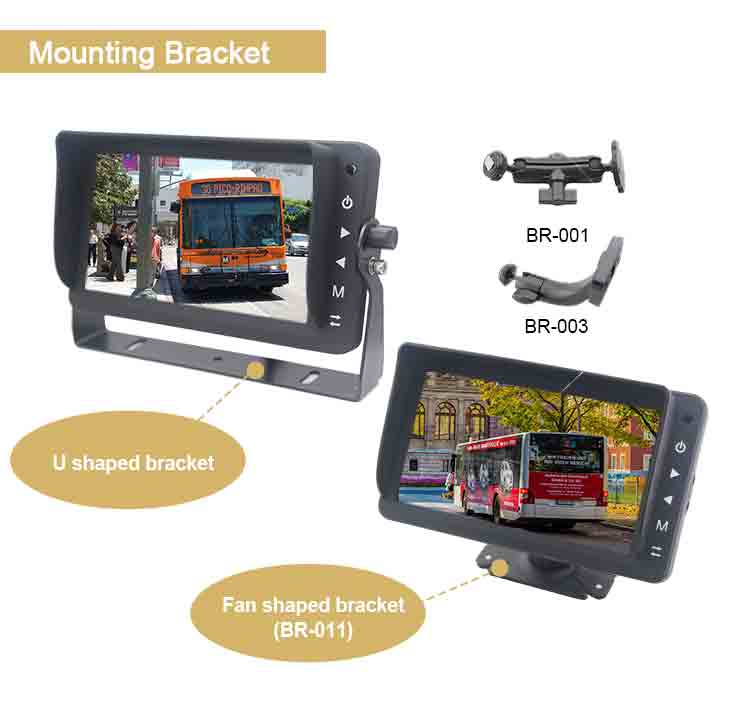

OEM&ODM Customization | Bracket/LOGO Plate & Label/Graphic Carton |
Warranty | 2 Years |
Certification | E-Mark、E24、CE、FCC、UKCA |
