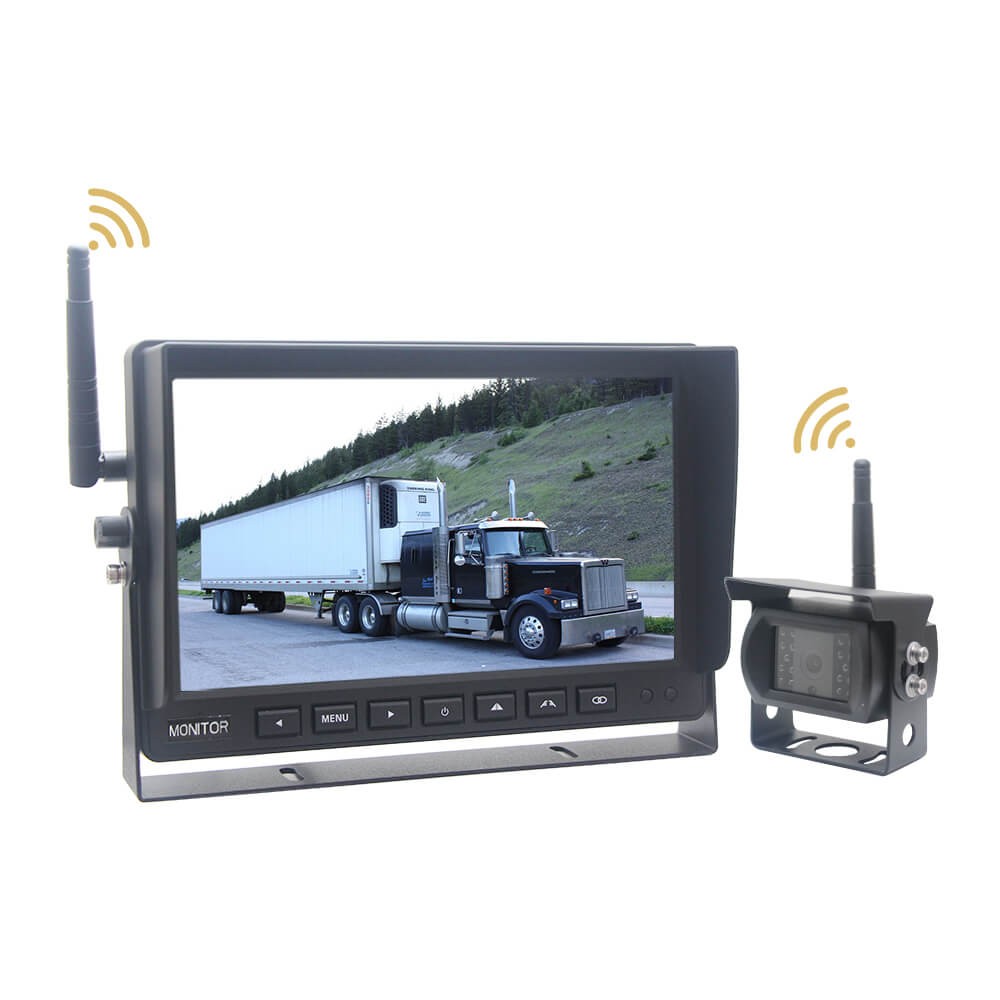

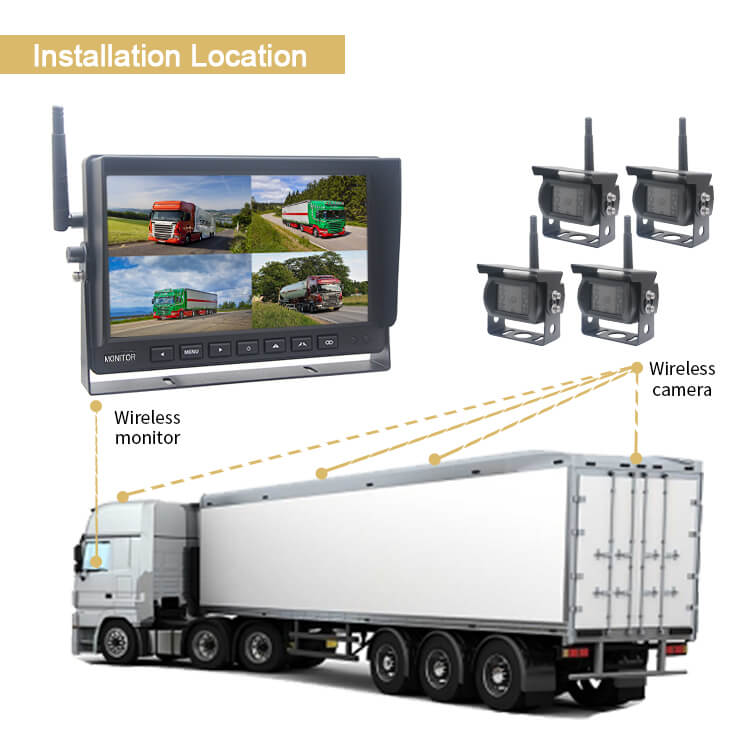

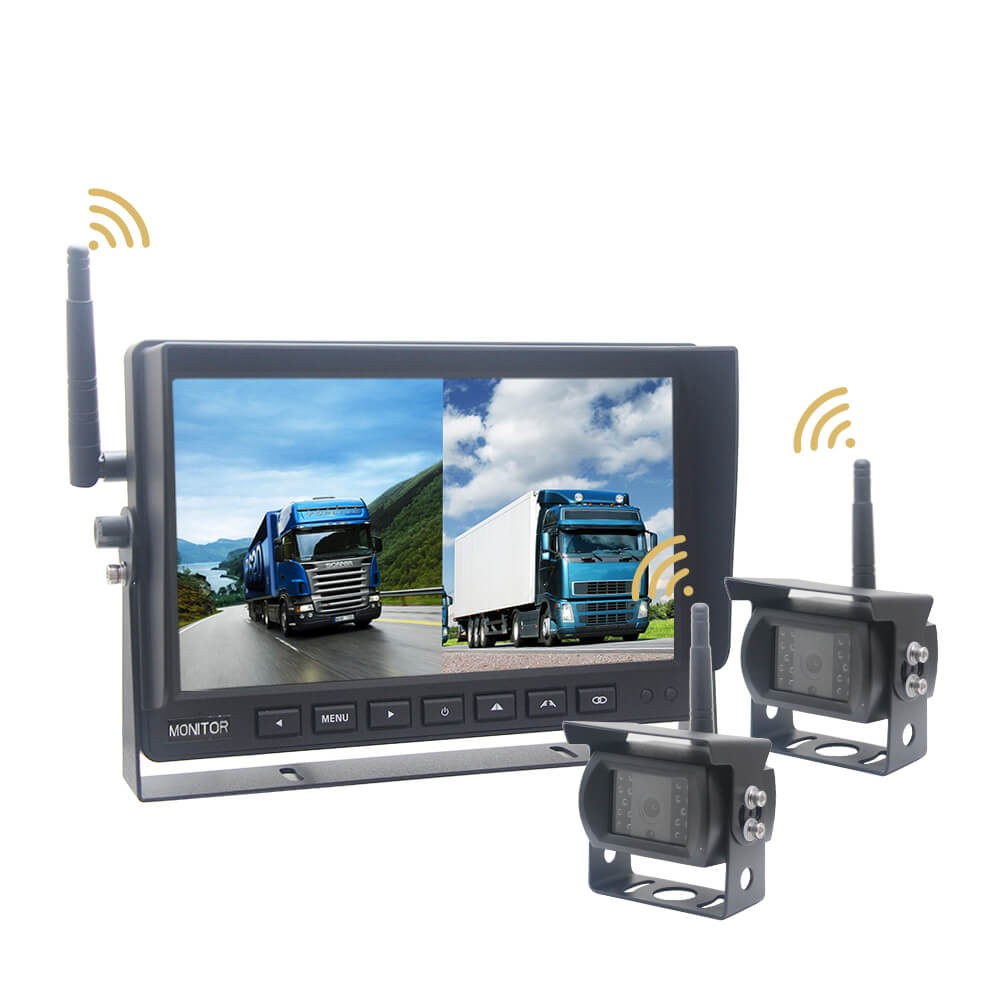

10.1 inch HD 2.4g digital wireless backup camera monitor system includes quad view AHD monitor and IP69K HD night vision camera. With it, you can easily see what's around your vehicle without having to lay long cables, and the wireless connection distance is up to 200m (646ft), which is especially suitable for commercial vehicles such as trucks, farm machinery and trailers. If you are looking for a reliable wireless car camera system manufacturer supplier in China, please contact us at sales@aotop.com!
SYSTEM FEATURES
10.1 inch super wide IPS LCD screen, 1024*RGB*600 HD resolution.

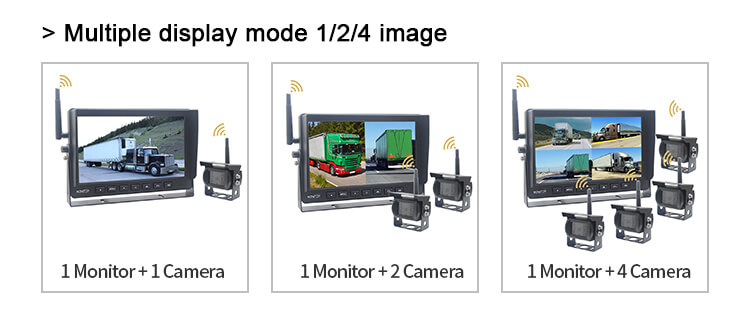

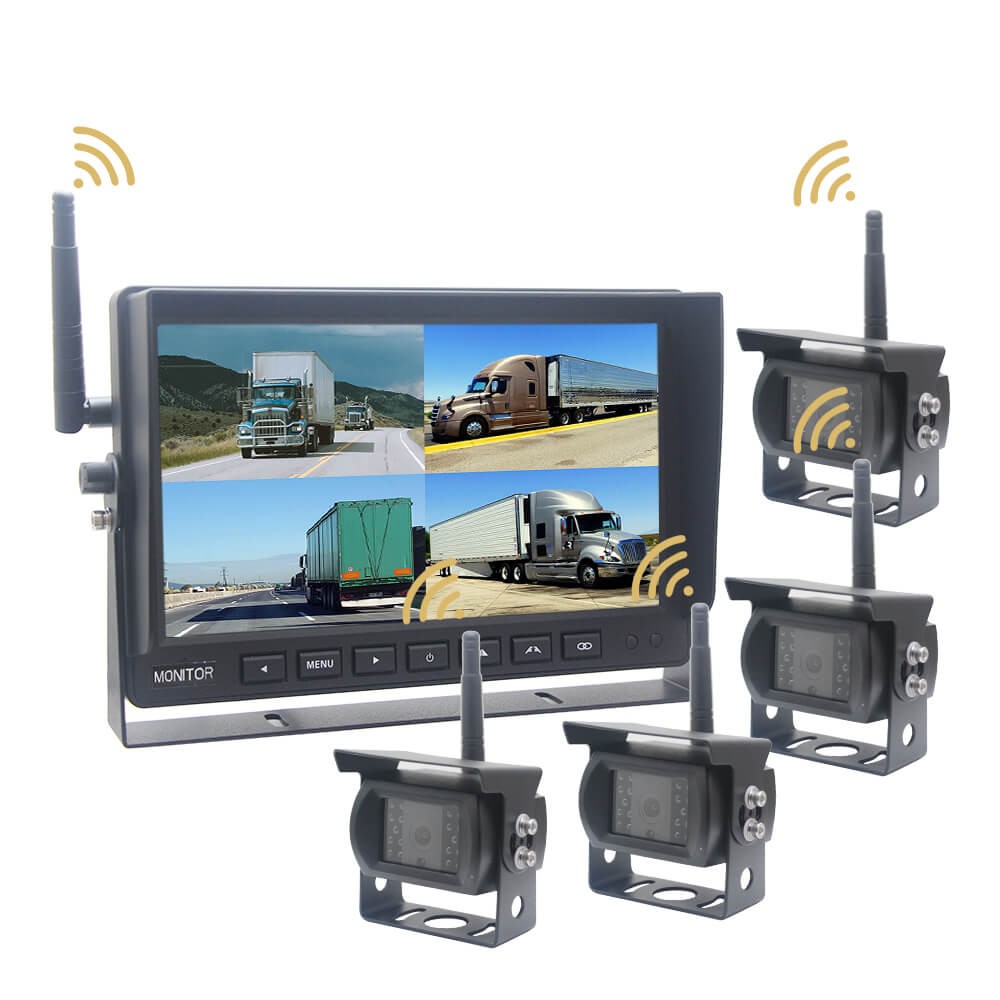

Support 4CH video signals input, a variety of monitors modes quad view, double view, triple
view and single view to meet various monitoring needs and reduce blind spots.
2.4G wireless signal transmission 656ft wireless transmission distance, without wiring easy to install.
Save money & time！

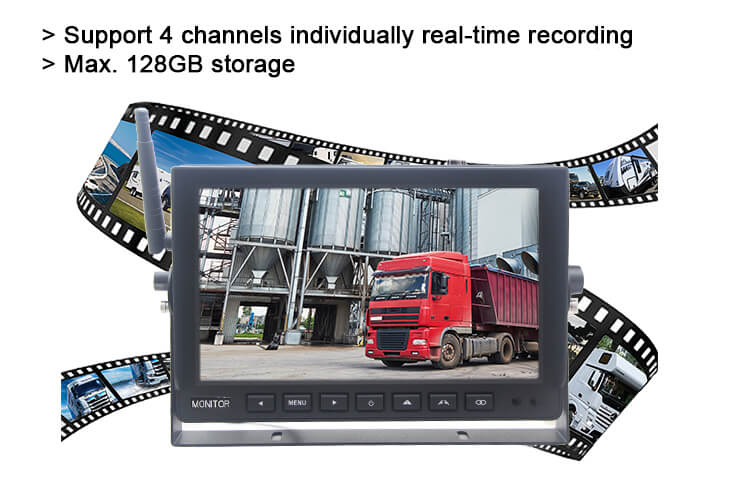

DVR function built-in 128GB memory card support 4CH real-time recording and video playback.
Rear view parking lines can be configured.
Support 1080P/720P camera inputs

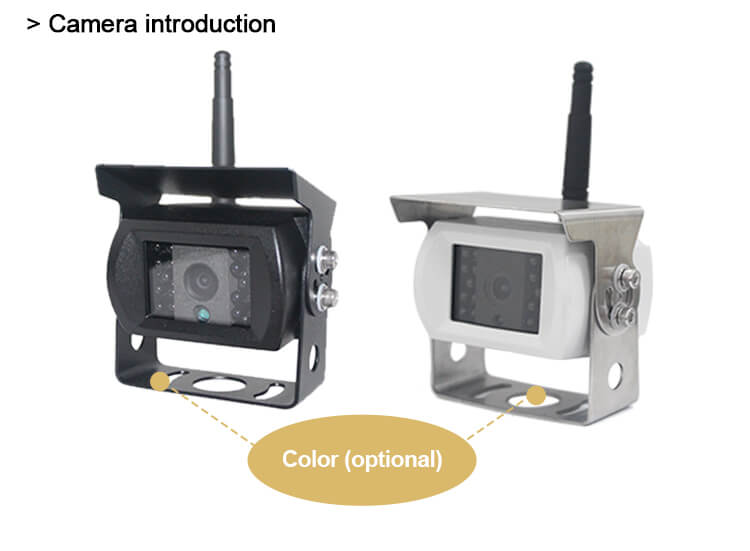

Camera features IP69K waterproof, HD night vision, 120 wide angle etc.

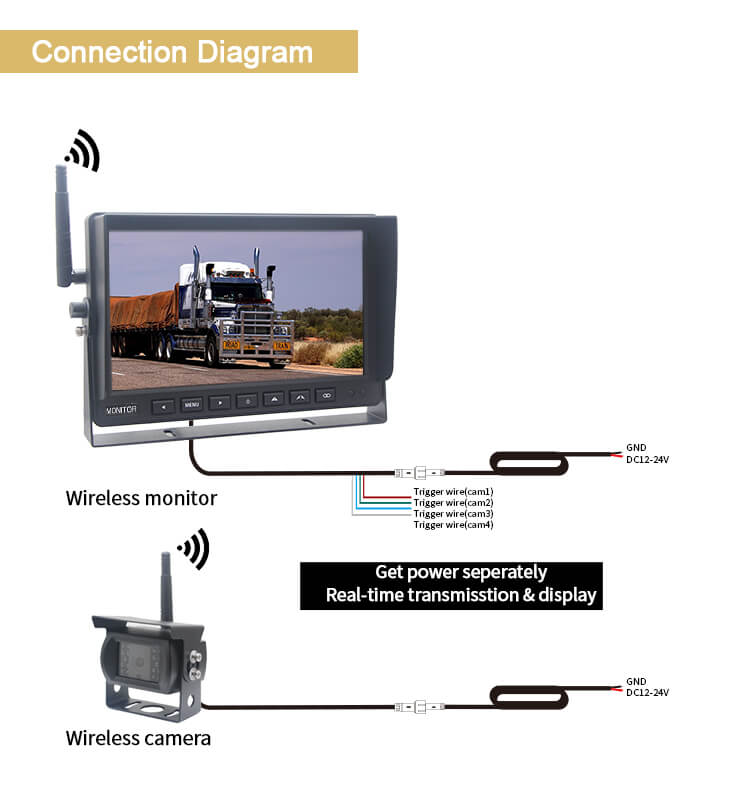

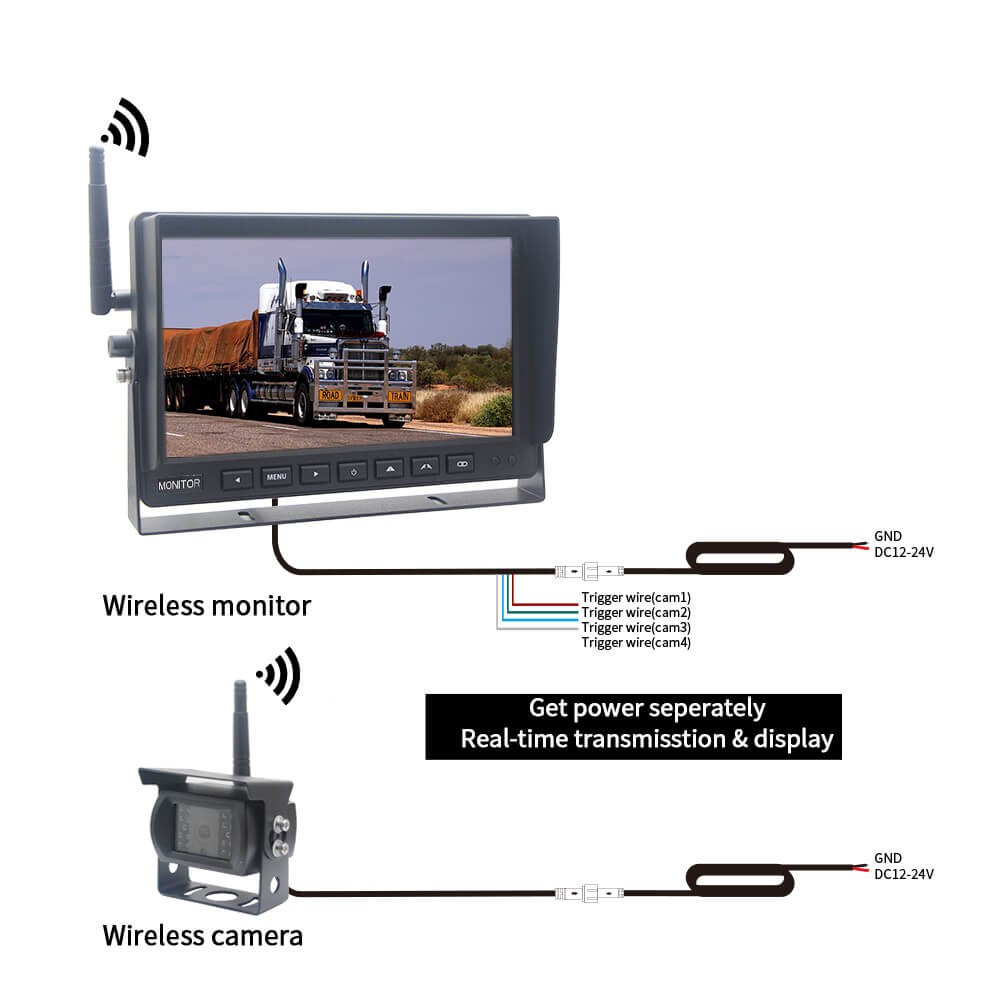

Supports manual and AUTO pairing, easy to operate. After the first pairing is completed, just connect
the car power supply to work.
DC12-24V wide voltage, applicable to a variety large & commercial vehicles.
| Wireless Rear View Monitor | |
| Model | CM-1010MDW-HD |
| Screen | 10.1 inch 16:9 digital panel |
| Resolution | 1024*RGB*600 |
| Wireless video input | 1-4CH wireless video input and recording |
| 1-4CH wireless video input and recording | 200M in open area |
| 300M in open area | DC12V～24V |
| Power consumption | 3W |
| Speaker | built-in |
| Memory card | 128GB |
| Recording video resolution | 1024*600 |
| Recording document size | about 3.3m per minute |
| Recording video format | H.264 |
| Trigger | 4CH |
| Working temperature | -20℃~70℃ |
| Storage temperature | -30℃~85℃ |

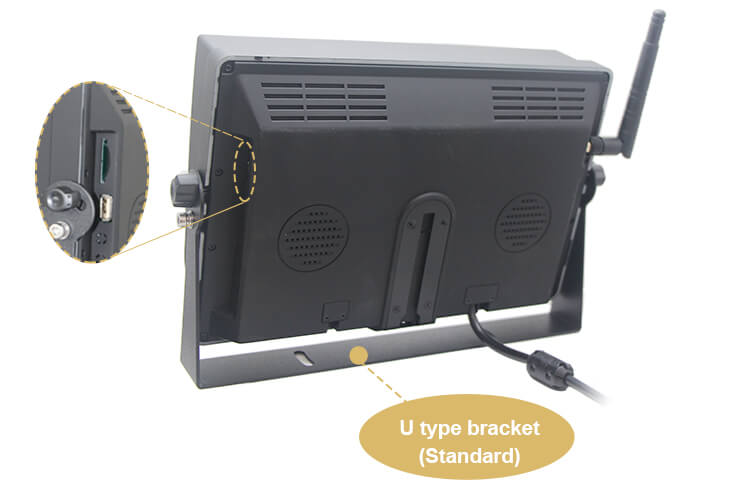

| Accessories | Power cord, U shaped bracket, User manual, 2.4G 5DB antenna, 3m extension antenna; |
| Wireless Backup Camera | |
| Image sensor | CMOS 1/2.7” |
| Pixel | 1080P 1920*1080 pixels |
| Operating frequency range | 2400-2483.5MHZ |
| Transmission distance | 200M in open area |
| System | PAL/NTSC automatically |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission bandwidth | 8MHz BER<1E-3 |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| audio | with |
| SNR | 46.5dB |
| Waterproof | IP69K |
| Viewing angle | Diagonal viewing angle 120° |
| Transmitting sensitivity | -89 dBm |
| Shell material | Black aluminium alloy |
