Wireless Forklift System

7inch waterproof 1080P wireless forklift camera system

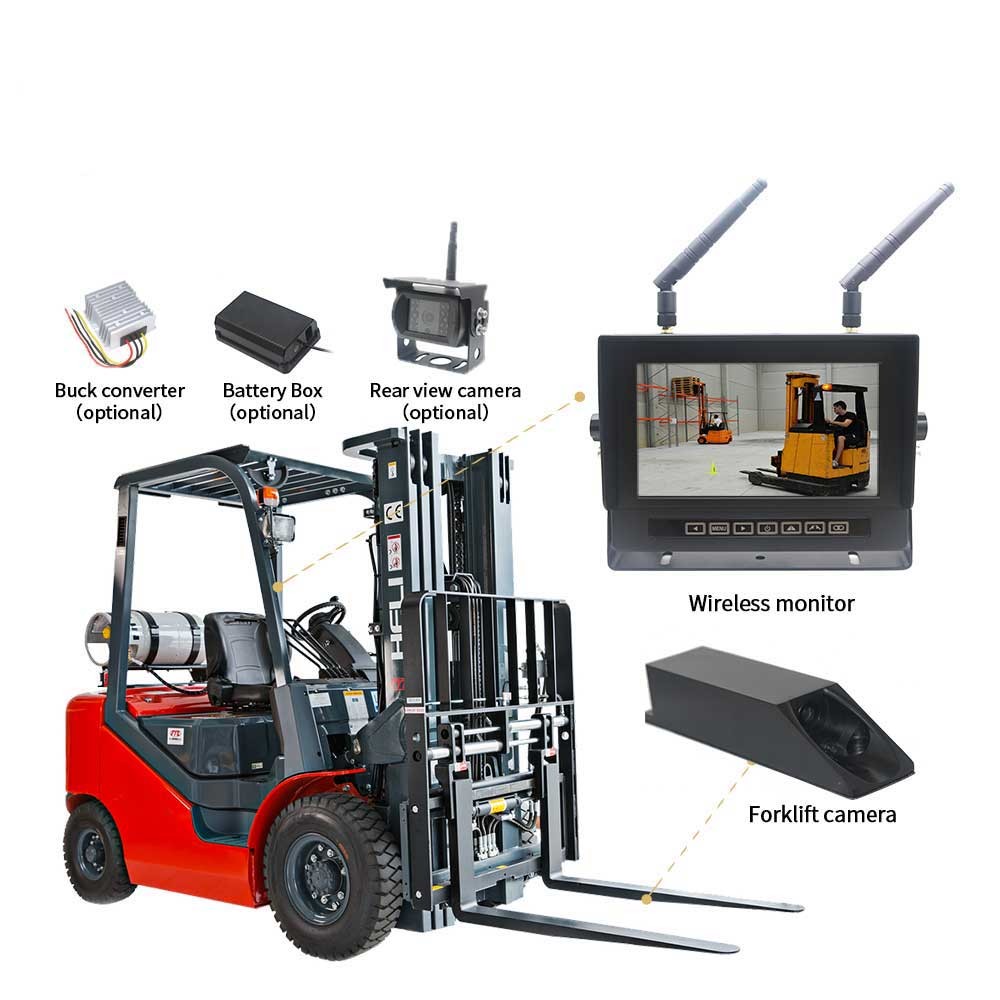

7 Inch HD waterproof wireless forklift camera system can provide stable visual assistance for forklift operators, especially in the case of cargo accumulation blocking the front line of sight, it can clearly display the front line of sight, effectively help to avoid collision with the obstacles in front. The excellent waterproof performance of all monitors & cameras can be adapted to various forklift working environments. If you are looking for high-quality forklift solution systems, please contact us at sales@aotop.com!

SYSTEM FEATURES


  • Low Power Consumption

  • Monitor IP68 & Camera IP69K Waterproof

  • 2.4g Wireless Transmission (50m, 164ft)

  • HD IR Night Vision Camera, Magnetic Base, Built-in 3400mAh Battery

  • No Drilling, Easy To Install

  • Instant Automatic Pairing



Wireless Waterproof Monitor
ModelCM-708MDW-HD
Screen ratio16:9 / IPS
Resolution1024*R.G.B*600
Back lightLED, brightness 500 cd/m2
Wireless input4CH 1080P wireless input
Working frequency2400 ~ 2483.5MHz *
Receiving sensitivity-89dBm@4MHZ
Image delay time120mS
Receiving distance50M in open area
Operating temperature-20~+70 ºC 85%RH MAX
Storage temperature-30~+85 ºC 95%RH MAX
Vibration rating4G
Image delay time120mS
Waterproof RatingIP68
Power consumption<3.8W
Consumption current12V Standby:≤10mA,
working.≤320mA
Power SupplyDC12-24V
Shell materialsPC+ABS



Forklift Camera
ModelAC-978MDW-HD
Image sensorCMOS 1/2.7”
Effective pixels1920×1080 pixels
Transmission frequency2400-2483.5MHZ
Transmission distance50M in open area
SystemN/P automatically
Night visionYes
Transmission bandwidth8MHz BER<1E-3
ImageMirror
Working time6H with fully charged
Charging voltageDC 12-24V
Power saving modeAutomatically
Working temperature-20~+70 ºC 85%RH MAX
Storage temperature-30~+85 ºC 95%RH MAX
SNR46.5dB
Waterproof levelIP69K
Viewing angleHorizontal more than 40°
Transmission sensitivity-89 dBm
Shell materialsBlack aluminium alloy
AccessoriesPower cable、5DB antenna



  • Wireless forklift camera built-in 3400mAh battery that provides approximately 6 hours of battery life on a 4-hour charge.

  • With magnetic base design, it can be directly attached to the forks.

  • Built-in infrared laser light, the driver can avoid the obstacles appearing in front of him according to the infrared ray changes.
