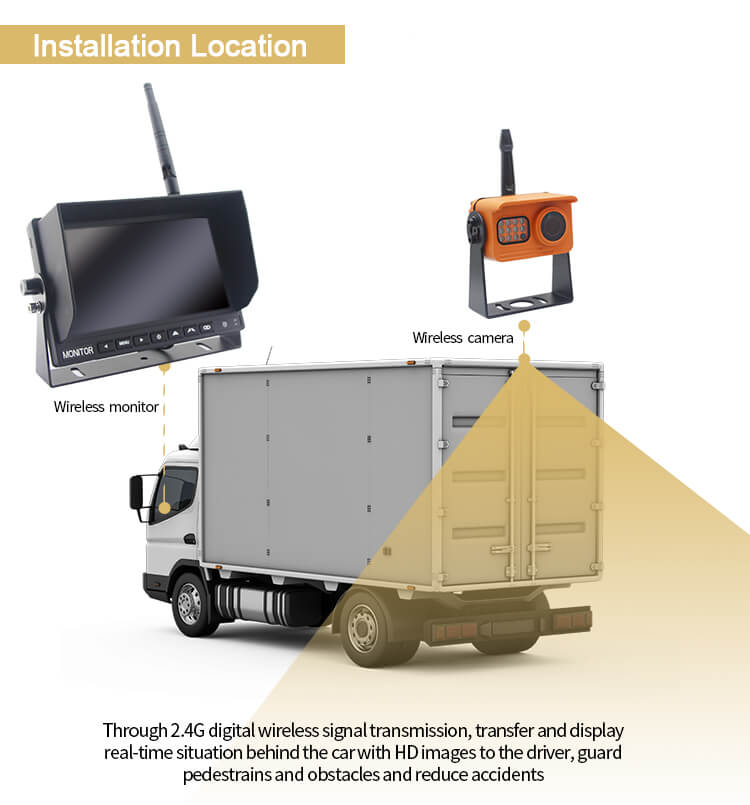

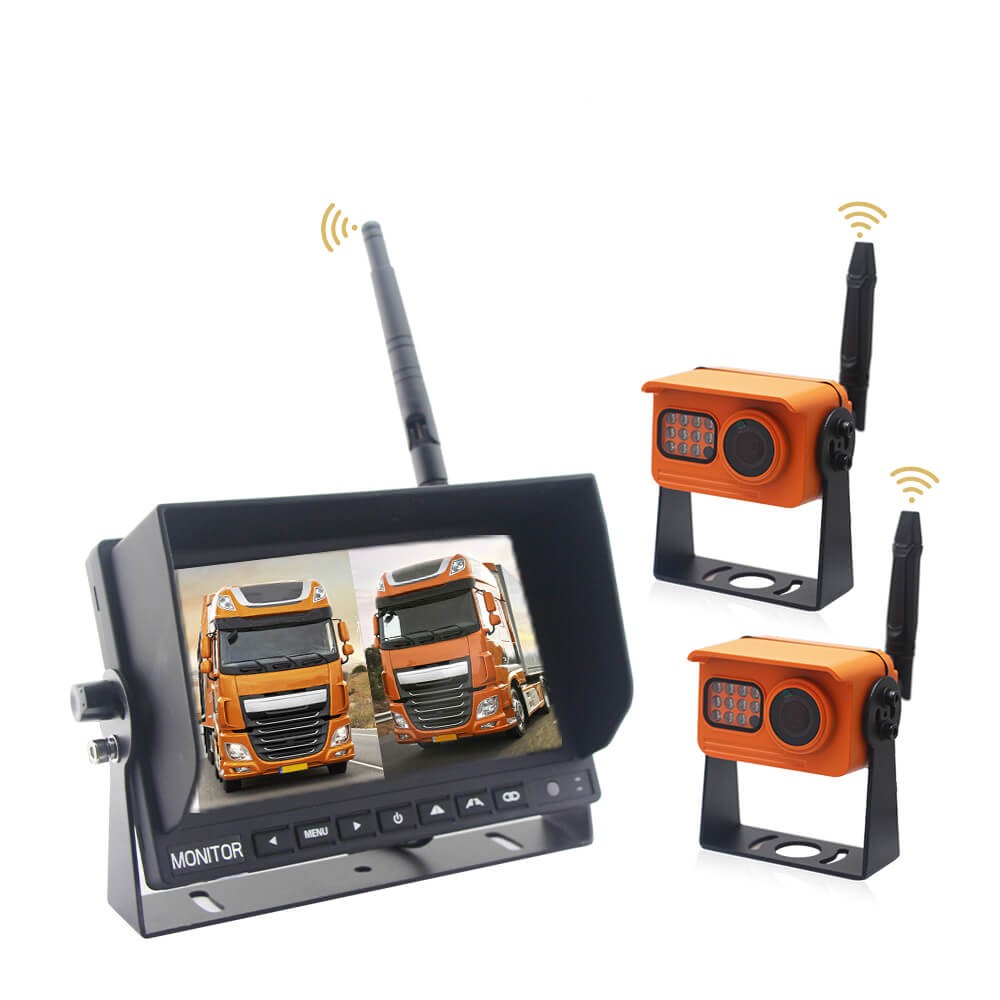

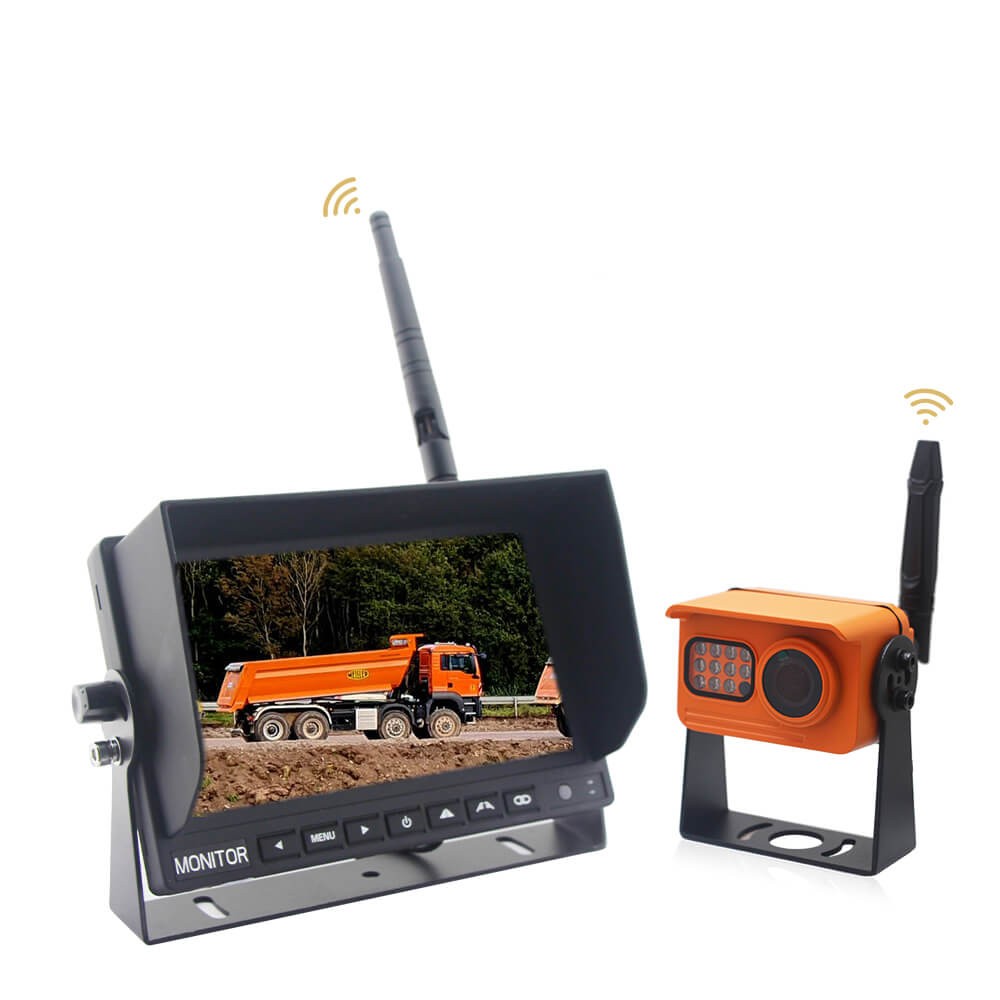

Aotop 7 inch wireless vehicle monitor system is easy to install. It supports quad view and auto pairing; good for truck, trailer, RV, etc. It can work with HD digital wireless rear view camera to form excellent wireless vehicle monitor system. If you are looking for reliable wireless vehicle camera monitor system manufacturer supplier in China, please contact us at sales@aotop.com!
SYSTEM FEATURES
7 inch IPS LCD screen, 1024*RGB*600 high definition resolution.

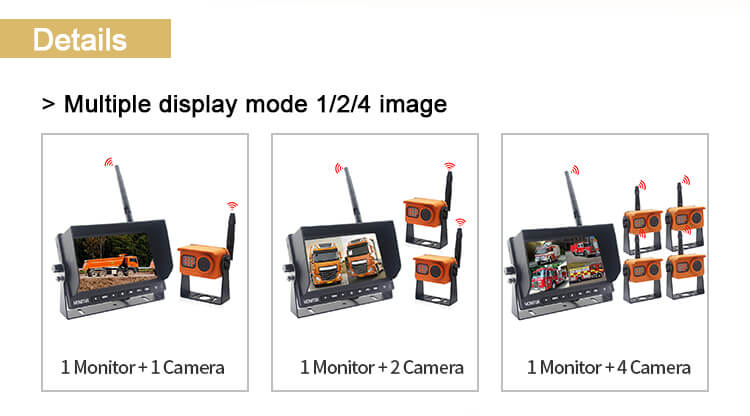

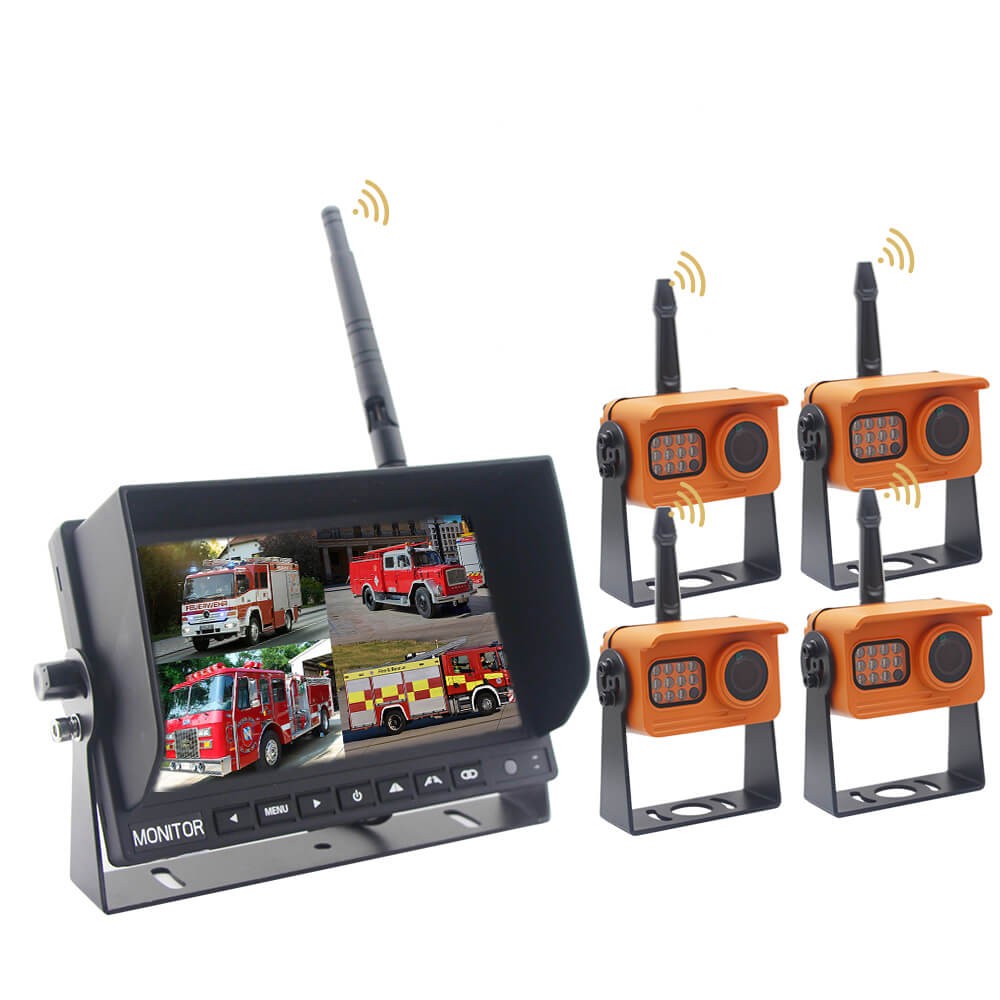

Support 4CH video signals input, a variety of monitors modes quad view, double view, triple view
and single view to meet various monitoring needs and reduce blind spots.
2.4G wireless signal transmission 656ft wireless transmission distance, without wiring easy to install.
Save money & time！

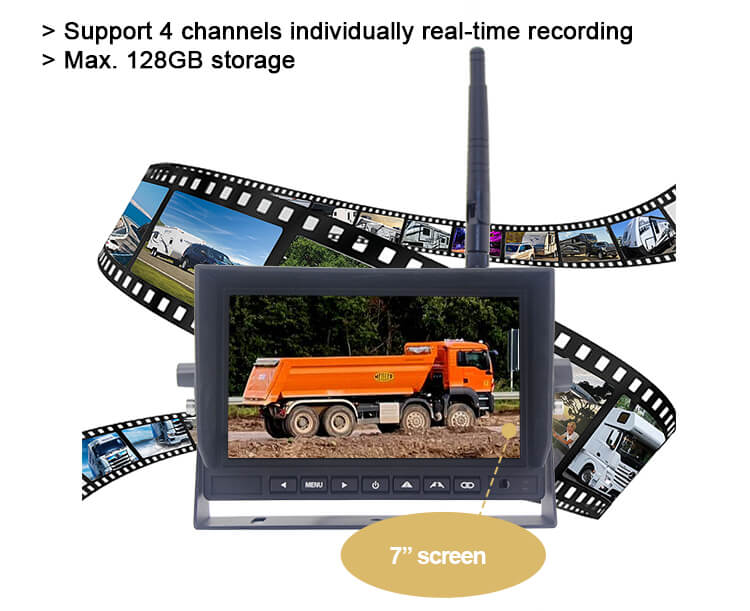

DVR function built-in 128GB memory card support 4CH real-time recording and video playback.
Rear view parking lines can be configured.
Support 1080P / 720P AHD camera inputs
Camera features IP69K waterproof, HD night vision, 120 wide angle etc.
Supports manual and AUTO pairing, easy to operate. After the first pairing is completed, just connect
the car power supply to work.
DC12-24V wide voltage, applicable to a variety large & commercial vehicles.
| Wireless Monitor | |
| Model | CM-709MDW-HD |
| Screen ratio | 16:9 / IPS |
| Resolution | 1024*R.G.B*600 |
| Back light | LED, brightness 500 cd/m2 |
| Viewing angle | Hor. L(85) R(85) Ver. UP(85) DOWN(85) |

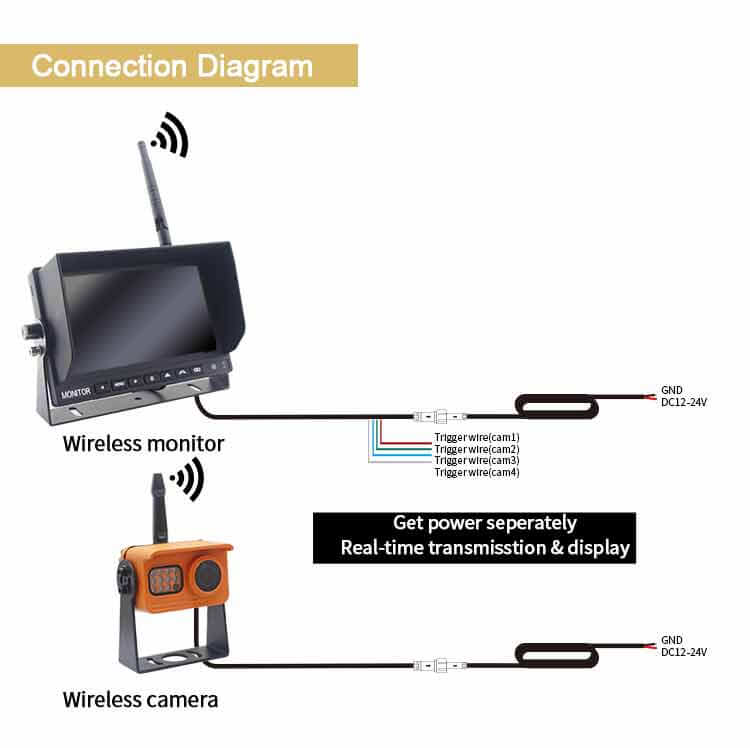

| Trigger | 4 trigger control |
| Wireless input | 1-4 channel HD wireless video signal input |
| Power Supply | DC12-24V |
| System | N/P Automatically |
| Working frequency | 2400 ~ 2483.5MHz |
| Latency | Less 200ms |
| Power consumption | ＜3W |
| Transmission distance | 200M in open area |
| Vibration rating | 4G |
| Audio | without(customized) |
| Built-in DVR recording | Max. 128G storage |
| Operating temperature | -20~+70 ºC |
| Storage temperature | -30~+80 ºC |

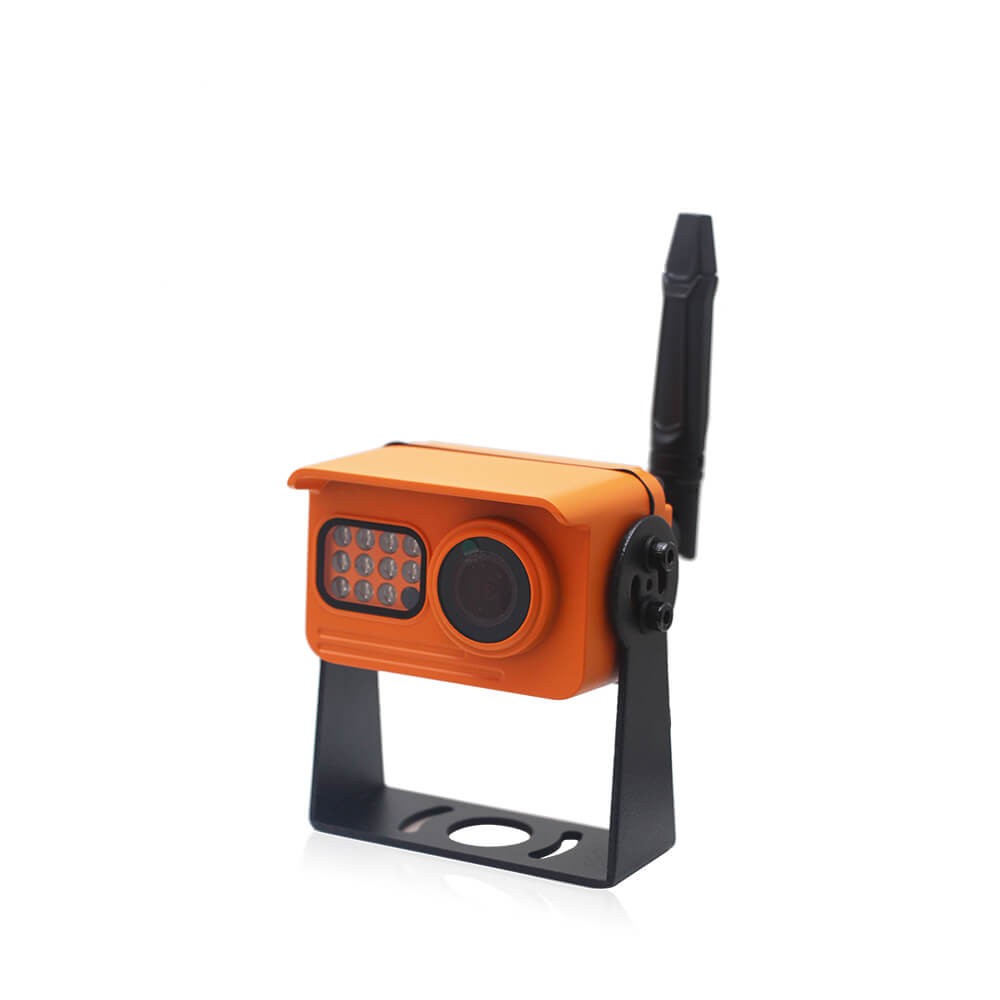

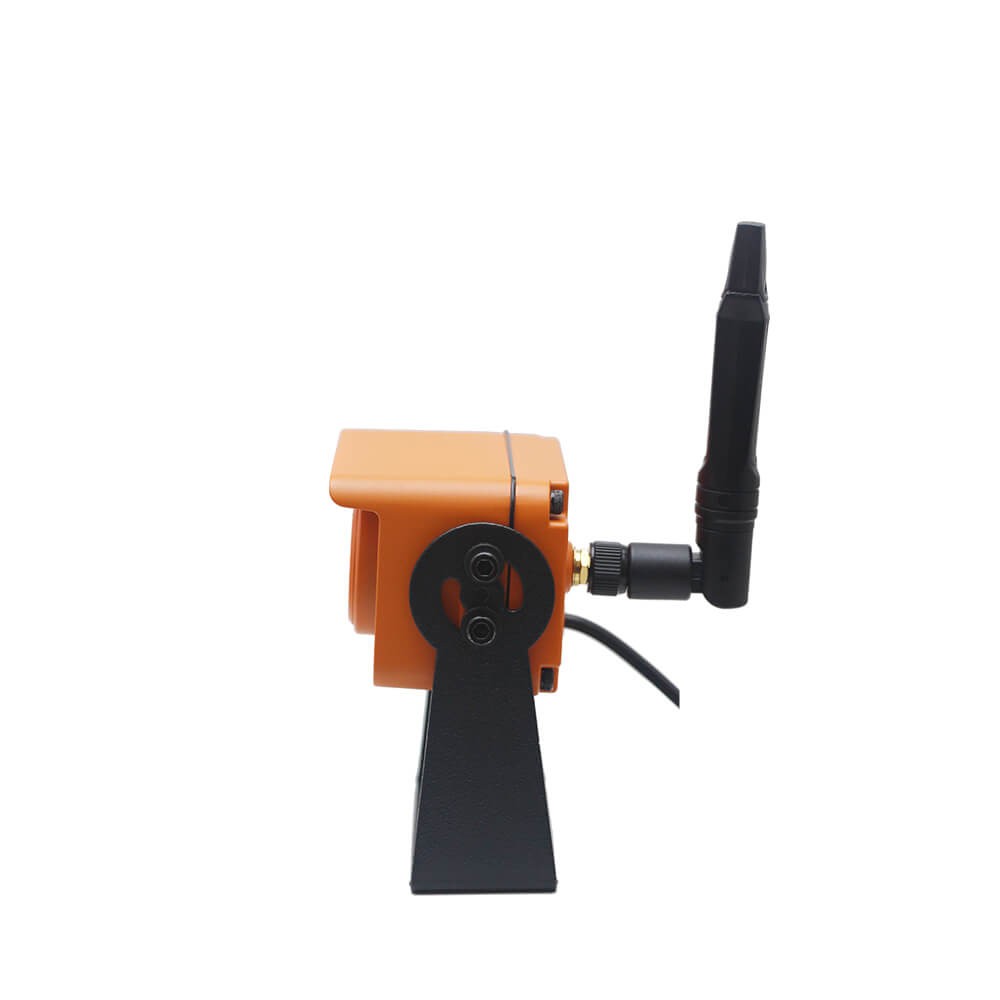

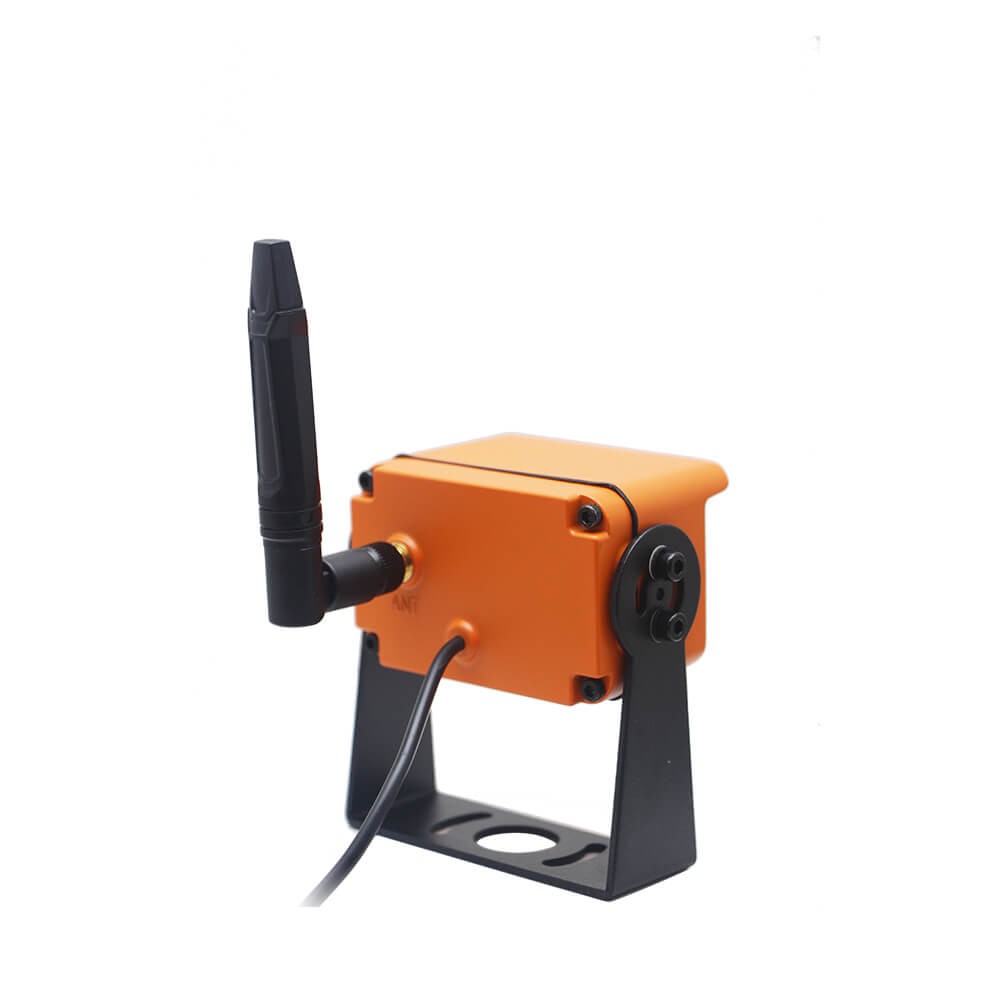

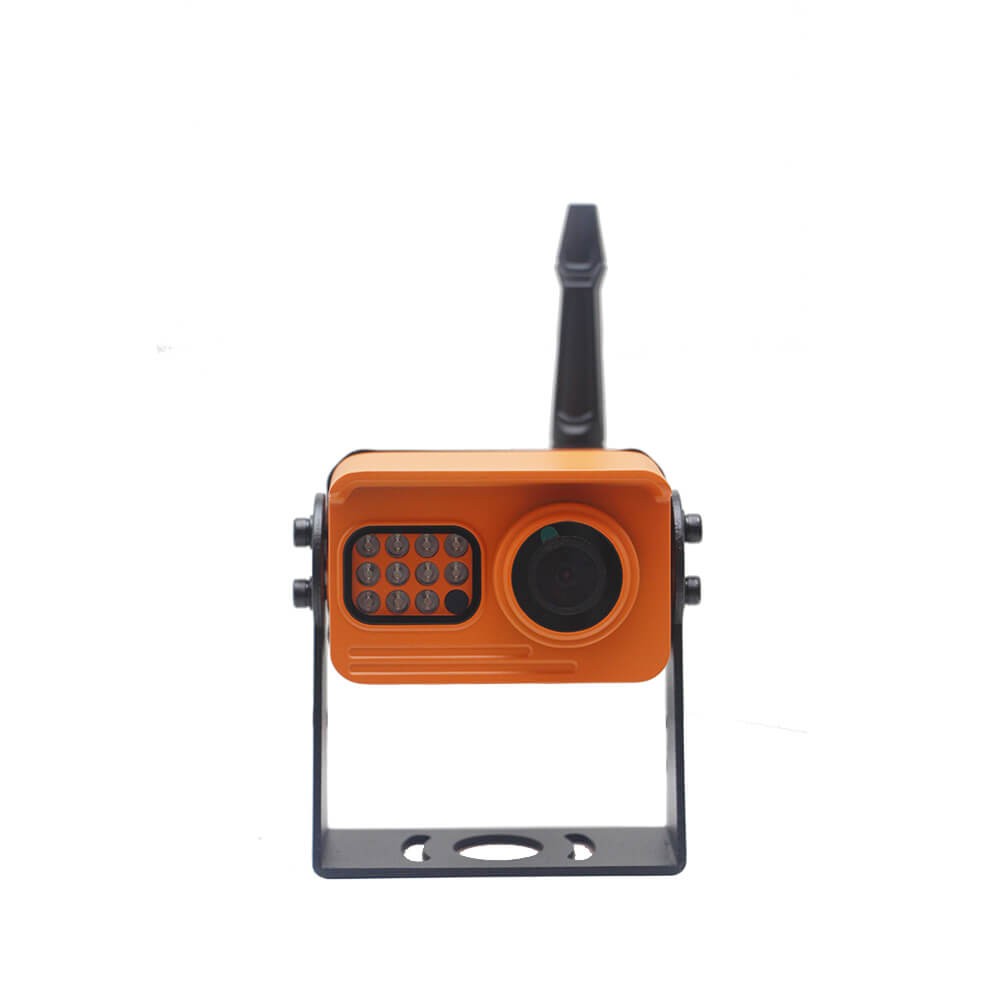

| Wireless Camera | |
| Model | AC-977MDW-HD |
| Image sensor | 1/2.7”HD |
| Effective pixels | 1920×1080 pixels |
| Viewing Angle | 120° |
| Transmission Distance | 200M in open area |
| System | N/P Automatically |
| Spread Spectrum | FHSS |
| Transmission Power | 26dBm |
| Frequency | 2400-2483.5MHZ |
| Latency | Less 200ms |
| Power consumption | 150mA/12V |
| IR Control | Smart IR-CUT 650nm Day/850nm Night Auto |
| Night Vision | 8-10m |
| Waterproof level | IP69K |
| Shockproof Level | 4G |
| Audio | without(customized) |
| Operating temperature | -20~+70 ºC |
| Storage temperature | -30~+80 ºC |
