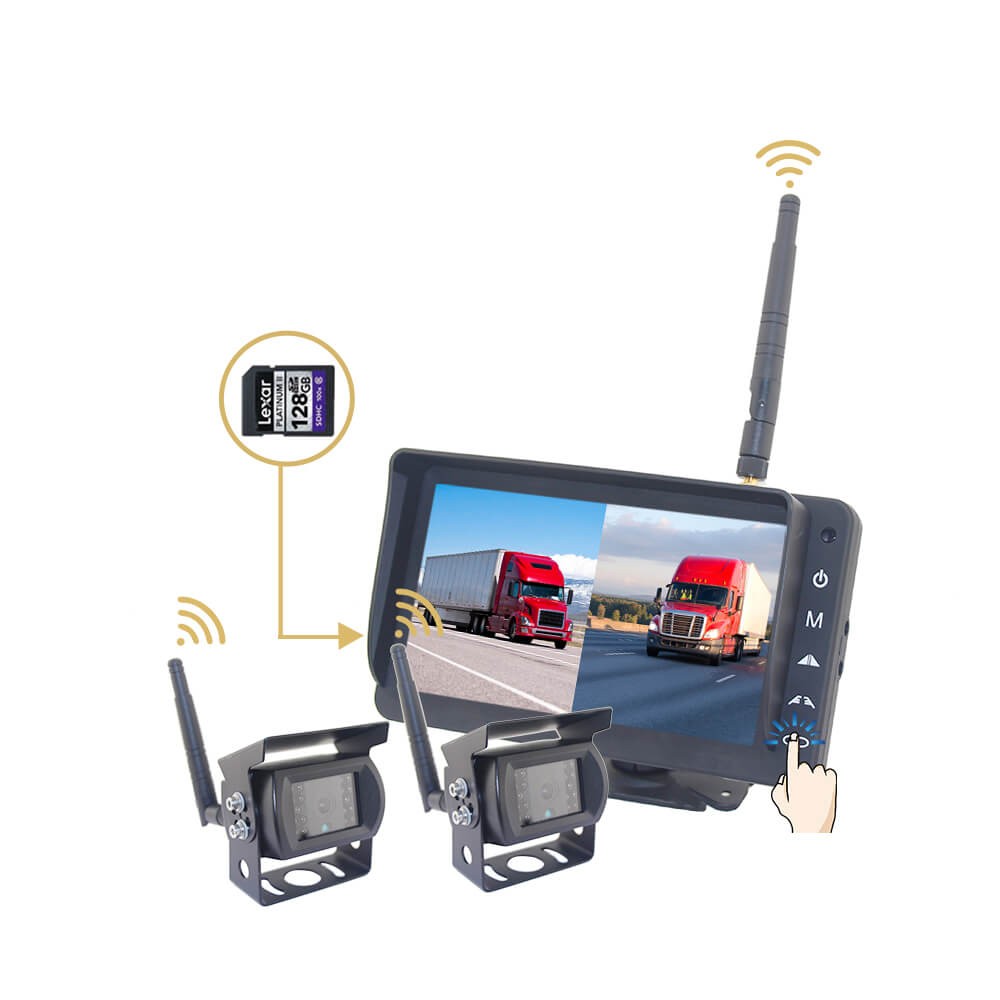

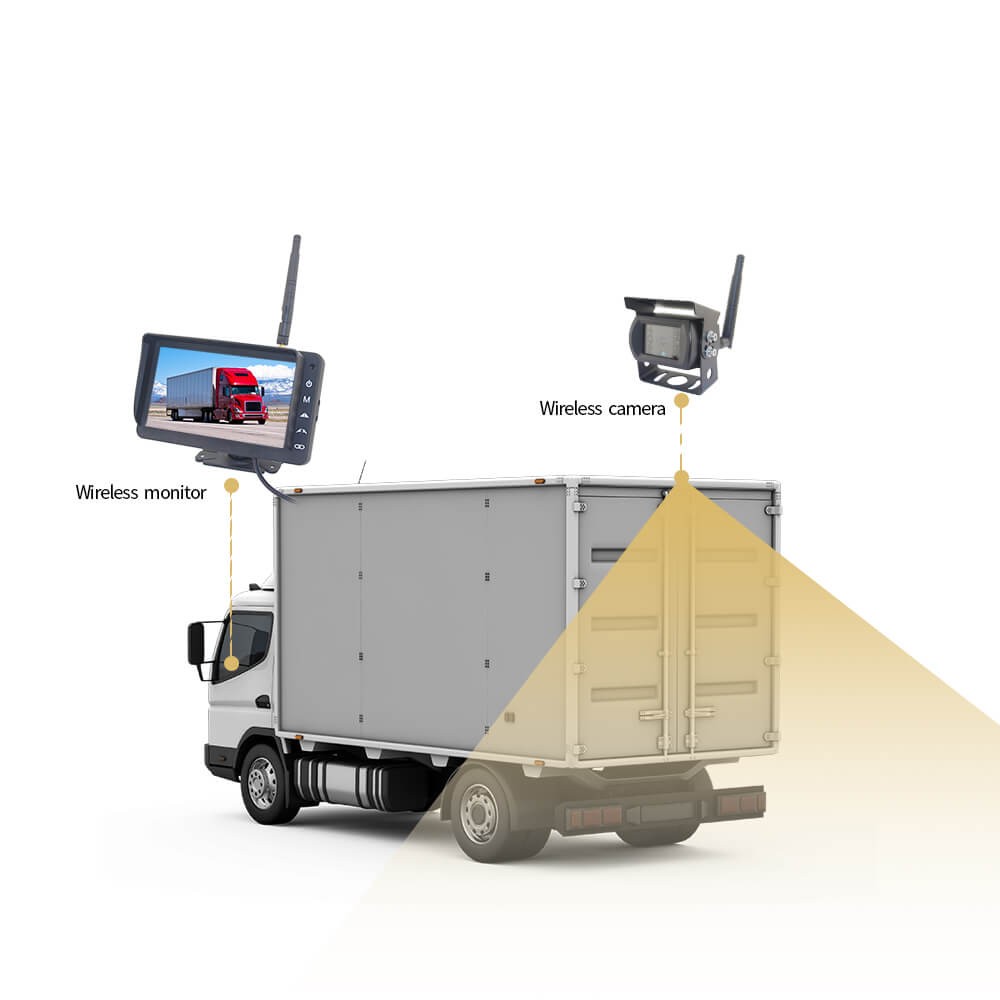

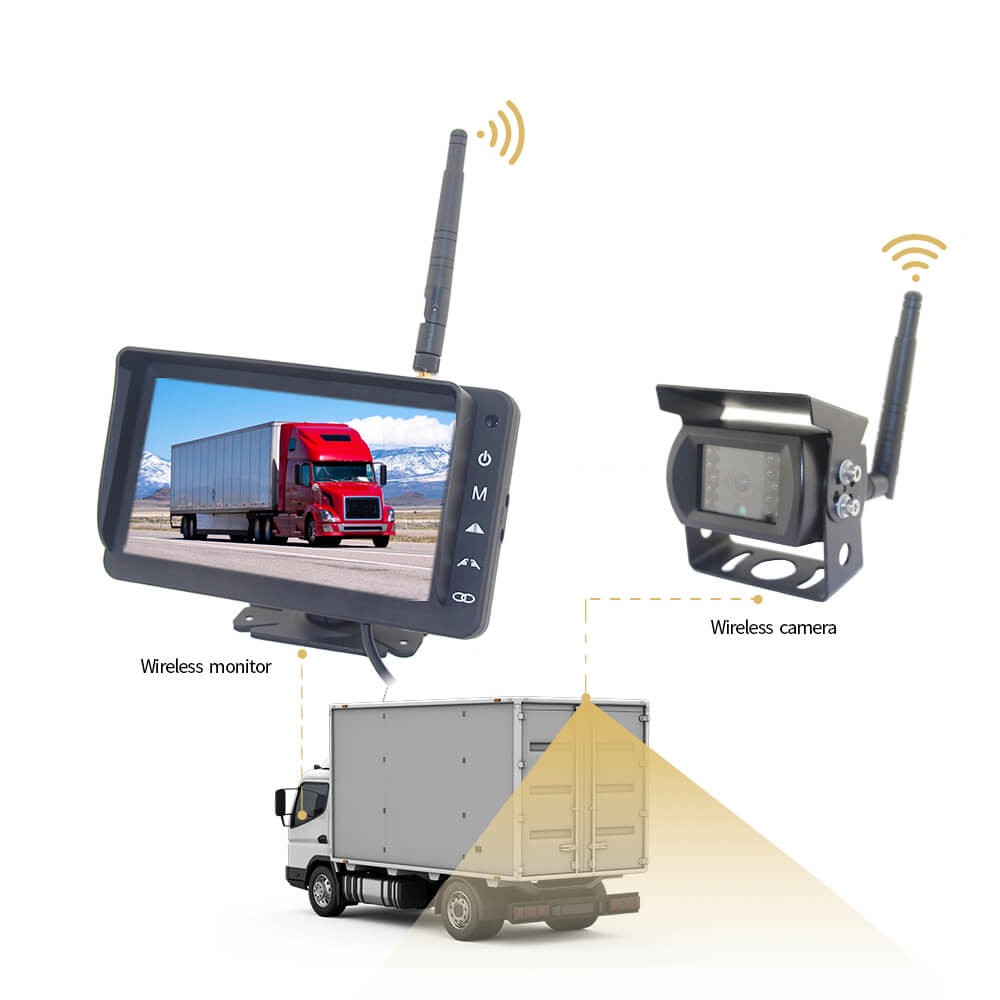

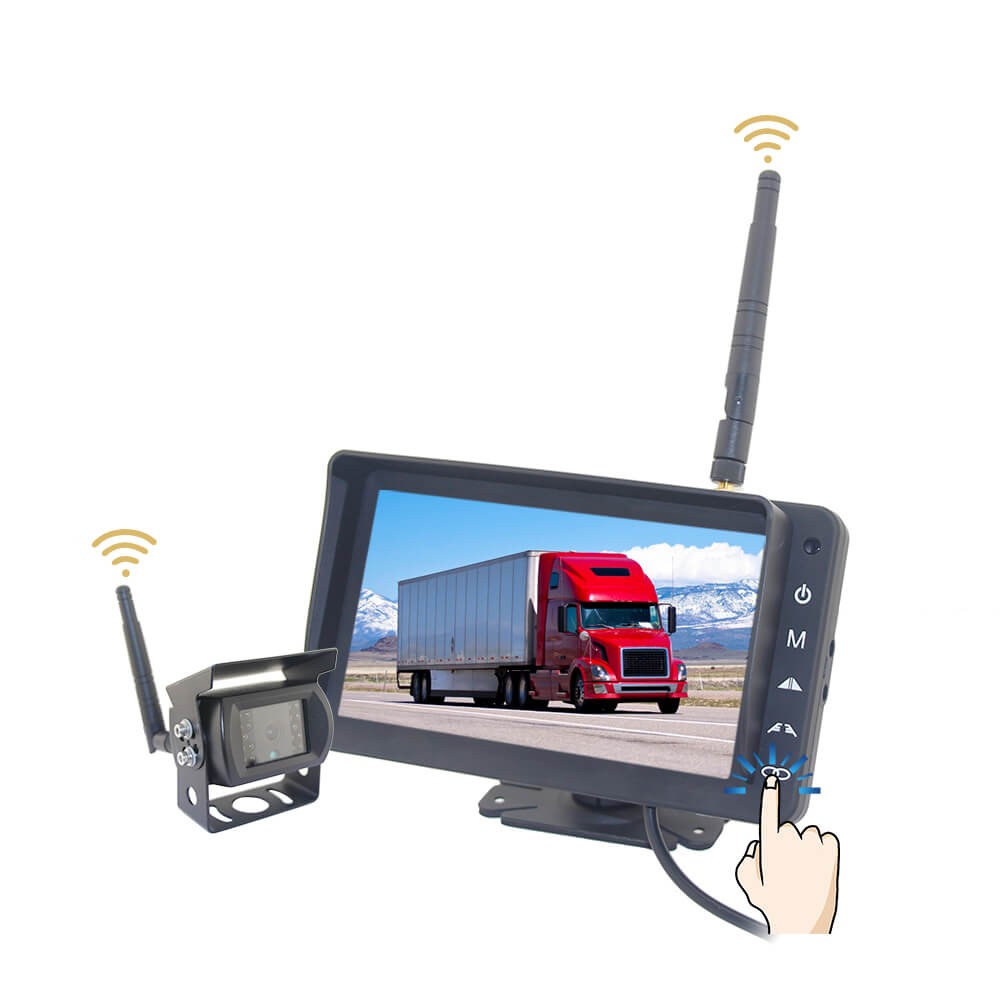

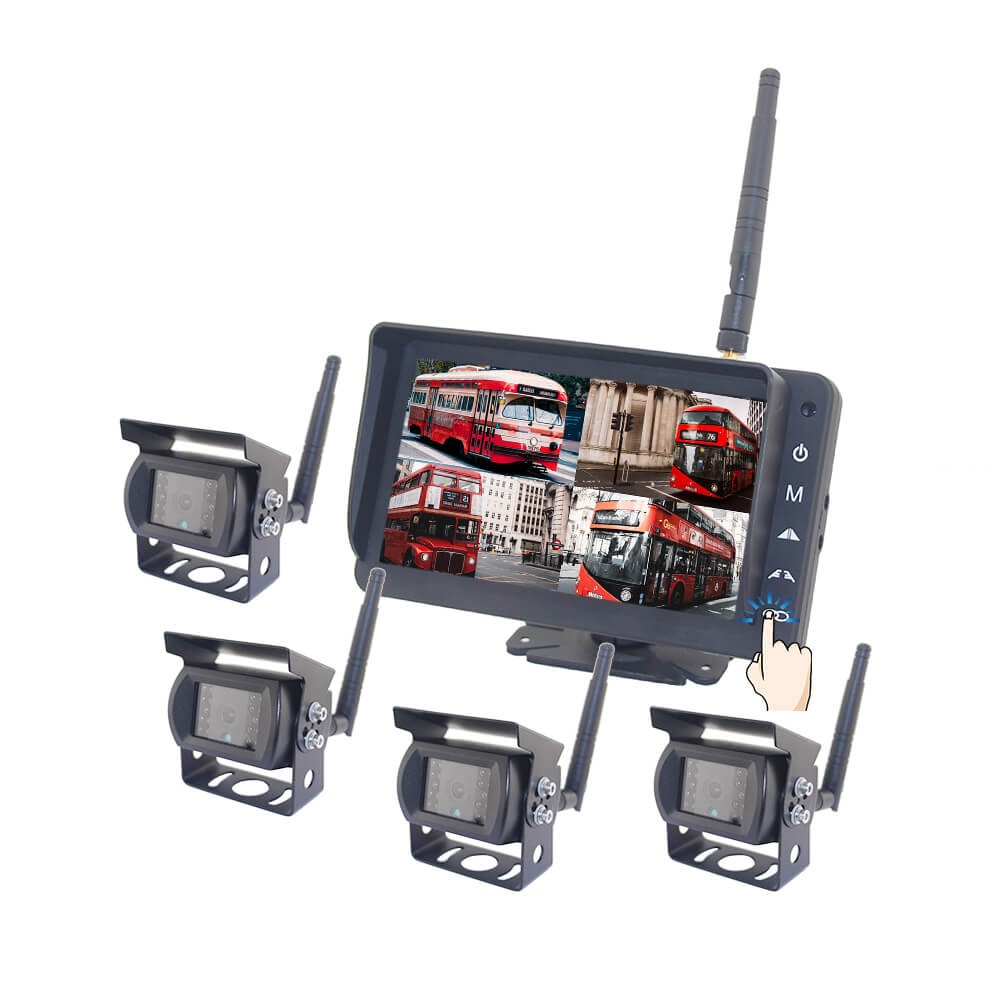

7 inch AHD 2.4G digital wireless digital vehicle monitor system, without wiring easy to installation. System includes an AHD touch button quad monitor and IP69K backup camera, providing full coverage of video surveillance in blind spots around the vehicle. The wireless transmission distance between the camera and monitor is up to 656 feet (200 metres). The system good for semi-trailers, agricultural, forklifts, bulldozers and other commercial vehicles.
SYSTEM FEATURES
7 inch IPS LCD screen, 1024*RGB*600 high definition resolution, touch button design.
Support 4CH video signals input, a variety of monitors modes quad view, double view, triple view
and single view to meet various monitoring needs and reduce blind spots.

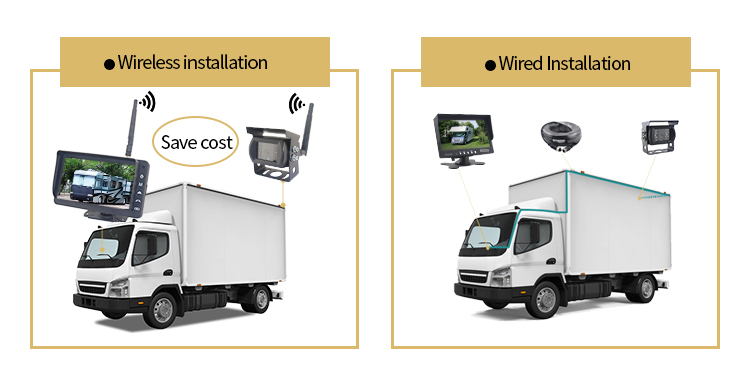

2.4G wireless signal transmission 656ft wireless transmission distance, without wiring easy to install.
Save money & time！

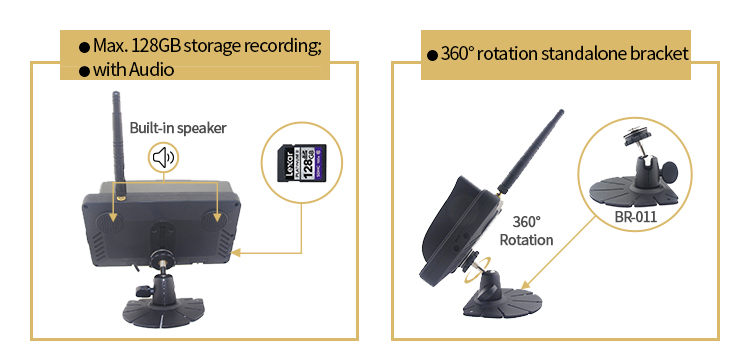

DVR function built-in 128GB memory card support 4CH real-time recording and video playback.
Rear view parking lines can be configured.
Support 1080P / 720P AHD camera inputs
Camera features IP69K waterproof, HD night vision, 120 wide angle etc.
Supports manual and AUTO pairing, easy to operate. After the first pairing is completed, just connect
the car power supply to work.
DC12-24V wide voltage, applicable to a variety large & commercial vehicles.
| Wireless Monitor | |
| Screen ratio | 16:9 IPS panel |
| Resolution | 1024*R.G.B*600 |
| Backlight | LED, 500 cd/m2 |
| Viewing angle | Hor. L(85) R(85) Ver. UP(85) DOWN(85) |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| Power supply | DC 12-24V |
| loudspeaker | with |
| Delay time | 120mS |
| Electric current | Standby: ≤10mA, Working: ≤110mA |
| Power consumption | ＜3W |
| AV input | 1-4 channel HD wireless video signal input |
| Operating frequency range | 2400 ~ 2483.5MHz |
| System | PAL/NTSC automatically |
| Decompression mode | H.264 |
| Receive sensitivity | -89dBm@4MHZ |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission distance | 200m in open area |
| Shockproof level | 4G |
| Power cable | DC Cable |
| Wireless Backup Camera | |
| Image sensor | CMOS 1/2.7” |
| Pixel | 1080P 1920*1080 pixels |
| Operating frequency range | 2400-2483.5MHZ |
| Transmission distance | 200M in open area |
| System | PAL/NTSC automatically |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission bandwidth | 8MHz BER<1E-3 |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| audio | with |
| SNR | 46.5dB |
| Waterproof | IP69K |
| Viewing angle | Diagonal viewing angle 120° |
| Transmitting sensitivity | -89 dBm |
| Shell material | Black aluminium alloy |
