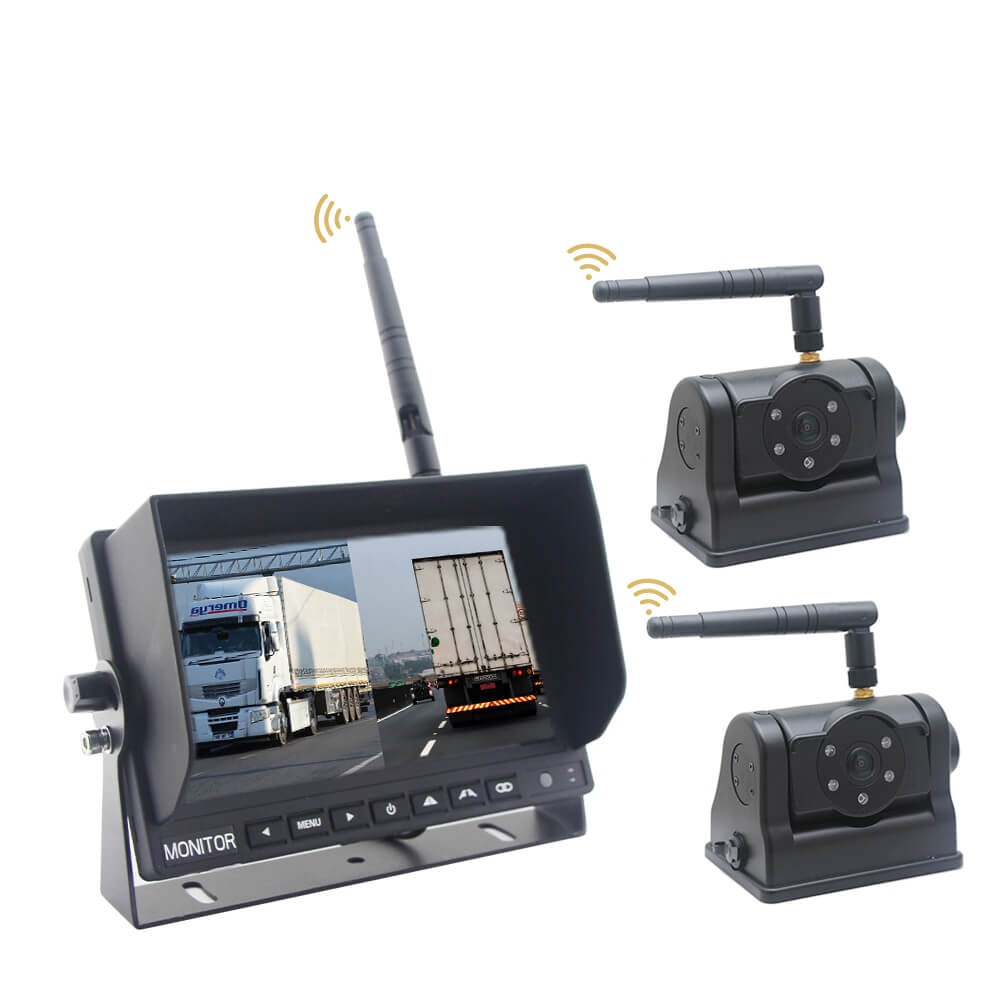

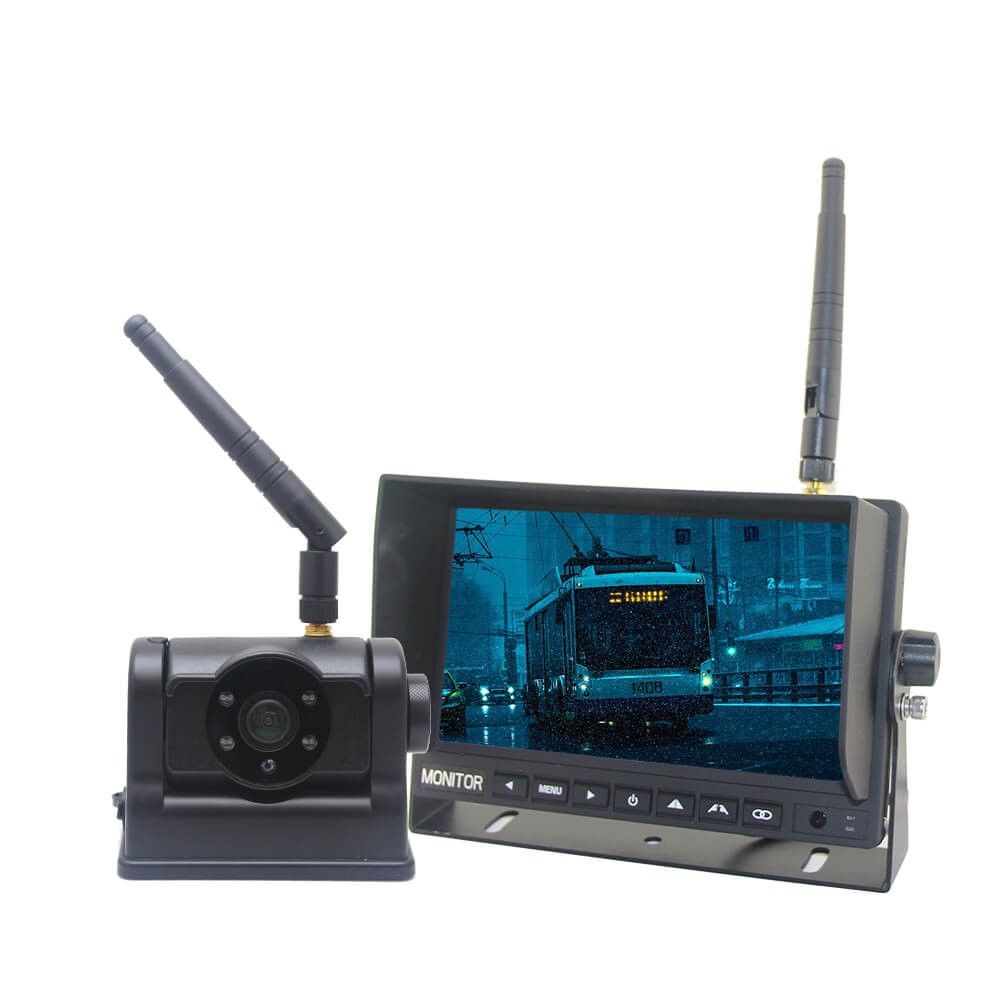

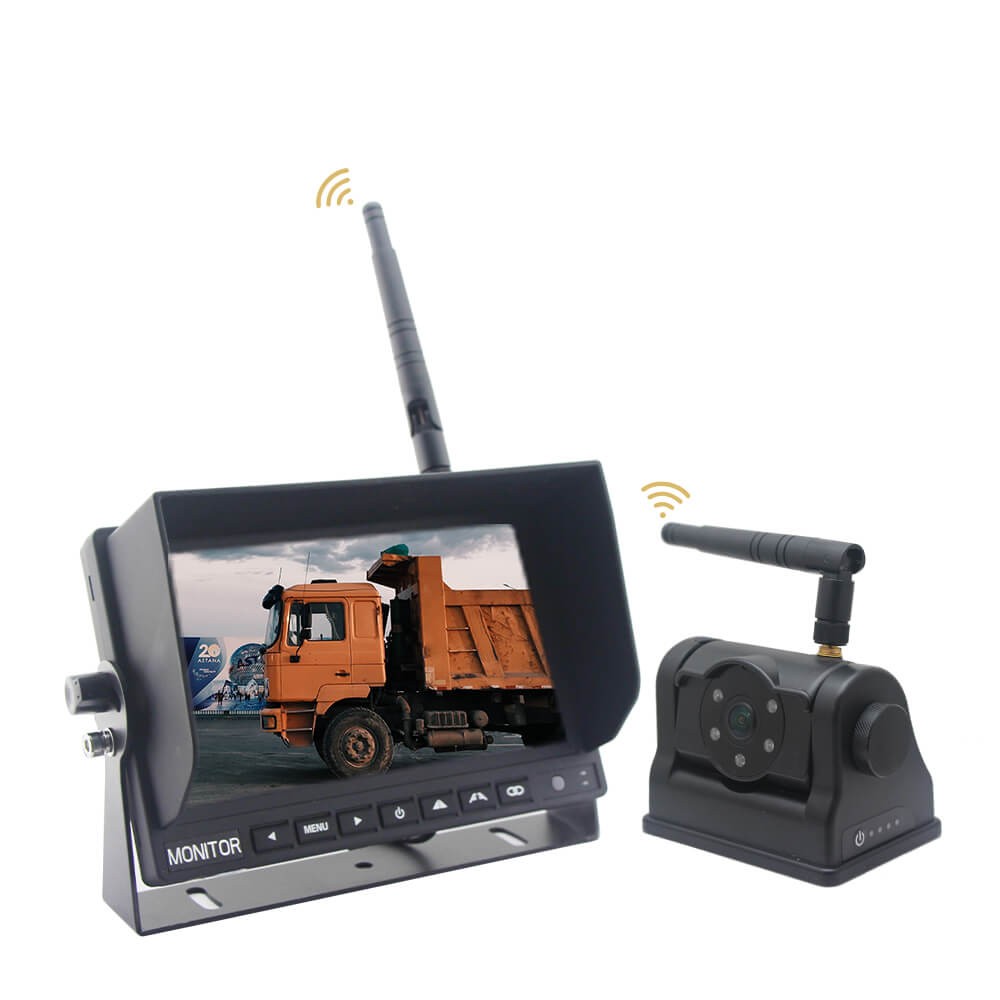

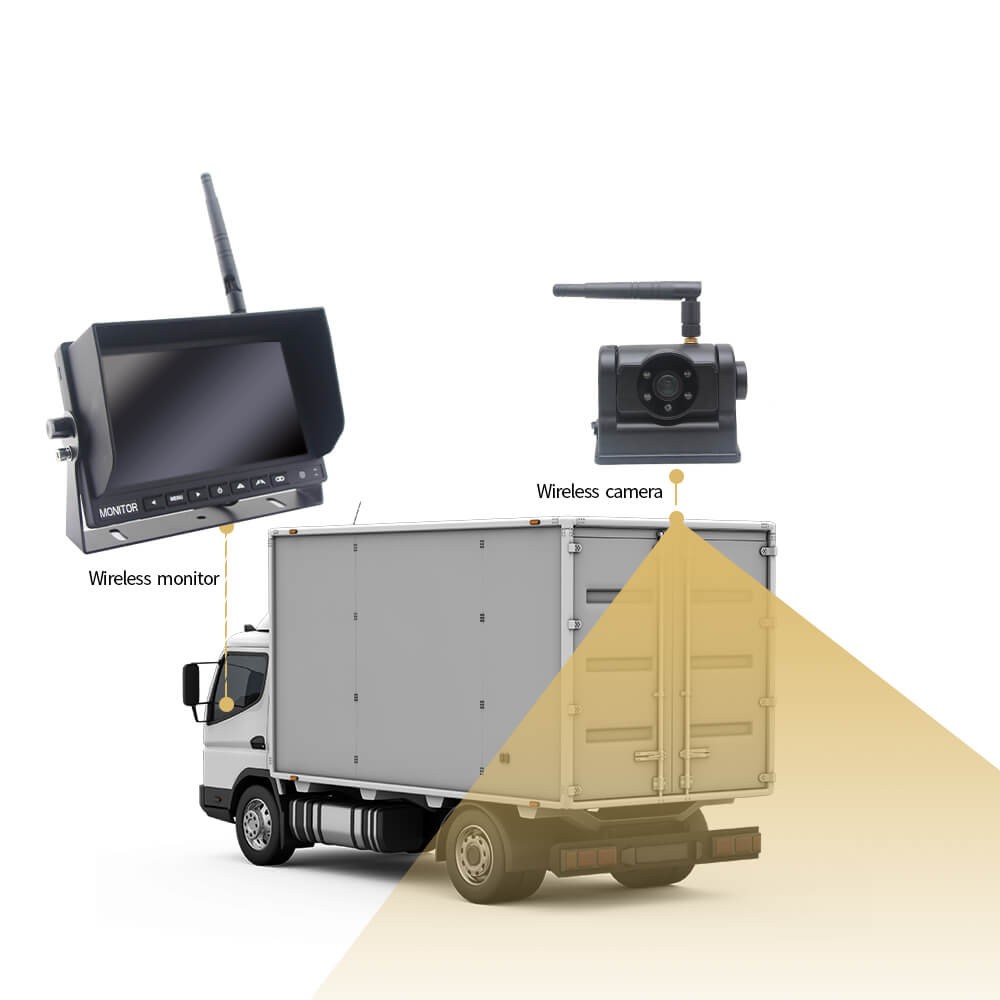

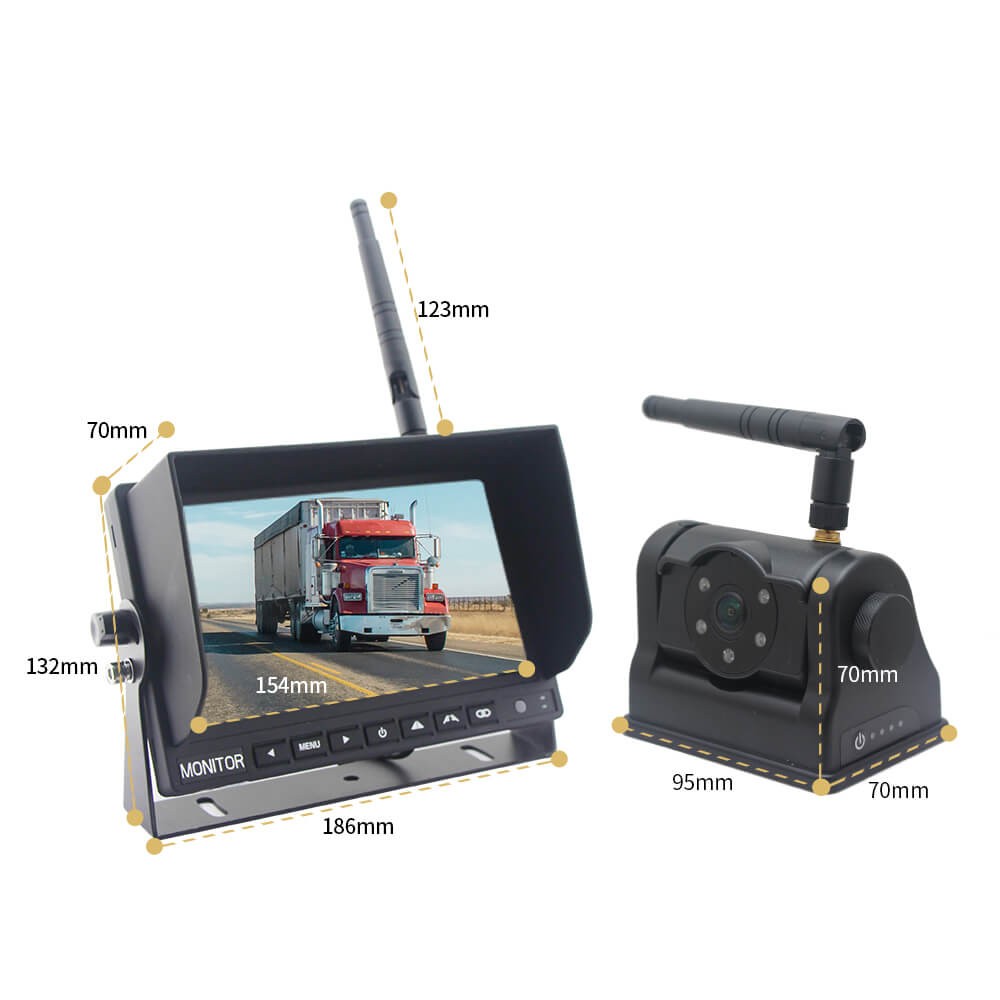

The system is easy to install and requires no wiring, vehicle monitor connects to the 4CH HD wireless magnetic backup camera, monitoring the blind spots around the vehicle and reduce the possibility of scratches or collisions. The camera's magnetic base allows for quick installation and is independently powered by the built-in battery. The video transmission range is up to 200 metres (656 feet). The system is especially suitable for trucks, forklifts, bulldozers, cranes and other operating vehicles, providing a reliable monitoring solution for all kinds of complex working conditions.
SYSTEM FEATURES

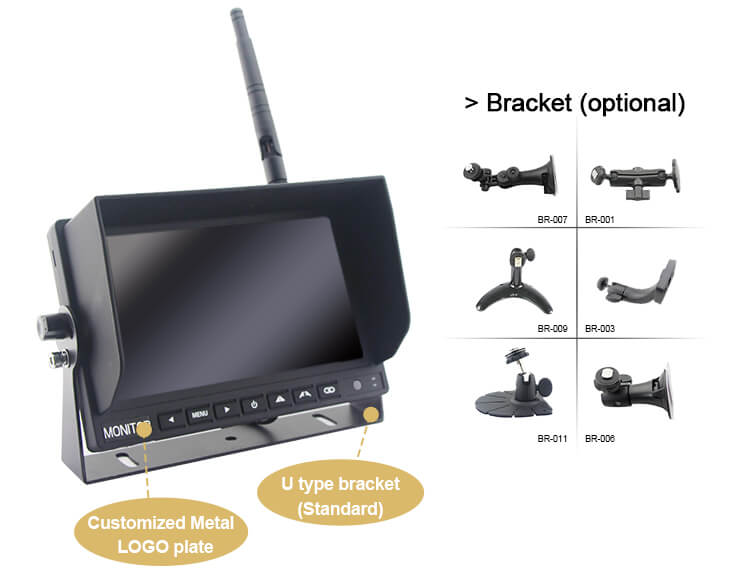

7 inch IPS LCD screen, 1024*RGB*600 high definition resolution.

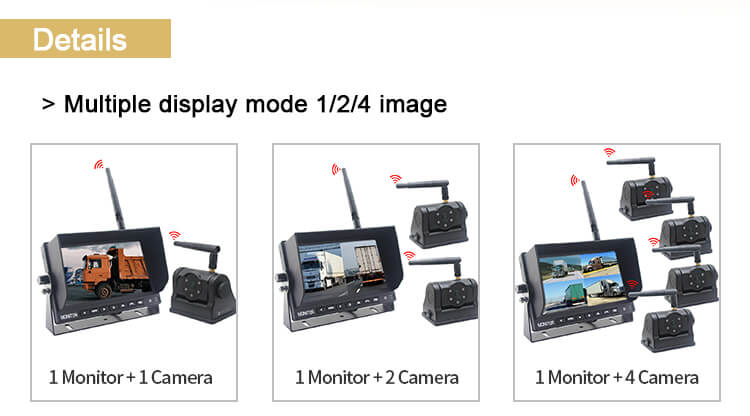

Support 4CH video signals input, a variety of monitors modes quad view, double view, triple view
and single view to meet various monitoring needs and reduce blind spots.
2.4G wireless signal transmission 656ft wireless transmission distance, without wiring easy to install.
Save money & time！
Rear view parking lines can be configured.
Support 720P AHD camera inputs

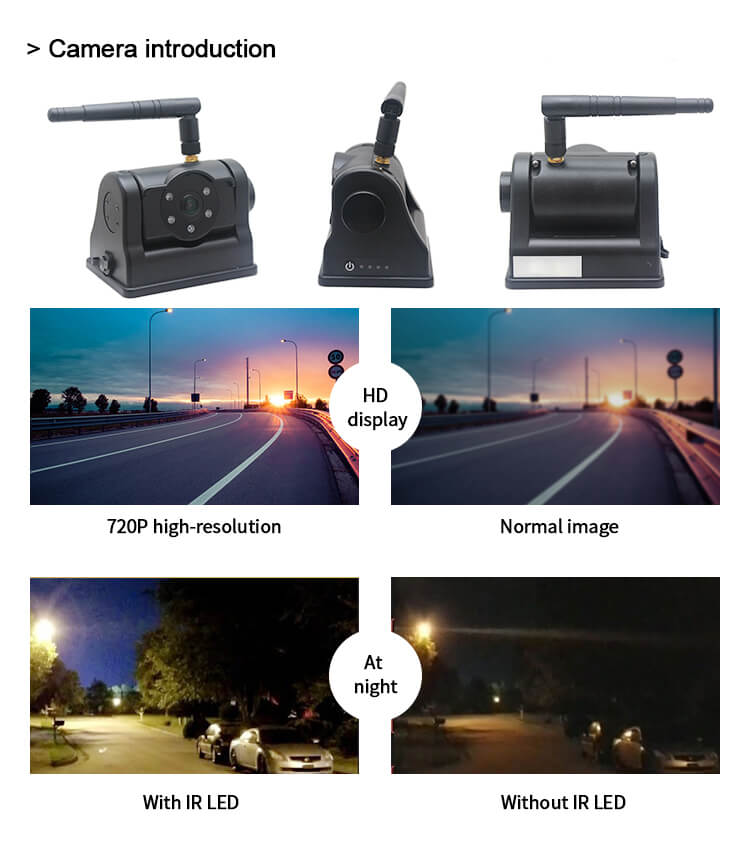

Camera features IP67 waterproof, HD night vision etc. Magnetic base quick installation.
Camera built-in 6400mAh rechargeable battery, can work continuously for 18 hours.

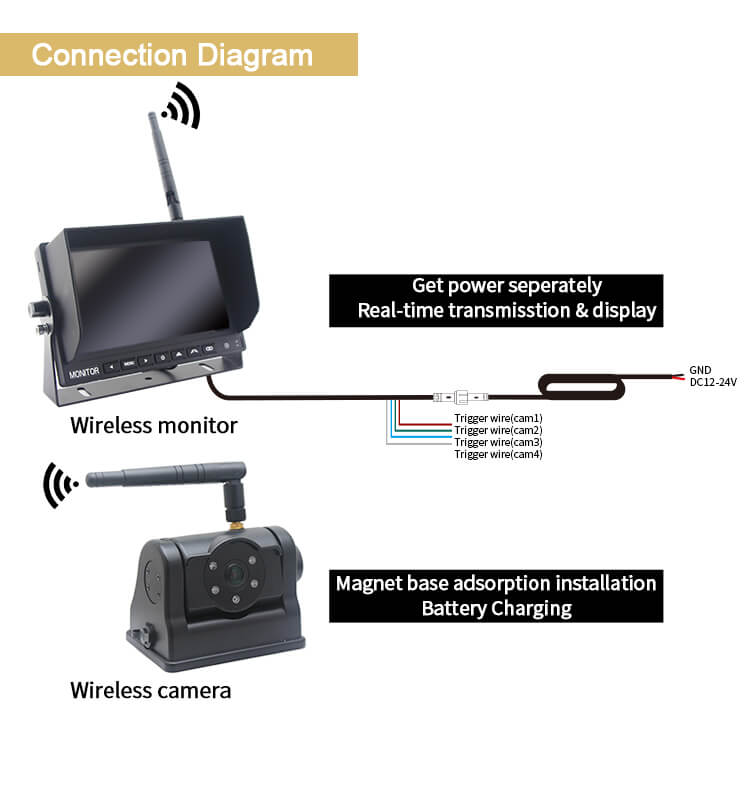

Supports manual and AUTO pairing, easy to operate. After the first pairing is completed, just connect
the car power supply to work.
| Wireless Monitor | |
| Model | CM-709MDW-HD |
| Screen ratio | 16:9 / IPS |
| Resolution | 1024*R.G.B*600 |
| Back light | LED, brightness 500 cd/m2 |
| Viewing angle | Hor. L(85) R(85) Ver. UP(85) DOWN(85) |
| Trigger | 4 trigger control |
| Wireless input | 4CH AHD wireless input |
| Audio | without(customized) |
| System | PAL/NTSC automatically |
| Working frequency | 2400 ~ 2483.5MHz * |
| Receiving sensitivity | -89dBm@4MHZ |
| Image delay time | 120mS |
| Transmission distance | 200M in open area |
| Operating temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| Vibration rating | 4G |
| Power consumption | ＜5W |
| Power Supply | DC12-24V |
| Wireless Magnetic Backup Camera | |
| Model | AC-307MDW-HD |
| Image sensor | CMOS 1/2.7” |
| Effective pixels | 1280×720 pixels |
| Viewing Angle | 140 degree |
| 2.4G Transmission Distance | 200M in open area |
| System | N/P Automatically |
| Spread Spectrum | FHSS(Adaptive frequency hopping) |
| Transmission Bandwidth | 8MHz BER<1E-3 |
| Battery Capacity | 6400mA |
| Battery Indicator | support, 4 LED lights |
| Battery Charging Time | DC5.5, 5~24Volts, 6hours |
| Working Time with Fully Charged | 18 hours(under continuous working conditions) |
| Camera Adjustable Angle | 0-100 degree |
| Frequency | 2400-2483.5MHZ |
| ON/OFF Mode | Long press to ON/OFF, short press to show battery status |
| Installation Mode | Magnet base adsorption installation |
| Night Vision | Infrared HD night vision |
| SNR | 46.5dB |
| Audio | without(customized) |
| Waterproof level | IP67 |
| Transmitting sensitivity | -89 dBm |
| Material | Black aluminium alloy |
| Shockproof Level | 4G |
| Operation Temperature | –20℃ ~ 70℃, RH85%MAX |
| Storage Temperature | –30℃ ~ 85℃, RH95%MAX |
