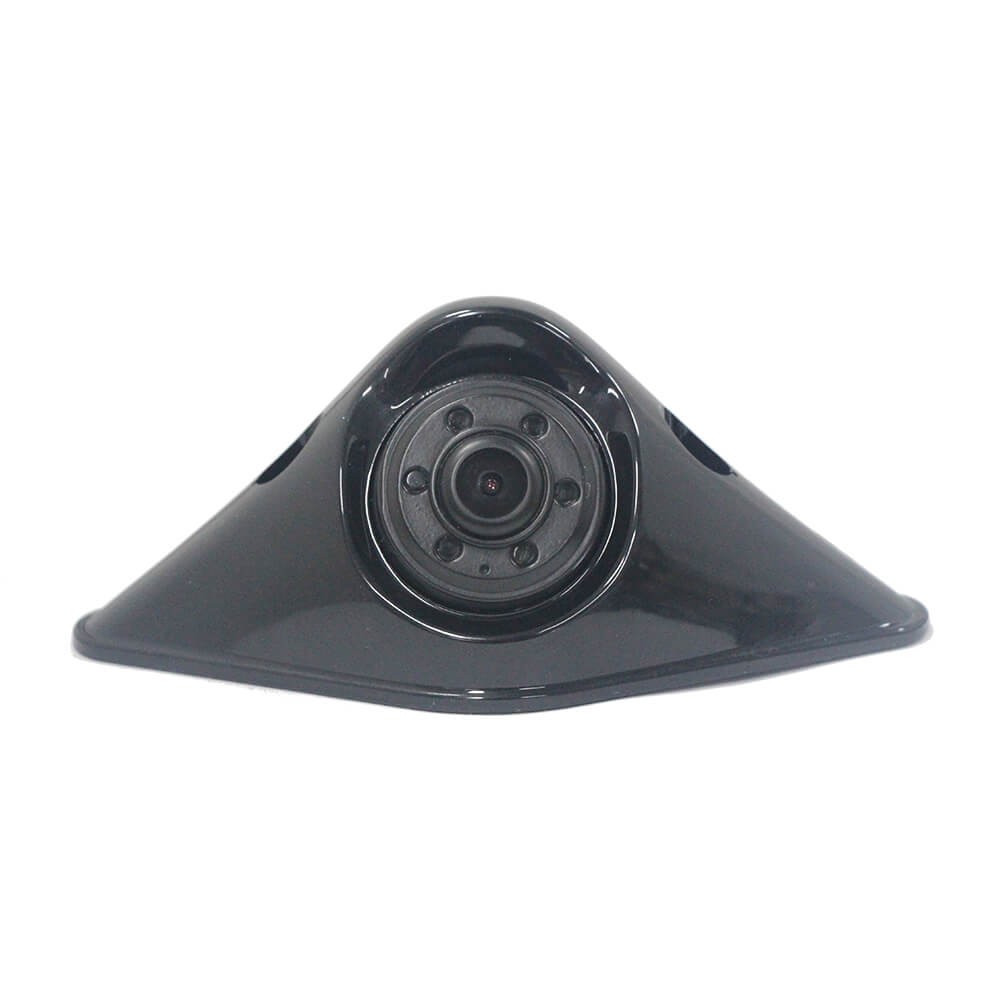

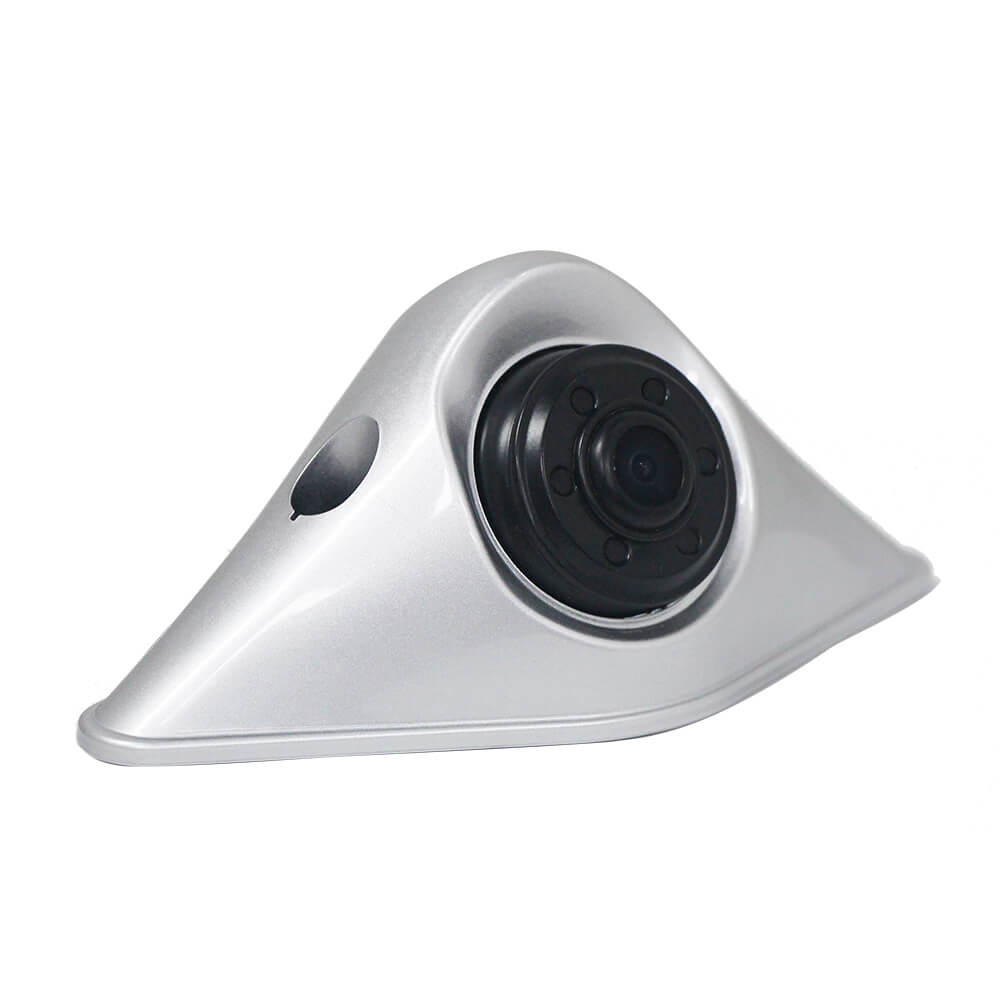

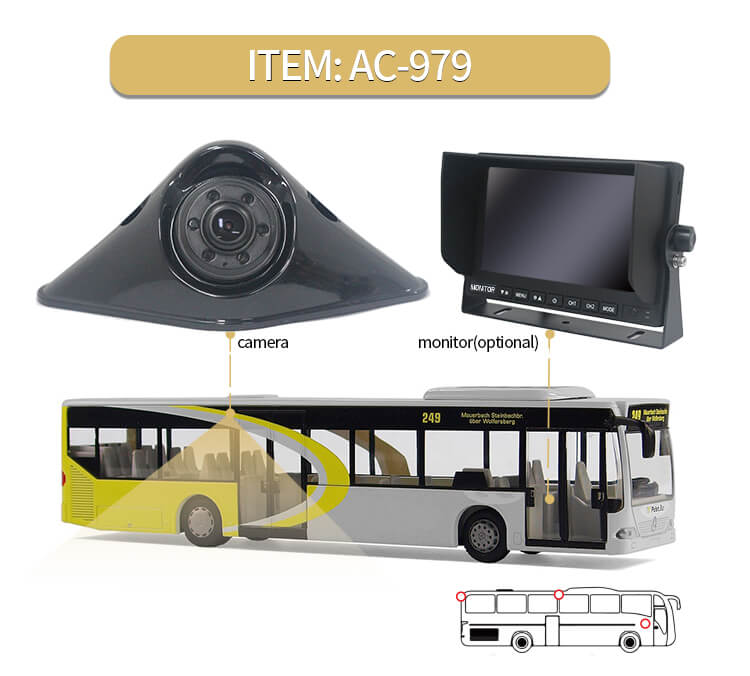

Aotop AC-979 side view camera supports 1080P HD video output and is good for various large vehicles such as buses and school buses. 120° wide angle view monitoring provides broad coverage. Supported IP68 waterproof, built-in 5pcs infrared LED lights, AUTO night vision. Built-in CMOS image processing chip, to meet customer requirements for high-quality image monitoring, making it an ideal choice for improving bus operation safety. For more camera information, please contact sales@aotop.com!
PRODUCT FEATURES
720P / 1080P AHD resolution
CMOS image sensor
IP68 waterproof level
Horizontal 120° angle (customisable)
5pcs IR LED night lights (AUTO)
PAL & NTSC TV system
Aviation 4PIN female connector
Microphone audio function optional
| Image Sensor | CMOS |
| Effective Pixels | 1920(H) * 720(V) 1920(H) * 1080(V) |
| Resolution | 720P/1080P |
| Night Vision | HD Night Vision Built-in 5pcs 0.1Lux IR LED Night Light |
| Night Vision Distance | 8-10M |
| Angle View | 120° |

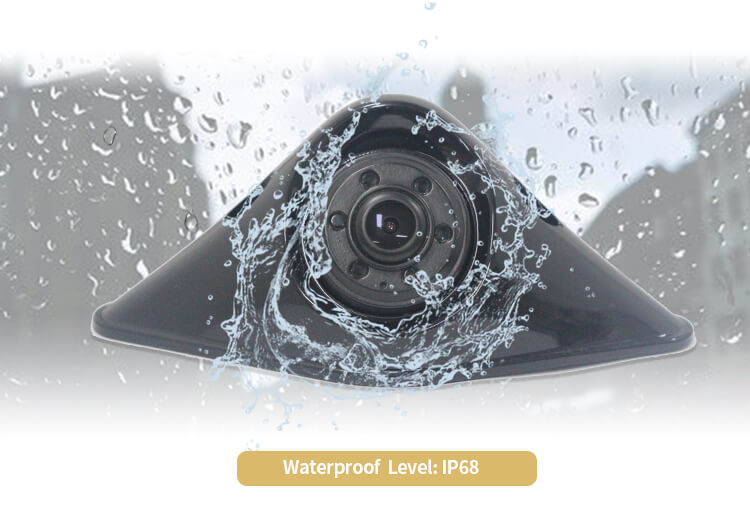

| Waterproof Level | IP68 |
| Shockproof level | 4G |

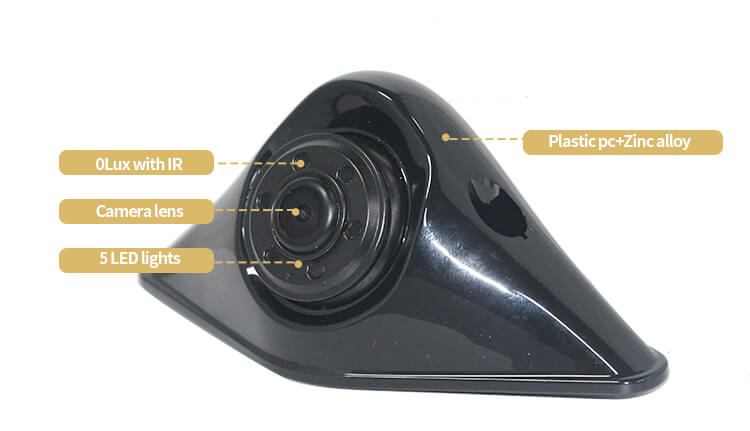

| Housing Material | Plastic + Zinc Alloy |
| Connection Plug(Connector) | Locking Aviation 4PIN Female |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional |
| Microphone | Optional |
| Customisable | Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <300mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
