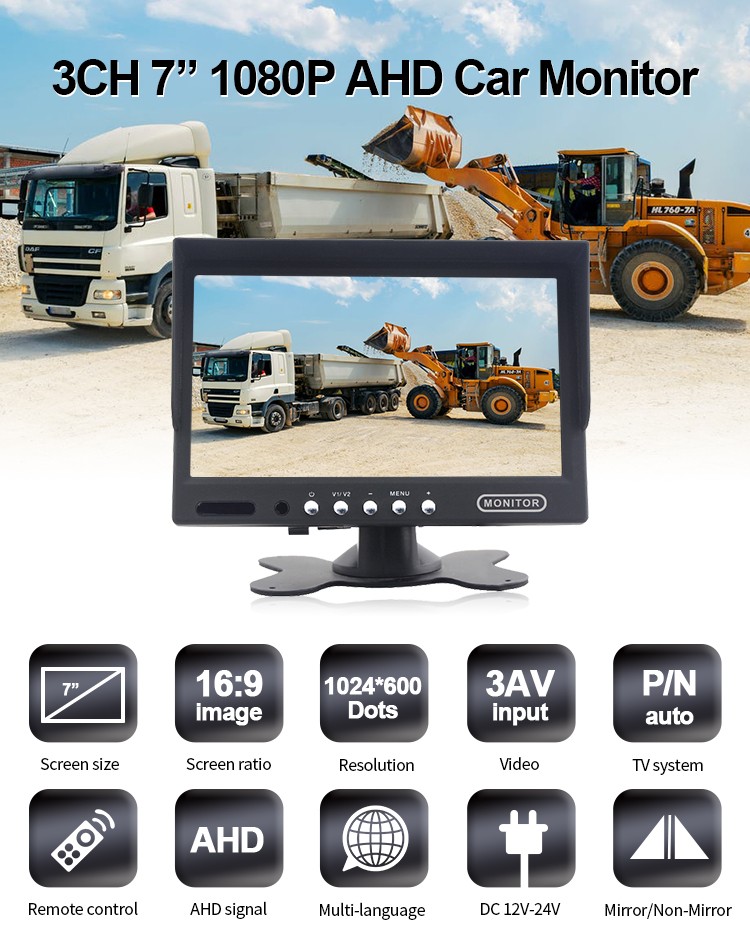

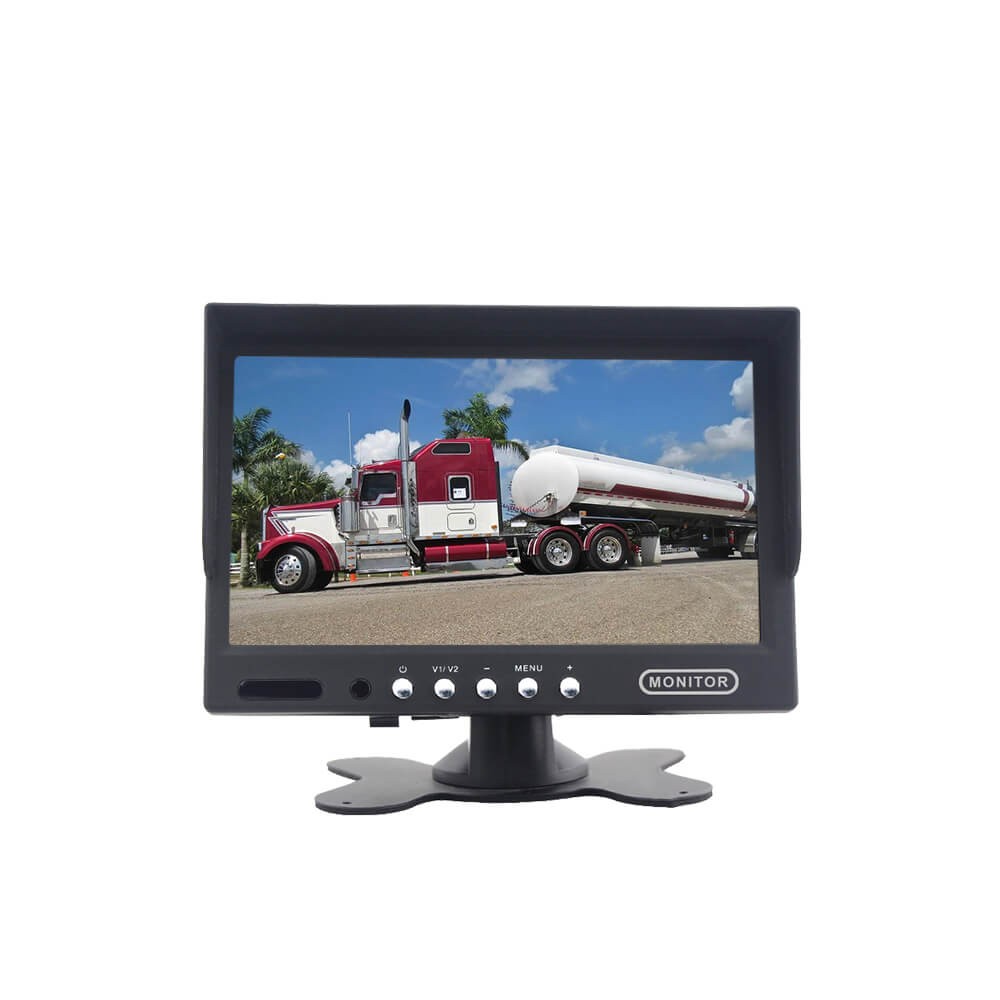

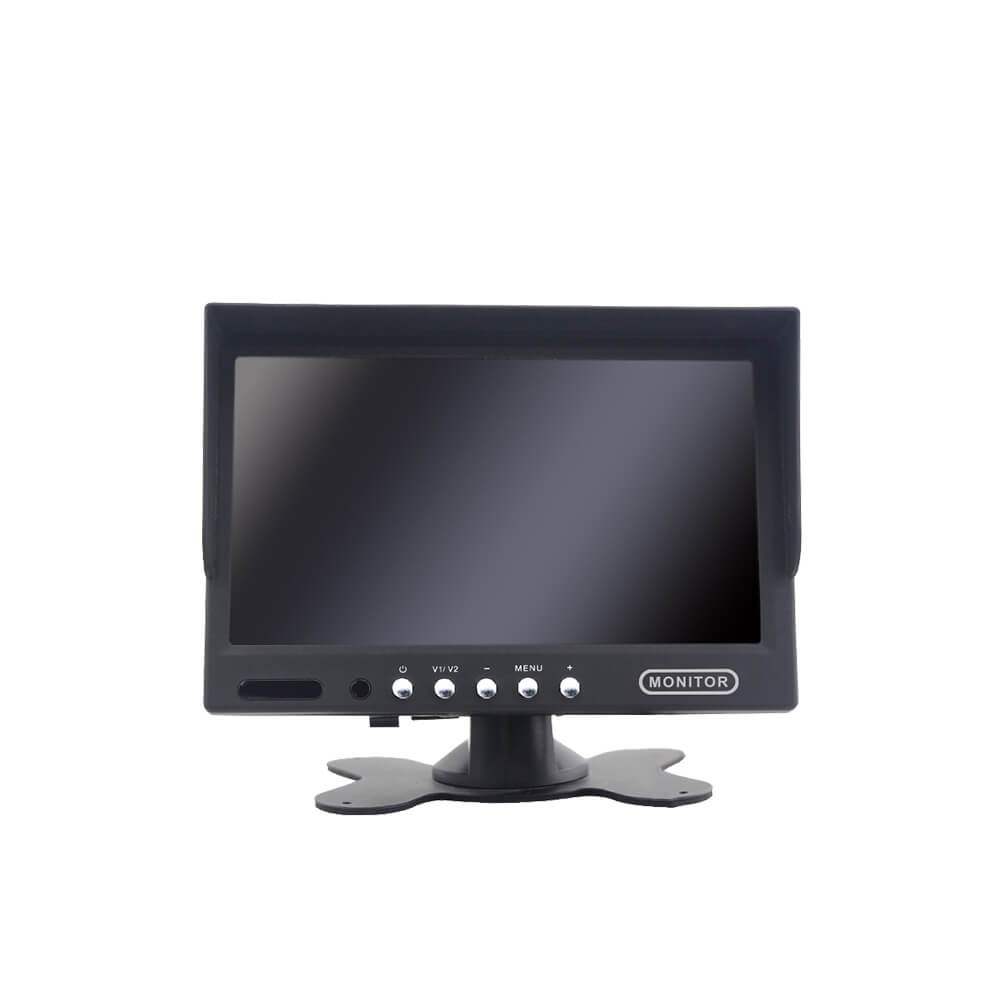

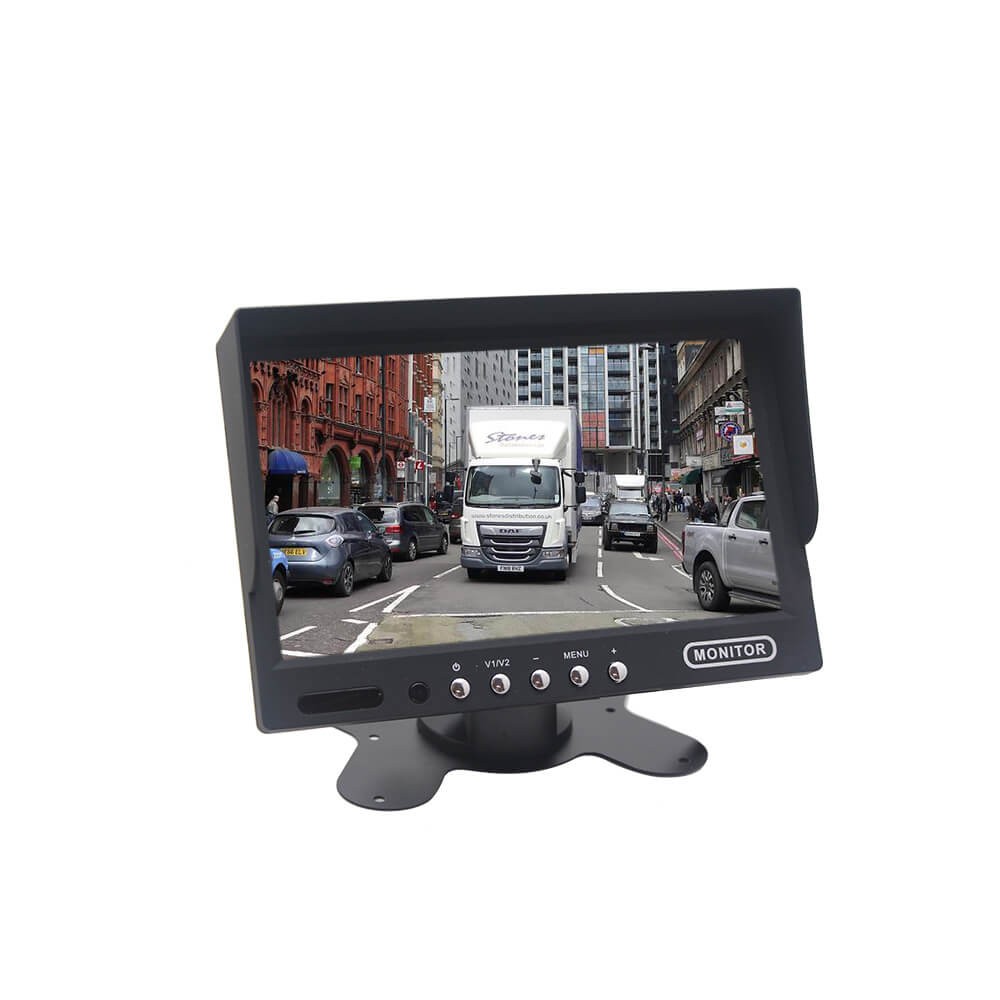

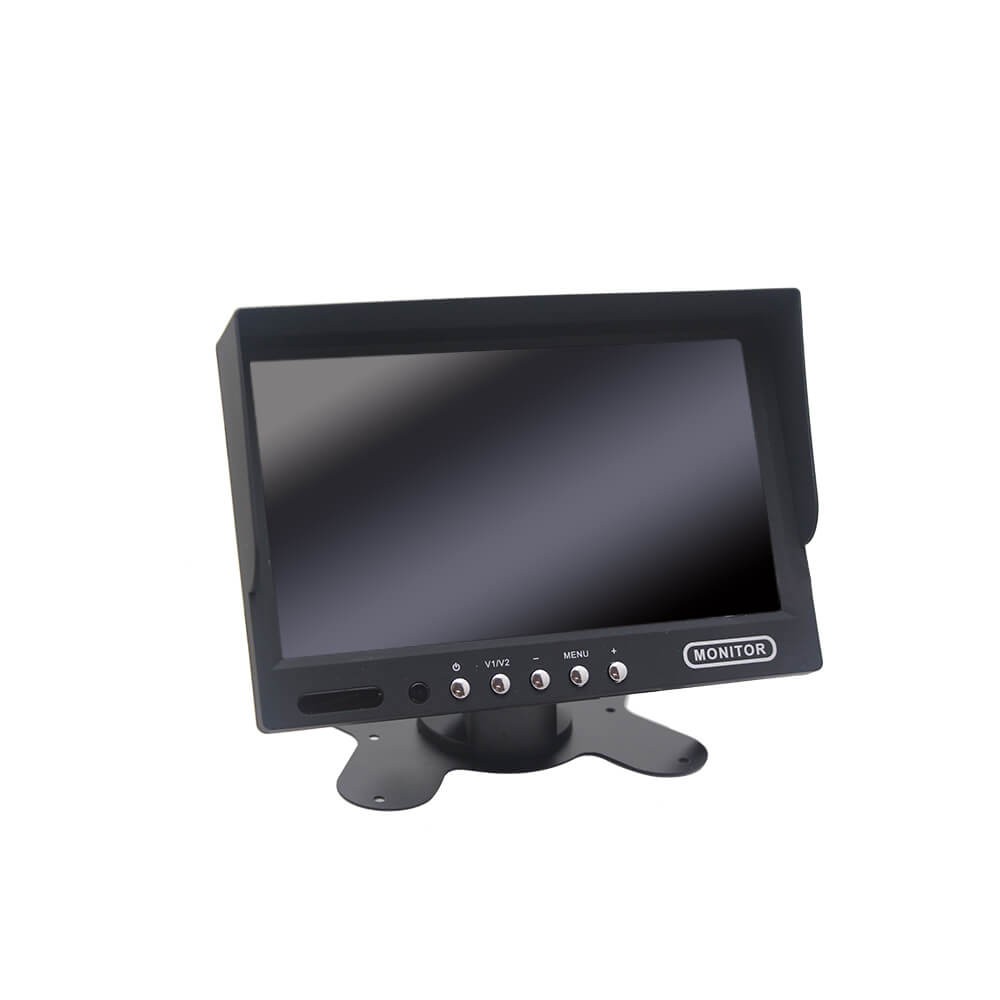

Aotop 7 inch HD vehicle rear view monitor is good for truck van. It supports 3CH 1080P/720P AHD camera inputs, providing HD monitoring of three areas around the vehicle to enhance driving safety. Supports multi-language settings and self-adaption PAL/NTSC systems. This AHD vehicle monitor meets customer needs for clear and convenient video monitoring. For more information, please contact sales@aotop.com!
PRODUCT FEATURES

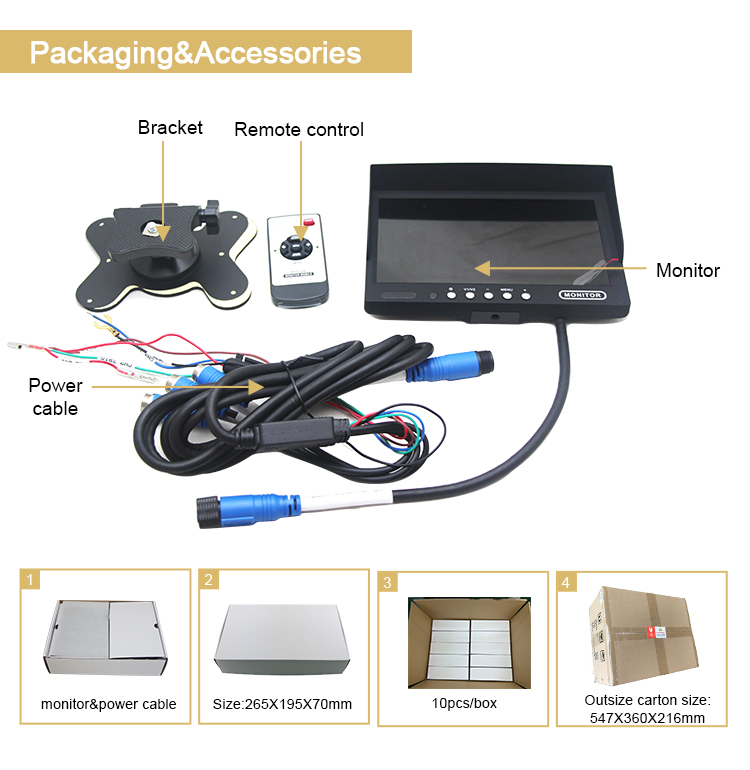

With sunshade cover & butterfly bracket
1024*RGB*600 resolution (IPS LCD screen)

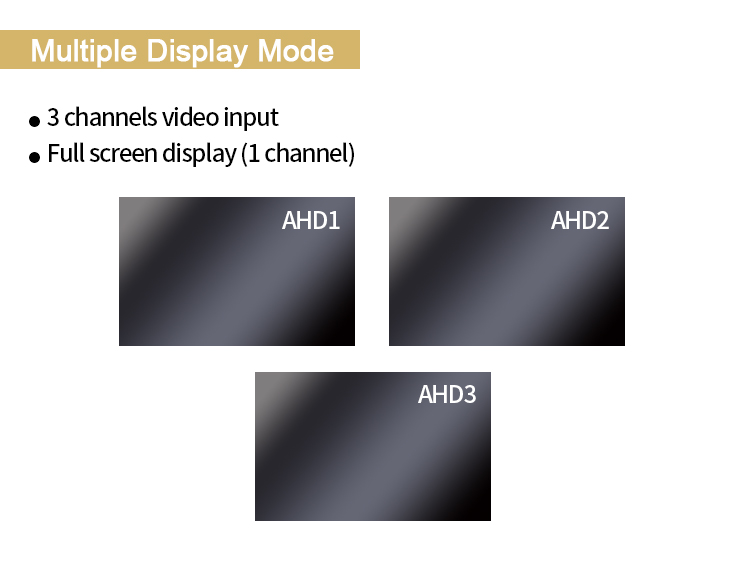

3CH x cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS

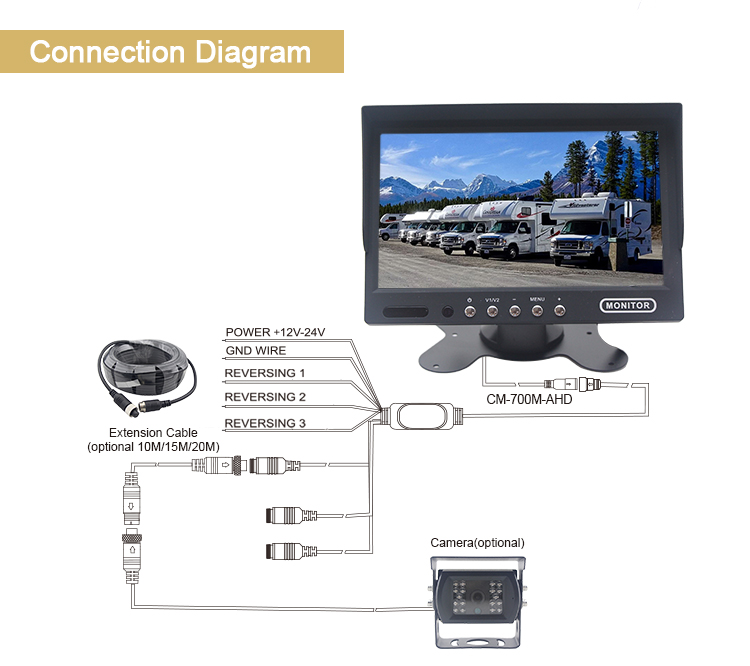

3 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;
1CH audio signal input (high quality speaker)

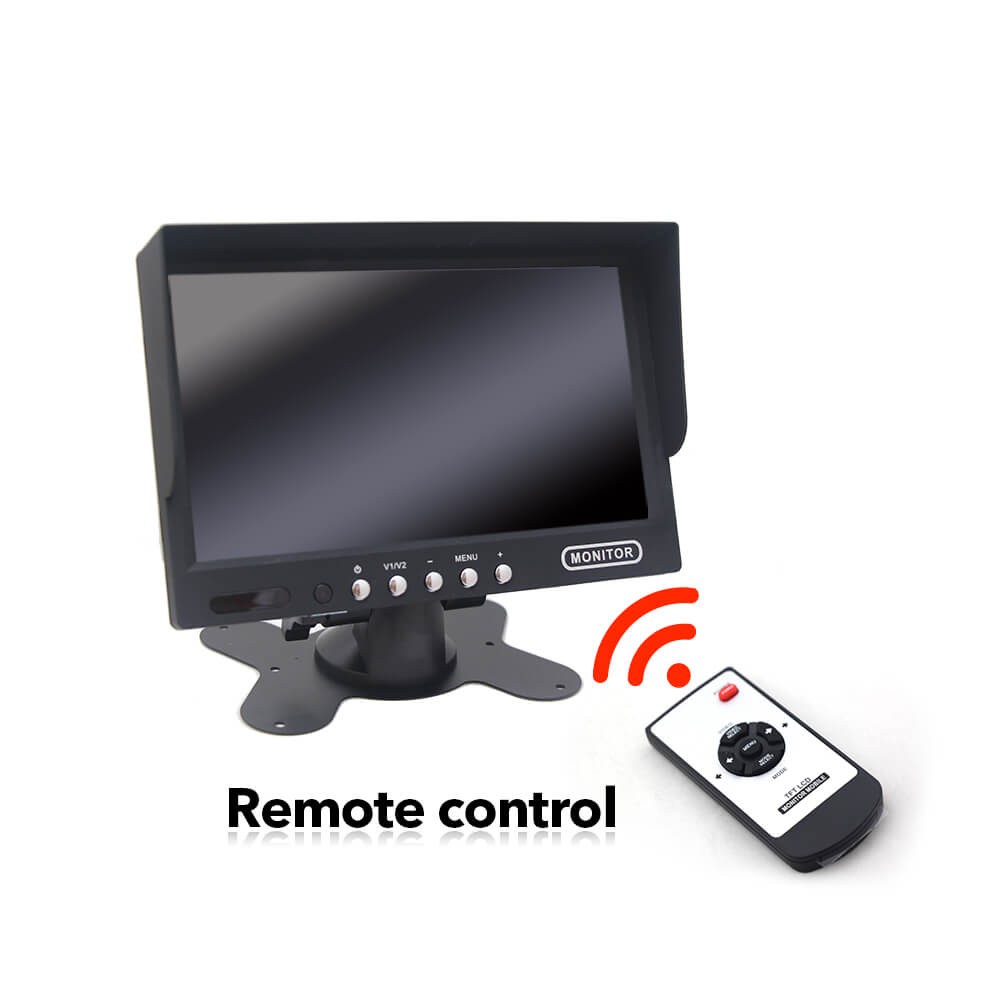

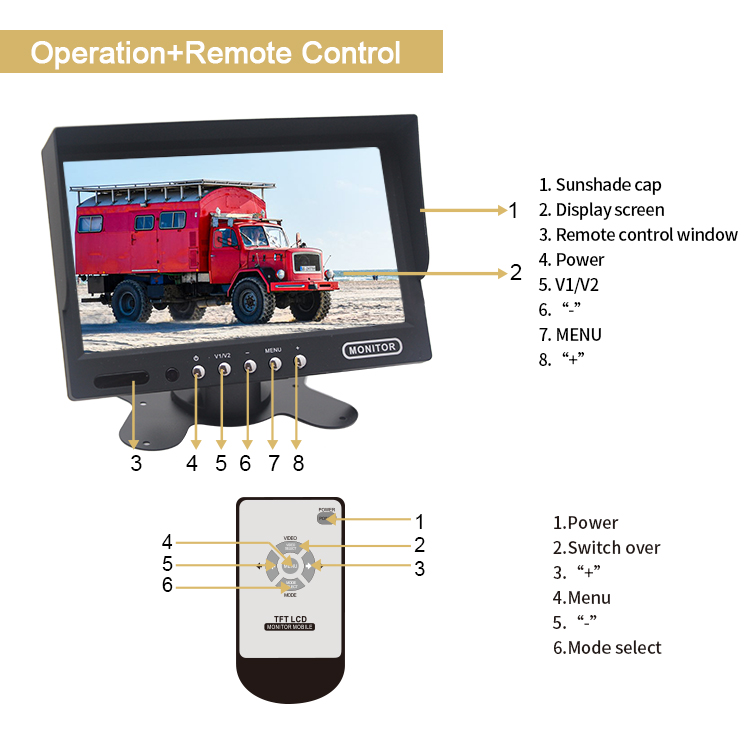

Full-function remote control
Multi-language settings
Horizontal mirror image switching; Image flip;
DC 12-24V wide voltage
AUTO adaptation PAL / NTSC system

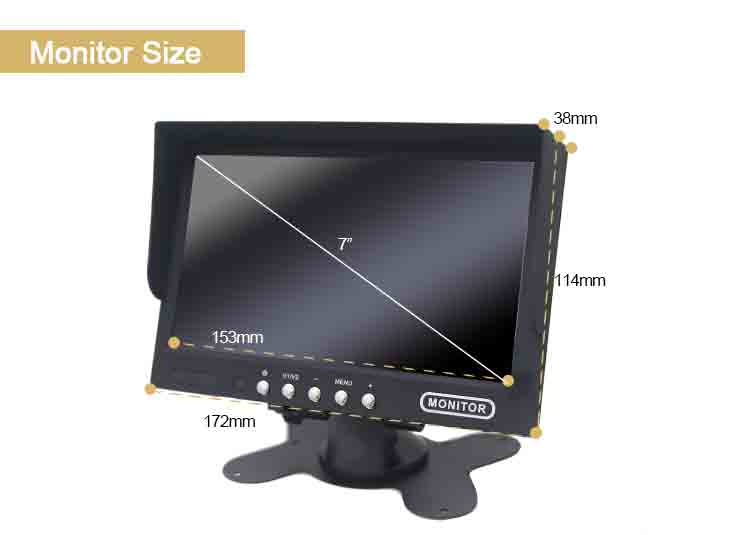

| Screen Type/Size | 7 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up-85°, Down-85°, Left/Right-85° |
| Video Input | Support 3CH AHD 1080P/960P/720P/CVBS Mixed Video Signal Input |
| Audio Input | 1CH Camera Audio Input (Available Speaker) |
| OSD Menu | Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Trigger | 3CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/1.1A |
| Operating Power | 13.2W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |
| OEM&ODM Customization | Bracket/LOGO Plate & Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
