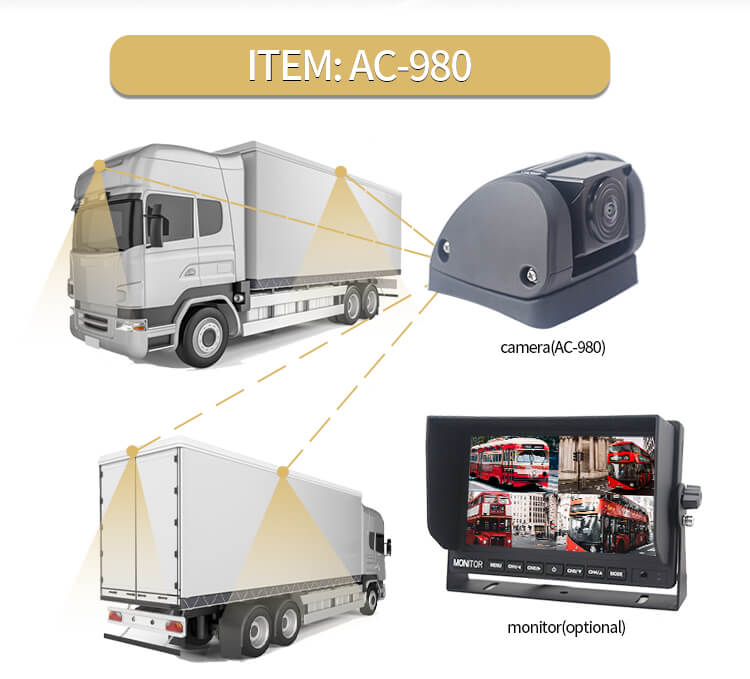

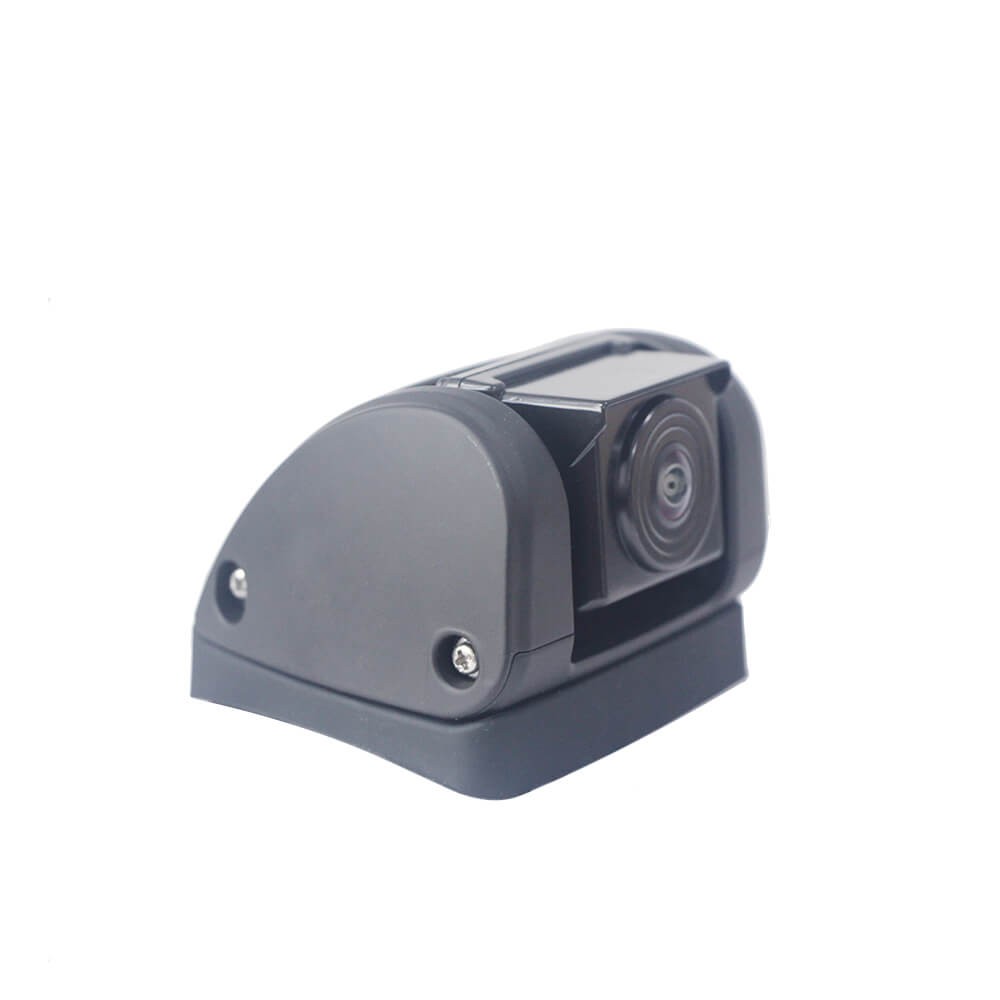

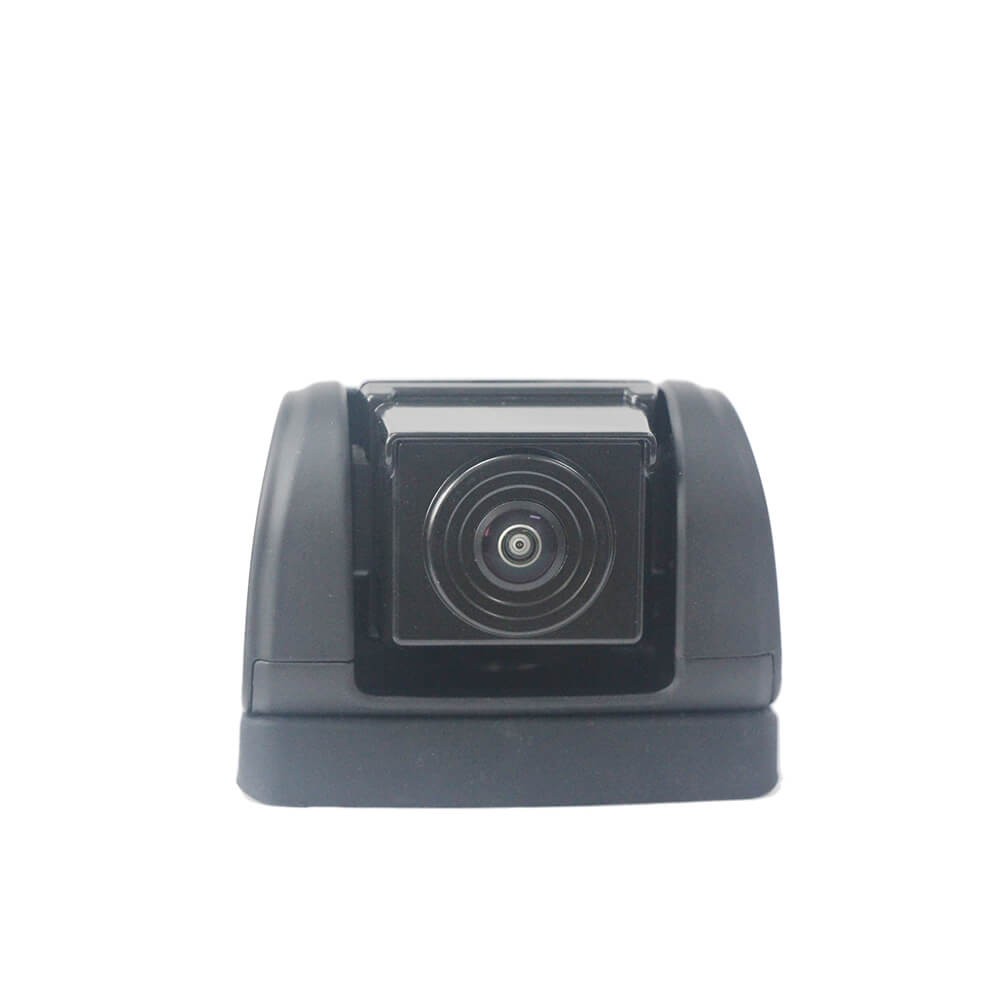

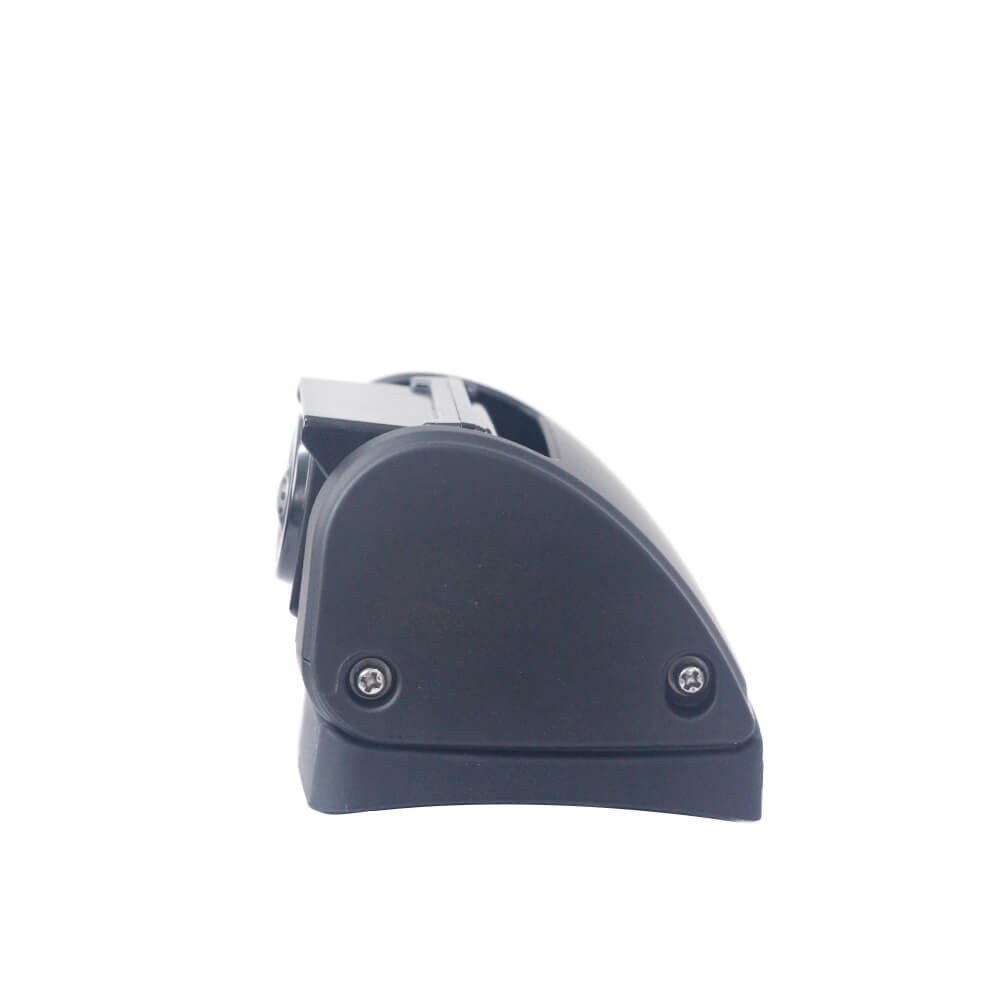

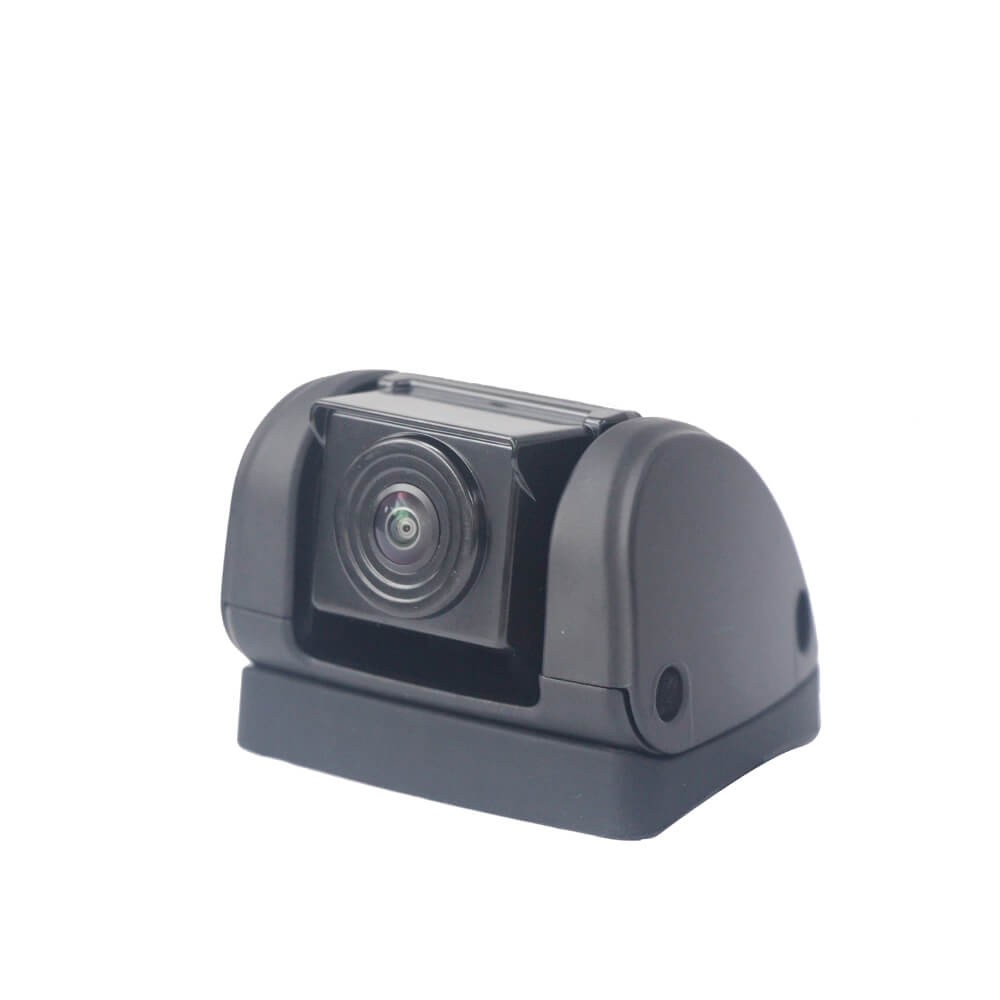

Aotop is a leading supplier & manufacturer of commercial vehicle rear view camera in China, we offer a variety of high quality backup camera solutions. Our HD 1080P AC-980 camera uses SONY CCD image processing chip, which can meet customers' requirements for high-quality vehicle monitoring. Wide-angle lens with wide monitoring range. Built-in light sensor automatic night vision function. Support IP69K waterproof to ensure normal operation in any extreme conditions, optional PAL NTSC two video system. If you are looking for a high-quality rear view reversing camera for your fleet, please contact sales@aotop.com!
PRODUCT FEATURES
720P / 1080P AHD resolution
SONY CCD image sensor
IP69K waterproof level
Diagonal 117° view (customisable)
Built-in night vision
Wide dynamic range technology
Optional PAL / NTSC TV system

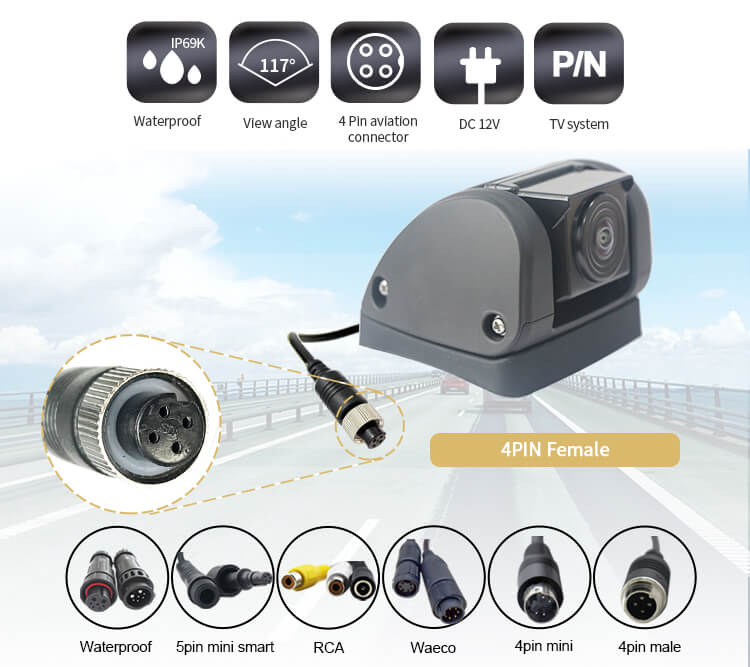

Aviation 4PIN female connector
Image Sensor | 1/3' SONY |
Effective Pixels | 1920(H) * 720(V) 1920(H) * 1080(V) |
Resolution | 720P/1080P |
Night Vision | Built-in Light Sensor, AUTO HD Night Vision |
Night Vision Distance | 8-10M |

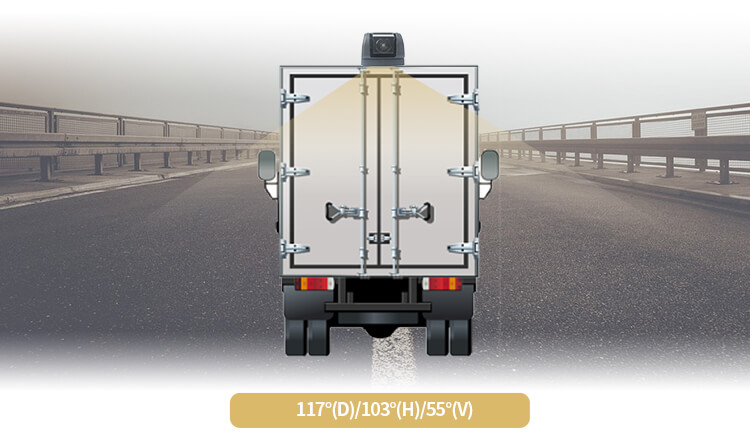

Viewing Angle | 117° Diagonal / 103° Horizontal / 55° Vertical |

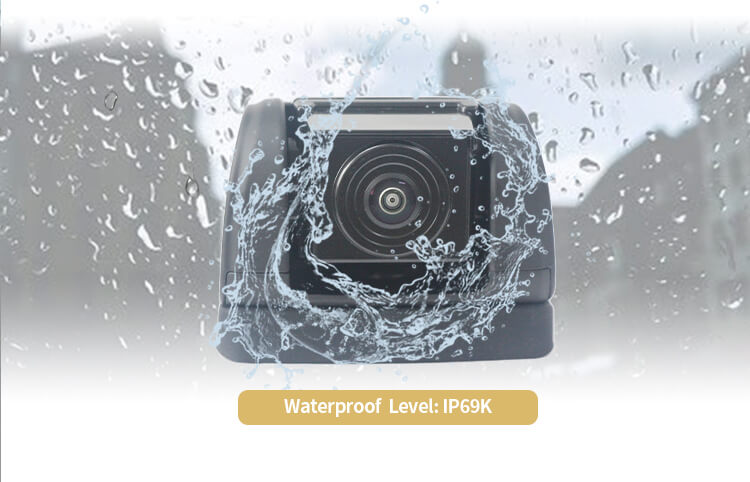

Waterproof Level | IP69K |
Shockproof level | 4G |

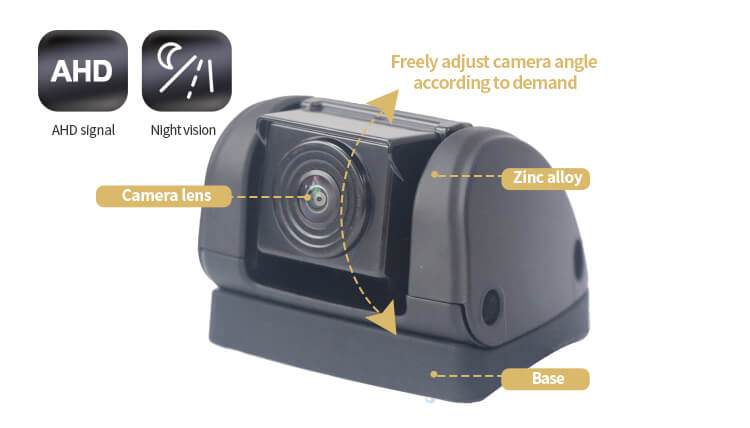

Housing Material | Plastic + Zinc Alloy |
Connection Plug(Connector) | Locking Aviation 4PIN Female |
TV System | PAL / NTSC (Default "PAL") |
Mirror & Normal Image | Optional |
Microphone | Optional |
Customisable | Connector/Angle°/Resolution |
Power Supply | 12V |
Maximum Current | ≤100mA |
Power Consumption | ≤1W |
Operating temperature | -20°c~+70°c (RH0%-RH90%) |
Storage temperature | -30°c~+80°c (RH0%-RH90%) |
Warranty | 2 Years |
