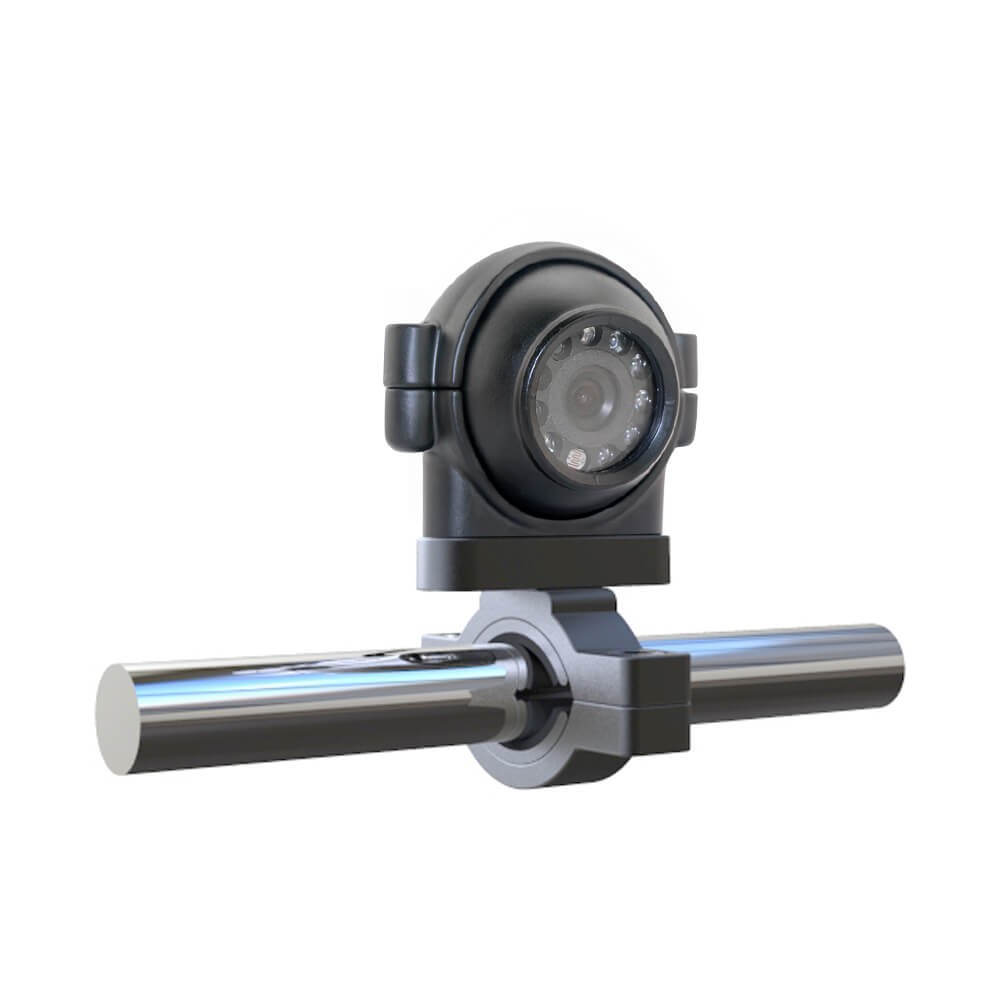

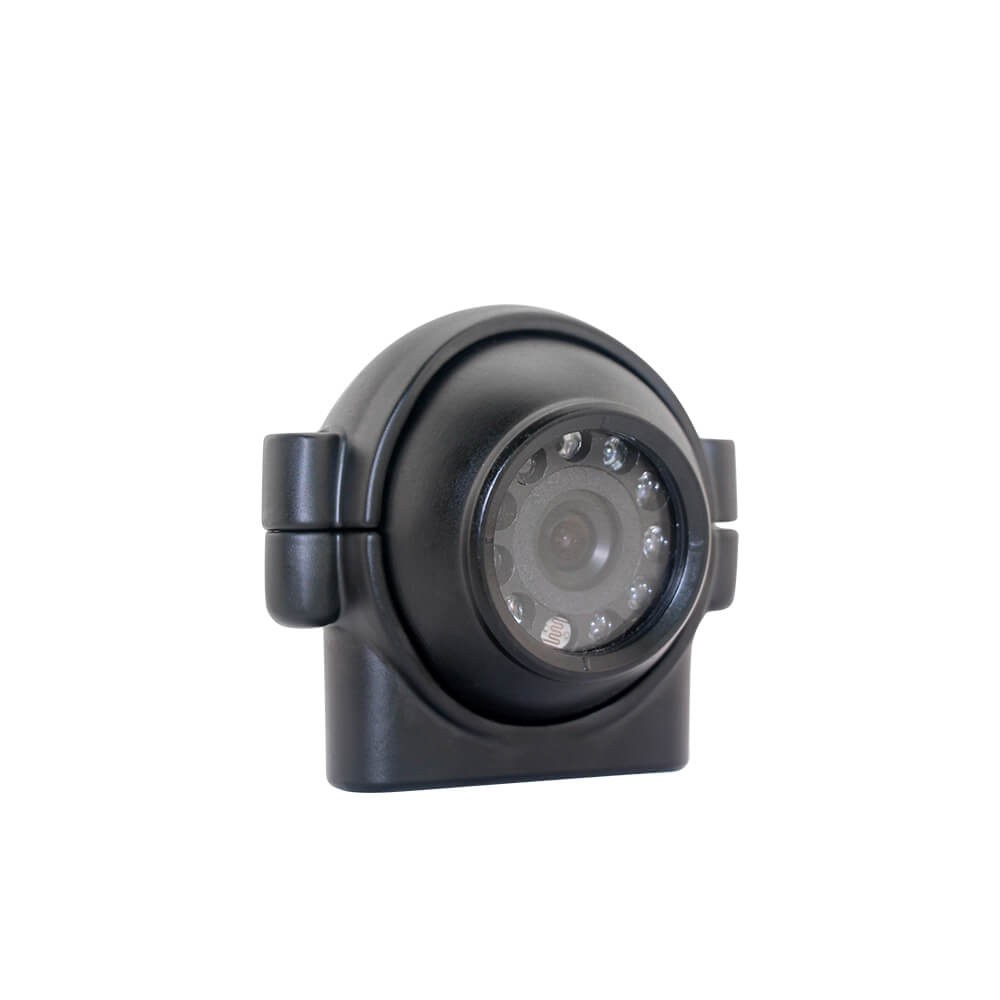

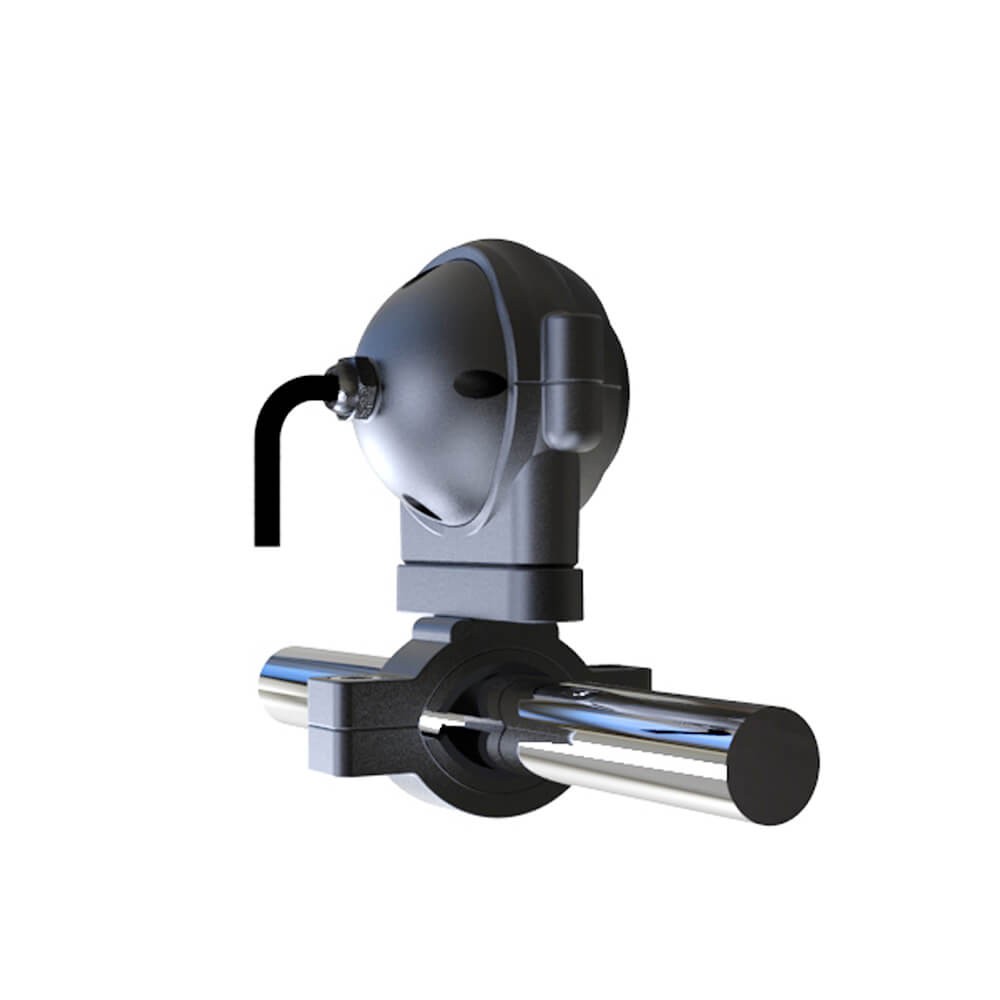

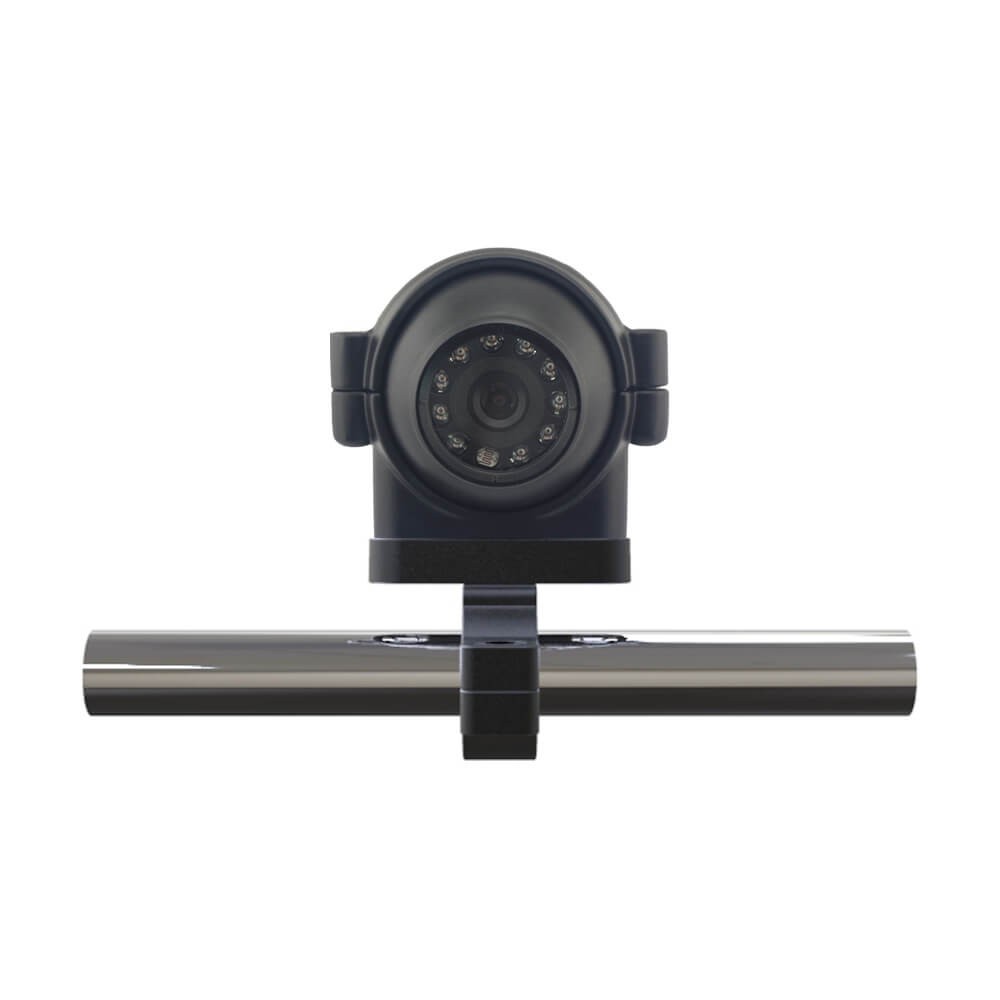

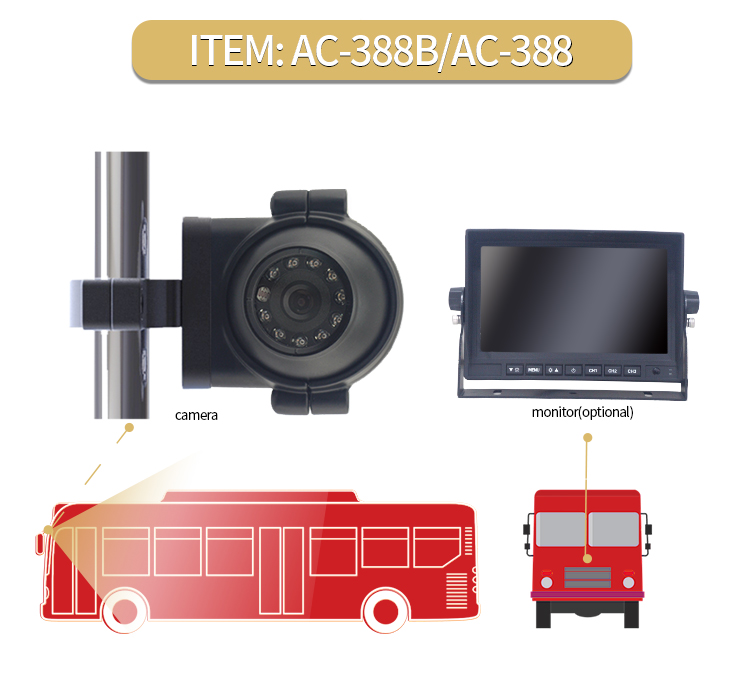

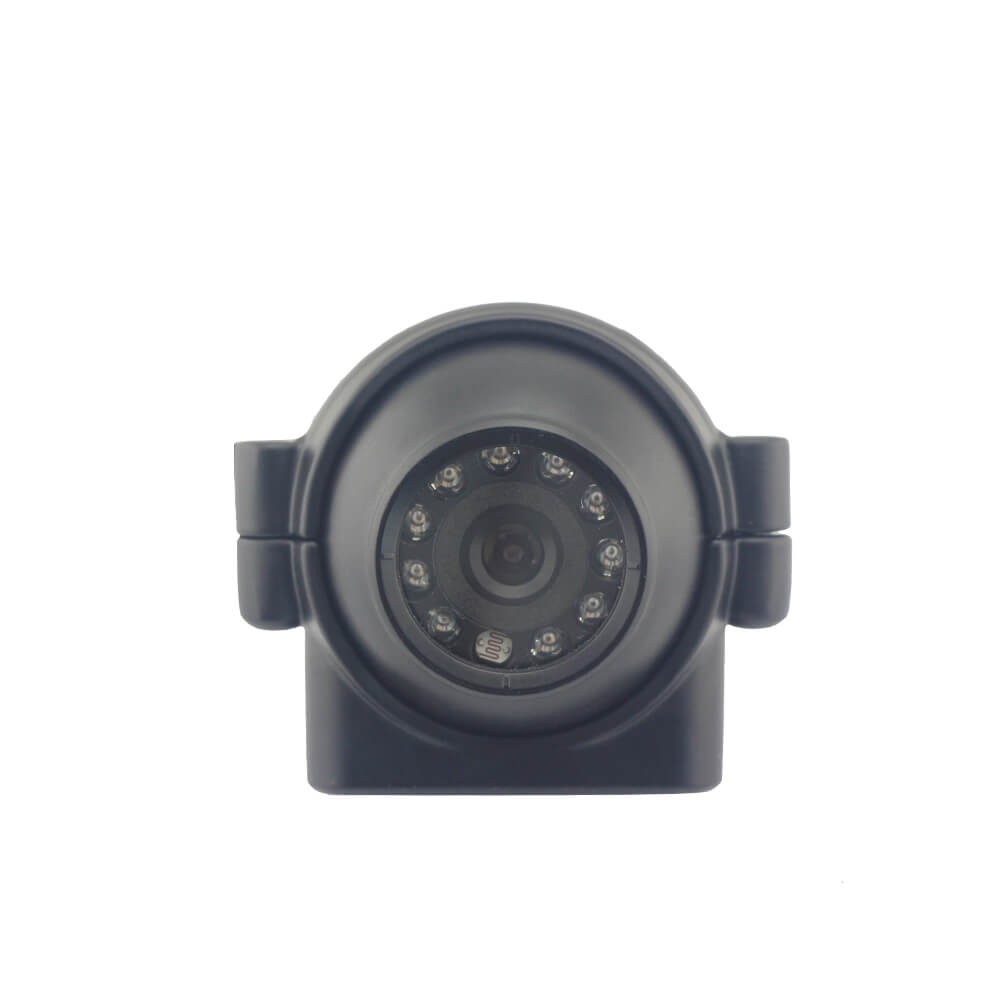

Aotop is a leading supplier & manufacturer of commercial vehicle side view cameras in China. We provide a variety of high-quality side view camera monitoring solutions. Our AC-388 side view camera optional CVBS & 1080P, feature SONY CCD image processing chip, which can meet customers' high-quality required for vehicle monitoring. Aluminum alloy shell is durable and supports IP69K waterproof. It is easy to install without drilling holes, and can be quickly fixed on the mirror arm. The wide-angle lens can expand the field of view on both sides and improve driving safety. If you are looking for an easy-to-install vehicle side view camera, please contact sales@aotop.com!
PRODUCT FEATURES
CVBS & 720P 1080P AHD resolution optional
SONY CCD / CMOS image sensor

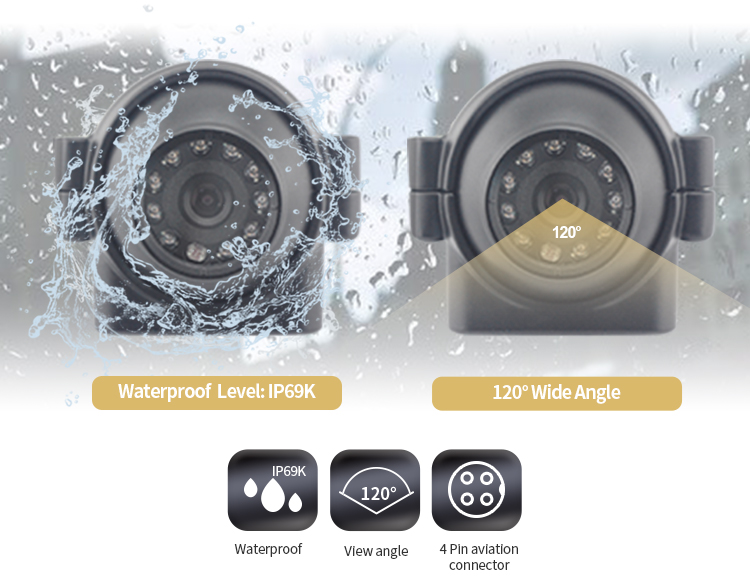

IP69K waterproof dustproof
120° wide angle (customisable)

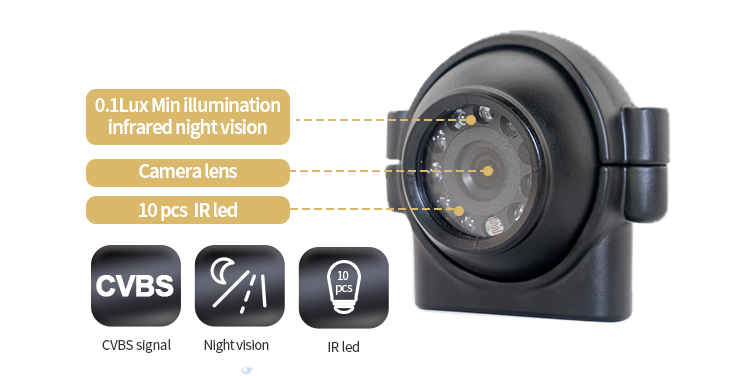

10pcs IR LED lights (AUTO night vision)
Optional PAL & NTSC TV system

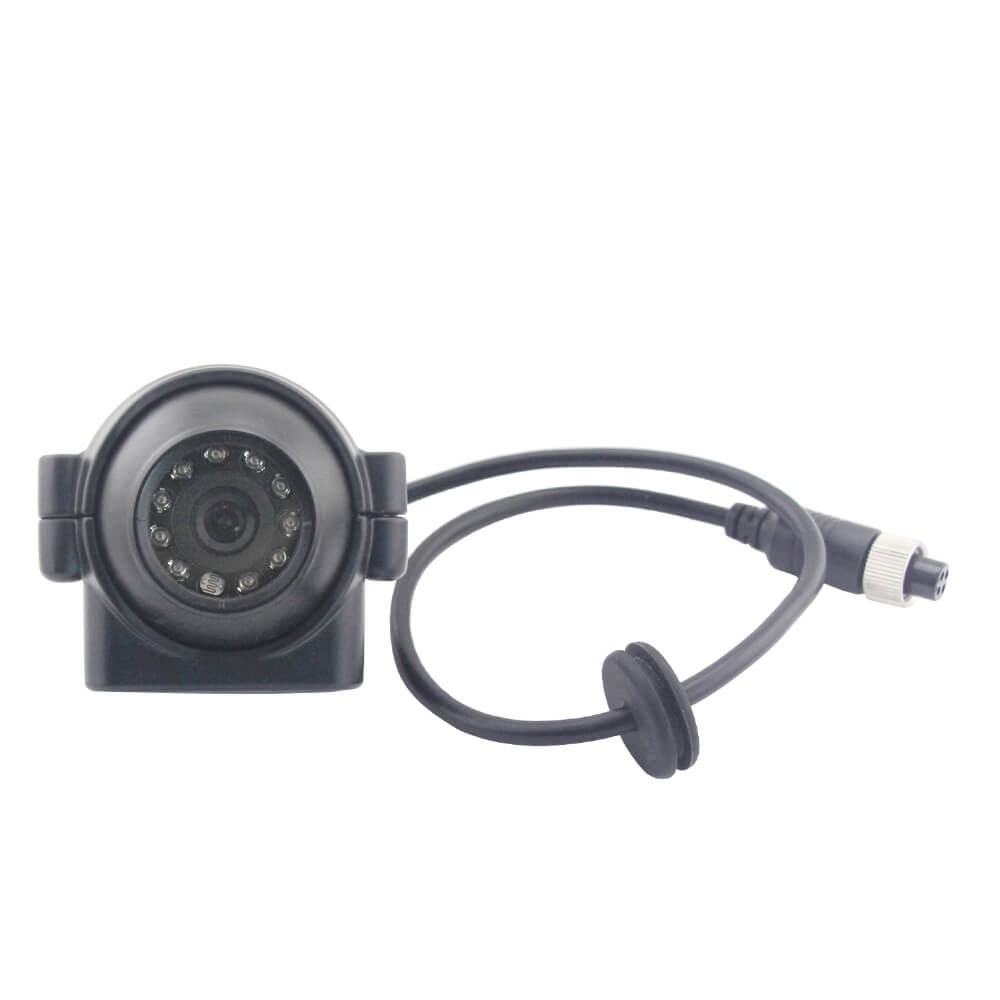

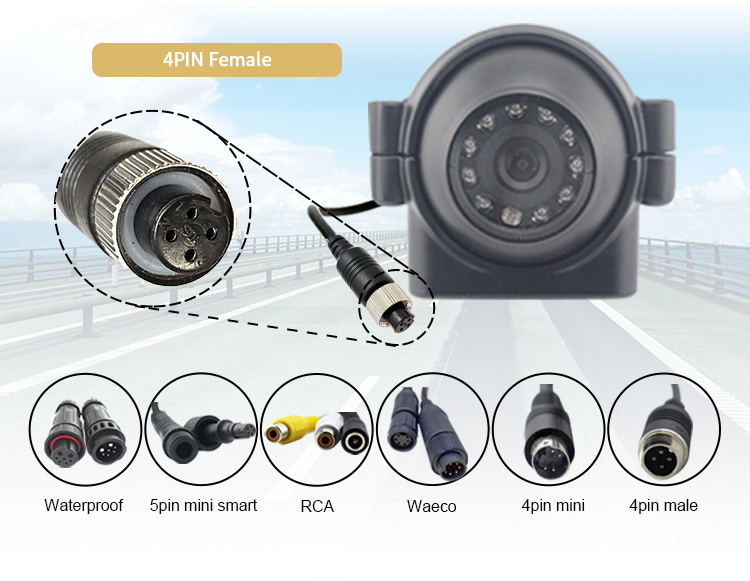

Aviation 4PIN female connector
Horizontal mirror image switching
| Image Sensor | SONY CCD / CMOS |
| Effective Pixels | 1920(H) * 720(V) 1920(H) * 1080(V) |
| Resolution | 720P / 1080P |
| Night Vision | HD Night Vision, Built-in 10pcs 0.1Lux IR LED Night Light |
| Night Vision Distance | 8-10M |
| Angle View | 120° |
| Waterproof Level | IP69K |
| Shockproof level | 4G |

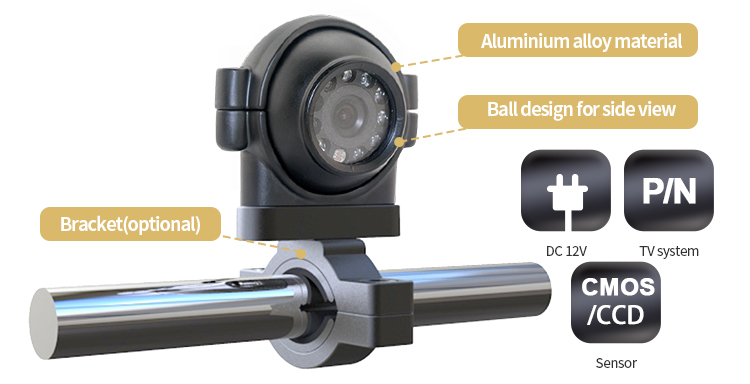

| Housing Material | Aluminium Alloy |
| Connection Plug(Connector) | Locking Aviation 4PIN Female & RCA |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |
| Mounting Bracket | Optional |
| Microphone | Optional |
| Heating Function | Optional |
| Customisable | Color/Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <250mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, E-Mark, RoHS, IP69K |
