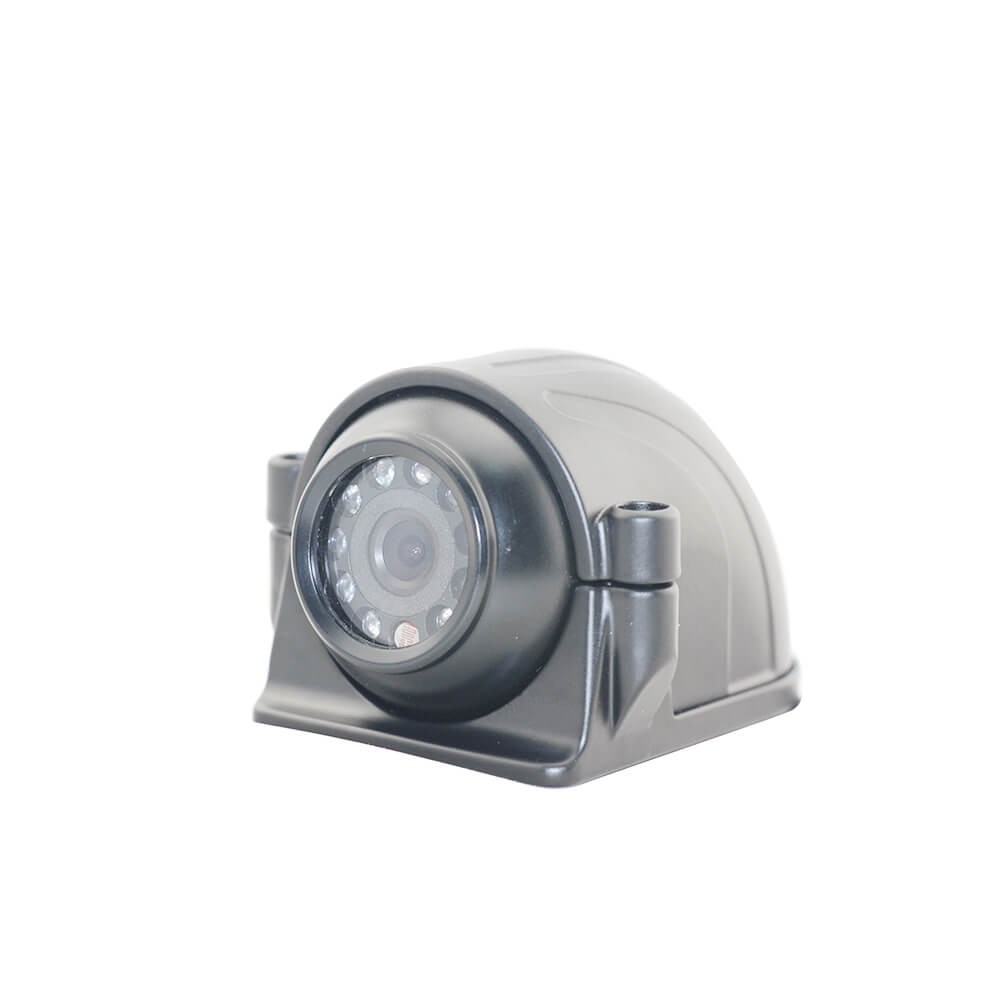

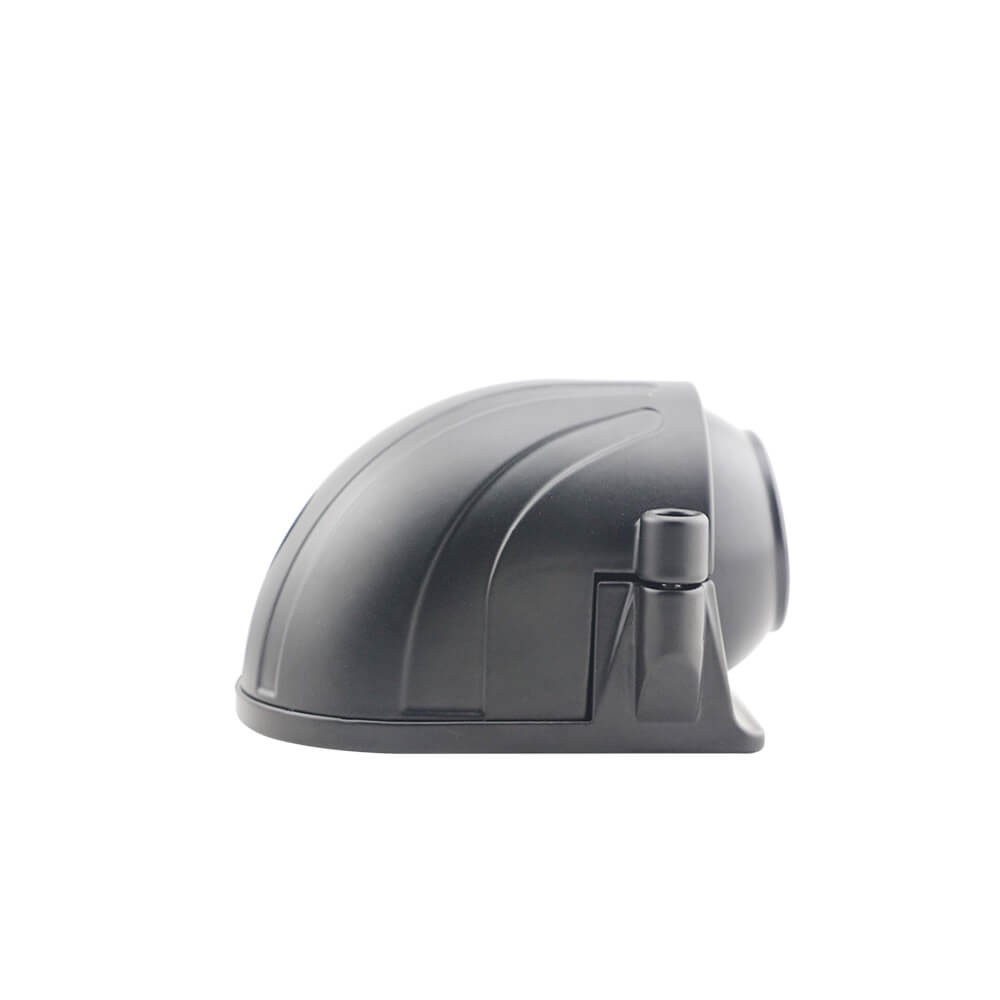

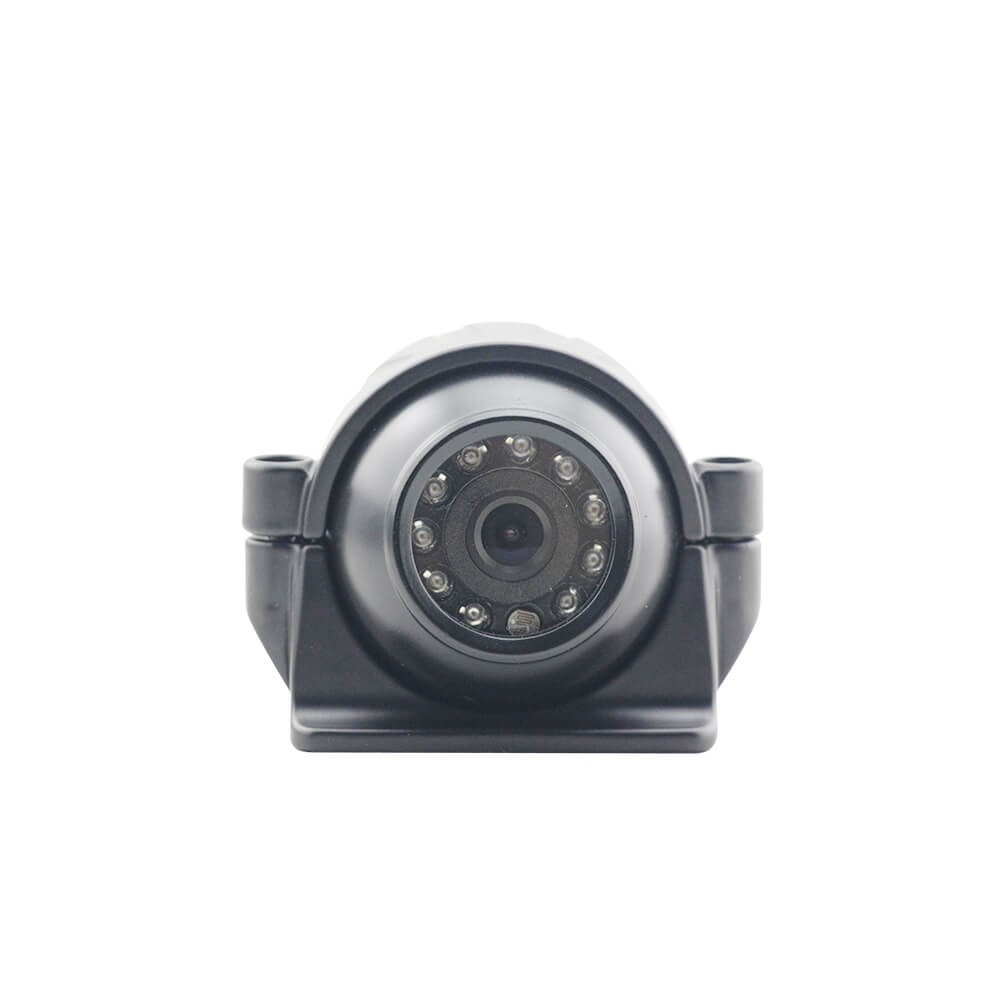

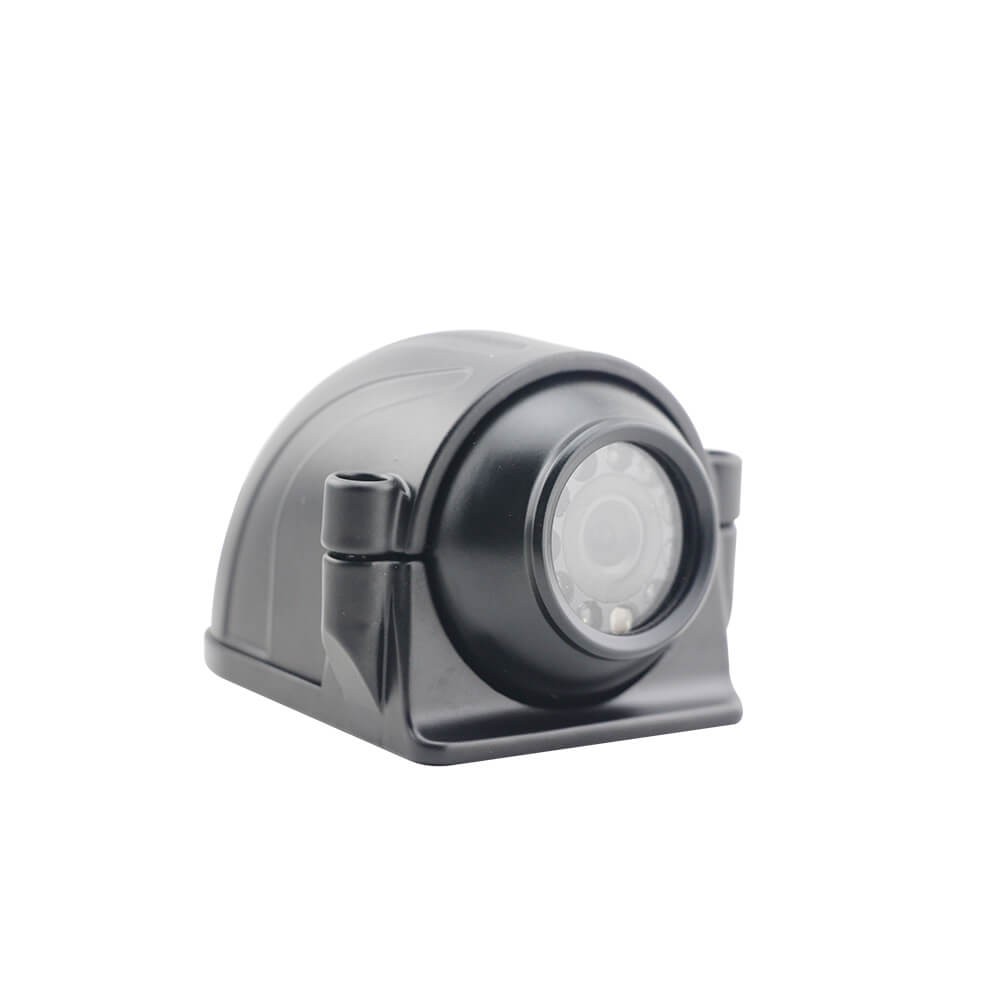

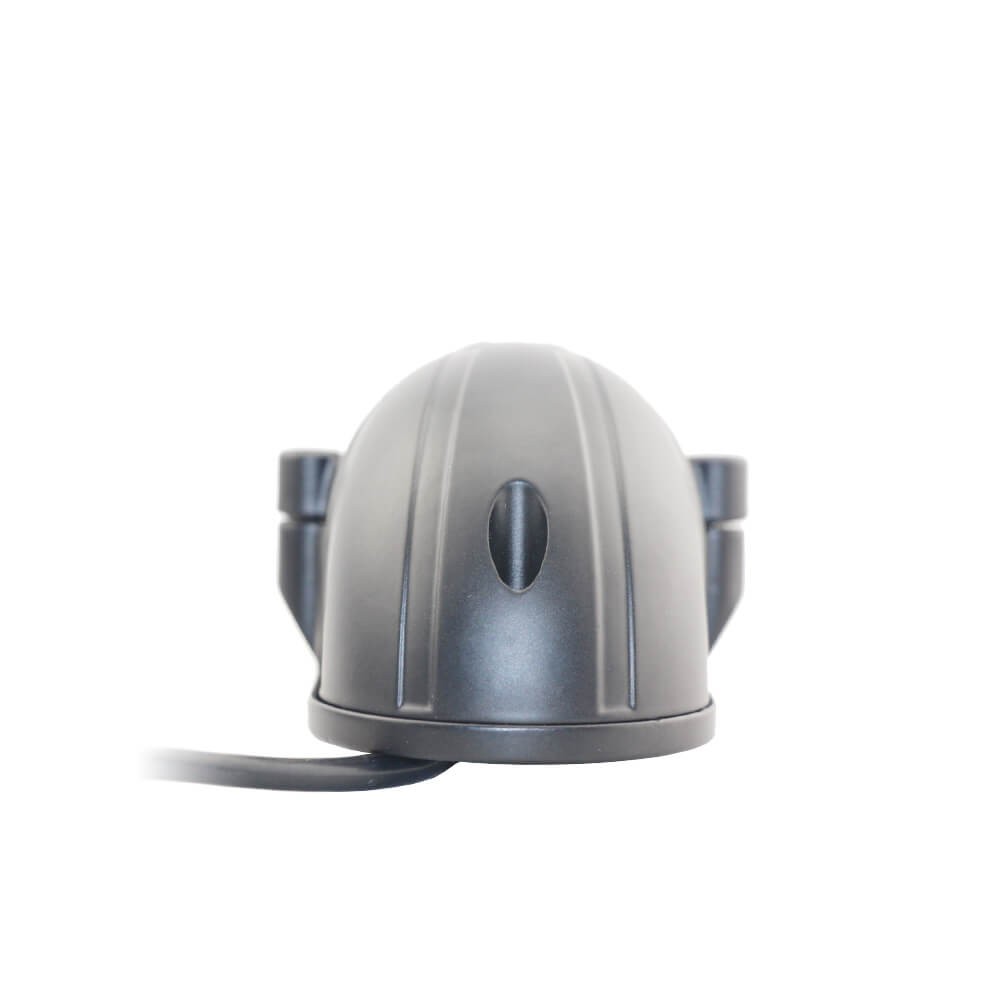

12V Truck Side View Camera with Night Vision

Aotop is a leading manufacturer & supplier of side view cameras in China, we provide a series of high-quality side view camera solutions. Our AC-389 camera uses SONY CCD image processing chip, which can output high-quality images. 120° wide-angle lens, support IP69K waterproof. Built-in 10pcs min brightness infrared LED night vision lights, 35ft high-definition night vision distance. If you are looking for a wide angle side view camera solution for your fleet, please contact sales@aotop.com!

PRODUCT FEATURES


  • CVBS & 720P 1080P AHD resolution optional

  • SONY CCD / CMOS image sensor

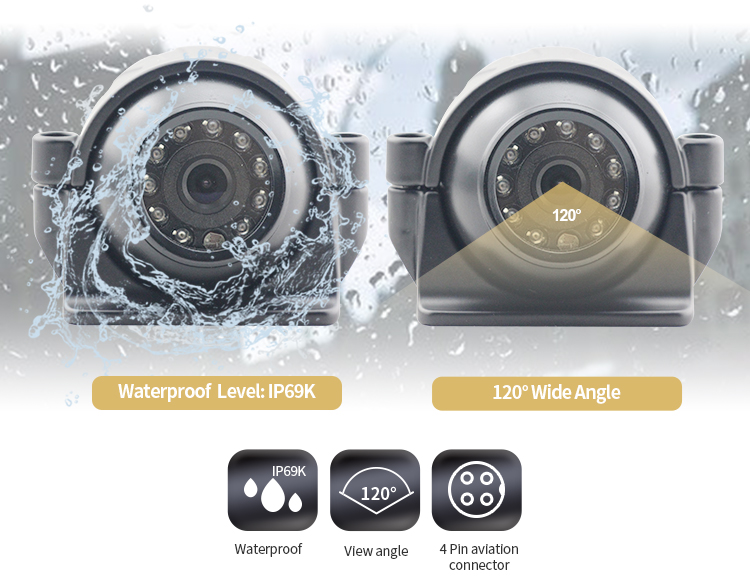

  • IP69K waterproof dustproof

  • 120° wide angle (customisable)

  • 10pcs IR LED night lights (AUTO ON/OFF)

  • Optional PAL & NTSC TV system

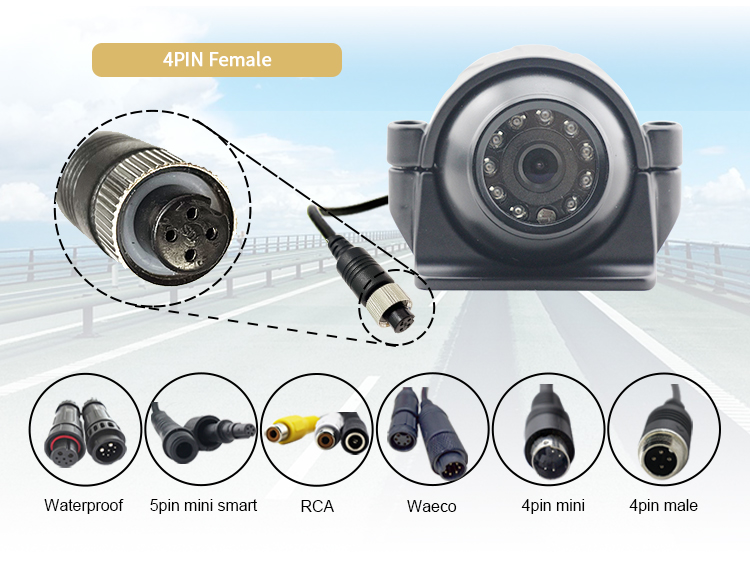

  • Aviation 4PIN female connector

  • Microphone audio function optional

  • Horizontal mirror image switching

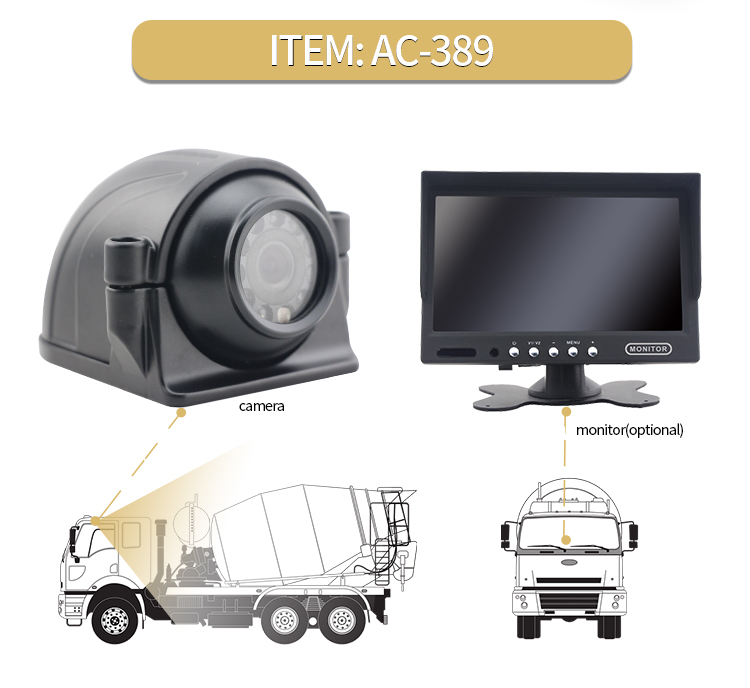

12V Truck Side View Camera with Night Vision (AC-389):

Image SensorSONY CCD / CMOS
Effective Pixels

1920(H) * 720(V)
1920(H) * 1080(V)

Resolution720P/1080P
Night VisionHD Night Vision,

Built-in 10pcs 0.1Lux IR LED Night Light

Night Vision Distance8-10M
Angle View120°
Waterproof LevelIP69K
Shockproof level4G

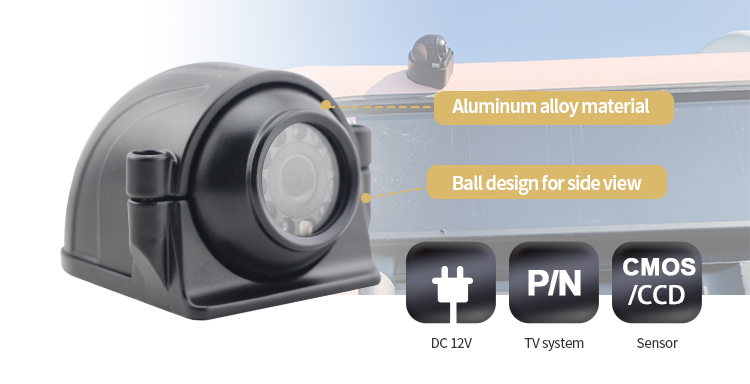

Housing MaterialAluminium Alloy
Connection Plug(Connector)Locking Aviation 4PIN Female & RCA
TV SystemPAL / NTSC (Default "PAL")
Mirror & Normal ImageOptional (Default "Mirror")
MicrophoneOptional
Heating FunctionOptional
CustomisableConnector/Angle°/Resolution
Power Supply12V
Maximum Current<250mA
Power Consumption<3W
Operating temperature-20°c~+70°c (RH0%-RH90%)
Storage temperature-30°c~+80°c (RH0%-RH90%)
Warranty2 Years
CertificationCE, E-Mark, RoHS, IP69K
