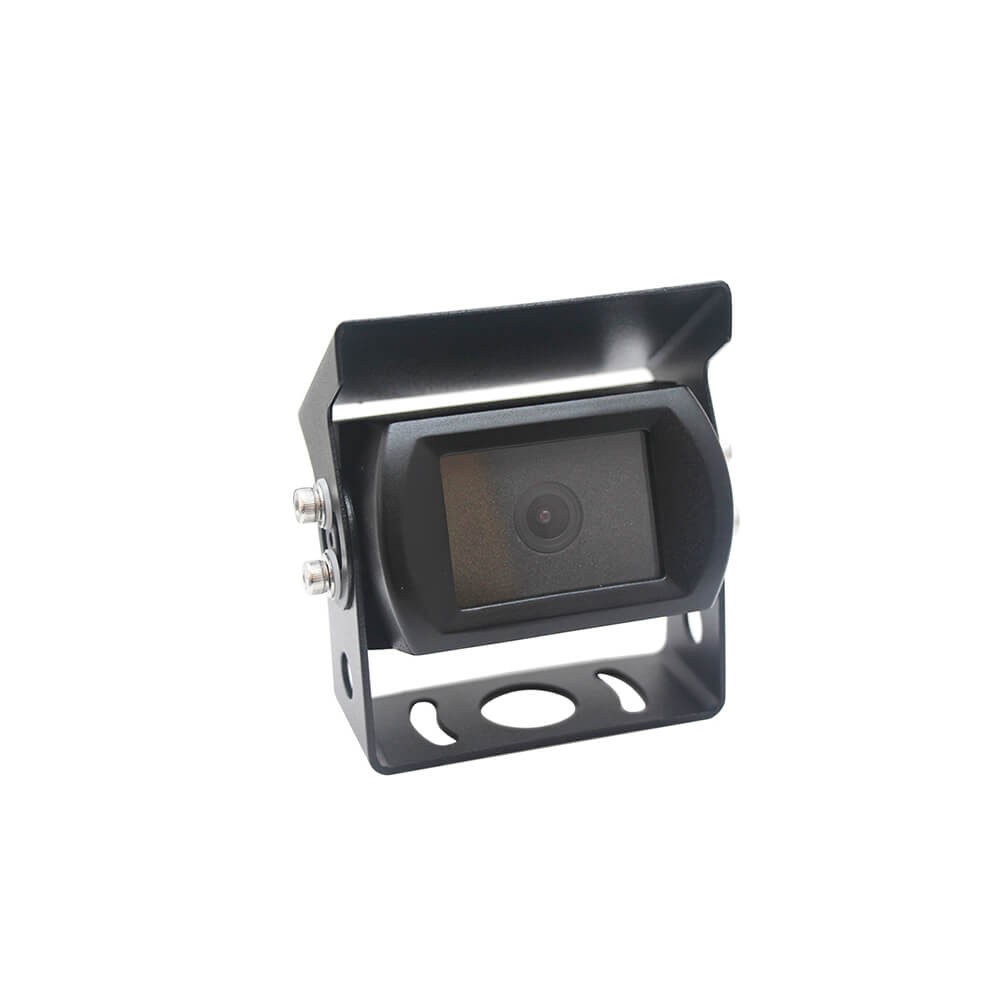

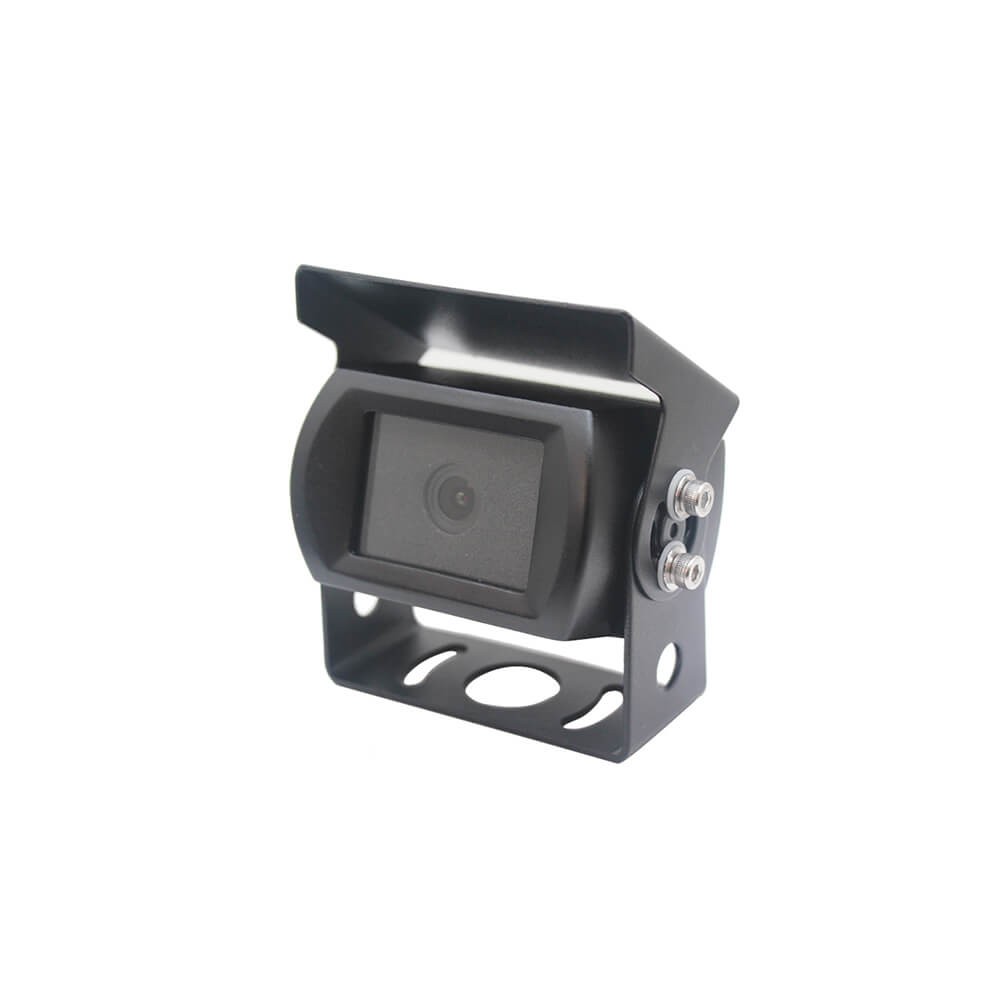

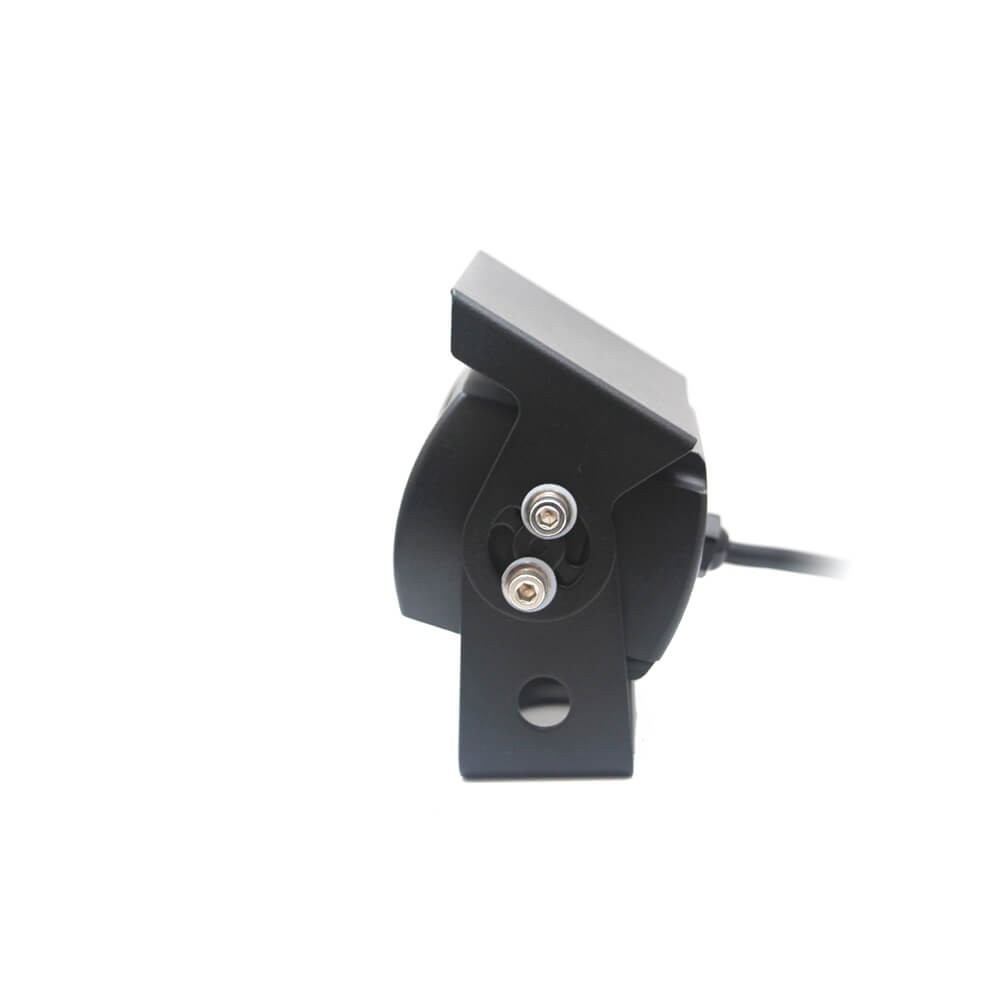

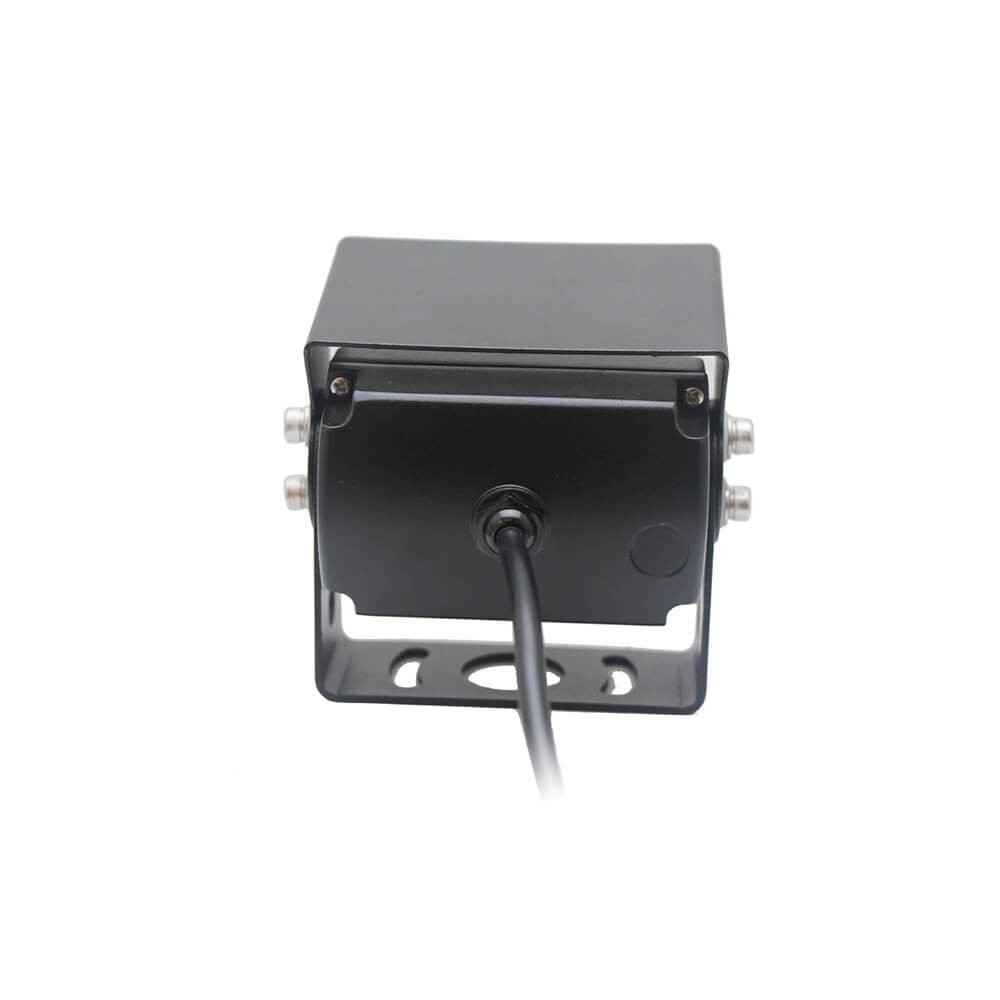

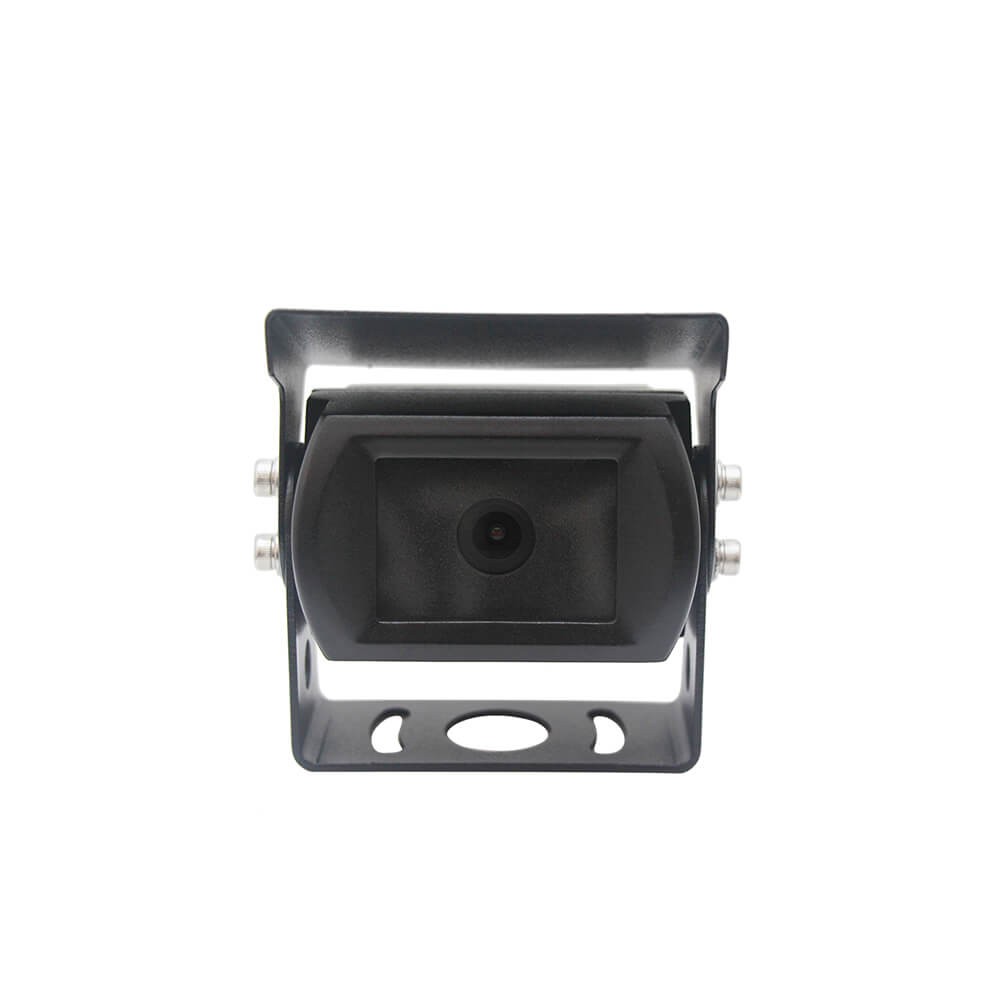

HD Vehicle AI Reverse Rear View Camera

AC-301(AI) reverse camera has built-in AI algorithm that detects pedestrians and vehicles around the vehicle, alerting drivers to potential risks, avoiding collisions and improving driving safety! For more information about AI camera, please contact us at sales@aotop.com.

PRODUCT FEATURES

Aotop AC-301(AI) AI reverse camera employs advanced image recognition technology and an AI algorithm chip to monitor and analyze the situation around the vehicle in real time. It intelligently identifies objects, pedestrians, or vehicles within its field of view and marks the safe distance with different colored outlines. Green indicates an area where safety is not a concern, while yellow prompts a warning, advising the driver to be aware of possible dangers. As soon as any object or individual enters the blind spot, the camera alerts the driver to take action by sounding a warning through the monitor horn. This greatly enhances driving safety and helps prevent possible collisions or accidents.

720P & 1080P HD video signal output
CMOS image sensor
Built-in night vision

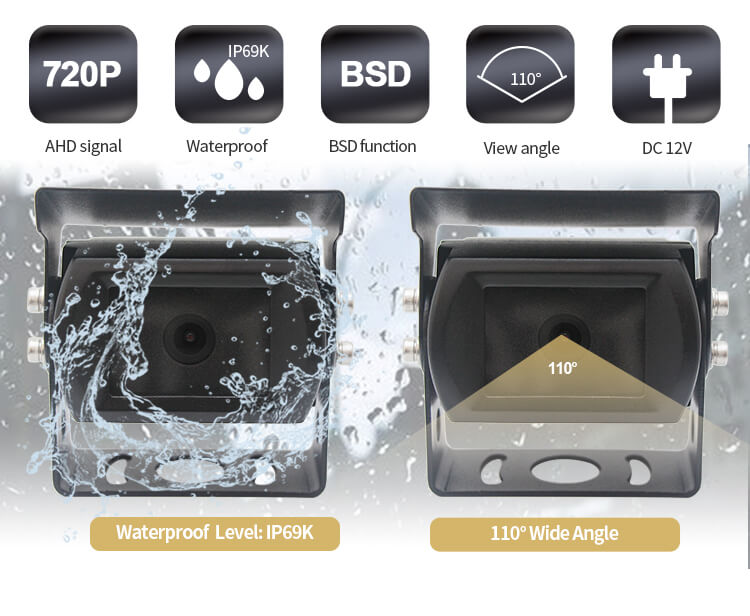

110° wide angle lens (customisable)
IP69K waterproof / 4G shockproof
Optional PAL / NTSC TV system
Blind spot detection technology &
AI artificial intelligence algorithm detection technology
(Square outline pedestrian vehicle obstacles in the field of view)
Audible alarms (via monitor speaker)
Trigger guide line when reversing (via monitor)

HD Vehicle AI Reverse Rear View Camera (AC-301AI):

Image sensor	1/2.9' GC2053 CMOS
Effective Resolution	1280720P/ 19201080P
AI recognition algorithm	Delay 120MS within the range of 0-15KM per hour
Viewing angle	2.8mm lens, horizontal 110 degrees
Detect distance	8 Meters
Signal to noise ratio	>52DB(AGC OFF)
System	PAL system as default (NTSC optional)
Audio	Support
Parking guideline	With as default
Image	Mirror as default
Video Output	720P/1080P
3D Noise reduction	Support
Waterproof level	IP69K
Shockproof level	4G

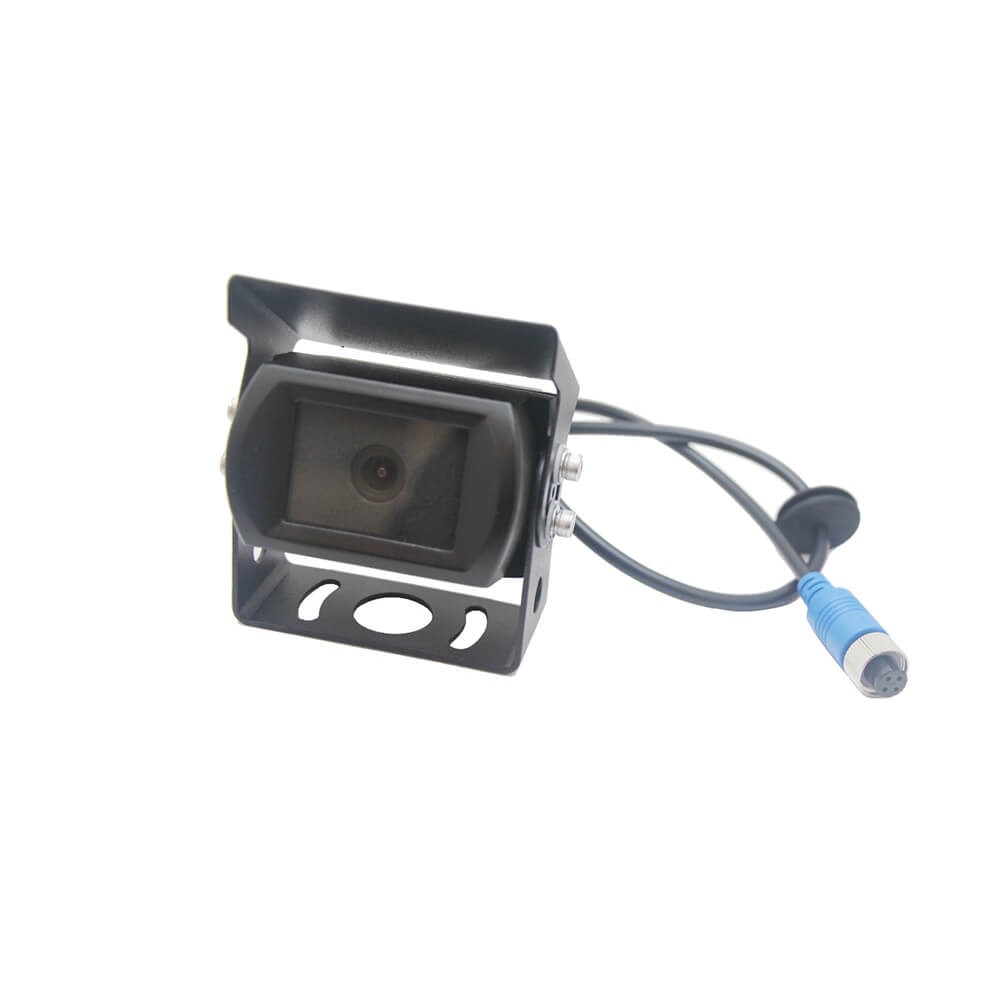

Connectors	4PIN aviation connector
Power supply	DC9-12V
Power consumption	About 0.8W
Maximum current	80MA
Working temperature	-20℃~ +70℃
Storage temperature	-30℃~ +80℃
