AC-800LB2 High Definition IP68 Combination Vehicle Work Lamp Reverse Camera

AC-800LB2 High Definition IP68 Combination Vehicle Work Lamp Reverse Camera

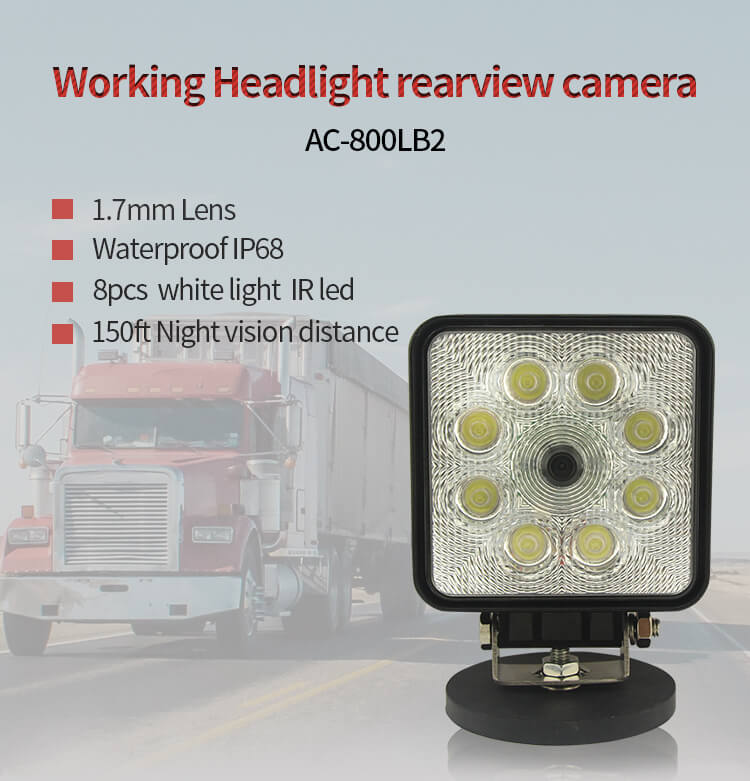

AOTOP [AC-800LB2] outdoor special vehicle high definition IP68 combination work lamp reverse camera LED work light camera built-in 8pcs powerful white LEDs and Full HD reverse camera (LED light & camera can powered separately, work independently). The work light night vision distances up to 150ft. The camera has 1280x960 pixel resolution, 140° viewing angle to help capture everything going on around it. Optional bracket magnet, easy mounting on agricultural or construction vehicles such as bulldozer, tractor, harvester, forklift and more. For more information please contact sales@aotop.com!

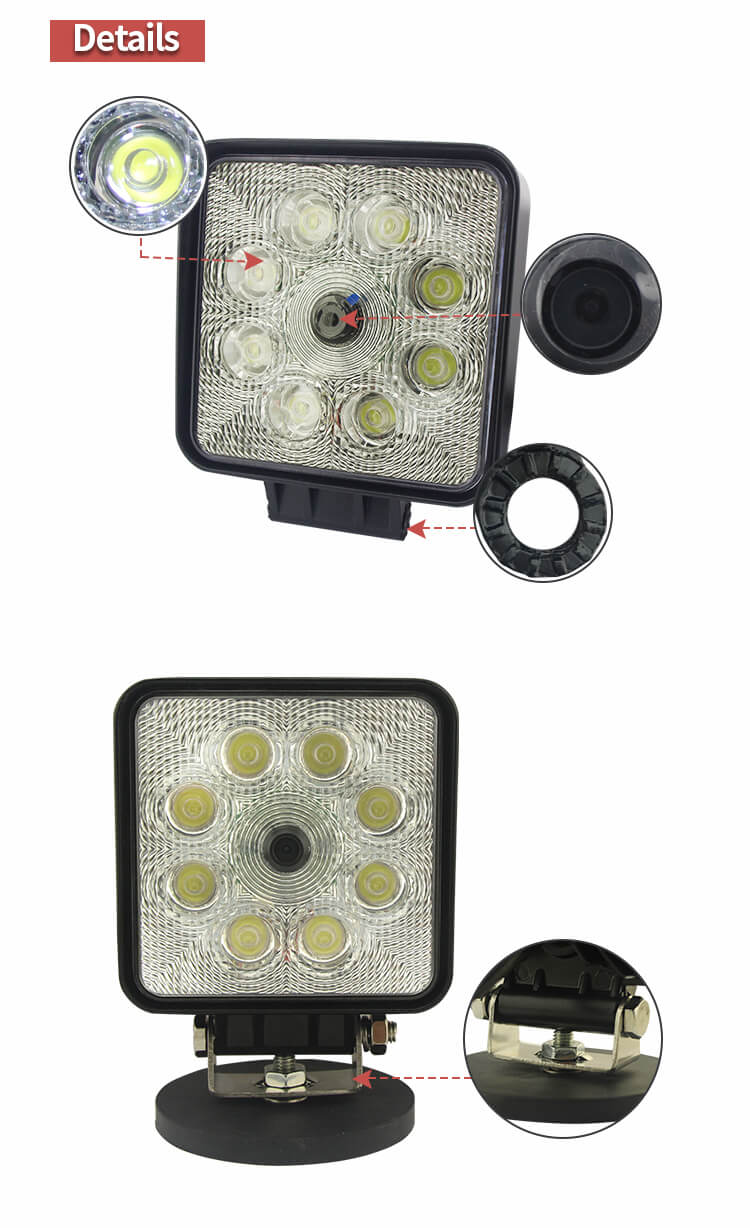

PRODUCT FEATURES

LED light & camera can powered separately, work independently
AHD 960P high definition resolution
140° super wide angle

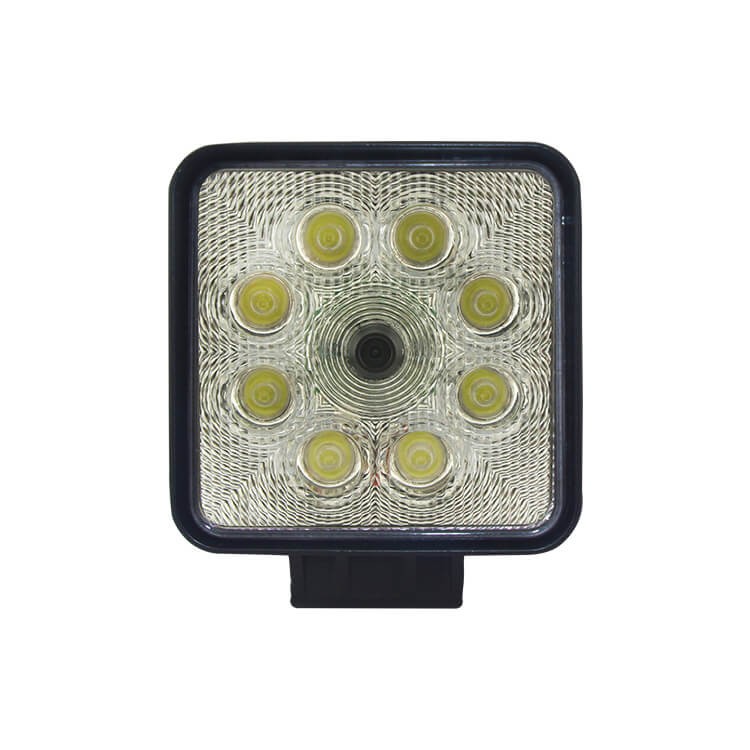

Built-in 8pcs powerful LED light, HD night vision
About 150ft night vision distance
Support IP68 waterproof ratio

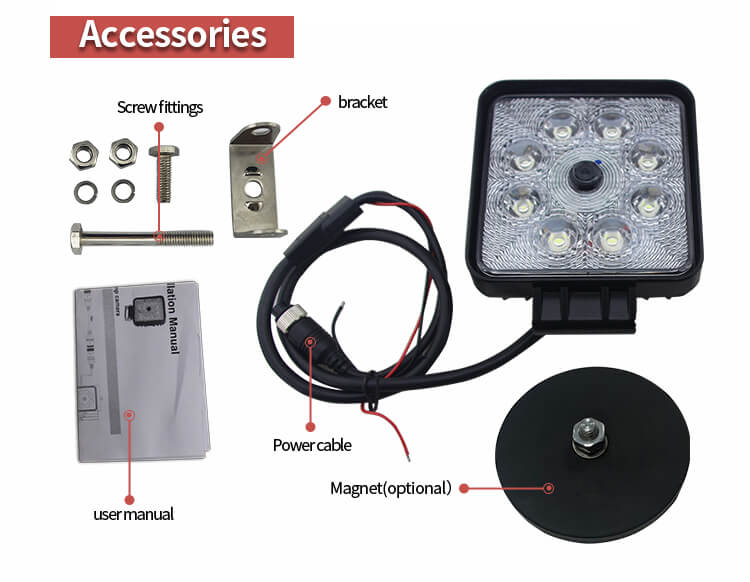

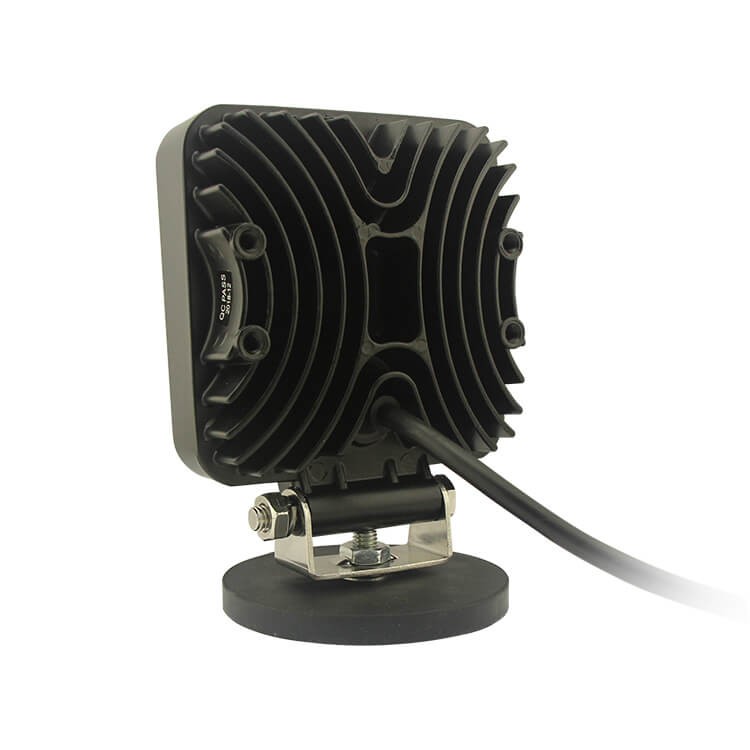

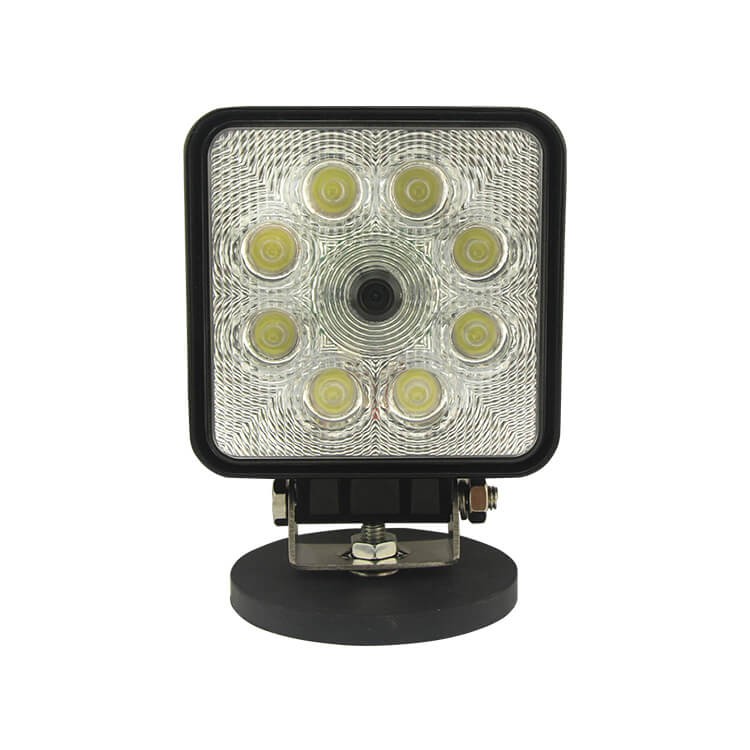

Optional magnetic bracket
Aviation 4PIN female connector

High Definition IP68 Vehicle Work Lamp Reverse Camera (AC-800LB2):

Image Sensor	1/3 AR013
TV System	NTSC/PAL
Effective Pixels	1280（H）ⅹ960（V)
Waterproof	IP68
Sensing Area	3.75μm
Sync. System	Internal
Resolution	130W
Minimum Illumination	0.1 Lux (day), 0 Lux (with IR)
Microphone	Optional
IR LED Qty	white light*8PCS
Light type	60° floodlight
Night vision distance	30-50m
Microphone	NO
Video Output	1.0 Vp-p/75 Ohm
Scanning System	interlace
AGC	AUTO
Signal to noise ratio	Better than 48dB
White balance	AUTO
Gamma Consumption	0.45
Electronic Shutter	AUTO
Gamma Consumption	0.45
Electronic Shutter	AUTO
Backlight Compensation	AUTO
Lens	1.7mm
Lens Angle	140°
LED lamp plate voltage	DC12-24V
LED lamp board power	24W
Luminous flux / lumen	1154/lm
Color temperature	6000K
Lens material	PC
Power Supply	DC12V
Current Drain	70±5mA (day)/2.33±5A(night vision)
Operating Temperature	-20℃~+70℃,RH 95% MAX
Storage Temperature	-30℃~+80℃,RH 95% MAX
