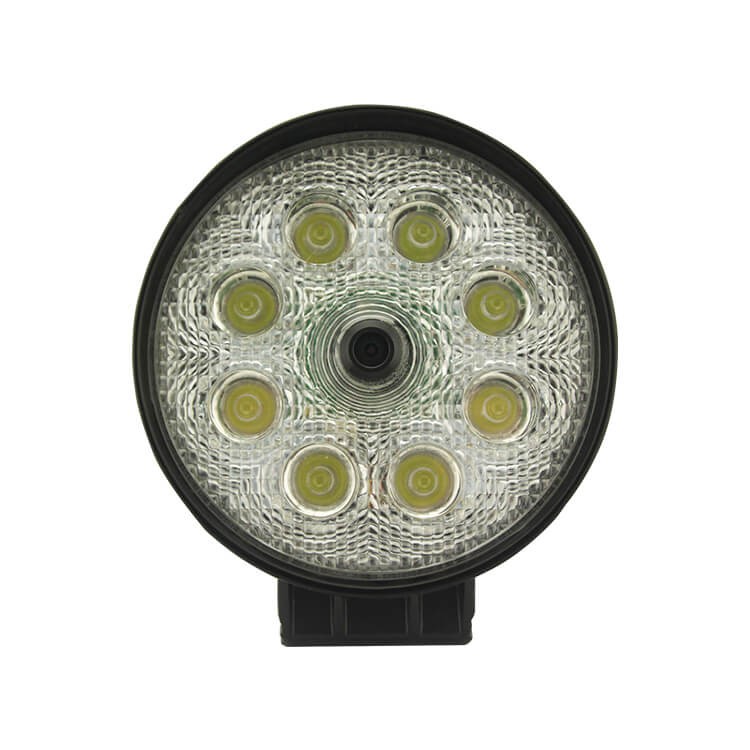

AOTOP [AC-800LB1] combination LED work light camera equipped with 8 powerful white LEDs and Full HD backup camera (LED light & camera can powered separately, work independently). The work light night vision distances up to 150ft. The camera has 1280x960 pixel resolution, 140° viewing angle to help capture everything going on around it. Optional bracket magnet, easy mounting on agricultural or construction vehicles such as bulldozers, tractors, harvesters and more. For more information please contact sales@aotop.com!
PRODUCT FEATURES
LED light & camera can powered separately, work independently
AHD 960P high definition resolution
140° super wide angle
Built-in 8pcs powerful LED light, HD night vision
About 150ft night vision distance
Support IP68 waterproof ratio

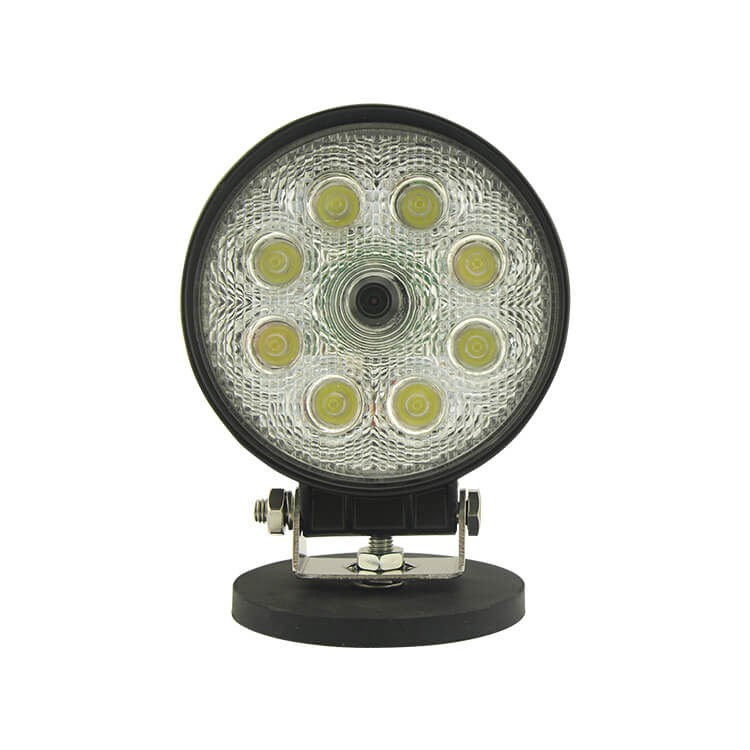

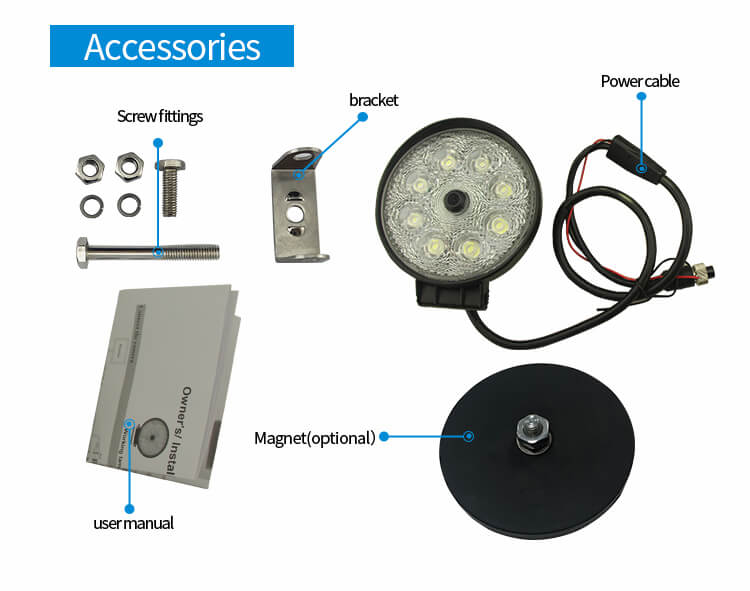

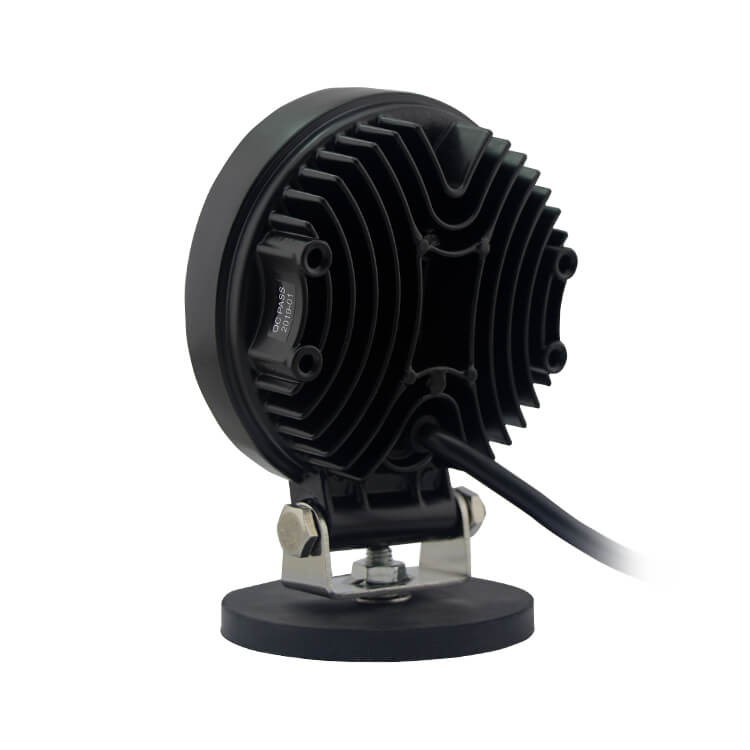

Optional magnetic bracket
Aviation 4PIN female connector
| Image Sensor | 1/3 AR013 |
| TV System | NTSC/PAL |
| Effective Pixels | 1280（H）ⅹ960（V) |
| Waterproof | IP68 |
| Sensing Area | 3.75μm |
| Sync. System | Internal |
| Resolution | 130W |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | white light*8PCS |
| Light type | 60° floodlight |
| Night vision distance | 30-50m |
| Microphone | NO |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Lens | 1.7mm |
| Lens Angle | 140° |
| LED lamp plate voltage | DC12-24V |
| LED lamp board power | 24W |
| Luminous flux / lumen | 1154/lm |
| Color temperature | 6000K |
| Lens material | PC |
| Power Supply | DC12V |
| Current Drain | 70±5mA (day)/2.33±5A(night vision) |
| Operating Temperature | -20℃~+70℃,RH 95% MAX |
| Storage Temperature | -30℃~+80℃,RH 95% MAX |
