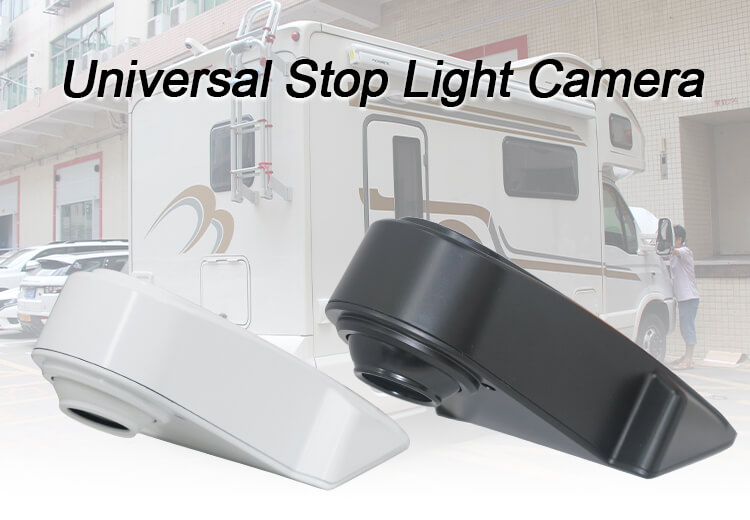

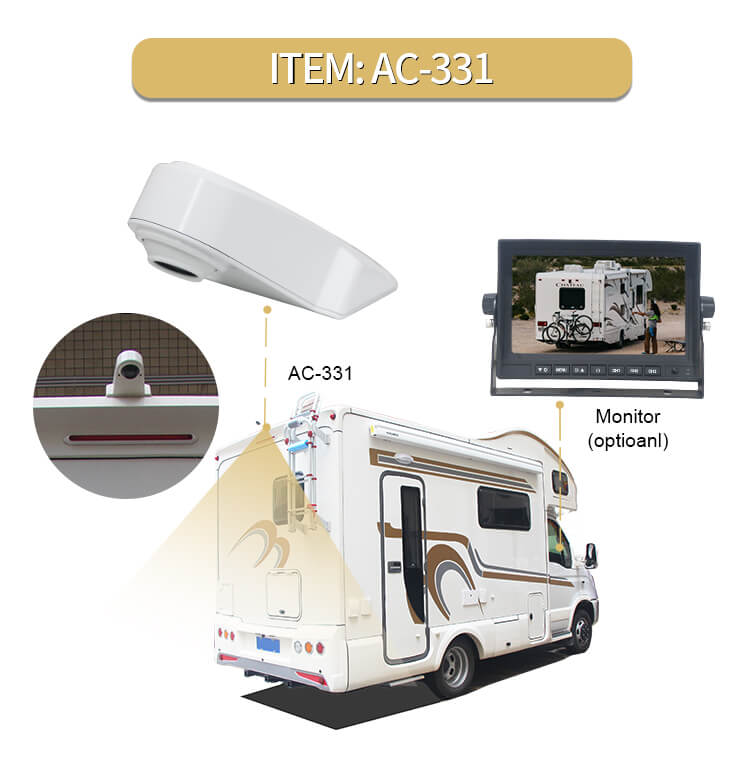

Aotop provides the best RV reversing camera, adopts SONY CCD image processing chip, can output high quality images, can meet customers' requirements for high quality vehicle rear view monitoring! Support IP68 waterproof, built-in light sensor automatic high definition night vision. 120° wide angle lens with wide monitoring range. If you are looking for RV wide angle rear view camera, please contact sales@aotop.com!
PRODUCT FEATURES
CVBS & 720P 1080P AHD resolution optional
SONY CCD image sensor

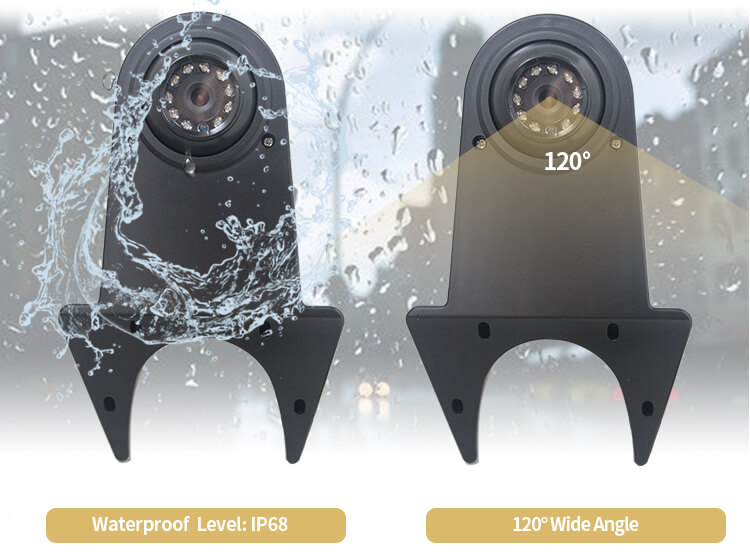

IP68 waterproof level
120° wide angle (customisable)

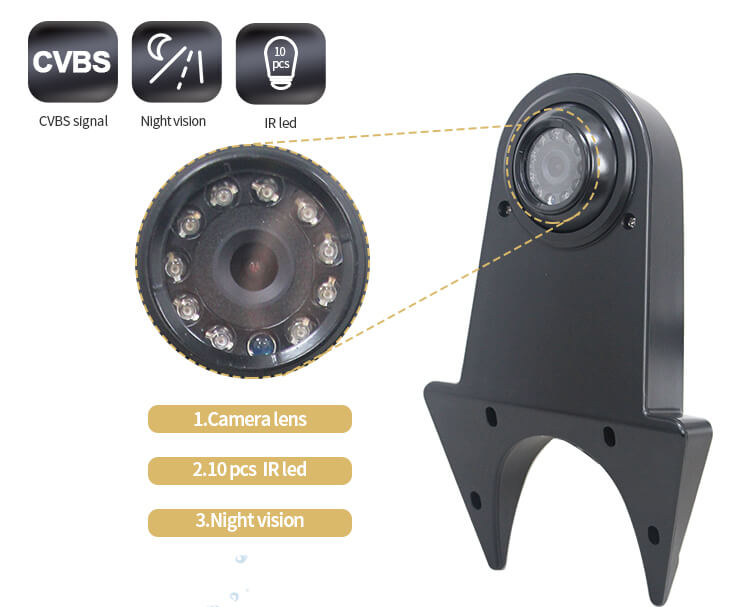

10pcs IR LED night lights (AUTO-ON/OFF)
PAL & NTSC TV system

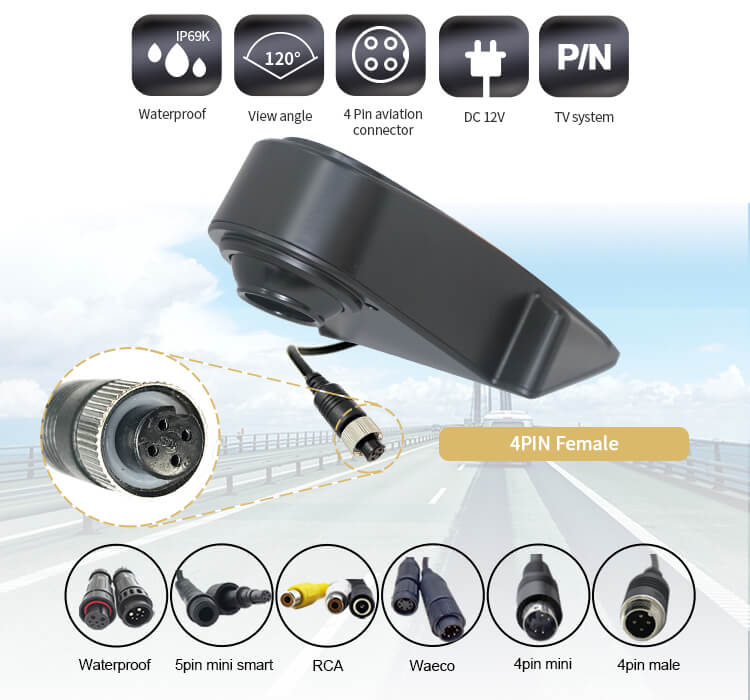

Aviation 4PIN female / RCA connector
Microphone audio function optional
| Image Sensor | SONY CCD |
| Effective Pixels | 1920(H) * 720(V) 1920(H) * 1080(V |
| Resolution | 720P / 1080P |
| Night Vision | HD Night Vision Built-in 10pcs 0.1Lux IR LED Night Light |
| Night Vision Distance | 8-10M |
| Angle View | 120° |
| Waterproof Level | IP68 |
| Shockproof level | 4G |
| Housing Material | ABS + Plastic |

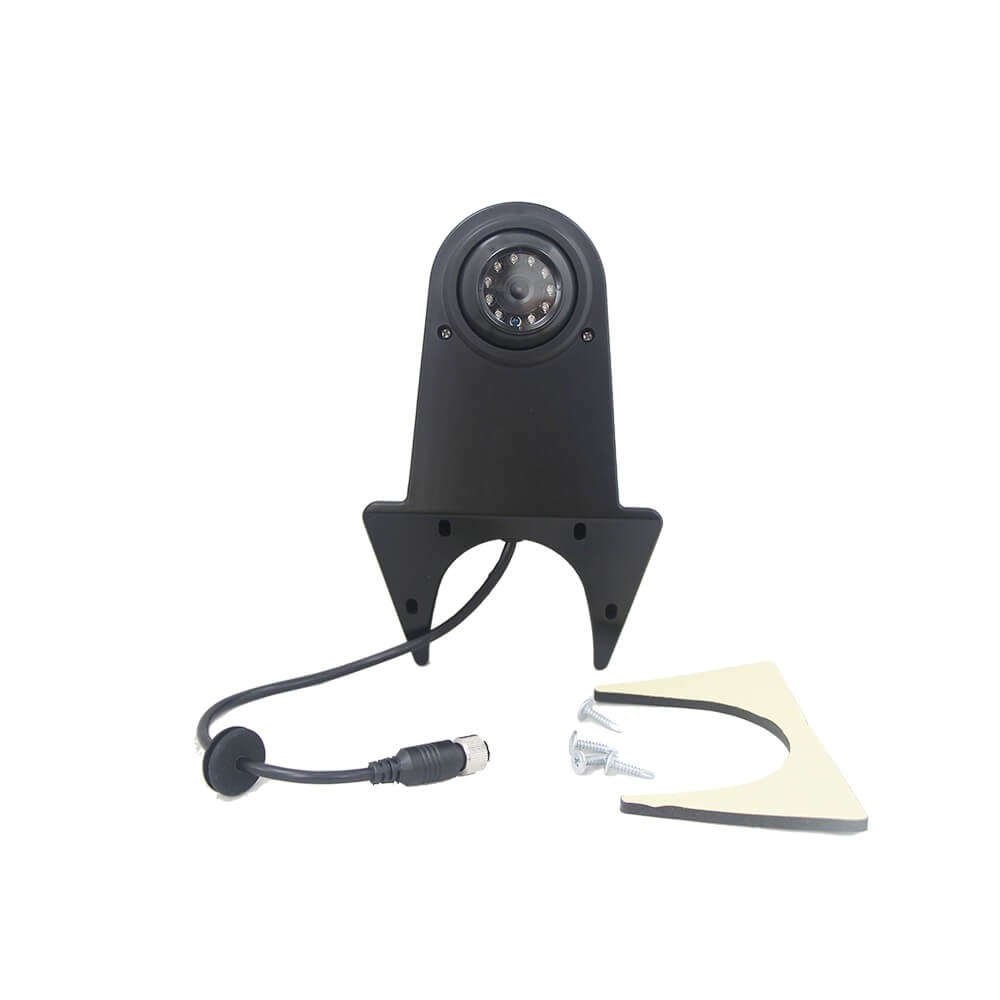

| Connection Plug(Connector) | Locking Aviation 4PIN Female & RCA |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |
| Microphone | Optional |

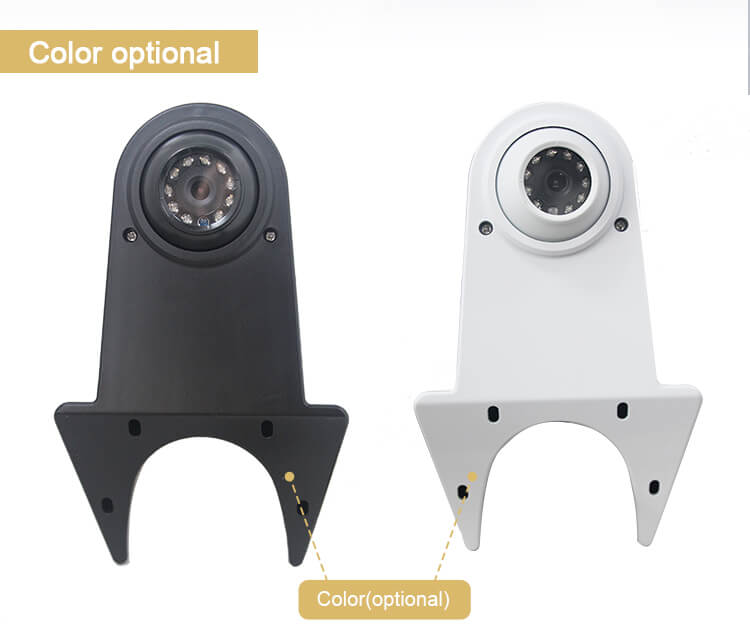

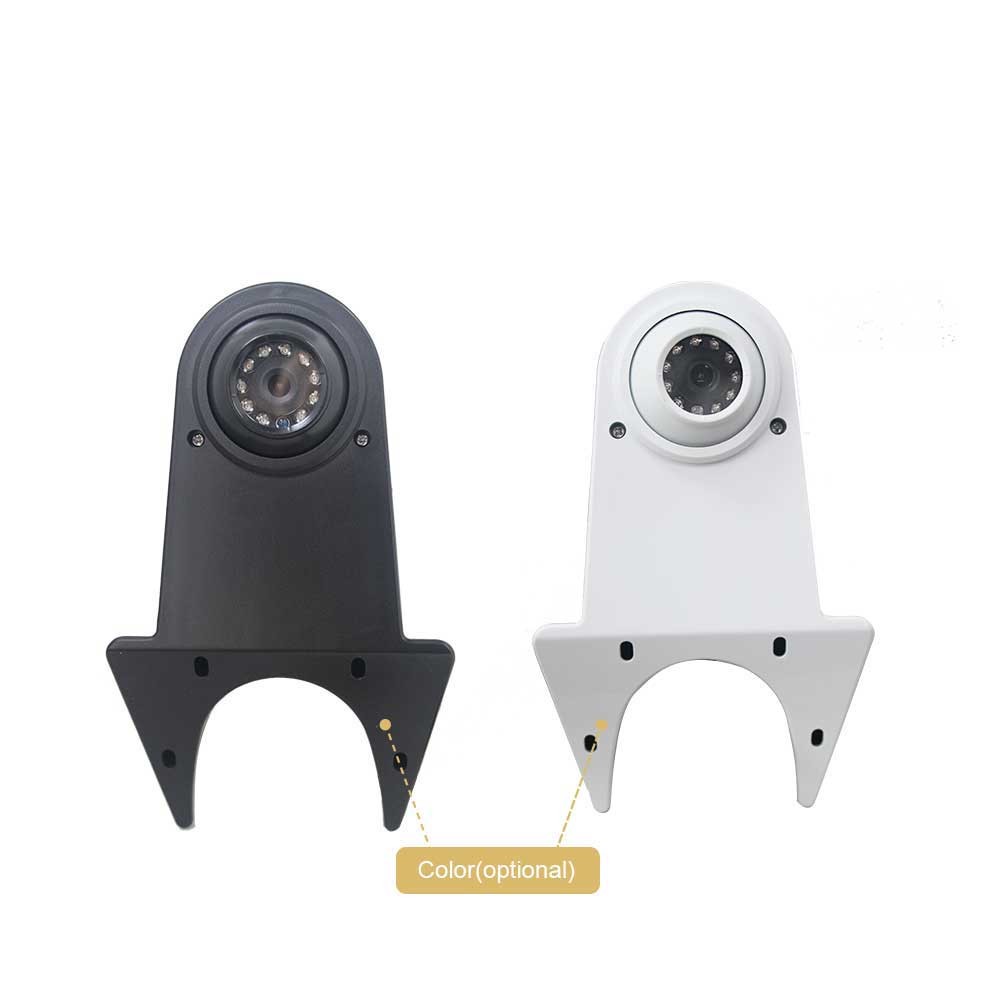

| Customisable | Color/Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <250mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, E-Mark, RoHS, IP69K |
