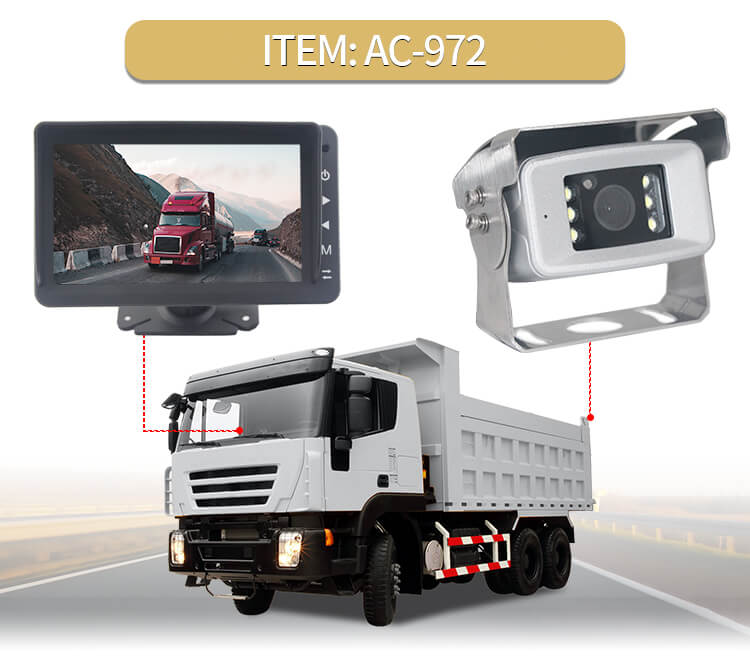

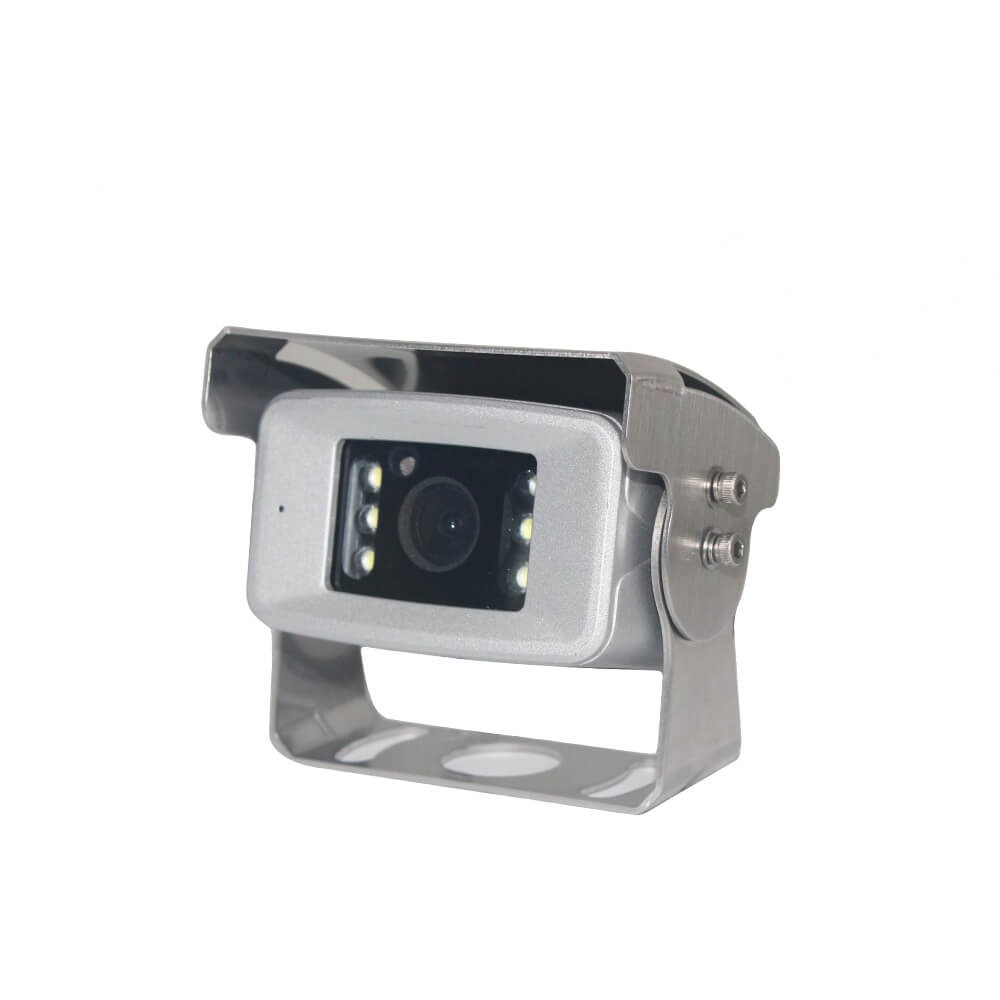

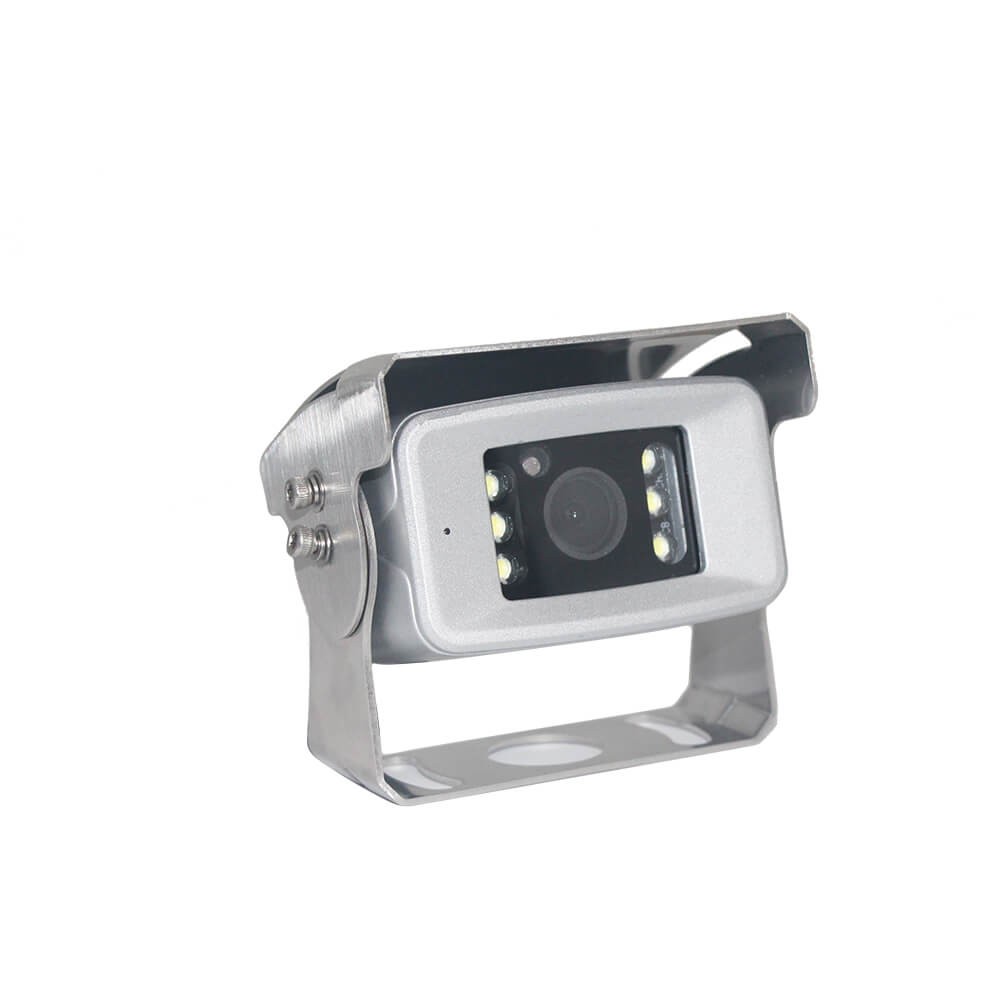

Aotop is a leading rear view camera manufacturer & supplier in China, offering high-quality backup camera solutions. Our AC-972 HD backup camera is good for trucks, supports AUTO night vision, built-in 6pcs infrared LED lights. Its 130° wide-angle view covers rear blind spots, ensuring a broad monitoring range. The aluminum alloy casing provides excellent sealing and supports IP69K waterproofing. It an ideal choice for improving the safety of reversing large vehicles. For more information, please contact sales@aotop.com!
PRODUCT FEATURES

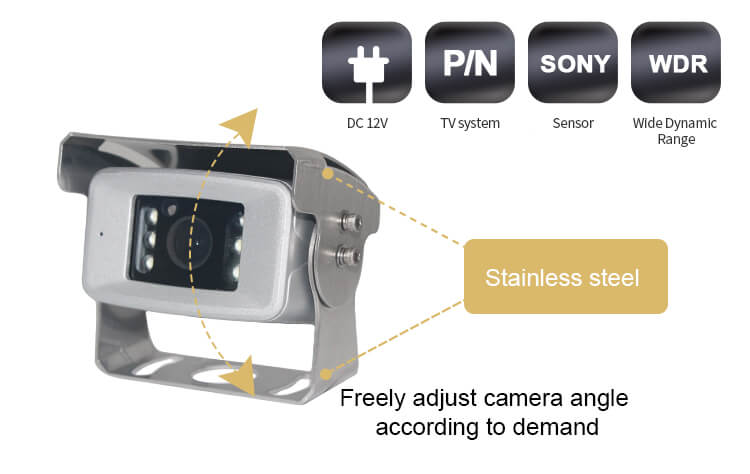

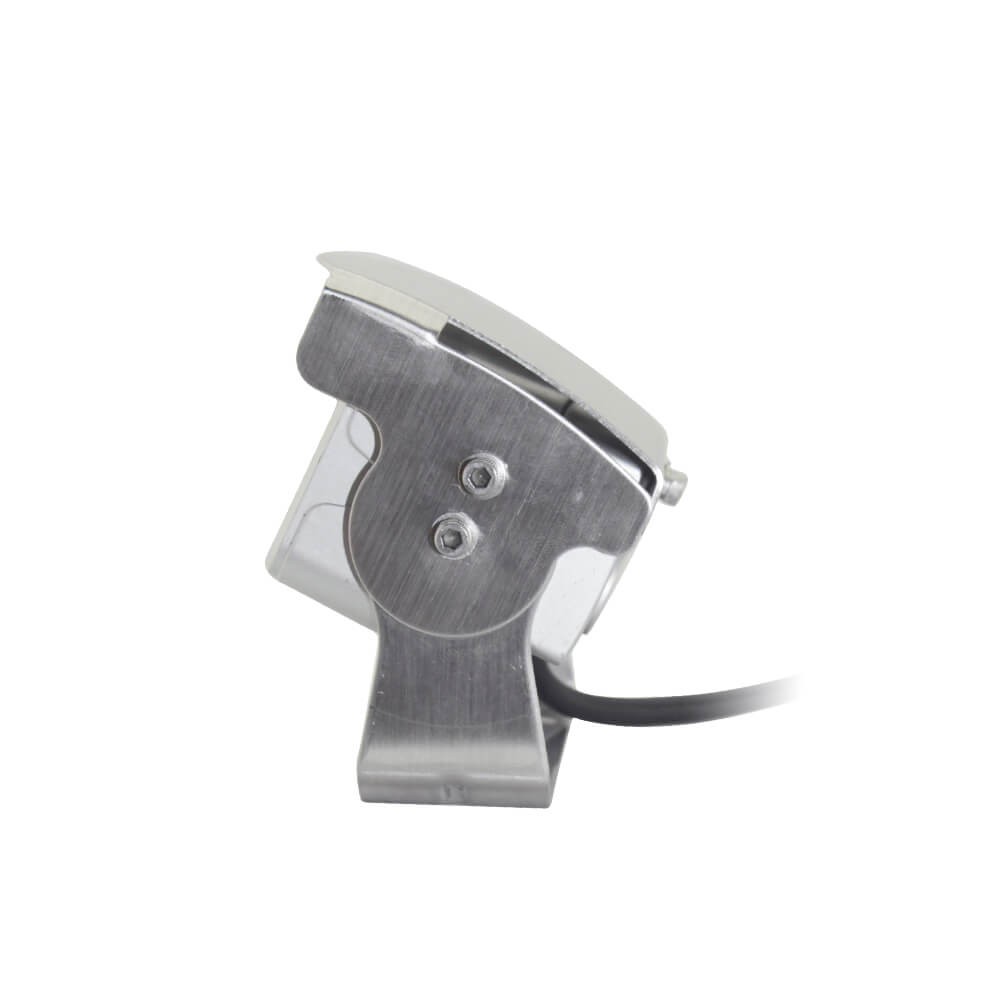

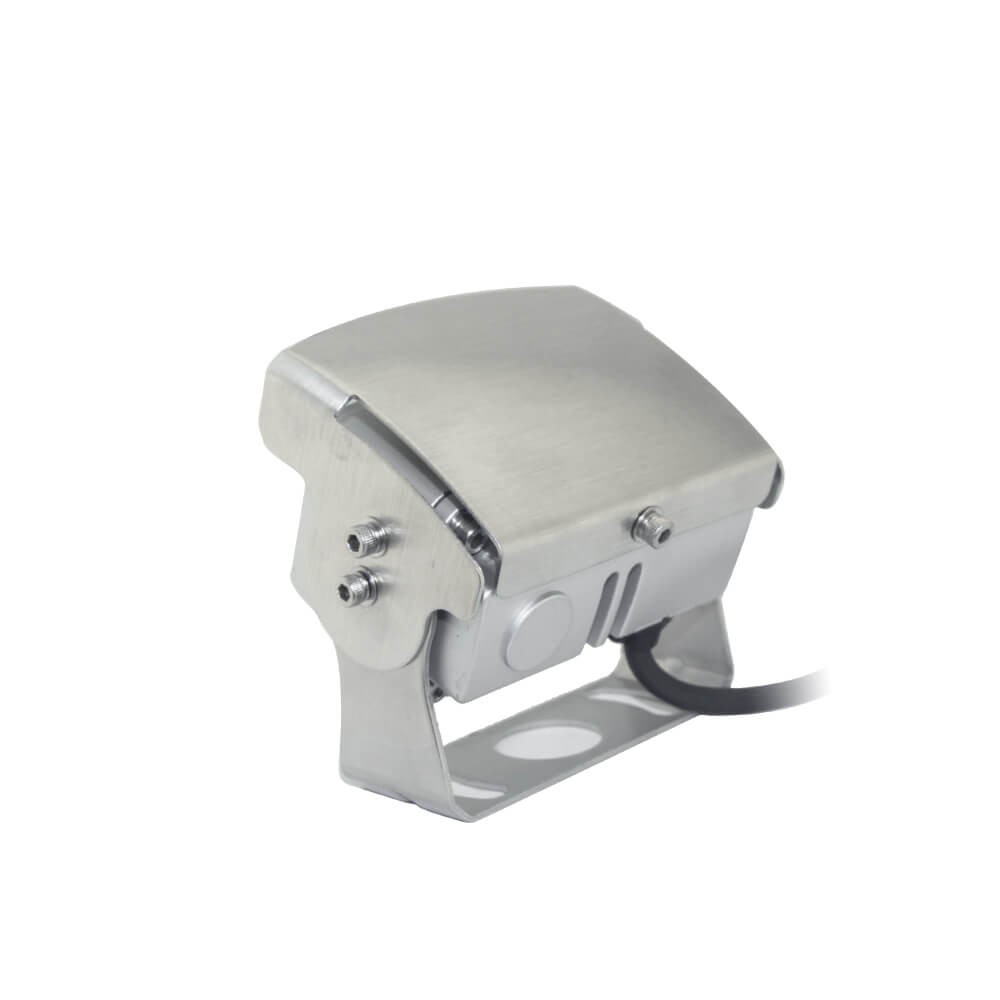

Stainless steel bracket
720P 1080P AHD resolution
SONY CCD image sensor

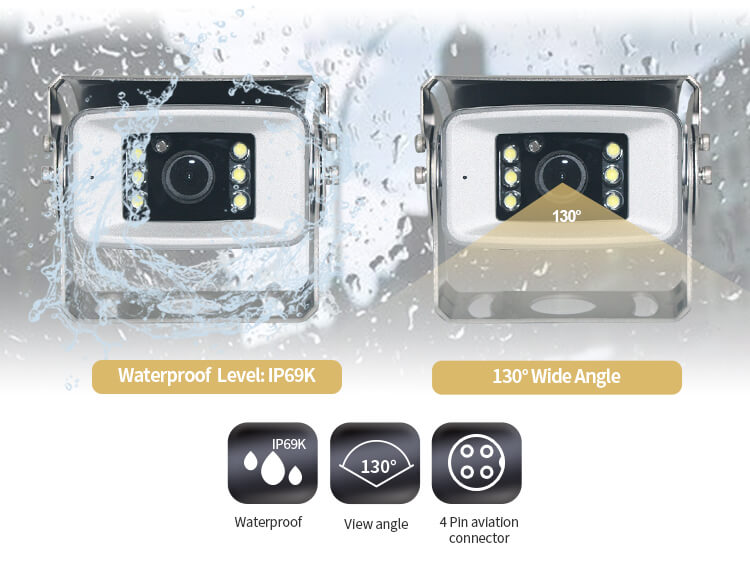

IP69K waterproof ratio
130° wide angle (customisable)

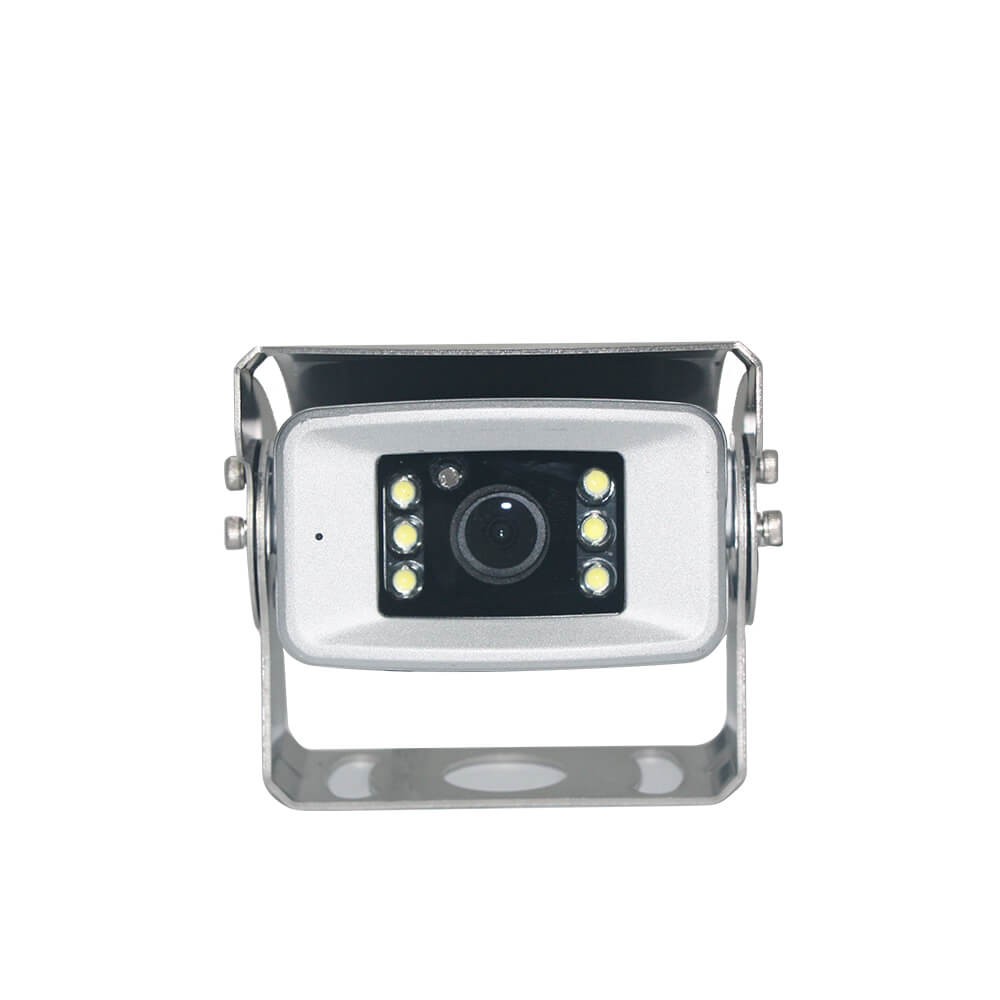

6pcs IR LED lights (AUTO night vision)

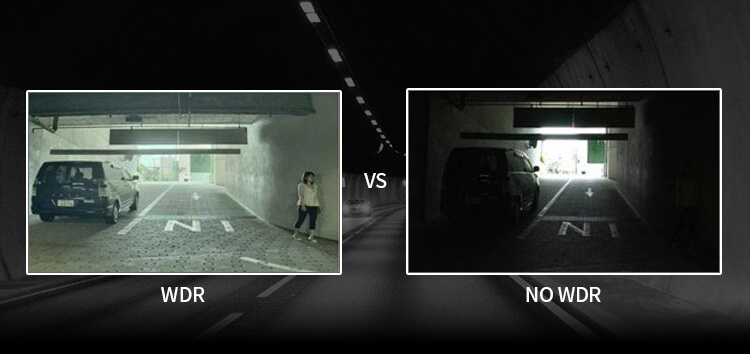

Wide dynamic range technology
Optional PAL / NTSC TV system

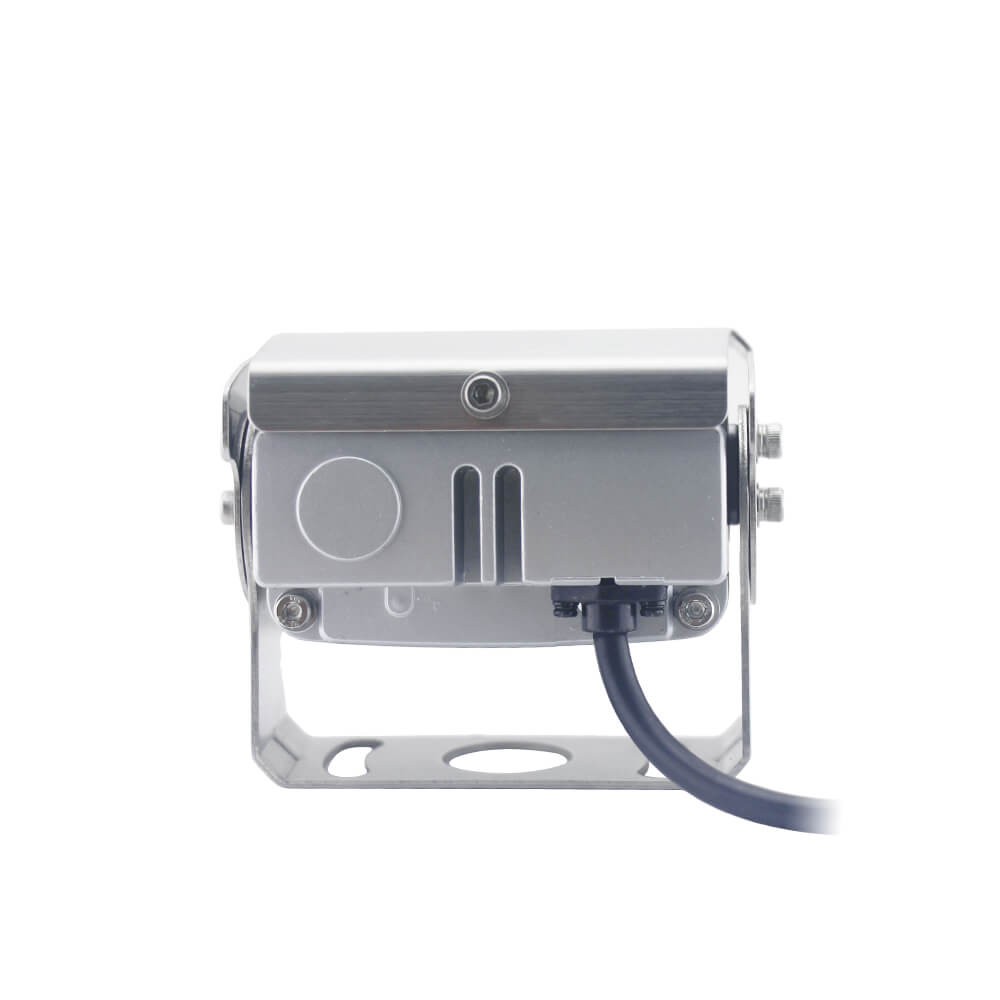

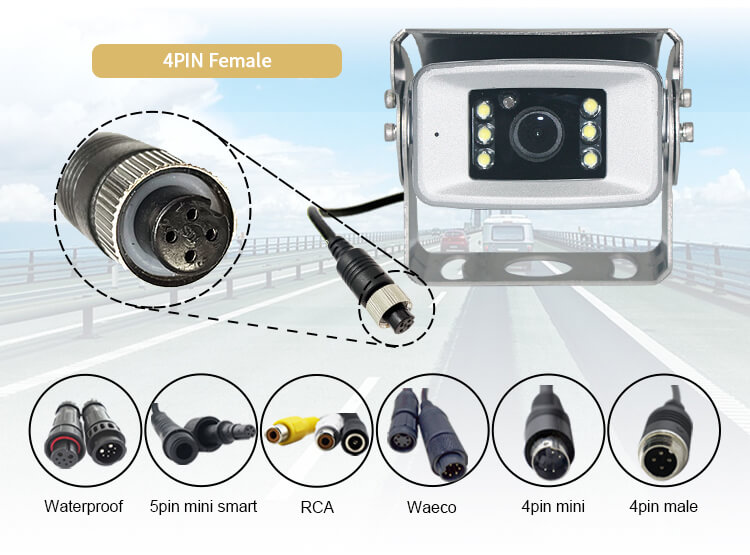

Aviation 4PIN female connector
Image Sensor | SONY CCD |
Effective Pixels | 1920(H) * 720(V) |
Resolution | 720P/1080P |
Night Vision | Top Starlight Night Vision Built-in 6pcs 0.1Lux IR LED Night Light |
Night Vision Distance | 8-10M |
Angle View | 130°In Diagonal |
Waterproof Level | IP69K |
Shockproof level | 4G |
Housing Material | Aluminium Alloy |
Connection Plug(Connector) | Locking Aviation 4PIN Female |
TV System | PAL / NTSC (Default "PAL") |
Mirror & Normal Image | Optional (Default "Mirror") |
Microphone | Optional |
Heating Function | Optional |
Customisable | Bracket/Connector/Angle°/Resolution |
Power Supply | 12V |
Maximum Current | <250mA |
Power Consumption | <3W |
Operating temperature | -20°c~+70°c (RH0%-RH90%) |
Storage temperature | -30°c~+80°c (RH0%-RH90%) |
Warranty | 2 Years |
Certification | CE, E-Mark, RoHS, IP69K |
