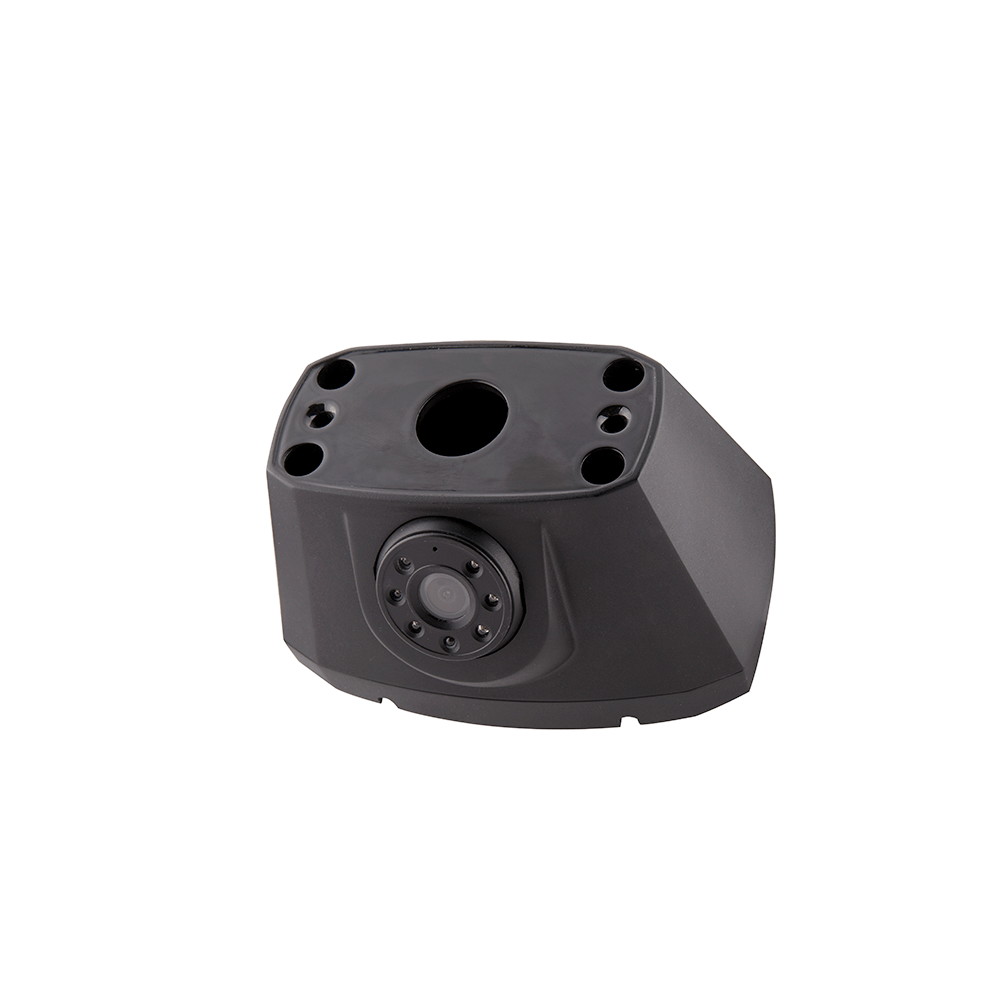

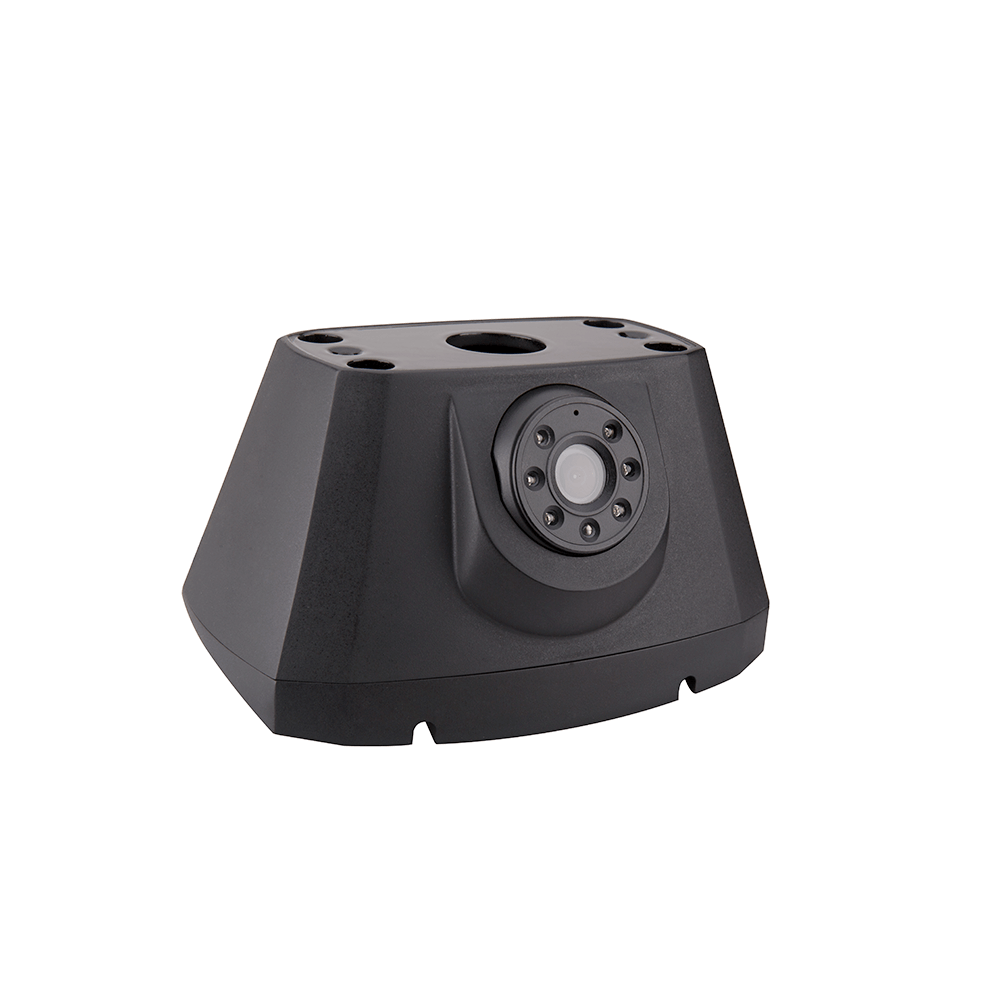

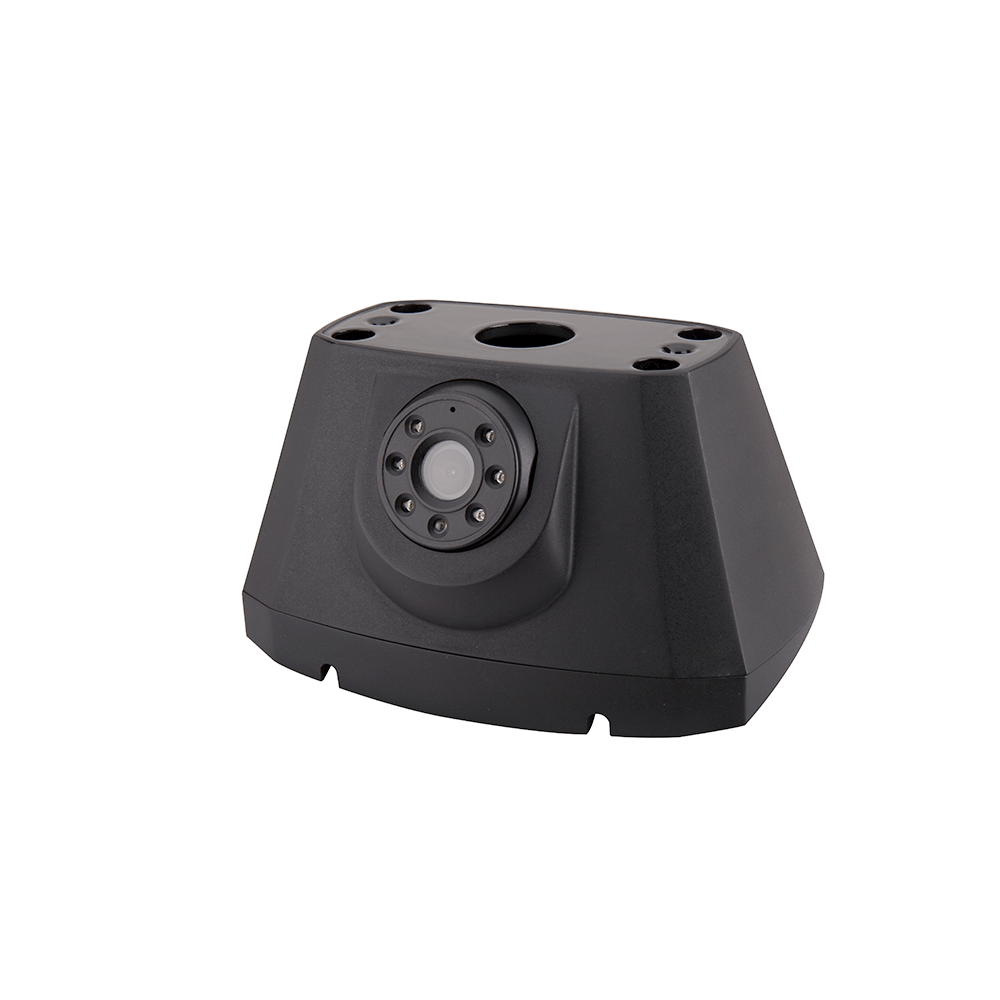

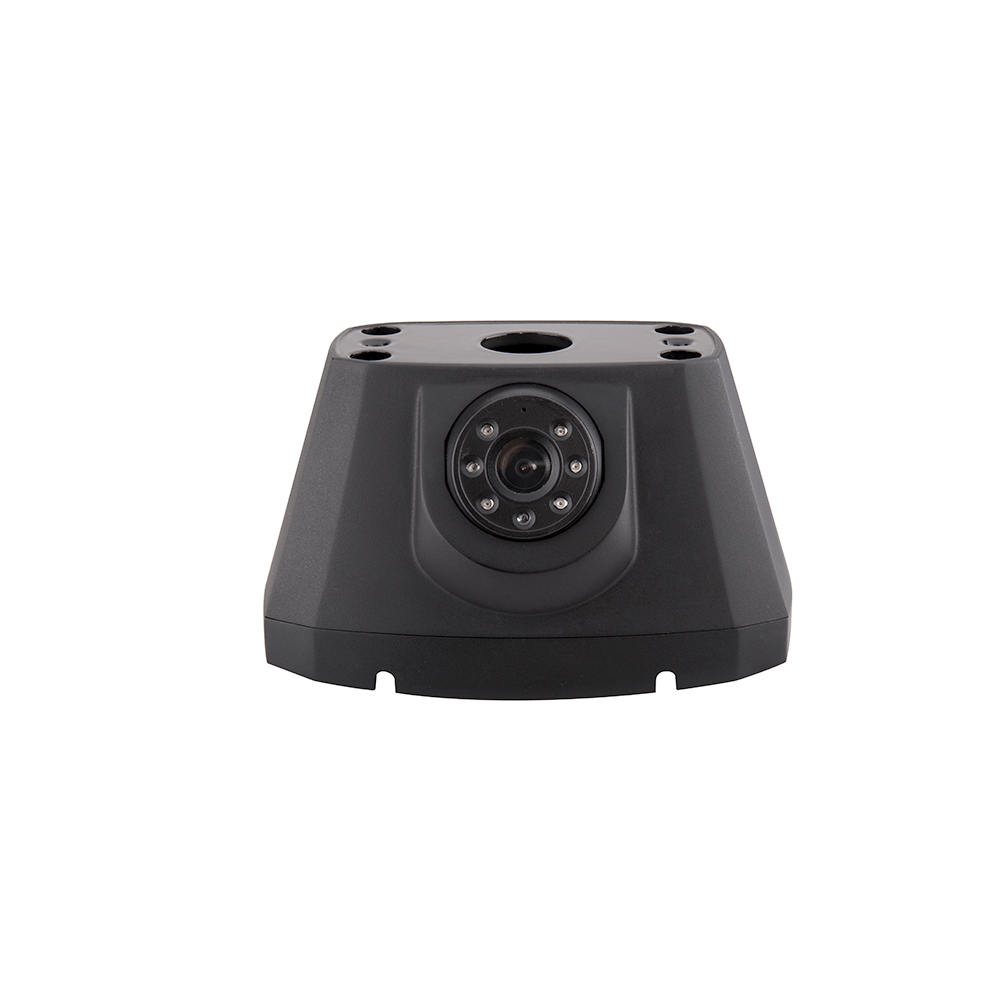

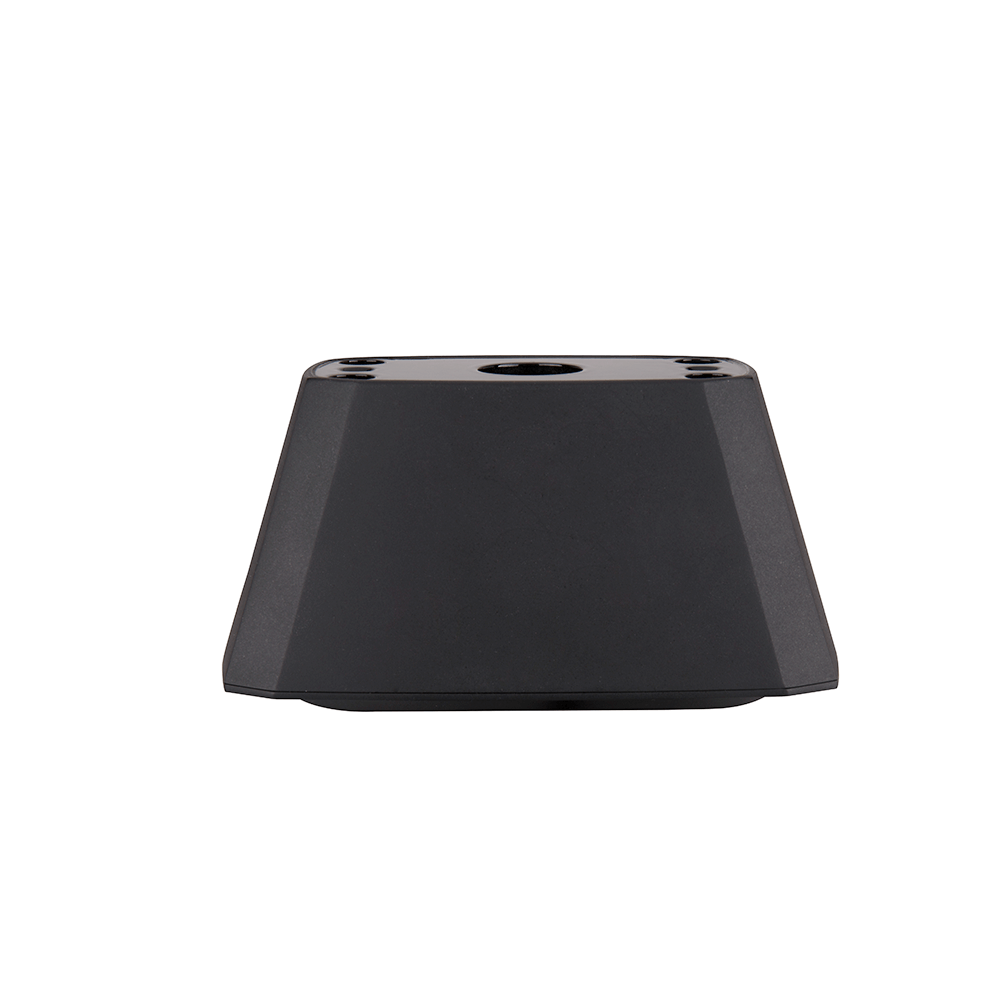

AC-692 Third Brake Light Camera for RAM PROMASTER

Third Brake Light Camera for RAM PROMASTER

Technical Specifications

Sensor: 1/2.7 FH8536H+C2399

Effective Pixels：

–CVBS: 1920(H) * 530(V)；

–AHD-1080P: 1920(H) * 1080(V);

–AHD-720P: 1280(H) * 720(V)

Resolution: 1000-2000 TVL

TV System: NTSC/PAL

Video Signal: CVBS/AHD

Wide Angle: Customizable

Min illumination: 0Lux (LED ON)
IR lED: High brightness LED
Night Vision distance: 30ft

Function Options:

–Mirror/Non-Mirror

–Guide Line ON /Guide Line OFF

–Flip/No Flip

Waterproof Rating: IP68

Current Consumption: 150 mA

Power Supply: 12V standard, compatible with 5V-18V

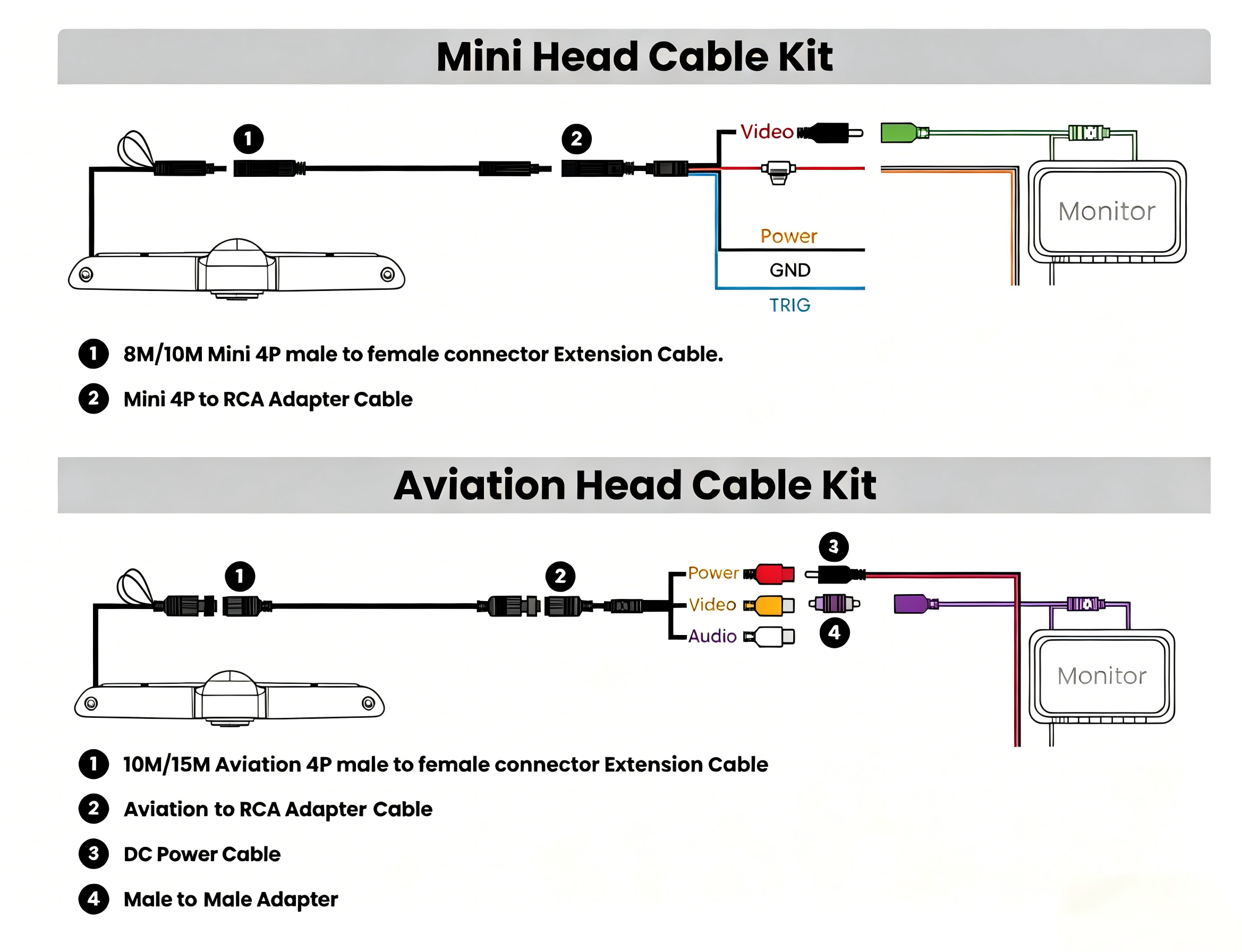

Connector: 4P Aviation Female (Optional AV+DC or BMW connector)

Operating Temperature: -30℃ to +75℃, Rh95% MAX

Storage Temperature: -40℃ to +85℃, Rh95% MAX

Material: PC plastic, high and low temperature resistance, flame retardant
