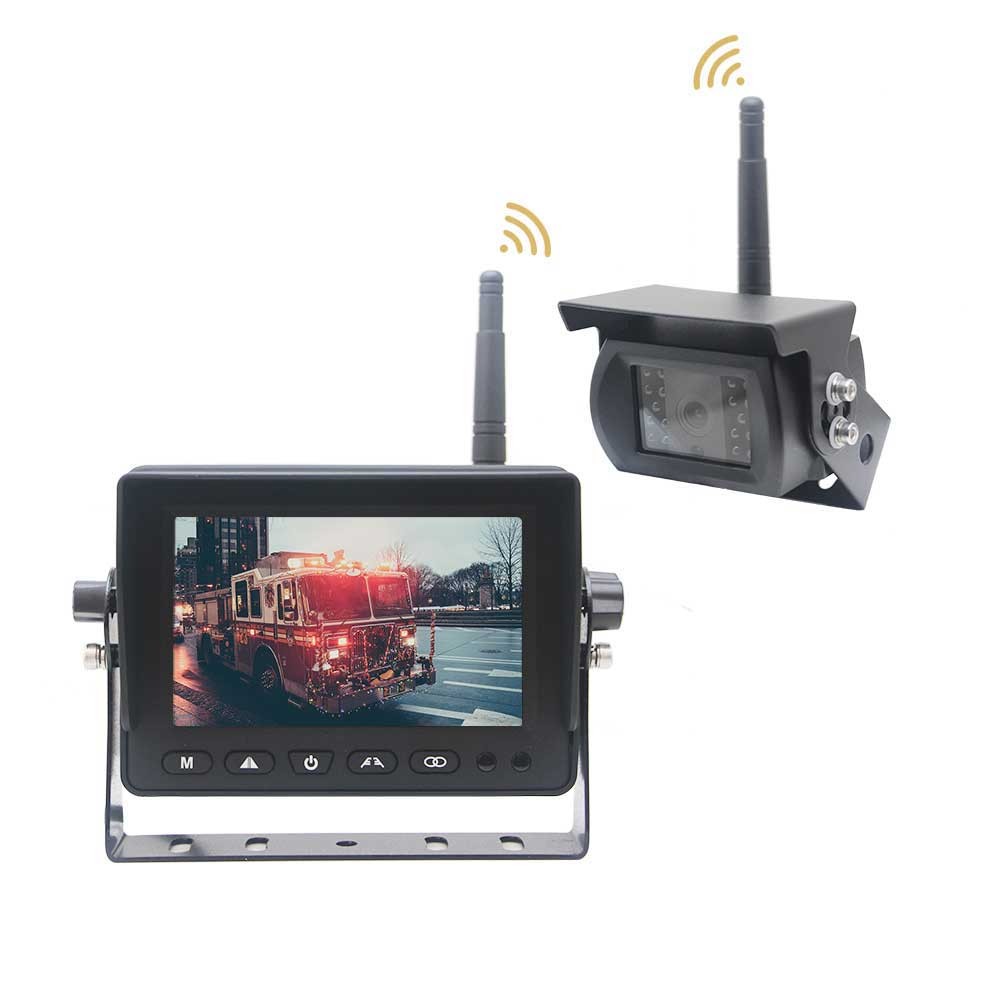

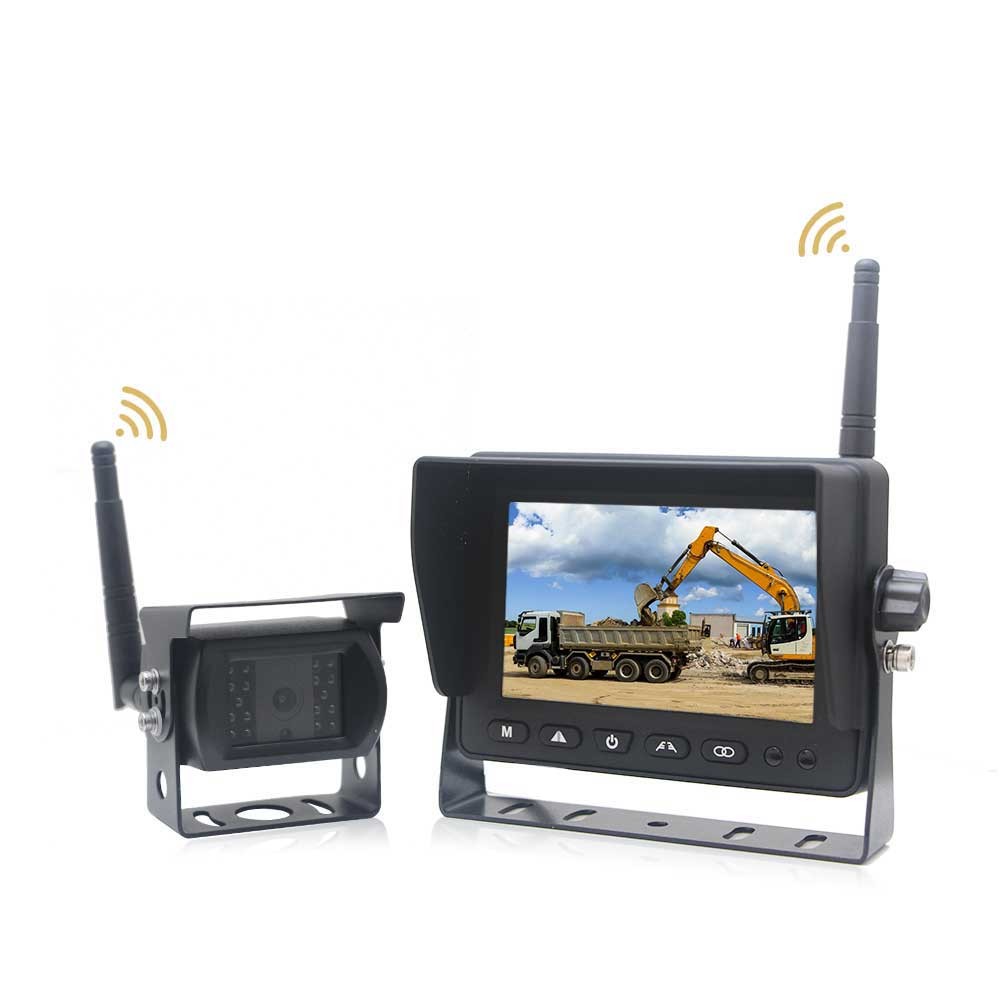

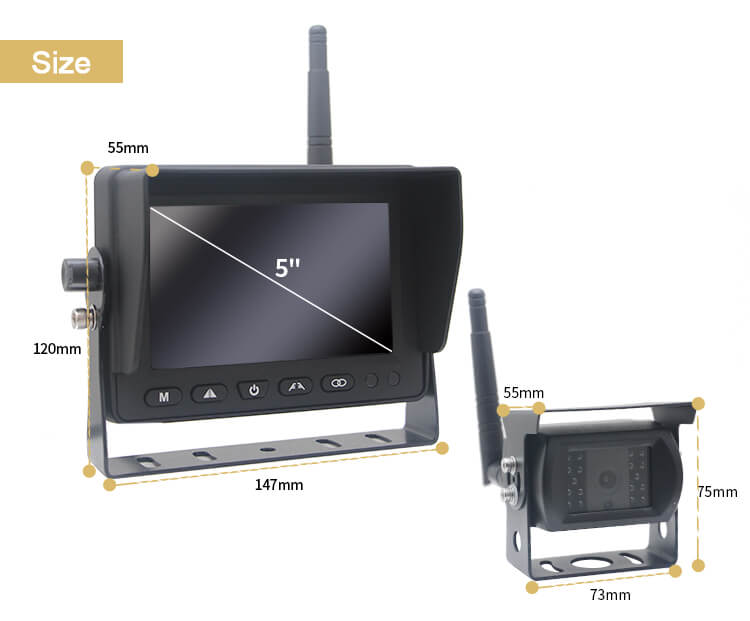

5 Inch HD Wireless Reverse Camera System for Semi-Truck

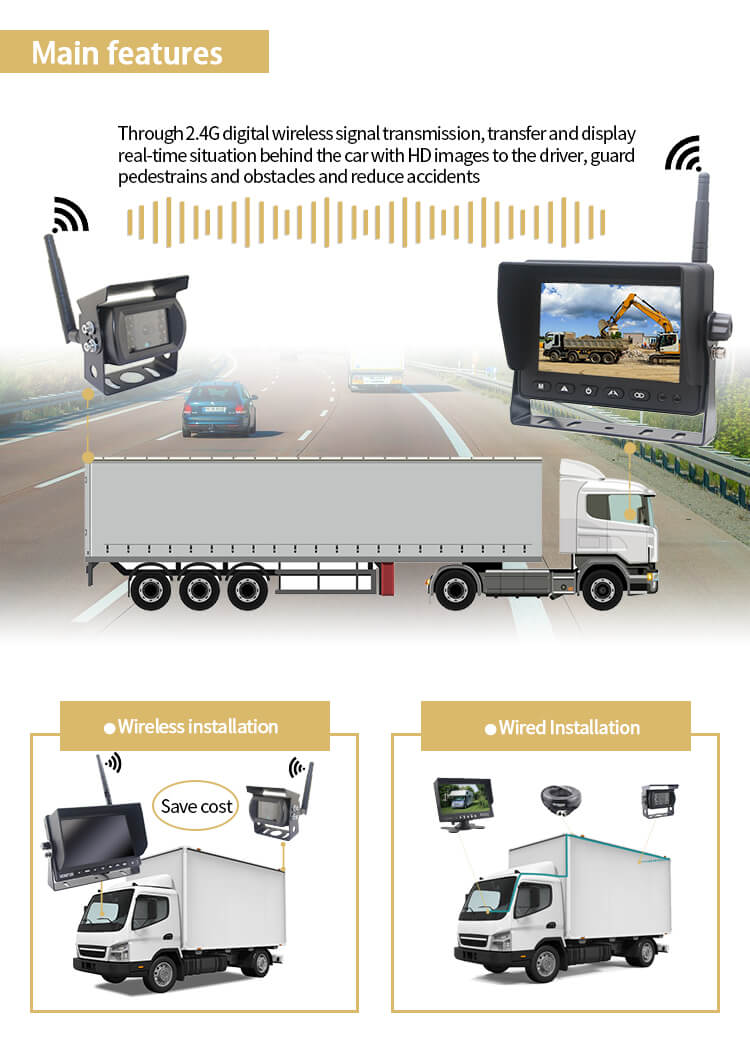

Aotop wireless digital vehicle reverse camera monitoring system includes 5 inch AHD monitor and IP69K night vision camera. With it, you can easily view what's behind your vehicle without having to lay long cables, especially for heavy & commercial vehicles such as trucks, harvesters and trailers. If you are looking for high quality wireless car camera system, please contact sales@aotop.com.

SYSTEM FEATURES

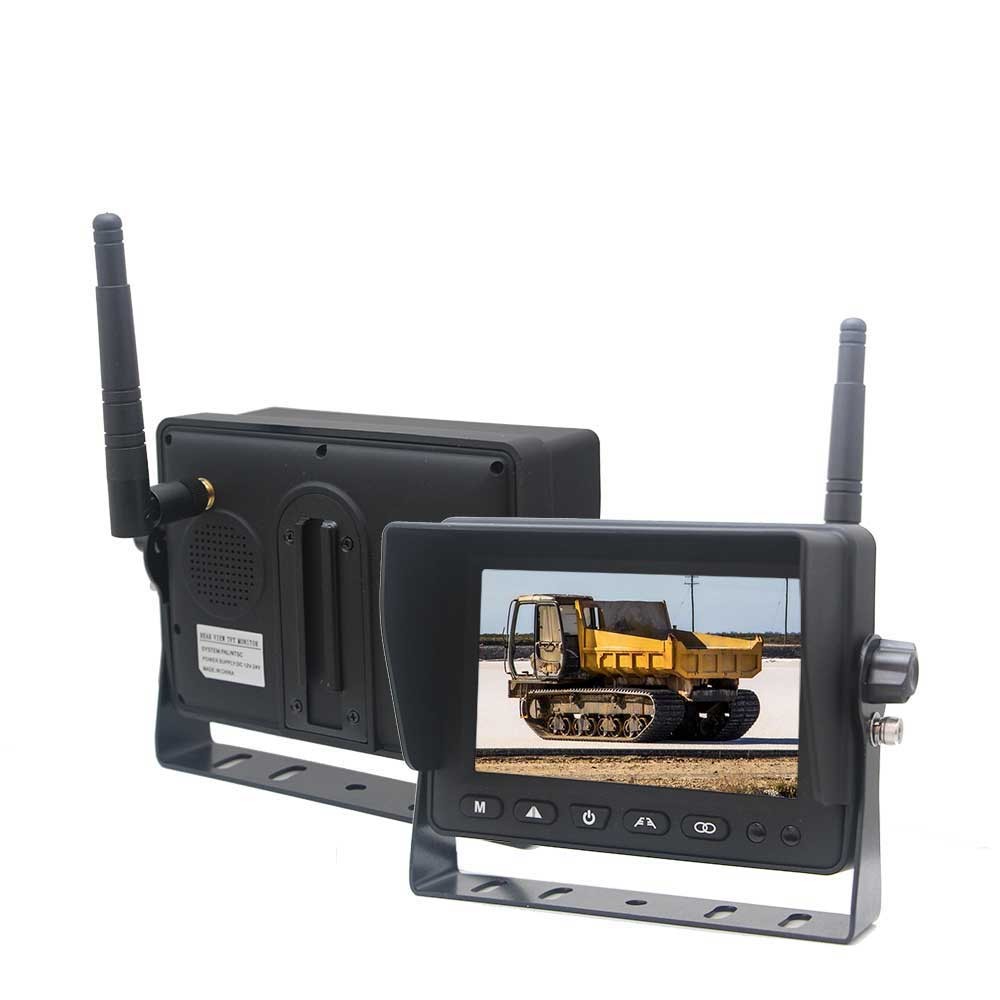

Wireless Monitor Specifications

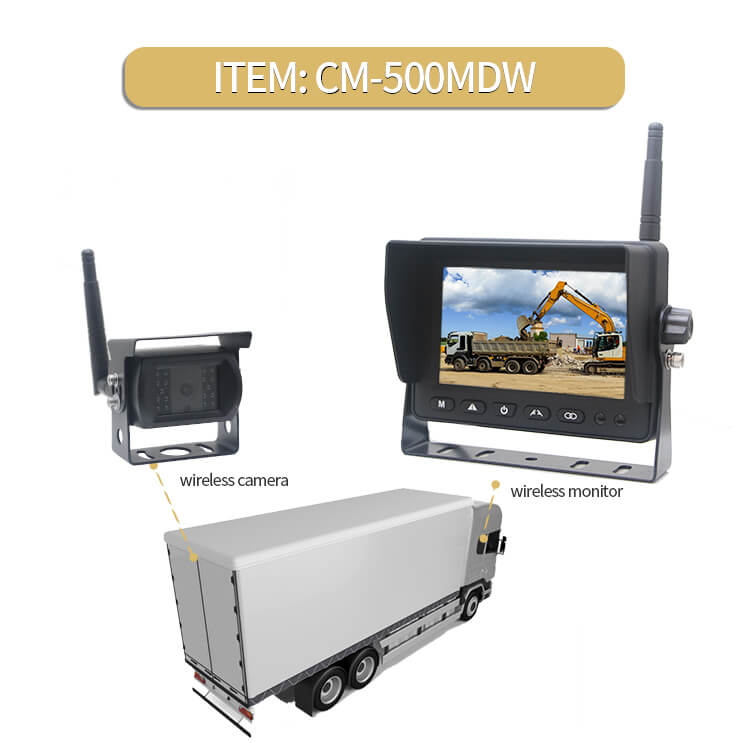

ModelCM-500MDW-HD
Screen ratio16:9 IPS panel
Resolution800*R.G.B*480
BacklightLED, 500 cd/m2
Viewing angleHor. L(85) R(85) Ver. UP(85) DOWN(85)
Working temperature-20~+70 ºC 85%RH MAX
Storage temperature-30~+85 ºC 95%RH MAX
Power supplyDC 12-24V
loudspeakerwithout(customized)
Delay time120mS
Electric currentStandby: ≤10mA, Working: ≤110mA
Power consumption<3W
AV input1-4 channel HD wireless video signal input
Operating frequency range2400 ~ 2483.5MHz
SystemPAL/NTSC automatically
Decompression modeH.264
Receive sensitivity-89dBm@4MHZ
Spread spectrum modeFHSS(Adaptive frequency hopping)
Transmission distance200m in open area
Shockproof level4G
Power cableDC Cable

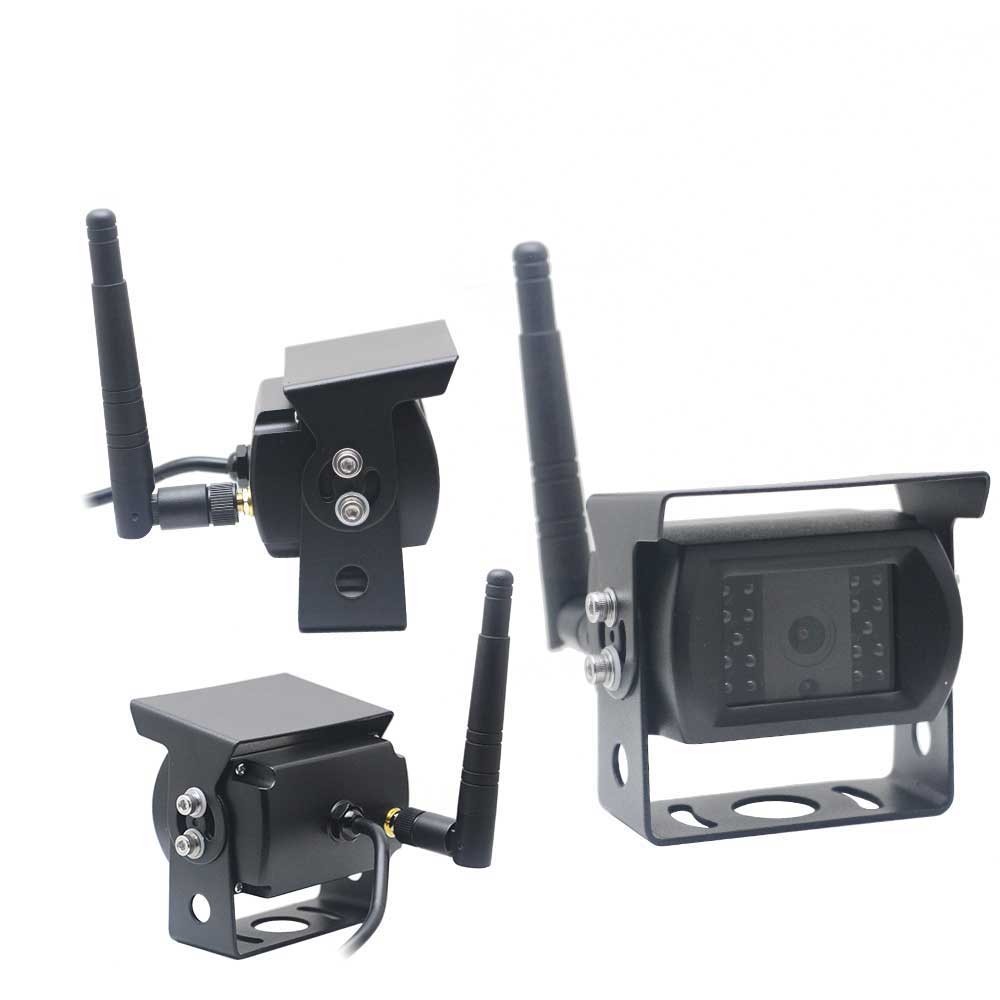

Wireless Camera Specifications
ModelAC-301MDW-HD
Image sensorCMOS 1/2.7”
Pixel720P 1280*720 pixels
1080P 1960*1080 pixels(Optional)
Operating frequency range2400-2483.5MHZ
Transmission distance200M (656ft) in open area
SystemPAL / NTSC (Optional)
Spread spectrum modeFHSS(Adaptive frequency hopping)
Transmission bandwidth8MHz BER<1E-3
Working temperature-20~+70 ºC 85%RH MAX
Storage temperature-30~+85 ºC 95%RH MAX
audiowithout(customized)
SNR46.5dB
WaterproofIP69K
Viewing angleDiagonal viewing angle 120°
Transmitting sensitivity-89 dBm
Shell materialBlack aluminium alloy
