Aotop is a leading supplier & manufacturer of commercial vehicle rear view camera in China. We offer a wide range of high-quality backup camera. Our AC-303 backup camera uses a SONY CCD image processing chip, HD 1080P image output, which can meet customers' requirements for high-quality in-vehicle monitoring. Feature IP69K waterproof, wide angle, AUTO night vision etc. It is an ideal solution to improve the reversing safety of large commercial vehicles. If you have any other questions, please contact sales@aotop.com!
PRODUCT FEATURES
CVBS & 720P 1080P AHD resolution optional
Microphone audio function optional
SONY CCD image sensor

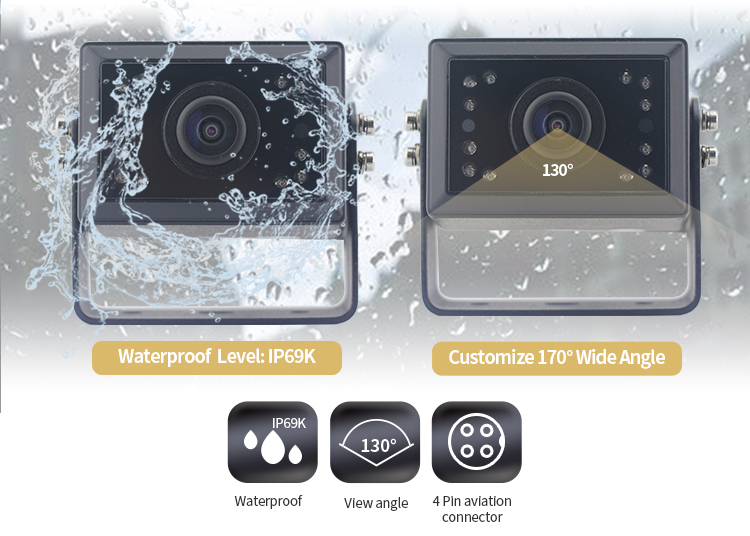

IP69K waterproof rated
130° wide angle (customisable)

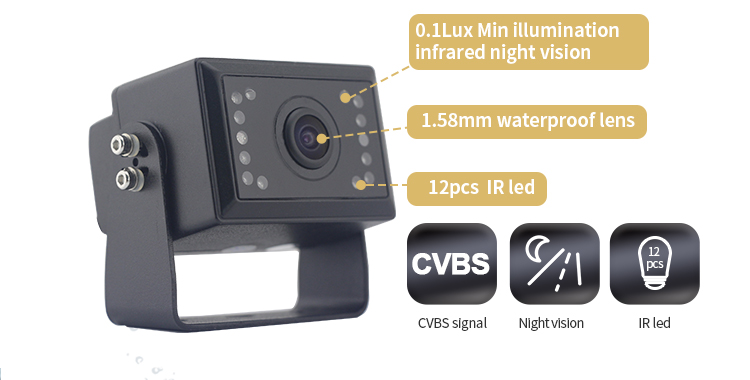

12pcs IR LED night lights (light sensor AUTO ON/OFF)
PAL & NTSC TV system
Aviation 4PIN female connector
Microphone audio function optional

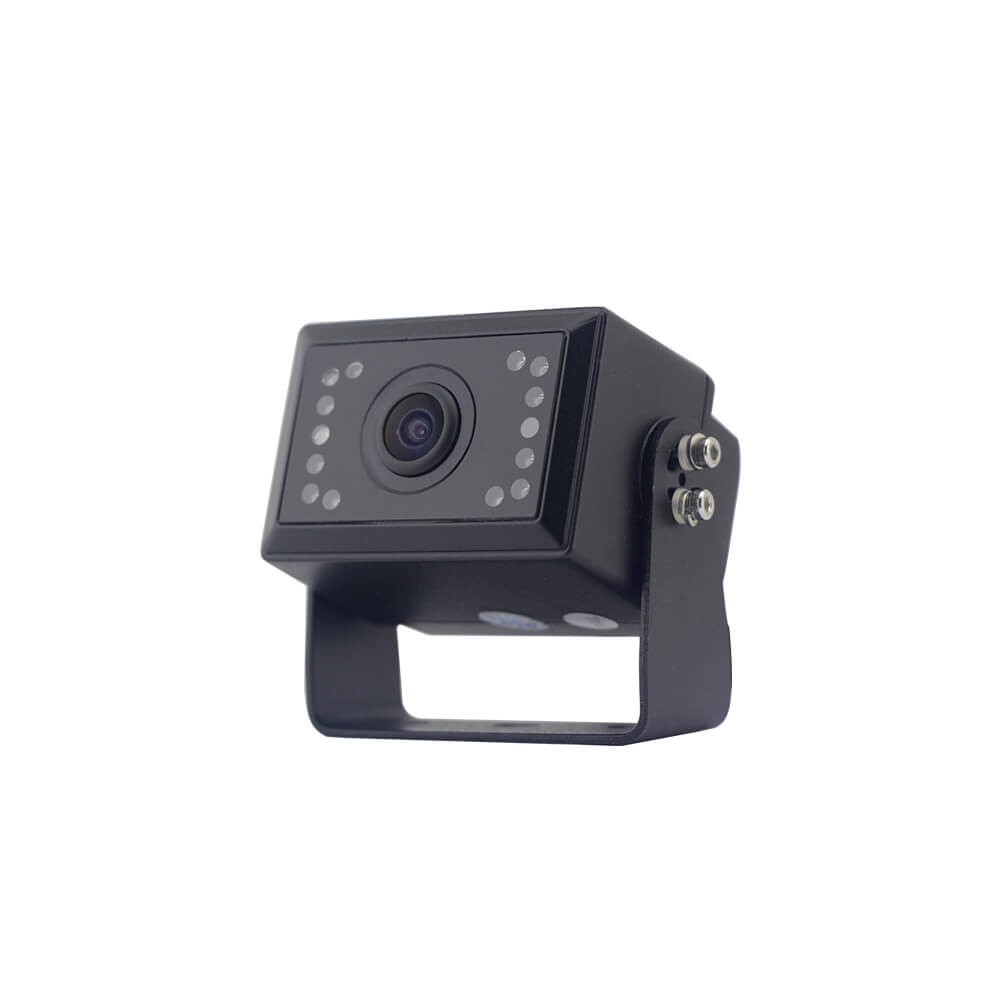

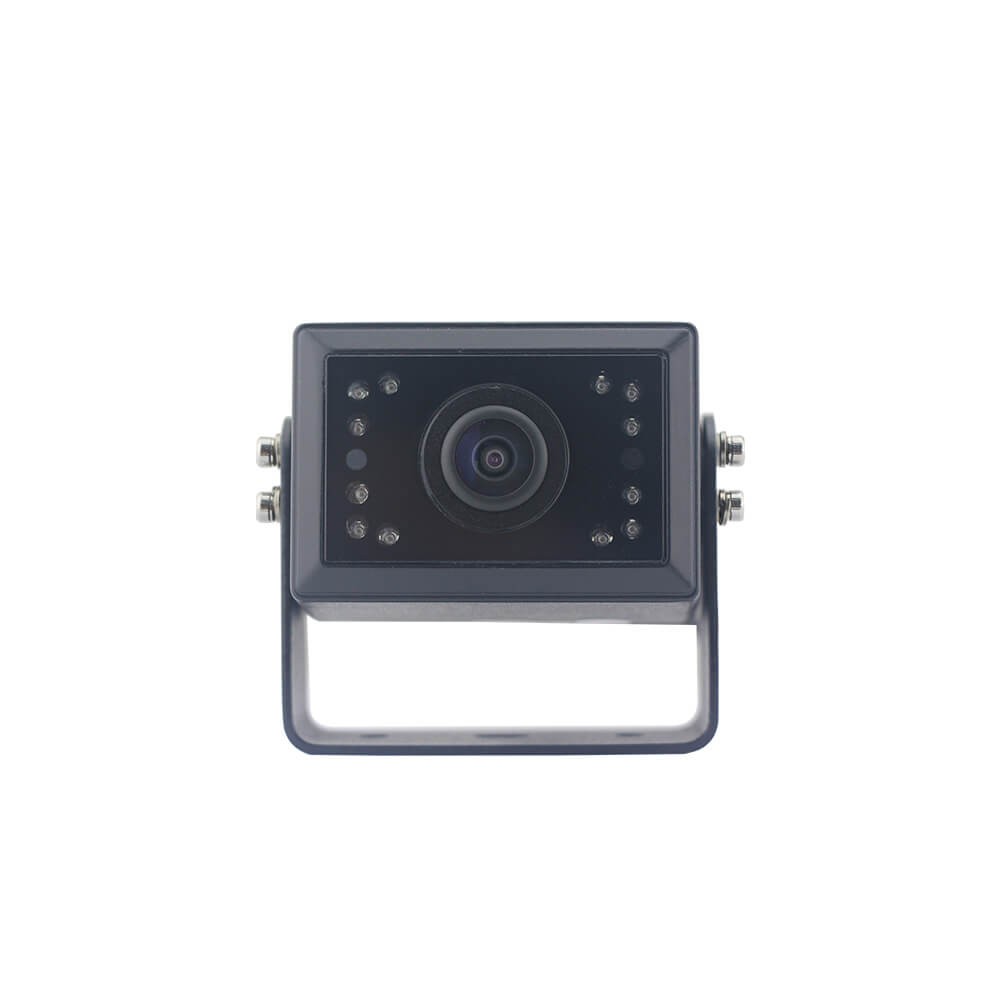

12V 1080P IP69K Commercial Vehicle Backup Camera (AC-303):
| Image Sensor | SONY CCD |
| Effective Pixels | 1920(H) * 720(V) 1920(H) * 1080(V) |
| Resolution | 720P / 1080P |
| Night Vision | Top Starlight Night Vision 12pcs 0.1Lux IR LED Night Ligh |
| Night Vision Distance | 8-10M |
| Angle View | 130° |
| Waterproof Level | IP69K |
| Shockproof level | 4G |

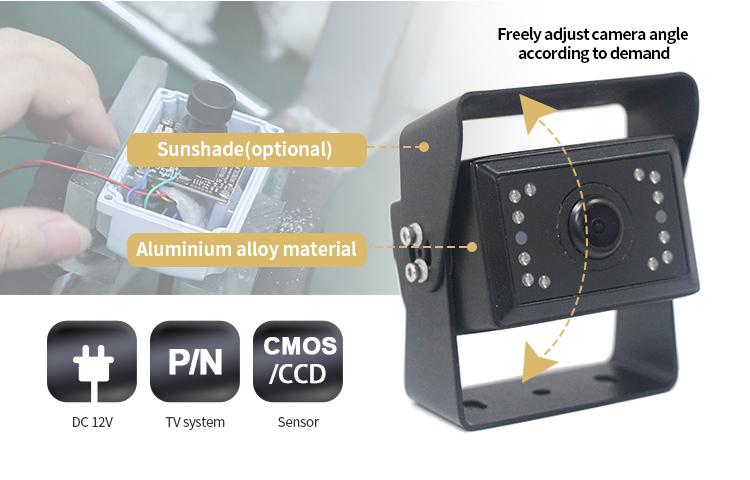

| Housing Material | Aluminium Alloy |

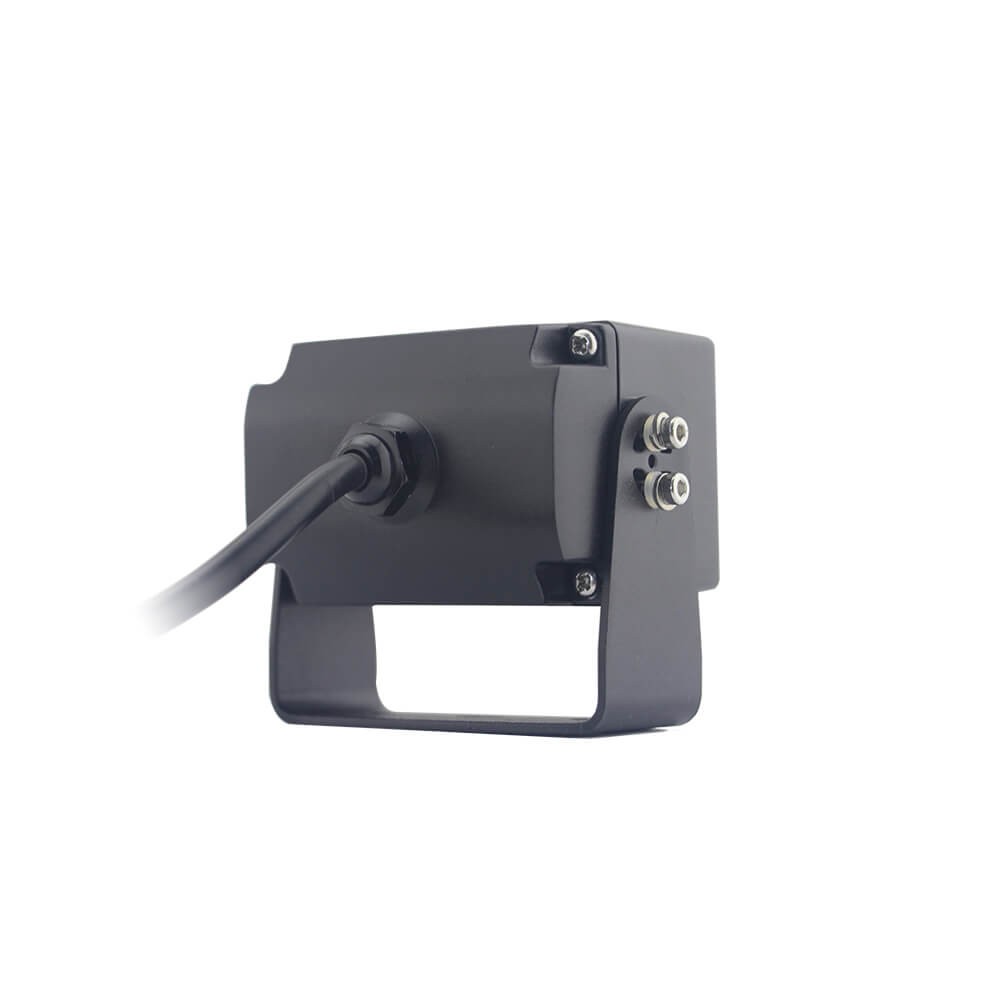

| Connection Plug(Connector) | Locking Aviation 4PIN Female |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |

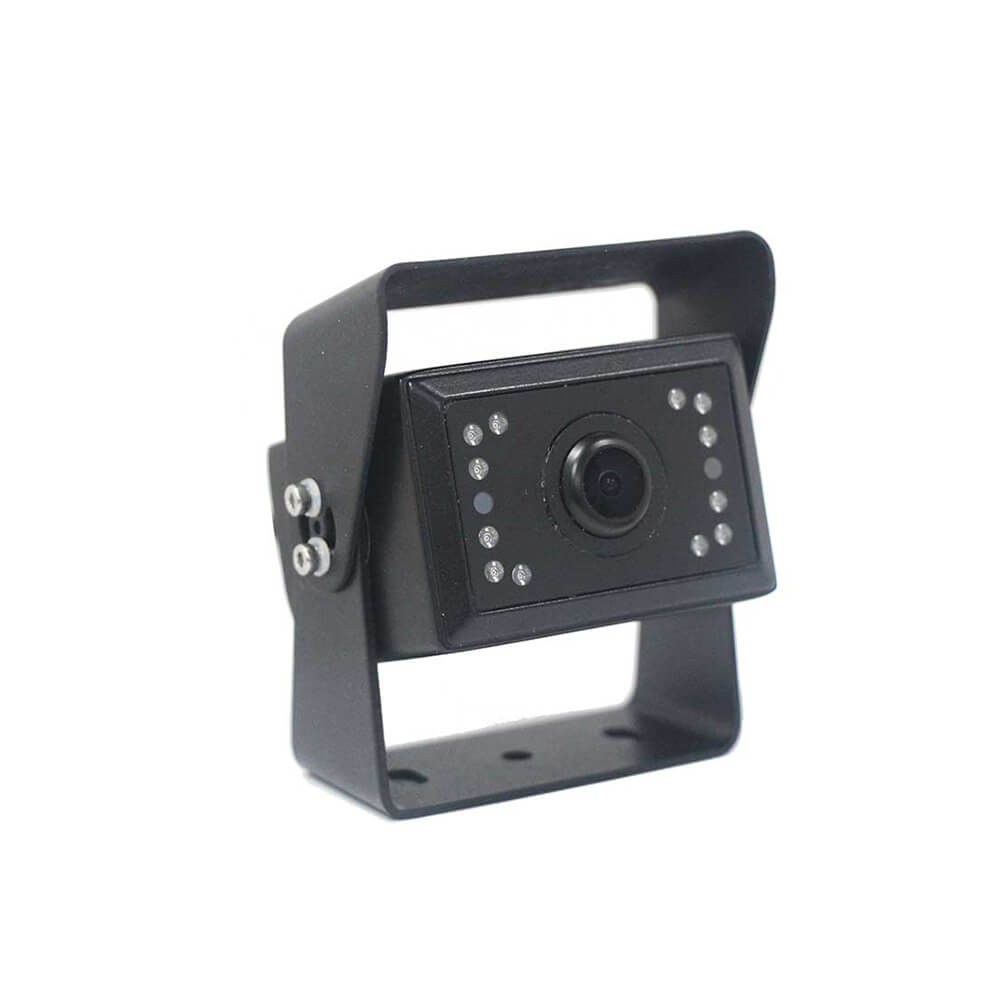

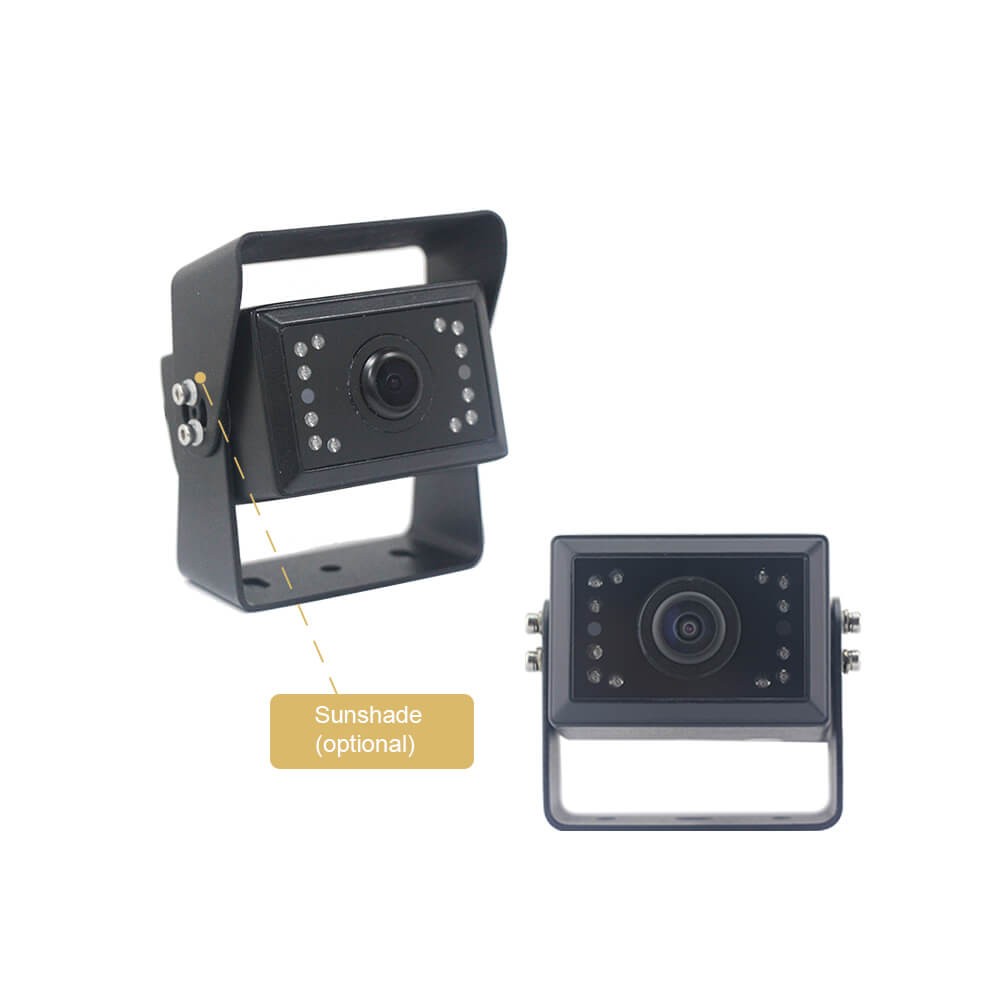

| Sunshade Cover Bracket | Optional |
| Microphone | Optional |
| Heating Function | Optional |
| Customisable | Color/Bracket/Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <250mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, E-Mark, RoHS, IP69K |
