12V 1080P AHD Heavy Duty Backup Camera with IP69K

Aotop is leading Chinese manufacturer & supplier of vehicle rearview cameras. We provide high-quality heavy-duty vehicle rearview camera solutions. Our HD 1080P AC-302 rearview camera has a built-in SONY CCD image processing chip, providing high-quality image output, which can meet customers' requirements for high-quality vehicle rearview monitoring. With main functions such as HD night vision, wide angle IP69K, etc. It is an ideal solution to improve the reversing safety of large vehicles. If you are looking for reliable rear view camera, please contact sales@aotop.com!

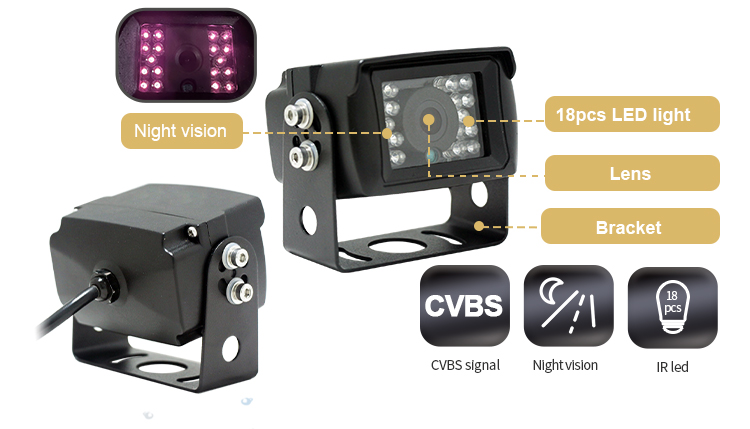

PRODUCT FEATURES


  • CVBS & 720P 1080P AHD resolution optional

  • SONY CCD / Sharp CCD image sensor

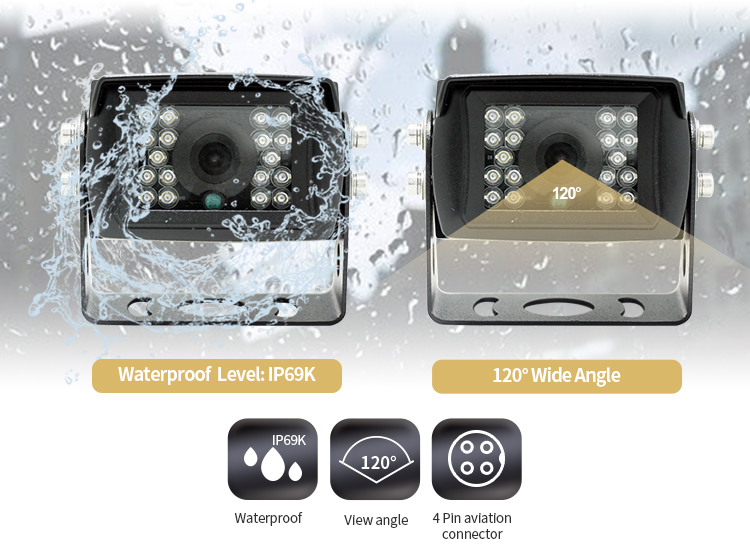

  • IP69K waterproof dustproof

  • 120° wide angle (customisable)

  • 18pcs IR LED night lights (AUTO)

  • PAL & NTSC TV system

  • Aviation 4PIN female connector

  • Microphone audio function optional

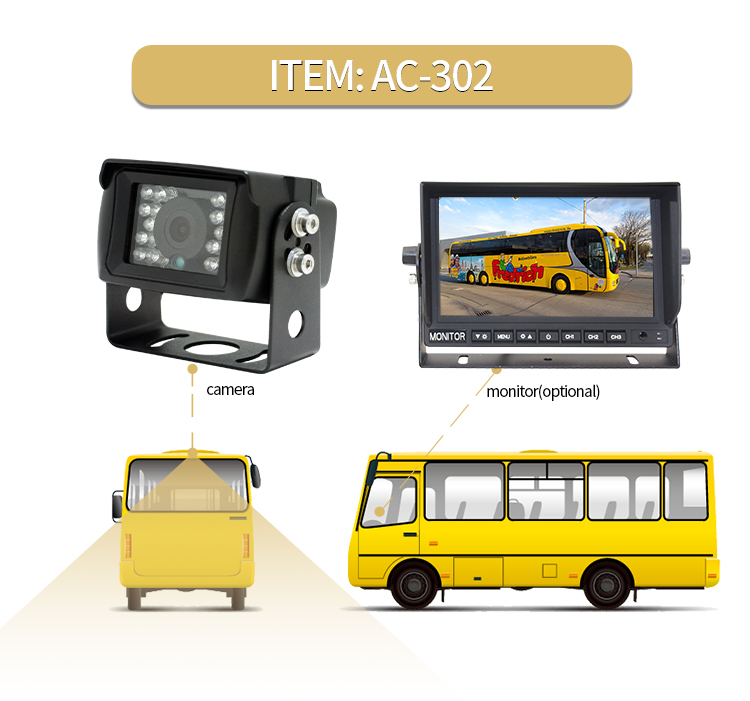

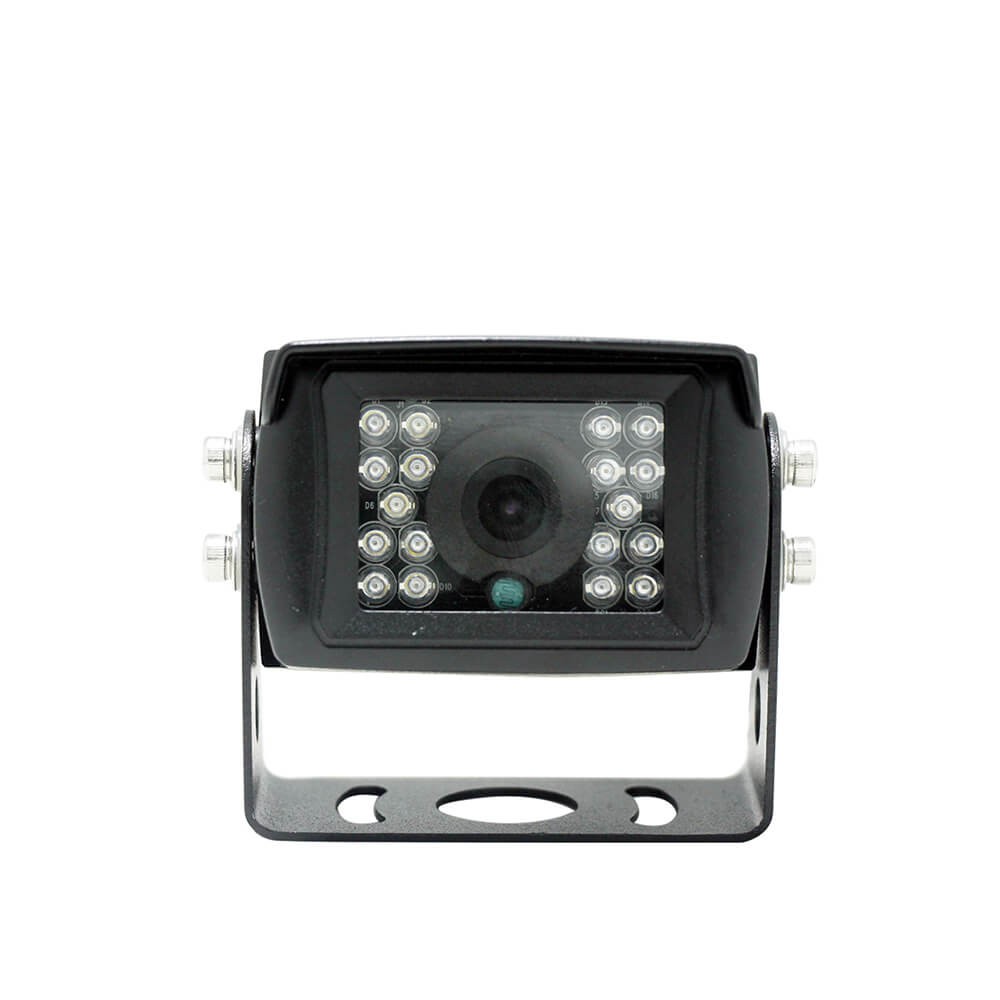

12V 1080P AHD Heavy Duty Backup Camera with IP69K (AC-302):

Image SensorSONY CCD
Effective Pixels

1920(H) * 1080(V)

Resolution1080P
Night Vision

Top Starlight Night Vision

Built-in 18pcs 0.1Lux IR LED Night Light

Night Vision Distance8-10M
Angle View120°
Waterproof LevelIP69K
Shockproof level4G

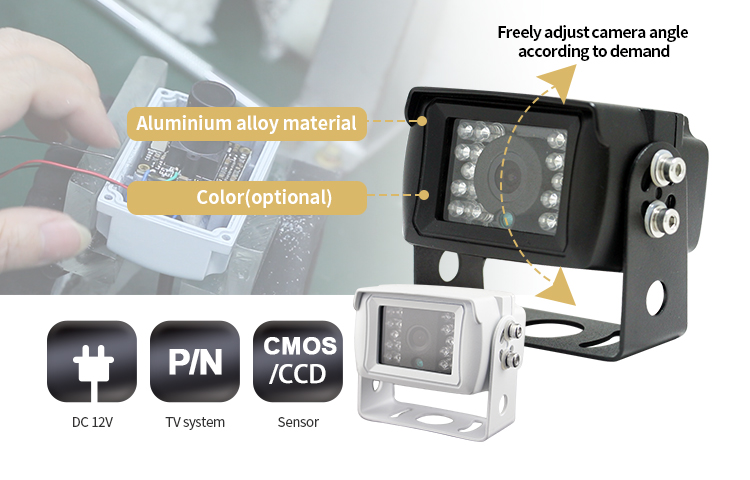

Housing MaterialAluminium Alloy
Connection Plug(Connector)Locking Aviation 4PIN Female
TV SystemPAL / NTSC (Default "PAL")
Mirror & Normal ImageOptional (Default "Mirror")
MicrophoneAvailable
Heating FunctionOptional

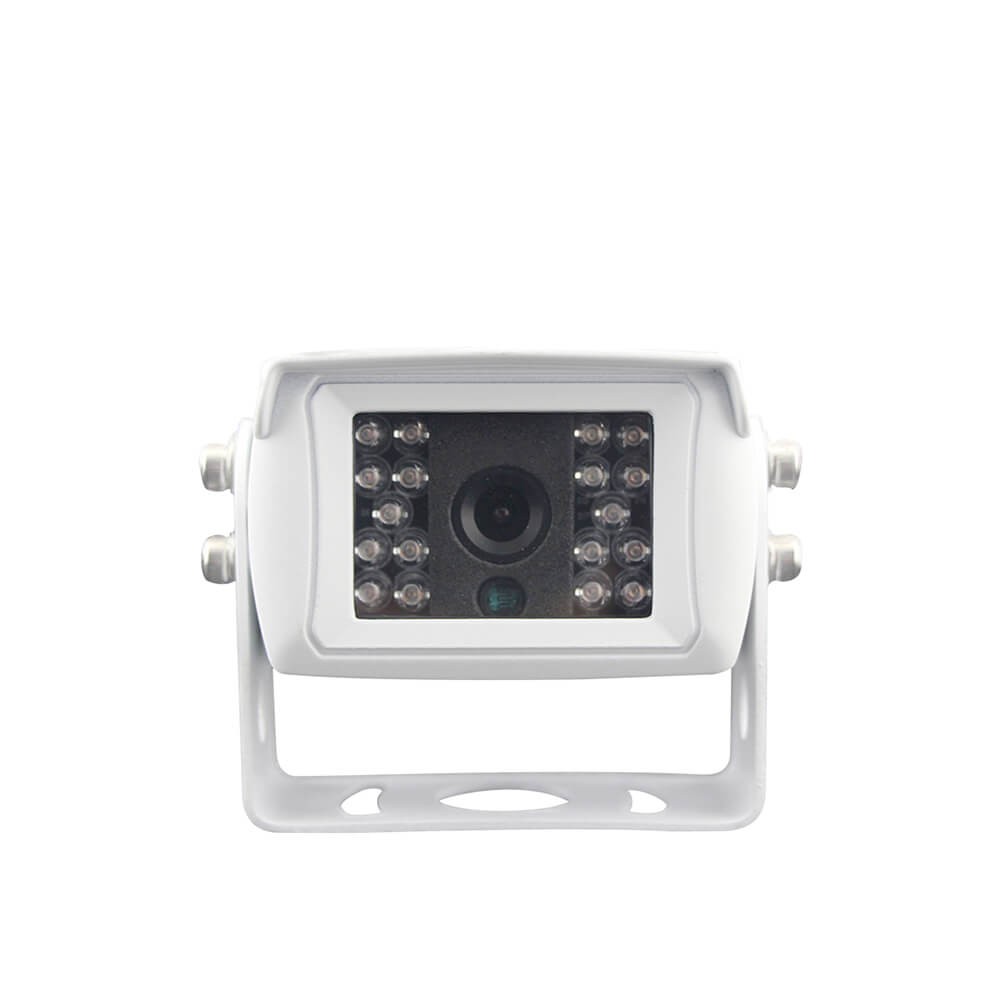

CustomisableColor/Bracket/Connector/Angle°/Resolution
Power Supply12V
Maximum Current<250mA
Power Consumption<3W
Operating temperature-20°c~+70°c (RH0%-RH90%)
Storage temperature-30°c~+80°c (RH0%-RH90%)
Warranty2 Years
CertificationCE, E-Mark, RoHS, IP69K
