Aotop thermal infrared imaging dual spectrum camera dual lens design, with an infrared and visible light thermal camera in one, allowing for dual light overlay, split screen display and many other modes. The high thermal penetration of infrared provides an excellent field of view in a variety of low visibility conditions, help driver seeing farther and clearer. For more information please contact us at sales@aotop.com!
PRODUCT FEATURES
AOTOP dual spectrum IR thermal imaging camera adopts dual lens design, infrared light thermal image & visible light camera 2 in 1, realising a variety of modes such as dual light overlay and split screen display. Whether it is unsafe road conditions such as sandy and foggy days, or low light or glare interference at night, it can easily cope with it. Built-in AI pedestrians and vehicle detection algorithm chip is able to intelligently identify pedestrians vehicles in various weather conditions, greatly improving driving safety.

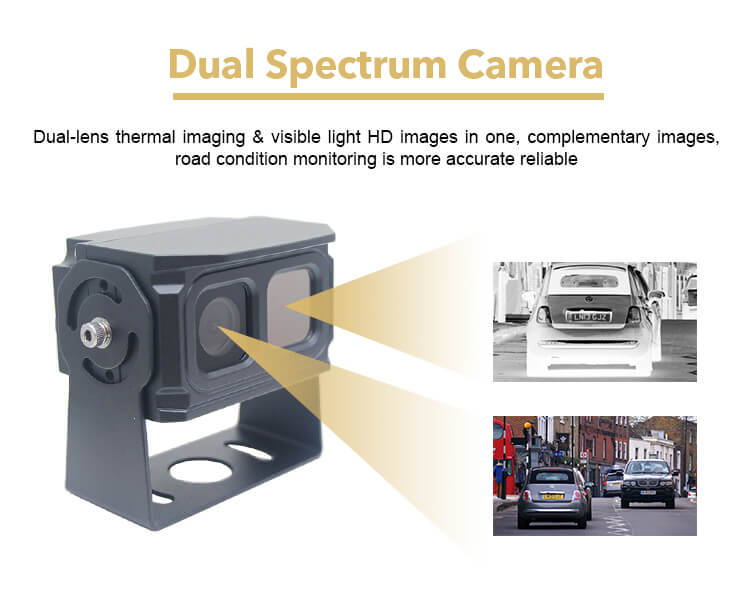

Dual spectrum: infrared + visible

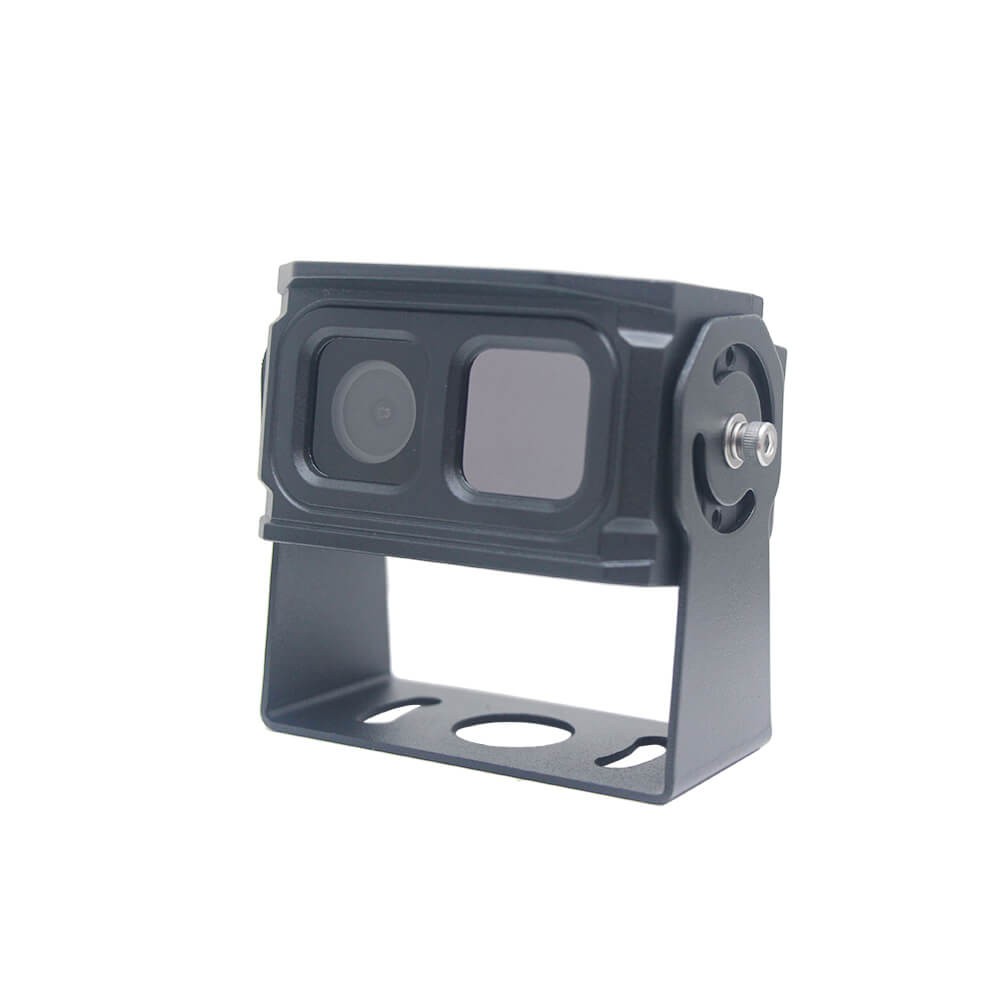

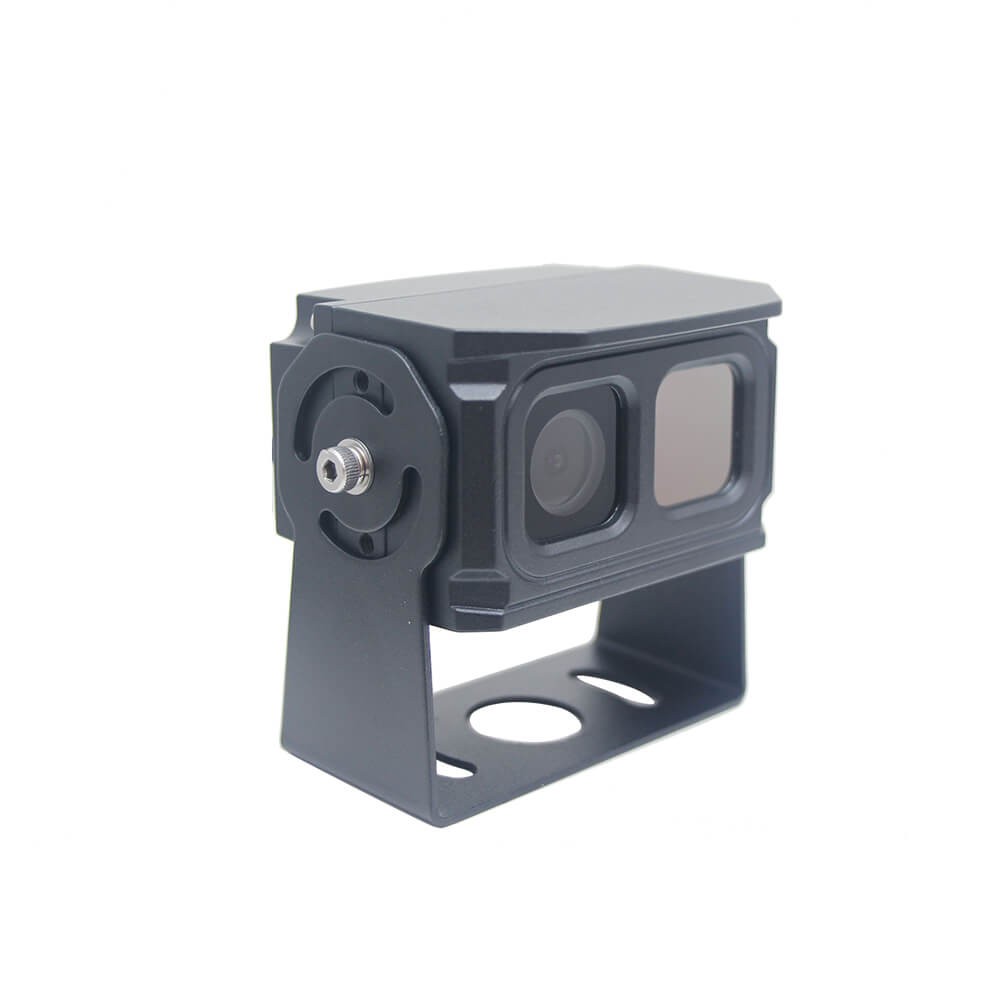

Dual lens Design: 1 infrared thermal imaging lens (AI) & 1 visible 1080P HD lens
2CH video image output
Multiple display modes single view / two divisions / picture-in-picture and other display mode

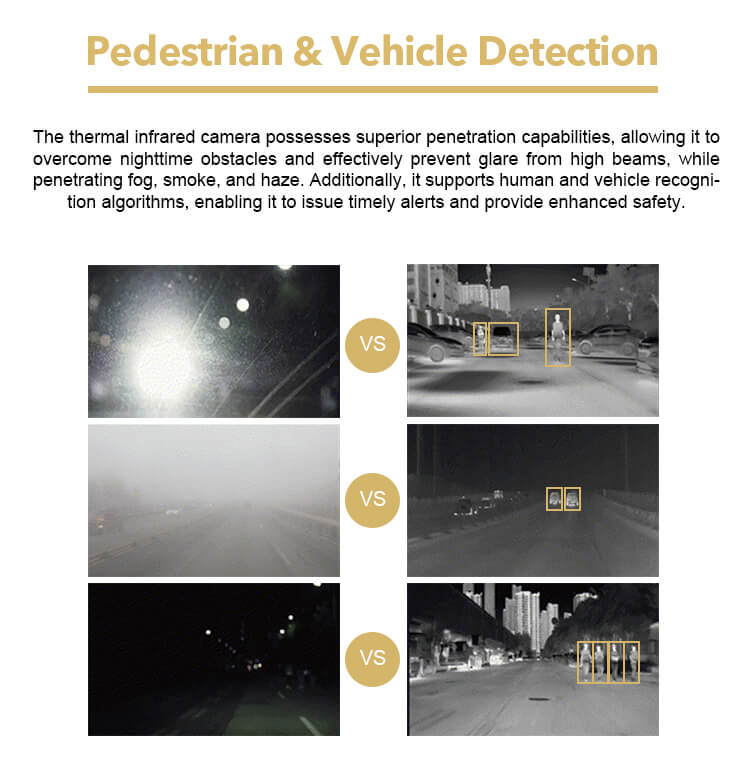

AI vehicle & pedestrian detection
IP69K waterproof dustproof

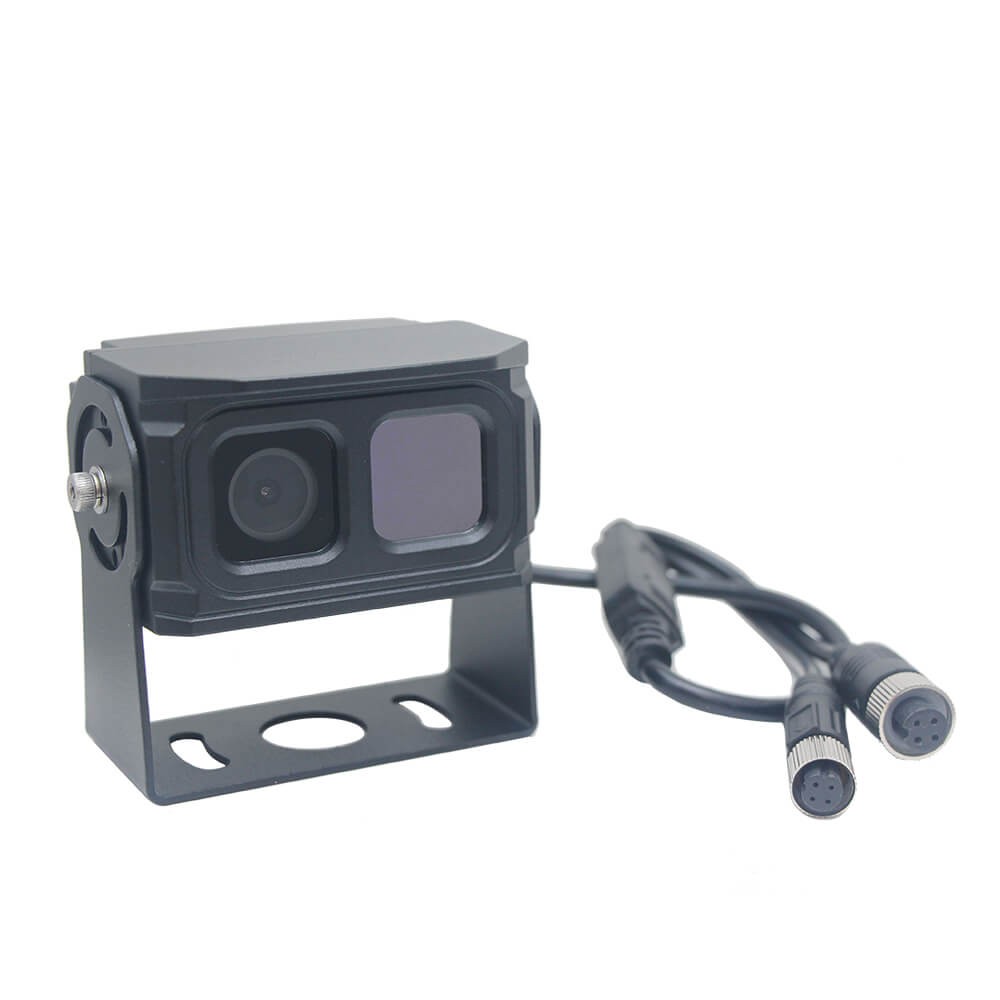

Waterproof 4pin aviation connector
| Materials of housing | High Density Aluminum Alloy | |
| Weight | 300g(N.W)/350g(G.W.) | |
| Working voltage | DC12V±10％ | |
| Working current | ≤300mA@12V | |
| Power Consumption | ≤3.5W@12V | |
| Connectors | 4Pin waterproof aviation connector | |
| Cable Length | L=0.5M | |
| SOC-AI chip | SA220 | |
| SOC-AI ISA | RISC-V | |
| Thermal Infrared Camera | Image Sensor | High Performance Vanadium Oxide Uncooled Infrared Detector |
| Imaging mode | White Thermals imaging (Multiple color palette options to choose from depending on communication commands) | |
| Pixel Pitch | @12μm WLP | |
| Spectral Band | 8 ～14μm | |
| Lens | 4.3mm/7.0mm, Prime Focus: 5M-infinity | |
| Viewing Angle | Horizontal 39° * Vertical 30° or Horizontal 29° * Vertical 20° | |
| Detection Range | 200m/300m (According to the actual vehicle installation height and Angle) | |
| AI Recognition Range | 100m/150m(According to the actual vehicle installation height and Angle) | |
| Visible Light Camera Module | Image Sensor Brand | Galaxy Core |
| Chipset | GC2053 | |
| Viewing Angle | Horizontal 110° * Diagonal 130° * Vertical 70° | |
| Video Output Mode | Infrared Thermal Imaging and Visible Light Imaging | |
| Video Output Format | AHD | |
| Resolution/Frame Rate | 720P@25FPS、1080P@25FPS | |
| Connector Waterproof Rating | IP68 | |
| Camera Waterproof Rating | IP69K | |
| Storage Temperature | -30℃～+85℃ | |
| Operating Temperature | -30℃～+70℃ | |
| Operating Humidity | 20%~80% | |
