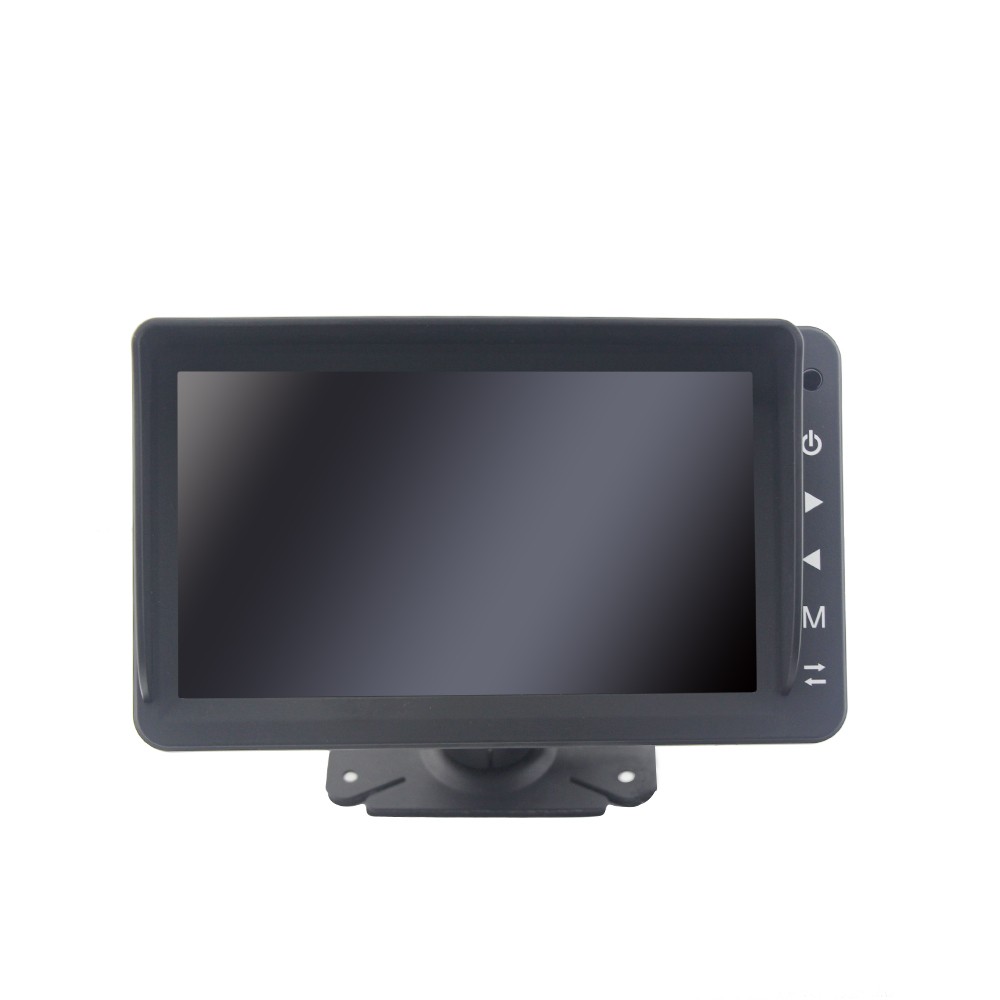

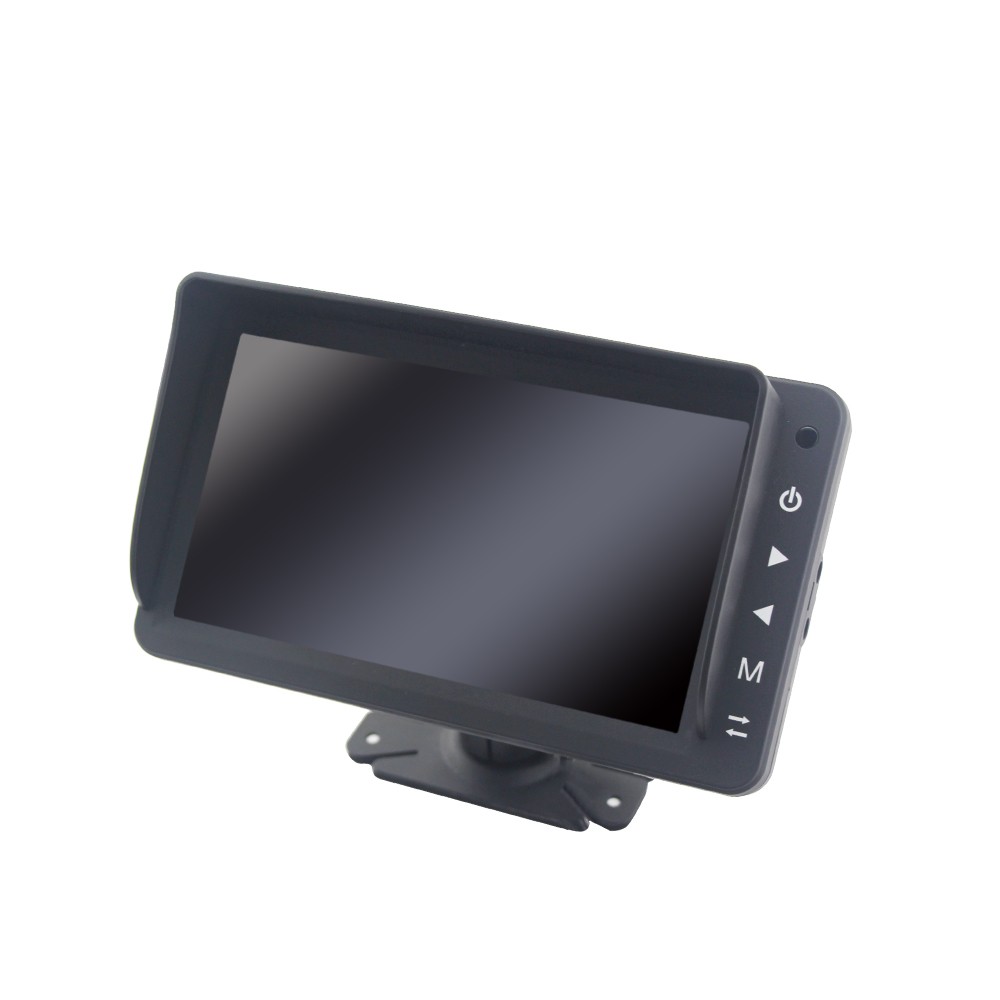

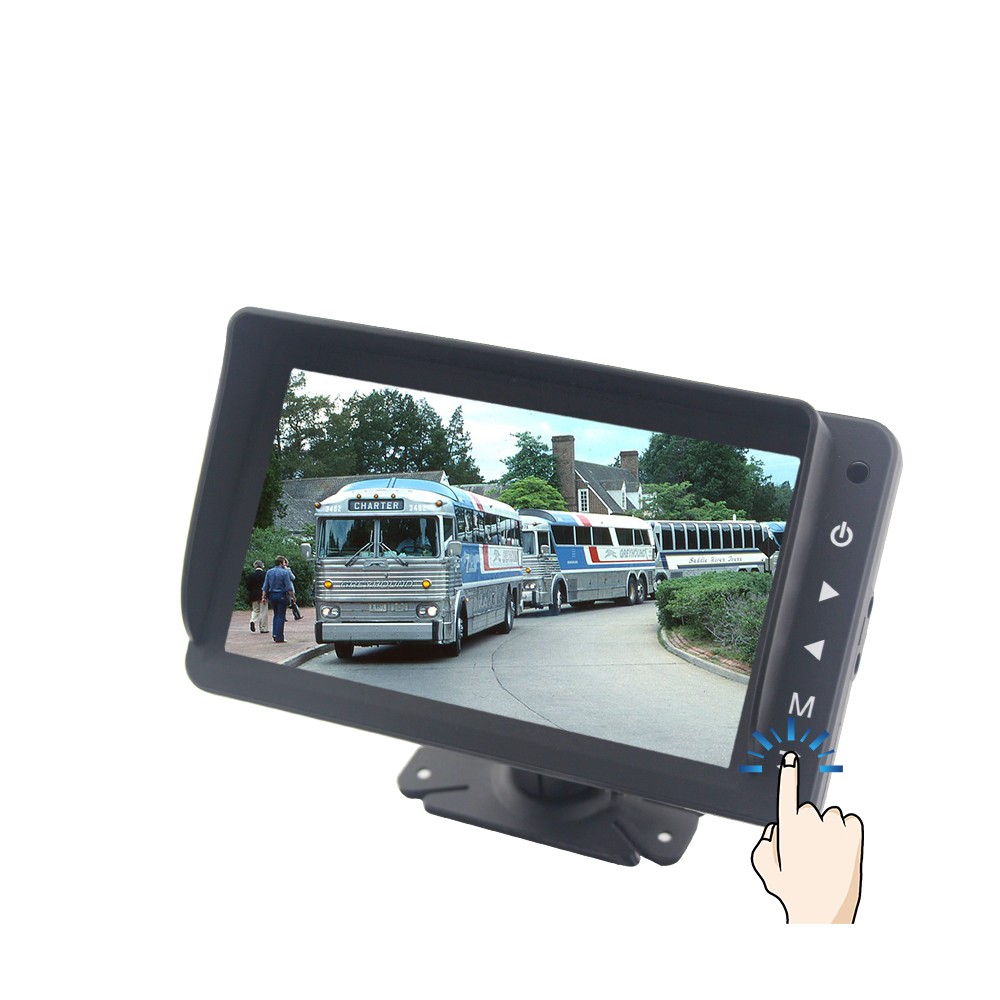

Aotop 7 inch HD IPS LCD vehicle monitor supports 3CH 1080P AHD camera inputs. It provides drivers with clear HD views of three areas around the vehicle, reducing the risk of scratches during driving. This monitor is easy to use and delivers excellent HD visuals for vehicle monitoring, making it an ideal choice for improving fleet safety. If you are looking for high-quality vehicle monitors from China, please contact sales@aotop.com!
PRODUCT FEATURES

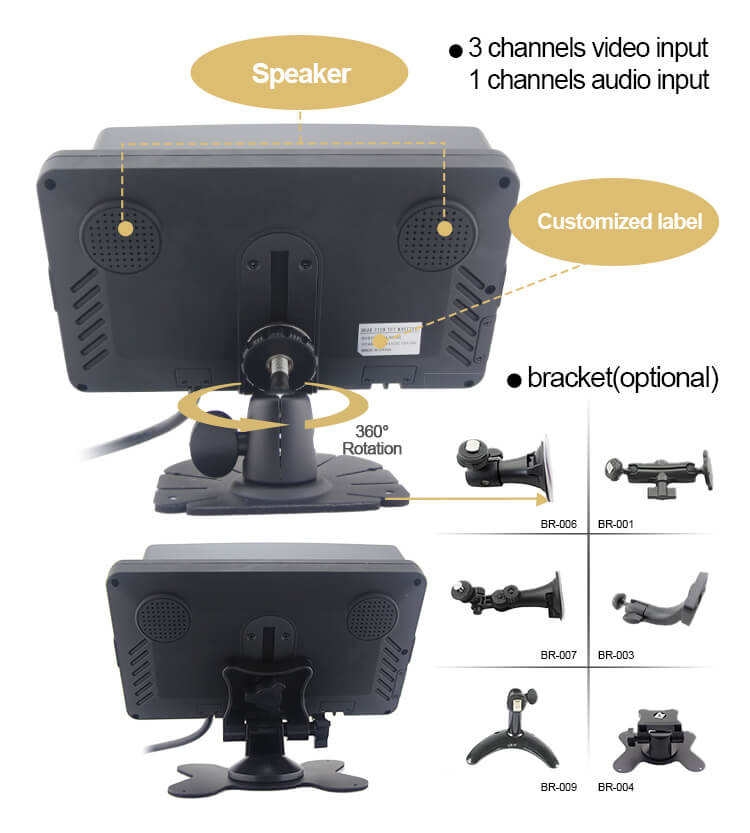

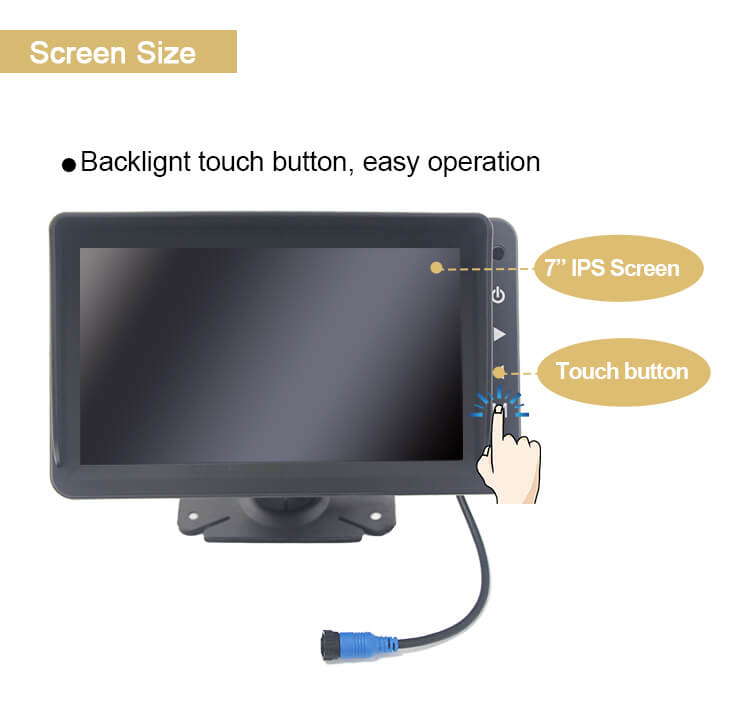

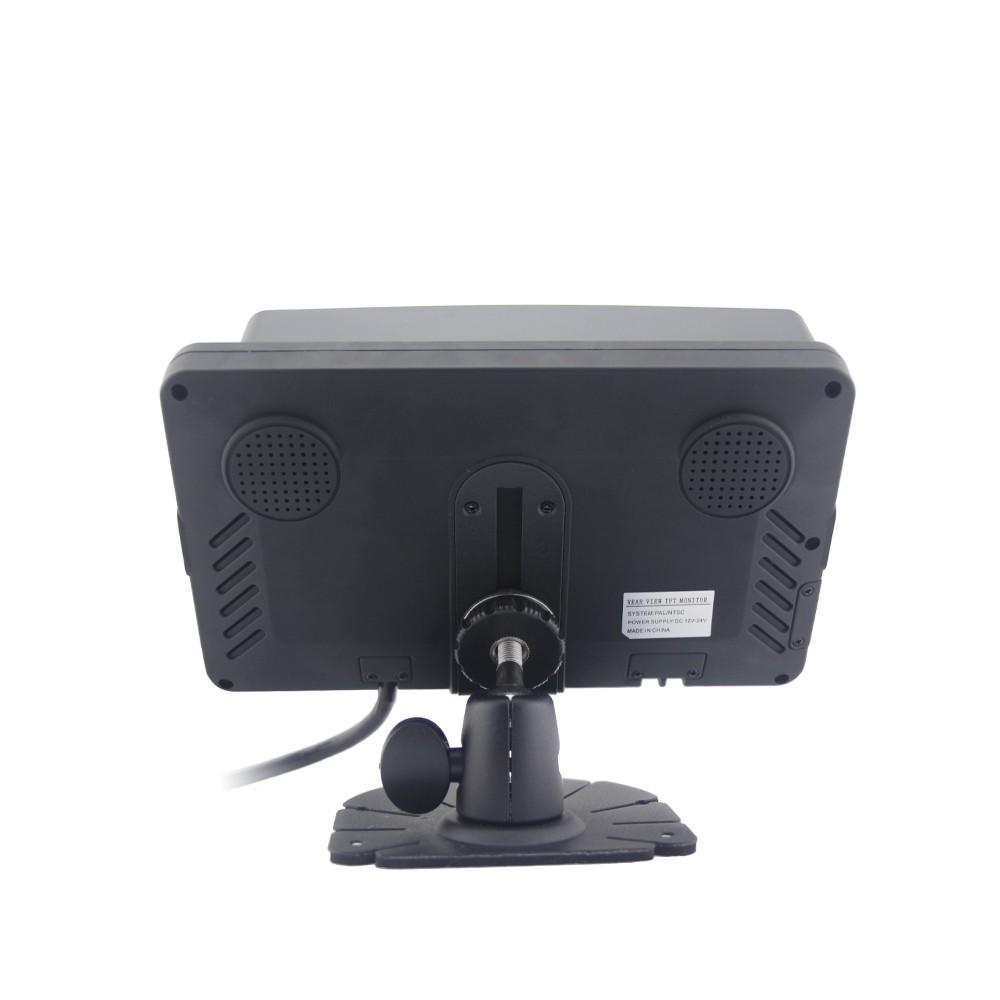

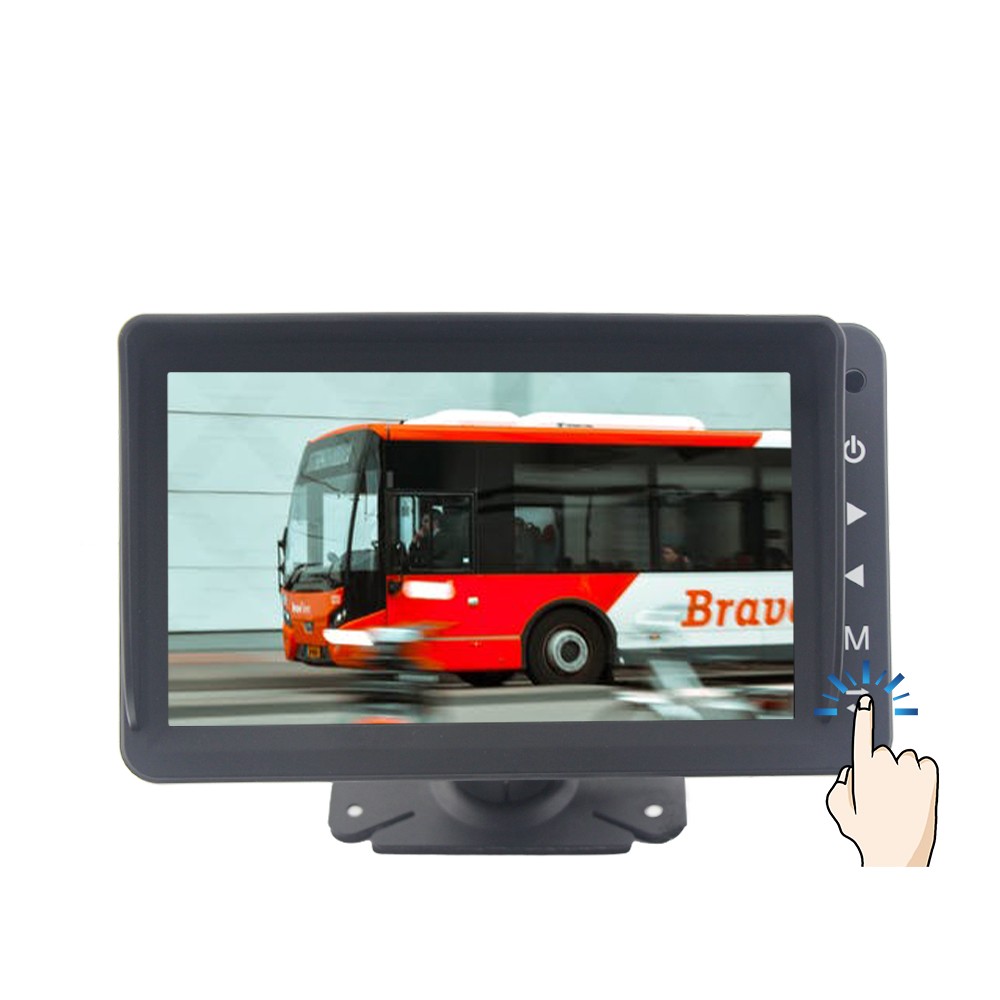

With sunshade cover & fan-bracket & touch button
1024*RGB*600 resolution (IPS LCD screen)
3CH x cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS

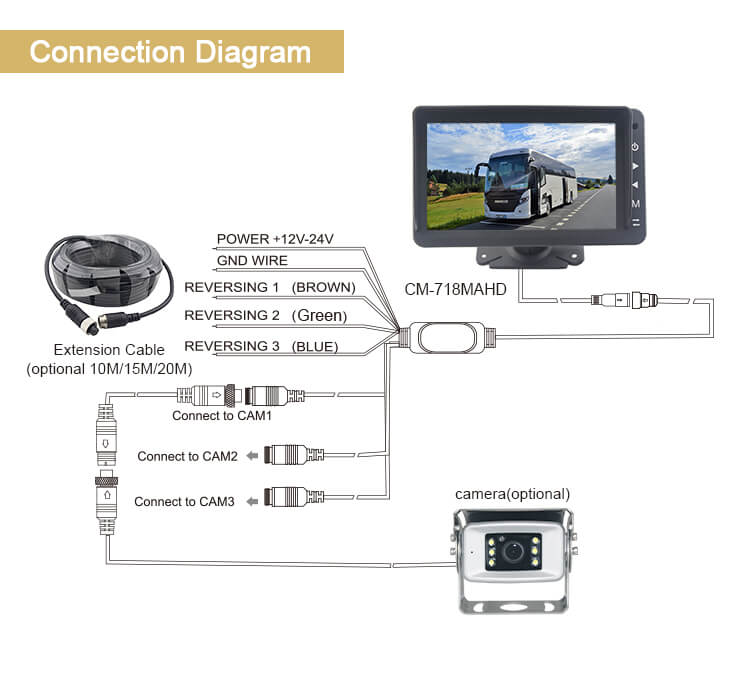

3 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;
1CH audio signal input (high quality speaker)

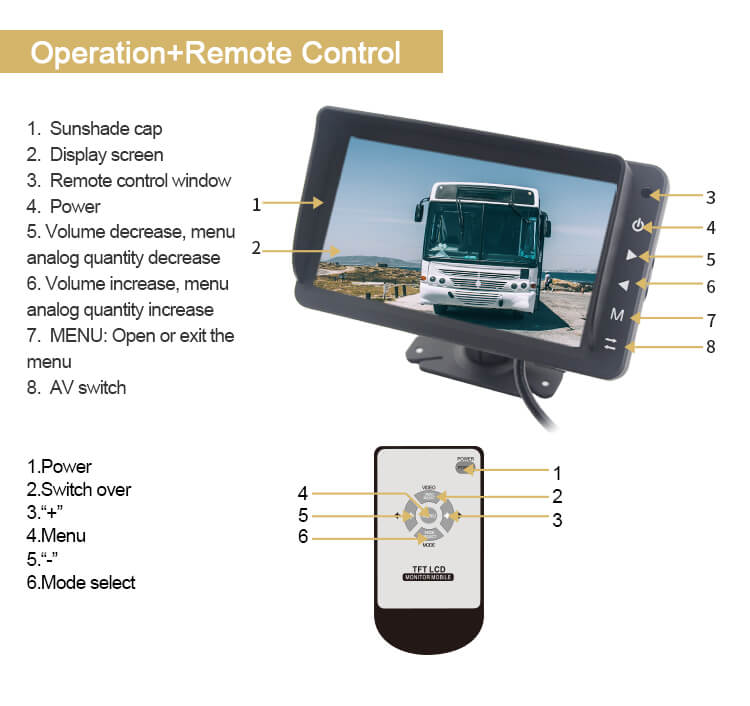

Full-function remote control
Multi-language settings
Horizontal mirror image switching; Image flip;
DC 12-24V wide voltage
AUTO adaptation PAL / NTSC system
| Screen Type & Size | 7 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up-85°, Down-85°, Left/Right-85° |
| Video Input | Support 3CH AHD 1080P/960P/720P/CVBS Mixed Video Signal Inpu |
| Audio Input | 1CH Camera Audio Input (Available Speaker) |
| OSD Menu | Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Trigger | 3CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |
| OEM&ODM Customization | Bracket/LOGO Plate & Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
