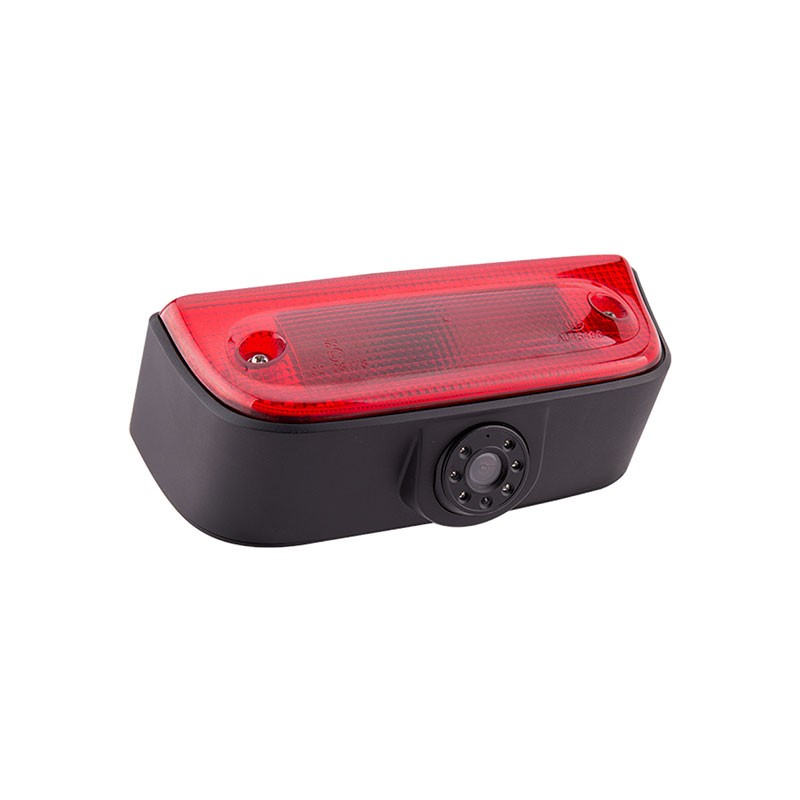

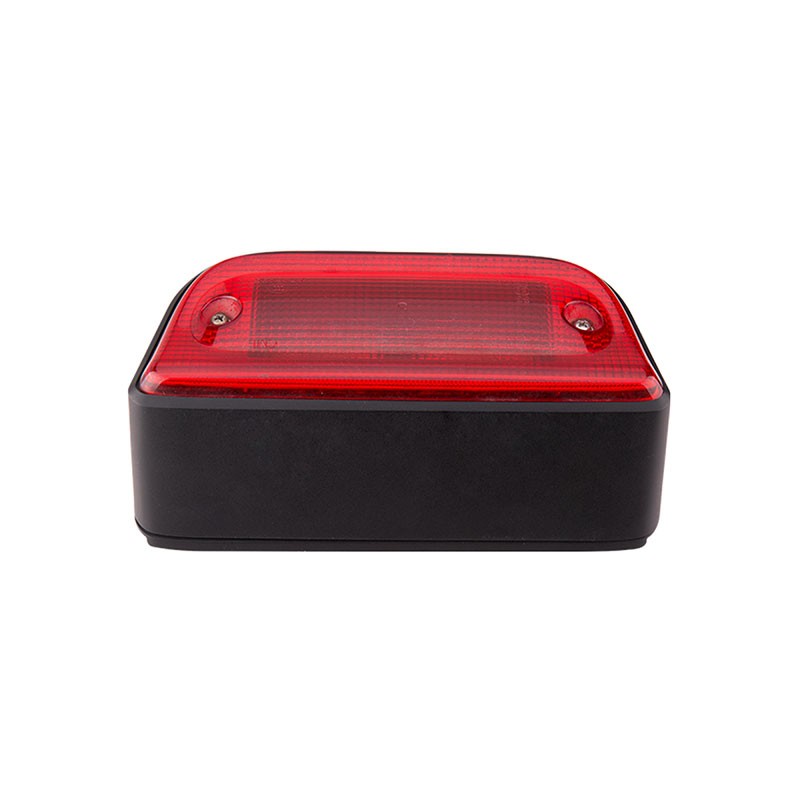

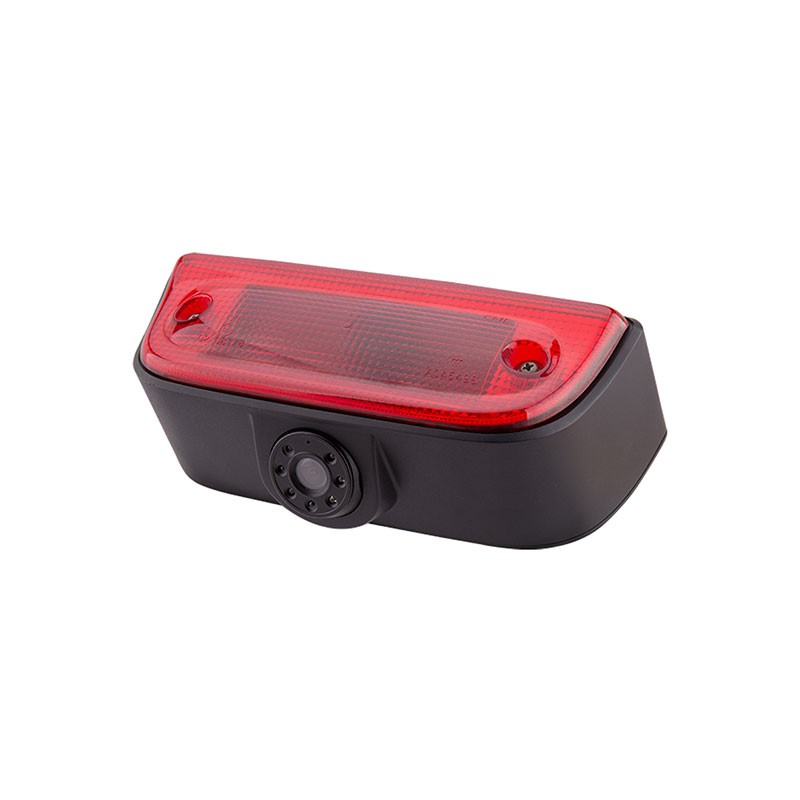

AC-693 HD Brake Light Camera for NISSAN NV200

The AOTOP AC-693 third brake light camera is specifically designed to be compatible with several vehicle models. It fits perfectly with 2009 - 2022 Nissan NV200 & Evalia, 2011 - 2022 Mitsubishi Delica D3, 2014 - 2018 Chevrolet City Express, and 2013 - 2015 Ashok Leylan Stile.

One of its remarkable features is that it can serve as a direct replacement for the original brake light. Not only does it fulfill the function of a brake light, but it also comes with an exquisitely designed appearance, adding a touch of style to the vehicle.

The camera shell is crafted from ABS material. ABS is known for its excellent properties, such as high strength, which enables the camera to withstand various external forces and impacts without getting easily damaged. Moreover, it has good toughness, ensuring the durability and reliability of the camera during long-term use.

Before being shipped out to customers, these cameras have to go through a series of extremely strict testing procedures. This rigorous testing process guarantees that each camera meets the highest quality standards and can perform optimally when installed on the vehicles.

Technical Specifications

Sensor: 1/2.7 FH8536H+C2399

Effective Pixels：

–CVBS: 1920(H) * 530(V)；

–AHD-1080P: 1920(H) * 1080(V);

–AHD-720P: 1280(H) * 720(V)

Resolution: 1000-2000 TVL

TV System: NTSC/PAL

Video Signal: CVBS/AHD

Wide Angle: Customizable

Min illumination: 0Lux (LED ON)
IR lED: High brightness LED
Night Vision distance: 30ft

Function Options:

–Mirror/Non-Mirror

–Guide Line ON /Guide Line OFF

–Flip/No Flip

Waterproof Rating: IP68

Current Consumption: 150 mA

Power Supply: 12V standard, compatible with 5V-18V

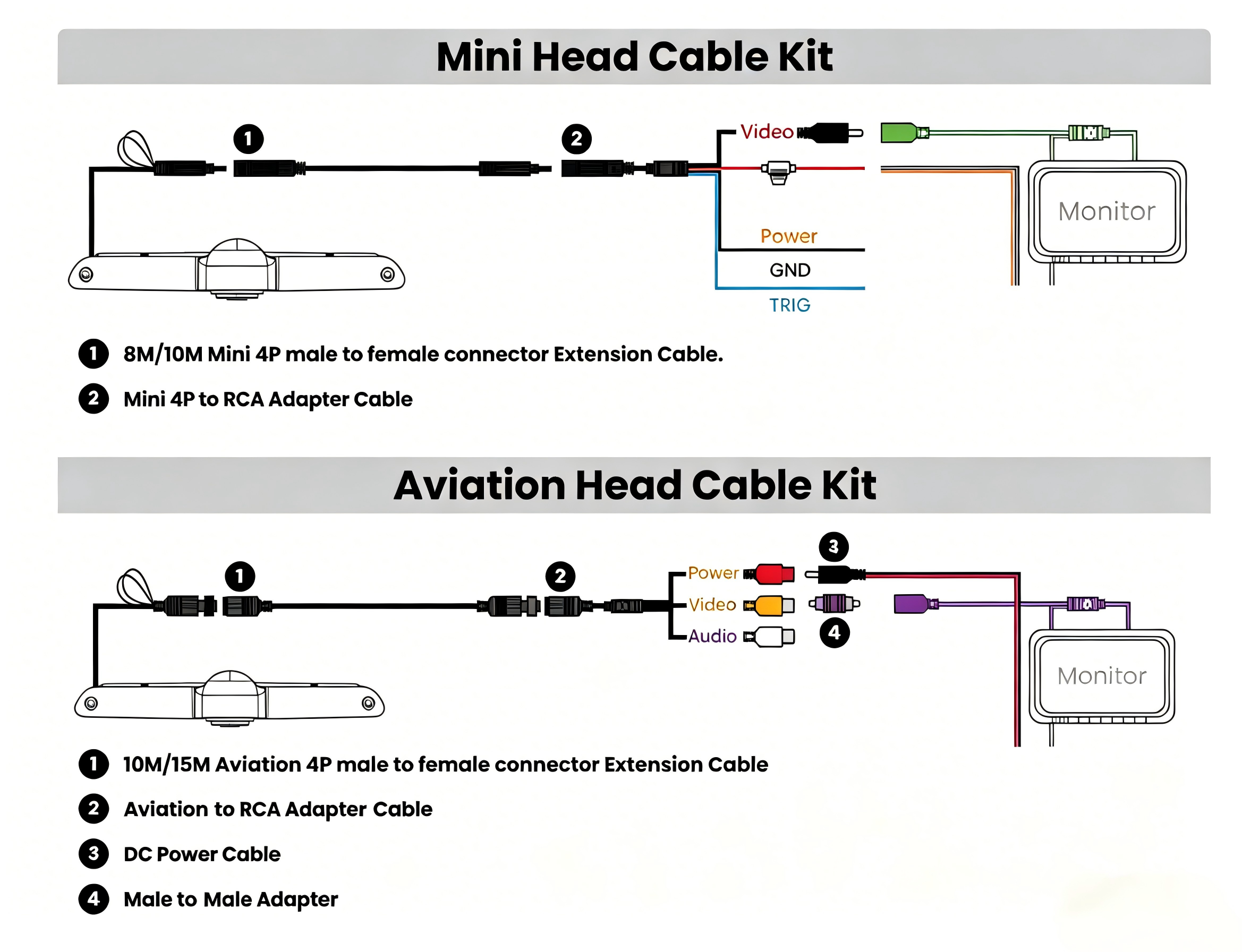

Connector: 4P Aviation Female (Optional AV+DC or BMW connector)

Operating Temperature: -30℃ to +75℃, Rh95% MAX

Storage Temperature: -40℃ to +85℃, Rh95% MAX

Material: PC plastic, high and low temperature resistance, flame retardant
