Wireless Forklift System

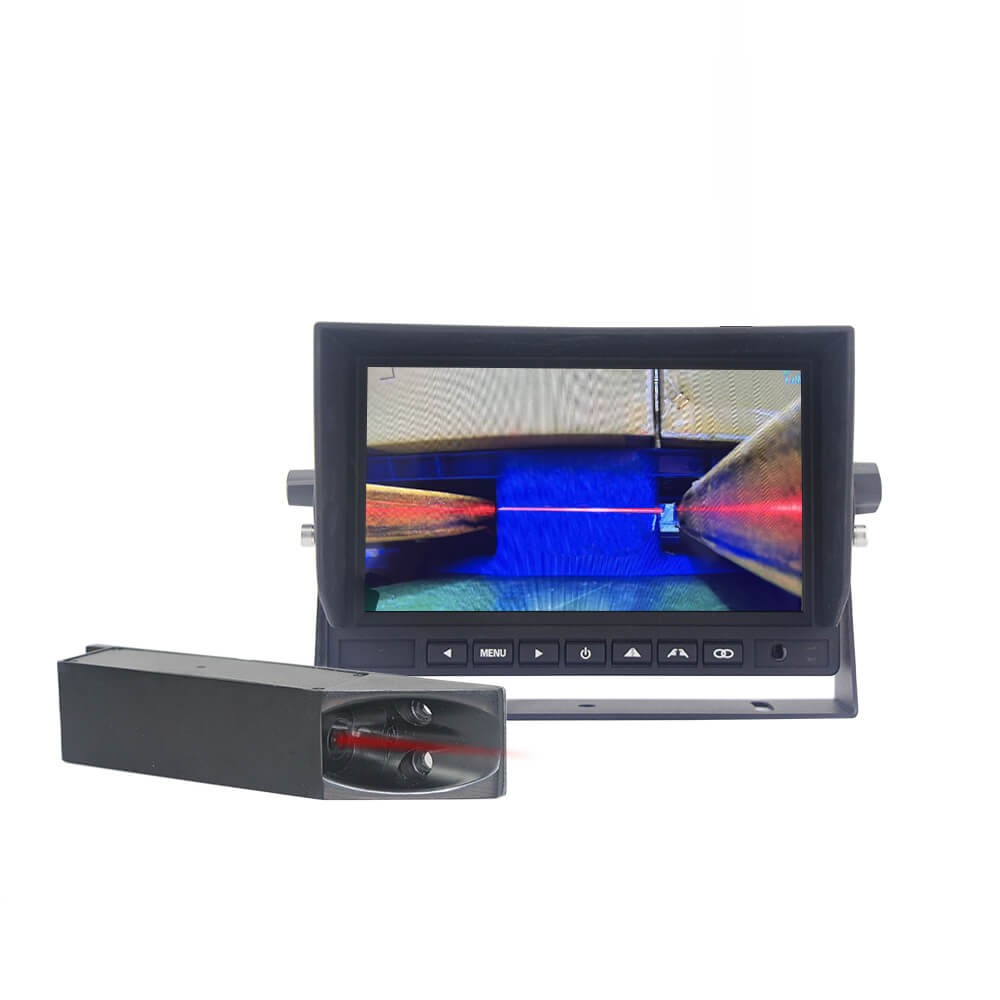

7inch 1080P wireless forklift camera system

CM-709MDW 1080P wireless forklift camera system is suitable for scenarios where cargo is blocking the line of sight, operators can clearly monitor the situation in front of the forklift, effectively reducing the risk of collision in the blind spot. Supporting DVR recording function and easy installation, it is an ideal solution to optimise forklift driving safety. If you are looking for high-quality forklift solution systems, please contact us at sales@aotop.com!

SYSTEM FEATURES


  • Low power consumption

  • DVR image recording

  • 2.4g wireless transmission (50m, 164ft)

  • HD IR night vision camera (IP69K), Magnetic base, built-in 3400mAh battery

  • No drilling, easy to install

  • Instant automatic pairing



Wireless Monitor
ModelCM-709MDW-HD
Screen ratio16:9 / IPS
Resolution1024*R.G.B*600
Back lightLED, brightness 500 cd/m2
RecordingYes
Storage16-128G
Wireless input4CH 1080P wireless input
File formatMP4
Playback modeSingle image
File size3.3M/min
Working frequency2400 ~ 2483.5MHz *
Decompression formatH.264
Receiving sensitivity-89dBm@4MHZ
Image delay time120mS
Playback modeSingle image
Receiving distance50M in open area
Operating temperature-20~+70 ºC 85%RH MAX
Storage temperature-30~+85 ºC 95%RH MAX
Vibration rating4G
Image delay time120mS
Power consumption<3.8W
Consumption current12V Standby:≤10mA,
working.≤320mA
Power SupplyDC12-24V
Shell materialsPC+ABS


Forklift Camera
ModelAC-978MDW-HD
Image sensorCMOS 1/2.7”
Effective pixels1920×1080 pixels
Transmission frequency2400-2483.5MHZ
Transmission distance50M in open area
SystemN/P automatically
Night visionYes
Transmission bandwidth8MHz BER<1E-3
ImageMirror
Working time6H with fully charged
Charging voltageDC 12-24V
Power saving modeAutomatically
Working temperature-20~+70 ºC 85%RH MAX
Storage temperature-30~+85 ºC 95%RH MAX
SNR46.5dB
Waterproof levelIP69K
Viewing angleHorizontal more than 40°
Transmission sensitivity-89 dBm
Shell materialsBlack aluminium alloy
AccessoriesPower cable、5DB antenna




  • Wireless forklift camera built-in 3400mAh battery that provides approximately 6 hours of battery life on a 4-hour charge.

  • With magnetic base design, it can be directly attached to the forks.

  • Built-in infrared laser light, the driver can avoid the obstacles appearing in front of him according to the infrared ray changes.
