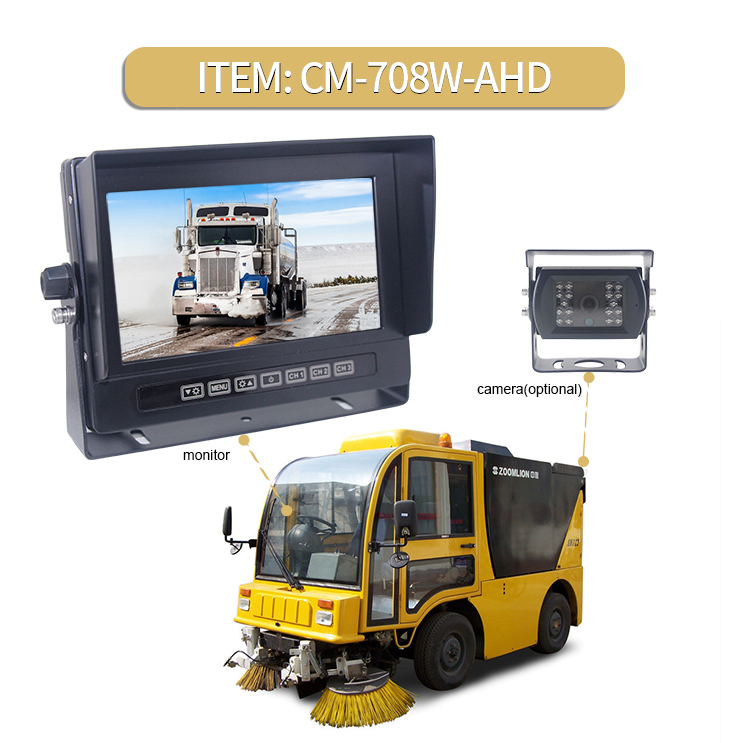

Aotop 7 inch waterproof IP68 vehicle monitor is good for large outdoor work vehicles. It supports 3-channel AHD camera inputs, ensuring clear HD views of the surroundings in any weather conditions, reducing blind spots and preventing accidents. Support multi-language settings / PAL and NTSC systems, making it suitable for users worldwide. If you are looking for reliable waterproof car monitor manufacturers & suppliers in China, please contact us at sales@aotop.com!

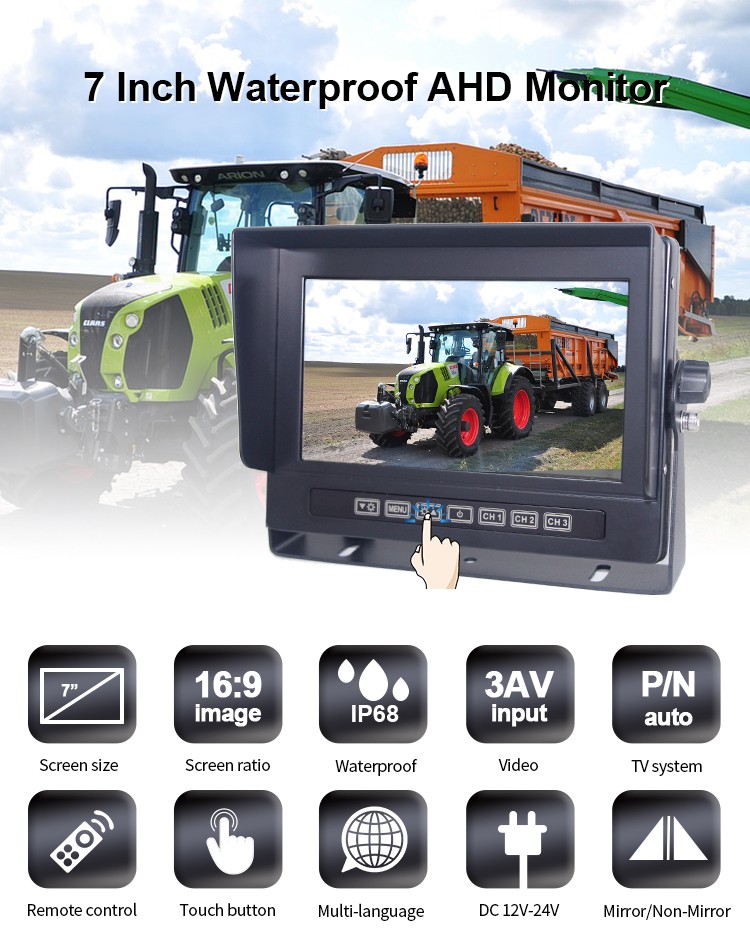

PRODUCT FEATURES

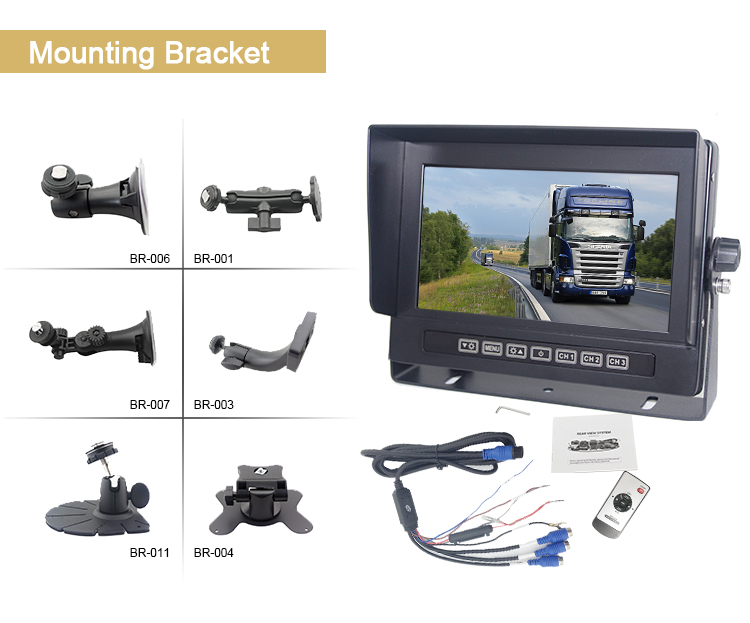

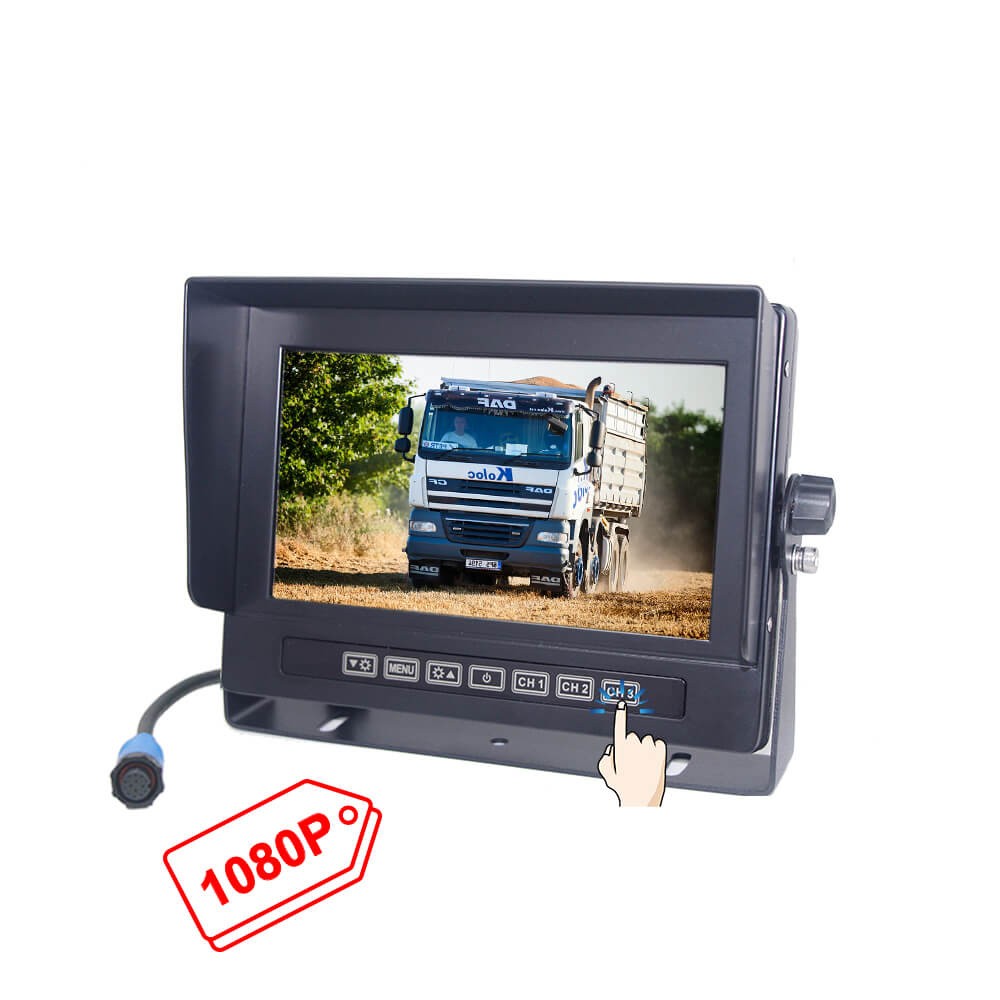

With sunshade cover & U-bracket & touch button

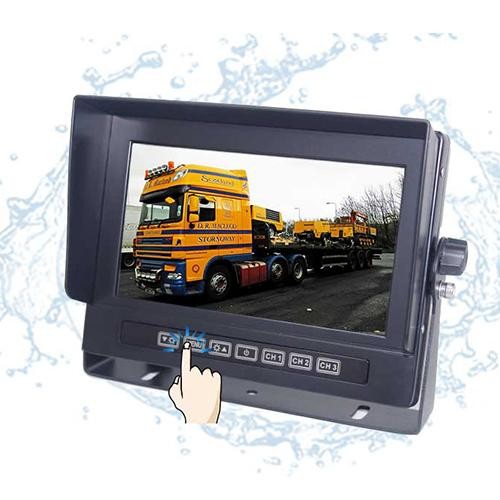

IP68 waterproof & dustproof, aluminium alloy material shell
1024*RGB*600 IPS LCD screen, 16:9 ratio
3CH x cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS
3 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

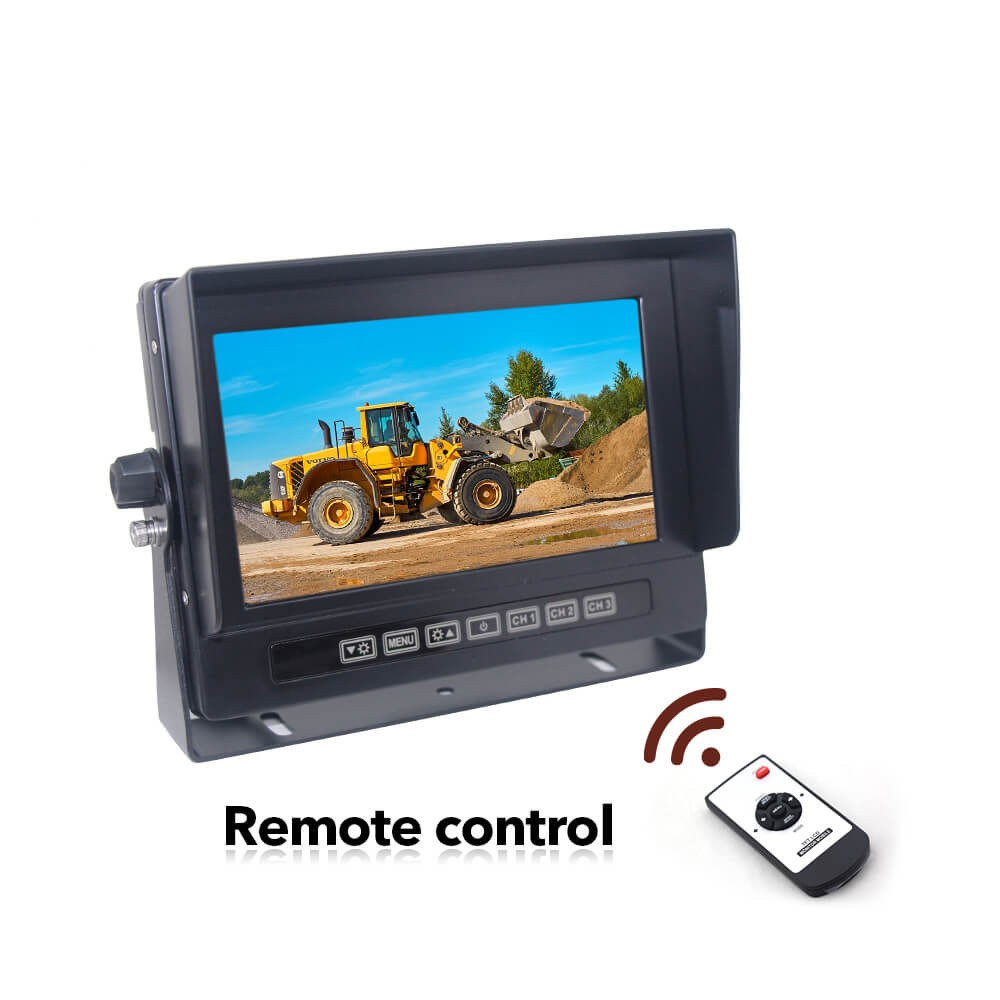

Full-function remote control
Multi-language settings
Horizontal mirror image switching; Image flip;
DC 12-24V wide voltage
AUTO adaptation PAL / NTSC system
| Waterproof Rating | IP68 |
| Screen Type & Size | 7 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up-85°, Down-85°, Left/Right-85° |
| Video Input | Support 3CH AHD 1080P/960P/720P/CVBS Mixed Video Signal Inpu |
| OSD Menu | Image Setting, Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Trigger | 3CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |
| OEM&ODM Customization | Bracket/Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
