Aotop offer the best wireless magnetic WIFI backup camera, which can conveniently view the situation behind the vehicle on the mobile phone, with a wireless transmission distance of 25M. Built-in 6400Mah battery, can work continuously for 32 hours. Features High-quality image, night vision, IP67 waterproof, etc. Magnetic installation is fast to install, and is an ideal choice for improving the reversing safety of commercial vehicles! If you need to know more, please contact sales@aotop.com!
PRODUCT FEATURES
640*480 (0.6 Million) resolution / AHD optional

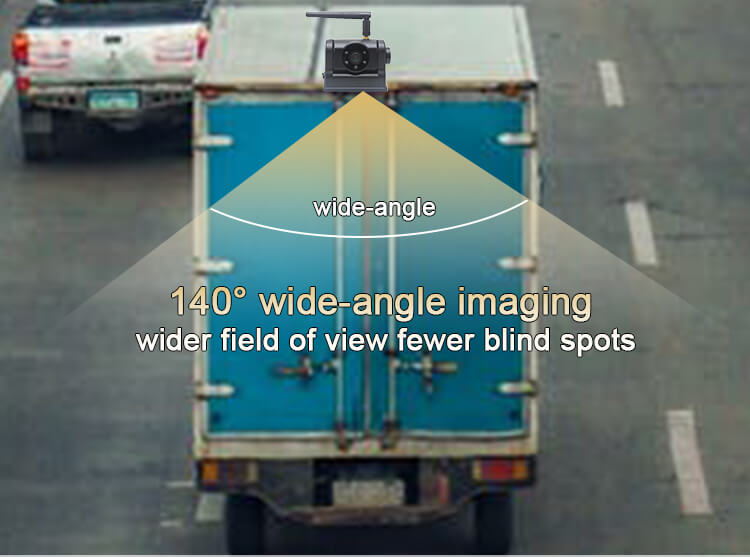

140° wide angle view
CMOS 1/4″ image sensor
Built-In 6400Mah battery

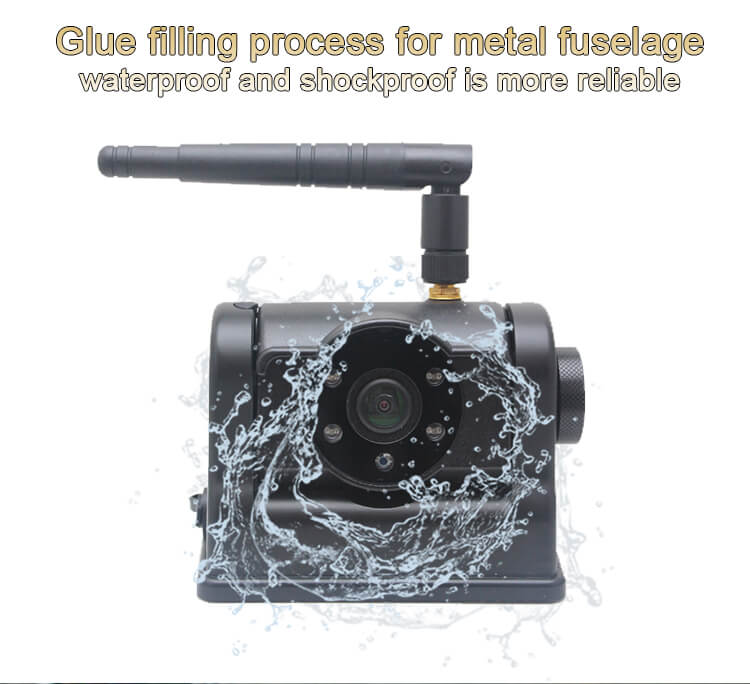

IP67 waterproof rated
4pcs IR LED night vision lights
Mobile phone APP connection (Android & IOS)
25M WI-FI transmits video signals (MAX. 20Mb/s)
| Resolution | 640*480 (0.6 Million) |
| Image Sensor | CMOS 1/4" |
| Viewing Angle | 140 degree |
| Transmission Distance | Normal wifi distance, 25M in open distance |
| System | N/P Automatically |
| Spread Spectrum | FHSS(Adaptive frequency hopping) |
| Transmission Bandwidth | 20Mbps (Max) |
| Battery Capacity | 6400mA |
| Battery Level Display | Yes, 4 LED lights |
| Battery Charging Time | DC5.5 12-24V/6H |
| Working Time | Daytime/32H, Night Vision/18H |

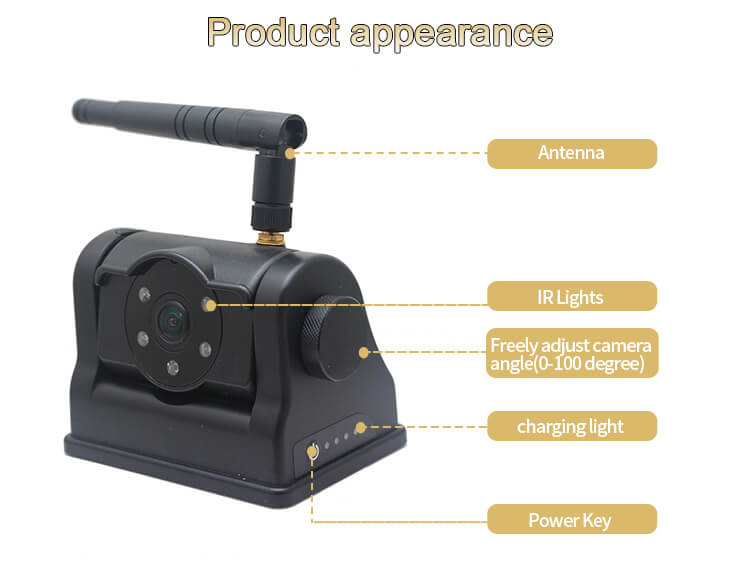

| Camera Adjustable Angle | 0-100 degree |
| Frequency | 2400-2483.5MHZ |
| ON/OFF Mode | Long press to ON/OFF |

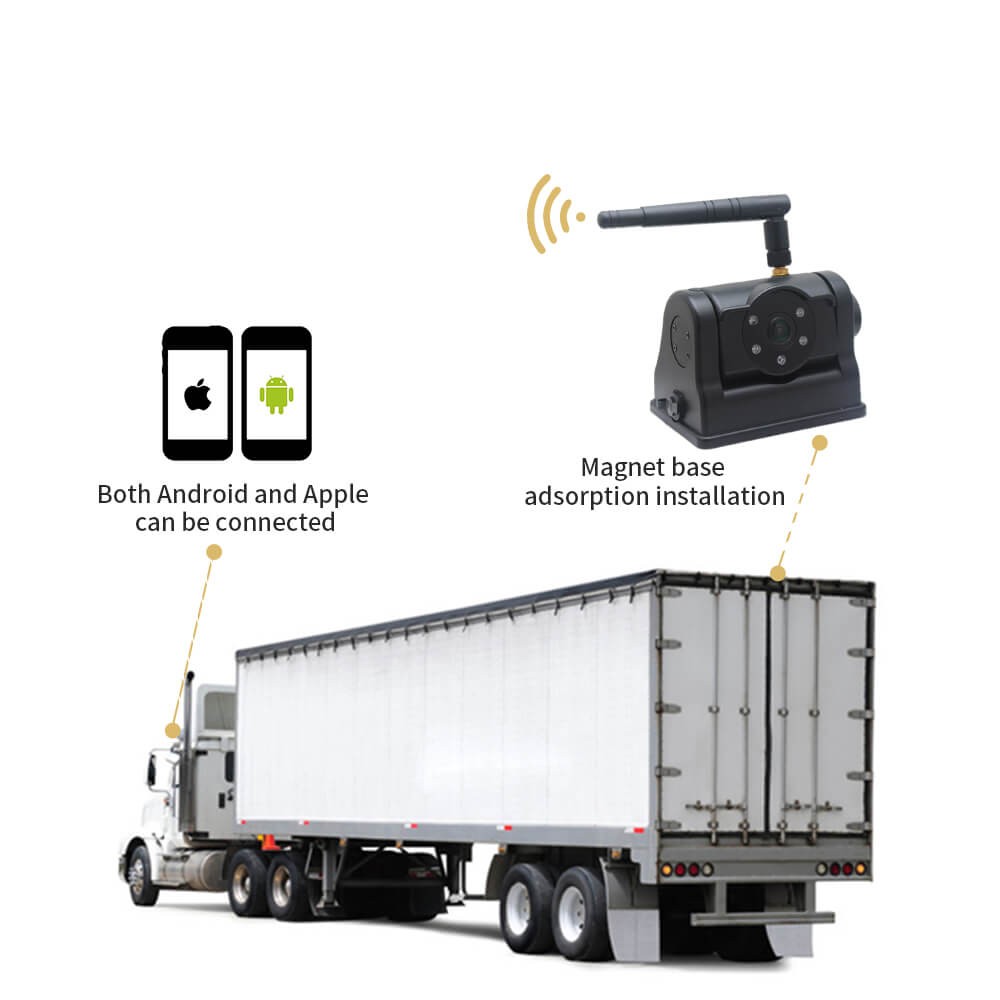

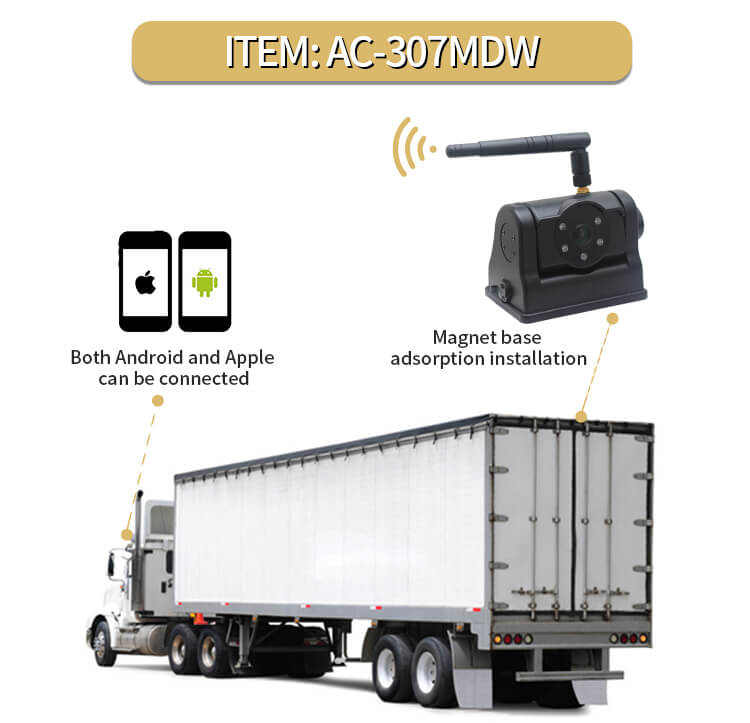

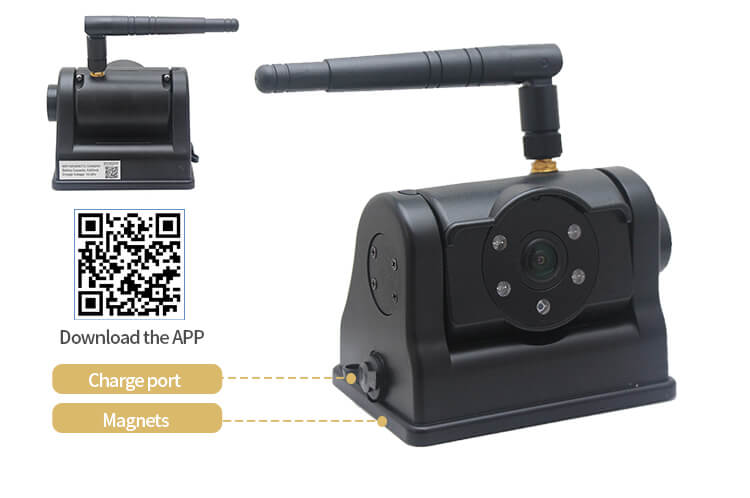

| Installation Mode | Magnet base adsorption installation |
| Parking Guide Line | ON/OFF Switchable |
| Night Vision | Support |
| SNR | 46.5dB |
| Waterproof level | IP67 |
| Transmitting sensitivity | -89 dBm |
| Material | Black aluminium alloy |
| Shockproof Level | 4G |
| Compatible System | IOS / Android |
| Operation Temperature | –20℃ ~ 70℃, RH95%MAX |
| Storage Temperature | –30℃ ~ 85℃, RH95%MAX |
| Attachment | DC5.5 male power cable, 5DB antenna, car charger |
