R46 12.3 Inch Electronic Mirror Monitor Camera System For Truck Bus

R46 12.3 Inch Electronic Mirror Monitor Camera System For Truck Bus

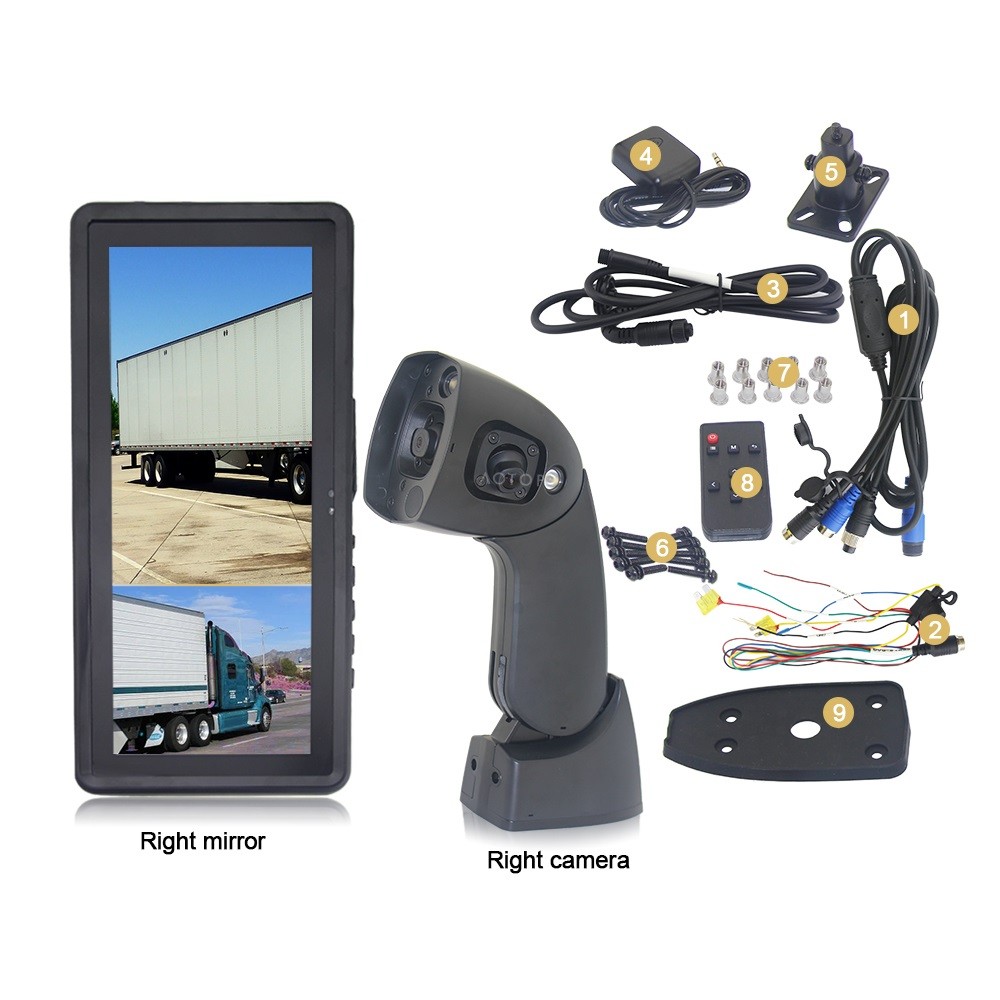

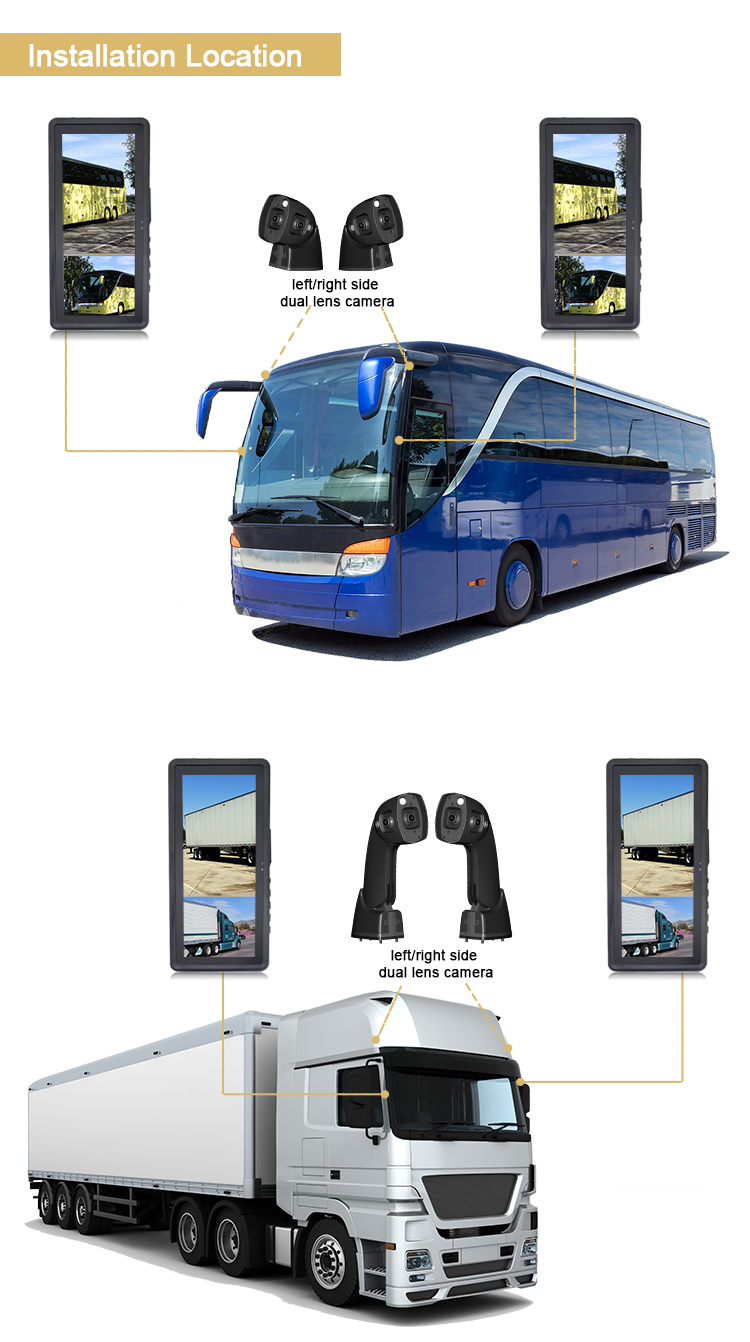

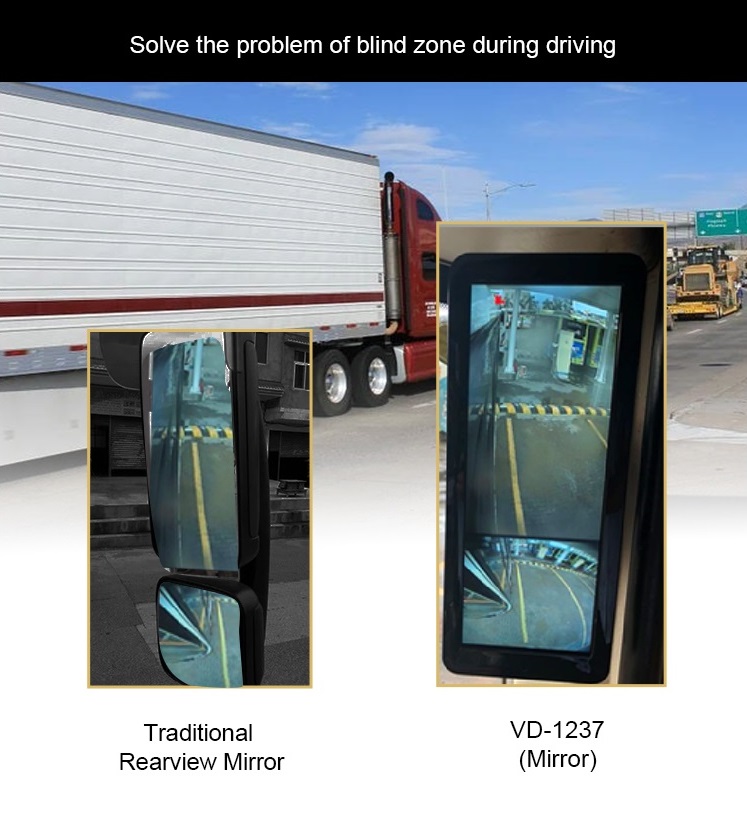

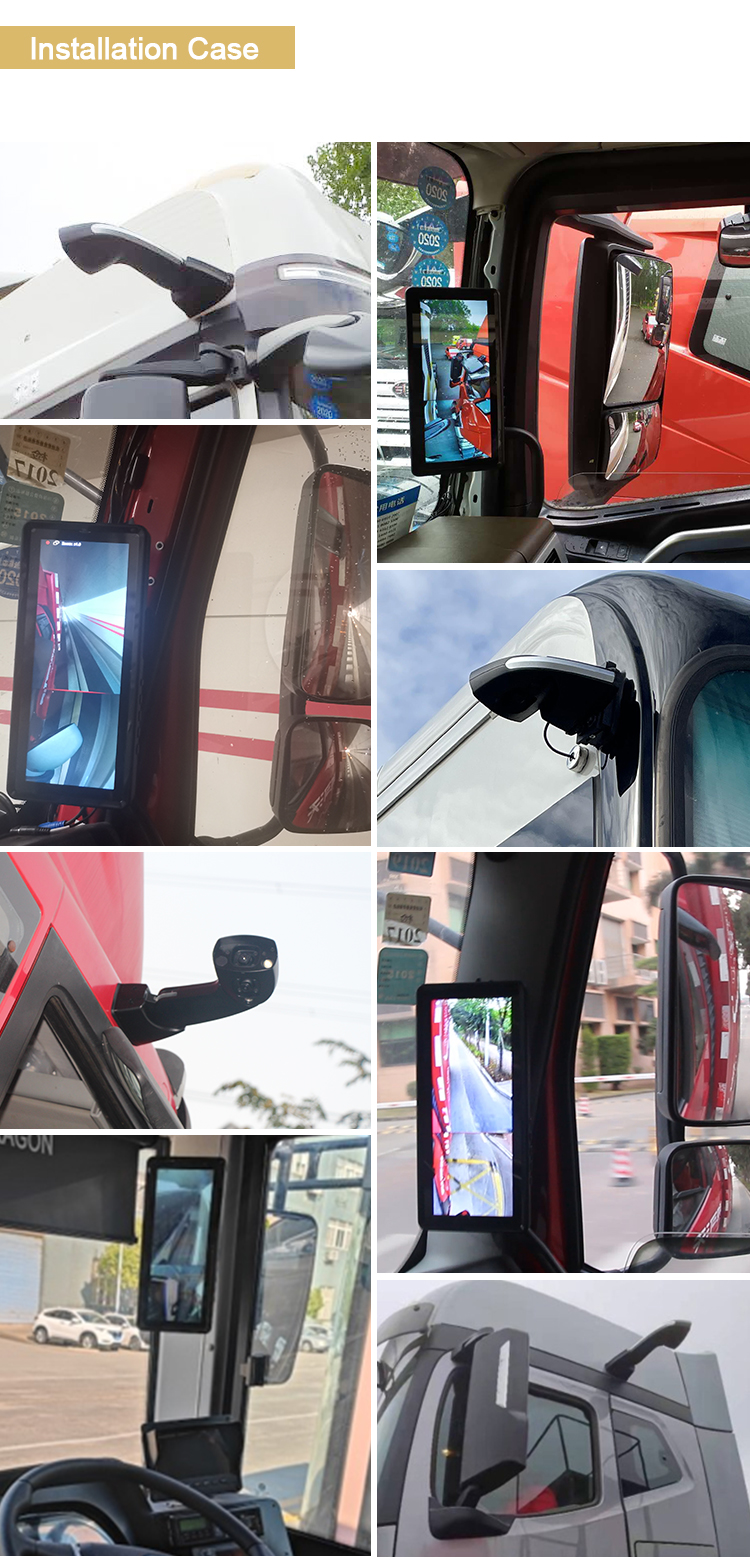

Aotop's electronic mirror monitor camera system consists of a 12.3 inch HD dual split screen monitor and dual 1080P lens long/short arm cameras. The long-arm camera system is suitable for trucks and the short-arm camera system is suitable for buses. It can effectively expand the viewing angle on both sides of the vehicle, cover blind spots, and has good night vision sensitivity, making it easier to adapt to complex weather conditions. The 12.3-inch electronic monitor is installed on the A & B pillars. Compared with traditional mirrors, the side view is wider and clearer, not affected by various extreme weather conditions, and more professional in ensuring driving safety.

PRODUCT FEATURES

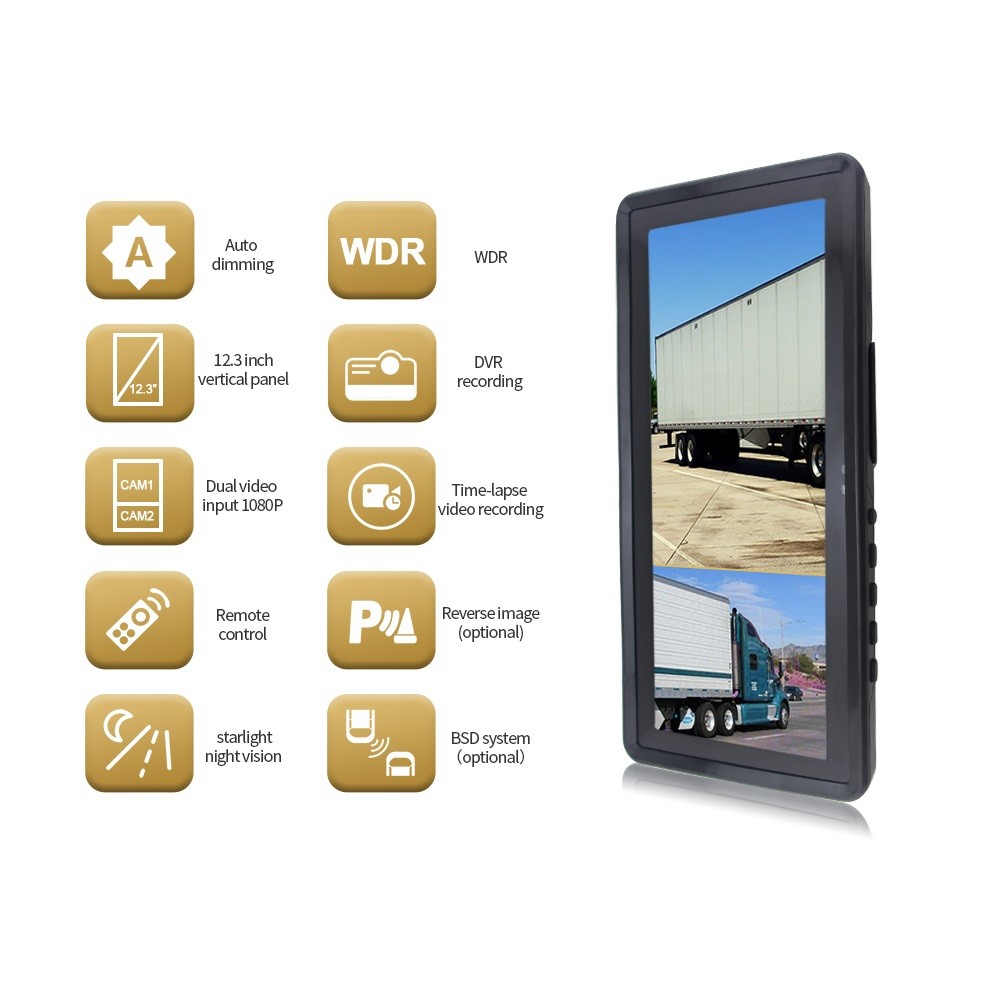

12.3 Inch Monitor Features

1920*720 HD IPS LCD Vertical Screen; AUTO Dimming;
Dual Split View Mode (Camera Dual Lens Image Display)
2CH HD 1080P Video Signal Input
5 Mechanical Keys On The Panel

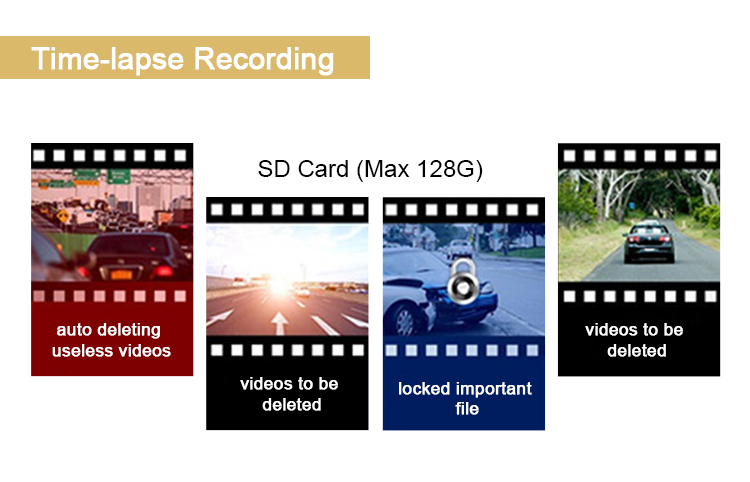

Built-In 128GB Memory Card (DVR Recorder); Time-Lapse Video Recording;
Built-in G-Sensor, Support G-Sensor Alarm Recording Triggered By Collision Detection;
Full-Function Remote Control
Multi-Language Settings
Horizontal Mirror Image Switching

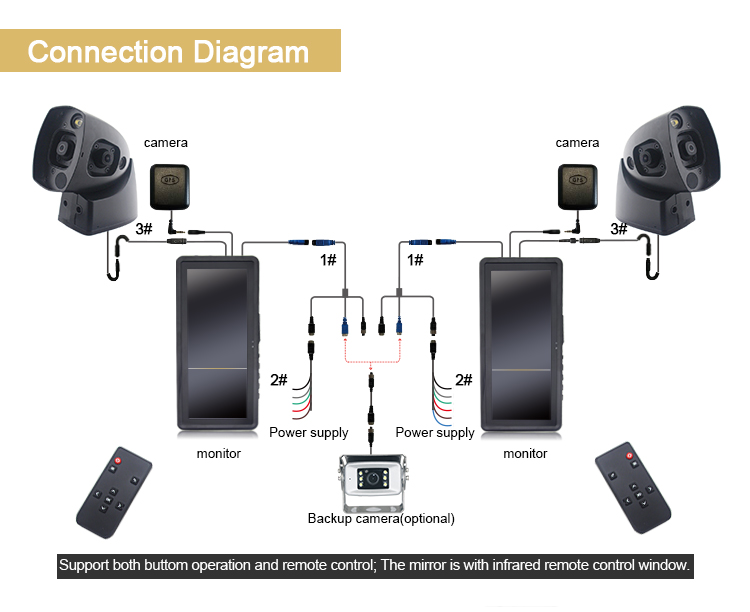

Optional Reversing Image Can Be Added To The System With An Additional Reversing Camera
Optional Blind Spot Detection Function

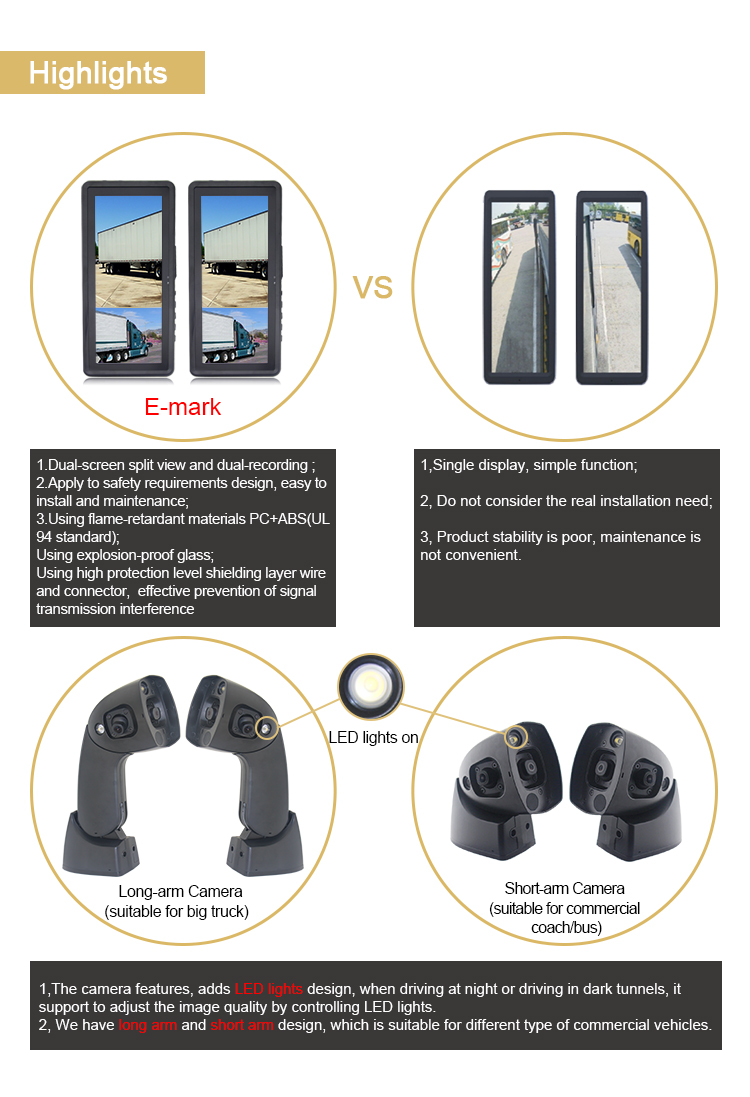

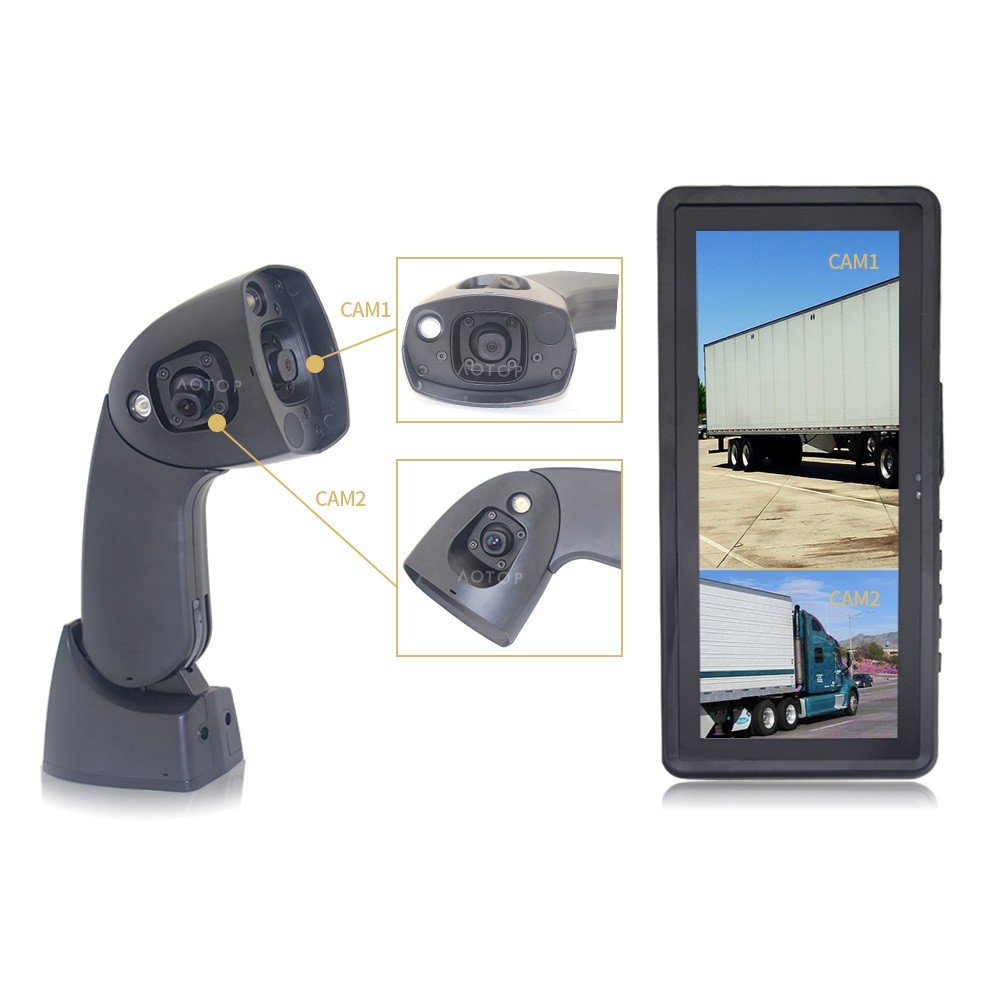

Long / Short Arm Camera Features

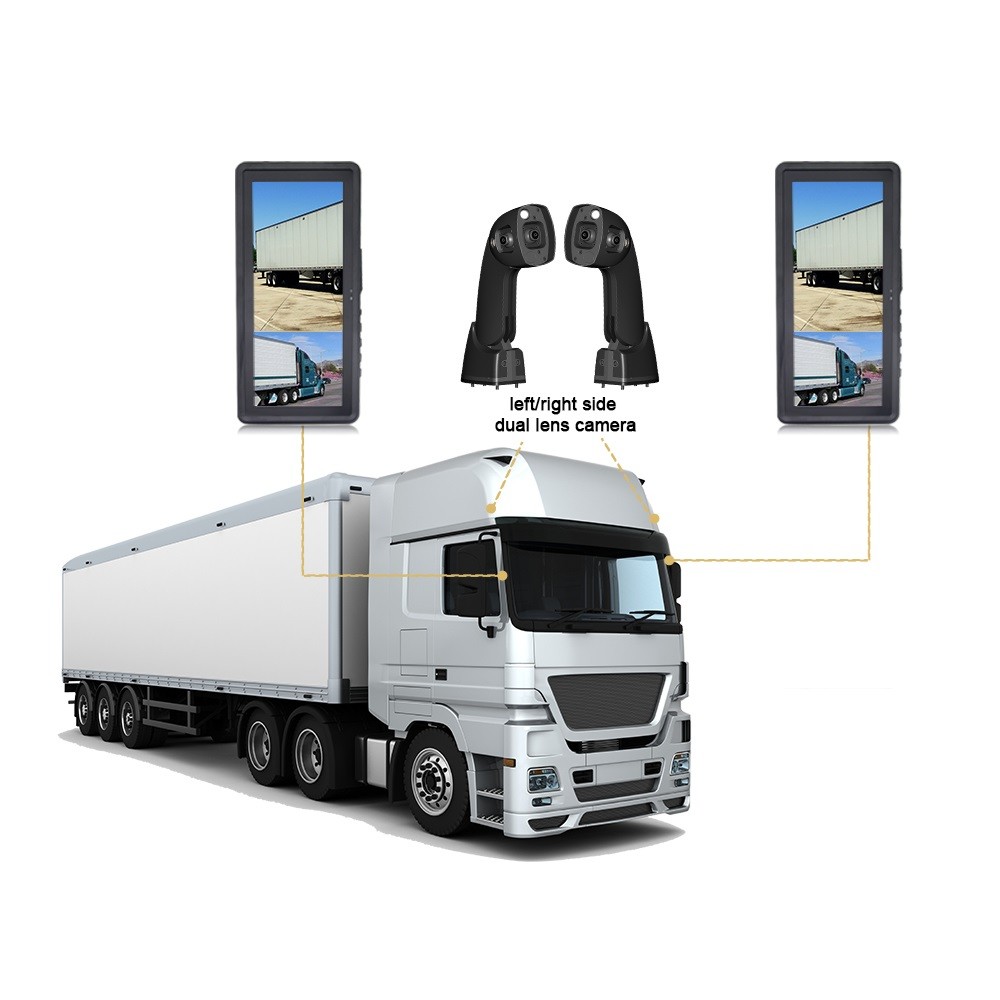

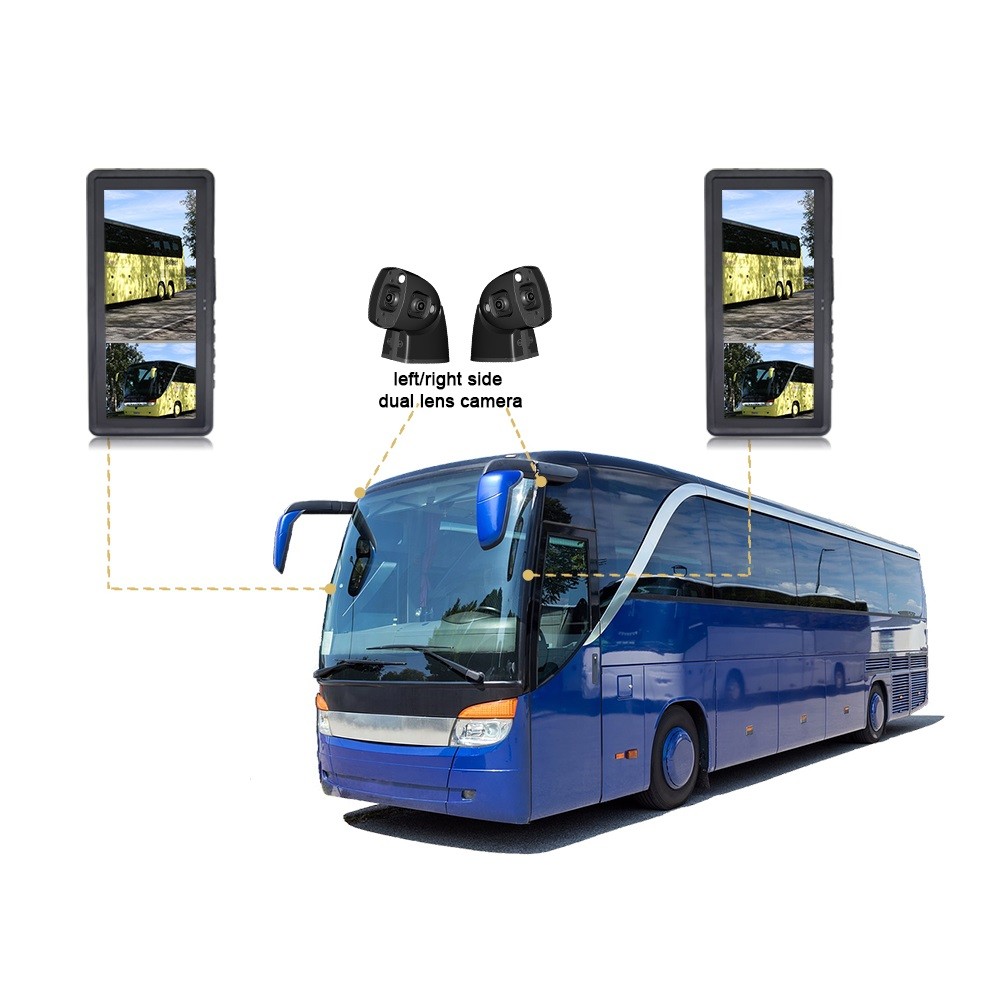

Long Arm Camera For Trucks; Short Arm Camera For Buses;
1920*1080 High Definition Resolution; 30fps;
IP69K Waterproof; HD Night Vision Function;

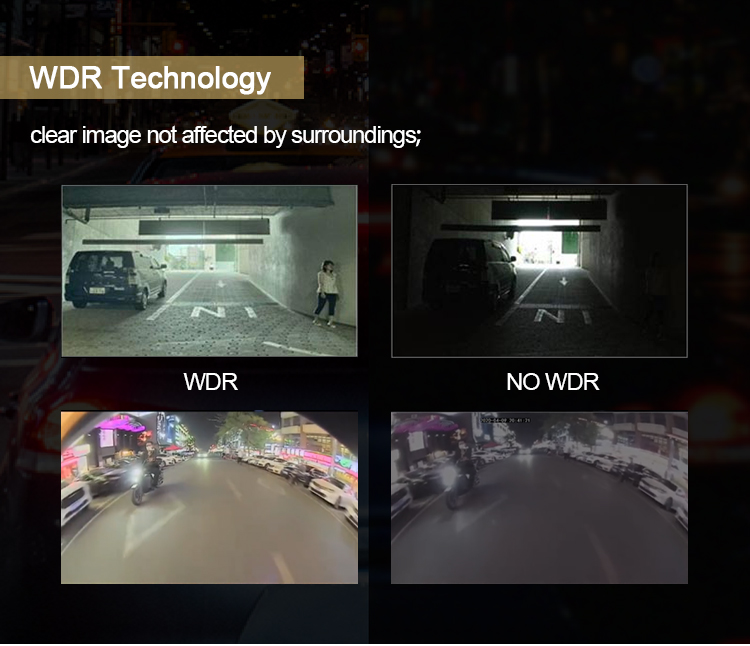

WDR/HDR, Support Image Distortion Correction

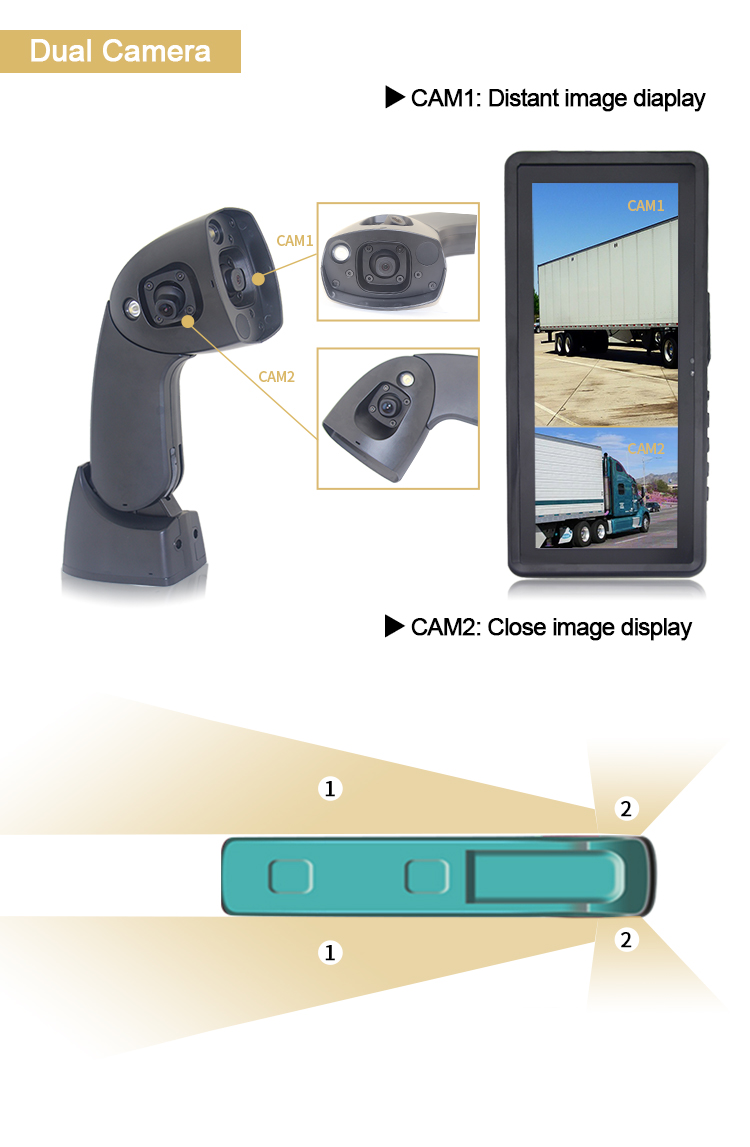

Dual Lens Design 2CH Video Output; Distant View Lens: 83° (H)*50° (V);
Nearby View Lens: 120° (H)*65° (V);
PC+ABS / Plastic Injection Molding / Anti-Flaming UL94

System	RTK OS
Locating	External GPS Locating Module
Microphone	1CH Digital Denoising Silicon Microphone
Speaker	2W
Triggers	3CH
Screen Size	12.3 Inch LVDS LCD Screen
Resolution	Vertical 1920*720
Screen View Angle	Up, Down, Right, Left are All More Than 170°
Material Of Housing	PC+ABS, Plastic Injection Molding (Anti-flaming UL94)
Material Of Bracket	Aluminum Alloy-Decast, 304 Stainless Steel-Stamping
Mirror Adjustment Torque	Adjust Manually 1.2~1.7 (N•m)
Mirror Material	Sio2 glass
Mirror Type	Flat
Radius Of Curvature	∞
Keys	5 Mechanical Keys
SD Card Slot	Built-in 128GB Memory Card
Power Supply	Vehicle Battery (Fuse Box)
Working Voltage	(B+：+12/24V, ACC：+12/24V, GND：Ground)
Max. Current	<2A (12V) / <1A (24V)
Stand By Current	<5mA
Overvoltage & Overcurrent Protection	Yes, Wire Fuse
Reverse Polarity Protection	Yes
WIFI	IEEE 802.11
Nearby View Camera	1920*1080, Horizontal 120°, Vertical 65°
Distant View	1920*1080, Horizontal 83°, Vertical 50°
FPS	30fps
Image Sensor	1/3" CMOS
Resolution	1920(H)*1080(V)
ISP	WDR/HDR, Supprort Image Distortion Correction
DVR Video Format	Nearby View 1080P, Distant View 1080P
Screen AUTO Dimming	Yes, Automatically According To The Ambient Light
LED AUTO Control	Yes, Automatic Adapting According To The Vehicle Lighting
Camera AUTO heating	Yes, Controlled By Temperature Sensor Of Camera
Reversing Response Time	<3s
Operating Temperature	-30°c~+70°c
Storage Temperature	-40°c~+85°c
Storage Humidity	0%~90%
